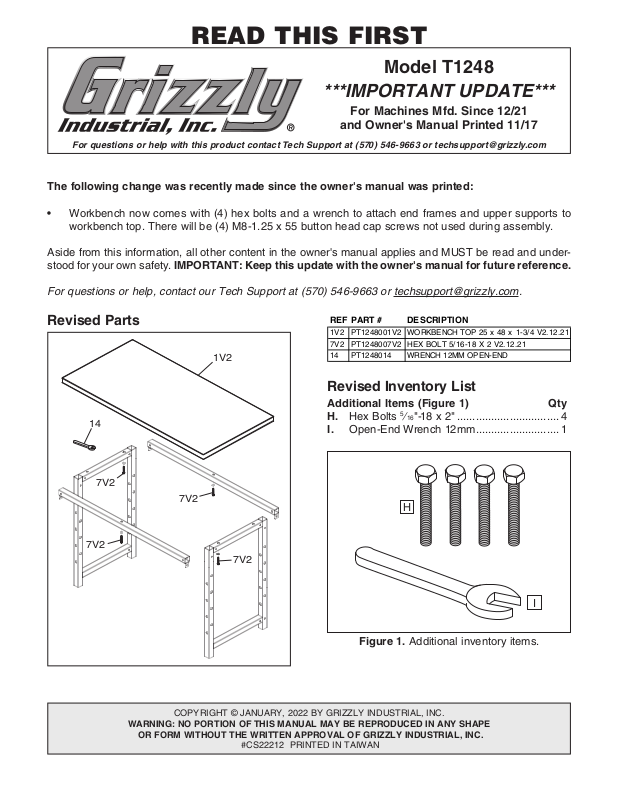

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
The following change was recently made since the owner's manual was printed:
• Workbench now comes with (4) hex bolts and a wrench to attach end frames and upper supports to
workbench top. There will be (4) M8-1.25 x 55 button head cap screws not used during assembly.
Aside from this information, all other content in the owner's manual applies and MUST be read and understood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.
For questions or help, contact our Tech Support at (570) 546-9663 or techsupport@grizzly.com.

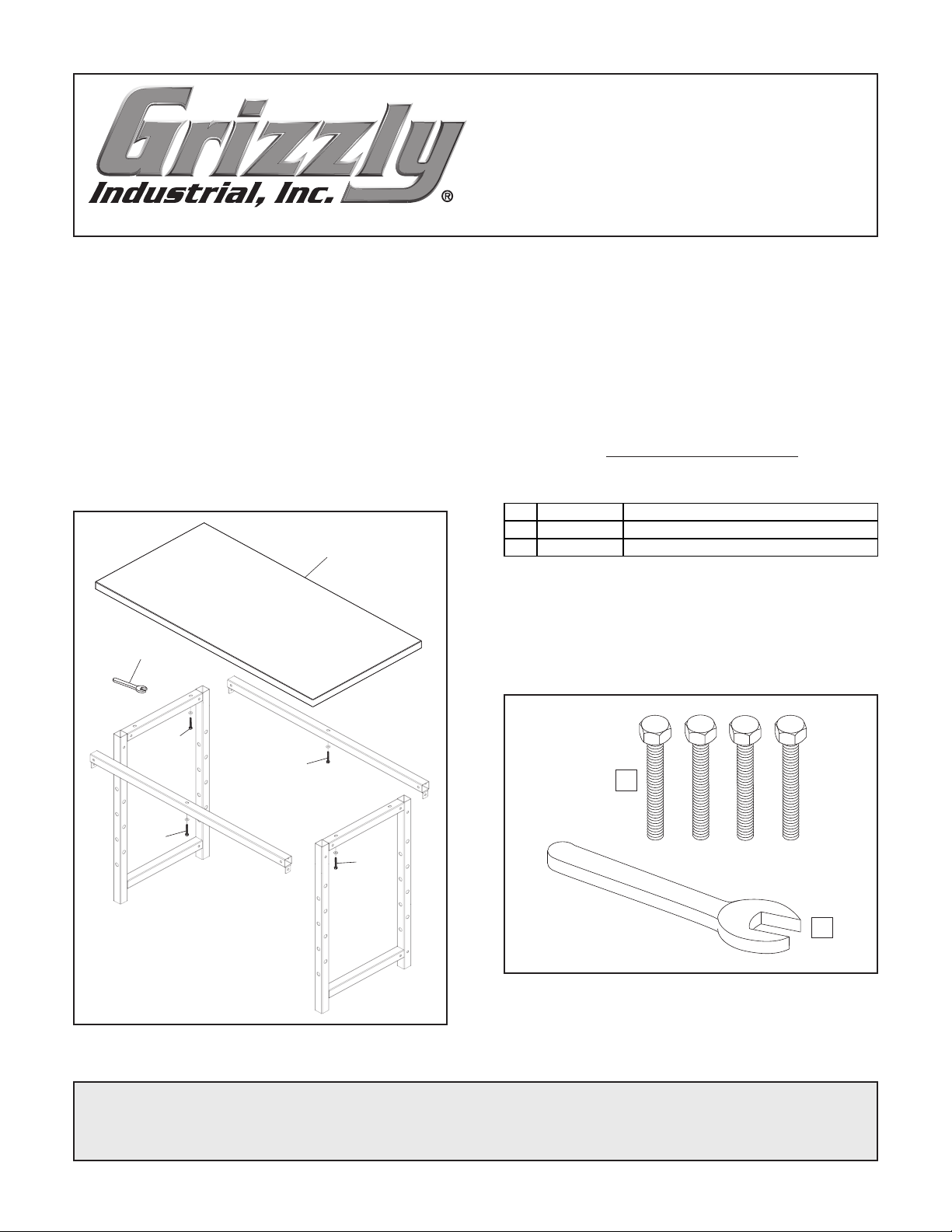

Revised Parts
1V2 PT1248001V2 WORKBENCH TOP 25 x 48 x 1-3/ 4 V2.12. 21
7V2 PT1248007V2 HEX BOLT 5/16-18 X 2 V2.12.21
1V2
14PT1248014WRE NCH 12 MM OP E N-E ND
14
7V2
7V2
7V2
7V2
Revised Inventory List
Additional Items (Figure 1) Qty
H. Hex Bolts 5⁄16"-18 x 2" ................................. 4
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#CS22212 PRINTED IN TAIWAN
Page 2
(Replaces Page 2 in Manual)

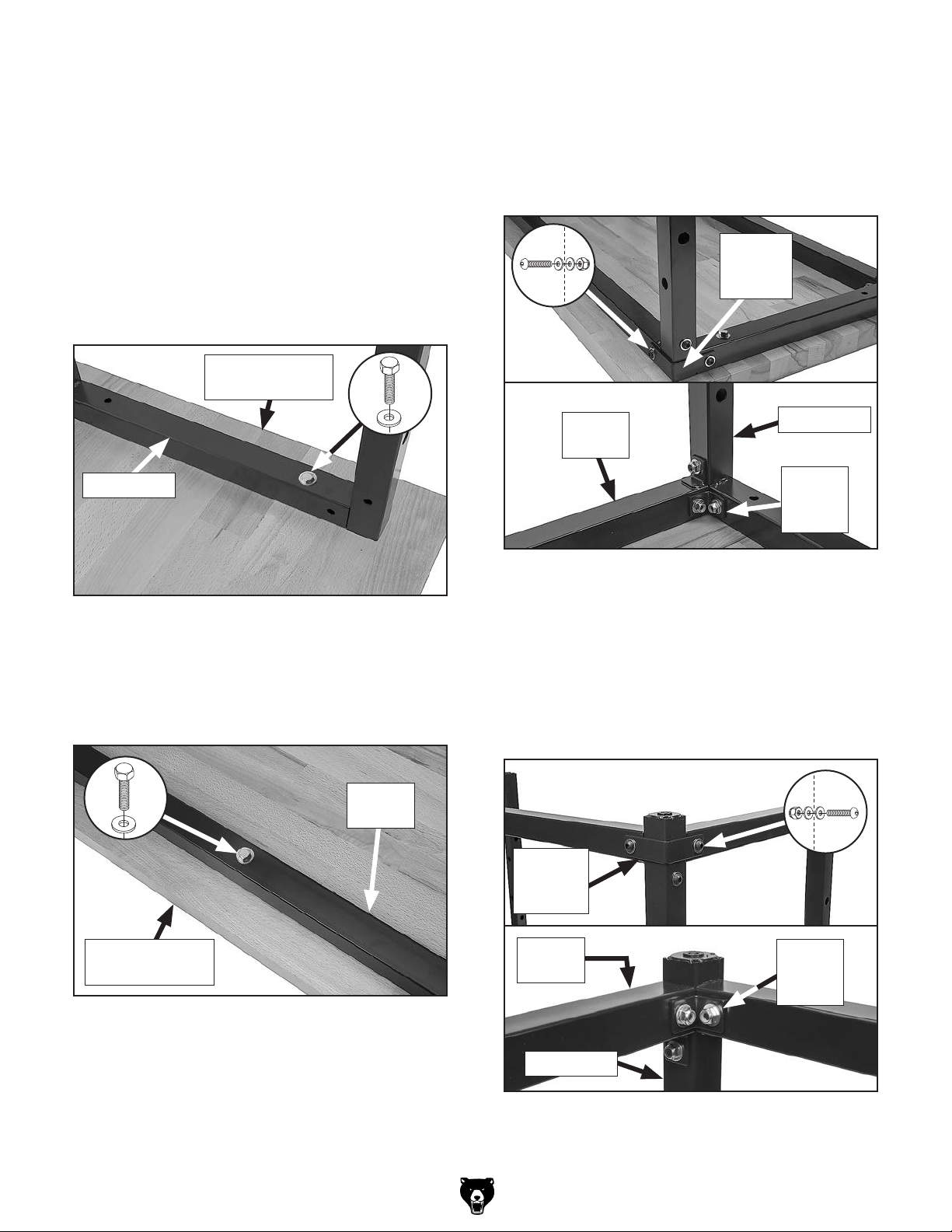

Assembly
Lay workbench top upside-down on a
1.
protected surface, such as cardboard or a
blanket.
Note: Bottom-side of workbench top has
threaded holes.
Attach each end frame to workbench top with
2.
(2) 5⁄16"-18 x 2" hex bolts and (2) 8mm flat
washers (see Figure 2). DO NOT fully tighten
fasteners yet.
End of
Workbench Top
End Frame
x 2
4. Secure end frames and upper supports with
(4) external corner braces and (4) internal
corner braces, using (12) M8-1.25 x 55 button head cap screws, (24) 8mm flat washers,
and (12) M8-1.25 lock nuts (see Figure 4).
DO NOT fully tighten fasteners yet.
External
Corner
x 12
Upper
Support
Brace
End Frame
Internal
Corner
Brace
Figure 2. End frame attached to workbench top.
Attach each upper support to workbench top
3.
with (2) 5⁄16"-18 x 2" hex bolts and (2) 8mm flat
washers (see Figure 3). DO NOT fully tighten
fasteners yet.
x 2
Side of
Workbench Top
Figure 3. Upper support attached to workbench
top.
Upper
Support
Figure 4. End frame and upper support secured
together with corner braces.
Secure end frames and lower support with
5.
(2) external corner braces and (2) internal
corner braces, using (6) M8-1.25 x 55 button head cap screws, (12) 8mm flat washers,
and (6) M8-1.25 lock nuts (see Figure 5).
DO NOT fully tighten fasteners yet.
x 6
External
Corner
Brace
Lower
Support
Internal
Corner
Brace
-2-
End Frame
Figure 5. End frame and lower support secured
together with corner braces.
Model T1248 (Mfd. Since 12/21)
Page 3

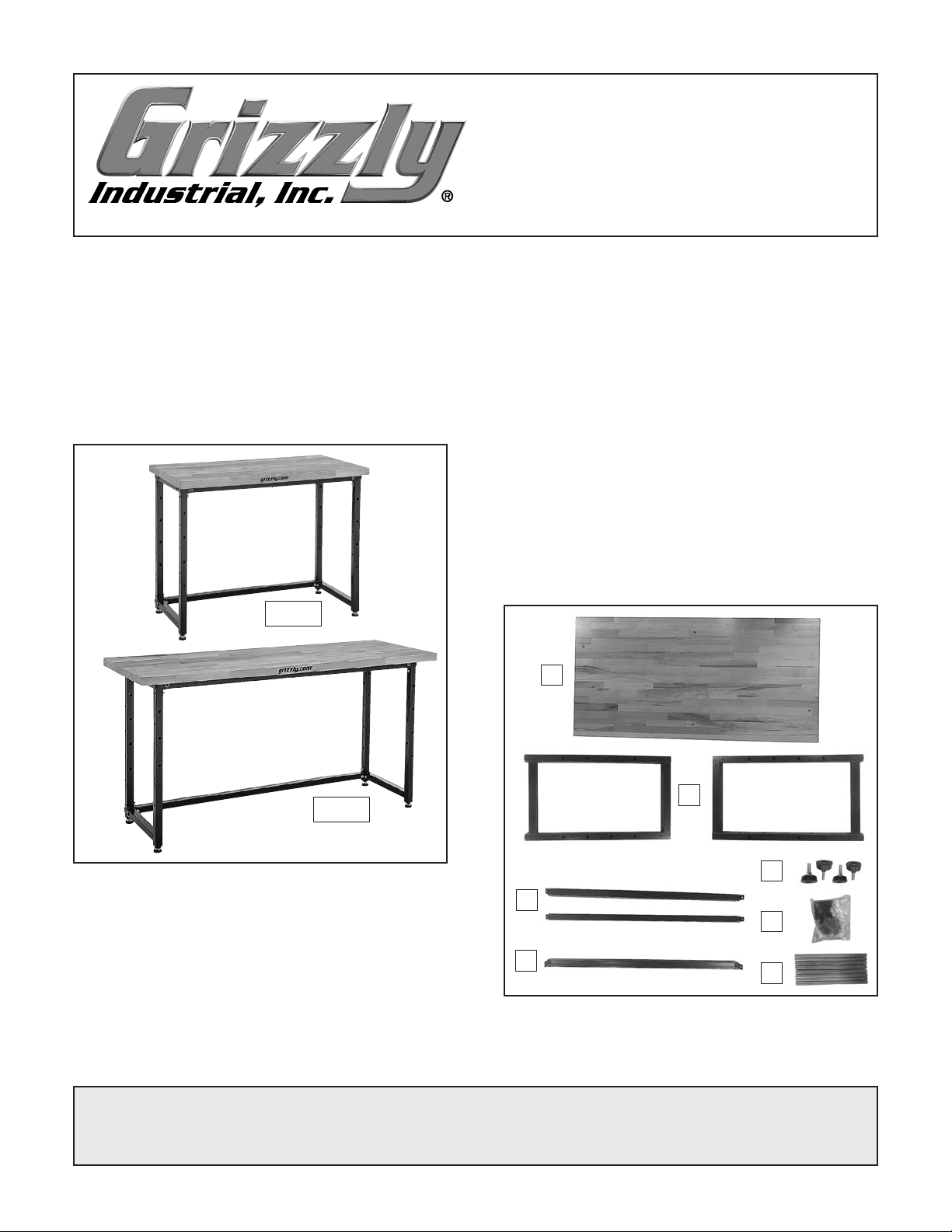

MODEL T1248/T1249
HEAVY-DUTY
BEECH WORKBENCH
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
These workbenches are designed to be used with
chairs or stools and double as a desk, making
them ideal for close-in detail work such as soldering, assembly work, gunsmithing, etc. Featuring a
solid beechwood top, all-steel frame construction,
and re-inforced corners —rock-solid and built to
last a lifetime.
T1248
Inventory
Description Qty
A. Workbench Top .......................................... 1
B. End Frames ................................................ 2
C. Upper Supports .......................................... 2
D. Lower Support ............................................ 1
E. Rubber Feet M10-1.5 x 35 .......................... 4
F. Hardware Bag ..............................................
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 11/17) #ES19299 PRINTED IN TAIWAN
B
E
C
F
D
Figure 2. Inventory.
G
V1.11.17
Page 4
Assembly
1. Lay workbench top upside-down on a
protected surface, such as cardboard or a
blanket.
Note: Bottom-side of workbench top has
threaded holes.
4. Secure end frames and upper supports with
(4) external corner braces and (4) internal
corner braces, using (12) M8-1.25 x 55 button head cap screws, (24) 8mm flat washers,
and (12) M8-1.25 lock nuts (see Figure 5).
DO NOT fully tighten fasteners yet.
2. Attach each end frame to workbench top with
(2) M8-1.25 x 55 button head cap screws and
(2) 8mm flat washers (see Figure 3). DO NOT
fully tighten fasteners yet.
End of
Workbench Top
End Frame
Figure 3. End frame attached to workbench top.
3. Attach each upper support to work-
bench top with (2) M8-1.25 x 55 button
head cap screws and (2) 8mm flat washers (see Figure 4). DO NOT fully tighten
fasteners yet.
x 2
External
Corner
x 12
Upper
Support
Figure 5. End frame and upper support secured
together with corner braces.
5. Secure end frames and lower support with
(2) external corner braces and (2) internal
corner braces, using (6) M8-1.25 x 55 button head cap screws, (12) 8mm flat washers,
and (6) M8-1.25 lock nuts (see Figure 6).
DO NOT fully tighten fasteners yet.
Brace
End Frame
Internal
Corner
Brace
x 2
Side of
Workbench Top
Figure 4. Upper support attached to workbench
top.
-2-
Upper
Support
x 6
External
Corner
Brace
Lower
Support
End Frame
Figure 6. End frame and lower support secured
together with corner braces.
Model T1248/T1249 (Mfd. Since 11/17)
Internal
Corner
Brace
Page 5

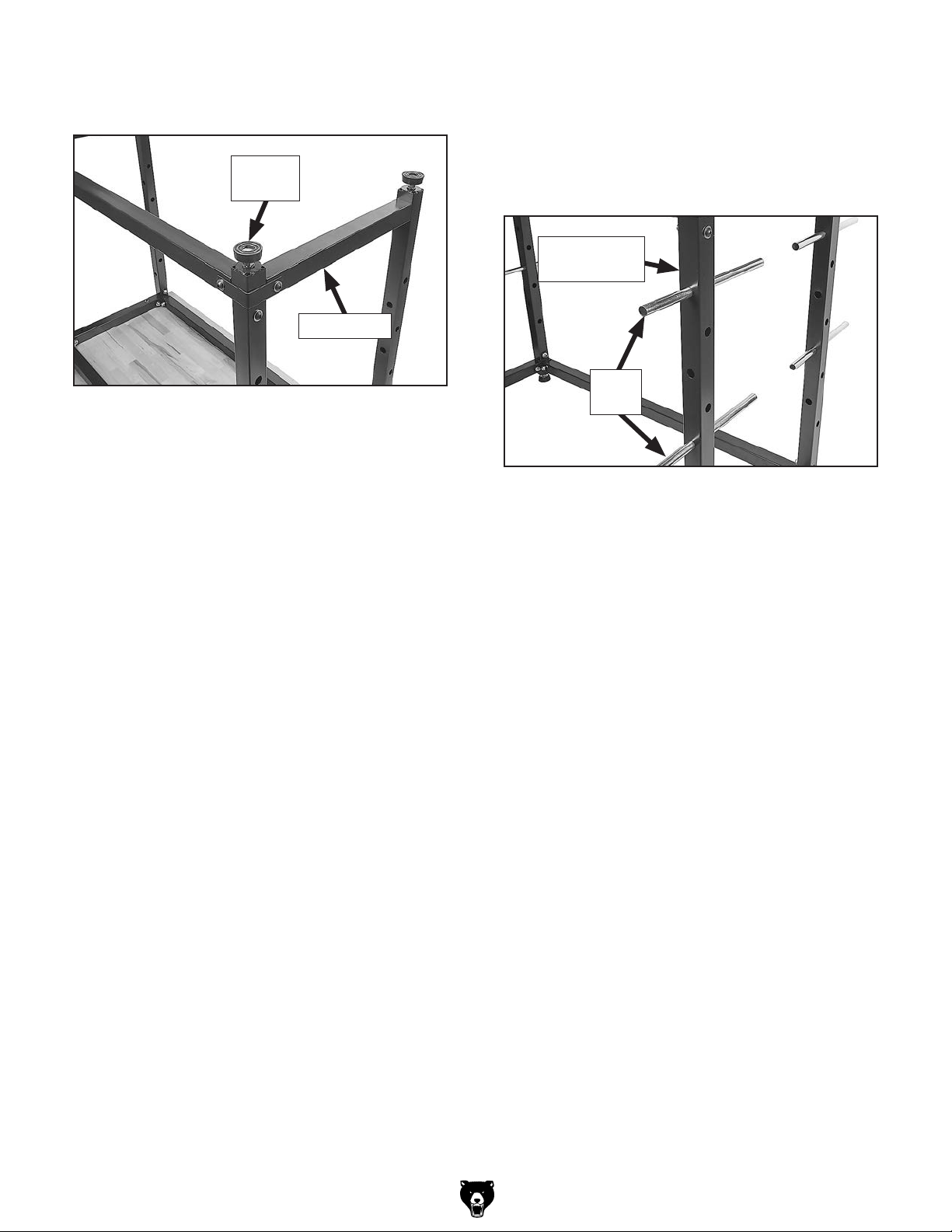

6. Thread (4) rubber feet into bottoms of end
frames (see Figure 7).
Rubber
Foot
End Frame
Figure 7. Adjustable feet attached.
7. Turn workbench upright and make sure it is
centered over end frames and supports (not
leaning to one side or the other), then fully
tighten all fasteners.
9. Insert steel bars through end support frames
as desired (see Figure 8).
Note: End frames have several
holes, allowing for numerous shelving and
racking configurations.
End Support
Frame
Steel
Bars
Figure 8. Steel bars inserted.
8. Adjust feet as necessary to ensure work-
bench sits firmly on ground and does not
rock.
Option: Lay a level across workbench from
side-to-side and end-to-end when adjusting
feet.
Model T1248/T1249 (Mfd. Since 11/17)
-3-
Page 6

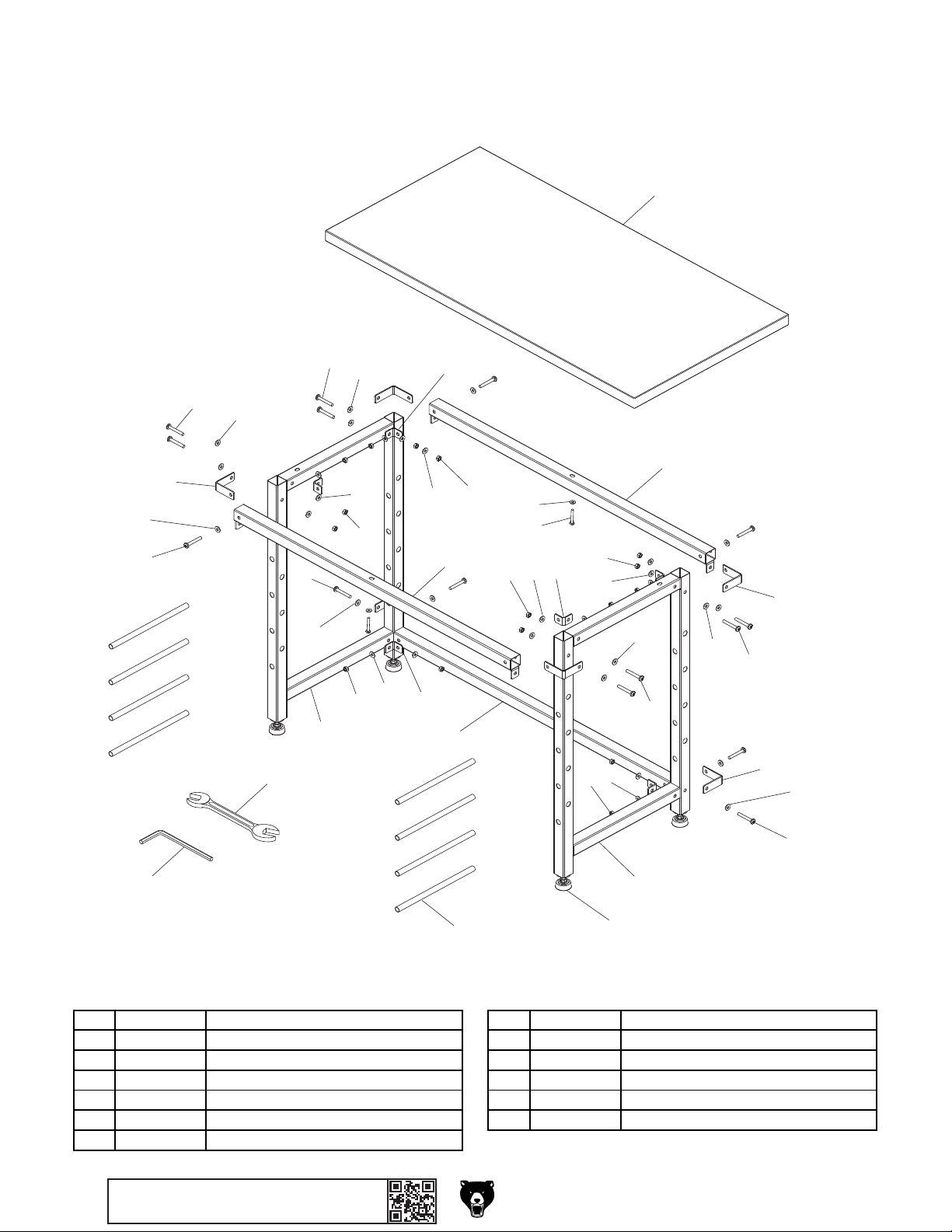

T1248 Parts Breakdown
1
7
8
7
8
5
8
7
7
12
8
9
8
8
9
2
6
3
9
8
3
6
4
8
7
9
6
8
9
8
5
8
7
8
9
8
7
5
8
7
13
11
REF PART #DESCRIPTIONREF PART #DESCRIPTION
1PT1248001WORKBENCH TOP 25 x 48 x 1-3/48PT1248008FLAT WASHER 8MM
2PT1248002END FRAME9PT1248009LOCK NUT M8-1.25
3PT1248003UPPER SUPPORT10PT1248010RUBBER FOOT M10-1.5 X 35
4PT1248004LOWER SUPPORT11PT1248011STEEL BAR 5/8 X 11-3/4
5PT1248005EXTERNAL CORNER BRACE12PT1248012WRENCH 13/14MM OPEN-ENDS
6PT1248006INTERNAL CORNER BRACE13PT1248013HEX WRENCH 5MM
7PT1248007BUTTON HD CAP SCR M8-1.25 X 55
-4-
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
Model T1248/T1249 (Mfd. Since 11/17)
2
10
Page 7

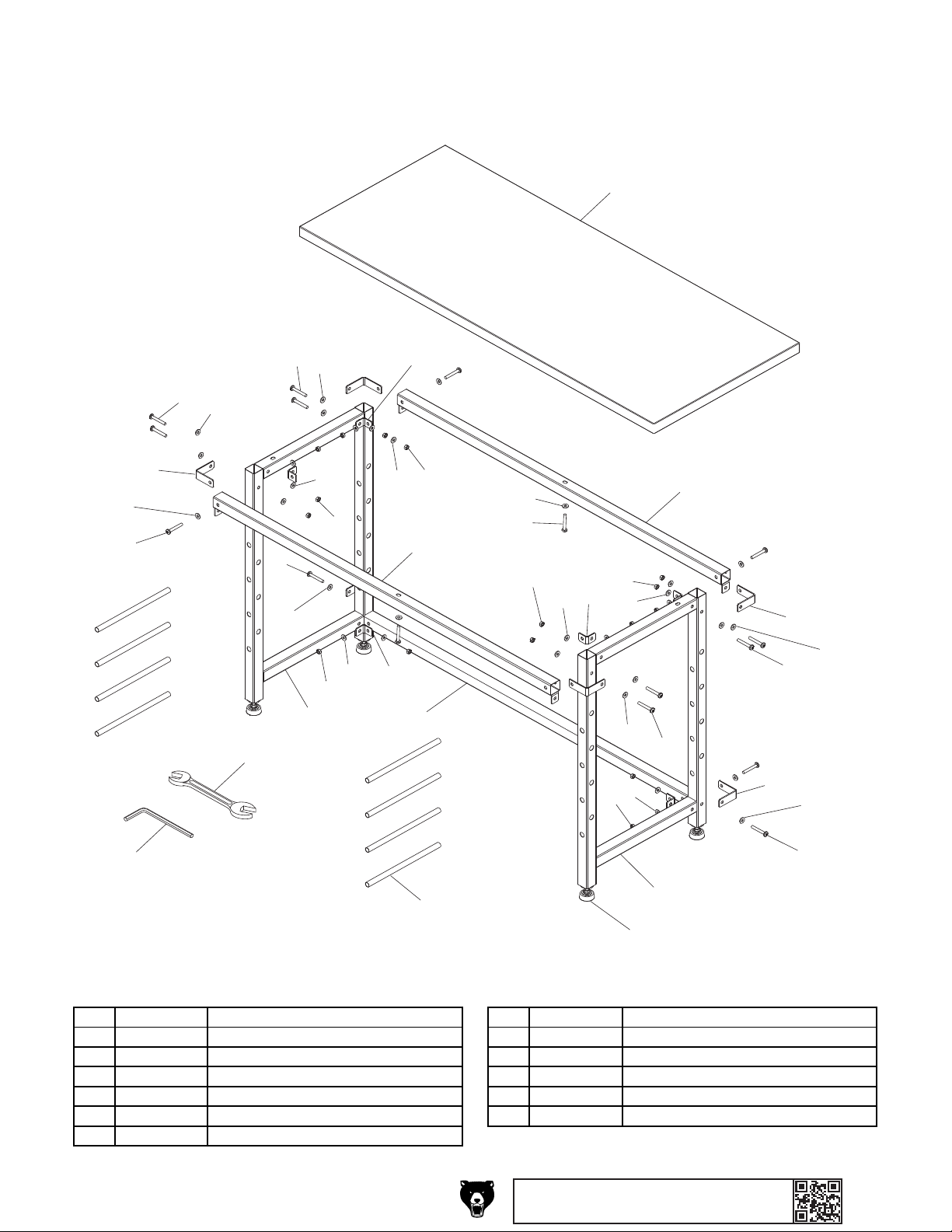

T1249 Parts Breakdown
1
7
8
7
8
5
8
8
9
7
6
8
9
8
3
7
3
7
9
8
8
9
6
8
5
8
8
6
7
9
2
4
8
12
9
7
8
5
8
13
7
2
11
10
REF PART #DESCRIPTIONREF PART #DESCRIPTION
1PT1249001WORKBENCH TOP 25 X 72 X 1-3/48PT1249008FLAT WASHER 8MM
2PT1249002END FRAME9PT1249009LOCK NUT M8-1.25
3PT1249003UPPER SUPPORT10PT1249010RUBBER FOOT M10-1.5 X 35
4PT1249004LOWER SUPPORT11PT1249011STEEL BAR 5/8 X 11-3/4
5PT1249005EXTERNAL CORNER BRACE12PT1249012WRENCH 13/14MM OPEN-ENDS
6PT1249006INTERNAL CORNER BRACE13PT1249013HEX WRENCH 5MM
7PT1249007BUTTON HD CAP SCR M8-1.25 X 55
Model T1248/T1249 (Mfd. Since 11/17)
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
-5-
