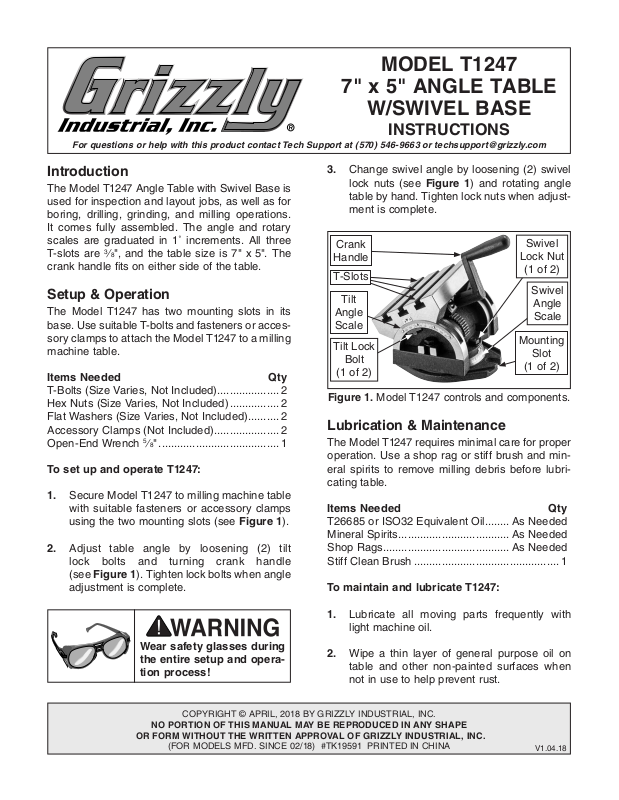

MODEL T1247

7" x 5" ANGLE TABLE

W/SWIVEL BASE

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

The Model T1247 Angle Table with Swivel Base is
used for inspection and layout jobs, as well as for
boring, drilling, grinding, and milling operations.
It comes fully assembled. The angle and rotary
scales are graduated in 1˚ increments. All three
T-slots are
crank handle fits on either side of the table.

3

⁄8", and the table size is 7" x 5". The

Setup & Operation

The Model T1247 has two mounting slots in its
base. Use suitable T-bolts and fasteners or acces­sory clamps to attach the Model T1247 to a milling
machine table.

Items Needed Qty

T-Bolts (Size Varies, Not Included) .................... 2

Hex Nuts (Size Varies, Not Included) ................ 2

Flat Washers (Size Varies, Not Included) .......... 2

Accessory Clamps (Not Included) ..................... 2

Open-End Wrench

To set up and operate T1247:

1. Secure Model T1247 to milling machine table

with suitable fasteners or accessory clamps
using the two mounting slots (see Figure 1).

2. Adjust table angle by loosening (2) tilt
lock bolts and turning crank handle
(see Figure 1). Tighten lock bolts when angle
adjustment is complete.

5

⁄8" ....................................... 1

3. Change swivel angle by loosening (2) swivel
lock nuts (see Figure 1) and rotating angle
table by hand. Tighten lock nuts when adjust­ment is complete.

Crank

Handle

T-Slots

Tilt
Angle
Scale

Tilt Lock

Bolt

(1 of 2)

Figure 1. Model T1247 controls and

Swivel

Lock Nut

(1 of 2)

Swivel

Angle
Scale

Mounting

Slot

(1 of 2)

components.

Lubrication & Maintenance

The Model T1247 requires minimal care for proper
operation. Use a shop rag or stiff brush and min­eral spirits to remove milling debris before lubri­cating table.

Items Needed Qty

T26685 or ISO32 Equivalent Oil........ As Needed

Mineral Spirits .................................... As Needed

Shop Rags ......................................... As Needed

Stiff Clean Brush ............................................... 1

To maintain and lubricate T1247:

1. Lubricate all moving parts frequently with

light machine oil.

Wear safety glasses during
the entire setup and opera­tion process!

COPYRIGHT © APRIL, 2018 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 02/18) #TK19591 PRINTED IN CHINA

2. Wipe a thin layer of general purpose oil on
table and other non-painted surfaces when
not in use to help prevent rust.

V1.04.18

18

REF PART # DESCRIPTION REF PART # DESCRIPTION

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.

T1247 Parts Breakdown

1

16

15

13

12

17

14

13

7

12

16

15

2

3

4

5

3

6

11

10

9

1 PT1247001 TABLE 10 PT1247010 FLAT WASHER 10MM
2 PT1247002 BEARING BLOCK 11 PT1247011 HEX NUT M10-1.5
3 PT1247003 HEX BOLT M6-1 X 18 12 PT1247012 FLAT WASHER 10MM
4 PT1247004 BALL BEARING 6001ZZ 13 PT1247013 HEX BOLT M10-1.5 X 30
5 PT1247005 WORM GEAR SHAFT 14 PT1247014 CONNECTING BASE
6 PT1247006 CRANK HANDLE 15 PT1247015 HEX BOLT M10-1.5 X 30
7 PT1247007 SWIVEL PIN 16 PT1247016 CURVED CLAMPING BLOCK
8 PT1247008 SWIVEL BASE 17 PT1247017 ANGLE BASE
9 PT1247009 T-BOLT M10-1.5 X 30 18 PT1247018 ANGLE SCALE

-2-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

8

T1247 Angle Table w/Swivel Base (Mfd. 02/18)
