Grizzly T1244 User guide

MODEL T1244

ROUTER TABLE

EXTENSION WING

OWNER'S MANUAL

(For models manufactured since 08/23)

COPYRIGHT © MARCH, 2018 BY GRIZZLY INDUSTRIAL, INC., REVISED JULY, 2023 (MN)

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#KB19357 PRINTED IN CHINA

***Keep for Future Reference***

V2. 0 7. 23

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Manual Accuracy
Machine Data Sheet
Contact Info
Identification
Description

................................................................................................................................. 3

........................................................................................................................ 2

................................................................................................................... 2

................................................................................................................................ 2

............................................................................................................................... 3

SECTION 1: SAFETY

Safety Instructions for Machinery
Additional Safety for Router Tables

SECTION 2: SETUP

Unpacking
Needed for Setup
Inventory
Hardware Recognition Chart
Cleanup
Assembling Fence
Installing Extension Wing
Attaching Router to Extension Wing
Dust Collection

SECTION 3: OPERATIONS

Operation Overview.................................................................................................................. 18

Workpiece Inspection
Adjusting Bit Guard
Adjusting Fences

Table Inserts............................................................................................................................. 20

Squaring Fence & Table

Edge Jointing............................................................................................................................ 21

Groove Cutting
Routing Small Stock
Free-Hand Routing

.................................................................................................................................. 7

..................................................................................................................................... 8

.................................................................................................................................... 10

....................................................................................................................... 4

............................................................................................... 4

........................................................................................... 6

......................................................................................................................... 7

....................................................................................................................... 7

...................................................................................................... 9

.................................................................................................................... 11

......................................................................................................... 12

........................................................................................ 15

......................................................................................................................... 17

........................................................................................................... 18

............................................................................................................... 19

.................................................................................................................. 19

...................................................................................................................... 20

.......................................................................................................... 21

......................................................................................................................... 22

................................................................................................................. 23

................................................................................................................... 23

SECTION 4: MAINTENANCE......................................................................................................... 25

Schedule

Cleaning & Protecting

SECTION 5: PARTS

Main

WARRANTY & RETURNS

.................................................................................................................................. 25

.............................................................................................................. 25

....................................................................................................................... 26

.......................................................................................................................................... 26

............................................................................................................. 29

INTRODUCTION

We are proud to offer this document with your
new machine! We've made every effort to be
exact with the instructions, specifications, draw­ings, and photographs of the machine we used
when writing this manual. However, sometimes
we still make an occasional mistake.

Also, owing to our policy of continuous improve­ment, your machine may not exactly match

the manual

the difference between the manual and machine
leaves you in doubt, immediately call our techni­cal support for updates or clarification.

For your convenience, we post all available docu­mentation on our website at

.
Any updates to this document will be reflected on
our website as soon as complete.

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Manual Accuracy

. If you find this to be the case, and

www.grizzly.com

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Email: [e-mail]

Customer Service #: [phone] • To Order Call: [phone] • Fax #: [phone]

MODEL T1244 ROUTER TABLE EXTENSION WING

Product Dimensions:

Weight
Router Table Extension Wing Table Size

Main Specifications:

Mounting Plate Opening Size
Table Inserts
Table Insert Inside Diameters
Fence Board Size (x 2)
T-Slot Size

Dust Port Size................................................................................................................2-1/4 - 2-1/2 in.

-2-

........................................................................................................................................ 53 lbs.

....................................................................................................................................... 3

.................................................................................................................................. 3/4 in.

.....................................................................................11-3/4 x 9-1/4 in.

............................................................................... Solid, 32mm, 37mm

.............................................................................................. 6 x 15-3/4 x 1 in.

MACHINE DATA

SHEET

............................................................................ 16 x 27 in.

Model T1244 (Mfd. Since 08/23)

Identification

To reduce your risk of
serious injury, read this
entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

C D

A

B

H

I

J

K

L

M

I

H

FRONT

E

F

G

N

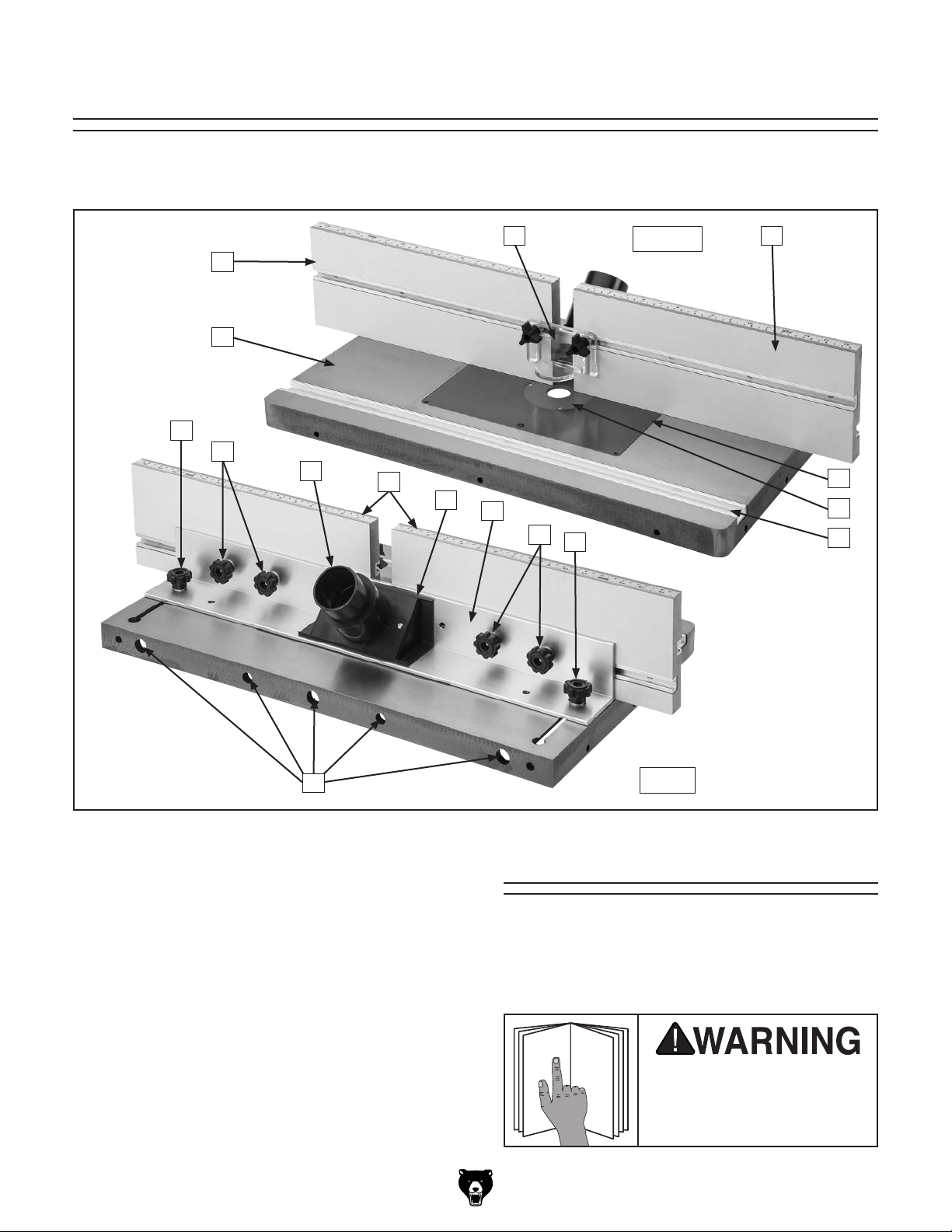

A. Outfeed Fence
B. Router Table Extension Wing
C. Cutter Guard
D. Infeed Fence
E. Router Mounting Plate
F. Table Insert
G. Table T-Slot Insert
H. Fence Bracket Attachment Knobs

Fence Adjustment Knobs

I.
J. 21⁄2" – 21⁄4" Dust Port Adapter

Bi-Directional Scales

K.
L. Dust Hood w/21⁄2" Dust Port
M. Fence Bracket

Mounting Holes

N.

Model T1244 (Mfd. Since 08/23)

REAR

Description

The Model T1244 Router Table Extension Wing is
designed for table saws with 27" tables. Slotted
mounting holes allow the router table extension
wing to be attached to most Grizzly table saws.

using machine.

-3-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

-4-

Model T1244 (Mfd. Since 08/23)

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

Model T1244 (Mfd. Since 08/23)

-5-

Additional Safety for Router Tables

Serious cuts, amputation, entanglement, or death can occur from contact with spinning bit.
Improperly secured bits or spindle parts/fasteners can fly off and strike nearby operators
or bystanders with great force. Flying dust or debris from cutting operation can cause eye
injuries or blindness. To minimize risk of getting hurt or killed, anyone operating router MUST
completely heed hazards and warnings below.

AVOIDING AMPUTATION. To avoid making con-

tact with spinning router bit, never place hands
directly over or in front of bit. As one hand
approaches bit, move it away and over to other
side. Always keep hands at least 6” away from
spinning bit.

SECURING LEVERS AND KNOBS. Never oper­ate router table without first making sure all lock
levers and knobs are tight, and all fence hardware
and guide rails are secure. Otherwise, workpiece
can slip out of alignment while cutting and cause
injury from kickback.

DO NOT FORCE WORKPIECE. Never force
materials past router. Let router bit do work.
Excessive force is likely to result in poor cutting
results and will cause kickback conditions that
could cause serious personal injury.

BLIND CUTTING. Keep router bit on underside
of workpiece when making blind cuts. This will
decrease risk of accidental contact with rotating
bit.

ROUTER BIT ROTATION. Always feed work­piece against rotation direction of bit. Otherwise,
workpiece could be aggressively pulled from your
hands, drawing them into spinning bit.

ROUTER BIT HEIGHT. Keep any unused portion
of bit below the table surface to minimize risk of
your hand contacting rotating bit.

APPROPRIATE WORKPIECES. Danger of kick­back and injury is increased when workpiece
has knots, holes, or foreign objects in it. Warped
stock should be flattened with a jointer before you
shape it with router.

TESTI NG ROTAT I ON. With router disconnected
from power, rotate router spindle to test any new
setup to ensure proper bit clearance before start­ing router.

CUTTING SUPPORT. NEVER cut workpiece
without using a fence, jig, or miter gauge as a
support guide. Otherwise, workpiece could be
aggressively pulled from your hands, drawing
them into spinning bit.

WORKPIECE SIZING. NEVER use workpiece
shorter than 6” without special fixtures or jigs.
Otherwise, workpiece can become trapped
between fence and router bit, which could draw
your hands into spinning bit.

USING SAFETY GUARDS. To prevent ampu­tation or other injuries, always use a guard.
Fabricate additional guards or jigs for special
circumstances. Use an overhead guard if fence
is removed.

TRIPPING HAZARD. To prevent tripping over
power cord of router when not in use, always dis­connect it and safely store it out of way.

No list of safety guidelines can be complete. Every shop environment is different. Always consider
safety first, as it applies to your individual working conditions. Use this and other machinery with
caution and respect. Failure to do so may result in serious personal injury or property damage.

-6-

Model T1244 (Mfd. Since 08/23)

SECTION 2: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

at [phone].

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

This item presents serious
injury hazards to untrained
users. Read through this
entire manual to become
familiar with the controls
and operations before
using this item!

Wear safety glasses during
the entire setup process!

This item and its compo­nents are very heavy. Get
lifting help to move heavy
items.

Unpacking

If items are damaged

call us immediately

Save all packaging materials until

Like all machinery there is potential danger
when operating this machine. Accidents are
frequently caused by lack of familiarity or
failure to pay attention. Use this machine
with respect and caution to reduce risk of
operator injury. If normal safety precautions
are overlooked or ignored, serious personal
injury may occur.

Needed for Setup

The following items are needed, but not included,
for the setup/assembly of this machine.

Description Qty

• Another Person .......................................... 1

• Safety Glasses (Per Person) ...............1 Pair

• Cleaner/Degreaser (Page 10) .... As Needed

• Disposable Shop Rags ............... As Needed

• Straightedge 24" ......................................... 1

• Phillips Head Screwdriver #2 ..................... 1

• Open-End Wrench 10mm ........................... 1

• Open-End Wrench 13mm ........................... 1

• Open-End Wrench 17mm ........................... 1

• Additional Wrenches .................. As Needed

• Grade 5 Fasteners (Page 13) ..... As Needed

• Masking Tape ............................. As Needed

• Razor Blade ................................................ 1

• Dust-Collection System .............................. 1

• Dust Hose 21⁄2 " ........................................... 1

• Hose Clamps 21⁄2 " ...................................... 2

• Table Saw Owner's Manual ........................ 1

• Router Owner's Manual .............................. 1

• Tape or Erasable Marker ............................ 1

• Center Punch ............................................. 1

• Drill ............................................................. 1

• Drill Bits ...................................... As Needed

• Countersink Bit ........................................... 1

• Fasteners .................................... As Needed

Model T1244 (Mfd. Since 08/23)

-7-

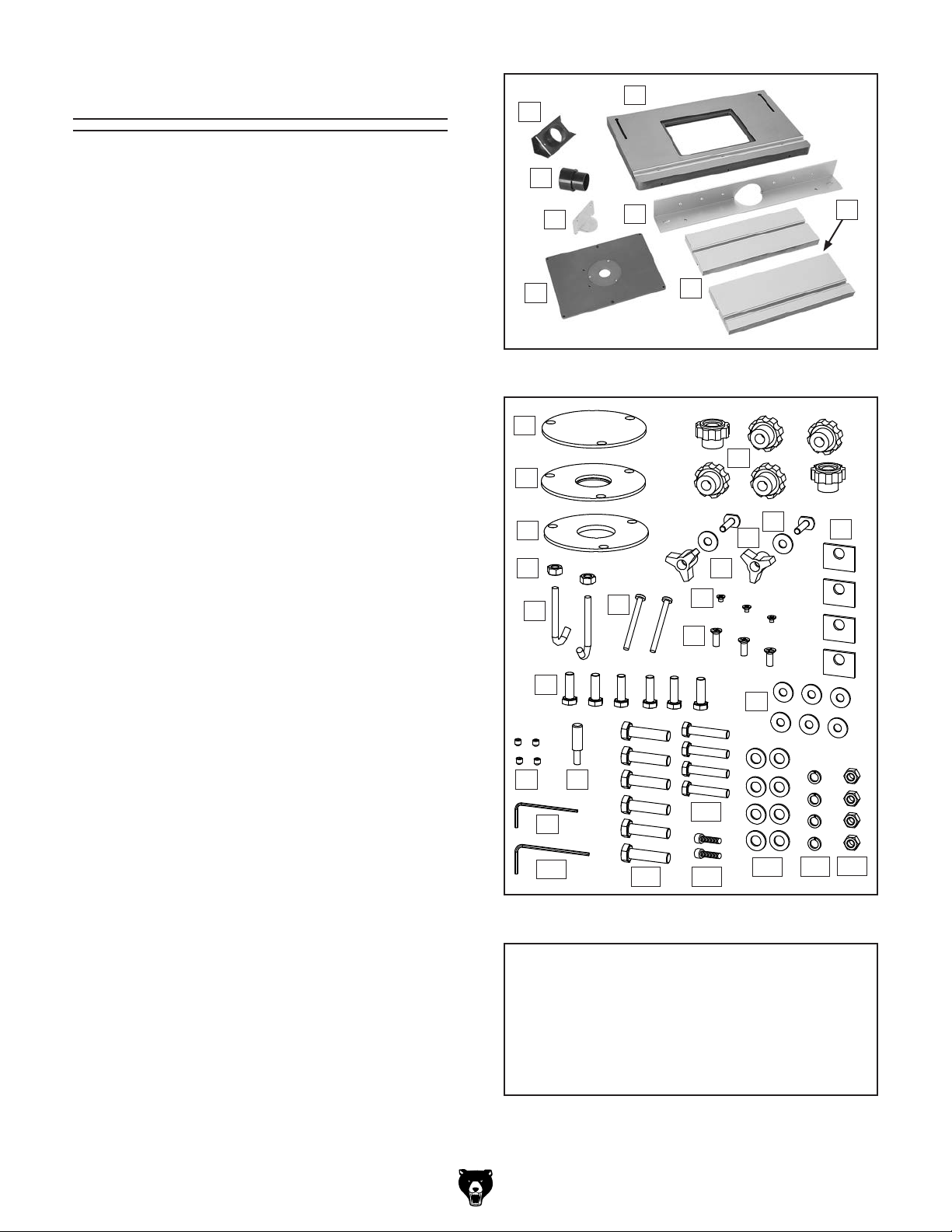

Inventory

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

C

A

B

Box 1 (Figure 1) Qty

A. Dust Port 21⁄2 " ............................................. 1

B. Dust Port Adapter 21⁄2 "–21⁄4" ....................... 1

Router Table Extension Wing w/Miter Slot . 1

C.

Router Bit Guard ........................................ 1

D.

Fence Bracket ............................................ 1

E.

Router Mounting Plate ................................ 1

F.

Fences (Infeed and Outfeed) ..................... 2

G.

Fence Scales (0"–1511⁄16") ........................... 2

H.

Hardware Bag (Figure 2)

Table Insert (Solid) ..................................... 1

I.

Knobs 8-Lobe ............................................. 6

J.

Table Insert (32mm ID) ............................... 1

K.

Table Insert (37mm ID) ............................... 1

L.

Knobs 3-Lobe ............................................. 2

M.

Fender Washers 6mm ................................ 2

N.

T-B olts ........................................................ 2

O.

Square Washers 10mm .............................. 4

P.

Hex Nuts M6-1 ........................................... 2

Q.

J-Hooks ...................................................... 2

R.

Phillips Head Screws M5-.8 x 55 ............... 2

S.

Flat Head Screws M4-.7 x 5 ....................... 3

T.

Flat Head Screws M6-1 x 16 ...................... 3

U.

Hex Bolts M8-1.25 x 25 .............................. 6

V.

Flat Washers 8mm ..................................... 6

W.

Set Screws M6-1 x 10 ................................ 4

X.

Starting Pin ................................................. 1

Y.

Z. Hex Wrench 3mm ....................................... 1

AA. Hex Wrench 4mm ....................................... 1

Hex Bolts M10-1.5 x 40 .............................. 6

AB.

Hex Bolts M8-1.25 x 40 .............................. 4

AC.

Cap Screws M5-.8 x 12 .............................. 2

AD.

Flat Washers 10mm ................................... 8

AE.

Lock Washers 8mm.................................... 4

AF.

Hex Nuts M8-1.25 ....................................... 4

AG.

AF

H

P

AG

D

F

I

K

L

Q

R

V

X Y

Z

AA

Figure 2. Hardware bag inventory.

E

G

Figure 1. T1244 inventory.

J

M

S

AB

T

U

AC

AD

O

N

W

AE

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

-8-

Model T1244 (Mfd. Since 08/23)

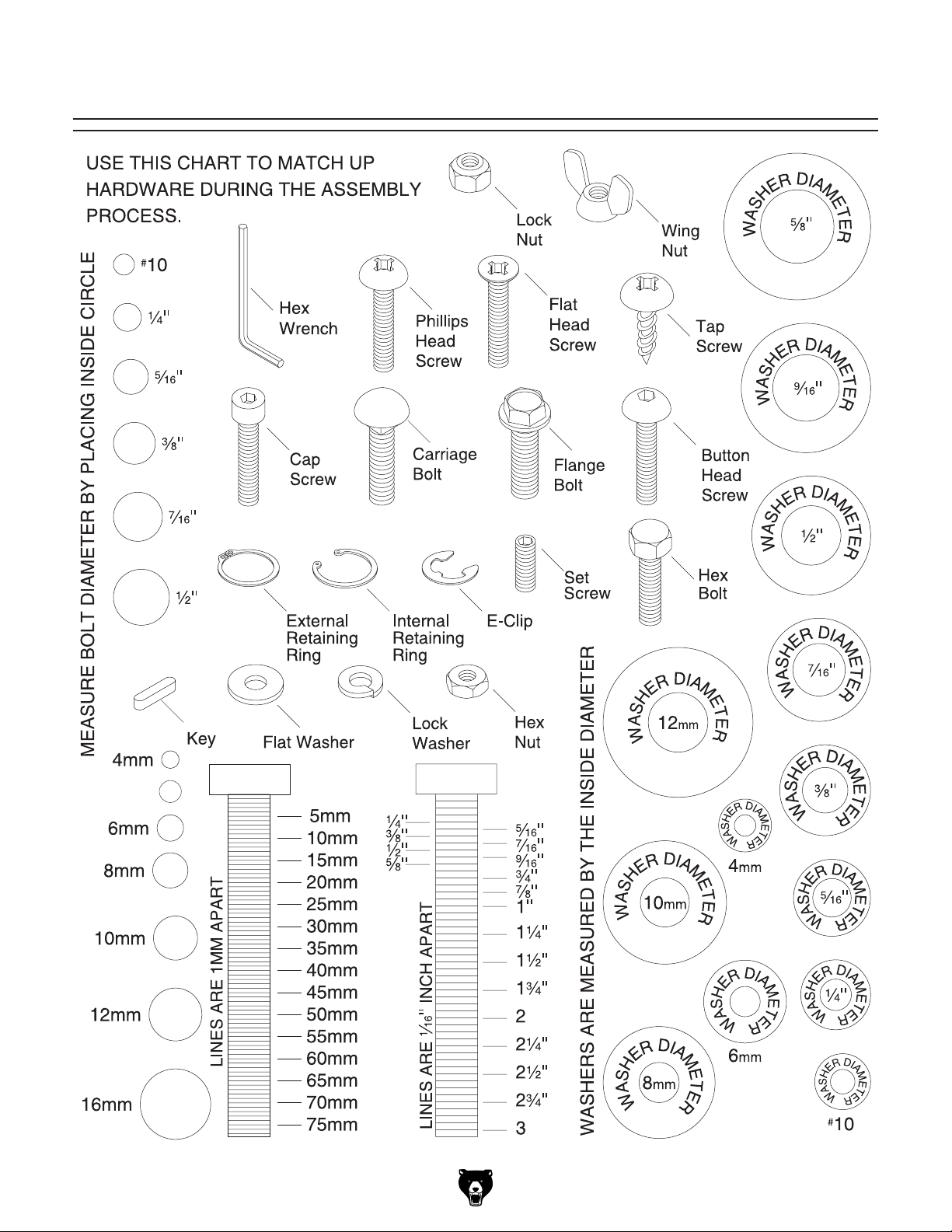

Hardware Recognition Chart

5mm

Model T1244 (Mfd. Since 08/23)

-9-

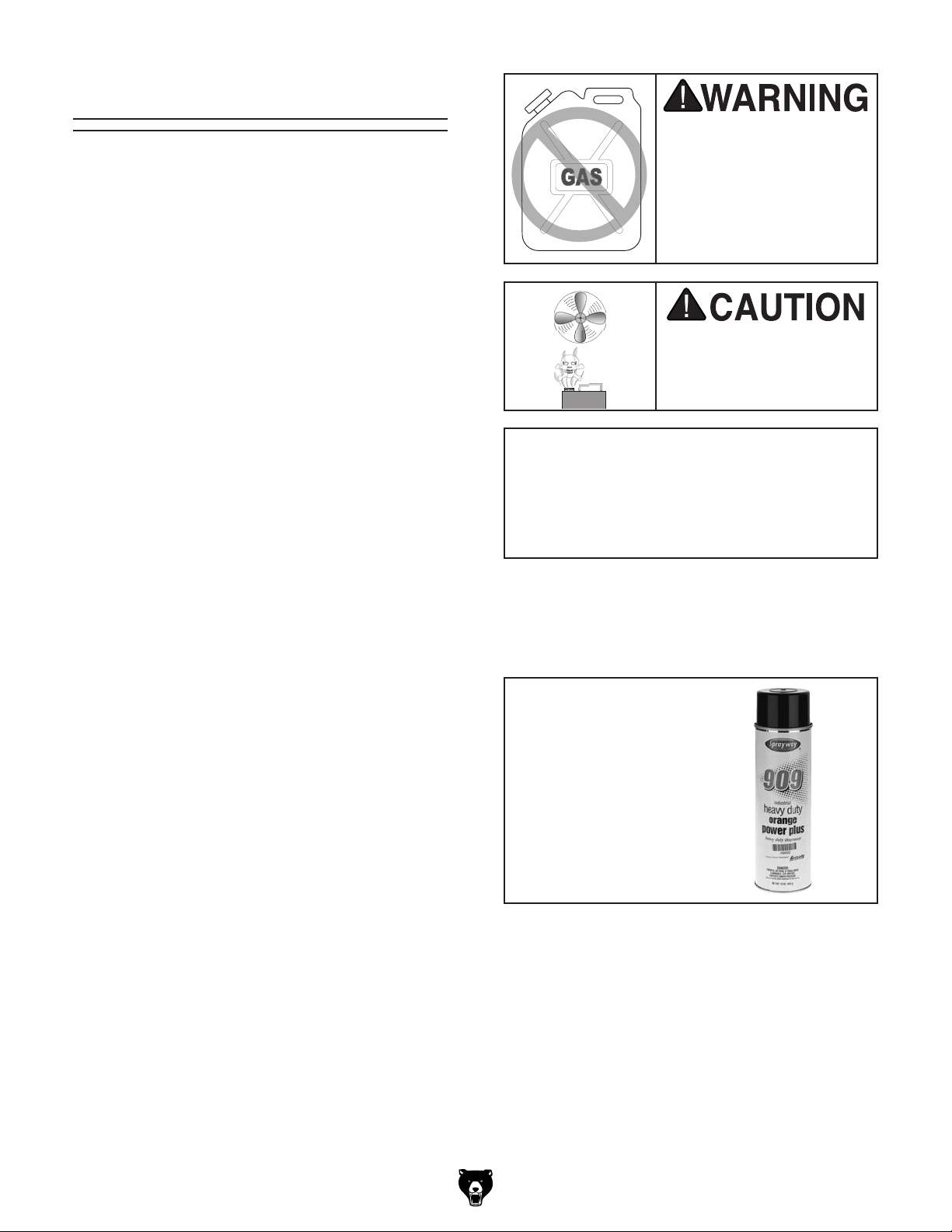

The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.

There are many ways to remove this rust preven­tative, but the following steps work well in a wide
variety of situations. Always follow the manufac­turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

1.

2.

3.

4.

Many cleaning solvents

work in a well-ventilated

Cleanup

Cleanup

Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. Avo id
using these products
to clean machinery.

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak
for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with the rag.

are toxic if inhaled. Only

area.

NOTICE

Avoid harsh solvents like acetone or brake
parts cleaner that may damage painted sur­faces. Always test on a small, inconspicu­ous location first.

T23692—Orange Power Degreaser

A great product for removing the waxy ship­ping grease from the non-painted parts of the
machine during clean up.

Order online at

www.grizzly.com

OR

Call 1-800-523-4777

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality
metal protectant to prevent rust.

-10 -

Figure 3. T23692 Orange Power Degreaser.

Model T1244 (Mfd. Since 08/23)

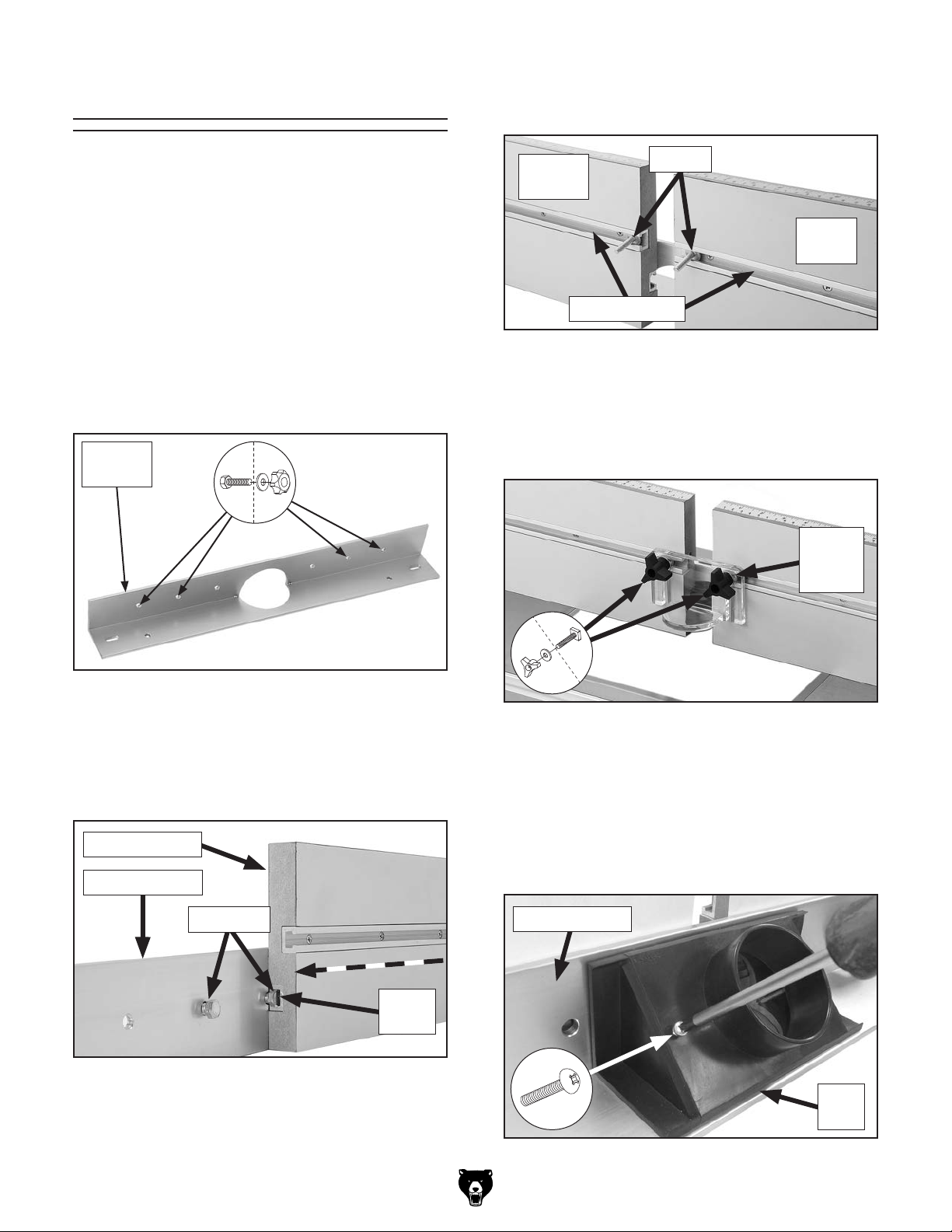

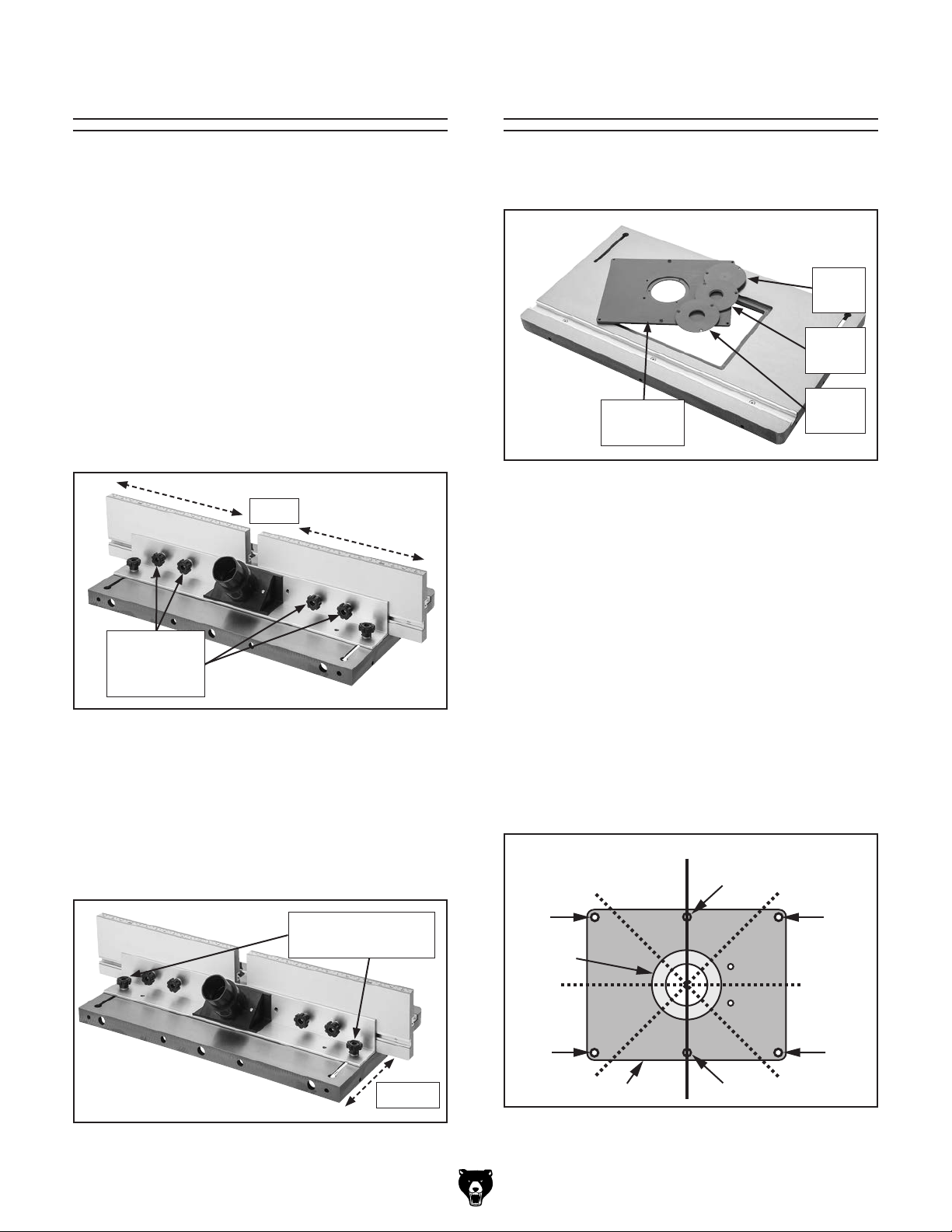

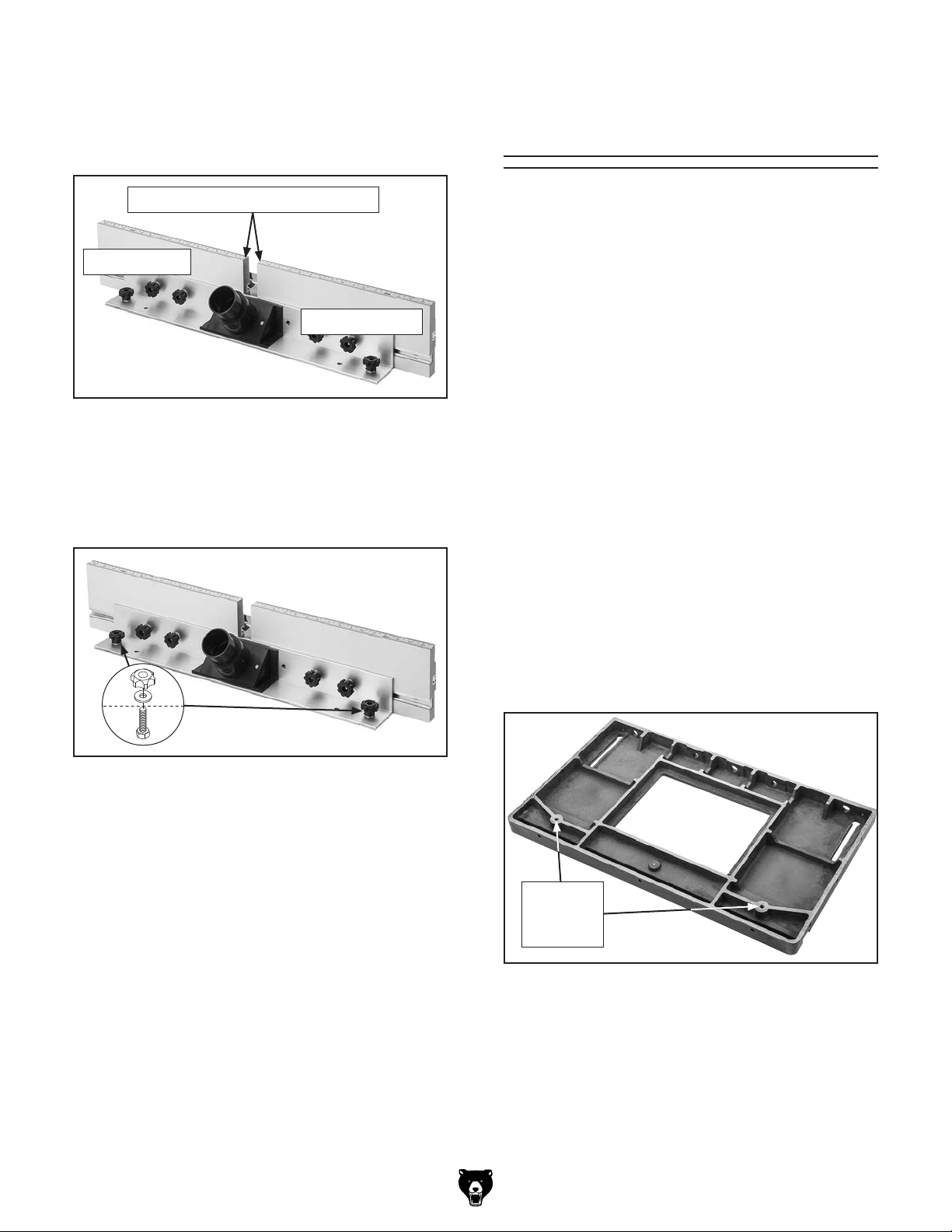

Assembling Fence

Slide one T-bolt into each upper T-slot on

3.

infeed and outfeed fences (see Figure 6).

The Model T1244 mounts on most table saws that
have 27" deep tables. Assemble the fence first,
then determine which side of the saw table you
will use to mount the router table extension wing.
The fence assembly is fully reversible.

To assemble fence:

Insert (4) M8-1.25 x 25 hex bolts into two

1.

outer holes on each end of fence bracket,
then attach 8mm flat washer and 8-lobe knob
onto each bolt, as shown in Figure 4. Thread
loosely.

Fence

Bracket

x 4

Outfeed

Fence

Upper T-Slots

Figure 6. T-bolts for attaching router guard

Slide router bit guard over T-bolts. Secure

4.

with (2) 6mm fender washers and (2) 3-lobe
knobs (see Figure 7).

T-Bolts

Infeed
Fence

installed.

Router

Bit

Guard

Figure 4. Hex bolts, flat washers, and knobs

attached to left side of fence bracket.

2. Slide lower T-slot on each fence half over
hex bolts installed in Step 1, as shown in
Figure 5.

Back of Fence

Fence Bracket

Hex Bolts

Lower

T-Slot

Figure 5. Sliding fence half onto fence bracket

hex bolts.

x 2

Figure 7. Router bit guard attached.

5.

Tighten (4) 8-lobe knobs from Step 1 to

secure fence to bracket.

6. Attach dust port to fence bracket using (2)
M5-.8 x 55 Phillips head screws, as shown in
Figure 8.

Fence Bracket

Dust

x 2

Port

Model T1244 (Mfd. Since 08/23)

Figure 8. Attaching dust port.

-11-

If necessary, attach bi-directional scale to

7.

top of each fence half. Place start points as
shown in Figure 9, with 15" mark at fence
ends.

Installing Extension

Wing

Bi-Directional Scale Start Points

Infeed Fence

Outfeed Fence

Figure 9. Fence bi-directional scales attached.

Insert (2) M8-1.25 x 25 hex bolts into slots on

8.

bottom of fence bracket, then attach 8mm flat
washer and 8-lobe knob onto each bolt, as
shown in Figure 10. Thread loosely.

The Model T1244 mounts on most table saws
that have 27" deep tables. If your table saw does
not have mounting holes for the installation of
the router table, you will need to drill and tap
these holes in the saw table. Also, you may have
to modify the fence rails to allow access for the
router table T-slots, and drill the fence rails to align
with the extension wing mounting holes.

Read this entire assembly section before begin­ning the installation procedure below to make
sure the T1244 will fit your table saw.

To assemble and install router table extension
wing:

DISCONNECT MACHINE FROM POWER!

1.

2. Thread M6-1 hex nut onto each M6-1 x 54

J-hook, then thread J-hooks into bottom
of table (see Figure 11). Tighten hex nut
against table to secure.

x 2

Figure 10. Completed fence assembly.

Note: Use J-hooks to hang table saw rip

fence when not in use.

J-Hook

Mounting

Holes

Figure 11. J-hook mounting hole locations.

-12-

Model T1244 (Mfd. Since 08/23)

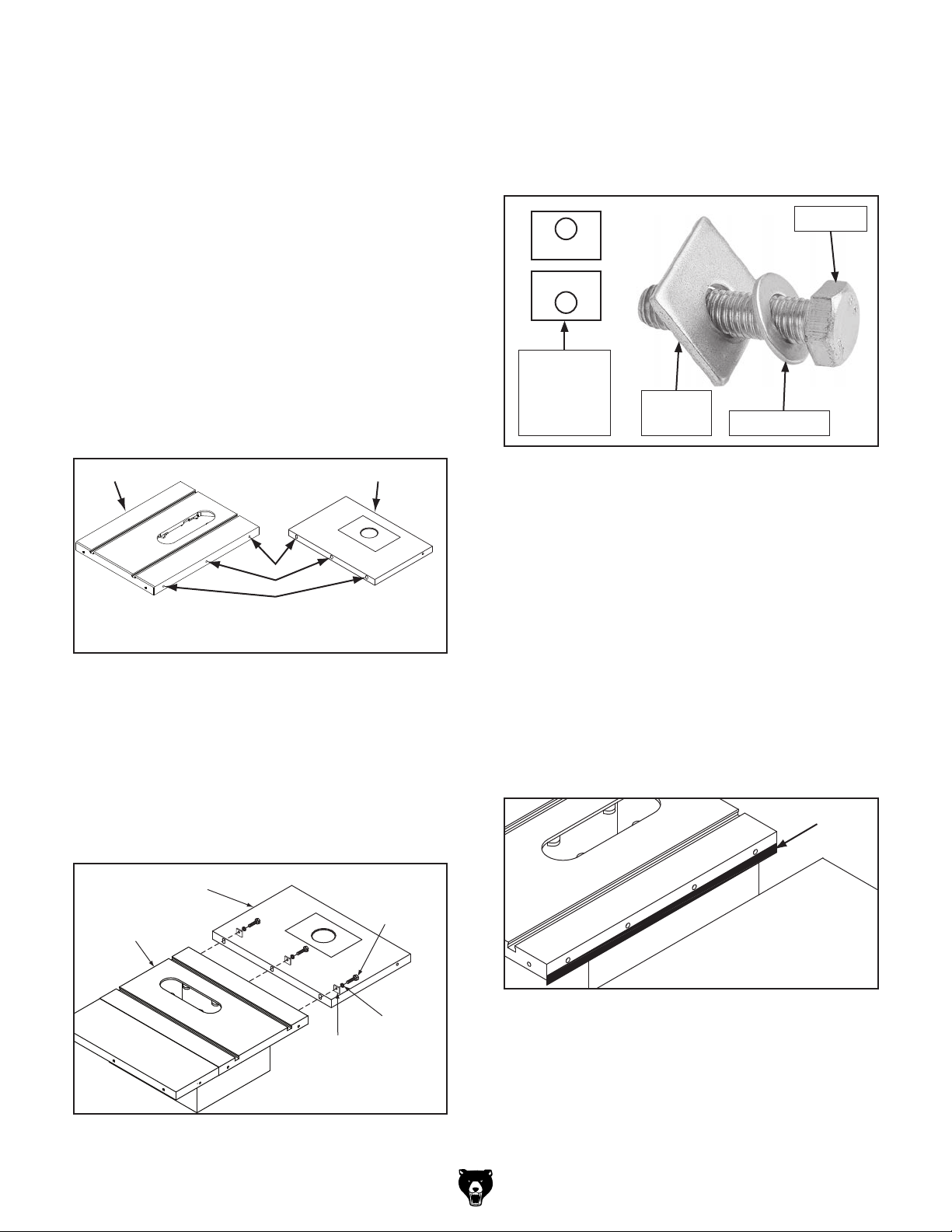

With assistant's help, remove right extension

3.

wing of saw table and use mounting holes
shown in Figure 12 to attach router table
extension wing.

IMPORTANT: DO NOT re-use hex bolts

used previously to attach right extension
wing. They may be the wrong grade or too
short. Use the supplied M10-1.5 x 40 hex

1

bolts, or buy new 1

⁄2" long Grade 5/Class 8.8
hex bolts if your saw uses a thread size and
pitch other than M10-1.5.

If the mounting holes DO NOT align, use the

router table extension wing as a template
to mark mounting hole locations on the saw
table. Drill and tap three M10-1.5 holes to use
the supplied M10-1.5 x 40 hex bolts.

Note: Adjust square washer orientation under

hex bolt (see Figure 14) so that washer clears
bottom of router table extension wing and sits
flush on flange while aligning mounting holes
with saw table.

Hex Bolt

Square

Washer

Orientation

Options

Square

Washer

Flat Washer

Main Table

Router Table

Mounting

Holes

Figure 12. Mounting holes in router table

extension wing and saw table.

4. While assistant holds router table extension
wing from above, attach extension wing to
saw table using (3) supplied M10-1.5 x 40 hex
bolts, (3) 10mm flat washers, and (3) 10mm
square washers (see Figure 13), or Grade 5
fasteners obtained in Step 3.

Router Table

Extension Wing

M10-1.5 x 40

Hex Bolt

Main Table

Figure 14. Use square washer, flat washer, and

hex bolt to attach router table wing.

5.

Place straightedge across saw table and

router table extension wing to make sure that
combined table surface is flat.

— If combined table surface is flat, continue

with Step 6.

— If outside edge of router table tilts down,

remove extension wing and place strips of
masking tape along bottom edge of saw
table to shim router table up and even
with the saw table from side to side (see
Figure 15).

Tape

10mm

Flat

10mm

Washer

Square
Washer

Figure 13. Mounting router table extension wing

to saw table.

Model T1244 (Mfd. Since 08/23)

Figure 15. Using tape to shim the router table

up.

-13-

— If the outside edge of the router table tilts

up, remove the extension wing and place
strips of masking tape along the top edge
of the saw table to shim the router table
down and even with the saw table from
side to side (see Figure 16).

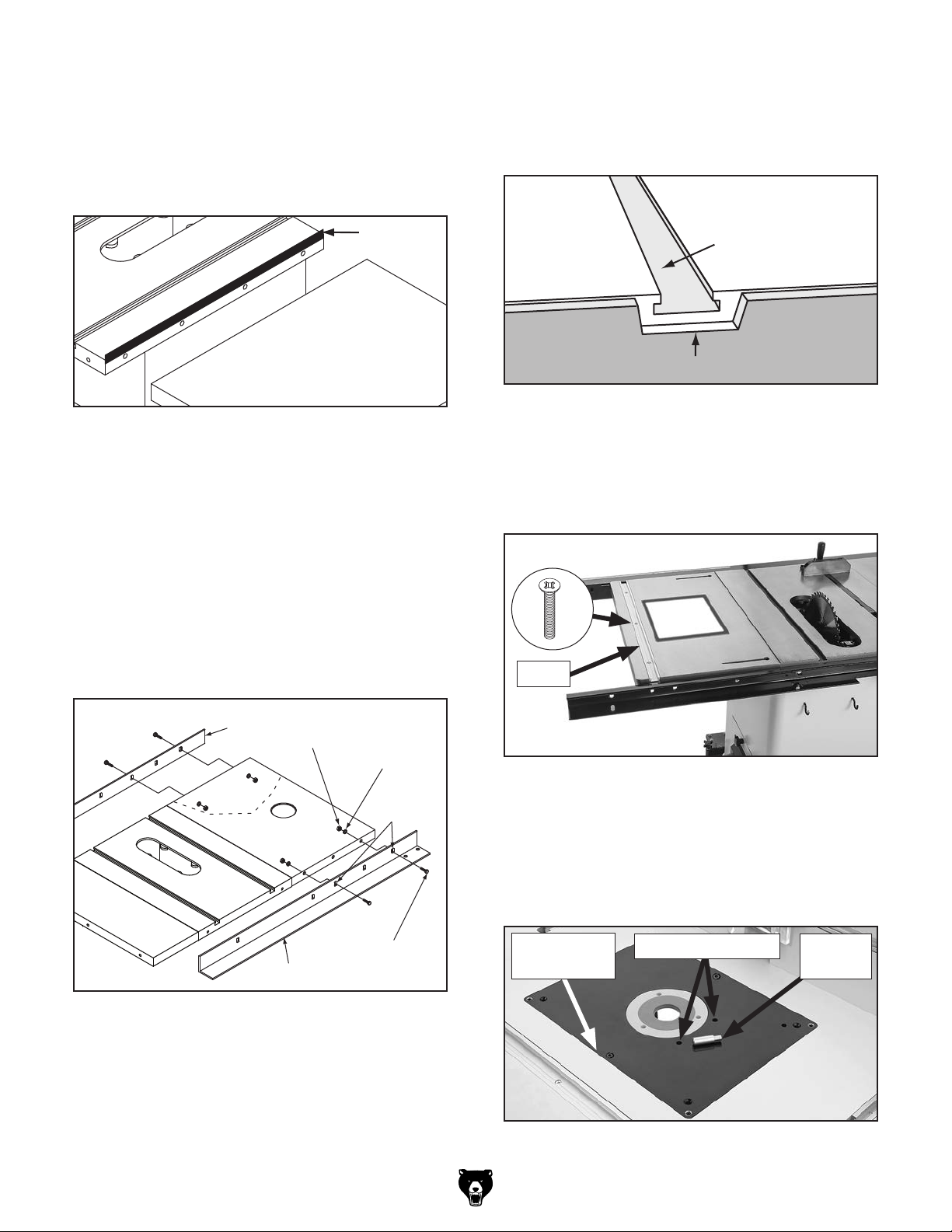

8. If your saw fence rails cover ends of router
table extension wing T-slot, modify each rail
with a notch that exposes router table exten­sion wing T-slot, as illustrated in Figure 18.

Tape

Figure 16. Positioning the tape to shim the

router table down.

Note: After re-installing router table, remove

all excess masking tape with a razor blade.

Remove fence and front rail tube (if installed)

6.

to give yourself clear access to fence rails.

Use (4) M8-1.25 x 40 hex bolts, (4) 8mm lock

7.

washers, and (4) M8-1.25 hex nuts to secure
router table extension wing to front and rear
fence rails, as shown in Figure 17.

Extension Wing
Table T-Slot

Fence Rail

Notch

Figure 18. Example of a fence rail modification

for table T-slot access.

9.

If not already installed, attach aluminum

T-slot to router table extension wing using (3)
M6-1 x 16 flat head screws (see Figure 19).

x 3

T-Slot

Rear

Rail

M8-1.25

Hex Nut

8mm
Lock

Washer

3

⁄8"

Holes

M8-1.25 x 40

Front Rail

Hex Bolt

Figure 17. Example of mounting router table to

rails.

Note: If necessary, mark and drill fence

3

rails with

⁄8" holes to align with router table
extension wing mounting holes. Attach with
supplied Class 8.8 fasteners, or buy Grade 5
fasteners at your hardware store.

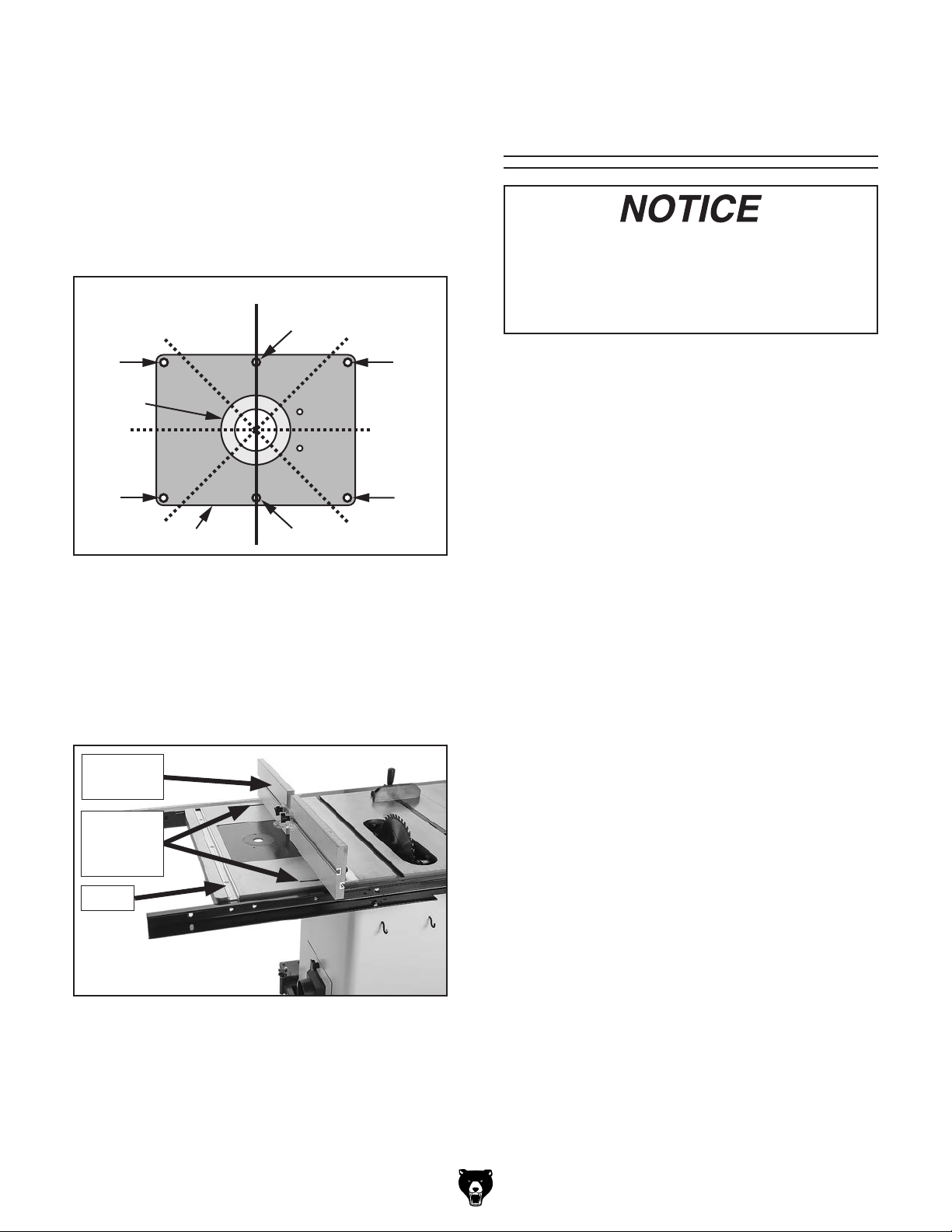

Figure 19. T-slot installed and router table wing

extension attached to fence rails.

Install router mounting plate with pre-installed

10.

table insert. Mounting plate should only be
installed with starting pin holes on right side,
as shown in Figure 20.

Mounting

Plate (Front)

Starting Pin Holes

Starting

Pin

Figure 20. Proper orientation of starting pin

holes.

-14-

Model T1244 (Mfd. Since 08/23)

11.

To ensure that workpiece does not catch on

mounting plate or table insert, inspect align­ment with straightedge in star pattern shown
in Figure 21, ensuring both ends of straight­edge are over table. Adjust (4) set screws as
necessary until top of mounting plate is flush
with surface of router table extension wing,
then secure position of mounting plate with
(2) M5-.8 x 12 cap screws.

Straightedge

Table Surface

Cap Screw

Attaching Router to

Extension Wing

Router attachment requires permanent
modification of your router table mounting
plate! Before attaching router, thoroughly
read procedure below and make sure you
can perform the required tasks.

Set

Screw

Insert

Set

Screw

Mounting Plate

Figure 21. Straightedge inspection pattern to

ensure mounting plate is flush with table.

To attach fence assembly, place hex bolt

12.

heads into slots on router table extension
wing, then slide fence assembly toward T-slot
(see Figure 22). Tighten knobs on fence
bracket to secure.

Fence

Assembly

Fence

Mounting

Slots

T-Slot

Cap Screw

Set

Screw

Set

Screw

The universal aluminum router mounting plate
included with the T1244 is designed to attach to
the bottom of your router in the same manner as
the router base. When installed, the weight of the
router holds the mounting plate in place.

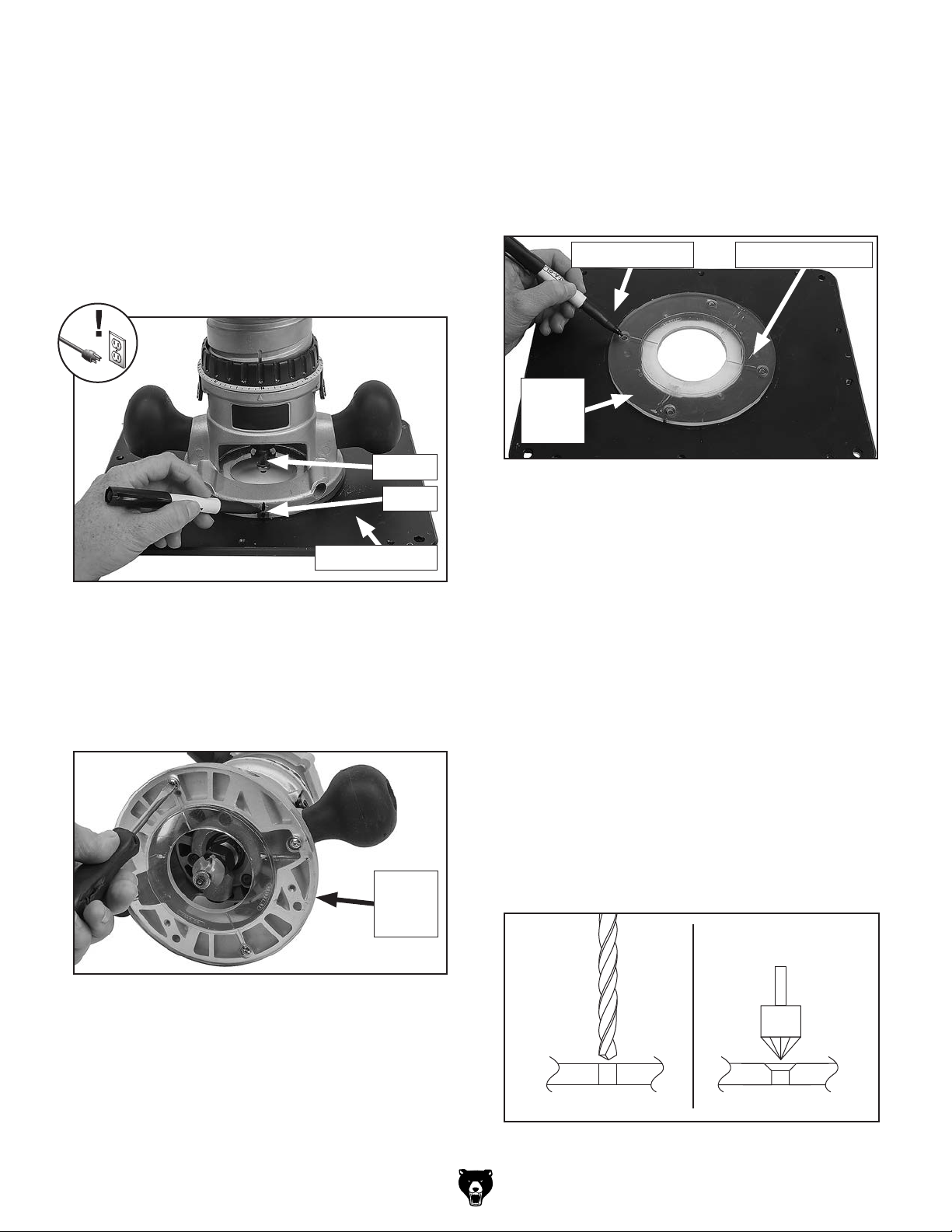

We recommend using the router base as a
template for the hole pattern to be drilled in the
mounting plate. The router mounting plate has 15
pre-marked pilot holes to assist in attaching it to
the router.

IMPORTANT: When deciding how to orient the
router in relation to the router wing table, consider
access to all router controls, adjustment knobs,
lock levers, and the power switch.

To attach router to router mounting plate:

DISCONNECT ROUTER FROM POWER!

1.

2. Mark front of mounting plate with tape or

erasable marker.

Lift mounting plate out of table opening, and

3.

lay it bottom-side-up on a protected working
surface to prevent scratching top surface of
mounting plate.

Figure 22. Fence assembly installed on router

table wing extension.

Model T1244 (Mfd. Since 08/23)

-15-

Set router on mounting plate (see

4.
Figure 23) and align spindle with center of

insert. Use marker to mark center curve of
router base, router base plate, and mounting
plate.

Note: Consider access to router controls

before finalizing router location. It may be
necessary to slightly adjust alignment if holes
in router base plate overlap or are too close
to starter pin holes.

6. Center router base plate on mounting plate
(see Figure 25), keeping marks made in
Step 4 aligned.

Use router base plate as template to align

7.

with pilot holes on bottom-side surface of
mounting plate, as shown in Figure 25.

Mounting Plate Starting Pin Hole

Router

Base
Plate

Spindle

Marks

Mounting Plate

Figure 23. Marking center of router base, router

base plate, and mounting plate with spindle.

5.

Remove router base plate (see Figure 24).

Note: Keep fasteners used to secure router

base plate.

Router

Base
Plate

Figure 25. Example of marking holes on

mounting plate.

Note: Use center punch to mark any router

base plate mounting holes that do not align
with pilot holes on mounting plate.

8. Use drill press or hand-held drill with guide to
drill holes through mounting plate.

Note: Use drill bit slightly larger in diameter

than fasteners used to secure base plate to
router to ease installation in following steps.

Drill countersink holes on top surface of

9.

mounting plate, using drill holes as guides for
countersinks (see Figure 26 for example).
This allows fasteners to sit slightly below top
surface of mounting plate and reduces risk of
kickback from a workpiece catching on fas­teners during routing operations.

Figure 24. Example of removing typical base

plate from router.

-16 -

A B

Drill Countersink

Figure 26. Example of drill hole and countersink.

Model T1244 (Mfd. Since 08/23)

10. Align holes in mounting plate with threaded
holes in router base, and use fasteners
removed in Step 5 to secure router to mount­ing plate, as shown in Figure 27.

Note: If original fasteners are not long enough

to properly secure router to mounting plate,
use longer fasteners purchased from your
local hardware store.

Mounting

Fasteners

Dust Collection

This machine creates a lot of wood chips/
dust during operation. Breathing airborne
dust on a regular basis can result in perma­nent respiratory illness. Reduce your risk
by wearing a respirator and capturing the
dust with a dust-collection system.

Router

Bit

Mounting

Plate

Figure 27. Securing mounting plate to router

base.

If router unexpectedly moves or router bit
contacts mounting plate or fence board dur­ing operation, serious personal injury could
result from the router bit or flying debris.
ALWAYS make sure router is firmly secured
to mounting plate before beginning any cut­ting operations.

11. Insert mounting plate and router into router

table extension wing opening.

Make sure mounting plate and table are

12.
aligned evenly (see Step 11, Extension
Wing Installation on Page 15).

The Model T1244 has one 21⁄2 " dust port and an

1

adapter to fit a 2

⁄4" diameter shop vacuum hose.

Recommended CFM at Dust Port: 100 CFM

Do not confuse this CFM recommendation with
the rating of the dust collector. To determine the
CFM at the dust port, you must consider these
variables: (1) CFM rating of the dust collector,
(2) hose type and length between the dust col­lector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines
throughout the system. Explaining how to cal­culate these variables is beyond the scope of
this manual. Consult an expert or purchase a
good dust collection "how-to" book.

To connect dust-collection system to item:

1

Fit 2

1.

⁄2" dust hose over dust port (see
Figure 28) and secure in place with a hose
clamp, or connect a shop vacuum hose using

1

⁄4" hose adapter on dust port.

the 2

21⁄4" Dust

21⁄2" Dust Port

Port Adapter

Model T1244 (Mfd. Since 08/23)

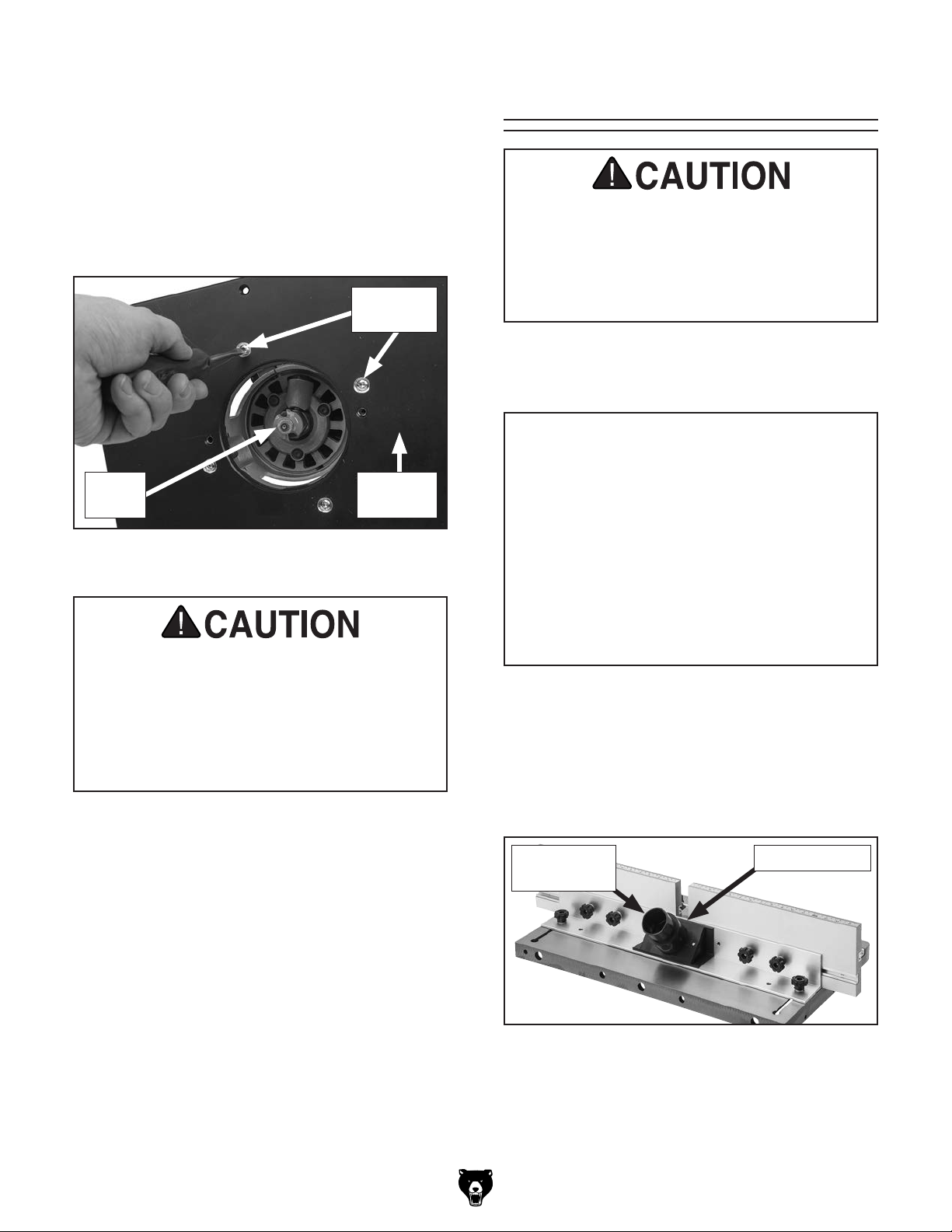

Figure 28. Dust port on fence assembly.

Tug hose to make sure it does not come off.

2.

Note: A tight fit is necessary for proper

performance.

-17-

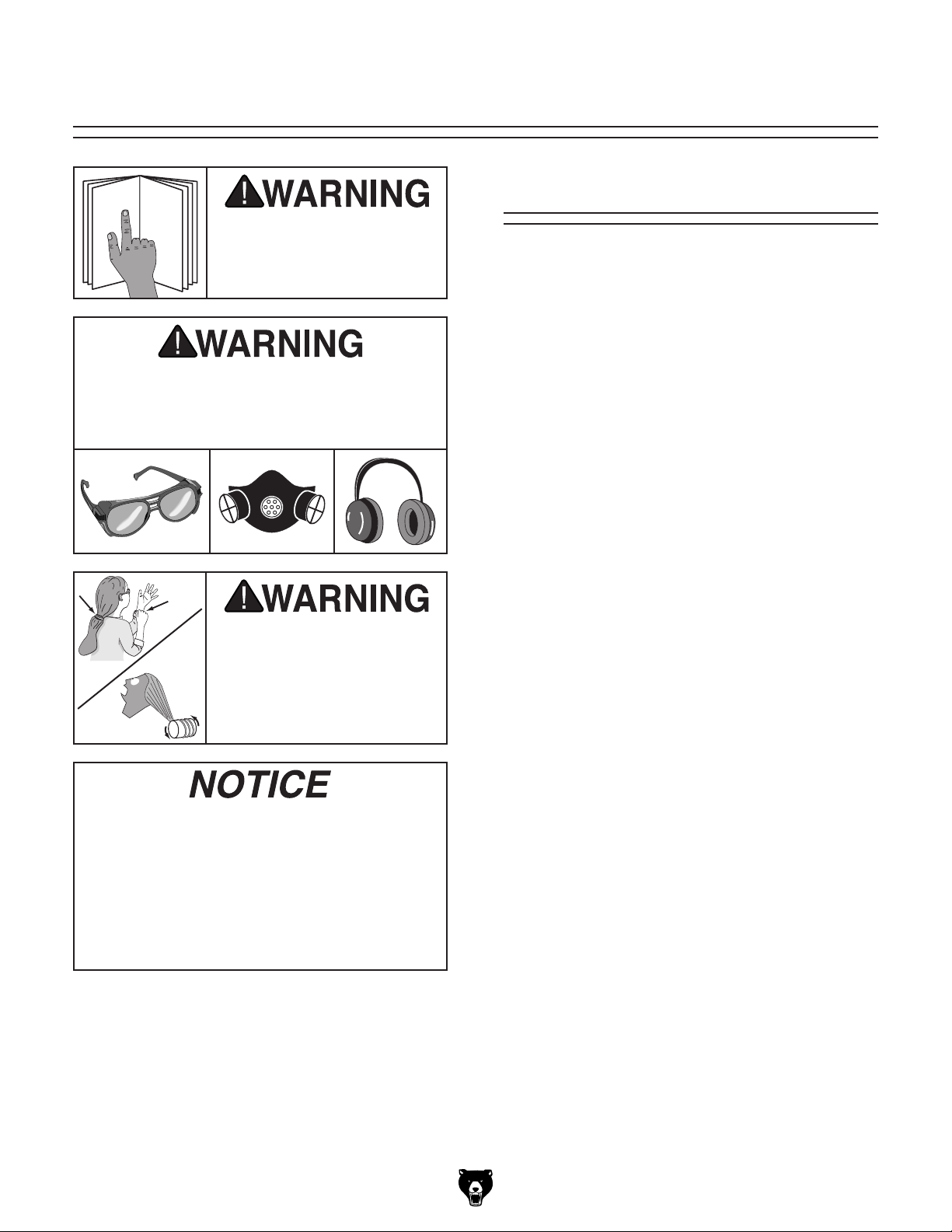

SECTION 3: OPERATIONS

To reduce your risk of
serious injury, read this
entire manual BEFORE

ing loss can occur while operating this

Keep hair, clothing, and

ing parts at all times.
Entanglement can result
in death, amputation, or

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations,
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

using machine.

Eye injuries, respiratory problems, or hear-

Operation Overview

machine controls/components

are easier to understand.

tool. Wear personal protective equipment to
reduce your risk from these hazards.

jewelry away from mov-

severe crushing injuries!

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

read this entire

seek additional

, and do additional research

To complete a typical operation, the operator
does the following:

Examines workpiece to make sure it is suit-

1.

able for routing.

Adjusts infeed and outfeed fences close to

2.

the bit for maximum workpiece support, then
secures the fence boards in place.

Adjusts the bit height for the desired cutting

3.

profile.

Adjusts fence position to establish the depth

4.

of cut.

Wears safety glasses, a respirator, and hear-

5.

ing protection. Locates push sticks or blocks
if needed.

If using a reversible router, verifies that direc-

6.

tion of router bit rotation is correct for the
operation, and then starts the router.

-18-

Model T1244 (Mfd. Since 08/23)

Holds workpiece firmly and flatly against the

7.

table and fence, then pushes the workpiece
into the bit at a steady and controlled rate
until the workpiece moves completely beyond
the router bit.

IMPORTANT: The operator is very careful to

keep the workpiece firmly against the table
and fence and hands away from the rotating
router bit during the entire cut.

• Wet or "Green" Stock: Cutting wood with a
moisture content over 20% causes unneces­sary wear on the blades, increases the risk of
kickback, and yields poor results.

• Excessive Warping: Workpieces with exces­sive cupping, bowing, or twisting are danger­ous to cut because they are unstable and
often unpredictable when being cut. DO NOT
cut workpieces with these characteristics!

Stops the router.

8.

Workpiece Inspection

Some workpieces are not safe to cut or may
require modification before they are safe to cut.

Before cutting, inspect all workpieces for the
following:

• Material Type: This machine is intended for
cutting natural and man-made wood prod­ucts, laminate-covered wood products, and
some plastics. Cutting drywall or cementi­tious backer board creates extremely fine
dust and may reduce the life of the bearings.
This machine is NOT designed to cut metal,
glass, stone, tile, etc.; cutting these materials
with a table saw may lead to injury.

• Foreign Objects: Nails, staples, dirt, rocks
and other foreign objects are often embed­ded in wood. While cutting, these objects
can become dislodged and hit the operator,
cause kickback, or break the blade, which
might then fly apart. Always visually inspect
your workpiece for these items. If they can't
be removed, DO NOT cut the workpiece.

• Large/Loose Knots: Loose knots can
become dislodged during the cutting opera­tion. Large knots can cause kickback and
machine damage. Choose workpieces that
do not have large/loose knots or plan ahead
to avoid cutting through them.

• Minor Warping: Workpieces with slight cup­ping can be safely supported if the cupped
side is facing the table or the fence. On
the contrary, a workpiece supported on the
bowed side will rock during a cut and could
cause kickback or severe injury.

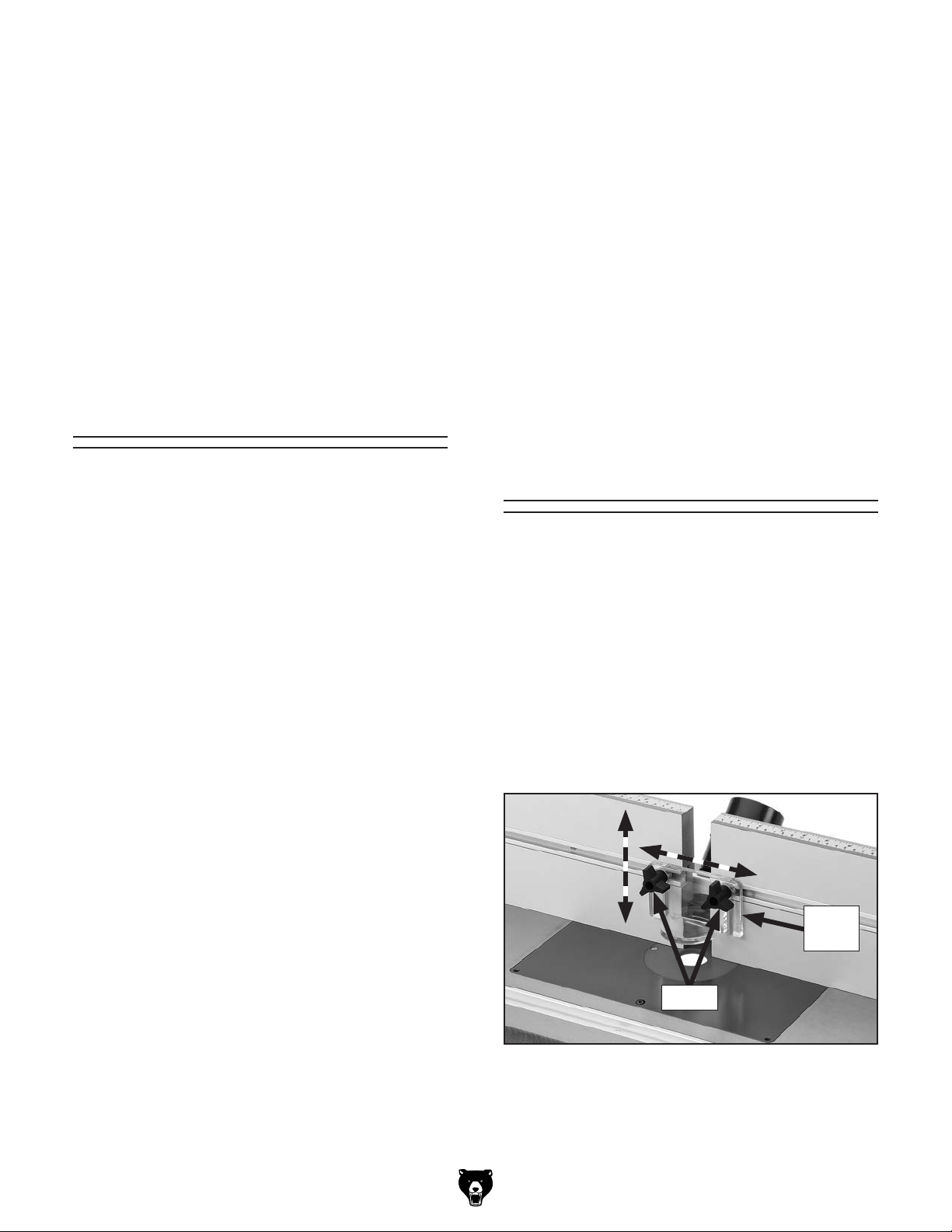

Adjusting Bit Guard

A transparent bit guard is included with the Model
T1244 to minimize operator exposure to the spin­ning router bit. The guard secures to the fence
with (2) 3-lobe knobs, (2) fender washers, and (2)
T-bol ts.

The bit guard adjusts up and down and side to
side to accommodate various router bits (see
Figure 29). For your own safety, the bit guard
must be positioned vertically not more than
above the workpiece, and centered horizontally on
the gap between the infeed and outfeed fences.

Guard

Knobs

Figure 29. Bit guard adjustments.

Bit

1

⁄8"

Model T1244 (Mfd. Since 08/23)

-19 -

Adjusting Fences Table Inserts

The fence assembly on the Model T1244 has an
infeed fence and an outfeed fence. Each fence
can be moved toward or away from bit up to 2".
The entire fence assembly can be moved forward
and backward up to 4

IMPORTANT: Fences should be adjusted as
close to the bit as possible without touching in
order to minimize risk of injury and produce best
results.

To adjust the fences, loosen the four fence adjust­ment knobs (see Figure 30) and the two knobs on
the bit guard (see Figure 29 on Page 19). Tighten
all knobs when complete.

1

⁄4".

+/- 2"

Three table inserts (solid, 32 ID, and 37 ID) are
included with the Model T1244 (see Figure 32).

Solid

Insert

32mm

Insert

Mounting

Plate

Figure 32. Table inserts.

Always install the smallest table insert into the
mounting plate that still allows the router bit to
freely rotate. This provides maximum support and
stability to the workpiece during operation, which
increases safety.

37mm

Insert

Fence

Adjustment

Knobs

Figure 30. Adjusting fence boards in/out.

To adjust fence assembly forward/backward,
loosen the two fence assembly adjustment knobs
shown in Figure 31 and slide the fence assembly
into position. Tighten the knobs when complete. If
necessary, refer to Squaring Fence & Table on
Page 21.

Fence Assembly

Adjustment Knobs

IMPORTANT: For table saw operations that
require removal of the router fence assembly,
always install the solid table insert to create a
smooth table surface.

After changing an insert, use a straightedge to
ensure it is flush with the extension wing, adjust
the set screws as necessary, and secure the posi­tion with the cap screws (see Figure 33).

Straightedge

Table Surface

Set

Screw

Insert

Set

Screw

Cap Screw

Set

Screw

Set

Screw

+/- 41⁄4"

Figure 31. Adjusting fence assembly forward/

backward.

-20-

Mounting Plate

Figure 33. Measuring router mounting plate

alignment with extension wing table.

Model T1244 (Mfd. Since 08/23)

Cap Screw

Squaring Fence &

Table

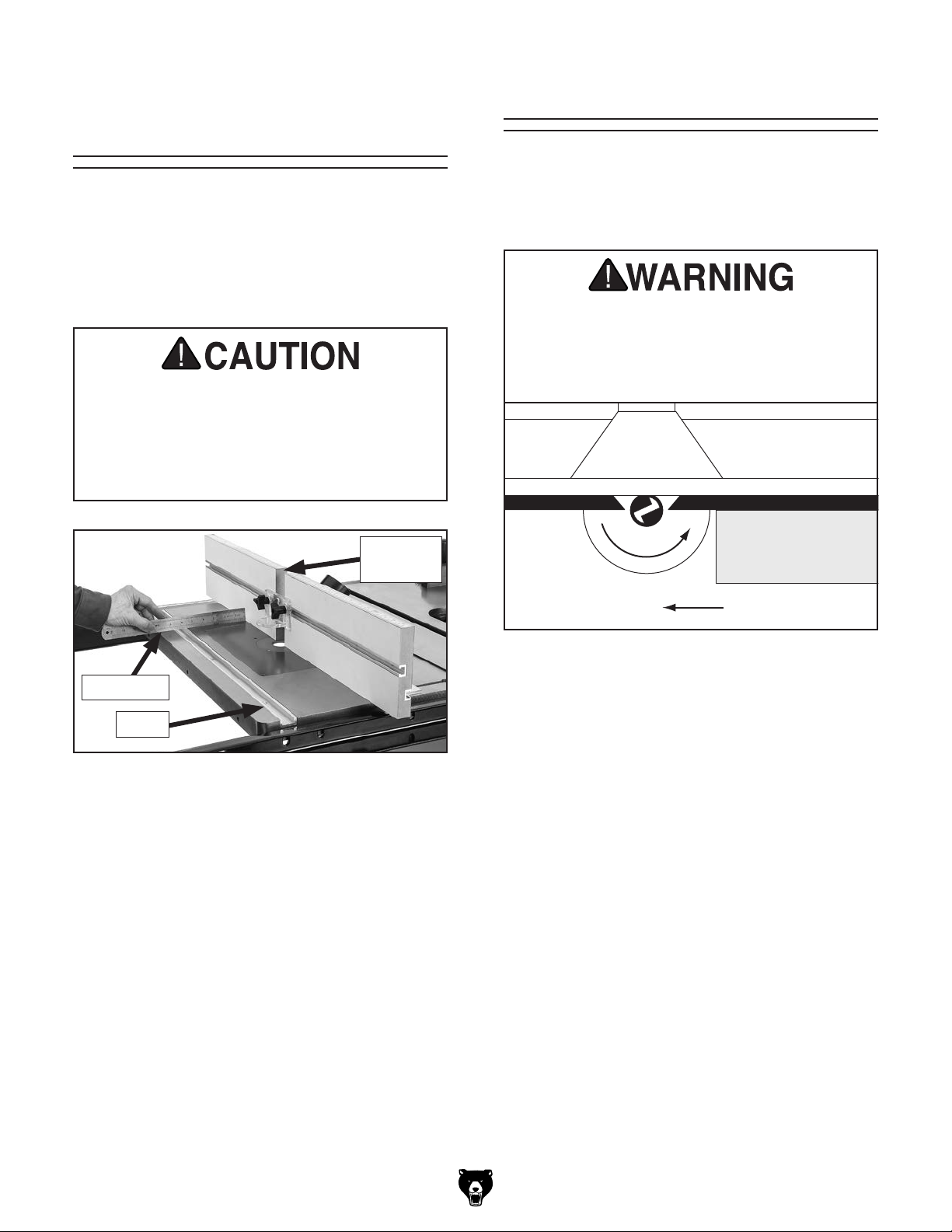

When using a miter gauge, the fence assembly
must be parallel to the table T-slot for safe and
accurate cutting results. Use a fine ruler to make
the distance equal between the fence assembly
and the T-slot along the full length of the table
(see Figure 34).

Kickback injury may occur if fence is not
parallel with T-slot. When using a miter
gauge with this router table, ALWAYS
make sure fence assembly is parallel with
table T-slot BEFORE beginning routing
operations.

Edge Jointing

Jointing the edge of a board involves using a
straight cutting router bit to remove wood from the
face of the board. The result is a perfectly flat and
square edge.

Always feed workpiece against router bit
rotation direction, as illustrated below.
Otherwise, workpiece could be aggressive­ly pulled from your hands, drawing them
into spinning cutter.

Fence

Assembly

Fine Ruler

T-Slot

Figure 34. Adjusting fence parallel with table

T-slot.

Bit

Rotation

To joint edge of a workpiece:

DISCONNECT ROUTER FROM POWER!

1.

2. Secure straight cutting bit into router accord-

ing to router manufacturer's instructions.

Install smallest table insert into mounting

3.

plate that still allows router bit to freely rotate.

Raise bit to a height slightly more than that of

4.

workpiece, then rotate it by hand until cutting
flute (cutting edge) is perpendicular to fence
boards.

Workpiece

Feed Direction

Model T1244 (Mfd. Since 08/23)

-21-

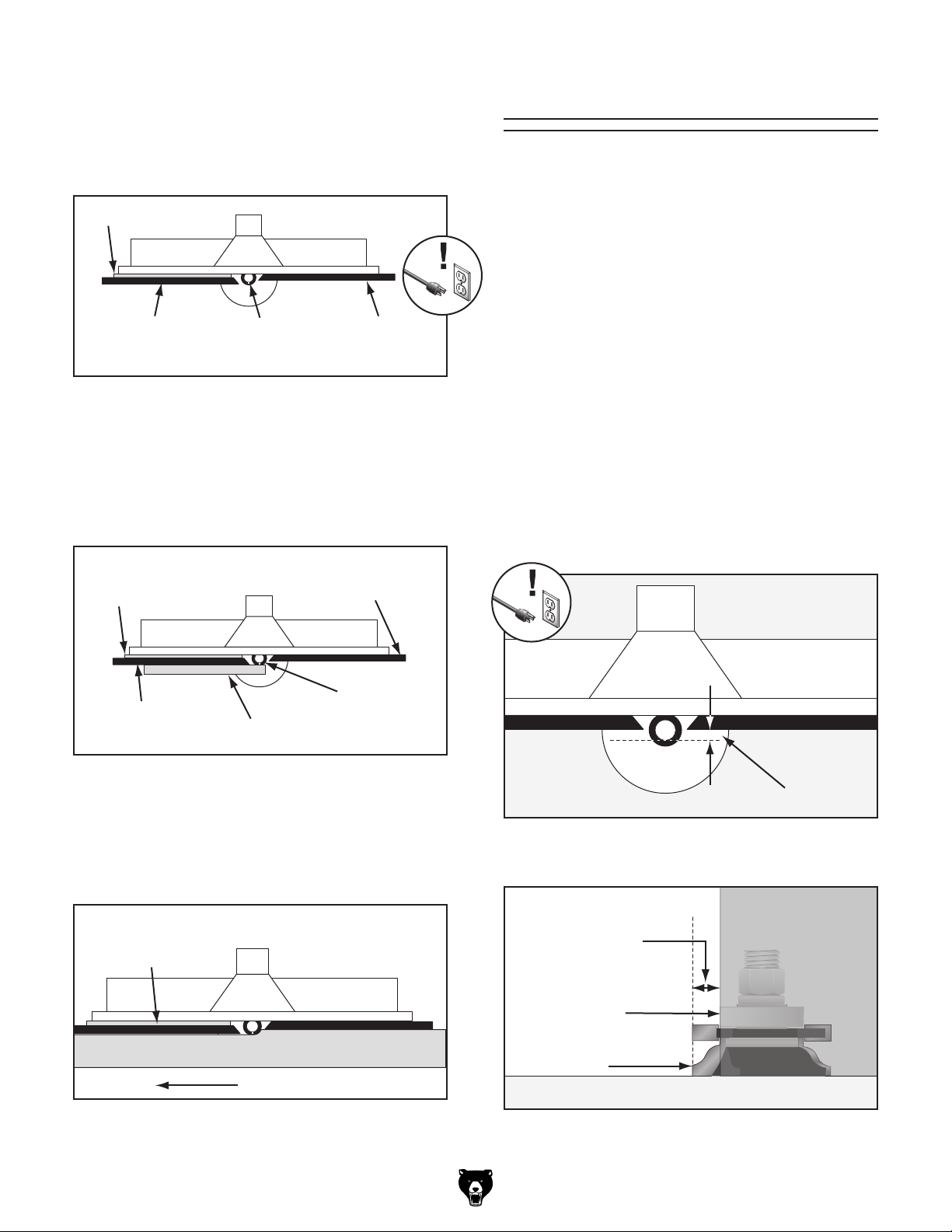

Insert and secure shims (not included)

5.

between outfeed fence board and fence
bracket that equal in thickness the amount of
material you want to remove from workpiece
face (see Figure 35).

Groove Cutting

Groove cutting produces a groove or bead in the
face of the board.

Shim

Outfeed

Fence Board

Figure 35. Fence setup for edge jointing (guard

removed for clarity).

6.

Place straightedge against outfeed fence

board, then adjust fence assembly so straight­edge is just against bit flute, as illustrated in
Figure 36.

Straight

Router Bit

Top View

Shim

Top View

Infeed

Fence Board

Infeed

Fence Board

To cut a groove into face of workpiece:

DISCONNECT ROUTER FROM POWER!

1.

2. Secure bit into router according to router

manufacturer's instructions.

Install smallest table insert into router mount-

3.

ing plate that still allows bit to freely rotate.

Make sure both fence boards are even with

4.

one another and secured to fence assembly.

Raise bit to desired height, then adjust fence

5.

assembly so that fence boards are behind bit
the same distance as desired depth-of-cut
(see the illustrations in Figures 38–39).

Top View

Straight

Outfeed

Fence Board

Figure 36. Measuring fence setup for edge

jointing (guard removed for clarity).

7. Lock fence assembly and bit guard in place,
tighten all knobs, connect router to power,
then perform cut (see Figure 37).

Straightedge

Router Bit

Top View

Shim

Workpiece

Cutting Direction

Figure 37. Edge jointing (guard removed for

clarity).

Depth-of-Cut

Figure 38. Groove cutting setup, top view (bit

guard removed for clarity).

(Side View)

Depth-of-Cut

Rub Collar

Bit

Table

Figure 39. Groove cutting setup—side view.

Infeed

Fence

Board

-22-

Model T1244 (Mfd. Since 08/23)

6. Lock fence assembly and bit guard in place,
tighten all knobs, connect router to power,
then perform cut.

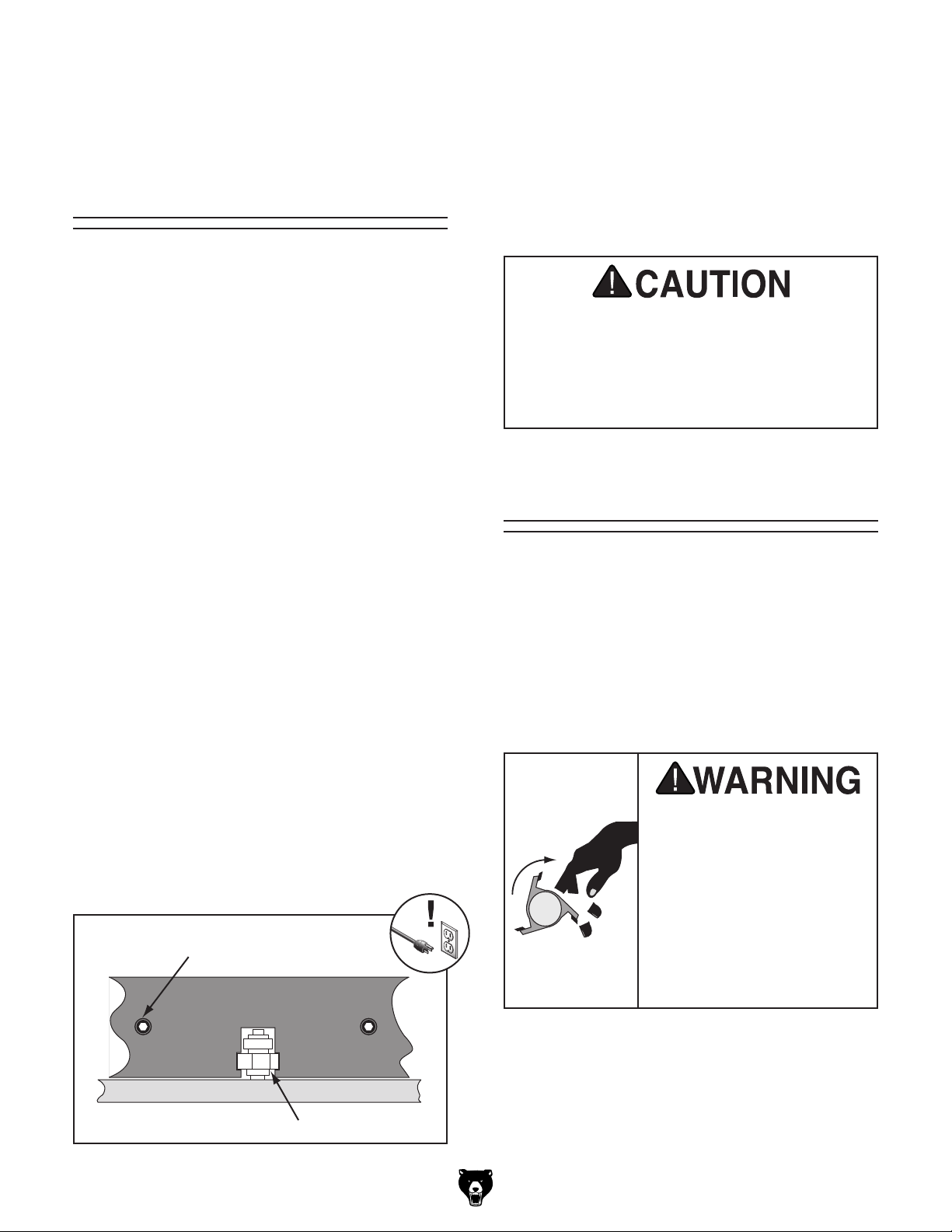

Routing Small Stock

Feeding small stock past the router bit is always
dangerous. If you must route small stock, use a
zero-clearance fence. This will provide greater
protection for the operator, better workpiece sup­port, and reduced tear out on narrow or fragile
stock.

Items Needed Qty

Wood Board 24" x 6" x 1" .................................. 1

Drill Bit
Countersink Bit
Flat Head Screws M8-1.25 x 25
Hex Nuts M8-1.25

3

⁄8" ......................................................... 1

.................................................. 1

........................ 6

.............................................. 6

Use fence bracket as template to mark, drill,

5.

and countersink mounting holes in zero­clearance fence.

Secure zero-clearance fence to fence assem-

6.

bly, check for proper clearance, connect
router to power, then run a test piece by the
cutter to verify results.

ALWAYS use hold-downs or featherboards
and push sticks when shaping small or nar­row stock. These devices keep your hands
away from spinning cutter and sufficiently
support stock to allow a safe and effective
cut, reducing risk of personal injury.

Free-Hand Routing

To make a zero-clearance fence:

DISCONNECT ROUTER FROM POWER!

1.

2. Remove infeed and outfeed fences from

fence assembly.

Select a piece of straight and smooth stock

3.

that is the same height and thickness as the
fence boards and approximately 24" long.

Cut outline of spindle and cutter from the cen-

4.

ter of stock selected in Step 3, as illustrated
in Figure 40.

Note: Make the outline as close as possible

to the cutter and spindle without interfering
with rotation.

Mounting Fastener

Zero-Clearance Fence

Irregular or free-hand routing, as illustrated in
Figure 41 (next page), takes a high degree of
skill and dexterity and is done without the protec­tion and aid from the fence and router bit guard.
The most dangerous part of free-hand routing is
beginning the cut, when the cutter first contacts
the workpiece. Often the workpiece will tend to
jerk or kickback, presenting an injury hazard to
the operator.

Free-hand or irregular
routing greatly increases
chance that operator may
lose control of workpiece,
which could result in
serious personal injury.
Therefore, a starting pin or
block and a custom guard
or workpiece holding jig
MUST be used.

Table

Cutter

Figure 40. Example of a zero-clearance fence.

Model T1244 (Mfd. Since 08/23)

-23-

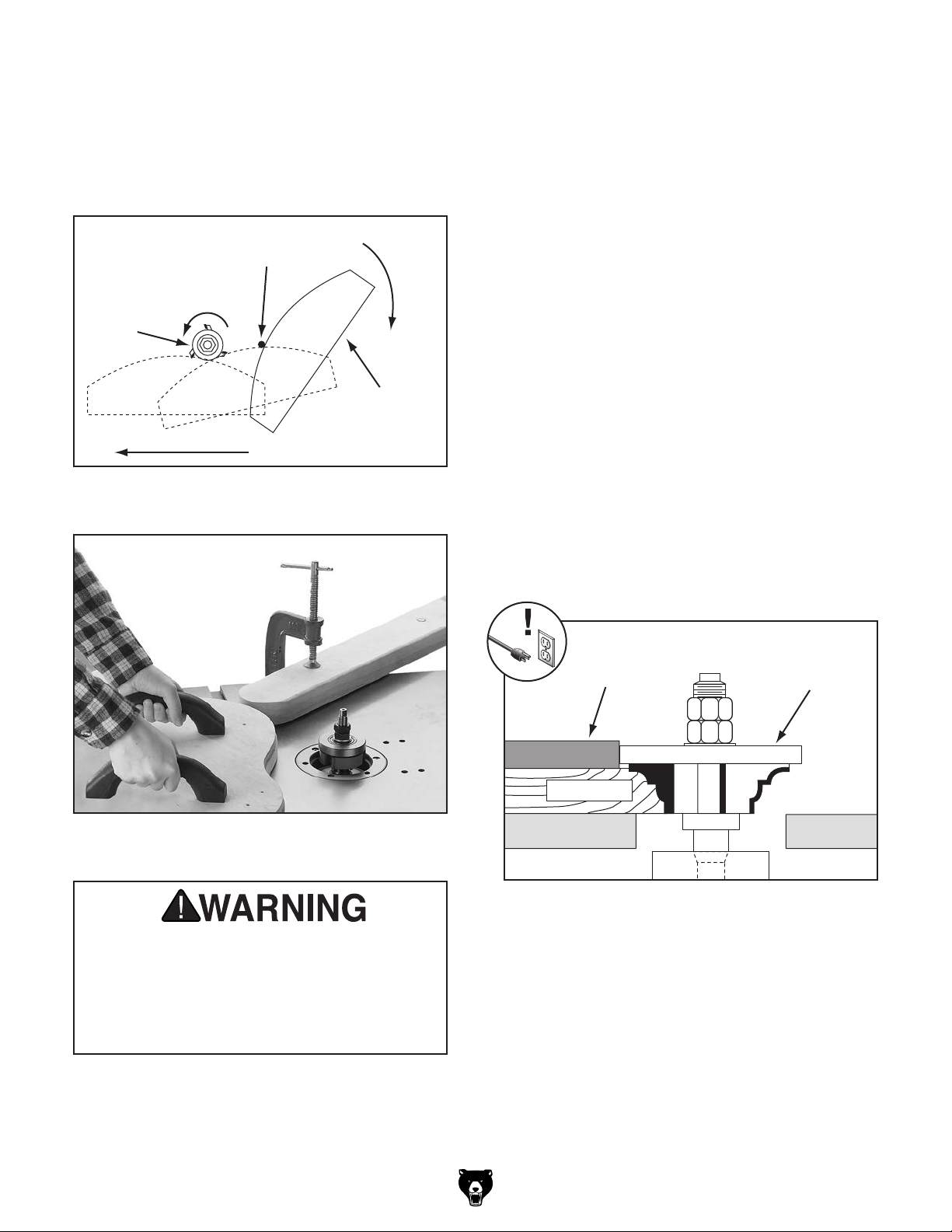

To reduce the likelihood of kickback when free­hand routing, use a starting pin or block (see
Figures 41–42). This will allow you to anchor and
slowly pivot the workpiece into the cutter as the
cut is started, making the operation more stable
and safe.

To free-hand route:

DISCONNECT ROUTER FROM POWER!

1.

2. Fabricate a jig to use with workpiece that will

match desired finished shape, then attach it
to workpiece (see Figure 42 for an example).

Swing

Starting Pin

t

a

i

t

o

o

Rub

R

n

Collar

Workpiece

Feed Direction

Figure 41. Illustration of free-hand routing using

a starting pin.

Note: Make sure any fasteners used will not

make contact with the router bit during the
cutting operation. Glue can be used as an
alternative.

Remove fence assembly from table.

3.

4. If possible, fabricate and mount a custom

guard over the bit that safely protects your
hands from spinning cutter.

Insert starting pin in best-suited hole on

5.

mounting plate, or clamp a starting block to
the table (see Figure 42 for an example).

Install a router bit with a rub collar as directed

6.

by router manufacturer's instructions, then
raise it to desired height (see Figure 43).

Rub

Template

Collar

Figure 42. Example of using a jig with a starting

block.

ALWAYS use an auxiliary jig and extreme
care when free-hand routing that requires
removal of fence. Routing without fence
and attached guard greatly increases risk
of accidental contact with spinning cutter,
causing serious personal injury.

-24-

Workpiece

Figure 43. Using a template and rub collar for

free-hand routing.

Model T1244 (Mfd. Since 08/23)

SECTION 4: MAINTENANCE

To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,

Cleaning &

Protecting

Frequently blow off sawdust with compressed air,

maintenance, or service.

Schedule

then wipe away the remaining dust with a clean
shop rag. This is especially important for the inter­nal working parts of the fence assembly and the
router. Dust build-up around the router is a sure
way to decrease its life span.

For optimum performance from this accesso­ry, this maintenance schedule must be strictly
followed.

Ongoing

To maintain a low risk of injury and proper
accessory operation, if you ever observe any of
the items below, stop using the accessory imme­diately and fix the problem before continuing
operations:

• Loose mounting bolts.

• Damaged router bit.

Worn or damaged wires.

•

Any other unsafe condition that could hamper

•
the safe operation of the router table wing
extension.

Weekly Maintenance

• Clean/vacuum dust buildup from router and
T-slots on table wing extension and infeed
and outfeed boards.

The cast-iron router table can be kept rust-free
with regular applications of products like SLIPIT®
(see Figure 44).

Recommended Metal Protectants

®

G5562—SLIPIT
G5563—SLIPIT

Figure 44. Recommended products for protect-

ing unpainted cast iron/steel parts on machinery.

1 Qt. Gel

®

11 Oz . Spray

Model T1244 (Mfd. Since 08/23)

-25-

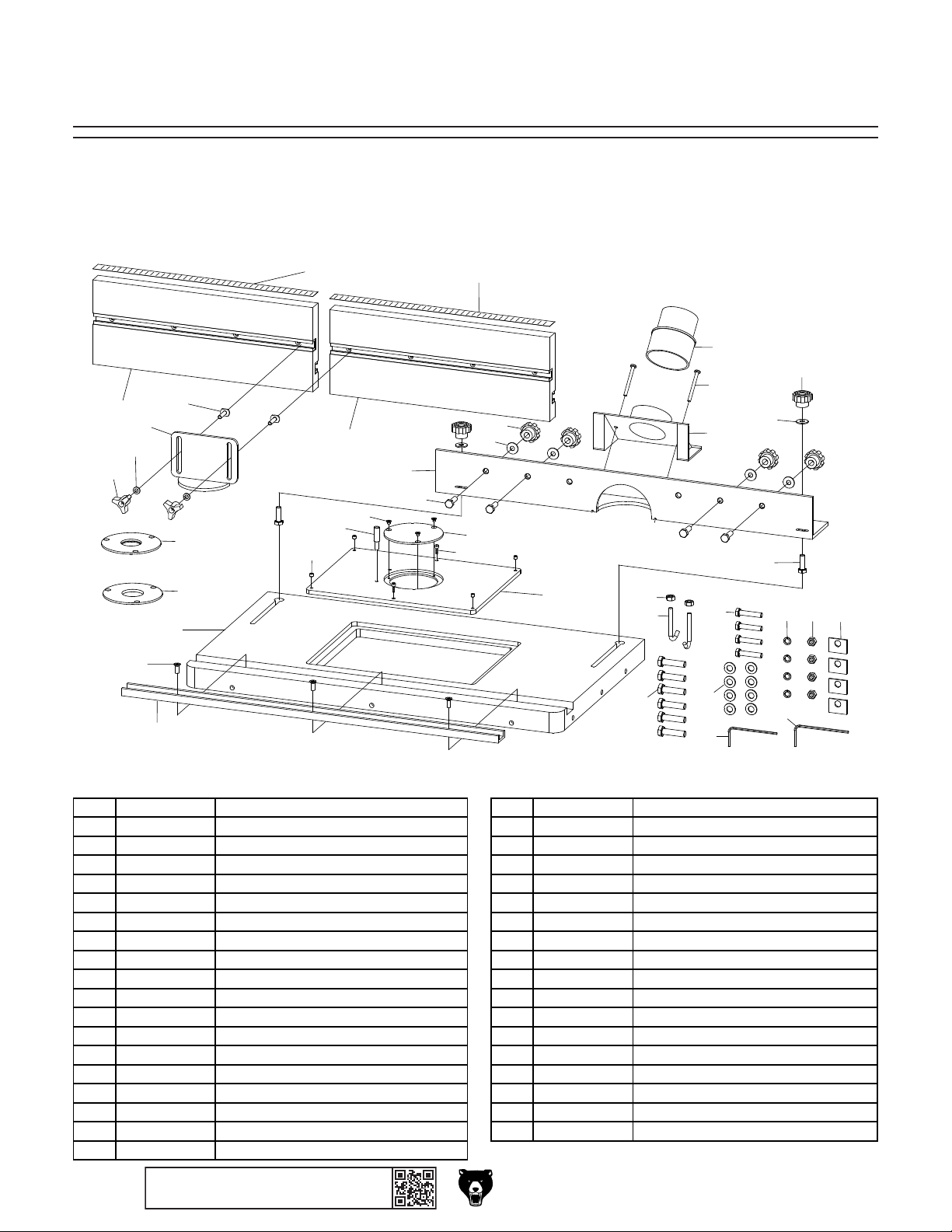

SECTION 5: PARTS

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

are available for purchase. Call (800) 523 - 4777 or visit our online parts store at www.grizzly.com to check for availability.

Main

23

13

13

5

16

20

22

21

6

3

18

19

4

15

3

2

17

26

10

11

12

25V2

37

9

14

8V2

28
27

29

30 31 32

1V2

24

33

34

36

7

35

REF PART # DES CRIPTION REF PART # DES CRIPTION

1V2 PT1244001V2 WING TABLE EXTENSION V2.08.23 20 PT1244020 PHLP HD SCR M5-.8 X 55
2 PT1244002 FENCE BRACKET 21 PT1244021 T-BOLT M6-1 X 25
3 PT1244003 FENCE 15-3/ 4 X 6 X 1" 22 PT1244022 FENDER WASHE R 6MM
4 PT1244004 DUST PORT 2-1/2" 23 PT1244023 KNOB M6-1, 3-LOBE, 29D X 24L
5 PT1244005 DUST PORT ADAPTER 2-1/2" - 2-1/4" 24 PT1244024 FLAT HD SCR M6- 1 X 1 6
6 PT1244006 ROUTER BI T GUARD 25V2 PT1244025V2 SET SCREW M6-1 X 10 V2.08.23
7 PT1244007 MITER T-TRA CK 26 PT1244026 FLAT HD SCR M4- . 7 X 5
8V2 PT1244008V2 ROUTER MOUNTING PLATE V2.08.23 27 PT1244027 J-HOOK M6-1 X 54
9 PT1244009 PLATE INSERT, SOLID 100MM 28 PT1244028 HEX NUT M6-1
10 PT1244010 PLATE INSERT, 32ID X 100MM 29 PT1244029 HEX BOLT M8-1. 25 X 40
11 PT1244011 PLATE INSERT, 37ID X 100MM 30 PT1244030 LOCK WASHER 8MM
12 PT1244012 STARTI NG PI N M6-1 31 PT1244031 HEX NUT M8-1 . 2 5
13 PT1244013 FENCE SCALE 0 - 15-11/16" 32 PT1244032 SQUARE WASHER 32 X 25 X 2.6MM
14 PT1244014 HEX BOLT M8-1. 25 X 25 33 PT1244033 HEX BOLT M10-1. 5 X 40
15 PT1244015 FLAT WASHE R 8MM 34 PT1244034 FLAT WASHER 10MM
16 PT1244016 KNOB M8-1.25, 8-LOBE, 34D X 23L 35 PT1244035 HEX WRENCH 3 MM
17 PT1244017 HEX BOLT M8-1. 25 X 25 36 PT1244036 HEX WRENCH 4MM
18 PT1244018 FLAT WASHE R 8MM 37 PT1244037 CAP SCREW M5-.8 X 12
19 PT1244019 KNOB M8-1.25, 8-LOBE, 34D X 23L

-26-

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Parts Store.

Model T1244 (Mfd. Since 08/23)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To
you can
applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY
