Grizzly T1243 User guide

MODEL T1243

CROSS-SLIDE

ROTARY TABLE 7" X 9"

OWNER'S MANUAL

(For models manufactured since 02/18)

COPYRIGHT © MAY, 2018 BY GRIZZLY INDUSTRIAL, INC.

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#KB19355 PRINTED IN CHINA

V1. 0 5.18

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Manual Accuracy ........................................................................................................................ 2

Machine Data Sheet ................................................................................................................... 2

Contact Info ................................................................................................................................ 2

Machine Description ................................................................................................................... 3

Identification ............................................................................................................................... 3

Controls & Components ............................................................................................................. 4

SECTION 1: SAFETY ....................................................................................................................... 5

Safety Instructions for Machinery ............................................................................................... 5

SECTION 2: SETUP ......................................................................................................................... 6

Unpacking .................................................................................................................................. 6

Needed for Setup ....................................................................................................................... 6

Inventory ..................................................................................................................................... 6

Assembly .................................................................................................................................... 7

SECTION 3: OPERATIONS ............................................................................................................. 8

Operation Overview.................................................................................................................... 8

Rotary Table Movement ............................................................................................................. 8

Adjusting Handwheel Scale ....................................................................................................... 9

Adjusting Indexing Scale ............................................................................................................ 9

Mounting Table Horizontally ....................................................................................................... 9

Mounting Table Vertically ......................................................................................................... 11

Aligning Workpiece with Mill Spindle ....................................................................................... 12

Aligning Table with Mill Machine X-Axis .................................................................................. 12

Angular Indexing ...................................................................................................................... 13

SECTION 4: ACCESSORIES ......................................................................................................... 14

SECTION 5: MAINTENANCE......................................................................................................... 17

Schedule .................................................................................................................................. 17

Cleaning & Protecting .............................................................................................................. 17

Lubrication ................................................................................................................................ 17

Adjusting Gibs .......................................................................................................................... 19

SECTION 6: PARTS ....................................................................................................................... 20

T1243 Parts .............................................................................................................................. 20

WARRANTY & RETURNS ............................................................................................................. 25

INTRODUCTION

We are proud to offer this document with your
new machine! We've made every effort to be
exact with the instructions, specifications, draw­ings, and photographs of the machine we used
when writing this manual. However, sometimes
we still make an occasional mistake.

Also, owing to our policy of continuous improve­ment, your machine may not exactly match

the manual

the difference between the manual and machine
leaves you in doubt, immediately call our techni­cal support for updates or clarification.

For your convenience, we post all available docu­mentation on our website at

.
Any updates to this document will be reflected on
our website as soon as complete.

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Manual Accuracy

. If you find this to be the case, and

www.grizzly.com

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Email: [e-mail]

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL T1243 CROSS-SLIDE ROTARY TABLE 7 X 9"

Worm Gear Ratio...................................................................................................................................... 90:1

Table Rotation ......................................................................................................................................... 360°

Rotary Table Rotation Per Handwheel Revolution .......................................................................................4°

Handwheel Scale Resolution (Smallest Indicated Adjustment)............................................................. 0.001"

Table Size ............................................................................................................................................. 7" x 9"

Table T-Slots ..............................................................................................................................................

Table Height ............................................................................................................................................. 7

X-Axis Table Travel ....................................................................................................................................4

Y-Axis Table Travel ....................................................................................................................................4

Base Footprint (Horizontal/Vertical).............................. 8" L x 7

Overall Width (Side-to-Side) .......................................................................................................................15"

Overall Depth (Front-to-Back) .................................................................................................................12

Full Range of Movement Width .................................................................................................................. 15"

Full Range of Movement Depth ..................................................................................................................20"

Weight .................................................................................................................................................. 60 lbs.

-2-

7

1

⁄2 " W (Horizontal), 71⁄2 " L x 71⁄2 " W (Vertical)

Model T1243 (Mfd. Since 02/18)

⁄16"

1

⁄2 "

1

3

3

⁄4"
⁄4"

⁄4"

To reduce your risk of
serious injury, read this
entire manual BEFORE

Machine Description

The T1243 Cross-Slide Rotary Table allows users
to perform milling operations up to 360° around a
fixed axis, as well as move up to 4" along both the
X and Y axes. Three handwheels control rotation
and table movement.

The T1243 can be mounted horizontally or verti­cally on a mill-drill table. The supplied T-bolts and
hold-down clamps are designed to work with mill­ing machine tables that have

7

⁄16" or 1⁄2 " T-slots.

Identification

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

A

J

B

I

L

C

K

D

H

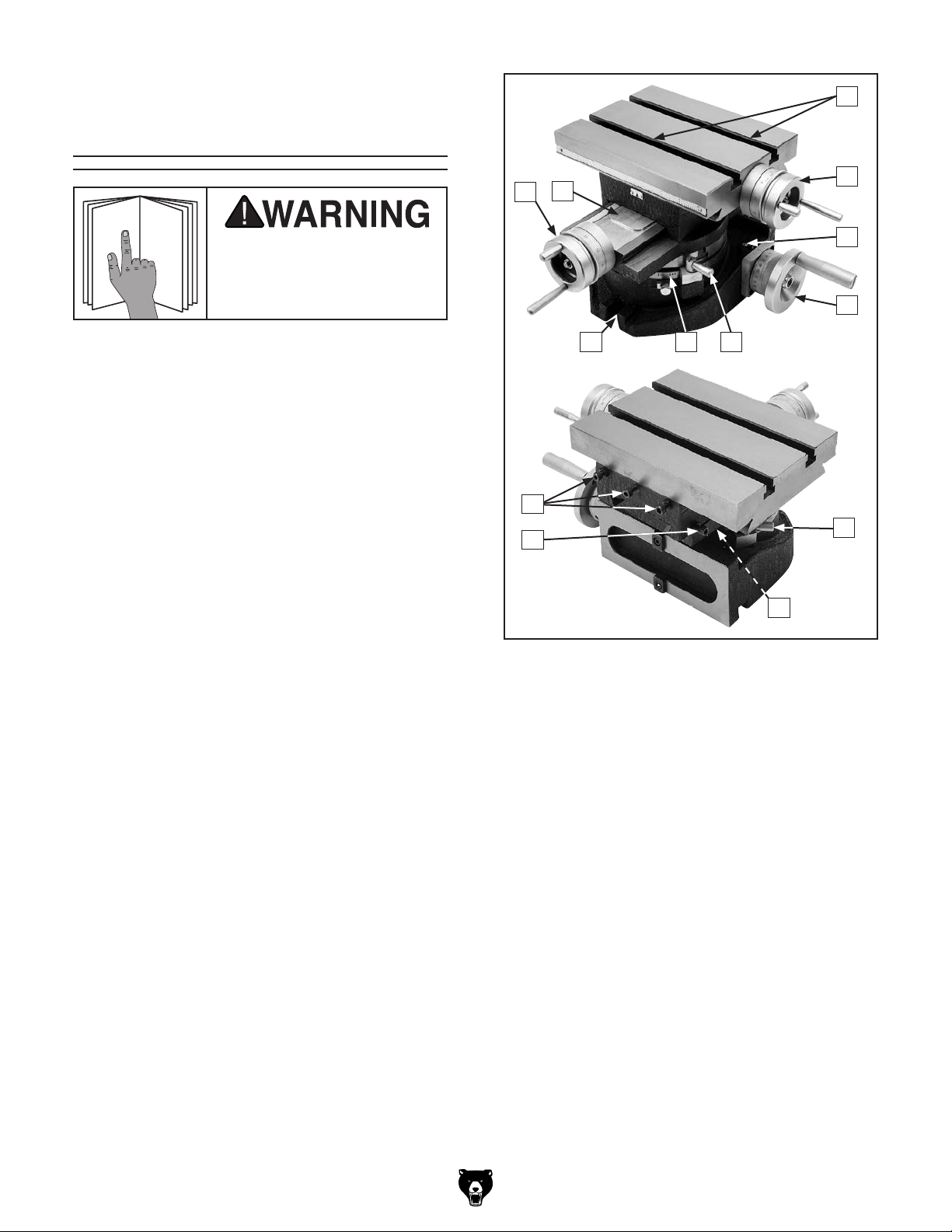

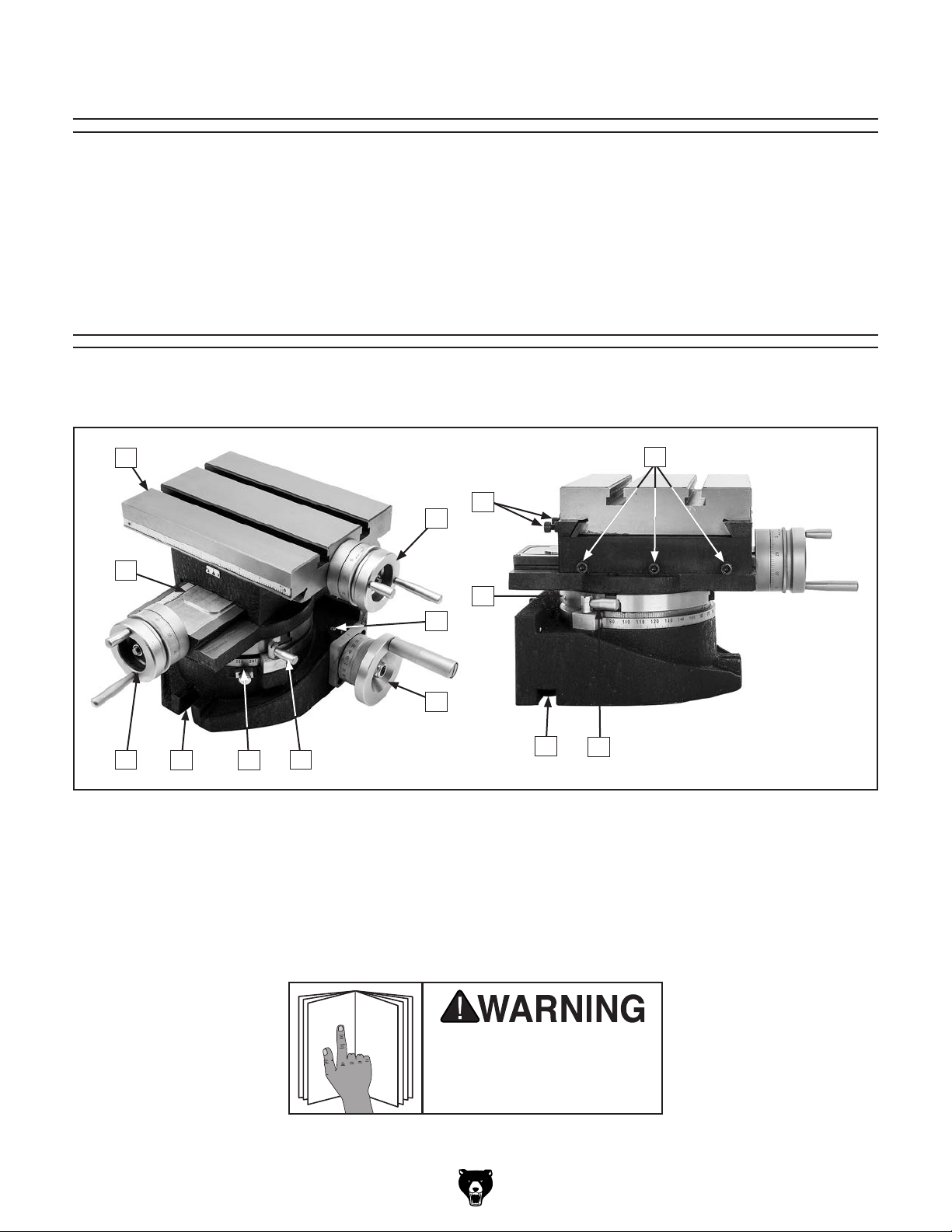

A. Table
B. X-Axis Handwheel w/Graduated Scale
C. Ball Oiler for Rotary Table Leadscrew
D. Rotary Table Handwheel w/Graduated Scale
E. Rotary Table Locks
F. Rotary Table Degree Scale and Adjustable

Indicator

FG

E

using machine.

M

G. Horizontal Mounting Slot
H. Y-Axis Handwheel w/Graduated Scale
I. Y-Axis Leadscrew Cover
J. X-Axis Gib Adjustment Screws (2 of 3)
K. Y-Axis Gib Adjustment Screws
L. Ball Oiler for Rotary Table Worm Gear
M. Vertical Mounting Slot (1 of 2)

E

Model T1243 (Mfd. Since 02/18)

-3-

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

C

using machine.

Refer to the following figures and descriptions to
become familiar with the basic controls and com­ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.

A. Y-Axis Handwheel w/Graduated Scale:

Moves table forward and backward when
handwheel is perpendicular to rotary table
handwheel (F) as shown; moves table side
to side on X-axis when handwheel is parallel
with rotary table handwheel. One full turn of
the handwheel moves the table 0.1".

B

A

HI

G

J

K

E

D

E

F

G

B. Y-Axis Leadscrew Cover: Protects

leadscrew from debris and provides access
for lubrication.

C. Table T-Slots: Are used to secure a workpiece

to the table with

D. X-Axis Handwheel w/Graduated Scale:

Moves table side to side when handwheel
is parallel with rotary table handwheel (F) as
shown; moves table forward and backward
on Y-axis when handwheel is perpendicular
to rotary table handwheel. One full turn of the
handwheel moves the table 0.1".

E. Ball Oilers: Are used to lubricate the rotary

table leadscrew and worm gear.

F. Rotary Table Handwheel w/Graduated

Scale: Rotates the table through a full 360°

rotation. One full rotation of the handwheel
turns the table 4°.

7

⁄16" or 10mm fasteners.

Figure 1. T1243 controls and components.

G. Rotary Table Locks: Lock the table in place.

This reduces the stress on the worm and
spur gear interface and helps ensure the
table does not change position during heavy
machining operations.

H. Rotary Table Degree Scale: Graduated in

whole degrees for rotational table positioning.

I. Horizontal Mounting Slot: Use to attach

T1243 to milling machine table with T-bolt.

J. Table Gib Adjustment Screws: Provide

adjustment for play in the table without caus­ing the slides to bind.

K. Cross Slide Gib Adjustment Screw (1 of

3): Provides adjustment for play in the cross

slide without causing the slides to bind.

-4-

Model T1243 (Mfd. Since 02/18)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model T1243 (Mfd. Since 02/18)

-5-

SECTION 2: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

Keep children and pets away
from plastic bags or packing
materials shipped with this

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

Unpacking

If items are damaged

call us immediately at [phone].

Save all packaging materials until

SUFFOCATION HAZARD!

machine. Discard immediately.

Inventory

Box 1 (Figure 2) Qty

A. Cross-Slide Rotary Table (Not Shown) ...... 1

B. Hold-Down Clamps .................................... 3

C. T-B o lts ........................................................ 3

D. Handwheel Handle ..................................... 1

E. Shoulder Screw .......................................... 1

F. Fixed Handles 58mm ................................. 2

G. Fixed Handles 38mm ................................. 2

H. Flat Washers 10mm ................................... 3

I. Hex Nuts M10-1.5 ....................................... 3

Needed for Setup

The following items are needed, but not included,
for the setup/assembly of this machine.

Description Qty

• Safety Glasses ........................................... 1

• Screwdriver Flat Head #2 ........................... 1

-6-

B

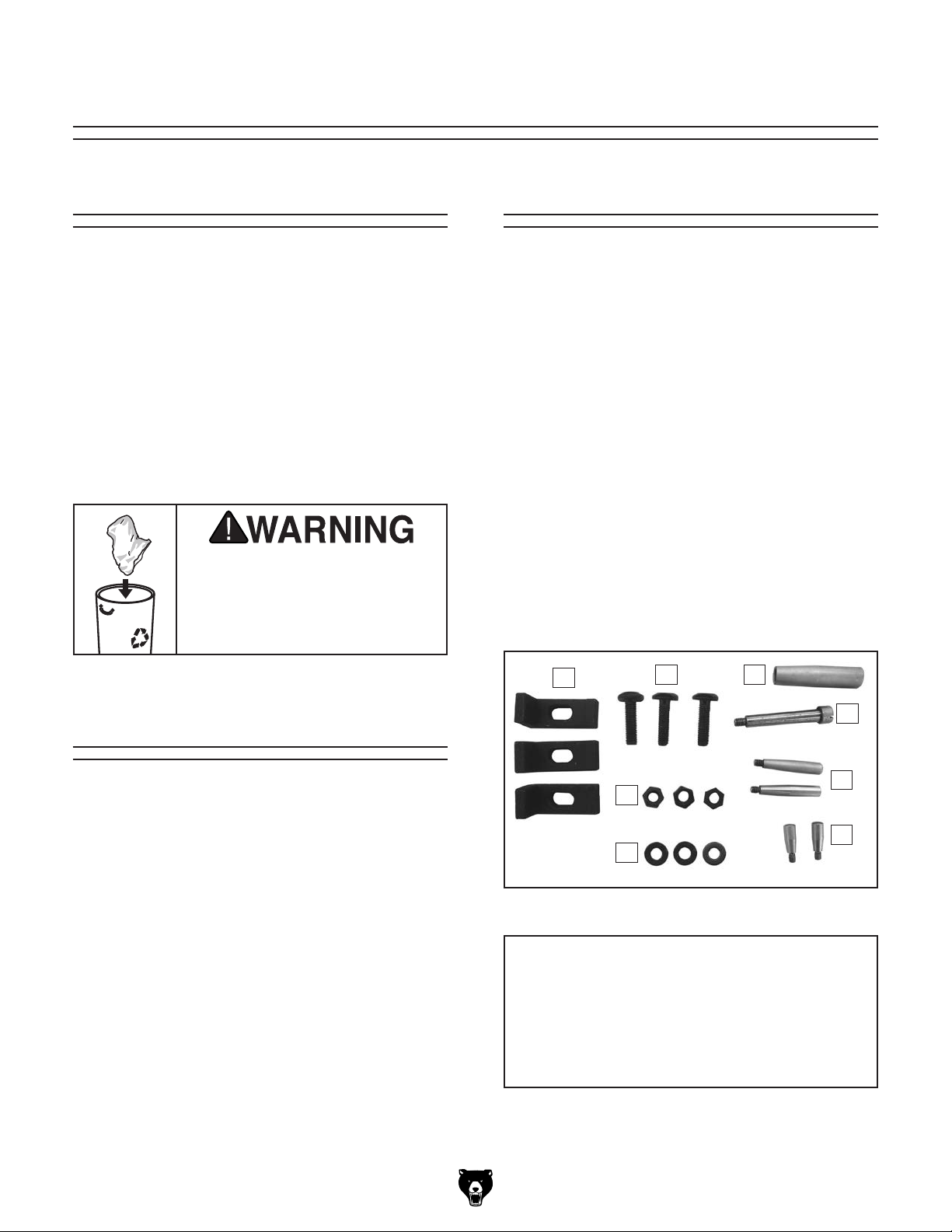

Figure 2. T1243 inventory.

C D

E

F

I

G

H

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

Model T1243 (Mfd. Since 02/18)

Assembly

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to

and gather

all

To ensure the assembly process

goes smoothly, first clean any

cov­ered or coated in heavy-duty rust preventative (if
applicable).

2. Thread (1) fixed handle 38mm and (1)
fixed handle 58mm into X-axis and Y-axis
handwheels (see Figure 4). Hand tighten.

Needed for Setup

listed items.

parts that are

The T1243 Cross-Slide Rotary Table comes fully
assembled except for the handwheel handles.

Items Needed Qty

Flat Head Screwdriver #2 .................................. 1

To assemble machine:

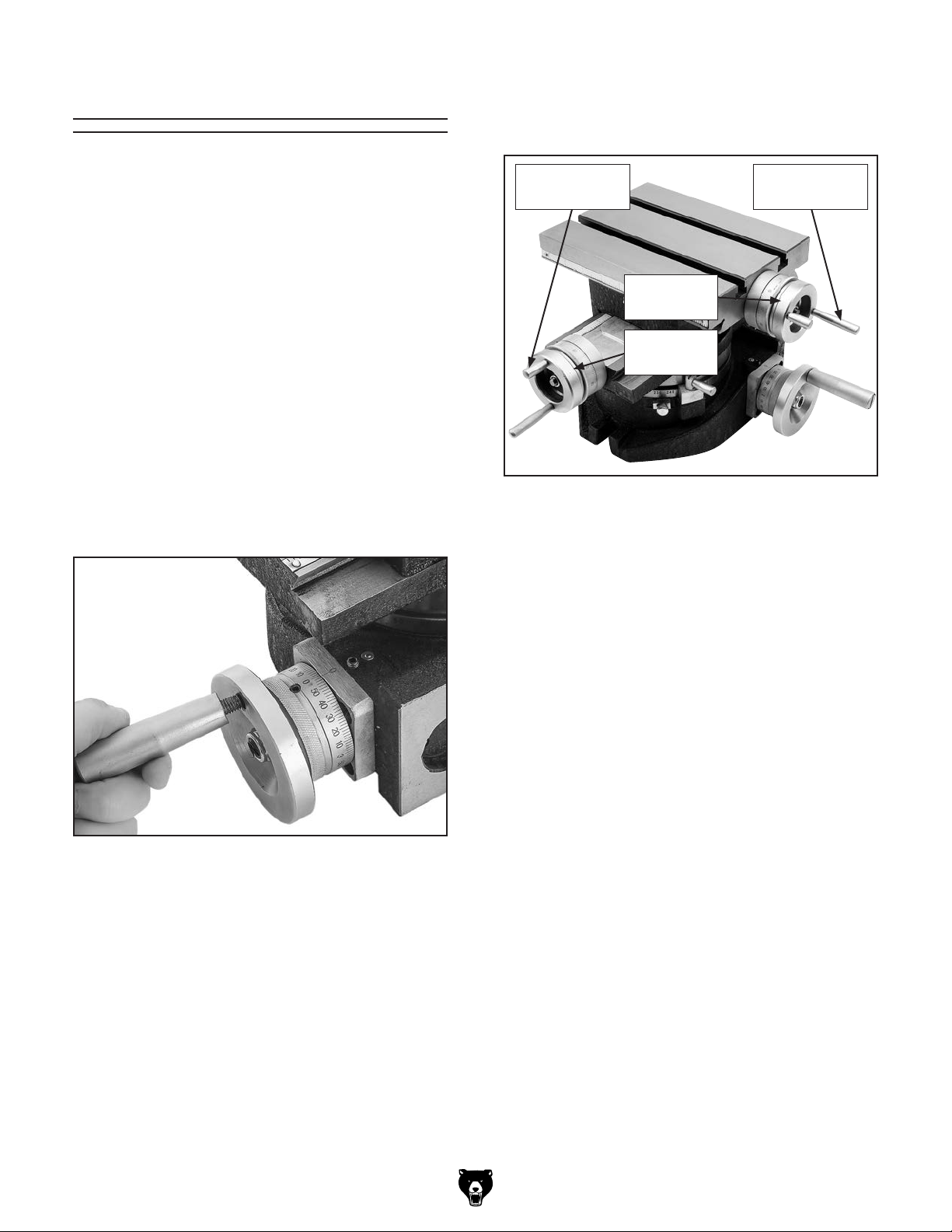

1. Insert shoulder screw into handwheel handle,

then attach shoulder screw to 3" rotary table
handwheel as shown in Figure 3.

Fixed

Handle 38mm

X-Axis

Handwheel

Y-Axis

Handwheel

Figure 4. Fixed handles installed on X- and

Y-axis handwheels.

Fixed

Handle 58mm

Figure 3. Installing shoulder screw and handle

without shaft into rotary table handwheel.

Model T1243 (Mfd. Since 02/18)

-7-

SECTION 3: OPERATIONS

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

To reduce your risk of
serious injury, read this
entire manual BEFORE

To reduce risk of eye injury from flying

Operation Overview

machine controls/components

are easier to understand.

seek additional

, and do additional research

using machine.

Rotary Table

Movement

The T1243 rotary table rotates by turning the
3" handwheel, which is attached to a precision
worm gear engaged with a worm wheel. The ratio
between these gears is 90:1, which means one
complete turn of the handwheel rotates the table
4° (see Figure 5).

chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating this machine.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

-8-

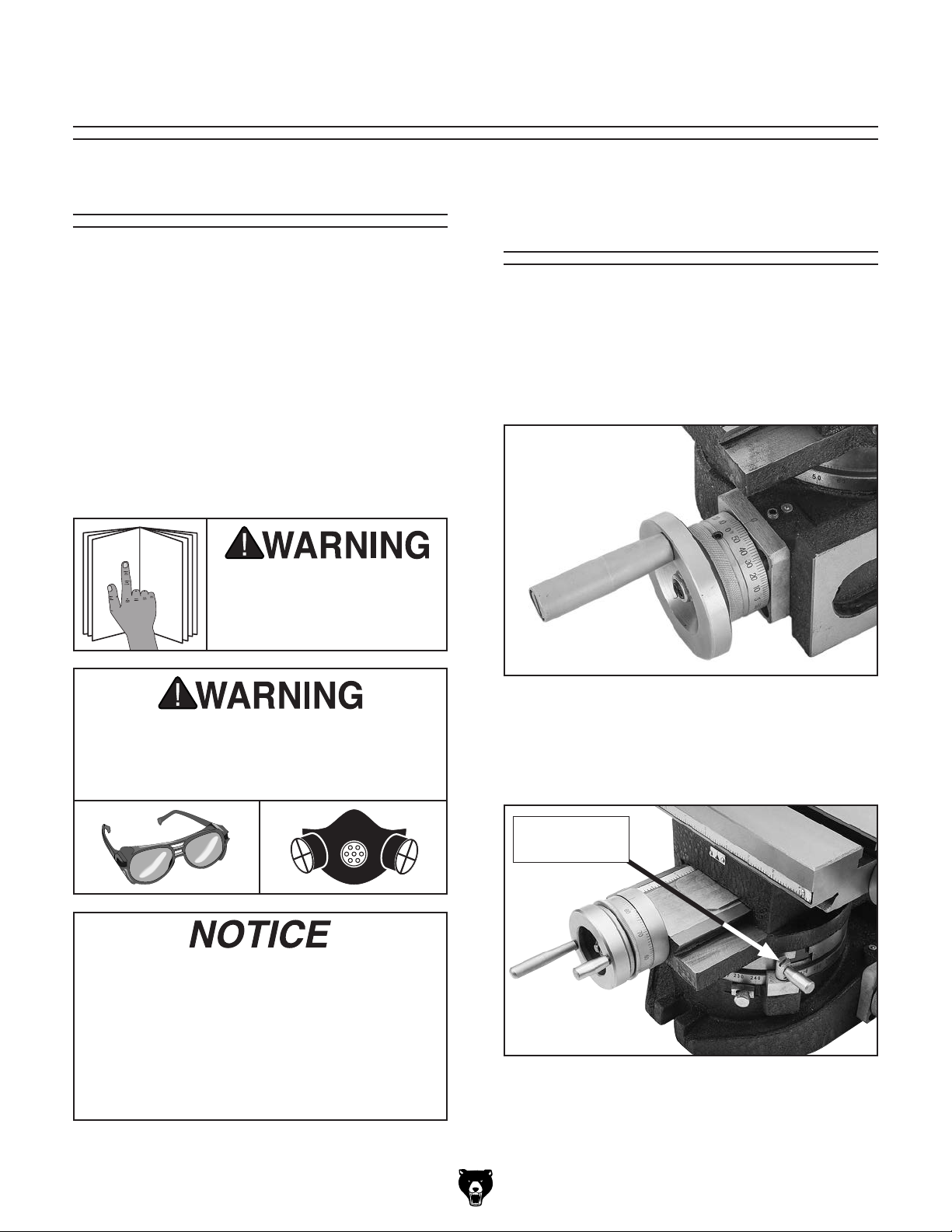

Figure 5. Rotary table handwheel and scale.

To maximize rigidity during operation, the rota­ry table has two table locks (see Figure 6).
Tightening the levers locks the table in place.

Rotary Table
Lock (1 of 2)

Figure 6. Rotary table lock.

To minimize finish problems associated with gear
backlash when cutting circular slots, lightly tighten
the locks to create extra drag.

Model T1243 (Mfd. Since 02/18)

Adjusting Handwheel

Adjusting Indexing

Scale

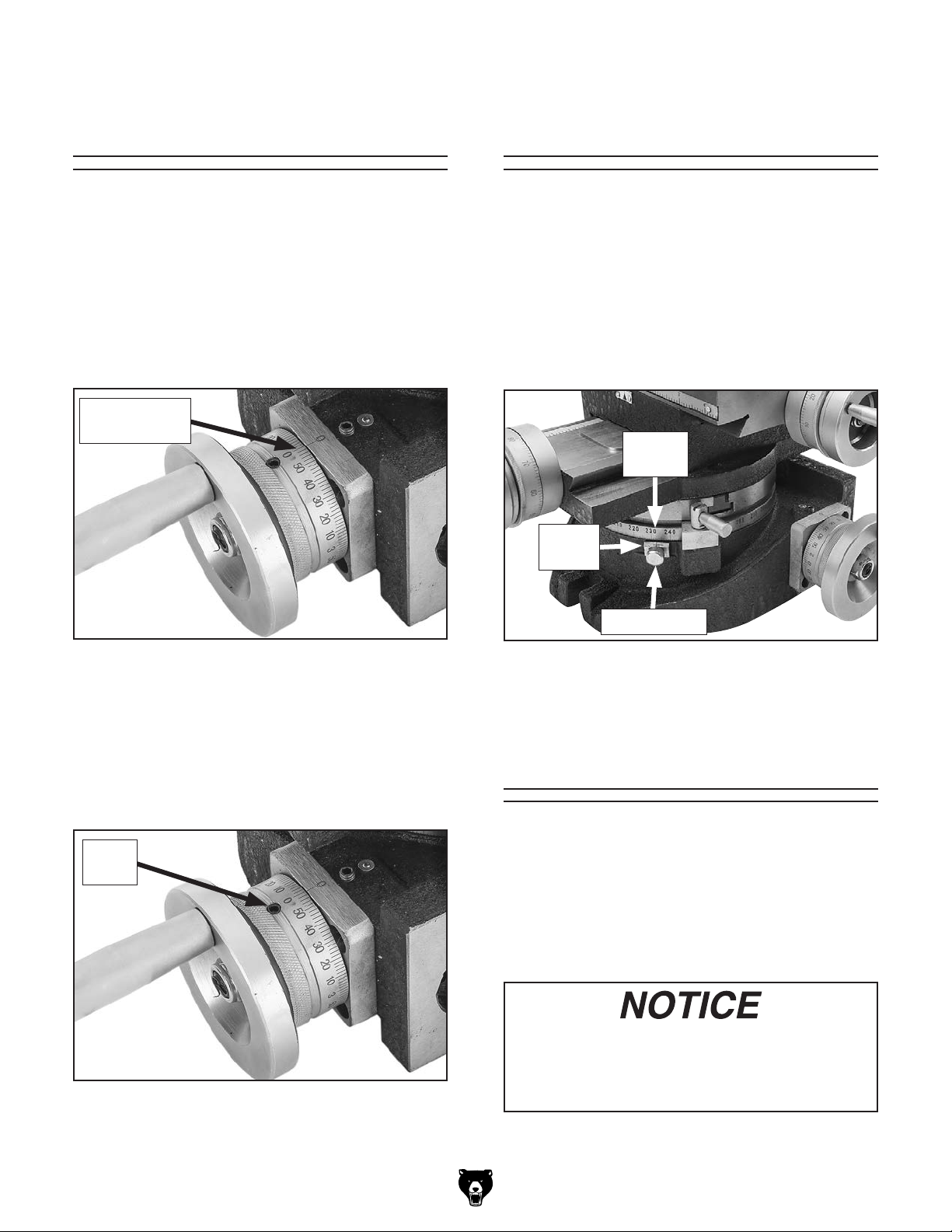

The rotary table scale collar is marked in whole
degrees and has a resolution of 1 arc second (
of 1°). For every full rotation of the handwheel, the
indexing scale on the rotary table moves 4°.

The handwheel scale (see Figure 7) can be
repositioned without rotating the handwheel. This
helps when aligning all of the zeroes at the
beginning of a job.

Rotary Table

Scale Collar

1

⁄60

Scale

The degree scale is marked on the edge of the
rotary table in 1° increments (see Figure 9). The
zero point can be synchronized with the handwheel
to start the table indexing at 0° by using the index
marker as a starting point.

The index marker position for the rotary table can
be adjusted within +/-2.5° by loosening the thumb­screw and moving the marker.

Degree

Scale

Index

Marker

Figure 7. Rotary table scale collar index.

Items Needed Qty

Hex Wrench 3mm .............................................. 1

1. To adjust collar, loosen set screw (see
Figure 8) securing collar to handwheel, then

rotate collar to desired alignment.

Set

Screw

Figure 8. Location of collar set screw.

Thumbscrew

Figure 9. Location of degree scale.

Mounting Table

Horizontally

The T1243 comes with (3) M10-1.5 x 60 T-bolts,
(3) M10-1.5 hex nuts, (3) 10mm flat washers, and
(3) hold-down clamps for mounting horizontally to
a milling machine table. Use the supplied hard­ware to mount the T1243 to milling machine tables
with spacing up to 4" on center between
T-slots.

To mount the T1243 to tables with T-slots
spaced wider than 4" on center, or with
T-slots wider than
clamps (available separately).

1

⁄2", use step blocks and

7

⁄16" or 1⁄2 "

2. When finished, tighten set screw to secure
collar.

Model T1243 (Mfd. Since 02/18)

-9-

Before mounting the T1243 cross-slide rotary
table to your milling machine table, verify align­ment of your mill table and mill spindle. Refer to
your mill manual for this procedure.

Use shop rags and mineral spirits to clean the
mating surfaces of the T1243 and the mill table.

Items Needed Qty

T-Bolts M10-1.5 x 60mm .................................... 3

Hex Nuts M10-1.5 .............................................. 3

Flat Washers 10mm .......................................... 3

Hold-Down Clamps ........................... As Needed

Open-End Wrench 17mm .................................. 1

Hex Wrench 5mm .............................................. 1

Note: The T1243 may also be installed using

(1) T-bolt, (1) flat washer, (1) hex nut, and (1)
hold-down clamp, as shown in Figure 12.

x 1

Hold-Down

Clamp

To mount T1243 horizontally:

1. DISCONNECT MACHINE FROM POWER!

2. Move (2) T-slot keys and (2) cap screws from

side slots to bottom slot (see Figure 10).

Bottom Slot

T-Slot

Keys

Figure 10. T-slot keys and mounting locations.

3. Insert (1) T-bolt in T-slot of milling machine

table, then align T-bolt with T1243 mount­ing slot, as shown in Figure 11. Attach (1)
10mm flat washer and (1) M10-1.5 hex nut
finger-tight.

Figure 12. T1243 mounted with hold-down

clamp.

4. Insert (1) T-bolt into each milling table outer
T-slot, then install (1) hold-down clamp, (1)
10mm flat washer, and (1) M10-1.5 hex nut
onto each T-bolt, as shown in Figure 13.

Hold-Down

Clamps

x 1

T-Slots

Figure 13. T1243 mounted using hold-down

clamps, T-bolts, flat washers, and hex nuts.

T-Bolt

x 1

T-Slot

Figure 11. Initial horizontal mounting of T1243.

-10 -

T1243

Mounting

Slot

Make sure cross-slide rotary table is secured
to milling table. Check T-bolts and clamps
for tightness before each cutting operation.
If cross-slide rotary table is not secured,
serious personal injury and damage to your
mill and cross-slide rotary table could result.

5. Tighten hex nuts. Ensure T1243 is rigidly

attached to milling table to increase accu­racy, efficiency, and general safety.

Model T1243 (Mfd. Since 02/18)

Mounting Table

Vertically

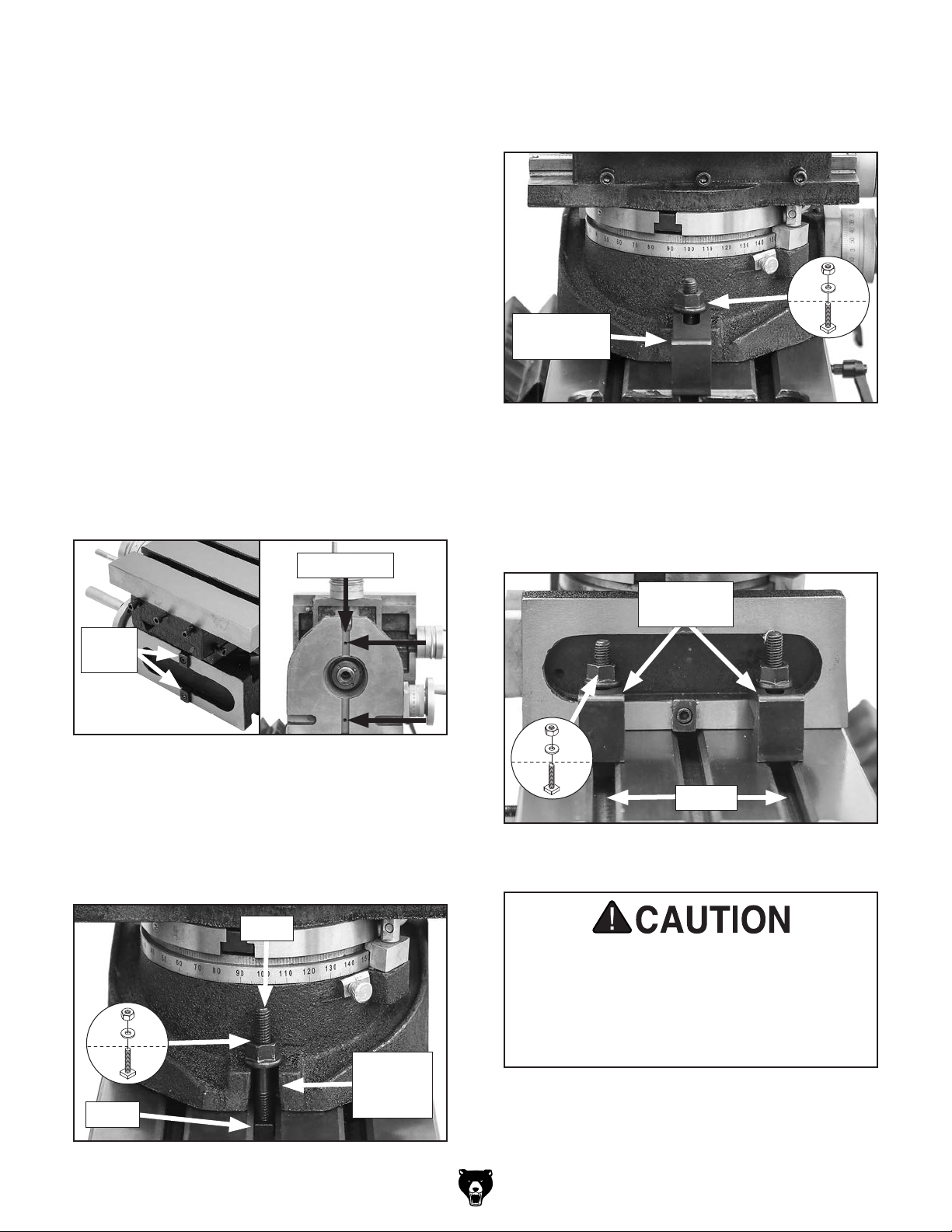

The T1243 has two slots for vertical mounting
using hold-down clamps (see Figure 14). Your
milling machine table will need three
T-slots, with the outer T-slots on 5" – 6
to use the supplied T-bolts and hold-down clamps.

Note: The T1243 can be vertically mounted direct­ly to a machine table, but its table rotation will be
limited. For full 360° rotation, place two parallel
step blocks (not included) at least 1" tall under the
T1243 before mounting to the machine table.

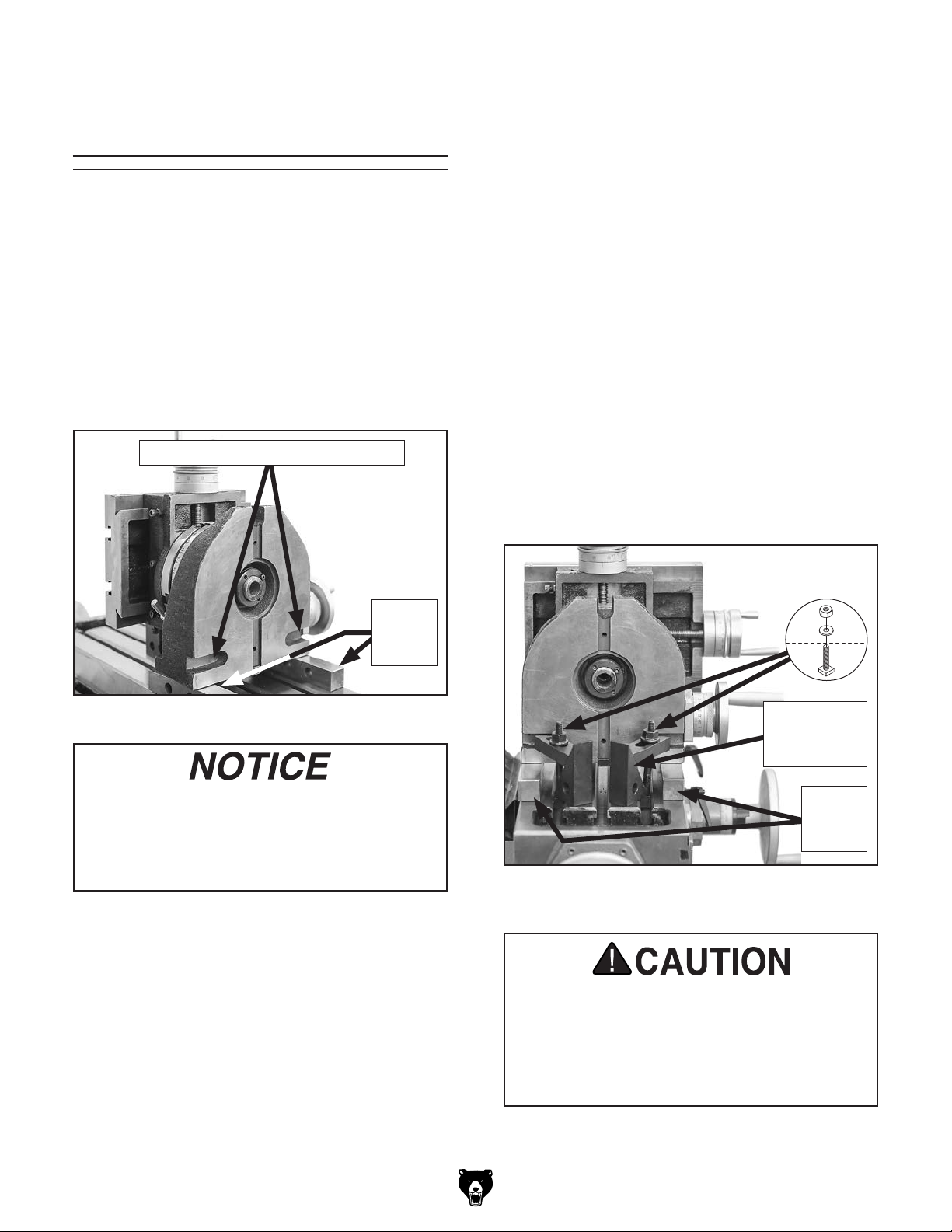

Hold-Down Clamp Mounting Slots

7

⁄16" or 1⁄2 "

1

⁄2 " centers

To mount T1243 vertically:

1. DISCONNECT MACHINE FROM POWER!

2. Rotate T1243 Y-axis forward so rotating table

clears milling machine table.

3. Place T1243 on milling machine table with
T-slot key in middle T-slot.

Note: For full 360° table rotation, place

T1243 on (2) parallel blocks at least 1" tall.

4. Insert (1) M10-1.5 x 60 T-bolt in each milling
machine table T-slot.

5. Install (1) hold-down clamp (or (1) accessory
step clamp), (1) 10mm flat washer, and (1)
M10-1.5 hex nut on each T-bolt (see Figure

15), then tighten securely. Holding cross­slide rotary table rigid will help with accuracy,
efficiency, and general safety.

Parallel

Step

Blocks

Figure 14. T1243 vertical mounting alignment.

To vertically mount T1243 to milling machine
tables with T-slots narrower than 5" or wider
than 6
than
included).

Items Needed Qty

T-Bolts M10-1.5 x 60 .......................................... 2

Hex Nuts M10-1.5 .............................................. 2

Flat Washers 10mm .......................................... 2

Hold-Down Clamps ........................................... 2

Open-End Wrench 17mm .................................. 1

Step Blocks (Not Included) ................................ 2

Accessory Step Clamps (Not Included) ............ 2

1

⁄2" on center, or with T-slots wider

1

⁄2", use step blocks and clamps (not

x 1

Accessory

Step Clamp

(1 of 2)

Parallel

Step

Blocks

Figure 15. T1243 secured to milling machine

table using parallel step blocks.

Make sure cross-slide rotary table is secured
to milling table. Check T-bolts and clamps
for tightness before each cutting operation.
If cross-slide rotary table is not secured,
serious personal injury and damage to your
mill and cross-slide rotary table could result.

Model T1243 (Mfd. Since 02/18)

-11-

Aligning Workpiece

with Mill Spindle

4. Adjust workpiece on table until there is zero

runout when table and workpiece are rotated,
then securely clamp workpiece to T1243
table.

There are many ways to align the mounted
workpiece with the mill spindle. Review the sug­gestions below, then use your best judgment
based on your experience and skills to select the
correct method for your operation.

Items Needed Qty

Dial Indicator with Magnetic Base ..................... 1

Precision Mandrel or Drill Rod .......................... 1

Edge Finder ....................................................... 1

Precision Square ............................................... 1

To align T1243 with mill spindle:

1. Mount T1243 horizontally on mill table under

spindle (see Mounting Table Horizontally
on Page 9).

2. Position dial indicator with magnetic base
beside T1243, as shown in Figure 16.

5. Mount dial indicator in mill spindle using a
collet or chuck.

6. Indicate workpiece key feature, then rotate
mill spindle by hand in just one direction while
watching indicator dial.

Tip: Use a mirror to aid in reading test indica-

tor as it rotates away from you.

7. Adjust mill table until indicator dial reads zero
runout throughout rotation of spindle.

Note: If your workpiece is large enough, it

may be easier to use an edge finder instead
of a dial indicator.

Aligning Table with

Mill Machine X-Axis

WorkpieceDial

Indicator

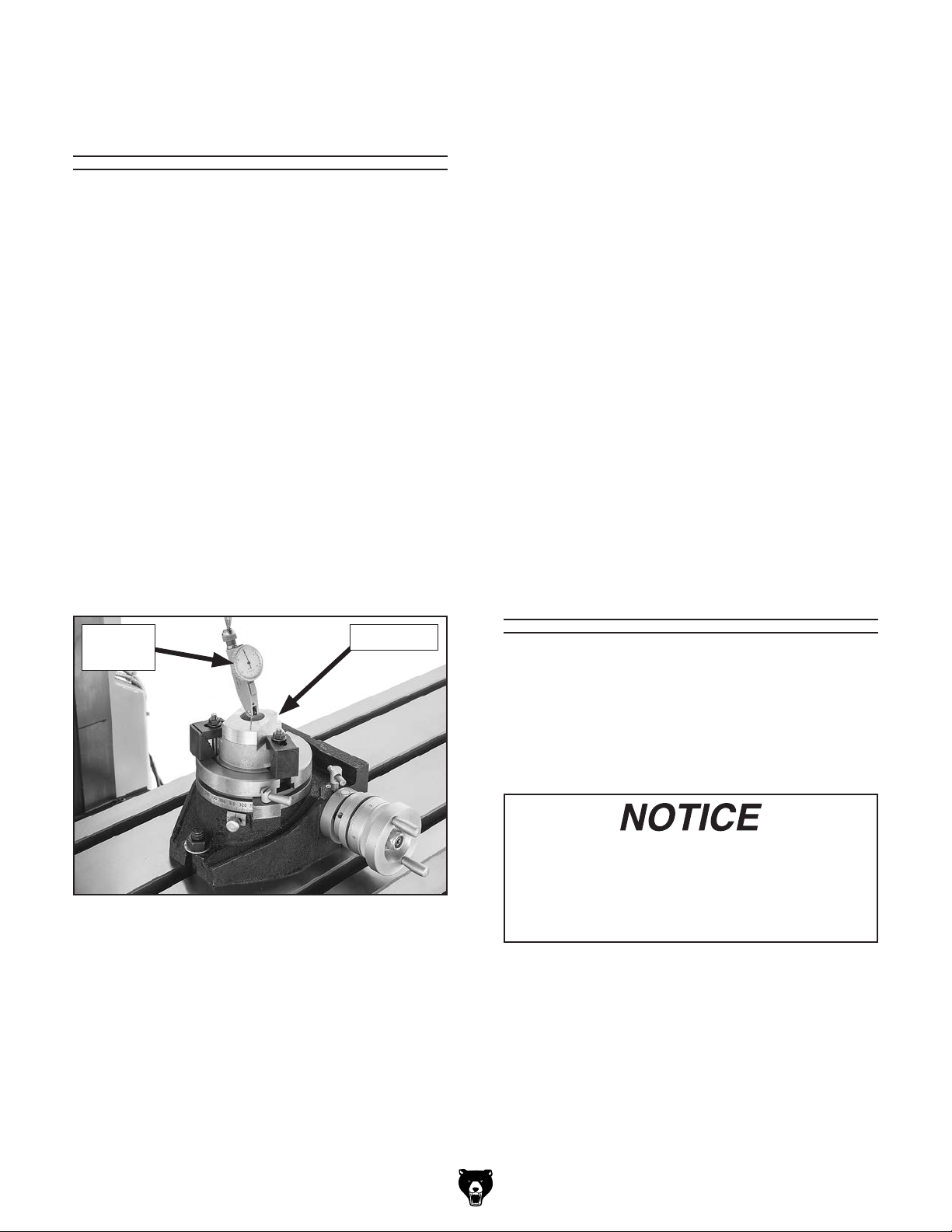

Figure 16. Example of aligning workpiece using

a dial indicator.

3. Indicate inside or outside of workpiece, then
turn rotary table handwheel while watching
indicator dial.

Note: For accurate indicator results, turn

rotary table handwheel in just one direction
to eliminate any pinion backlash.

The T1243 should be aligned with the X-axis of
the milling machine. Mount the T1243 vertically
to the mill table using the supplied T-bolts and
hold-down clamps, or with parallel step blocks
and accessory step clamps (not included) (see

Mounting Table Vertically on Page 11).

To vertically mount T1243 to milling machine
tables with T-slots narrower than 5" or wider
than 6
than
clamps (not included).

Items Needed Qty

Dial Indicator ..................................................... 1

Hold-Down Clamps ........................................... 2

Parallel Step Blocks (Not Included) ................... 2

Accessory Step Clamps (Not Included) ............ 2

1

⁄2" on center, or with T-slots wider

1

⁄2", use accessory step blocks and

-12-

Model T1243 (Mfd. Since 02/18)

To align T1243 with milling machine X-axis:

1. Place parallel step blocks on mill table.

Angular Indexing

2. Place T1243 vertically on step blocks so that

table sits beneath milling machine spindle,
as shown in Figure 17. Mount T1243 to mill
table with T-bolts and hold-down clamps.
Finger-tighten fasteners.

3. Install dial indicator in milling machine spin­dle, then use dial indicator to indicate one
side of face or back of a workpiece mounted
on T1243 table (see Figure 17).

Milling

Machine

Spindle

Dial

Indicator

T1243

Table

Angular indexing is the process used to create
evenly spaced holes in a round workpiece. Always
ensure your rotary table is properly aligned on
the X-axis of the mill before beginning angular
indexing.

Basic Example:

You are making a flange and need to place six
holes 60° apart for the bolt pattern in Figure 18.

60°

60°=15 Turns of

the Handwheel

Parallel

Step

Blocks

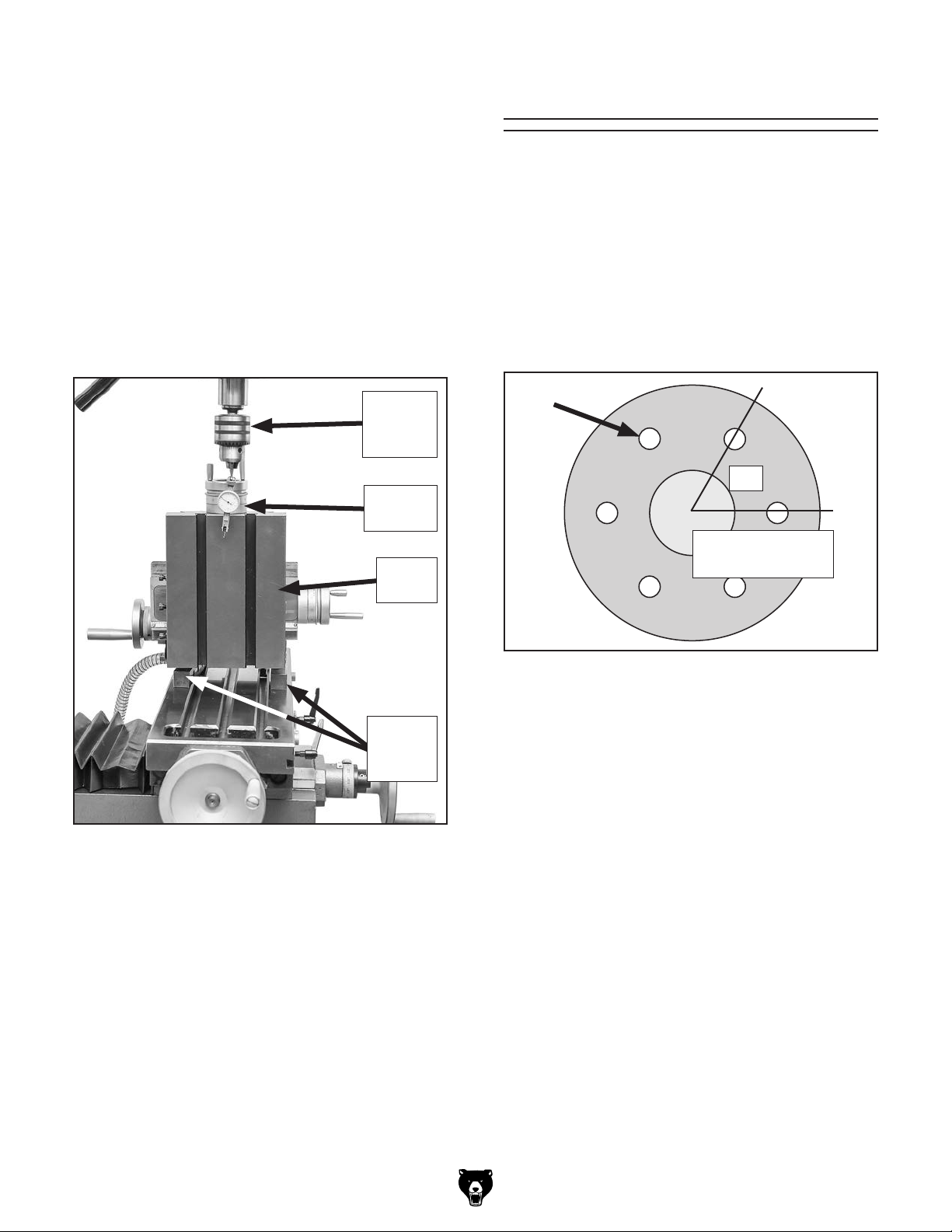

Figure 17. Using a dial indicator to align T1243

table with milling machine X-axis.

4. Move mill table in and out to indicate across
full width of T1243 table.

5. If dial indicator reads evenly across T1243
table face, securely clamp it to milling machine
table.

6. If dial indicator does not read evenly, loosen
hold-down clamps and lightly tap T1243 to
adjust position. Repeat Step 4 until indicator
reads evenly across full table width.

Figure 18. Example of flange layout.

90

Handwheel Rotations =

N = the desired division number (6).

90

/6 = 15 full handwheel turns

15 turns = 60°

1. Rotate handwheel before making first hole to
take up any play in worm gear.

2. Make your first hole, then rotate handwheel
15 times.

Note: If you rotate handwheel too far, do not

back up to the number. You must back up
one revolution and dial back to the desired
number, then lock table in place to locate
the second hole. This procedure eliminates
errors due to backlash in worm gear.

⁄N

Model T1243 (Mfd. Since 02/18)

-13-

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 4: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

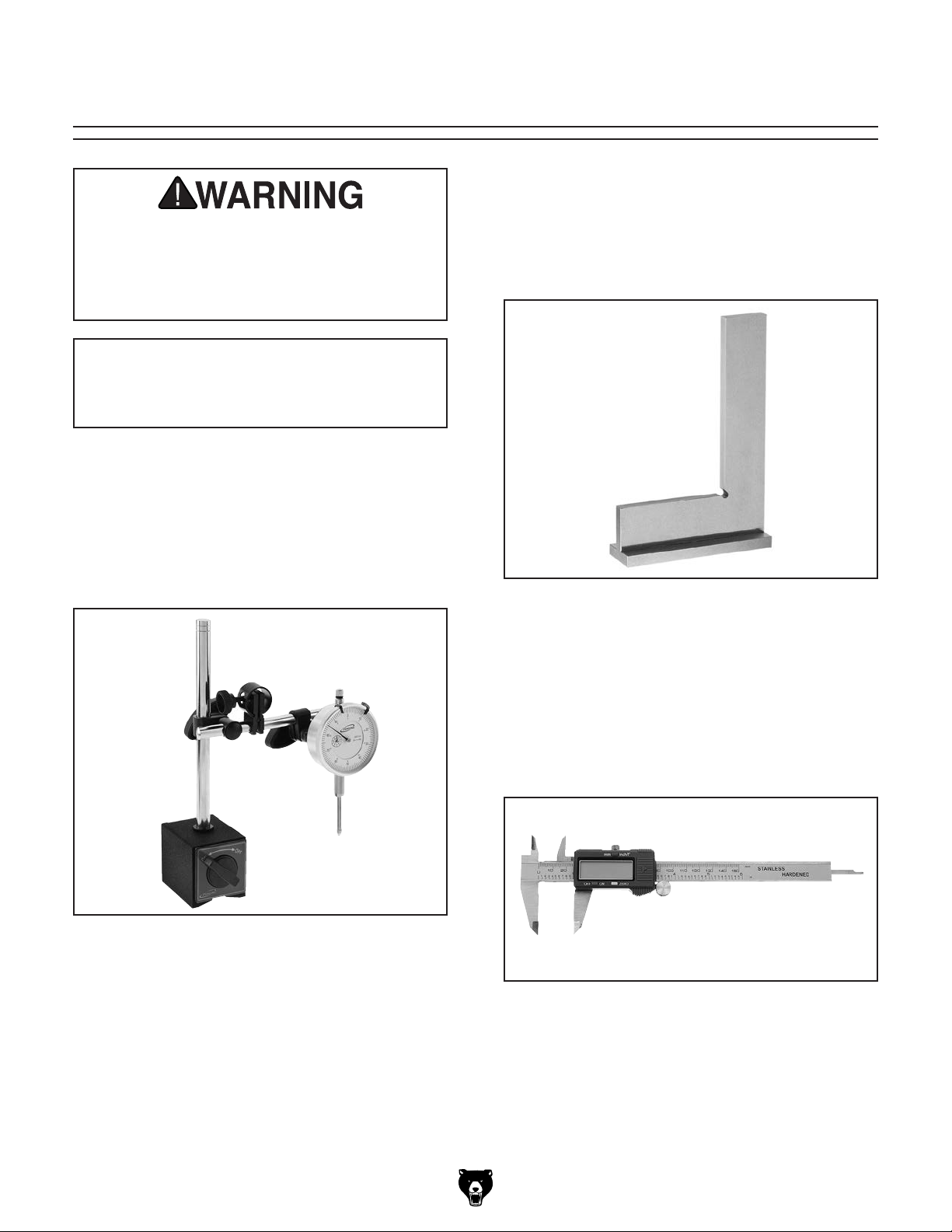

T24804—1" Universal Dial with Magnetic Base

Includes iGaging dial indicator, fine adjustment
magnetic base, and a protective case. Dial indica­tor has a range of 0–1", with an accuracy of within

0.001". Fine adjustment magnetic base is a strong
magnet with 85 lbs. of pull power and a V-shaped
bottom so the base can be mounted at any angle.

G9640— 90° Wide-Base Square 3" x 5"
G9641— 90° Wide-Base Square 4" x 6"
G9642— 90° Wide-Base Square 5" x 8"

Grade 0, heavy-duty stainless steel 90° precision
squares feature wide bases for stability. Perfect
for all setup and inspection work.

Figure 20. 90° Precision wide-base square.

Figure 19. T24804 Universal Dial with Magnetic

Base.

H7978—Fractional Digital Caliper

Large LCD readout converts to decimal inch,
fractional inch and millimeters with the push of
a button. Measure internal, external dimensions,
depth, steps and differential measurements.
Features thumb roll and stainless steel construc­tion. Range: 0-6", 0-150mm. Resolution: 0.0005",

0.01mm,

1

⁄128".

Figure 21. H7978 6" Digital Caliper.

-14-

Model T1243 (Mfd. Since 02/18)

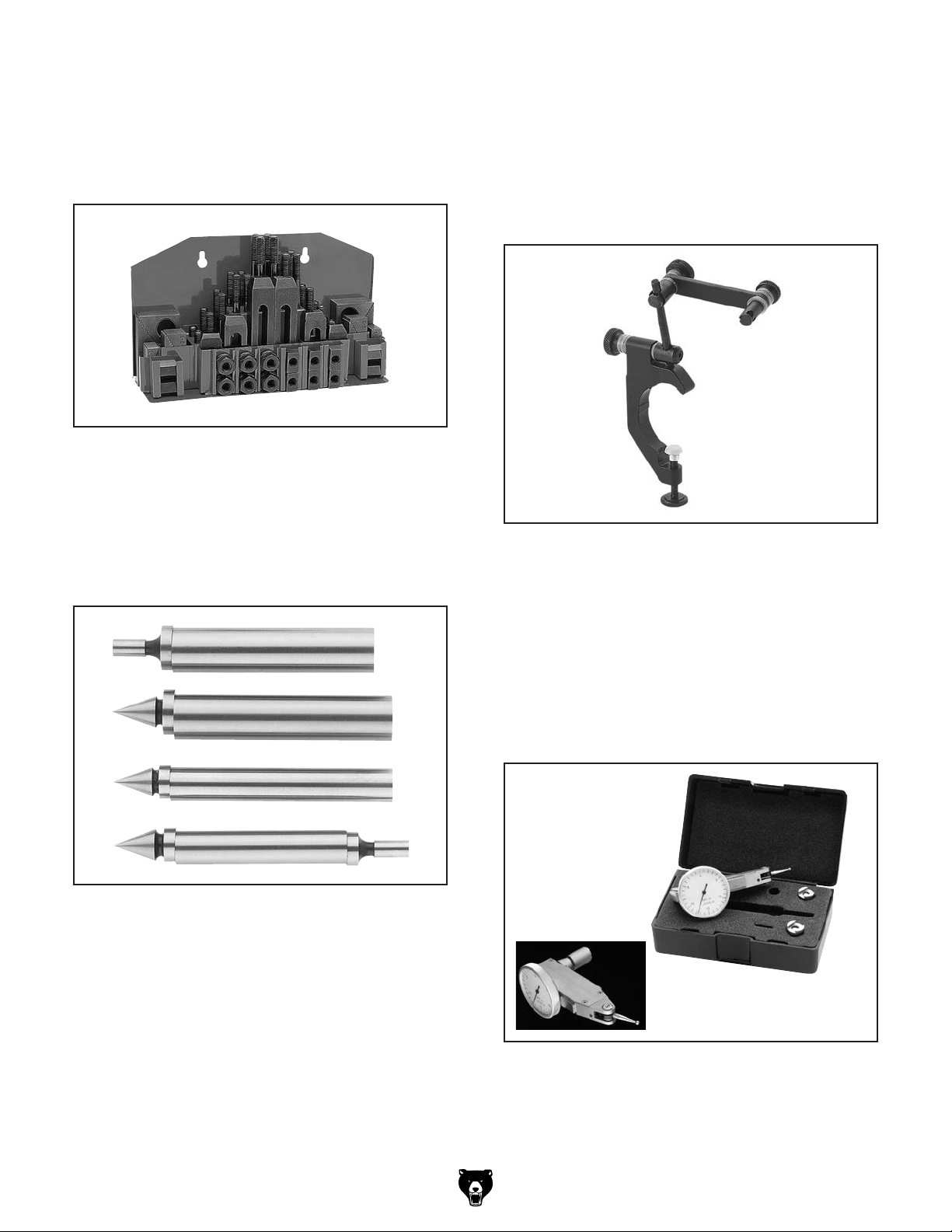

G1075—58-Pc. Clamping Kit 1⁄2" T-Nut

order online at www.grizzly.com or call 1-800-523-4777

5

G1076— 58-Pc. Clamping Kit

⁄8" T-Nut

This clamping kit includes 24 studs, 6 step-block
pairs, 6 T-nuts, 6 flange nuts, 4 coupling nuts, and
6 end hold-downs. The rack is slotted so it can be
mounted close to the machine for easy access.

Figure 22. G1076 58-Pc. Clamping Kit.

H2939—4-Pc. Edge Finder Set

This is a must have set for any shop. 4 different
styles to cover any setup problem! Set includes 1

3

each:
with a point and .200" shoulder,
point, and

⁄8" diameter with point, 3⁄8" dia. combination

1

1

⁄2 " dia. with .200" shoulder.

⁄2 " dia. with a

G9629—Universal Indicator Holder

Mount your test indicator right on your mill for
guaranteed accurate readings. C-frame holder
mounts with a single screw directly on the quill
and does not interfere with the cutting tool.

7

Clamping diameter is 1
clamping bracket to the indicator is 4
for all popular indicators with a

⁄8". The length from the

1

5

⁄2 ". Suitable

⁄32" shank.

Figure 24. G9629 Universal Indicator Holder.

G9610—Test Indicator

0.030" Range/0.001" Resolution

G9611—Test Indicator

0.008" Range/0.0001" Resolution

G9612—Test Indicator

0.030" Range/0.0005" Resolution

These test indicators have an easy to read dial
and a pivoting stylus that moves at right angles to
the dial face.

Figure 23. H2939 4-Pc. Edge Finder Set.

Figure 25. Selection of test indicators.

Model T1243 (Mfd. Since 02/18)

-15-

order online at www.grizzly.com or call 1-800-523-4777

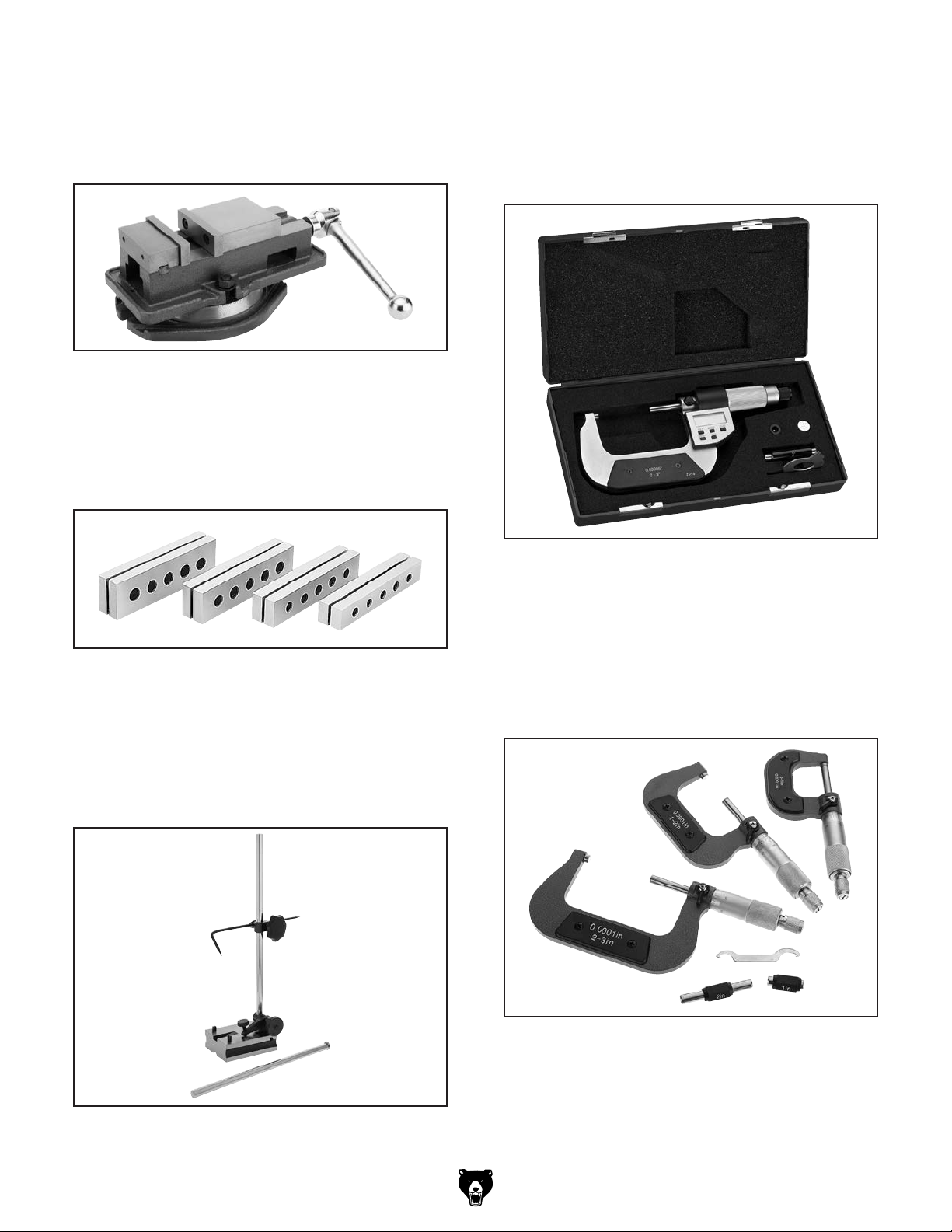

T27661—Premium Milling Vise 3"

Premium quality swiveling milling vise features
perfectly aligned, precision ground jaws, robust
clamping screw, and easy-to-read 0-360 degree

1

scale. Maximum capacity: 3

⁄8".

Figure 26. T27661 Premium Milling Vise 3".

G9600—Dual Outside Micrometer 2–3"

Dual reading Electronic Digital Outside Micrometer
accurately measures outside dimensions
between 2.00000 and 3.00000" (or 50.00000 and

75.00000mm) with graduations of 0.00005" (or

0.01270mm).

G5679—Steel Parallel Block Set

1

⁄2"

These ground and hardened sets feature four
pairs of 6" long parallels that are accurate to
within .0003" in parallelism and .0002" in height.

1

Parallels are 1", 1

⁄4", 11⁄2 ", and 13⁄4" high.

Figure 27. G5679 Steel Parallel Block Set 1⁄2".

H2713—Surface Gauges 9" & 12"

This surface gauge is ideal for set-up, layout and
quickly comparing parts. Supplied with preci­sion ground V-notched bases, spring-loaded fine
adjustment knob, 1 long and 1 short spindle and
adjustable base pins.

Figure 29. G9600 Dual Outside Micrometer

2–3".

T27348—Micrometer Set 0–3"

These Micrometer Sets feature vernier scales
that read to 0.0001", ratchet stop adjustment, and
lock levers. Sets include micrometers, standards,
adjusting wrench, and protective case. Range is
0-3".

Figure 30. T27348 Micrometer Set 0–3".

Figure 28. H2713 Surface Gauges 9" & 12".

-16 -

Model T1243 (Mfd. Since 02/18)

SECTION 5: MAINTENANCE

To reduce risk of shock or
accidental startup, always
disconnect machine from

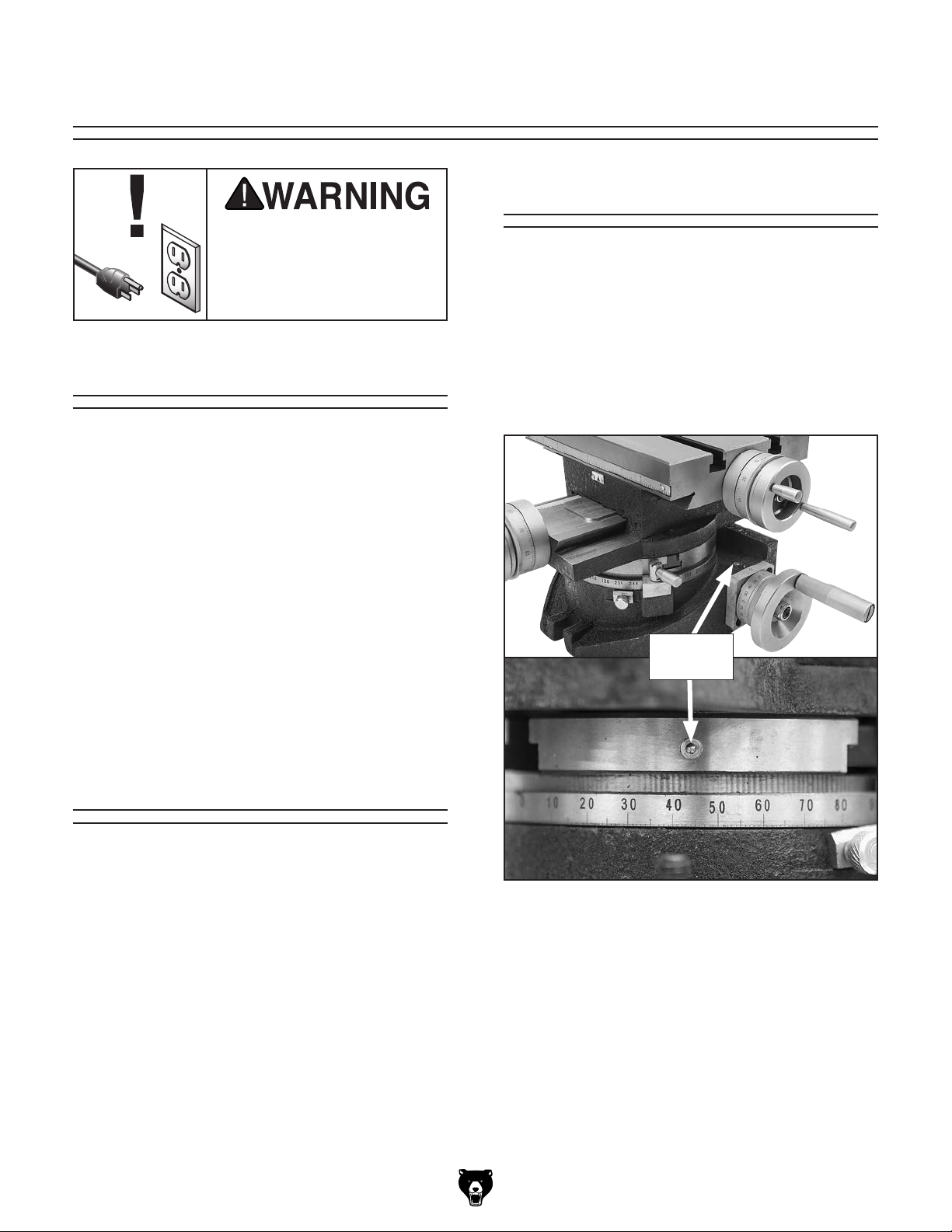

Lubrication

Ball Oilers

power before adjustments,
maintenance, or service.

Oi l Ty p e .... Grizzly T26685 or ISO 32 Equivalent

Oil Amount ......................................1 or 2 Squirts

Lubrication Frequency .............. Daily/Before Use

Schedule

For optimum performance from your cross-slide
rotary table, follow this maintenance schedule
and refer to any specific instructions given in this
section.

Daily/Before Use:

• Clean and lubricate the ball oilers.

• Dress the machined surfaces.

• Check/resolve any unsafe condition.

Monthly:

• Clean and lubricate X- and Y-axis
leadscrews.

Cleaning &

Protecting

There are two ball oilers that should be oiled on a
daily basis, or before beginning operation. Refer
to Figure 31 for their locations.

Ball Oiler

Locations

It is essential that the rotary table be cleaned
after every use, and the surfaces oiled with a light
machine oil to prevent corrosion.

DO NOT use compressed air to clean your
rotary table. Chips or debris may become lodged
between the moving parts, reducing the life and
accuracy of the device. Instead, use a stiff-bristled
brush to remove the chips and swarf, then wipe
down the surfaces with a clean shop rag.

Model T1243 (Mfd. Since 02/18)

Figure 31. Location of ball oilers.

Lubricate the ball oilers with a pump-type can that
has a plastic or rubberized cone tip. We do not
recommend using metal needle or lance tips, as
they can push the ball too far into the oiler, break
the spring seat, and lodge the ball in the oil galley.

Clean the ball oiler before lubricating. Push the tip
of the oil can nozzle against the ball oiler to cre­ate a hydraulic seal, then pump the oil can once
or twice. If sludge and contaminants come out,
pump the oil can until the oil runs clear. When
finished, wipe off excess oil.

-17-

Leadscrews

Oi l Ty p e .... Grizzly T26685 or ISO 32 Equivalent

Oil Amount .......................................... Thin Layer

Lubrication Frequency .............................Monthly

Lubricate the X- and Y-axis leadscrews monthly,
or more often under heavy use.

Items Needed Qty

Mineral Spirits .................................... As Needed

Stiff-Bristled Brush ............................................ 1

Shop Rags ......................................... As Needed

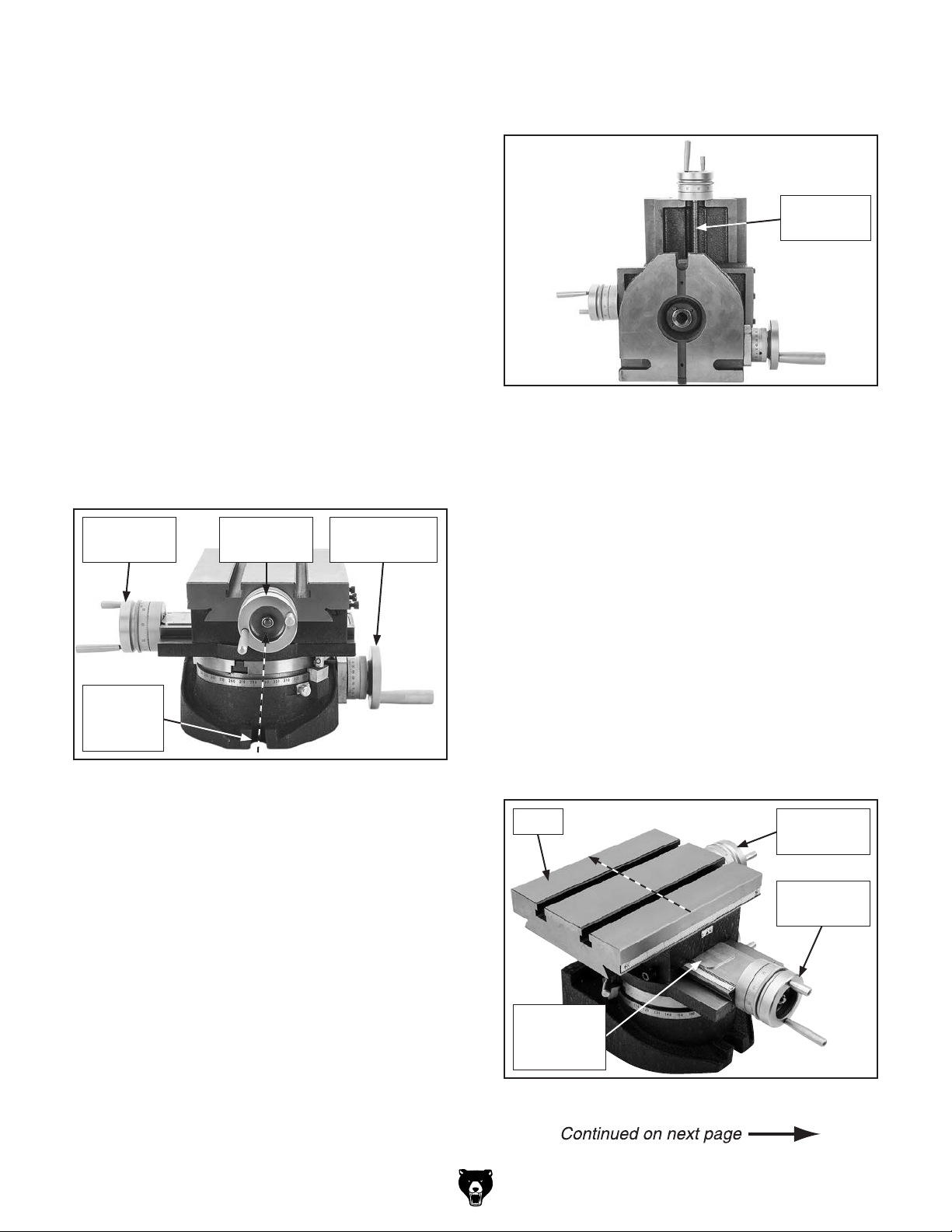

To lubricate X-axis leadscrew:

2. Tip cross-rotary table up to expose leadscrew

(see Figure 33).

X-Axis

Leadscrew

1. Turn rotary table handwheel until X-axis
handwheel is parallel with front mounting
slot, as shown in Figure 32, then use X-axis
handwheel to move table all the way forward
over front mounting slot.

Y-Axis

Handwheel

Front

Mounting

Slot

Figure 32. Aligning table to lubricate X-axis

Note: Because the T1243 table can rotate

360°, whichever handwheel aligns with the
front mounting slot controls X-axis table
travel. To access the X-axis leadscrew for
lubrication, align the handwheels as shown in
Figure 32.

X-Axis

Handwheel

leadscrew.

Rotary Table

Handwheel

Figure 33. X-axis leadscrew exposed for

cleaning and lubrication.

3. With stiff brush and mineral spirits, clean
debris from leadscrew. Wipe clean with shop
rag and allow to dry.

4. Coat leadscrew with thin layer of ISO 32 or
equivalent oil.

5. Tip cross-rotary table back onto base, then
use X-axis handwheel to move table along
full length of travel to spread lubricant evenly
along leadscrew.

To lubricate Y-axis leadscrew:

1. Turn Y-axis handwheel to expose Y-axis

leadscrew cover (see Figure 34).

Table X-Axis

Handwheel

Y-Axis

Handwheel

-18-

Y-Axis

Leadscrew

Cover

Figure 34. Location of Y-axis leadscrew cover.

Model T1243 (Mfd. Since 02/18)

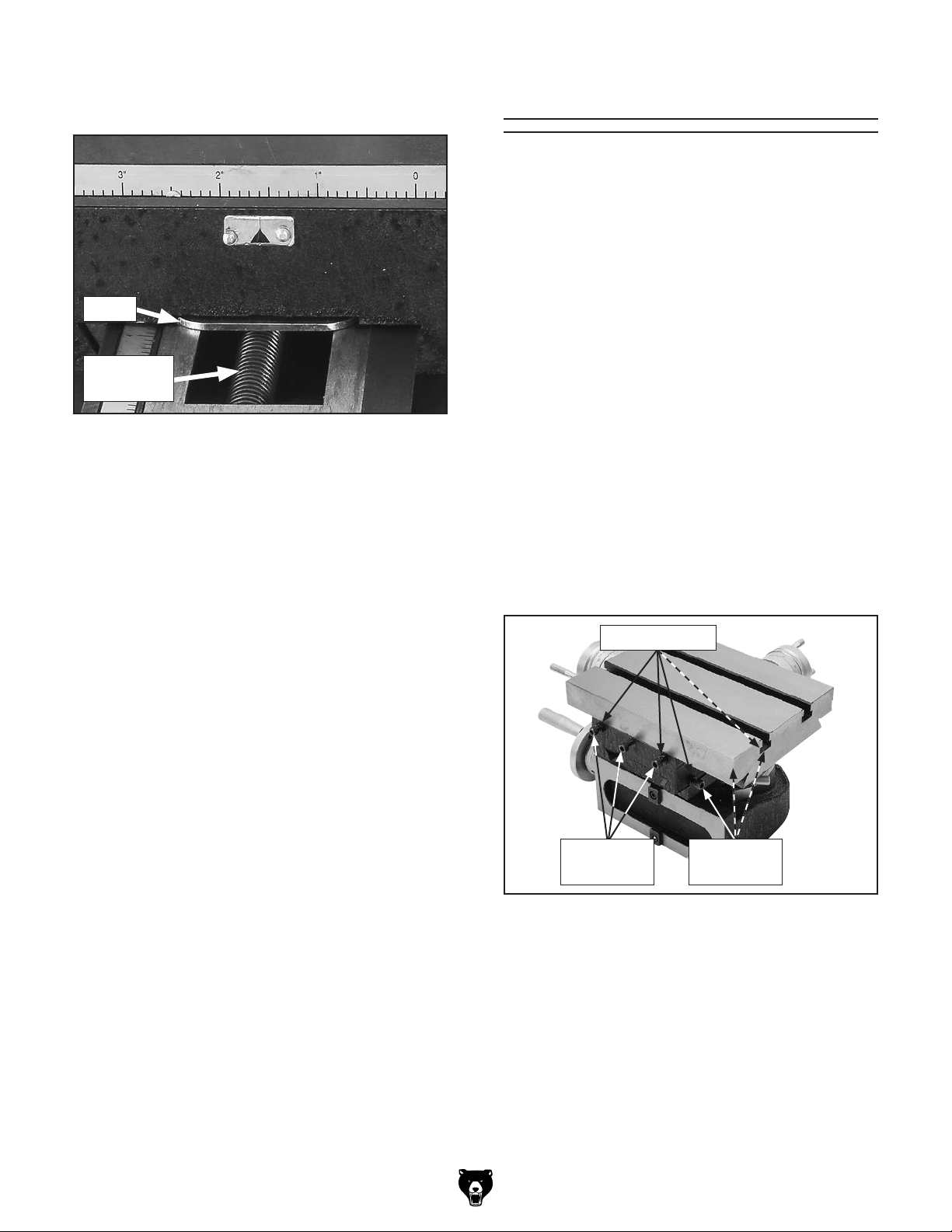

2. Push cover under cross slide to expose
Y-axis leadscrew (see Figure 35).

Cover

Adjusting Gibs

The function of the gibs is to remove play in the
table (X-axis) and cross slide (Y-axis) without
causing the slides to bind.

Each gib has (3) cap screws that can be adjusted
(see Figure 36). The outer cap screws on each
gib have (1) hex lock nut. When adjusting, make
your adjustments equally and in small increments,
and test the feel of the table movement while
doing so until it feels right.

Y-Axis

Leadscrew

Figure 35. Y-axis leadscrew exposed for

cleaning and lubrication.

3. With stiff brush and mineral spirits, clean
debris from leadscrew. Wipe clean with shop
rag and allow to dry.

4. Coat leadscrew with thin layer of ISO 32 or
equivalent oil.

5. When finished, use Y-axis handwheel to
move table along full length of travel to
spread lubricant evenly along leadscrew.

Note: Y-axis leadscrew cover will close auto-

matically when cross slide moves over it.

Tools Needed Qty

Hex Wrench 5mm .............................................. 1

Wrench Open-End 10mm .................................. 1

To adjust gibs:

1. Loosen lock nuts under outer gib screws on

X-axis or Y-axis gib (see Figure 36).

Note: For best performance, adjust only one

gib at a time.

Gib Lock Nuts

Model T1243 (Mfd. Since 02/18)

X-Axis Gib

Screws

Figure 36. Gib screws and lock nuts.

2. Depending on current table movement, slight-

ly loosen or tighten each gib screw in equal
amounts, then move table with handwheels
and test feel. When properly adjusted, gibs
should offer slight resistance without binding.

3. Hold gib screw position with hex wrench, then
tighten lock nut. Repeat on all gib screws.

Y-Axis Gib

Screws

-19 -

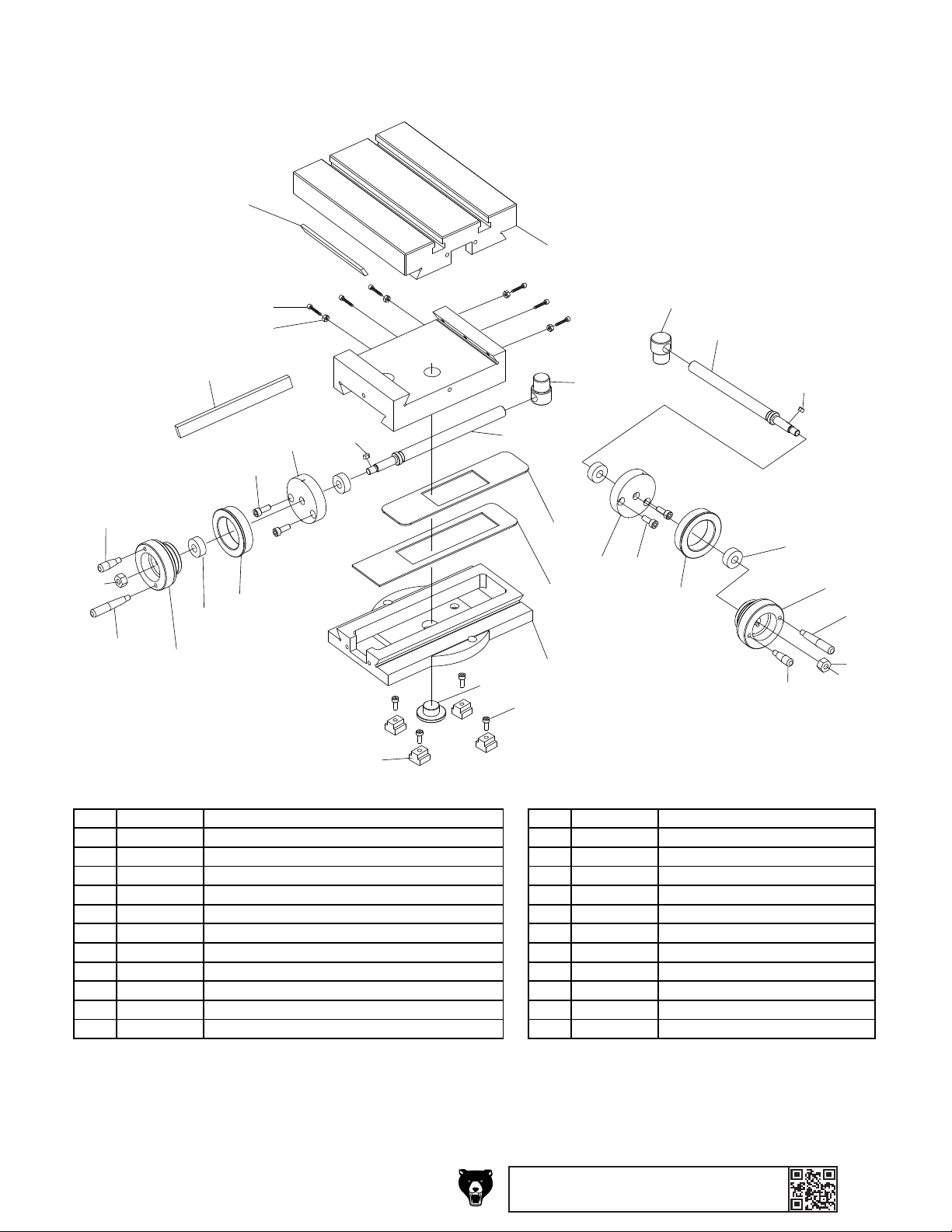

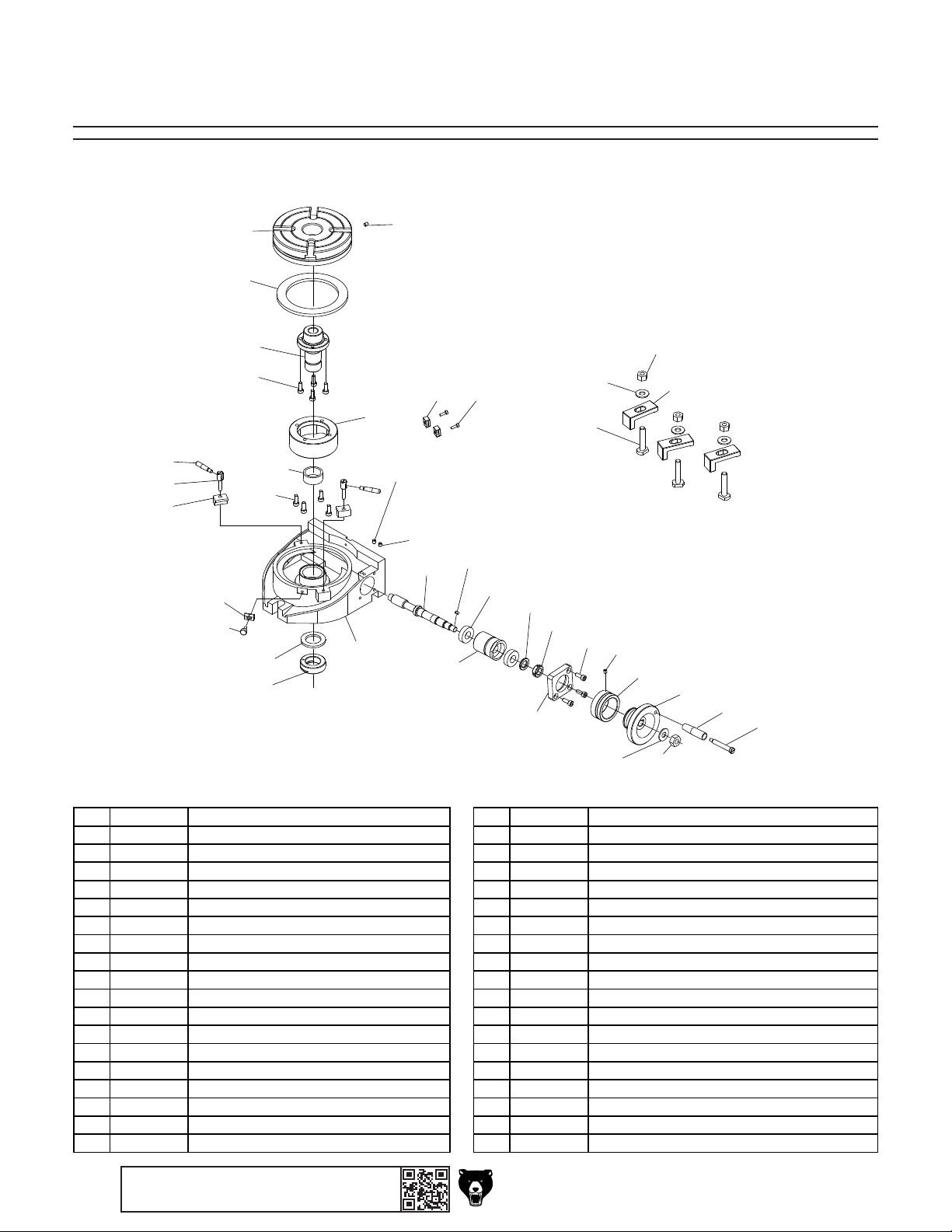

SECTION 6: PARTS

REF PART # DESCRIPTION REF PART # DESCRIPTION

T1243 Parts

110
109

108

104

105

114

113

112

111

106

107

102

101

103

116

119

115

117

115

120

123

118

121

122

124

126

125

136

138

127

135

137

134

128

129

130

131

133

101 PT1243101 SPANNER NUT M30-3.5 120 PT1243120 WORM SHAFT
102 PT1243102 FLAT NEEDLE BEARING AS3047 121 PT1243121 KEY 4 X 4 X 8
103 PT1243103 BASE 122 PT1243122 THRUST BEARING 7002
104 PT1243104 INDICATOR PLATE 123 PT1243123 COVER
105 PT1243105 KNURLED THUMB SCREW M5-.8 X 8, D12 124 PT1243124 LOCK RING
106 PT1243106 NEEDLE BEARING KT3237 125 PT1243125 SPANNER NUT M8-1.25
107 PT1243107 HEX BOLT M5-.8 X 20 126 PT1243126 SQUARE PLATE
108 PT1243108 LOCK BLOCK 127 PT1243127 CAP SCREW M6-1 X 14
109 PT1243109 LOCK SHAFT 128 PT1243128 DIAL RING
110 PT1243110 FIXED HANDLE 10 X 33, M6-1 X 8 129 PT1243129 HANDWHEEL TYPE-10 80D X 10B-K X M8-1.25
111 PT1243111 HEX BOLT M6-1 X 16 130 PT1243130 HOLLOW HANDLE, 19 X 72, 11D
112 PT1243112 CENTER SHAFT 131 PT1243131 SHOULDER SCREW M8-1.25 X 10, 10 X 62
113 PT1243113 FLAT NEEDLE BEARING AS100135 132 PT1243132 LOCK NUT M10-1.5
114 PT1243114 TABLE 133 PT1243133 FLAT WASHER 10MM
115 PT1243115 BALL OILER 6MM PRESS-IN 134 PT1243134 SET SCREW M6-1 X 6
116 PT1243116 WORM WHEEL 135 PT1243135 HEX NUT M10-1.5
117 PT1243117 LOCATING KEY 14 X 20 X 9 136 PT1243136 FLAT WASHER 10MM
118 PT1243118 CAP SCREW M5-.8 X 16 137 PT1243137 HOLD DOWN CLAMP
119 PT1243119 SET SCREW M6-1 X 8 138 PT1243138 T-BOLT M10-1.5 X 60

-20-

BUY PARTS ONLINE AT G RIZZLY.COM !

Scan QR code to visit our Parts Store.

132

Model T1243 (Mfd. Since 02/18)

224

REF PART # DESCRIPTION REF PART # DESCRIPTION

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

T1243 Parts

201

207

208

206

205

220

209

210

222

223

212

211

204

218

221

217

214

215

216

213

211

212

202

210

203

204

209

205

206

207

208

219

201 PT1243201 CROSS SLIDE TABLE 213 PT1243213 LEADSCREW NUT (Y-AXIS)
202 PT1243202 LEADSCREW NUT (X-AXIS) 214 PT1243214 DUST GUARD (TOP)
203 PT1243203 LEADSCREW (X-AXIS) 215 PT1243215 DUST GUARD (BOTTOM)
204 PT1243204 KEY 4 X 4 X 8 216 PT1243216 TABLE BASE
205 PT1243205 HANDWHEEL TYPE-10 63D X 8B-K X M6-1 217 PT1243217 CAP SCREW M6-1 X 18
206 PT1243206 FIXED HANDLE 10 X 58, M6-1 X 8 218 PT1243218 CENTERING PIN
207 PT1243207 LOCK NUT M8-1.25 219 PT1243219 T-BOLT NUT M6-1
208 PT1243208 FIXED HANDLE 10 X 32, M6-1 X 8 220 PT1243220 GIB (Y-AXIS)
209 PT1243209 THRUST BEARING 51100 221 PT1243221 LEADSCREW (Y-AXIS)
210 PT1243210 DIAL RING 222 PT1243222 HEX BOLT M6-1 X 25
211 PT1243211 BRACKET 223 PT1243223 HEX NUT M6-1
212 PT1243212 HEX BOLT M6-1 X 16 224 PT1243224 GIB (X-AXIS)

Model T1243 (Mfd. Since 02/18)

BUY PARTS ONLINE AT G RIZZLY.COM !

Scan QR code to visit our Parts Store.

-21-

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.

1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics

3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group?
____ 20-29 ____ 30-39 ____ 40-49
____ 50-59 ____ 60-69 ____ 70+

5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years

6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____10+

____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood

____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:

7. Do you think your machine represents a good value? _____Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____ Yes _____No

10. Comments: _____________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

FOLD ALONG DOTTED LINE

FOLD ALONG DOTTED LINE

Place

Stamp

Here

GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069

Send a Grizzly Catalog to a friend:

Name_______________________________

Street_______________________________

City______________State______Zip______

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.
