MODEL T1235
CORDLESS
MINI GLUE GUN
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T1235 Cordless Mini Glue Gun is a
fast-heating, pistol-grip glue gun that is comfortable and easy to use. It features a detachable
cord and docking power base. It can be used for
up to five minutes when unplugged.
Specifications
Power Requirement . . 120V, Single-Phase, 60 Hz
Operating Temperature ...................311ºF–365ºF
Time to Maximum Temperature .......1–2 minutes
Cord ............................................................... 5 ft.
Weight ......................................................... 8 oz.
Glue Stick Size .............................
A
C
D
Figure 1. Model T1235 Cordless Mini Glue Gun.
1
⁄4" (0.28" Mini)
B
Inventory
Description Qty
A. Mini Cordless Glue Gun ............................. 1
B. Power Cord ................................................. 1
C. Docking Power Base .................................. 1
D. Mini Glue Sticks ......................................... 6
To reduce risk of serious personal injury:
• Avoid inhaling toxic fumes. Toxic chemicals in some glues can cause respiratory illness when inhaled. To reduce your
risk, work in well ventilated area with fan
to move air, and wear NIOSH-approved
respirator.
• Bandage cuts or sores before gluing.
Toxins can be absorbed through cuts,
sores, eyes, mouth and nostrils, increasing risk of developing certain diseases. DO NOT eat, drink, or smoke while
gluing. Wash your hands with soap and
water when finished.
• Wear eye protection, gloves, long pants,
and a long sleeve shirt to protect eyes and
hands from burns and skin rashes. The
glue gun nozzle will reach temperatures
up to 365ºF. DO NOT touch nozzle until it
has completely cooled.
• DO NOT touch glue until it has completely
cooled. If hot glue contacts skin, immediately run cold water over affected area.
DO NOT attempt to remove glue from skin
while hot.
• DO NOT leave glue gun unattended while
connected to power or allow nozzle to rest
against anything while hot. Tool can ignite
nearby explosive or flammable materials.
Keep away from these materials. Always
keep fire extinguisher on hand.
• Use tool for intended purpose. Never
modify, alter, or use tool for a purpose not
intended or serious injury or death may
result!
• Keep out of reach of children.
COPYRIGHT © AUGUST, 2017 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#ES19035 PRINTED IN CHINA
V1.0 8 .17
Operation
NOTICE
Some materials are heat sensitive and may
become damaged either by heated nozzle
or hot glue. Test temperature on a scrap
piece of material first.
To operate glue gun:
1. Make sure working surface is clear of any
combustible materials.
2. Insert cord into glue gun or docking power
stand and insert plug into matching 120V
power receptacle. Rest glue gun upright
using stand or insert it into docking power
stand (see Figure 2).

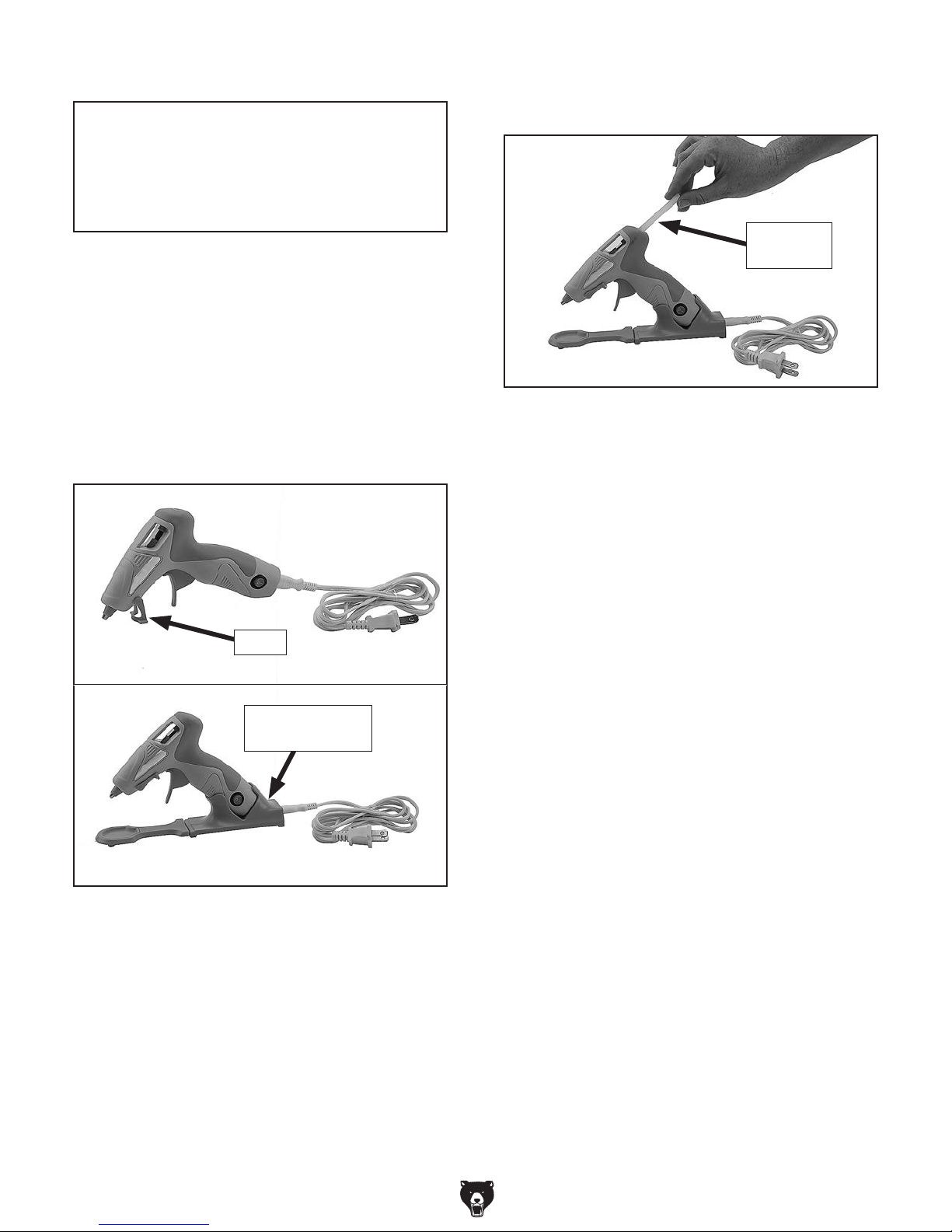

4. Insert mini glue stick into back of glue gun
(see Figure 3).
Mini Glue
Stick
Figure 3. Inserting mini glue stick into glue gun.
5. Once glue gun has fully heated, slowly
squeeze trigger until melted material begins
to flow from nozzle.
Important: When hot, rest glue gun upright
with nozzle facing down to prevent melted
glue from escaping chamber and increasing
risk of fire or personal injury.
Stand
Docking Power
Stand
Figure 2. Cord inserted into glue gun or docking
power stand.
3. Turn glue gun ON with switch located in handle and allow it to heat up for approximately
1–2 minutes.
6. After gluing operation is complete, release
trigger and turn glue gun OFF. Allow it to fully
cool before storing. Glue sticks may remain
in glue gun when not in use and be re-melted
when used again.
Tip: Never pull glue stick out through back of
glue gun. Doing so may damage feed mechanism. Cut off extra portion of glue stick and
feed remainder through glue gun.
Note: Never pour water over glue gun, put
glue gun into water, or expose to rain. Only
use a damp cloth to clean glue gun.
-2-
T1235 Cordless Mini Glue Gun (Mfd. 08/17)
PARTS STORE

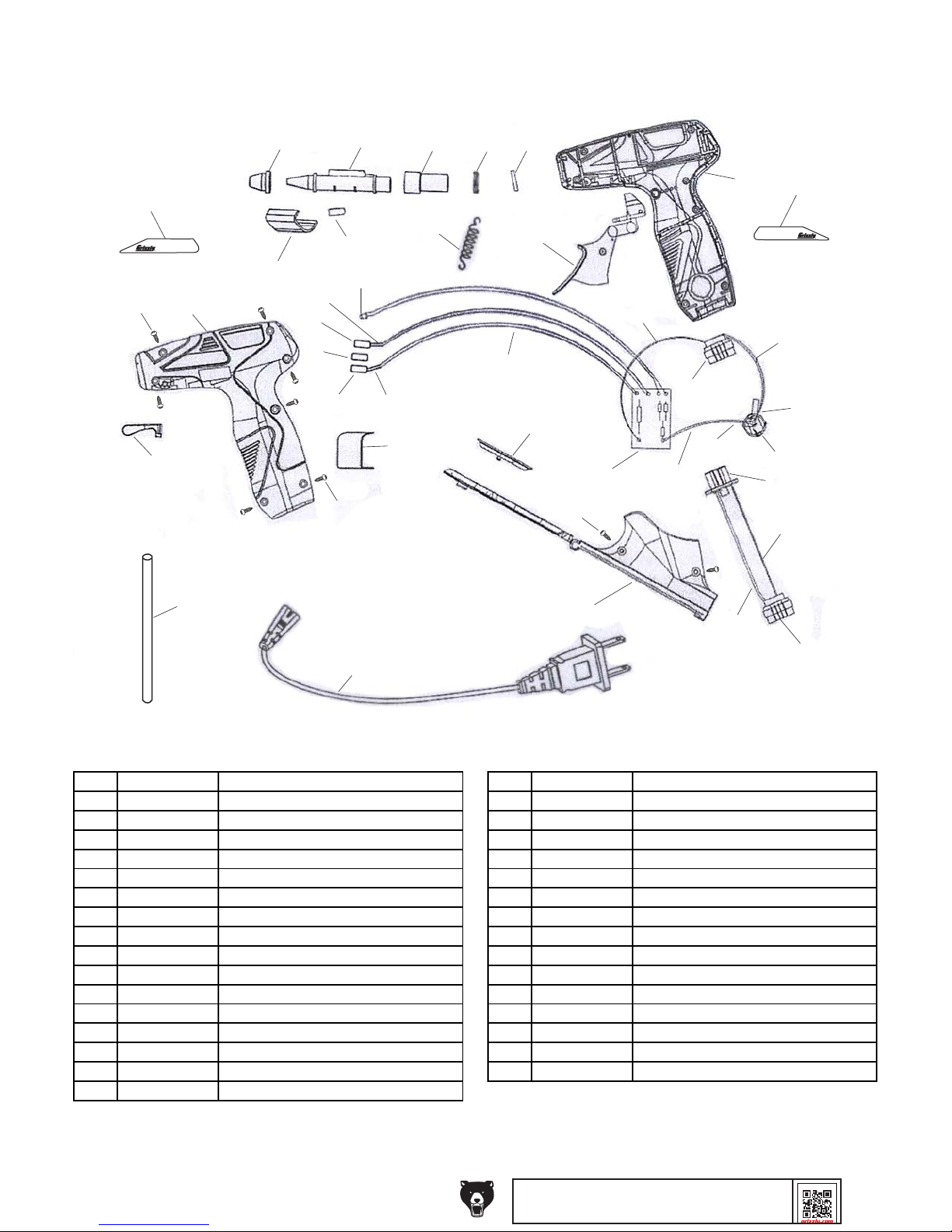

Parts Breakdown & List
30
32
26
T1235
120V, 60Hz, 15W
28
6
10
345
1
9
T1235
MINI CORDLESS GLUE GUN
33
7
8
11
2
12
14
19
19
13
12
14
16
15
25
17
29
18
21
21
20
22
3030
19
31
24
29
23
27
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT1235001 GLUE GUN HOUSING (LEFT) 18 PT1235018 POWER CORD SOCKET
2 PT1235002 GLUE GUN HOUSING (RIGHT) 19 PT1235019 WIRE 22G BROWN
3 PT1235003 BACK DETENT RING 20 PT1235020 SWITCH LECI RS601H
4 PT1235004 SPRING CLAMP 21 PT1235021 HEAT SHRINK TUBE
5 PT1235005 PLASTIC SLEEVE 22 PT1235022 POWER CORD COUPLER
6 PT1235006 METAL GLUE TUBE 23 PT1235023 POWER CORD SOCKET
7 PT1235007 SILICON NOZZLE SLEEVE 24 PT1235024 DOCKING POWER BASE
8 PT1235008 HEATER CLIP 25 PT1235025 GLUE SPILL BOWL
9 PT1235009 TRIGGER 26 PT1235026 PLASTIC STAND
10 PT1235010 TRIGGER SPRING 27 PT1235027 POWER CORD 18G 2W 60" 1-15P
11 PT1235011 INDICATOR LIGHT 28 PT1235028 HEATER CLIP SPACER
12 PT1235012 HEATER 29 PT1235029 WIRE 22G BLUE
13 PT1235013 COPPER CONDUCTING STRIP 30 PT1235030 TRI-WING TAP SCREW M2.9 X 10
14 PT1235014 SILICON TUBE 31 PT1235031 MINI GLUE STICK 0.28"
15 PT1235015 WIRES 24G HIGH-TEMP RESISTANT 32 PT1235032 TOOL ID LABEL (RIGHT)
16 PT1235016 INSULATION FILM 33 PT1235033 TOOL ID LABEL (LEFT)
17 PT1235017 CIRCUIT BOARD CY1
