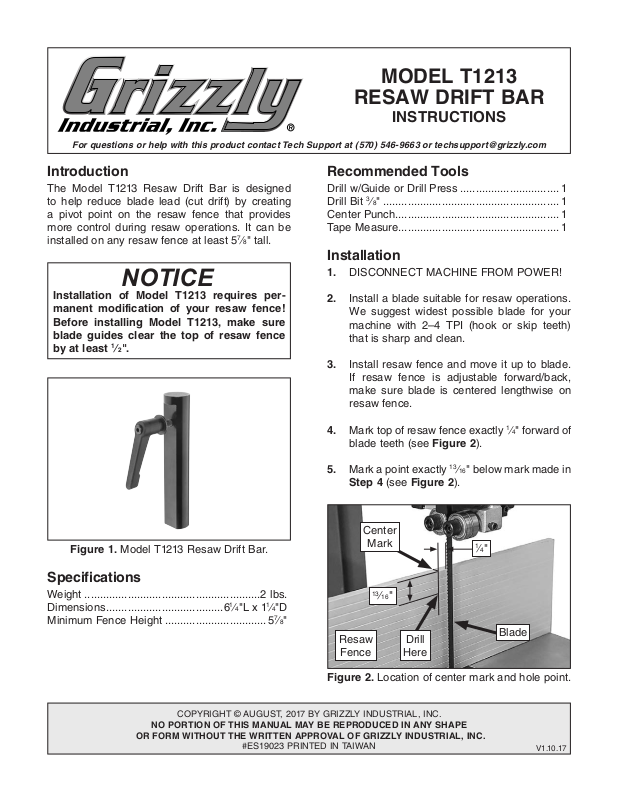

Page 1
MODEL T1213
NOTICE
RESAW DRIFT BAR
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T1213 Resaw Drift Bar is designed
to help reduce blade lead (cut drift) by creating
a pivot point on the resaw fence that provides
more control during resaw operations. It can be
installed on any resaw fence at least 5
Installation of Model T1213 requires permanent modification of your resaw fence!
Before installing Model T1213, make sure
blade guides clear the top of resaw fence
1
by at least
⁄2".
7
⁄8" tall.
Recommended Tools
Drill w/Guide or Drill Press ................................ 1
Drill Bit
Center Punch..................................................... 1
Tape Measure .................................................... 1
3
⁄8" ......................................................... 1
Installation
1. DISCONNECT MACHINE FROM POWER!
2. Install a blade suitable for resaw operations.
We suggest widest possible blade for your
machine with 2–4 TPI (hook or skip teeth)
that is sharp and clean.
3. Install resaw fence and move it up to blade.
If resaw fence is adjustable forward/back,
make sure blade is centered lengthwise on
resaw fence.
1
4. Mark top of resaw fence exactly
blade teeth (see Figure 2).
⁄4" forward of
Figure 1. Model T1213 Resaw Drift Bar.
Specifications
Weight .........................................................2 lbs.
Dimensions ......................................6
Minimum Fence Height .................................5
COPYRIGHT © AUGUST, 2017 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
1
⁄4"L x 11⁄4"D
#ES19023 PRINTED IN TAIWAN
7
⁄8"
13
5. Mark a point exactly
⁄16" below mark made in
Step 4 (see Figure 2).
Center
Mark
Resaw
Fence
13
⁄16"
Drill
Here
1
⁄4"
Blade
Figure 2. Location of center mark and hole point.
V1.10.17
Page 2
6. Remove resaw fence from bandsaw.
1
2
3
1/4"
Blade
Resaw Fence
Drift
Bar
7. Use center punch to score a point at mark
3
made in Step 5 and drill
⁄8" hole through
resaw fence.
Note: Use drill press or handheld drill with
guide to make sure hole is drilled perpendicular to resaw fence.
8. Insert adjustable handle with fender washer through back of resaw fence (refer to
Parts Breakdown drawing).
9. Make sure drift bar is flat against resaw fence
and straight up and down.
Operation
6. If necessary for cutting operation, support
ends of board with saw stand or roller stand.
7. Turn bandsaw ON.
8. Slowly feed workpiece completely through
blade. Use drift bar as a pivot point to control
cut, as shown in Figure 4.
Note: The drift bar allows you to steer your
workpiece while cutting to quickly correct
blade lead and keep blade aligned with cut
line.
Blade
Blade
Guides
1. Install resaw fence with drift bar.
2. Mark cut line from front to back on top of
workpiece (see Figure 3).
3. Lower bandsaw blade guides as close to
workpiece as possible (see Figure 3).
4. Adjust resaw fence so blade aligns with mark
made in Step 2 and center of drift bar is set
1
⁄4" forward of blade teeth (see Figure 3).
Blade
Guides
Blade
Cut Line
Drift
Mark
Bar
Drift
Bar
Figure 4. Resawing with drift bar.
Parts Breakdown & List
Cut Line
Mark
Workpiece
Workpiece
Figure 3. Workpiece positioned to cut using
resaw fence with drift bar.
5. Lock rip fence and resaw fence in position.
-2-
REF PART # DESCRIPTION
1 PT1213001 ADJ HANDLE 65L, M8-1.25 X 25
2 PT1213002 FENDER WASHER 8MM
3 PT1213003 RESAW DRIFT BAR 6-1/4" X 1-1/4"
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
