MODEL T1187
WORK TABLE FOR
PORTABLE EDGEBANDER
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The T1187 Work Table (see Figure 1) converts the
G0825 Portable Edgebander to a stationary edgebander for easy edgebanding of small workpieces.
The T1188 Trimmer can also be mounted to the
work table using the included mounting plate (see
Figure 2) to greatly simplify the trimming process
for newly edgebanded workpieces.
For those wanting to use the work table as a production center for small straight-edged workpieces,
Grizzly also offers the optional T28380 Fence/
Guide Kit, which includes fences for both the
Edgebander and Trimmer, and a pressure-assist
guide system that holds the work firmly against
the fence during operation.

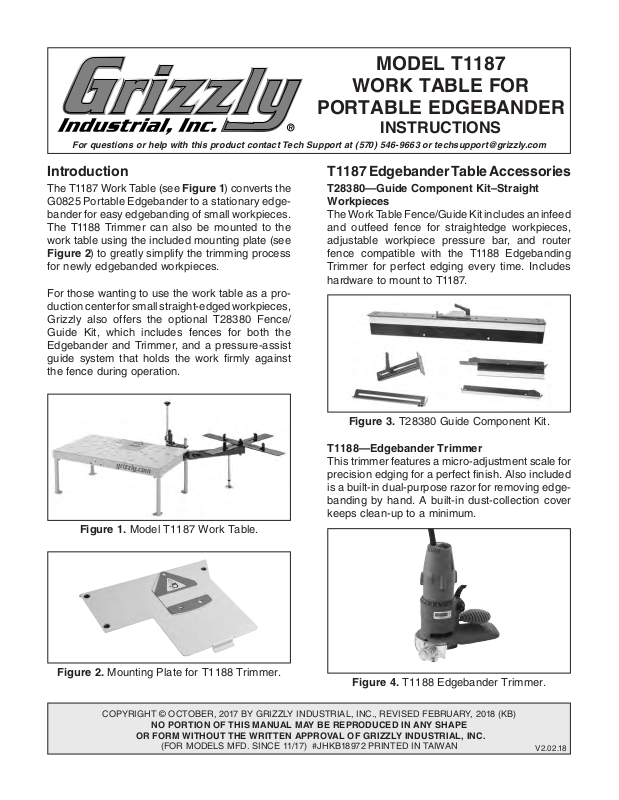

Figure 1. Model T1187 Work Table.
T1187 Edgebander Table Accessories
T28380—Guide Component Kit–Straight
Workpieces
The Work Table Fence/Guide Kit includes an infeed
and outfeed fence for straightedge workpieces,
adjustable workpiece pressure bar, and router
fence compatible with the T1188 Edgebanding
Trimmer for perfect edging every time. Includes
hardware to mount to T1187.
Figure 3. T28380 Guide Component Kit.
T1188—Edgebander Trimmer
This trimmer features a micro-adjustment scale for
precision edging for a perfect finish. Also included
is a built-in dual-purpose razor for removing edgebanding by hand. A built-in dust-collection cover
keeps clean-up to a minimum.
Figure 2. Mounting Plate for T1188 Trimmer.
COPYRIGHT © OCTOBER, 2017 BY GRIZZLY INDUSTRIAL, INC., REVISED FEBRUARY, 2018 (KB)
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 11/17) #JHKB18972 PRINTED IN TAIWAN
Figure 4. T1188 Edgebander Trimmer.
V2.0 2 .18
Page 2
Inventory ListInventory
Description Qty
A. Table ........................................................... 1
Edgebanding Cutter Assembly ................... 1
B.
Support Leg w/Adjustable Foot .................. 1
C.
Mounting Arm & Mounting Brackets ........... 1
A
C
H
L
D
F
J
I
M N
Figure 5. Inventory items.
B
E
G
K
D.
Table Legs .................................................. 4
E.
Upper Coil Support Arm ............................. 1
F.
Lower Coil Support Arm ............................. 1
G.
Heat Cover Insert ....................................... 1
H.
Suction Cups .............................................. 4
I.
Table Magnets ............................................ 6
J.
Edge Trimmer Plate .................................... 1
K.
Hardware Bag A
L.
—Cap Screws M6-1 x 16 ..........................11
—Lock Washers 6mm .............................. 12
—Hex Nuts M6-1 ........................................ 4
—Cap Screws M6-1 x 40 ........................... 4
—Fender Washers 6mm ............................ 4
—Hex Wrench 6mm ................................... 1
—Hex Wrench 5mm ................................... 1
Hardware Bag B
M.
—Button Head Cap Screw M8-1.25 x 70 ... 1
—Fender Washers 8mm ............................ 2
—Flat Washers 8mm ................................. 5
—Cap Screws M8-1.25 x 20 ...................... 5
—Lock Washers 8mm ................................ 5
Hardware Bag C
N.
—Flat Head Screws M4-.7 x 15 ................. 3
—Flat Head Screws M5-.8 x 10 ................. 4
—Hex Nut M20-2.5 .................................... 1
—Flat Washer 20mm ................................. 1
—Carriage Bolts M6-1 x 12 ........................ 4
—Fender Washers 6mm ............................ 4
—Wing Nuts M6-1 ...................................... 4
—Barrier Plates .......................................... 4
-2-
T1187 Edgebander Table (Mfd. Since 11/17)
Page 3
Assembling Table
1. Attach table legs to table using (8) M6-1 x
16 cap screws and (8) 6mm lock washers

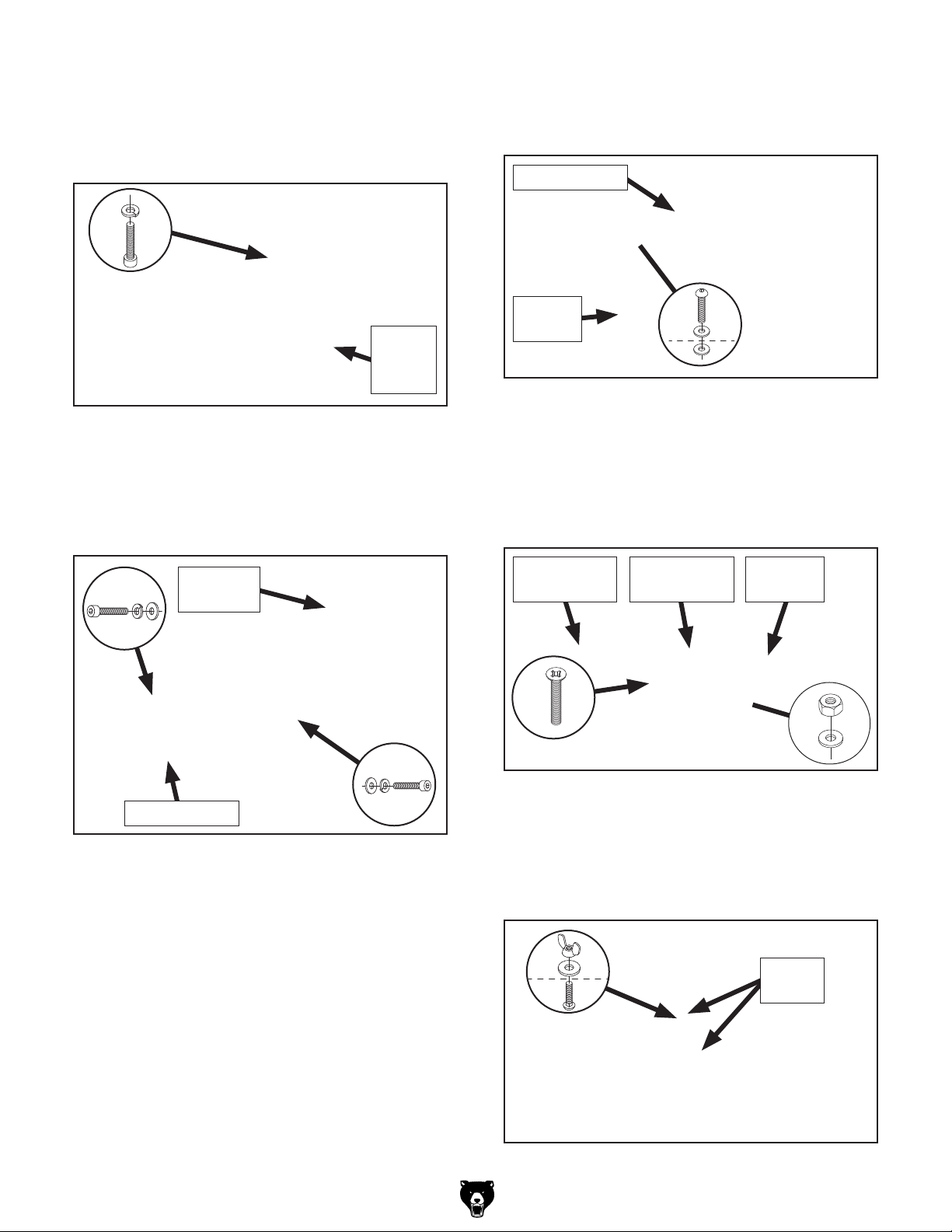

(see Figure 6).
x 8
Table
Leg
(1 of 4)
3. Attach support leg to mounting arm with
(1) M8-1.25 x 70 button head cap screw and
(2) 8mm fender washers (see Figure 8).
Mounting Arm
Support
Leg
Figure 8. Support leg attached to mounting arm.
Figure 6. Attaching table leg (1 of 4).
Attach mounting arm and cutter assembly
2.
to work table using (5) M8-1.25 x 20 cap
screws, (5) 8mm lock washers, and (5) 8mm
flat washers (see Figure 7).
x 2
Mounting Arm
Figure 7. Attaching mounting arm and cutter
Cutter
Assembly
x 3
assembly to work table.
4. Place lower coil support arm over shaft on
mounting arm, then place upper coil support
arm over shaft, as shown in Figure 9. Secure
with (1) 20mm flat washer, (1) M20-2.5 hex
nut, and (4) M5-.8 x 10 flat head screws.
Lower Coil
Support Arm
x 4
Figure 9. Coil support arms attached.
5. Attach (4) barrier plates to coil supports using
(4) M6-1 x 12 carriage bolts, (4) 6mm fender
washers, and (4) M6-1 wing nuts, as shown
in Figure 10.
Upper Coil
Support Arm
Mounting
Arm
T1187 Edgebander Table (Mfd. Since 11/17)
Barrier
x 4
Figure 10. Barrier plates attached to coil support.
Plates
-3-
Page 4
Mounting Table to Workbench
Proper edgebanding adhesion requires operator
to press workpiece firmly against optional infeed
and outfeed fences, such as T28380. Therefore,
we strongly recommend mounting the edgebander work table legs to a stable work surface using
one of the methods outlined below.
Mounting Edgebander to Table
1. Secure portable edgebander inside work
table cutout (see Figure 13) using (3) M6-1 x
16 cap screws.
Number of Mounting Holes
Diameter of Mounting Hardware Needed
Through-Mount Method
Work Table Leg
Workbench
............................ 4
..1⁄4"
M6-1 x 40
Cap Screw
Fender Washer
Lock Washer
M6-1 Hex Nut
Figure 11. "Through-Mount" setup with supplied
hardware.
Direct Mount Method
Lag Screw
x 3
Figure 13. Securing edgebander to table.
Insert protective heat cover (see Figure 14)
2.
over glue pot access.
Heat
Cover
Work Table Leg
Flat Washer
Workbench
Figure 12. "Direct Mount" setup.
Use the (4) supplied M6-1 x 40 cap screws, (4)
6mm fender washers, (4) 6mm lock washers, and
(4) M6-1 hex nuts if the through-mount method
suits your workbench, or obtain your own mounting fasteners.
After mounting the T1187 to a stable work surface,
use the adjustable foot on the support leg to support the mounting arm.
Figure 14. Inserting heat cover into table.
3. Plug portable edgebander power cord into
power receptacle under main table, as shown
in Figure 15, then plug work table power cord
into wall receptacle.
Work Table
ON/OFF
Switch
Power
Receptacle
Work
Table
Power
Edgebander ON/OFF Switch
Cord
Figure 15. Plugging edgebander into table
power receptacle.
-4-
T1187 Edgebander Table (Mfd. Since 11/17)
Page 5

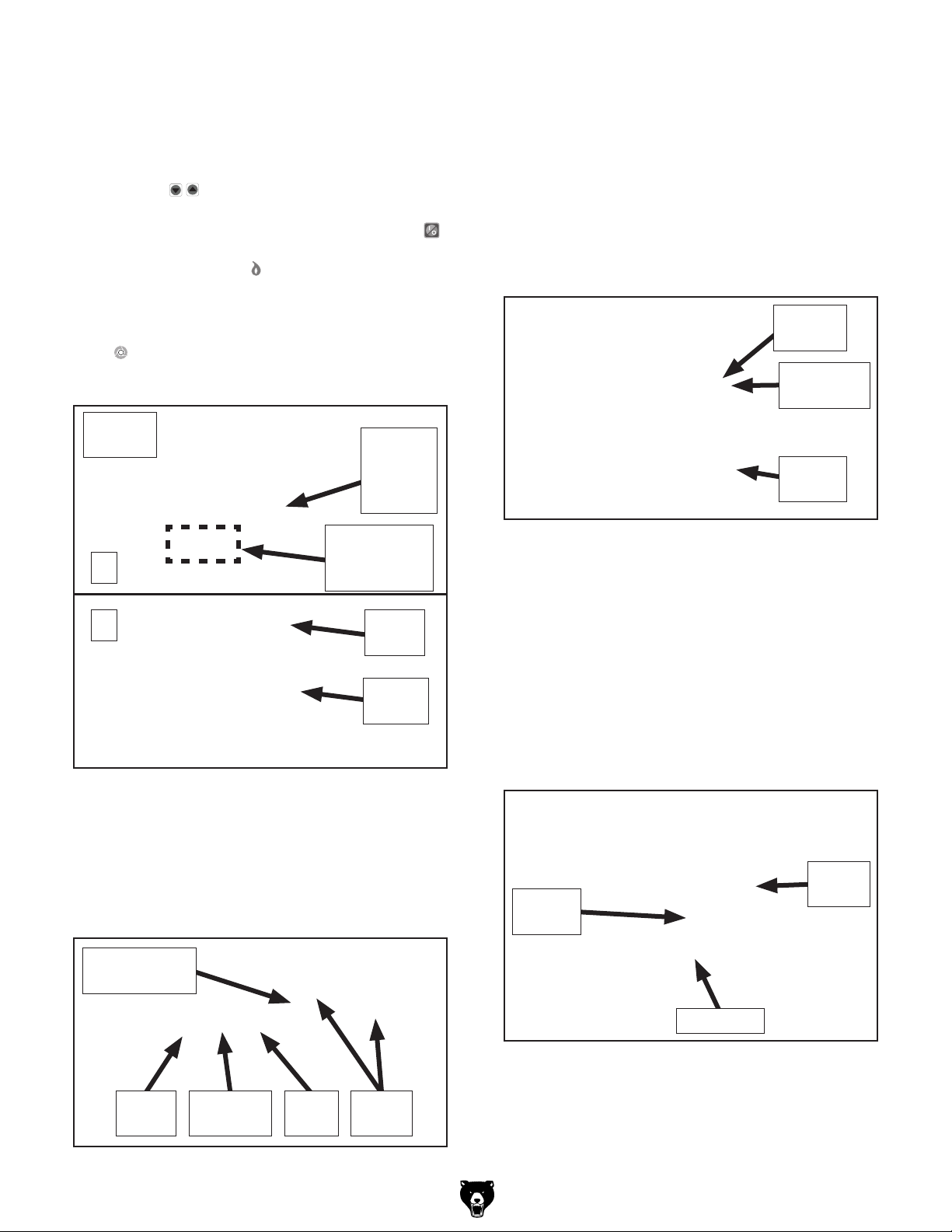

Using Work Table with Edgebander
1. Turn work table ON/OFF switch ON, then
turn portable edgebander ON/OFF switch ON
(see Figure 15). Set edgebander to appropriate glue temperature setting using indicator
arrows (
Press heater element ON/OFF button ( )
2.
(see Figure 16A) to turn glue pot ON—glue
pot indicator light (
) (see Figure 16A).
) should illuminate.
4. Adjust infeed guide height if necessary until
guide lightly contacts top of edgebanding
tape.
Note: Infeed guide alignment ensures proper
edgebanding tape application on workpiece.
Press ON/OFF button on control handle (see
5.
Figure 18) to start feed rollers. Adjust feed
roller speed setting by turning feed rate dial.
Note: When glue pot temperature reach-
es 250°F (120°C), feed roller preheat light
) on control panel and green light on con-
(
trol handle (see Figure 16B) will illuminate.
Indicator
Light
A
B
Figure 16. Control handle location.
Heater
Element
ON/OFF
Button
Temperature
Indicator
Arrows
Green
Light
Control
Handle
ON/OFF
Button
Feed Rate
Dial
Control
Handle
Figure 18. Location of control handle, feed rate
dial, and ON/OFF button.
6.
When end of workpiece approaches heating
plate (see Figure 19), pull cutter handle to
trim edgebanding tape, while continuing to
move workpiece along fence.
Tip: Once edgebanding tape is applied to
workpiece, firmly press edgebanded edge
on a smooth, flat surface to ensure proper
adhesion.
Place edgebanding tape on coil support
3.
arms, adjust or remove barrier plates as
needed, and feed tape between guide posts
through trimmer assembly and into portable
edgebander infeed guide (see Figure 17).
Edgebanding
Tape
Infeed
Guide
Figure 17. Feeding edgebanding tape.
T1187 Edgebander Table (Mfd. Since 11/17)
Trimmer
Assembly
Guide
Posts
Barrier
Plates
Heating
Plate
Workpiece
Figure 19. Trimming edgebanding.
Cutter
Handle
-5-
Page 6
29
3

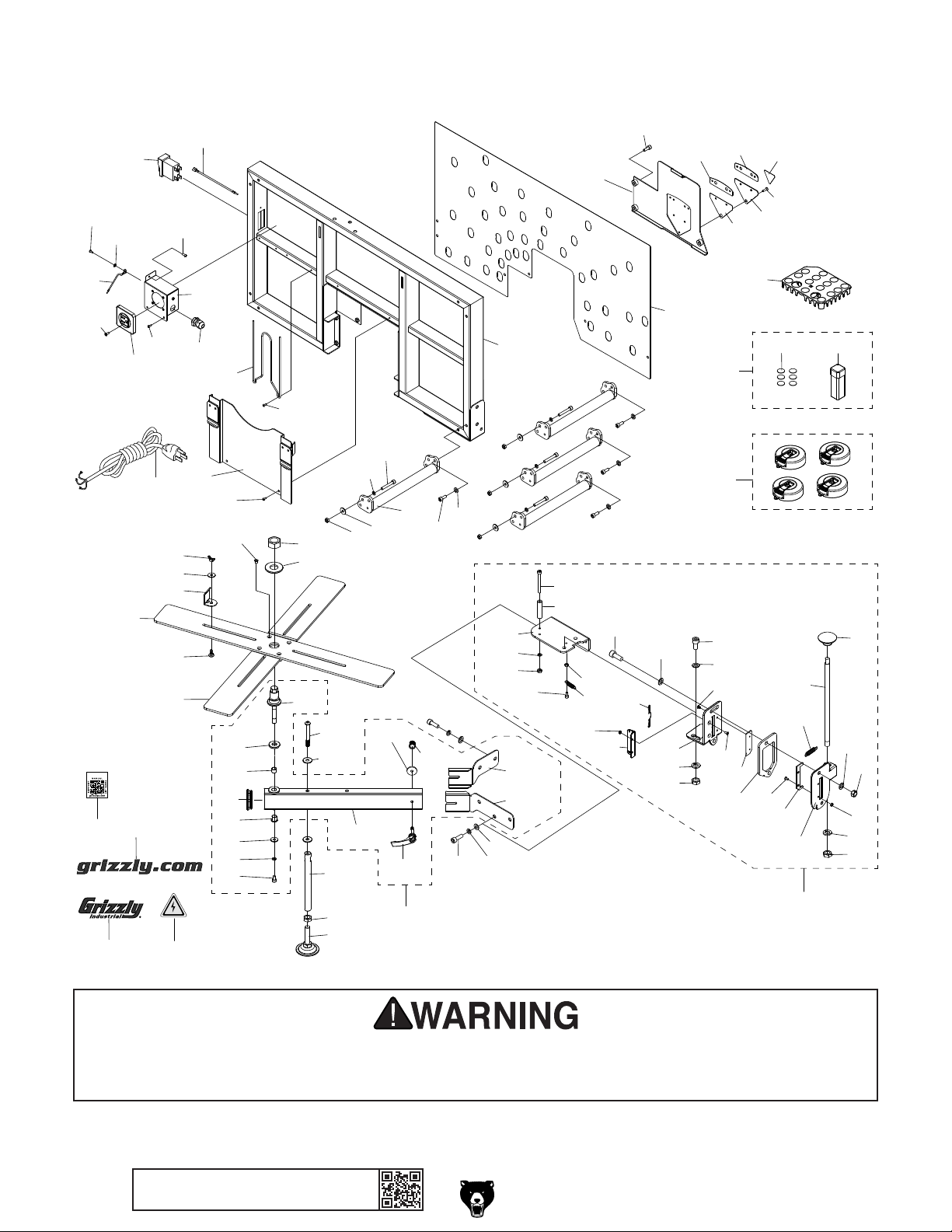

Parts Breakdown
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
14
16
87
T1187
26
28
15
17
94
18
27
5
22
106
107
108
109
93
86
13V2
19
12
20
4
21
105
101
100
99
98
97
96
95
5
104
103
102
77V2
78V2
66V2
76V2
117
79V2
11
9V2
8
10
74V2
6
75
66A
8
7V2
75
62V2 63
2
45V2
53
54
50V2
64
61V2
60V2
52
51
110
49V2
48
57
55V2
41
56
90
40
42
43
114
112
1
24
25
44
90
91
92
39V2
46V2
111
23
58
116
115
113
24-1
33V2
38V2
37V2
24-2
36
59
34
35
57
89
88
33A
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
-6-
BUY PARTS ONLINE AT GRIZZLY.C OM!
Scan QR code to visit our Parts Store.
T1187 Edgebander Table (Mfd. Since 11/17)
Page 7
Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT1187001 WORK TABLE SURFACE 54 PT1187054 HEX NUT M8-1.25
2 PT1187002 WORK TABLE FRAME 55V2 PT1187055V2 EDGEBAND GUIDE V2.11.17
3 PT1187003 CAP SCREW M6-1 X 16 56 PT1187056 GUIDE TORSION SPRING
4 PT1187004 WIRE RETAINER 57 PT1187057 HEX NUT M4-.7
5 PT1187005 PHLP HD SCR M4-.7 X 10 58 PT1187058 FLAT HD SCREW M4-.7 X 10
6 PT1187006 TABLE LEG 59 PT1187059 EXTENSION SPRING
7V2 PT1187007V2 CAP SCREW M6-1 X 16 60V2 PT1187060V2 COIL MOUNT BRACKET (LT) V2.11.17
8 PT1187008 LOCK WASHER 6MM 61V2 PT1187061V2 COIL MOUNT BRACKET (RT) V2.11.17
9V2 PT1187009V2 CAP SCREW M6-1 X 40 62V2 PT1187062V2 CAP SCREW M8-1.25 X 16
10 PT1187010 FLAT WASHER 6MM 63 PT1187063 LOCK WASHER 8MM
11 PT1187011 HEX NUT M6-1 64 PT1187064 FLAT WASHER 8MM
12 PT1187012 POWER JUNCTION BOX 66V2 PT1187066V2 MOUNTING ARM V2.11.17
13V2 PT1187013V2 STRAIN RELIEF TYPE-3 PG9 V2.11.17 66A PT1187066A MOUNTING ARM ASSY
14 PT1187014 PHLP HD SCR M4-.7 X 10 74V2 PT1187074V2 FENDER WASHER 6MM
15 PT1187015 LOCK WASHER 4MM 75 PT1187075 CAM LOCK LEVER W/NUT
16 PT1187016 GROUND WIRE 76V2 PT1187076V2 COIL SUPPORT LEG V2.11.17
17 PT1187017 ON/OFF SWITCH KEDU KJD17 120V 77V2 PT1187077V2 BUTTON HD CAP SCR M8-1.25 X 70
18 PT1187018 JUNCTION BOX COVER PLATE 78V2 PT1187078V2 FENDER WASHER 8MM
19 PT1187019 SWITCH WIRES (2-PC) 79V2 PT1187079V2 ADJ FOOT M12-1.75 X 50 V2.11.17
20 PT1187020 BOTTOM PLATE 86 PT1187086 TAP SCREW M4 X 12
21 PT1187021 PHLP HD SCR M4-.7 X 10 87 PT1187087 FLAT HD SCR M4-.7 X 10
22 PT1187022 POWER CORD 110V 72" 5-15P 88 PT1187088 HEX NUT M12-1.75
23 PT1187023 TABLE INSERT COVER 89 PT1187089 LOCK WASHER 12MM
24 PT1187024 TABLE MAGNET ASSEMBLY 90 PT1187090 FLAT WASHER 10MM
24-1 PT1187024-1 TABLE MAGNETS (6-PC) 91 PT1187091 BUTTON HD CAP SCR M4-.7 X 8
24-2 PT1187024-2 MAGNET CASE 92 PT1187092 FLAT HD SCR M4-.7 X 5
25 PT1187025 SUCTION HANDLES (4-PC) 93 PT1187093 LOWER COIL SUPPORT ARM
26 PT1187026 QR CODE LABEL 94 PT1187094 UPPER COIL SUPPORT ARM
27 PT1187027 GRIZZLY.COM LABEL 95 PT1187095 CAP SCREW M6-1 X 10
28 PT1187028 GRIZZLY LOGO LABEL 96 PT1187096 LOCK WASHER 6MM
29 PT1187029 ELECTRICITY LABEL 97 PT1187097 FENDER WASHER 6MM
33A PT1187033A TRIMMER ASSEMBLY 98 PT1187098 FLANGED BUSHING
33V2 PT1187033V2 SHAFT-UDE, M10-1.5 M12-1.75 V2.11.17 99 PT1187099 PLASTIC END CAP
34 PT1187034 LOCK WASHER 10MM 100 PT1187100 BUSHING
35 PT1187035 HEX NUT M10-1.5 101 PT1187101 FLAT WASHER 12 X 28 X 4MM
36 PT1187036 KNOB M10-1.5, 28H 48D OVAL 102 PT1187102 COIL SUPPORT AXLE
37V2 PT1187037V2 TRIMMER ARM MOUNT V2.11.17 103 PT1187103 FLAT WASHER 20MM
38V2 PT1187038V2 DIAGONAL SHEAR BLADE V2.11.17 104 PT1187104 HEX NUT M20-2.5
39V2 PT1187039V2 FLAT SHEAR BLADE V2.11.17 105 PT1187105 FLAT HD SCR M5-.8 X 10
40 PT1187040 BLADE MOUNTING BRACKET 106 PT1187106 WING NUT M6-1
41 PT1187041 CAP SCREW M10-1.5 X 25 107 PT1187107 FENDER WASHER 6MM
42 PT1187042 LOCK WASHER 10MM 108 PT1187108 BARRIER PLATE
43 PT1187043 HEX NUT M10-1.5 109 PT1187109 CARRIAGE BOLT M6-1 X 12
44 PT1187044 CAP SCREW M10-1.5 X 20 110 PT1187110 TRIMMER MOUNTING PLATE
45V2 PT1187045V2 TRIMMER ASSY BRACKET V2.11.17 111 PT1187111 LARGE GASKET (RUBBER)
46V2 PT1187046V2 DIAGONAL SHEAR PLATE V2.11.17 112 PT1187112 WORKPIECE SUPPORT (LARGE)
48 PT1187048 SHEAR SPRING 113 PT1187113 WORKPIECE SUPPORT (SMALL)
49V2 PT1187049V2 HEX NUT M5-.8 114 PT1187114 SMALL GASKET (RUBBER)
50V2 PT1187050V2 CAP SCREW M5-.8 X 8 115 PT1187115 FLAT HD SCR M4-.7 X 15
51 PT1187051 GUIDE ROLLER 12 X 45 116 PT1187116 BLADE WARNING LABEL
52 PT1187052 CAP SCREW M8-1.25 X 60 117 PT1187117 HEX NUT M12-1.75
53 PT1187053 LOCK WASHER 8MM
T1187 Edgebander Table (Mfd. Since 11/17)
BUY PARTS ONLINE AT GRIZZLY.C OM!
Scan QR code to visit our Parts Store.
-7-
Page 8
Loading...
