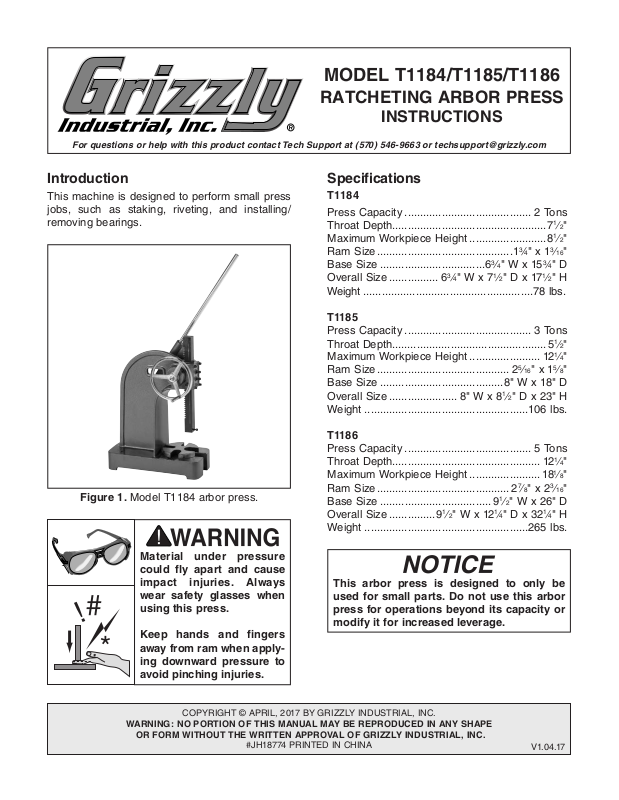

MODEL T1184/T1185/T1186

RATCHETING ARBOR PRESS

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

This machine is designed to perform small press
jobs, such as staking, riveting, and installing/
removing bearings.

Figure 1. Model T1184 arbor press.

Specifications

T1184

Press Capacity

Throat Depth..................................................7

Maximum Workpiece Height
Ram Size
Base Size
Overall Size
Wei

ght .......................................................78 lbs.

T118 5

Press Capacity
Throat D

Maximum Workpiece Height
Ram Size
Base Size
Overall Size
Weight

T118 6

Press Capacity

Throat Depth................................................ 12

Maximum Workpiece Height
Ram Size
Base Size
Overall Size
Weight

epth.................................................. 51⁄2"

.....................................................106 lbs.

.....................................................265 lbs.

......................................... 2 Tons

.........................81⁄2 "

............................................13⁄4" x 13⁄16"

..................................63⁄4" W x 153⁄4" D

................ 63⁄4" W x 71⁄2 " D x 171⁄2 " H

......................................... 3 Tons

....................... 121⁄4"

........................................... 25⁄16" x 15⁄8"

........................................8" W x 18" D

...................... 8" W x 81⁄2 " D x 23" H

......................................... 5 Tons

....................... 181⁄8"

........................................... 2 7⁄8" x 23⁄16"

.................................... 91⁄2 " W x 26" D

...............91⁄2 " W x 121⁄4" D x 321⁄4" H

1

⁄2 "

1

⁄4"

Material under pressure
could fly apart and cause
impact injuries. Always
wear safety glasses when
using this press.

Keep hands and fingers
away from ram when apply­ing downward pressure to
avoid pinching injuries.

COPYRIGHT © APRIL, 2017 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#JH18774 PRINTED IN CHINA

This arbor press is designed to only be
used for small parts. Do not use this arbor
press for operations beyond its capacity or
modify it for increased leverage.

V1.0 4.17

Small Item Inventory

Keep children and pets away
from plastic bags or packing
materials shipped with this

Description Qty

A. Handwheel Handle ..................................... 1

B. Handle ........................................................ 1

C. Hex Wrenches 5, 6, 8mm .....................1 Ea.

D. Open-Ended Wrench 14/17mm .................. 1

A

B

Cleanup

The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.

D

Figure 2. Small item inventory.

HEAVY LIF T!
Straining or crushing injury
may occur from improperly
lifting the arbor press. To
reduce this risk, get help
from other people or lifting
equipment rated for weight
of the arbor press.

C

D

There are many ways to remove this rust preven­tative, but the following steps work well in a wide
variety of situations. Always follow the manufac­turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable Rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

Put on safety glasses.

1.

2. Coat rust preventative with a liberal amount

of cleaner/degreaser (see Page 8 for offer­ings from Grizzly), then let it soak for 5–10
minutes.

SUFFOCATION HAZARD!

machine.

-2-

Wipe off surfaces. If your cleaner/degreaser

3.

is effective, rust preventative will wipe off
easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with a rag.

Repeat Steps 2–3 as necessary until clean,

4.

then coat all unpainted surfaces with a quality
metal protectant to prevent rust.

NOTICE

Avoid chlorine-based solvents, such as
acetone or brake parts cleaner, that may
damage painted surfaces.

T1184–86 (Mfd. 01/17)

Mounting

Another option is a "direct mount" (see example
below) where the machine is secured directly to
the workbench with lag screws and washers.

Because of the dynamic forces involved in oper­ating the arbor press, we strongly recommend
mounting it to a benchtop or other stable working
surface to prevent it from moving during operation
and causing accidental injury or damage.

1

The base of the arbor press has two
holes on each side of the upright (see Figure 3).

⁄2 " mounting

Lag Screw

Flat Washer

Machine Base

Workbench

Figure 5. Example of a "Direct Mount" setup.

1

⁄2" Mounting Hole

(1 of 2)

Figure 3. Mounting hole (1 of 2).

The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the machine in place.

Hex
Bolt

Flat Washer

Machine Base

Workbench

Assembly

Tools Needed Qty

Hex Wrench 5mm .............................................. 1

Wrench 14mm

This machine arrives with the base plate pre­installed at the factory. Follow these instructions
for final assembly of the pinion hub and handle
assembly.

To assemble arbor press:

1. Attach handwheel handle to handwheel (see
Figure 6).

................................................... 1

Flat Washer

Lock Washer

Hex Nut

Figure 4. Example of a "Through Mount" setup.

T1184–86 (Mfd. 01/17)

Handle

Figure 6. Attaching handle to handwheel.

-3-

2. Insert handle into handle receiver (see Figure

7) and tighten both set screws.

Handle

Handle

Figure 7. Handle inserted into receiver.

Receiver

Set

Screws

Use handle to move ram down a few times

3.

to check adjustment, then lift ratchet latch
(see Figure 9) and raise ram upward using
handwheel. If necessary, further adjust cap
screws as described in Step 2.

Handwheel

Ratchet

Gear

Ratchet

Latch

Adjusting Ram Play

Cap screws on the front and left side of the ram
housing (see Figure 8) adjust the amount of ram
free-play. Ideally the ram should move with very
little play but not be overly stiff.

Tools Needed Qty

Open-Ended Wrench 14mm .............................. 1

Hex Wrench 6mm

To adjust ram free-play:

Loosen cap screws shown in Figure 8.

1.

Cap Screws

& Hex Nuts

.............................................. 1

Cap Screws

& Hex Nuts

Figure 9. Ratchet latch components.

4. When you are satisfied with the amount of

ram free-play, retighten hex nuts (shown in

Figure 8) without moving cap screws.

Using Ratchet Latch

The ratchet latch connected to the handle allows
the user to consistently move the ram downward
to apply pressure to the workpiece. The ratcheting
motion of the handle allows the handle to return to
the vertical position while the ram maintains pres­sure on the workpiece.

To use ratchet latch:

To lower ram, engage ratchet latch with

1.

ratchet gear, as shown in Figure 9.

Pull handle downward to lower ram. Ratchet

2.

gear will move with handle rotation.

Figure 8. Cap screws used to adjust ram free-

play.

2. Equally adjust each pair of cap screws a
small amount in the same direction. Turn
clockwise to decrease free-play or counter­clockwise to increase free-play.

-4-

Raise handle again until back of handle

3.

assembly contacts press body. Repeat
downward motion until pressing operation is
complete.

To release ram pressure, lift ratchet latch and

4.

raise handle until it stops.

Turn handwheel counterclockwise to raise

5.

ram to starting position.

T1184–86 (Mfd. 01/17)

Cleaning & Protecting

Wipe the arbor press down with a clean shop rag
and mineral spirits. When dry, protect the unpaint­ed surfaces by applying a thin film of ISO 32 oil.

Greasing Rack & Pinion

Grease
Grease Amount
Lubrication Frequency

..................T23964 or NLGI#2 Equivalent

................................. As Needed

.........40 Hrs. of Operation

Oiling Pinion Hub Shaft

Oil Typ e
Oil Amount
Lubrication Frequency

Proper lubrication of the pinion hub shaft is done
with a pump-type oil can with a cone tip through
the oil access holes (see Figure 10).

.................T26685 or ISO 32 Equivalent

......................................... 1–2 Pumps

...........8 Hrs. of Operation

Oil Access

Holes

Items Needed Qty

Hex Wrench 6mm .............................................. 1

Shop Rag
Stiff Bristle Brush

To grease rack and pinion:

Remove front plate, then remove ram to

1.

.......................................... As Needed

............................................... 1

expose pinion and rack (see Figure 11).

Pinion

Ram

Rack

Figure 10. Locations of oil access holes to

lubricate pinion hub shaft.

Push the tip of the oil can nozzle against the oil
access hole, and pump oil can once or twice. If
you see sludge and contaminants coming out
of the lubrication area, continue pumping the oil
can until the oil runs clear. Move the components
through the entire path of travel a few times to
distribute the oil. When finished, wipe away the
excess oil.

Figure 11. Ram rack and pinion exposed after

removing front plate.

2.

Use shop rags, a stiff brush, and mineral spir-

its to clean of rack-and-pinion teeth.

When dry, apply a light coat of grease to

3.

rack-and-pinion teeth.

Re-install ram and front plate.

4.

5. Lift ratchet latch, and use handwheel to move

ram up and down several times to distribute
grease.

T1184–86 (Mfd. 01/17)

-5-

T1184/T1185/T1186 Parts Breakdown

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

are available for purchase. Call (800) 523- 4777 or visit our online parts store at www.grizzly.com to check for availability.

-6-

T1184–86 (Mfd. 01/17)

T1184 Parts List

REF PART # DES CRIP TIO N REF PART # DE SCRI PTION

REF PART # DES CRIP TIO N REF PART # DES CRIP TIO N

1 PT1184001 MACHI NE BO DY 15 PT1184015 LOCK COLLAR
2 PT1184002 TABLE 16 PT1184016 KEY 5 X 5 X 10
3 PT1184003 HANDLE 17 PT1184017 KEY 8 X 10 X 16
4 PT1184004 ROLL PIN 6 X 20 18 PT1184018 FLAT WASHER 18MM
5 PT1184005 SWI NG ARM 19 PT1184019 PI NI O N SHA FT
6V3 PT1184006V3 HANDWHEEL TYPE-5 148D X 16B-K X M10-1.5 V3 20 PT1184020 FLAT WAS HER 8 MM
7 PT1184007 HEX NUT M8- 1. 2 5 21 PT1184021 CAP SCREW M8-1.25 X 35
8 PT1184008 CAP SCREW M8-1.25 X 20 22 PT1184022 LOCK WASHER 8MM
9 PT1184009 SHLDR HEX BOLT M10-1.5 X 25, 12MM 23 PT1184023 HEX NUT M8- 1. 2 5
10 PT1184010 RATCHE T LATCH 24 PT1184024 HEX WRENCH 5 MM
11 PT1184011 HANDWHEEL HANDLE M10-1.5 X 15, 95L 25 PT1184025 HEX WRENCH 6 MM
12 PT1184012 RATCHE T GEAR 26 PT1184026 HEX WRE NCH 8MM
13 PT1184013 SET SCREW M8-1.25 X 10 27 PT1184027 OPE N-E NDED WRE NCH 14 / 17MM
14 PT1184014 RAM 28 PT1184028 ROLL PIN 6 X 35

T1185 Parts List

1 PT1185001 MACHI NE BO DY 15 PT1185015 LOCK COLLAR
2 PT1185002 TABLE 16 PT1185016 KEY 5 X 5 X 10
3 PT1185003 HANDL E 17 PT1185017 KEY 8 X 10 X 16
4 PT1185004 ROLL PIN 6 X 20 18 PT1185018 FLAT WASHER 18MM
5 PT1185005 SWI NG ARM 19 PT1185019 P I NI ON S HAFT
6V2 PT1185006V2 HANDWHEEL TYPE-5 190D X 18B-K X M10-1.5 V2 20 PT1185020 FLA T WAS HER 8 MM
7 PT1185007 HEX NUT M8- 1. 25 21 PT1185021 CAP SCREW M8-1.25 X 35
8 PT1185008 CAP SCREW M8-1.25 X 20 22 PT1185022 LOCK WASHER 8MM
9 PT1185009 SHLDR HEX BOLT M10-1.5 X 25, 12MM 23 PT1185023 HE X NUT M8 -1 . 25
10 PT1185010 RATCHE T LATCH 24 PT1185024 HEX WRENCH 5MM
11 PT1185011 HANDWHEEL HANDLE M10-1.5 X 15, 95L 25 PT1185025 HE X WRE NCH 6MM
12 PT1185012 RATCHE T GEAR 26 PT1185026 HEX WRENCH 8 MM
13 PT1185013 SET SCREW M8-1.25 X 10 27 PT1185027 O PE N-E NDED WRE NCH 14 / 17MM
14 PT1185014 RAM 28 PT1185028 ROLL PIN 6 X 35

T1186 Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PT1186001 MACHINE BODY 15 PT1186015 LOCK COLLAR
2 PT1186002 TABLE 16 PT1186016 KEY 5 X 5 X 10
3 PT1186003 HANDLE 17 PT1186017 KEY 8 X 10 X 16
4 PT1186004 ROLL PIN 6 X 20 18 PT1186018 FLAT WASHER 18MM
5 PT1186005 SWING ARM 19 PT1186019 PINION SHAFT
6 PT1186006 HANDWHEEL TYPE-2 195D X 18B-K X M10-1.5 20 PT1186020 FLAT WASHER 8MM
7 PT1186007 HEX NUT M8-1.25 21 PT1186021 CAP SCREW M8-1.25 X 40
8 PT1186008 CAP SCREW M8-1.25 X 20 22 PT1186022 LOCK WASHER 8MM
9 PT1186009 SHLDR HEX BOLT M10-1.5 X 25, 12MM 23 PT1186023 HEX WRENCH 5MM
10 PT1186010 RATCHET LATCH 24 PT1186024 HEX WRENCH 6MM
11 PT1186011 HANDWHEEL HANDLE M10-1.5 X 15, 95L 25 PT1186025 HEX WRENCH 8MM
12 PT1186012 RATCHET GEAR 26 PT1186026 OPEN-ENDED WRENCH 14/17MM
13 PT1186013 SET SCREW M8-1.25 X 10 27 PT1186027 ROLL PIN 6 X 35
14 PT1186014 RAM

T1184–86 (Mfd. 01/17)

-7-

Accessories

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

G2544—Solvent Cleaner & Degreaser
T23692—Orange Power Degreaser

Great products for removing shipping grease.

T23964—Armor Plate with Moly-D Multi­Purpose Grease, 14.5 oz. (NLGI#2 Equivalent)

Armor Plate with Moly-D is a rich green moly
grease that provides excellent stability and unsur­passed performance under a wide range of tem­peratures and operating conditions. Armor Plate
grease is entirely unique due to the fact that the
moly in it is solubilized, which provides supe­rior performance to other greases containing the
black solid form of molybdenum disulfide.

Figure 12. T23964 Armor Plate with Moly-D

Multi-Purpose Grease.

Figure 13. Cleaner/degreasers.

H7615—High-Pressure Oil Can

Whether you are lubricating cutting tools or main­taining machinery in top operating condition, you
will appreciate this High-Pressure Oil Can. Holds
5 ounces of oil and has a trigger-activated, high­pressure pump.

Figure 14. H7615 High-Pressure Oil Can.

T26685—Moly-D Multi-Function Machine Oil ­ISO 32, 1 Gallon

Figure 15. Moly-D Multi-Function Machine Oil.

-8-

T1184–86 (Mfd. 01/17)
