For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

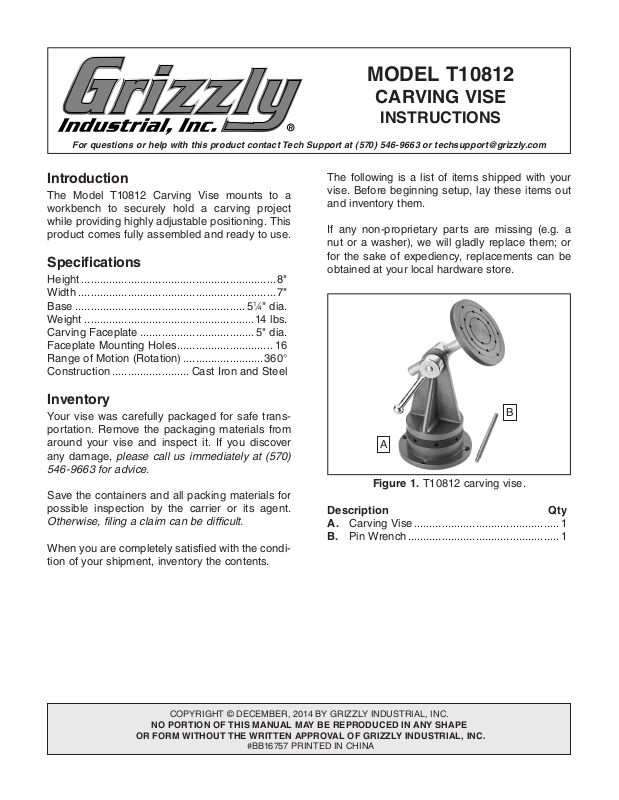

Introduction
The Model T10812 Carving Vise mounts to a
workbench to securely hold a carving project
while providing highly adjustable positioning. This
product comes fully assembled and ready to use.
Range of Motion (Rotation) ..........................360°
Construction ......................... Cast Iron and Steel
1
⁄4" dia.
Inventory
Your vise was carefully packaged for safe transportation. Remove the packaging materials from
around your vise and inspect it. If you discover
any damage, please call us immediately at (570) 546-9663for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a claim can be difficult.
When you are completely satisfied with the condition of your shipment, inventory the contents.
The following is a list of items shipped with your
vise. Before beginning setup, lay these items out
and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
B
A

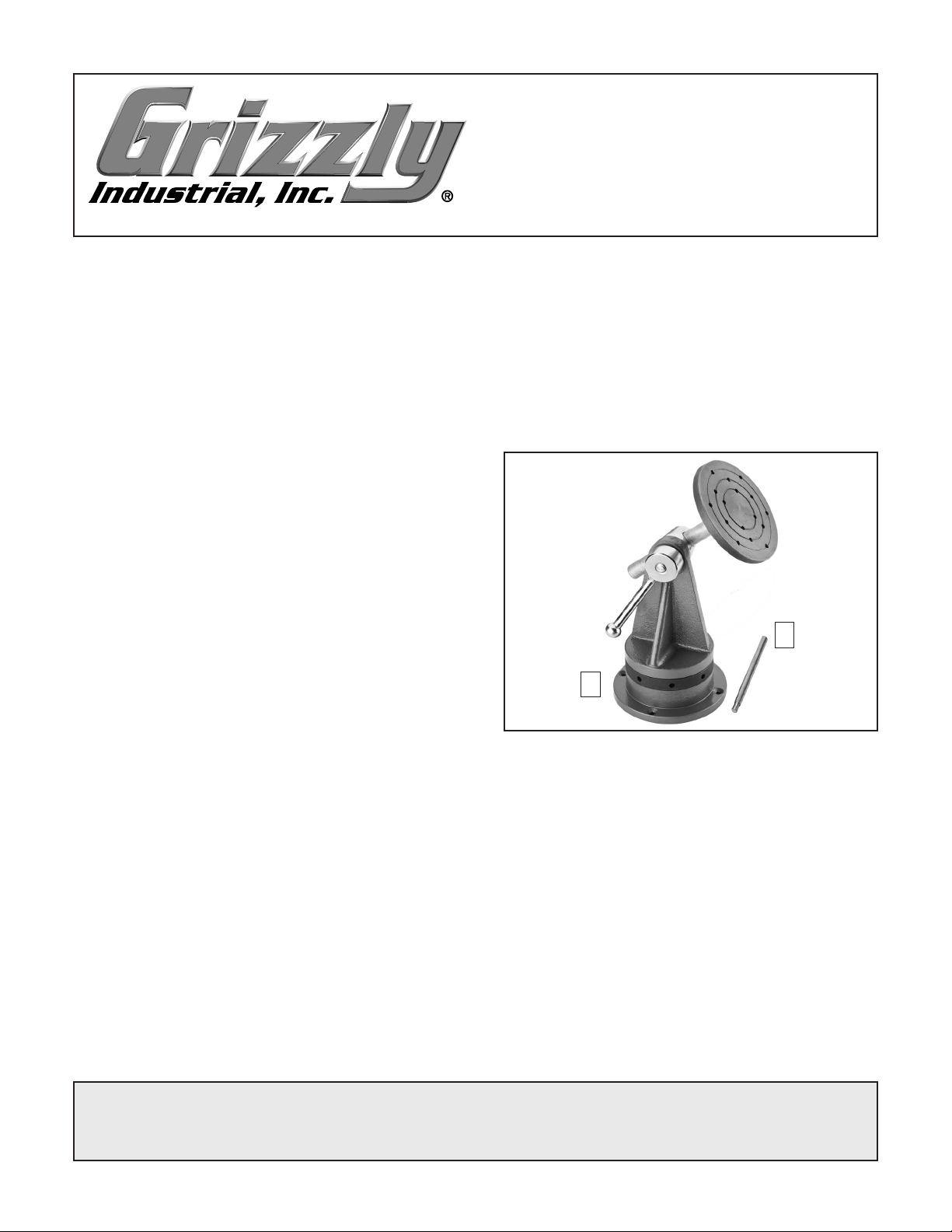

Figure 1. T10812 carving vise.
Description Qty
A. Carving Vise ............................................... 1
B. Pin Wrench ................................................. 1
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#BB16757 PRINTED IN CHINA
Page 2

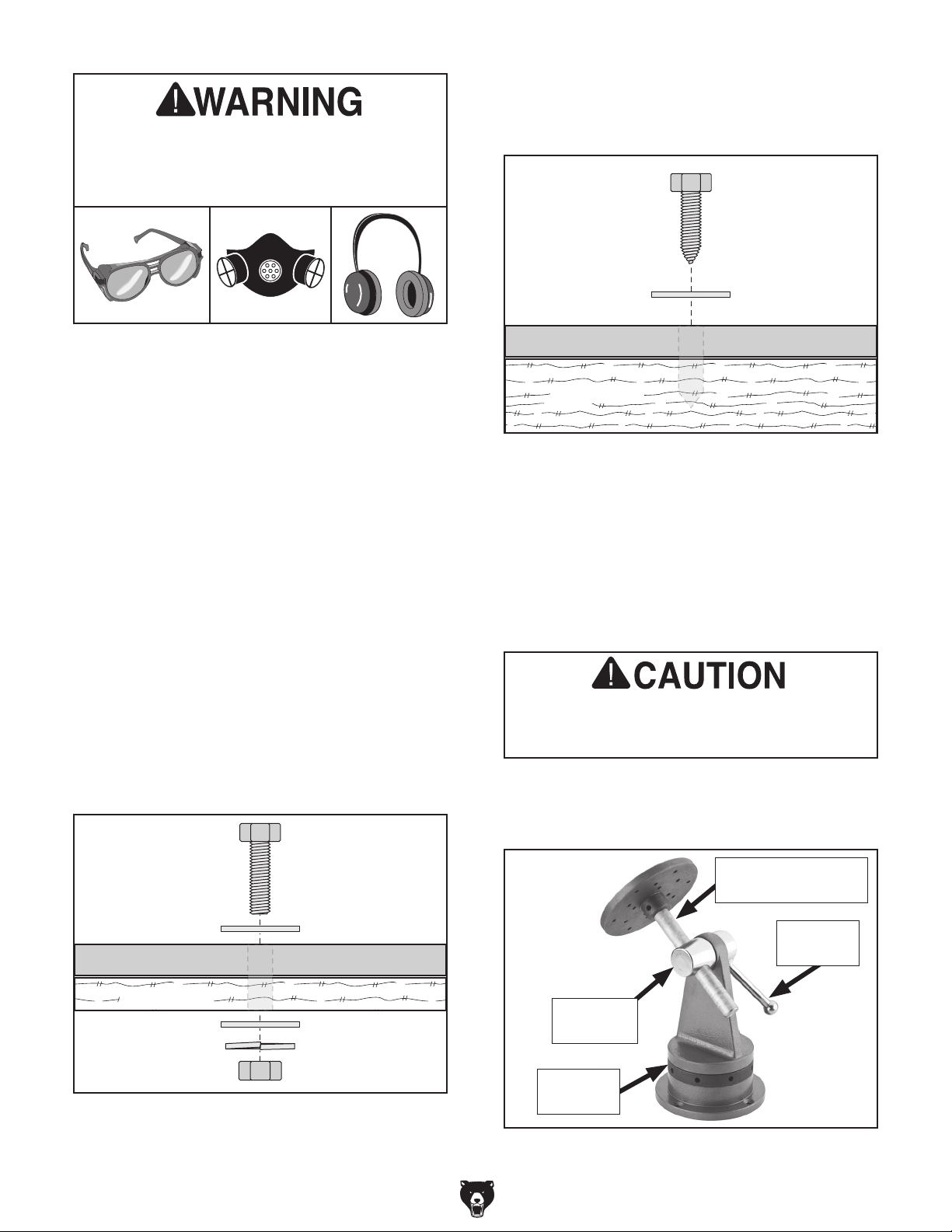

Damage to your eyes, lungs, and ears could
result from using this item without proper
protective gear, such as safety glasses, a
respirator, and hearing protection.
Installation
Mount the carving vise on a workbench that is
sturdy enough to hold the weight of the equipment
and any downward pressure that may be applied
during operation.
Another option is a "Direct Mount" (see example
below) where the vise is secured directly to the
workbench with lag screws and washers.
Lag Screw
Flat Washer
Carving Vise
Workbench
Figure 3. Typical "Direct Mount" setup.
When mounting your carving vise, remember to
allow enough room so workpiece position can be
fully adjusted, and to place carving vise in a well
lit area.
Bench Mounting
The base of this vise has mounting holes that allow
it to be fastened to a workbench or other mounting
surface to prevent it from moving during operation
and causing accidental injury or damage.
The strongest mounting option is a "Through
Mount" where holes are drilled all the way through
the workbench—and hex bolts, washers, and hex
nuts are used to secure the vise in place.
Hex
Bolt
Flat Washer
Carving Vise
Attaching Workpiece
The Carving Vise faceplate has 16 mounting holes
to accommodate a variety of workpieces. When
attaching a workpiece, use a minimum of four button head screws. Make sure the screws are long
enough to provide a safe, stable work surface, but
will not interfere with carving activities.
Avoid placing hands close to pinch points
located at clamping assembly and retaining
collar. Serious injury may occur.
Refer to Figure 4 to become familiar with the
names and locations of the controls and features.
Faceplate/Column
Assembly
Clamping
Handle
Workbench
Flat Washer
Lock Washer
Hex Nut
Figure 2. Typical "Through Mount" setup.
-2-
Clamping
Assembly
Retaining
Collar
Figure 4. T10812 part identification.
T10812 Carving Vise (Mfd. 09/14)
Page 3
To attach workpiece to faceplate:
8. Tighten clamping handle.
1. While holding faceplate, loosen clamping handle (see Figure 4).
2. Remove faceplate/column assembly from
clamping assembly.
3. Locate appropriate position for workpiece on
faceplate.
4. Select at least four mounting holes and mark
through faceplate onto workpiece with sharp
pencil.
Note: Mounting points should be placed
evenly across workpiece to avoid stress that
could cause screws to break.
5. Pre-drill holes in workpiece slightly smaller in
diameter than mounting screws.
6. Position faceplate on workpiece and attach
with button head wood screws.
Note: When carving small, narrow, or oddly
shaped workpieces, it may be necessary
to attach an intermediate base to faceplate
providing a larger, more stable work area for
workpiece.
Adjusting Tilt and Height
1. While holding faceplate, loosen clamping handle (see Figure 4).
2. Position workpiece.
3. Tighten clamping handle.
Adjusting Rotation
1. Insert pin wrench into retaining collar (see
Figure 6).

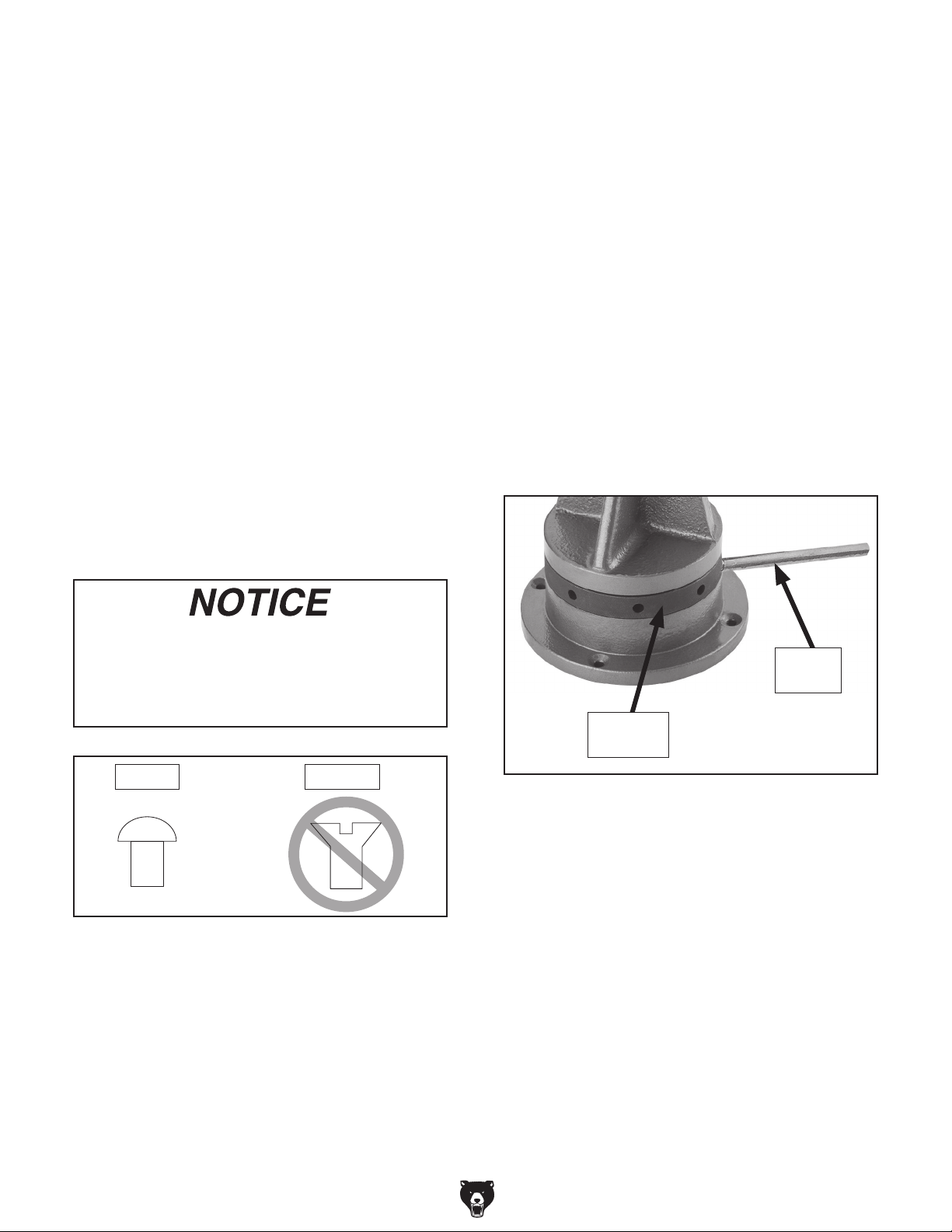

DO NOT use screws with tapered heads
to attach the faceplate because they could
split the faceplate, or the screws could snap
off during operation. See the illustration in
Figure 5 for examples.
CorrectIncorrect
Figure 5. Correct screw type for faceplate
attachment.
7. With workpiece securely attached to faceplate, re-install faceplate/column assembly
into clamping assembly.
Pin
Wrench
Retaining
Collar
Figure 6. Insert pin wrench.
2. Turn retaining collar counterclockwise until
the vise rotates freely.
3. Position workpiece.
4. Turn retaining collar clockwise until snug.
5. Remove pin wrench and store in safe place.
T10812 Carving Vise (Mfd. 09/14)
-3-
Page 4

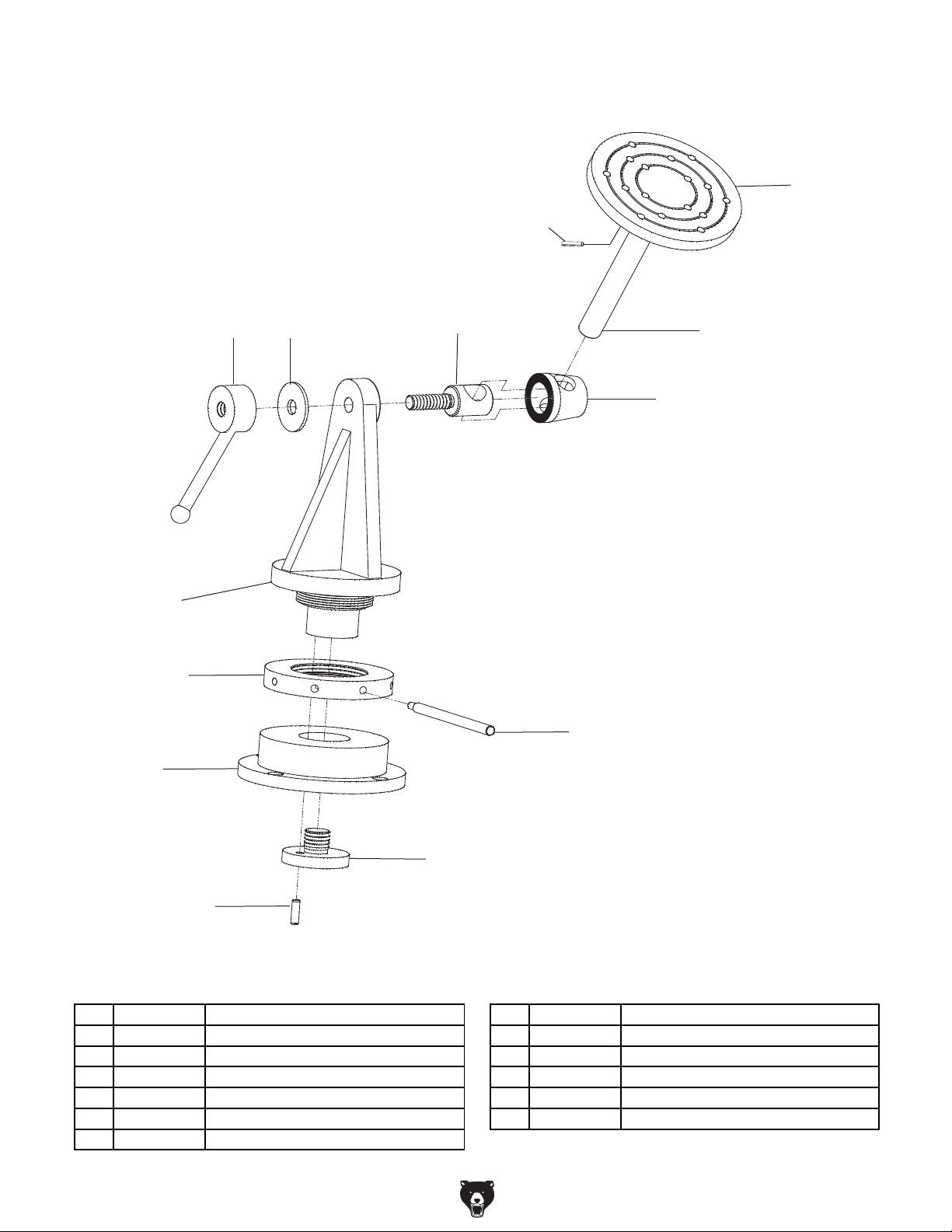

T10812 Parts Breakdown
REF PART #DESCRIPTIONREF PART #DESCRIPTION
1PT10812001 VISE BODY8PT10812008 ROLL PIN 6 X 30
2PT10812002 LOCKING HANDLE9PT10812009 PIN WRENCH
3PT10812003 FENDER WASHER 12MM10PT10812010 RETAINING COLLAR
4PT10812004 CLAMPING INSERT M12-1.75 X 4011PT10812011 VISE BASE
5PT10812005 CLAMPING SLEEVE12PT10812012 VISE BASE PLATE
6PT10812006 COLUMN13PT10812013 PIN 6 X 20MM
7PT10812007 FACEPLATE
8
7
11
1
10
2
3
4
9
6
5
12
13
-4-
T10812 Carving Vise (Mfd. 09/14)
