Grizzly T10745 User guide

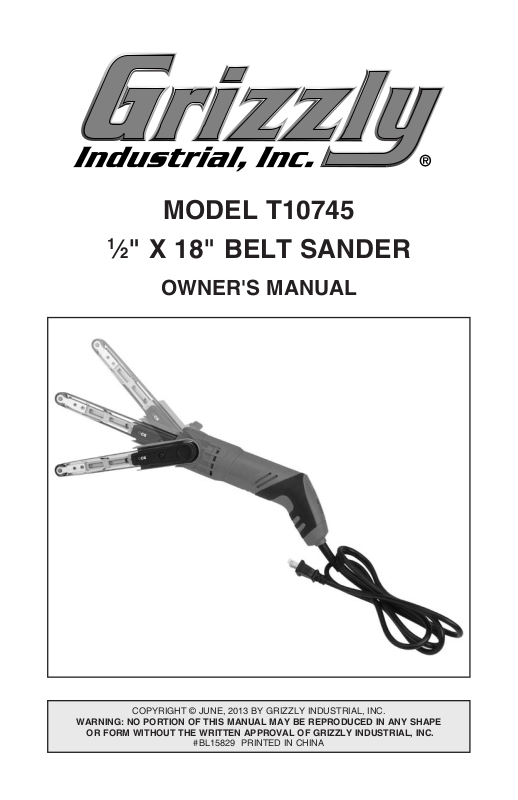

MODEL T10745

1

⁄2" X 18" BELT SANDER

OWNER'S MANUAL

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

COPYRIGHT © JUNE, 2013 BY GRIZZLY INDUSTRIAL, INC.

#BL15829 PRINTED IN CHINA

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ...............................................................................................................2

Foreword .....................................................................................................................2

Specifications ..............................................................................................................2

SECTION 1: SAFETY .......................................................................................................3

Additional Safety for Belt Sanders ..............................................................................5

SECTION 2: POWER SUPPLY ........................................................................................6

SECTION 3: SET UP ........................................................................................................8

Unpacking ...................................................................................................................8

Inventory .....................................................................................................................8

Test Run .....................................................................................................................8

SECTION 4: OPERATIONS .............................................................................................9

Selecting Abrasives ....................................................................................................9

Installing Belt ..............................................................................................................9

Replacing Belt...........................................................................................................10

Operating Sander .....................................................................................................11

SECTION 5: MAINTENANCE ........................................................................................12

General .....................................................................................................................12

Keeping Tool Clean ..................................................................................................12

SECTION 6: SERVICE ...................................................................................................13

Troubleshooting ........................................................................................................13

SECTION 7: PARTS .......................................................................................................14

Main Breakdown .......................................................................................................14

Main Parts List ..........................................................................................................15

WARRANTY ...................................................................................................................17

INTRODUCTION

Foreword

We are proud to offer this manual with the
Model T10745! We've made every effort to
be exact with the instructions, specifica­tions, drawings, and photographs of the
Model T10745 contained inside. However,
sometimes we still make an occasional
mistake.

Also, owing to our policy of continuous
improvement, your Model T10745 may not
exactly match the manual. If you find this
to be the case, and the difference between
the manual and Model T10745 leaves you
in doubt, check our website for the latest
manual update or call technical support
for help.

For your convenience, we post all avail­able manuals and manual updates for free
on our website at www.grizzly.com. Any
updates to your model of machine will be
reflected in these documents as soon as
they are complete.

Contact Info

We stand behind our machines. If you
have any service questions, parts requests
or general questions about the machine,
please call or write us at the location listed
below.

Grizzly Industrial, Inc.

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: [phone]

E-Mail: [e-mail]

We want your feedback on this manual.
If you can take the time, please email or
write to us at the address below and tell
us how we did:

Grizzly Industrial, Inc.

C/O Technical Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Email: [e-mail]

Specifications

Motor Specifications ....................................................... Universal, 200W, 120V, 60 Hz, 2A

Minimum Circuit Size ........................................................................................................15A

Included Plug Type ...............................................................................................NEMA 1-15

Cord Length ...................................................................................................................... 6 ft.

Cord Gauge ...............................................................................................................18 AWG

Number of Speeds .................................................................................................... Variable

Belt Speed ....................................................................................................1100–1700 FPM

Abrasive Belt Size ............................................................................................. 1⁄2" W x 18"L

Arm Tilt ................................................................................................Up 30, Down 30° deg.

Sound Level ..................................................................................................................92 dB

Weight .........................................................................................................................2.3 lbs.

Model T10745 1⁄2" x 18" Belt Sander-2-

SECTION 1: SAFETY

Always wear ANSI-

when operating or observing machinery to

For Your Own Safety Read Instruction Manual

Before Operating This Power Tool

The purpose of safety symbols is to attract your attention to possible hazard­ous conditions. This manual uses a series of symbols and signal words which
are intended to convey the level of importance of the safety messages. The
progression of symbols is described below. Remember that safety messages by
themselves do not eliminate danger and are not a substitute for proper accident
prevention measures.

Indicates an imminent hazardous situation which, if
not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if
not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
It may also be used to alert against unsafe practices.

NOTICE

This symbol is used to alert the user to useful infor­mation about proper operation of the equipment.

Safety Instructions for Power Tools

OWNER’S MANUAL. Read and under-

stand this owner’s manual BEFORE using
machine.

TRAINED OPERATORS ONLY. Untrained
operators have a higher risk of being hur t
or killed. Only allow trained/supervised
people to use this power tool. When tool
is not being used, disconnect power, and
store in out-of-reach location to prevent
unauthorized use—especially around
children. Make workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not
use tools in areas that are wet, cluttered,
or have poor lighting. Operating tools in
these areas greatly increases risk of acci­dents and injury.

Model T10745 1⁄2" x 18" Belt Sander -3-

MENTAL ALERTNESS REQUIRED. Full
mental alertness is required for safe oper­ation of power tools. Never operate under
the influence of drugs or alcohol, when
tired, or when distracted.

DISCONNECT POWER FIRST. Always
disconnect tool from power supply
BEFORE making adjustments, chang­ing tooling, or servicing machine. This
prevents an injury risk from unintended
startup or contact with live electrical com­ponents.

EYE PROTECTION.

approved safety glasses or a face shield

reduce the risk of eye injury or blindness
from flying particles. Everyday eyeglasses
are not approved safety glasses.

ELECTRICAL SAFETY. Tool plug must

Guards and cov-

in good work-

If at

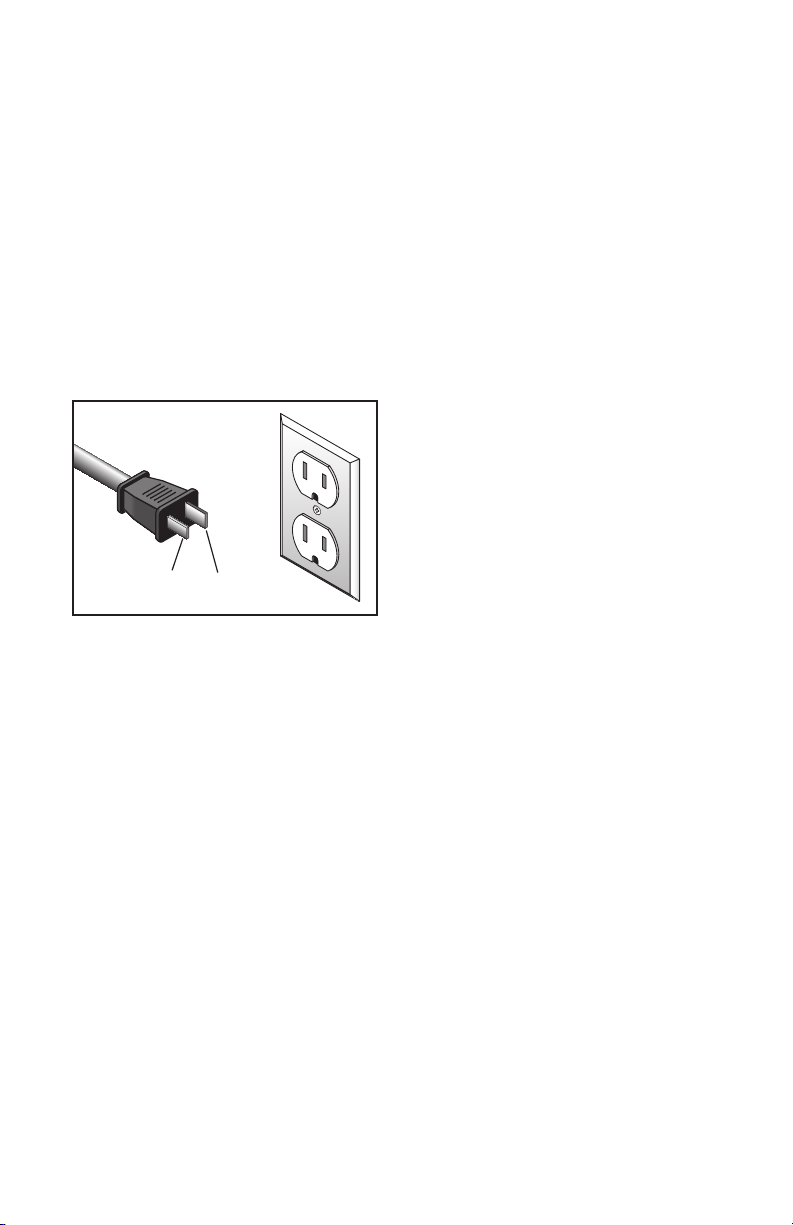

match outlet. Double-insulated tools have
a polarized plug (one blade is wider than
the other), which must be plugged into a
polarized outlet. Never modify plug. Do
not use adapter for grounded tools. Use
a ground fault circuit interrupter if opera­tion is unavoidable in damp locations.
Avoid touching grounded surfaces when
operating tool.

WEARING PROPER APPAREL. Do not
wear clothing, apparel or jewelry that
can become entangled in moving parts.
Always tie back or cover long hair. Wear
non-slip footwear to avoid accidental
slips, which could cause loss of workpiece
control. Wear hard hat as needed.

HAZARDOUS DUST. Dust created while
using tools may cause cancer, birth
defects, or long-term respiratory damage.
Be aware of dust hazards associated with
each workpiece material, always wear
a NIOSH-approved respirator, and con­nect tool to an appropriate dust collection
device to reduce your risk.

HEARING PROTECTION. Always wear
hearing protection when operating or
observing loud machinery. Extended
exposure to this noise without hearing
protection can cause permanent hearing
loss.

REMOVE ADJUSTING TOOLS. Never
leave adjustment tools, chuck keys,
wrenches, etc. in or on tool—especially
near moving parts. Verify removal before
starting!

INTENDED USAGE. Only use tool for its
intended purpose. Never modify or alter
tool for a purpose not intended by the
manufacturer or serious injury or death
may result!

AWKWARD POSITIONS. Keep proper
footing and balance at all times when
operating tool. Do not overreach! Avoid
awkward hand positions that make tool
control difficult or increase the risk of
accidental injury.

SAFE HANDLING. Firmly grip tool. To
avoid accidental firing, do not keep finger
on switch or trigger while carrying.

FORCING TOOLS.. Use right tool for job,
and do not force it. It will do job safer and
better at rate for which it was designed.

SECURING WORKPIECE. When
required, use clamps or vises to secure
workpiece. This protects hands and frees
both of them to operate tool.

GUARDS & COVERS.

ers reduce accidental contact with mov­ing parts or flying debris. Ensure they
are properly installed, undamaged, and
working correctly.

CHILDREN & BYSTANDERS. Keep chil­dren and bystanders at a safe distance
from the work area. Stop using tool if they
become a distraction.

USE RECOMMENDED ACCESSORIES.
Consult this manual or manufacturer
for recommended accessories. Using
improper accessories will increase risk of
serious injury.

MAINTAIN WITH CARE. Keep cutting
tool edges sharp and clean. Follow all
maintenance instructions and lubrication
schedules to keep tool
ing condition. A tool that is improperly
maintained could malfunction, leading to
serious personal injury or death. Only
have tool serviced by qualified service­personnel using matching replacement
parts.

CHECK DAMAGED PARTS. Regularly
inspect tool for any condition that may
affect safe operation. Immediately repair
or replace damaged or mis-adjusted parts
before operating tool.

MAINTAIN POWER CORDS. When dis­connecting cord-connected tools from
power, grab and pull the plug—NOT the
cord. Carrying or pulling the cord may
damage wires inside. Do not handle cord/
plug with wet hands. Avoid cord damage
by keeping it away from heated surfaces,
high traffic areas, harsh chemicals, sharp
edges, moving parts, and wet/damp loca­tions. Damaged cords increase risk of
electrocution.

UNATTENDED OPERATION. Never
leave tool running while unattended. Turn
tool OFF and ensure all moving parts
completely stop before walking away.

EXPERIENCING DIFFICULTIES.

any time you experience difficulties per­forming the intended operation, stop
using the machine! Contact our Technical
Support at [phone].

Model T10745 1⁄2" x 18" Belt Sander-4-

Additional Safety for Belt Sanders

HAND PLACEMENT. Rotating sandpa-

per can remove a large amount of flesh
in a few seconds. Always keep hands
away from the sanding belt during opera­tion. Never touch moving sanding belt on
purpose.

SANDING BELT CONDITION. A sanding
belt that is worn or damaged not only pro­duces poor sanding results, but could fly
apart, aggressively grab the workpiece, or
throw debris at operator. Always inspect
sanding belt before operation and replace
it if worn or damaged.

No list of safety guidelines can be complete. Every shop environment is different.
Always consider safety first, as it applies to your individual working conditions.
Use this and other machinery with caution and respect. Failure to do so could
result in serious personal injury, damage to equipment or poor work results.

VIBRATION GENERATED INJURIES.

Limit prolonged exposure to this tool and
take regular breaks. Vibr ations from han d­held belt sanders may result in a variety of
neurological and vascular disorders.

WORKPIECE INSPECTION. Nails, sta­ples, knots, or other imperfections in
workpiece can be dislodged and thrown
from the sander at a high rate of speed
into operator or bystanders, or cause
damage to sandpaper or sander. Never
attempt to sand stock that has embedded
foreign objects or questionable imperfec­tions.

Model T10745 1⁄2" x 18" Belt Sander -5-

SECTION 2: POWER SUPPLY

Before installing the tool, consider the
availability and proximity of the required
power supply circuit. If an existing circuit
does not meet the requirements for this
tool, a new circuit must be installed. To
minimize the risk of electrocution, fire,
or equipment damage, installation work
and electrical wiring must be done by an
electrican or qualified service personnel
in accordance with all applicable codes
and standards.

Electrocution, fire, or
equipment damage
may occur if tool is
not correctly ground­ed and connected to
power supply.

Full-Load Current Rating

The full-load current rating is the amperage
a machine or tool draws at 100% of the
rated output power. On machines with
multiple motors, this is the amperage
drawn by the largest motor or sum of
all motors and electrical devices that
might operate at one time during normal
operations.

Full-Load Current Rating at 120V ........2A

The full-load current is not the maximum
amount of amps the tool will draw. If the
tool is overloaded, it will draw additional
amps beyond the full-load rating.

If the tool is overloaded for a sufficient
length of time, damage, overheating, or fire
may result—especially if connected to an
undersized circuit. To reduce risk of these
hazards, avoid overloading tool during
operation and make sure it is connected
to a power supply circuit that meets the
requirements in the following section.

Serious injury could occur if you
connect the tool to power before
completing the setup process. Do
NOT connect to power until instruct­ed later in this manual.

120V Circuit Requirements

This tool is prewired to operate on a power
supply circuit that has a verified ground
and meets the following requirements:

Voltage .............................................. 120V

Cycle ................................................ 60 Hz

Phase .................................. Single-Phase

Power Supply Circuit ................15 Amps

A power supply circuit includes all
electrical equipment between the breaker
box or fuse panel in the building and the
tool. The power supply circuit used for this
tool must be sized to safely handle the
full-load current drawn from the tool for
an extended period of time. (If this tool is
connected to a circuit protected by fuses,
use a time delay fuse marked D.)

For your own safety and protection
of property, consult an electrician if
you are unsure about wiring practic­es or electrical codes in your area.

Note: The circuit requirements listed in this

manual apply to a dedicated circuit—where
only one machine or tool will be running at
a time. If this tool will be connected to a
shared circuit where multiple machines
or tools will be running at the same time,
consult a qualified electrician to ensure
that the circuit is properly sized for safe
operation.

Model T10745 1⁄2" x 18" Belt Sander-6-

Polarized Plug Extension Cords

This tool is double-insulated and therefore
does not have a grounding wire or plug.
The two-pronged, NEMA 1-15 plug has
a polarized end; this means that one
prong (the neutral connector) is wider than
the other (the hot connector). Polarized
plugs must be used only with polarized
receptacles. Do not attempt to plug this
tool into a non-polarized receptacle. If a
polarized receptacle is not available, a
qualified electrical technician will have to
install one before the tool can be plugged
in.

5-15 Receptacle

1-15 Plug

Hot

Neutral

Figure 1. Typical 1-15 plug and

receptacle.

When using extension cords, make sure
the cords are rated for outdoor use. Outdoor
use cords are marked with a "W-A" or a
"W" to signify their rating. Always check to
make sure that the extension cords are in
good working order and free of any type
of damage, such as exposed wires, cuts,
creased bends, or missing prongs.

Extension cords cause voltage drop, which
may damage electrical components and
shorten motor life. Voltage drop increases
as the extension cord size gets longer and
the gauge size gets smaller (higher gauge
numbers indicate smaller sizes. When
using extension cords, always choose the
shortest cord possible, with the greatest­sized gauge.

Below is a list of minimum gauge sizes
needed for running this tool at different
lengths:

25 Feet .......................................... 16AWG

50 Feet .......................................... 14AWG

100 Feet ........................................ 12AWG

Over 100 Feet ........... Not Recommended

Model T10745 1⁄2" x 18" Belt Sander -7-

SECTION 3: SET UP

Unpacking

This tool was carefully packaged for safe
transportation. Remove the packaging
materials from around the tool and inspect
it. If you discover the tool is damaged,

please immediately call Customer Service
at [phone] for advice.

Save the containers and all packing mate­rials for possible inspection by the car­rier or its agent. Otherwise, filing a freight
claim can be difficult.

When you are completely satisfied with
the condition of the shipment, inventory
the contents.

If any non-proprietary parts are missing
(e.g., a nut or a washer), we will gladly
replace them; or for the sake of expedi­ency, replacements can be obtained at
your local hardware store.

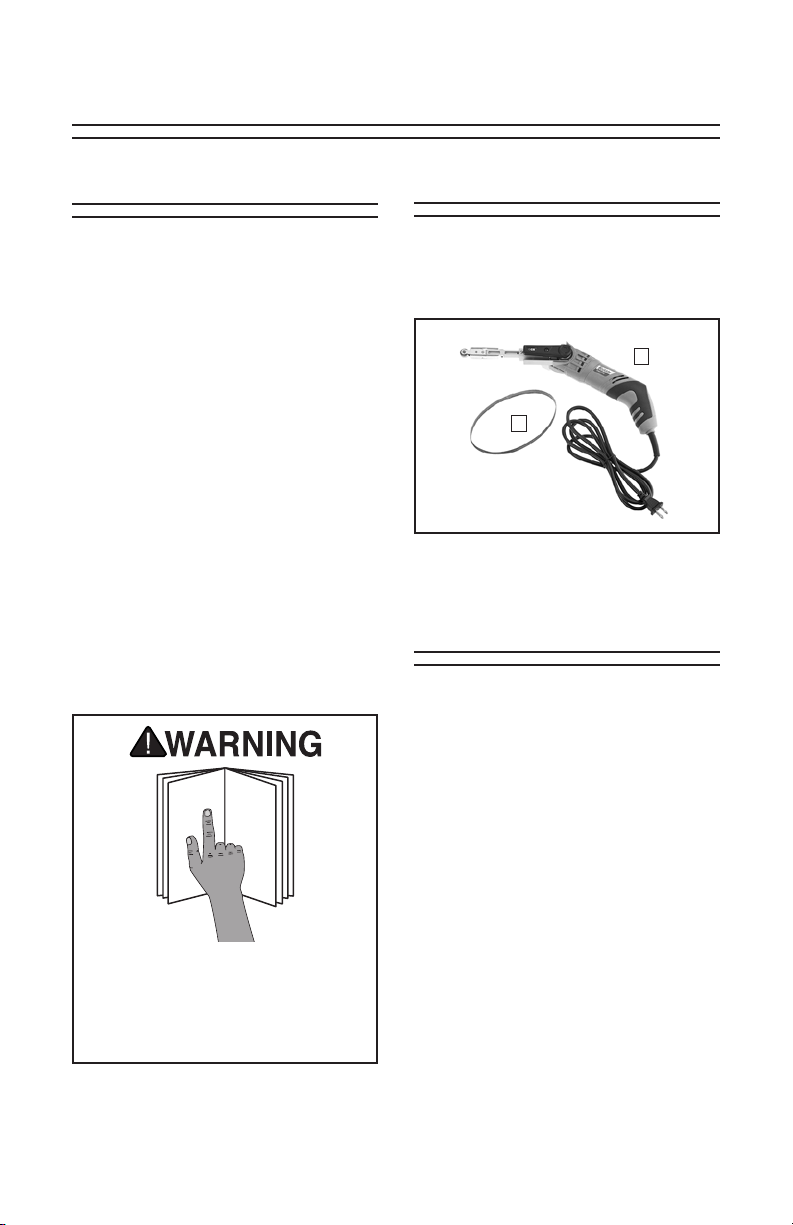

Inventory

Model T10745 Inventory Qty

A. Belt Sander ........................................1

B. Sanding Belt 1⁄2" x 18" .......................1

B

A

Figure 2. Model T10745 inventory.

Test Run

To test run the sander:

1. Insert plug into a matching 120V outlet.

This item presents serious injury
hazards to untrained users. Read
through this entire manual to
become familiar with the controls
and operations before starting tool !

2. Move the black switch (located on the

handle of the sander) to the “I” posi­tion to turn the sander ON. Move the
switch to the “0” position to turn the
sander OFF.

The sander should run smoothly. Strange
or unusual noises should be investigated
and corrected before operating further.

If you cannot easily locate the source of
an unusual noise or vibration, contact our
Technical Support for help.

Model T10745 1⁄2" x 18" Belt Sander-8-

SECTION 4: OPERATIONS

Selecting Abrasives

Using the proper grit of coated abrasives
will provde the best results.

As a general rule, start with a coarse grit
size and move through finer grit sizes until
you achieve your desired finish.

Use the list below to define paper grit
sizes:

• Extra Coarse ..............................12-20

• Very Coarse ...............................24-36

• Coarse .......................................40-50

• Medium ....................................60-100

• Fine ........................................120-180

• Very Fine ...............................220-280

• Extra Fine ..............................320-400

If you are not sure which grit to start with,
experiment on a hidden area on your
project.

The following 1⁄2 " x 18" aluminum oxide
sanding belts (sold in packs of 10) are
available through Grizzly:

T25729—60 Grit: Use for thickness sand-

ing and glue removal.
T25730—80 Grit: Use for removing planer
marks and initial finish sanding.
T25731—100 Grit: Use for removing plan­er marks and initial finish sanding.

T25732—120 Grit: Use for finish sanding.
T25733—150 Grit: Use for finish sanding.
T25734—180 Grit: Use for finish sanding.
T25735—200 Grit: Use for finish sanding.

Installing Belt

To install the sanding belt:

1. DISCONNECT SANDER FROM

POWER!

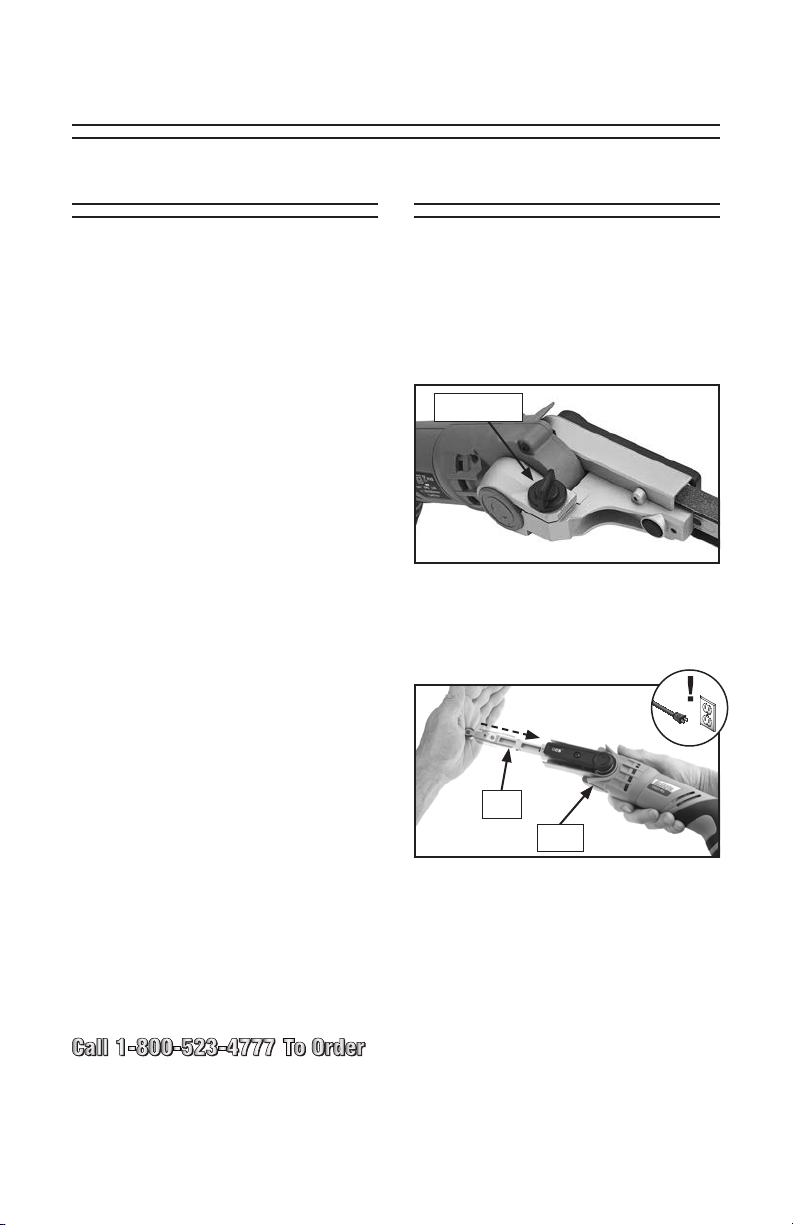

2. Tighten pivot knob shown in Figure 3.

Pivot Knob

Figure 3. Pivot knob location.

3. While holding sander body, push

arm back until it clicks and locks (see
Figure 4).

Arm

Body

Figure 4. Locking arm.

Model T10745 1⁄2" x 18" Belt Sander -9-

4. Place sanding belt over front and rear
drive wheels, making sure arrow on
sandpaper points toward front of arm
(see Figure 5).

Arrow

Direction

Drive

Wheel

Replacing Belt

When the sanding belt loses its effec­tiveness, is damaged, or shows signs of
excessive wear, it must be replaced.

To replace the sanding belt:

Front

Wheel

Figure 5. Sanding belt installed.

5. Check that sanding belt sits between

drive wheel rims (see Figure 6) and is
centered over front wheel. This will help
ensure belt operates correctly.

Figure 6. Sanding belt installed between

wheel rims (cover removed for clarity).

6. Press belt tension button (see Figure

7) to tension sanding belt.

Belt

Rims

1. DISCONNECT SANDER FROM
POWER!

2. Push arm back (see Figure 8) until it
clicks and locks.

Arm

Figure 8. Removing belt tension.

3. Remove sanding belt from wheels.

4. To install a new belt, refer to Installing
Belt on Page 9.

Body

Belt Tension

Button

Figure 7. Belt tension button location.

Model T10745 1⁄2" x 18" Belt Sander-10-

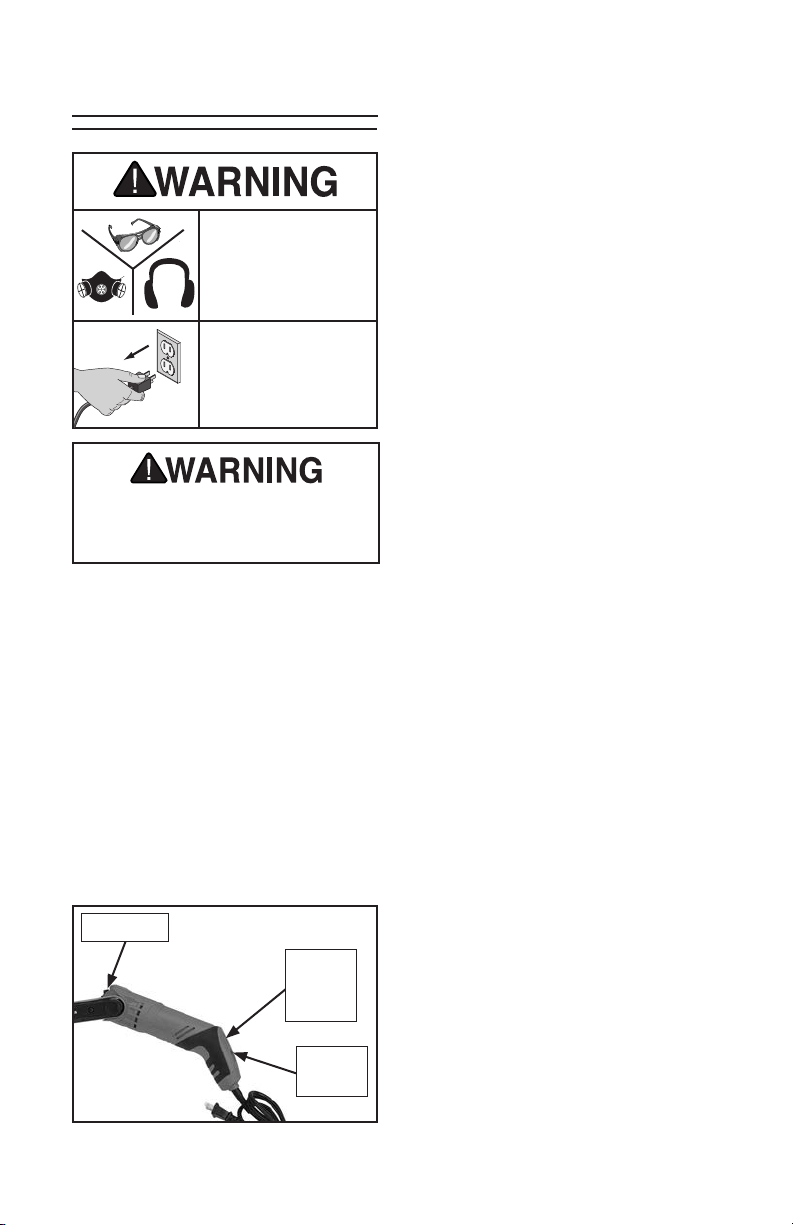

Operating Sander

5. Wait until the sander gains full speed,

then press the belt lightly against the
workpiece.

6. When finished, turn sander OFF, and
unplug from receptacle.

EYE/LUNG/EAR

INJURY HAZARD!
Wear protective
equipment when
using this tool.

ACCIDENTAL

START HAZARD!
Disconnect before
service or tool
changes.

ELECTRICAL SHOCK HAZARD!
Only use sander for dry sanding.
Never use sander for wet sanding!

To operate sander:

1. Loosen the pivot knob, turn arm to

desired angle, then tighten pivot knob.

2. Connect plug to a matching receptacle.

3. Secure workpiece so it does not move

during operations.

4. Hold sander with both hands and push
ON/OFF switch to "I". Turn variable
speed dial to set desired belt speed
(see Figure 9).

Pivot Knob

Variable

Speed

Dial

Tips

For best results, use a low speed setting
with a fine grit, or when sanding plastics,
ceramics, or removing painted surfaces.
Use a high speed setting with a coarse grit,
and when removing a lot of material.

When sanding wood, work evenly in the
same direction as the grain. Keep the sand­er moving so the finish stays consistent.

Sanding across the grain may be neces­sary to remove rough spots. This should
be done carefully, as it can produce cross­grain scratching that may be difficult to
remove.

Change the belt as soon as the grit
becomes dull. To extend the life of the belt,
only apply as much force as necessary.

Recommended Uses

The Model T10745 is designed to sand
and grind wood, iron, and plastic. It can be
used for:

• Sanding flat surfaces, corners, and
inner openings.

• Chamfering and deburring metal.

• Removing paint, rust, and weld splat­ters.

• Sharpening blades.

ON/OFF

Switch

Figure 9. Sander controls.

Model T10745 1⁄2" x 18" Belt Sander -11-

SECTION 5: MAINTENANCE

!

Keeping Tool Clean

The Model T10745 Belt Sander will give
you years of trouble free service if you keep
it clean and free of built-up dust or grime.
If air passages get blocked, blow them out
with compressed air.

Always DISCONNECT POWER
before servicing, adjusting, or doing
maintenance to reduce the risk of
accidental injury or electrocution.

General

Regular periodic maintenance on the
Model T10745 Belt Sander will ensure its
optimum performance. Make a habit of
inspecting the sander each time you use
it. Check for the following conditions and
repair or replace when necessary:

• Loose fasteners.

• Worn switch.

• Worn or damaged cords and plugs.

• Worn or damaged sanding belt.

• Any other condition that could hamper

the safe operation of this tool.

Plastic parts can easily be cleaned with a
damp cloth, but never use water to clean
any electrical parts. Solvents should also
be avoided on plastic because of the pos­sibility of damage.

If possible, use a scraper to remove glue
or sap from your work; these elements may
hinder the effectiveness of the abrasive belt
and cause unnecessary build-up of grime
on the sander.

Model T10745 1⁄2" x 18" Belt Sander-12-

SECTION 6: SERVICE

Troubleshooting

Symptom Possible Cause Solution

Tool does not start 1. Power cord not connected.

2. Power supply switched OFF,
breaker tripped, fuse blown, or
power supply is at fault.

3. ON/OFF switch at fault.

4. Motor at fault.

Tool stalls or is
underpowered.

Sanding results
diminish over time.

Tool has vibration
or noisy operation.

Tool overheating. 1. Motor forced to work too fast.

* Solution should only be carried out by or under supervision of qualified service personnel.

1. Workpiece material not suit­able for machine.

2. Tool is undersized for task.

3. Motor overheated.

4. Extension cord too long or
diameter too small.

1. Abrasive belt dull or damaged. 1. Replace belt.

1. Motor or component loose. 1. Have qualified service per-

2. Belt dull or damaged.

3. Exhaust port blocked.

1. Connect power cord to
receptacle.

2. Allow motor to cool com­pletely and retry.

3. Replace switch.*

4. Test/repair/replace.*

1. Ensure moisture content of
wood is below 20%.

2. Reduce feed rate/press
with less pressure against
workpiece.

3. Clean motor, let cool, and
reduce workload.

4. Do not use extension cord.

sonnel service tool.

1. Let tool work at its own
pace.

2. Replace belt.

3. Remove blockage from
exhaust port.

Model T10745 1⁄2" x 18" Belt Sander -13-

SECTION 7: PARTS

Main Breakdown

48

47

30

29

31

21

46

44A

24

20

25

19

33

45

26

17

34

50

44

49

18

27

32

40A

43

28

42

41

25A

23

22

16

40

15

35

51

36

39

14

37

38

13

12

10

16A

22

23

4

9

8

6

7

Model T10745 1⁄2" x 18" Belt Sander-14-

3

5

1

2

Main Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PT10745001 POWER CORD 18G 2W 72" 1-15 27 PT10745027 GEAR WHEEL PIN
2 PT10745002 POWER CORD SLEEVE 28 PT10745028 BALL BEARING 608-2RS
3 PT10745003 ON/OFF SWITCH 250V 6A 29 PT10745029 PHLP HD SCR M4-.7 X 8
4 PT10745004 TAP SCREW M3 X 8 30 PT10745030 DRIVE WHEEL COVER
5 PT10745005 VARIABLE SPEED CIRCUIT BOARD 31 PT10745031 PHLP HD SCR M4-.7 X 20
6 PT10745006 TAP SCREW M4 X 16 32 PT10745032 DRIVE WHEEL COVER MOUNT
7 PT10745007 CABLE CLAMP 33 PT10745033 PHLP HD SCR M3-.5 X 6
8 PT10745008 LEFT HOUSING 34 PT10745034 ARM BRACKET
9 PT10745009 MODEL NUMBER LABEL (L) 35 PT10745035 HEX NUT M5-.8
10 PT10745010 REAR DRIVE WHEEL 36 PT10745036 ARM SUPPORT STAND
12 PT10745012 RIGHT HOUSING 37 PT10745037 TAP SCREW M3-.5 X 12
13 PT10745013 STATOR 38 PT10745038 MODEL NUMBER LABEL (R)
14 PT10745014 DAMPING RING 39 PT10745039 PIVOT KNOB M5-.8 X 20
15 PT10745015 BALL BEARING 626ZZ 40 PT10745040 BELT TENSION BUTTON
16 PT10745016 ROTOR 40A PT10745040A BELT TENSION BUTTON ASSEMBLY
16A PT10745016A ROTOR ASSEMBLY 41 PT10745041 COMPRESSION SPRING
17 PT10745017 BALL BEARING 626ZZ 42 PT10745042 BUTTON LATCH HOOK
18 PT10745018 PINION BUSHING PIN 43 PT10745043 COMPRESSION SPRING
19 PT10745019 PINION BUSHING 44 PT10745044 TENSION ARM
20 PT10745020 PINION 44A PT10745044A TENSION ARM ASSEMBLY
21 PT10745021 EXT RETAINING RING 6MM 45 PT10745045 MOUNTING PLATE ARM
22 PT10745022 CARBON BRUSH 2-PC SET 46 PT10745046 RIVET 3 X 10 FLAT HEAD ALUM
23 PT10745023 CARBON BRUSH HOLDER 47 PT10745047 BALL BEARING 606ZZ
24 PT10745024 BALL BEARING 608-2RS 48 PT10745048 FRONT BEARING SHAFT
25 PT10745025 GEAR WHEEL 49 PT10745049 FRONT ARM SUPPORT BRACKET
25A PT10745025A GEAR WHEEL ASSEMBLY 50 PT10745050 RIVET 3 X 14 FLAT HEAD ALUM
26 PT10745026 OUTPUT SHAFT 51 PT10745051 SANDING BELT 1/2" X 18"

Model T10745 1⁄2" x 18" Belt Sander -15-

Model T10745 1⁄2" x 18" Belt Sander-16-

WARRANTY

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

Model T10745 1⁄2" x 18" Belt Sander -17-
