MODEL T10726
12" VISE-MOUNT
PAN & BOX BRAKE
OWNER'S MANUAL
(For models manufactured since 12/12)
COPYRIGHT © JANUARY, 2013 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#TS15553 PRINTED IN CHINA
This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
Table of Contents
INTRODUCTION ............................................................................................................................... 2
Machine Description ................................................................................................................... 2
Contact Info ................................................................................................................................ 2
Manual Accuracy ........................................................................................................................ 2
Identification ............................................................................................................................... 3
Specifications ............................................................................................................................. 3
SECTION 1: SAFETY ....................................................................................................................... 4
Safety Instructions for Machinery ............................................................................................... 4
Additional Safety for Brakes ....................................................................................................... 6
SECTION 2: SETUP ......................................................................................................................... 7
Unpacking .................................................................................................................................. 7
Needed for Setup ....................................................................................................................... 7
Inventory ..................................................................................................................................... 7
Cleanup ...................................................................................................................................... 8
Site Considerations .................................................................................................................... 8
Workbench Load .................................................................................................................................8
Placement Location .............................................................................................................................8
Workbench Mounting ................................................................................................................. 9
Assembly .................................................................................................................................... 9
SECTION 3: OPERATIONS ........................................................................................................... 10
Basic Bending .......................................................................................................................... 10
Removing/Spacing Fingers ...................................................................................................... 11
SECTION 4: ACCESSORIES ......................................................................................................... 12
SECTION 5: MAINTENANCE......................................................................................................... 14
SECTION 6: SERVICE ................................................................................................................... 15
Troubleshooting ........................................................................................................................ 15
Finger Alignment ...................................................................................................................... 16
SECTION 7: PARTS ....................................................................................................................... 17
Main .......................................................................................................................................... 17
Labels ....................................................................................................................................... 18
WARRANTY & RETURNS ............................................................................................................. 21
INTRODUCTION
We are proud to provide a high-quality owner’s
manual with your new machine!
We
instructions, specifications, drawings, and photographs
contained inside. Sometimes we make mistakes,
but
also
means that
you receive
will be slightly different than what is shown in
the manual
If you find this to be the case, and the difference
between the manual and machine leaves you
confused about a procedure
for an updated version. W
manuals
and
www.grizzly.com
Alternatively, you can call our Technical Support
for help. Before calling, please write down the
Manufacture Date
stamped
into the machine ID label (see below). This information helps us determine if updated documentation is available for your machine.
We stand behind our machines. If you have
any questions or need help, use the information
below to contact us. Before contacting, please get
the serial number and manufacture date of your
machine. This will help us help you faster.
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
To reduce your risk of
serious injury, read this
entire manual BEFORE
Machine Description
This 12" Vise-Mounted Pan & Box Brake is
designed for small bending projects (such as
boxes, pans, and trays) in sheet metal that is 22
gauge or thinner.
When secured in a sturdy bench-mounted vise,
four fingers of different lengths can be arranged
in a variety of combinations to make 90° bends
of varying widths up to 12" wide. The adjustable
fingers also permit the sides of a box to be bent
without interfering with previously bent sides.
Contact Info
Grizzly Technical Support
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: (570) 546-9663
Email: techsupport@grizzly.com
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: manuals@grizzly.com
Manual Accuracy
made every effort to be exact with the
our policy of continuous improvement
sometimes the machine
.
, check our website
e post current
manual updates for free on our website at
.
and Serial Number
Manufacture Date
Serial Number
-2-
using machine.
Model T10726 (Mfg. Since 12/12)
Identification
Finger
Receiver
Finger
Point
Operating
Lever
Finger Clamp
Sleeve
Eccentric
Shaft
Finger
Cap Screw
Finger
Clamp
Specifications
Maximum Bending Width ............................... 12"
Maximum Bending Capacity ... 22 Ga. Mild Steel
Bending Angle Range .............................. 0°–90°
Fingers
Vise Lug
Number of Fingers ............................................. 4
Finger Sizes ............................... 1", 2", 3", and 6"
Weight .......................................................22 lbs.
Model T10726 (Mfg. Since 12/12)
-3-
SECTION 1: SAFETY
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
This symbol is used to alert the user to useful information about
NOTICE
proper operation of the machine.
Safety Instructions for Machinery
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, disconnect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machinery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are not approved safety glasses.
Always discon-
-4-
Model T10726 (Mfg. Since 12/12)
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to avoid
accidental slips, which could cause loss of workpiece control.
HAZARDOUS DUST. Dust created while using
machinery may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material,
and always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hearing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
INTENDED USAGE. Only use machine for its
intended purpose and never make modifications
not approved by Grizzly. Modifying machine or
using it differently than intended may result in
malfunction or mechanical failure that can lead to
serious personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
CHECK DAMAGED PARTS. Regularly inspect
machine for any condition that may affect safe
operation. Immediately repair or replace damaged
or mis-adjusted parts before operating machine.
MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly.
Model T10726 (Mfg. Since 12/12)
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intended operation, stop using the machine! Contact our
Technical Support at (570) 546-9663.
-5-
Additional Safety for Brakes
CRUSHING & AMPUTATION INJURIES. The
brake can quickly crush or amputate fingers or
hands. Never place fingers or hands underneath
fingers.
SECURING Brake. Before using, secure brake to
a sturdy vise that is securely fastened to a workbench that can support the weight and dynamic
forces involved in bending sheet metal. Otherwise,
the brake may unexpectedly move or fall, causing
serious injury or property damage.
METAL EDGES. Sharp edges on sheet metal can
result in severe cuts. Always wear leather gloves
and chamfer/de-burr sharp sheet metal edges
before handling.
TOOLS IN POOR CONDITION. Using this tool
with loose hardware or damaged components
could result in sudden, uncontrolled movements
during use. Inspect the brake for cracked components, damaged linkage, levers, or loose fasteners. Correct any problems before use.
PINCHING. To prevent pinching injuries, lower the
fingers when not in use.
GLOVES AND GLASSES. Always wear leather
gloves and approved safety glasses when using
this brake.
HEATING METAL. Heating the workpiece with a
torch while it is in the brake will weaken the metal
of the fingers and frame. Do not use a torch or
other similar heating tool near the brake.
BACK INJURIES. The operating lever motion
required to operate this brake is potentially harmful if proper technique is not used. To avoid back
injuries, keep your back vertical and never overexert yourself.
OVERLOADING. Overloading this machine can
cause injury from flying parts if breakage occurs.
Do not exceed the machine capacities.
Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.
-6-
No list of safety guidelines can be complete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equipment, or poor work results.
Model T10726 (Mfg. Since 12/12)
SECTION 2: SETUP
Your machine was carefully packaged for safe
transportation. Remove the packaging materials
from around your machine and inspect it. If you
discover any damage, please call us immediately
at (570) 546-9663
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the condition of your shipment, inventory the contents.
Keep children and pets away
from plastic bags or packing
materials shipped with this
The following is a description of the main components shipped with your machine. Lay the components out to inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Unpacking
for advice.
SUFFOCATION HAZARD!
Inventory
Shipping Inventory: (Figure 1) Qty
A. Brake Assembly ......................................... 1
B. Operating lever w/Set Screw M5-.8 x 8 ...... 1
C. Lever Shaft ................................................. 1
A
machine. Discard immediately.
Needed for Setup
The following are needed to complete the setup
process, but are not included with your machine.
Description Qty
• Cleaner/Degreaser (Page 8) ...... As Needed
• Disposable Shop Rags ............... As Needed
• Sturdy Workbench ...................................... 1
• Vise Secured to Workbench ....................... 1
• Wrench 17mm ............................................ 1
• Hex Wrench 2.5mm .................................... 1
• Hex Wrench 6mm ....................................... 1
Model T10726 (Mfg. Since 12/12)
B
C
Figure 1. Shipping inventory.
NOTICE
If you cannot find an item on this list, carefully check the machine and the packaging
materials. Some of these items may be preinstalled for shipping or become misplaced
during unpacking.
-7-
Cleanup
Site Considerations
The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time clean.
Always follow the manufacturer’s instructions with
any cleaning product you use and make sure you
work in a well-ventilated area to minimize exposure to toxic fumes.
Before cleaning, gather the following:
• Disposable Rags
• Cleaner/degreaser (WD•40 works well)
• Safety glasses & disposable gloves
• Plastic paint scraper (optional)
• Hex Wrench 6mm
• Quality metal protectants products like G96
Gun Treatment, SLIPIT
(see Page 13 for offering from Grizzly).
Basic steps for removing rust preventative:
1. Put on safety glasses.
®
, or Boeshield® T- 9
Workbench Load
Refer to Specifications on Page 3 for the
weight of your machine. Some workbenches may
require additional reinforcement to support both
the machine and materials.
Placement Location
Consider existing and anticipated needs, size of
material to be processed through each machine,
and space for auxiliary stands, work tables or
other machinery when establishing a location for
your new machine. See Figure 2 for the minimum
working clearances.
®
Vise
2. Remove the fingers (refer to Page 11 for
detailed instructions).
3. Coat the rust preventative with a liberal
amount of cleaner/degreaser, then let it soak
for 5–10 minutes.
4. Wipe off the surfaces. If your cleaner/
degreaser is effective, the rust preventative
will wipe off easily. If you have a plastic paint
scraper, scrape off as much as you can first,
then wipe off the rest with the rag.
5. Repeat Steps 3–4 as necessary until clean.
6. Apply a thin coat of quality metal protectant
to the fingers and other unpainted metal surfaces, then re-install the fingers.
Avoid chlorine-based solvents, such as
acetone or brake parts cleaner, that may
damage painted surfaces.
331⁄4
Brake
131⁄2
Figure 2. Minimum working clearances.
-8-
Model T10726 (Mfg. Since 12/12)
Assembly
Except for the operating lever, the Model T10726
has been assembled and adjusted at the factory.
To attach the operating lever:
1. Thread the operating lever shaft (see Figure
3) into the eccentric shaft, and tighten it with
the wrench.
Operating
Lever Shaft
Vise & Workbench
Setup
The forces exerted on the brake during operation
are substantial. The brake must be firmly secured
in a vise (see Figure 5) that is solidly attached
to a workbench that will support the weight and
dynamic pressures of the operation (refer to Page
12 for workbench and vise options from Grizzly).
Mount the brake by tightening the vise jaws
against the lug at the bottom of the brake.
Note: Use pieces of cardboard, wood, or padded
jaw faces between the vise jaws and the vise lug
to prevent surface damage to the brake.
Eccentric
Shaft
Figure 3. Operating lever shaft installed.
2. Slide the operating lever onto the lever shaft
(see Figure 4), and secure it with the preinstalled set screw.
Set Screw
Operating
Lever
Vise
Lug
Figure 5. Example of Model T10726 secured in
vise mounted to a workbench.
Make sure the workbench that the brake will
be mounted on is stable and can support
the weight of the tool, the workpiece, and
the forces exerted during operation.
Figure 4. Operating lever attached.
Model T10726 (Mfg. Since 12/12)
-9-

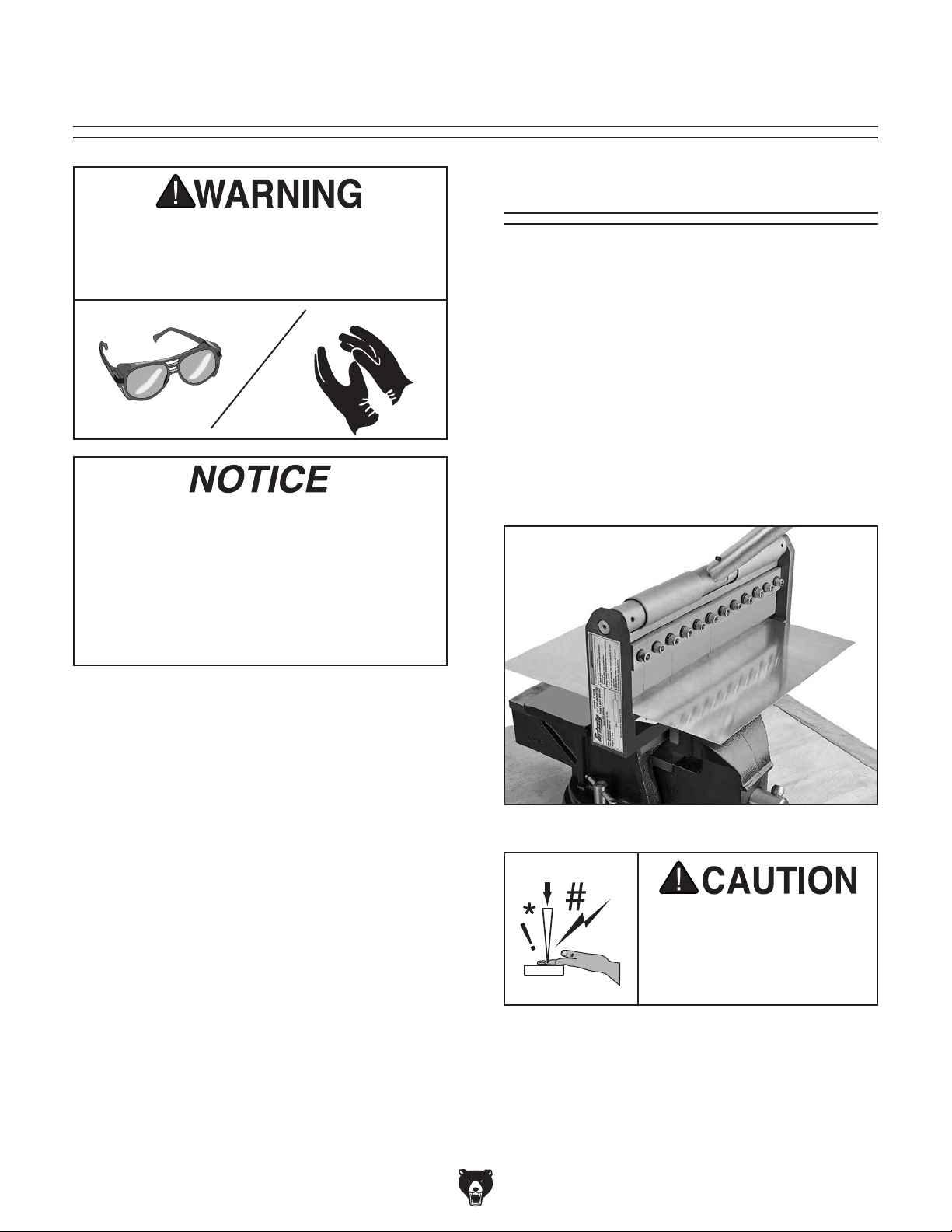

SECTION 3: OPERATIONS
Damage to your eyes or hands could result
from using this brake without proper protective gear. Always wear safety glasses and
leather gloves when operating this brake.
If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable
for accidents caused by lack of training.
Basic Bending
The Model T10726 bends mild steel up to 22
gauge at angles up to 90°.
To perform a basic bending operation:
1. Clean away any debris from the workpiece.
2. Use a pencil or scribe to mark the bending
location.
3. Lift the operating lever and center the
workpiece under the fingers and directly over
the mark you made in Step 2 (see Figure 6).
-10 -
Figure 6. Workpiece positioned under fingers.
Keep your fingers and
hands away from the fingers during operation to
avoid the risk of crushing
injuries.
Model T10726 (Mfg. Since 12/12)

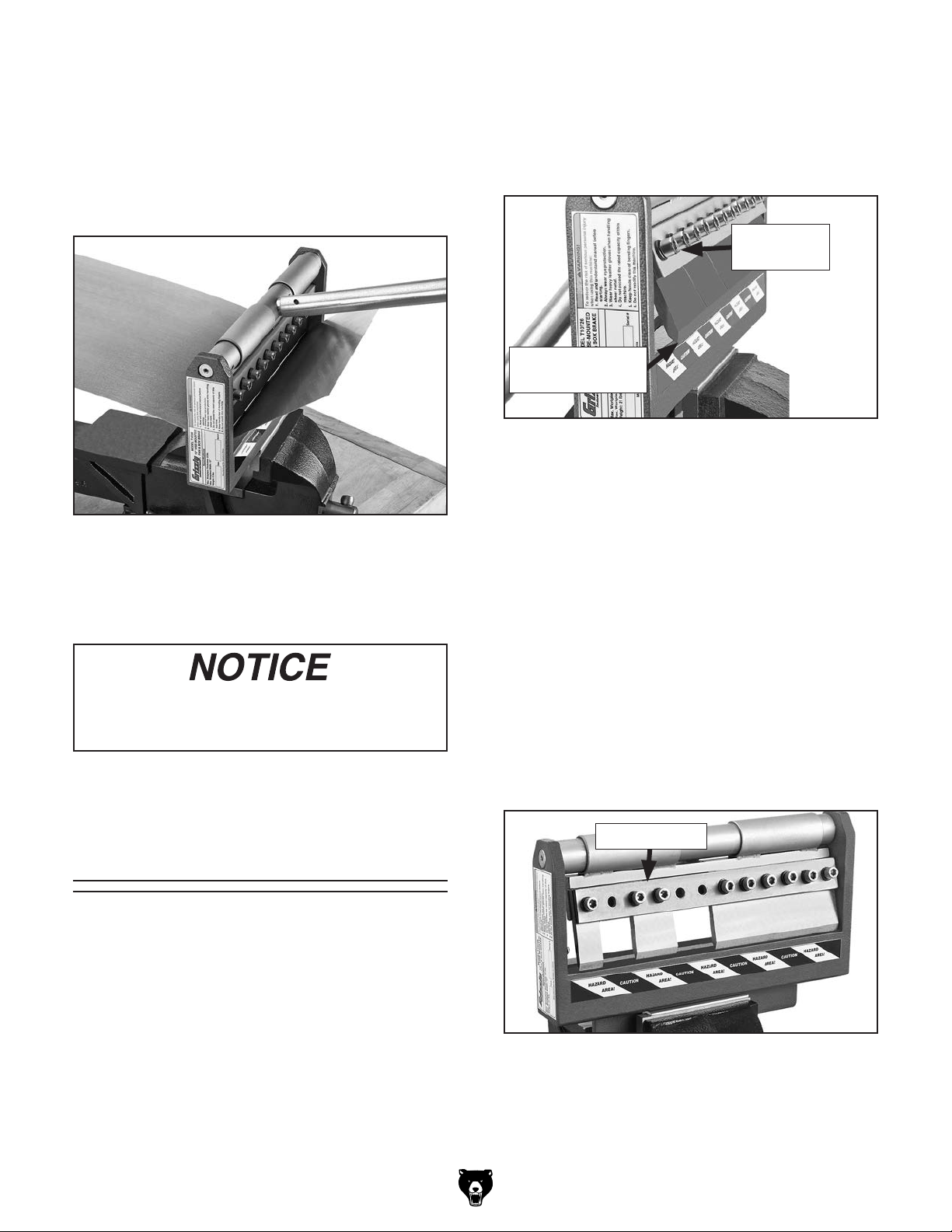

4. Slowly lower the operating lever until the
bend in the workpiece reaches the desired
angle (see Figure 7 for an example).
Note: Make sure the finger points are directly
over the finger receiver groove as you lower
the lever.
2. From the rear of the brake, carefully push the
fingers forward, as shown in Figure 8, then
slowly lower the lever behind the brake. The
fingers should clear the front of the frame as
they are lowered.
Finger Cap
Screw
Fingers Forward
of Frame
Figure 8. Fingers positioned forward of frame.
3. Remove the cap screw(s) that secure the
finger, then pull the fingers from the clamps.
Figure 7. Example of a 90° bend.
5. Lift the operating lever to raise the fingers,
remove the bent workpiece, then lower the
fingers back into the finger receiver.
If a pan or box is desired, refer to the next
subsection to position the fingers for this
operation.
Removing/Spacing
Fingers
The fingers can be spaced for pan and box operations. This involves removing one or more fingers
so that the others can be properly spaced.
Note: It may be necessary to loosen the first
cap screw on the finger(s) adjacent to the one
you are removing to release the clamping
pressure.
4. Position the fingers in an arrangement for
the length or width of the desired bend (see
Figure 9 for an example).
Note: As you move or replace fingers, make
sure they are aligned with each other (see
Finger Alignment on Page 16 for detailed
instructions).
Finger Clamp
Tool Needed Qty
Hex Wrench 6mm .............................................. 1
To remove and space fingers:
1. Lift the operating lever to raise the fingers.
Model T10726 (Mfg. Since 12/12)
Figure 9. Example of finger spacing.
5. Raise the fingers up, then lower them back
into the finger receiver.
-11-
ACCESSORIES
Installing unapproved accessories may
order online at www.grizzly.com or call 1-800-523-4777
SECTION 4: ACCESSORIES
cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.
NOTICE
Refer to our website or latest catalog for
additional recommended accessories.
G5618—Deburring Tool with two Blades
The quickest tool for smoothing freshly sheared
metal edges. Comes with two blades, one for
steel and aluminum and one for brass and cast
iron.
Heavy-Duty Bench Vises with Anvils
G7059—5", 45 lbs.
G7060—6", 68 lbs.
These tough vises are ideal for all bench work
applications. Large machined center slide keeps
jaws aligned under maximum pressure. Other
features include large Acme screws, anvil faces,
and 0°–90° swivel.
Figure 11. Model G5618 Deburring tool.
Super Heavy-Duty Birch Workbench
H8361—60" x 30"
H8362—72" x 36"
Sized to fit the needs of any shop, these Super
Heavy-Duty Birch Workbenches have solid 3"
thick tops that stand 38" above the floor. The end
vise measures 14
(H8362) and has a 7" maximum capacity. Stable
laminated birch provides strength and durability.
You'll be proud to have this workbench in your
shop!
3
⁄4" wide (H8361) or 17 3⁄4" wide
Figure 10. Heavy-Duty Bench Vise with Anvil.
Figure 12. Super Heavy-Duty Birch Workbench.
-12-
Model T10726 (Mfg. Since 12/12)
order online at www.grizzly.com or call 1-800-523-4777
Basic Eye Protection
T20501—Face Shield Crown Protector 4"
T20502—Face Shield Crown Protector 7"
T20503—Face Shield Window
T20452—"Kirova" Anti-Reflective S. Glasses
T20451—"Kirova" Clear Safety Glasses
H0736—Shop Fox
H7194—Bifocal Safety Glasses 1.5
H7195—Bifocal Safety Glasses 2.0
H7196—Bifocal Safety Glasses 2.5
®
Safety Glasses
T20502
T20503
T20452
T20451
Bostitch Compound Action Aviations Snips
T22298—Straight
T22299—Left
T22300—Right
These 10" Aviation Snips are designed for cutting heavy stock in a straight, left, or right cutting direction. Developed with TiN-coated cutting
blades to reduce wear and extend blade life, they
cut up to 18 gauge cold-rolled steel or 23 gauge
stainless steel. The patented flush-mounted side
hardware also helps prevent metal from catching
while cutting. These snips meet or exceed ANSI
standards.
T22298
T22299
H7194
H0736
Figure 13. Assortment of basic eye protection.
Recommended Metal Protectants
G5562—SLIPIT® 1 Qt. Gel
G5563—SLIPIT
G2871—Boeshield
G2870—Boeshield
H3788—G96
H3789—G96
®
12 oz Spray
®
T-9 12 oz Spray
®
®
Gun Treatment 12 oz Spray
®
Gun Treatment 4.5 oz Spray
T-9 4 oz Spray
T22300
Figure 15. Bostitch Compound Aviation Snips.
Figure 14. Recommended products for protect-
ing unpainted cast iron/steel part on machinery.
Model T10726 (Mfg. Since 12/12)
-13-
SECTION 5: MAINTENANCE
Regular maintenance on the Model T10726 will
ensure its optimum performance. Make a habit of
inspecting your brake each time you use it.
There are three main areas to maintain on the
Model T10726:
• Fingers and Finger Receiver. After handling the fingers for removal, spacing, or
re-installation, always apply a quality metal
protectant to the fingers and finger receiver
(see Page 13 for offerings from Grizzly) to
prevent corrosion.
When storing the brake for long periods of
time, make a habit of occasionally re-applying the metal protectant as directed above.
• Eccentric Shaft Rod. Periodically or if the
up-and-down finger movement becomes stiff,
apply a couple of drops of light machine oil to
the eccentric shaft rods on each end of the
eccentric shaft (see Figure 16). The rods are
accessible between the eccentric shaft and
the roller brackets. Rotate the lever front-toback several times to distribute the oil, then
wipe away any excess.
• Finger Clamp Sleeve Lubrication. To
reduce wear, periodically apply a couple of
drops of light machine oil to each end of the
finger clamp sleeves (see Figure 17), then
slide the sleeves side-to-side several times to
distribute the oil. Wipe away any excess oil.
Apply Oil Here
Figure 17. Finger clamp lubrication points.
Eccentric
Shaft Rod
Roller
Bracket
Figure 16. Eccentric shaft rod between the
eccentric shaft and the frame.
-14-
Eccentric
Shaft
Model T10726 (Mfg. Since 12/12)
Review the troubleshooting and procedures in this section if a problem develops with your machine. If you
need replacement parts or additional help with a procedure, call our Technical Support at (570) 546-9663.
Note: Please gather the serial number and manufacture date of your machine before calling.
SECTION 6: SERVICE
Troubleshooting
Symptom Possible Cause Possible Solution
Heavy resistance
during bends.
Bend radius is not
consistent across
workpiece.
Point of fingers are
chipping or rolling.
Workpiece shows
scoring marks or
scratches after
bend.
1. Machine capacities are exceeded.
2. Fingers not aligned with finger receiver
groove.
1. Machine capacities are exceeded.
2. Bottom of fingers not aligned with each
other.
1. Fingers not aligned with finger receiver
groove.
2. Machine capacities are exceeded.
1. Debris on fingers or finger receiver.
2. Fingers or finger receiver has scratches.
1. Use sheet metal that does not exceed 22 gauge
mild steel.
2. Make sure fingers are aligned with finger receiver
groove as fingers are lowered for bend.
1. Use sheet metal that does not exceed 22 gauge
mild steel.
2. Make sure fingers are firmly seated in finger clamps
and the finger points are aligned with each other.
1. Make sure fingers are aligned with finger receiver
groove as fingers are lowered for bend. Replace
fingers if damaged.
2. Use sheet metal that does not exceed 22 gauge
mild steel. Replace fingers if damaged.
1. Clean fingers and finger receiver (Page 14).
2. Polish out scratches, and apply tape on the
workpiece at the bend locations for protection.
Model T10726 (Mfg. Since 12/12)
-15-
Finger Alignment
Look along the length of the fingers from the side
to identify any finger point that is not aligned with
the rest.
To produce straight bends, the finger points (see
Figure 18) must all be aligned evenly.
When moving or re-installing the fingers, there is
play in the vertical positioning which can be used
to align the fingers.
Finger
Cap Screws
Finger
Clamp
Finger Points
Figure 18. Finger points and cap screws.
Tool Needed Qty
Hex Wrench 6mm .............................................. 1
To align the finger points:
1. Loosen, but do not remove, the cap screws
that secures the finger.
Note: It may be necessary to also loosen
the cap screws on each side of the finger to
relieve the pressure from the finger clamp.
2. Apply upward pressure to the finger to firmly
seat it into the finger clamp.
3. Observe the alignment of the finger points
from the side again. If necessary, repeat this
procedure to bring all fingers into alignment.
-16 -
Model T10726 (Mfg. Since 12/12)
7
SECTION 7: PARTS
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
Main
20
12
19
22
13
15
16
2
1
8
9
11
10
5
4
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT10726001 VISE LUG 12 PT10726012 SLEEVE STOP PLATE
2 PT10726002 FRAME 13 PT10726013 STOP PLATE RIVET
3 PT10726003 BENDING FINGER 75MM 14 PT10726014 BENDING LEVER SHAFT
4 PT10726004 BENDING FINGER 50MM 15 PT10726015 FINGER CLAMP
5 PT10726005 STOP ROD 6 X 30MM 16 PCAP31M CAP SCREW M8-1.25 X 25
7 PT10726007 BENDING FINGER 25MM 17 PLW04M LOCK WASHER 8MM
8 PT10726008 BENDING FINGER 150MM 19 PT10726019 BENDING LEVER
9 PT10726009 ECCENTRIC SHAFT 20 PT10726020 LEVER HANDLE
10 PT10726010 ECCENTRIC SHAFT ROD 21 PSS31M SET SCREW M5-.8 X 8
11 PT10726011 FINGER CLAMP SLEEVE 22 PSS53M SET SCREW M5-.8 X 12
21
14
3
17
are available for purchase. Call (800) 523- 4777 or visit our online parts store at www.grizzly.com to check for availability.
Model T10726 (Mfg. Since 12/12)
-17-
Labels
31
32
33
34
35
REF PART # DESCRIPTION REF PART # DESCRIPTION
31 PT10726031 ID LABEL 34 PT10726034 EYE INJURY HAZARD LABEL
32 PT10726032 HAZARD STRIP LABEL 35 PPAINT-01 GRIZZLY GREEN TOUCH-UP PAINT
33 PT10726033 PINCH HAZARD LABEL
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
-18-
Model T10726 (Mfg. Since 12/12)
WARRANTY CARD
Name _____________________________________________________________________________
Street _____________________________________________________________________________
City _______________________ State _________________________ Zip _____________________
Phone # ____________________ Email _________________________________________________
Model # ____________________ Order # _______________________ Serial # __________________
The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.
1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:
2. Which of the following magazines do you subscribe to?
____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics
3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+
CUT ALONG DOTTED LINE
4. What is your age group?
____ 20-29 ____ 30-39 ____ 40-49
____ 50-59 ____ 60-69 ____ 70+
5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years
6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____ 10+
____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood
____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:
7. Do you think your machine represents a good value? _____Yes _____No
8. Would you recommend Grizzly Industrial to a friend? _____ Yes _____No
9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____Yes _____No
10. Comments: _____________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
FOLD ALONG DOTTED LINE
FOLD ALONG DOTTED LINE
Place
Stamp
Here
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
Send a Grizzly Catalog to a friend:
Name_______________________________
Street_______________________________
City______________State______Zip______
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
WARRANTY & RETURNS
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
Buy Direct and Save with Grizzly®– Trusted, Proven and a Great Value!
~Since 1983~
Visit Our Website Today For
Current Specials!
ORDER
24 HOURS A DAY!
1-800-523-4777
Loading...
