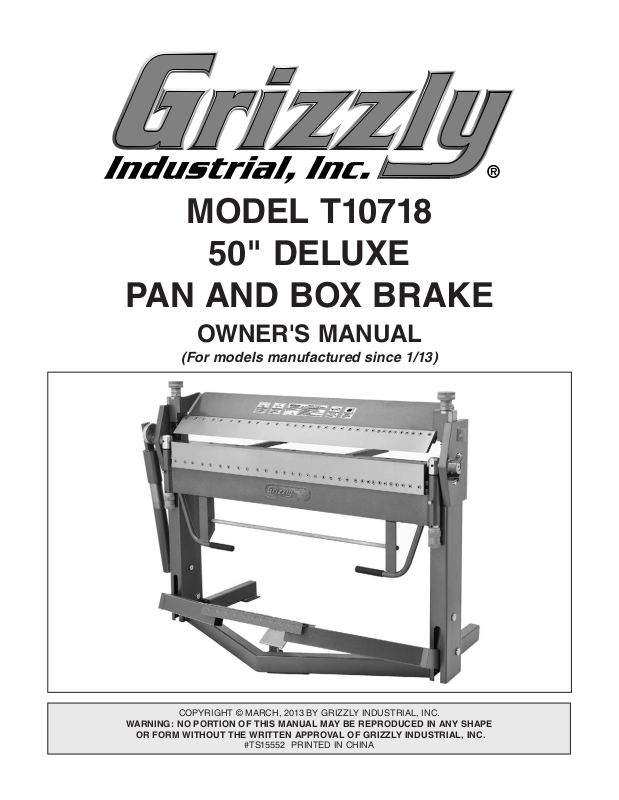

MODEL T10718

50" DELUXE

PAN AND BOX BRAKE

OWNER'S MANUAL

(For models manufactured since 1/13)

COPYRIGHT © MARCH, 2013 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#TS15552 PRINTED IN CHINA

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Machine Description ...................................... 2

Contact Info.................................................... 2

Manual Accuracy ........................................... 2

Identification ................................................... 3

Machine Data Sheet ...................................... 4

SECTION 1: SAFETY ....................................... 5

Safety Instructions for Machinery .................. 5

Additional Safety for Pan & Box Brakes ........ 7

SECTION 2: SETUP ......................................... 8

Unpacking ...................................................... 8

Needed for Setup ........................................... 8

Cleanup .......................................................... 9

Cleaning Blocks ............................................. 9

Site Considerations ...................................... 10

Lifting & Placing ........................................... 11

Mounting ...................................................... 11

Leveling ........................................................ 12

Loosening Work Stop .................................. 12

SECTION 3: OPERATIONS ........................... 13

Operation Overview ..................................... 13

Basic Controls .............................................. 14

Bend Allowance ........................................... 14

Adjusting Setback ........................................ 14

Adjusting Clamping Pressure ...................... 15

Adjusting Work Stop .................................... 16

Spacing Fingers & Blocks ............................ 17

Aligning Fingers & Blocks ............................ 17

Aligning Clamping Fingers ................................ 17

Aligning Bending Blocks ...................................17

SECTION 4: ACCESSORIES ......................... 18

SECTION 5: MAINTENANCE ......................... 21

Schedule ...................................................... 21

Daily Maintenance ............................................21

Weekly Maintenance ......................................... 21

Cleaning & Protecting .................................. 21

Lubrication ................................................... 21

Clamping Leaf Slide Shafts ..............................21

Bending Leaf Pivot Bushings ............................22

Bending Leaf Cam ............................................ 22

Setback Shafts .................................................. 22

SECTION 6: TROUBLESHOOTING ............... 23

SECTION 7: PARTS ....................................... 24

Main ............................................................. 24

Labels & Cosmetics ..................................... 26

WARRANTY & RETURNS ............................. 29

INTRODUCTION

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the

from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documenta­tion is available for your machine.

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Machine Description

This 50" Deluxe Pan & Box Brake is used to make
straight bends, boxes, pans, and trays in
sheet metal that is 16 gauge or thinner.

Clamping fingers and bending blocks of different
lengths can be arranged to make 90° bends of
varying widths up to 50" wide. The fingers and
blocks can be spaced in any configuration neces­sary to permit the sides of a box to be bent without
interfering with previously bent sides.

Setback and clamping pressure are easily adjust­ed for different workpiece requirements, and the
adjustable bending stop is used to make repetitive
bends of the same angle.

Contact

Info

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

Manufacture Date and Serial Number

Email: [e-mail]

Grizzly Documentation Manager

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

P.O. Box 2069

Bellingham, WA 98227-2069

Email: [e-mail]

Manufacture Date

Serial Number

-2-

Model T10718 (Mfg. Since 1/13)

Identification

To reduce your risk of
serious injury, read this
entire manual BEFORE

Bending

Blocks

Bending

Leaf

Clamping

Leaf

Foot

Pedal

Clamping

Base

Front View

Clamping

Fingers

Pressure

Adjustment

Knob

Lifting Bracket

(1 of 2)

Adjustable

Bending Stop

Setback

Adjustment

Knob

Workpiece

Support

Model T10718 (Mfg. Since 1/13)

Rear View

Clamping

Strut

Machine

Mounting

Locations

using machine.

-3-

Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL T10718 50" DELUXE PAN AND BOX BRAKE

Product Dimensions:

Weight.............................................................................................................................................................. 860 lbs.

Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 63 x 38 x 44-3/4 in.

Footprint (Length x Width)..................................................................................................................... 63 x 35-1/2 in.

Shipping Dimensions:

Type.......................................................................................................................................................... Wood Crate

Content........................................................................................................................................................... Machine

Weight.............................................................................................................................................................. 945 lbs.

Length x Width x Height....................................................................................................................... 68 x 29 x 51 in.

Must Ship Upright................................................................................................................................................... Yes

Main Specifications:

Capacities

Maximum Width......................................................................................................................................... 50 in.

Maximum Thickness Mild Steel.......................................................................................................... 16 Gauge

Aluminum............................................................................................................................................ 14 Gauge

Soft Brass........................................................................................................................................... 14 Gauge

Annealed Phosphor Bronze................................................................................................................ 16 Gauge

Soft Copper......................................................................................................................................... 14 Gauge

Hard Copper....................................................................................................................................... 16 Gauge

Brake Range............................................................................................................................ 0 – 135 Degrees

Minimum Reverse Bend........................................................................................................................... 5/8 in.

Maximum Height of Pan/Box Brake Sides................................................................................................... 2 in.

Construction

Base........................................................................................................................................................... Steel

Bending Leaf.............................................................................................................................................. Steel

Clamping Leaf............................................................................................................................................ Steel

Fingers............................................................................................. Precision-Ground Steel, Hardened Edges

Other Specifications:

Country of Origin ................................................................................................................................................ China

-4-

Model T10718 (Mfg. Since 1/13)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model T10718 (Mfg. Since 1/13)

-5-

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

-6-

Model T10718 (Mfg. Since 1/13)

Additional Safety for Pan & Box Brakes

CRUSHING & AMPUTATION INJURIES. The

brake can quickly crush or amputate fingers,
hands, or body parts. Never place fingers, hands,
or body parts between or near the clamping fin­gers and bending blocks during operation.

SECURING BRAKE. Before using, secure the
brake to the floor so it can support the weight and
dynamic forces involved in bending sheet metal.
Otherwise, the brake may unexpectedly move
or tip during operation, causing serious injury or
property damage.

TOOLS IN POOR CONDITION. Using this tool
with loose hardware or damaged components
could result in sudden, unexpected movements
during use. Inspect the brake for cracked compo­nents, damaged linkage, levers, or loose fasten­ers. Correct any problems before use.

LEAVING UNATTENDED. To reduce the risk of
crushing or amputation injuries with children or
visitors, lower the clamping leaf and lock the foot
pedal down when not in use.

METAL EDGES. Sharp edges on sheet metal can
result in severe cuts. Always wear leather gloves
and chamfer/de-burr sharp sheet metal edges.

COMFORTABLE BODY POSITION. The required
body motion to operate the brake can result in
operator injury over time if proper ergonomics are
not used during operation. Always keep your body
centered with the machine and your back straight
when using the foot pedal.

HEATING METAL. Heating the workpiece with a
torch or welding it while clamped in the brake may
weaken the fingers, blocks, and frame. Do not use
a torch, welder, or other similar heating tool near
the brake.

CAPACITY. Exceeding the capacity of the brake
may result in sudden breakage that ejects danger­ous metal debris at the operator or bystanders, or
causes machine damage. Only use sheet metal
that is within the rated capacity of this brake (refer
to the Machine Data Sheet on Page 4).

FOOTING. This brake requires you to apply mod­erate force to the foot pedal while bending. If your
foot slips, you could fall down and be injured.
Always stand with one foot comfortably on the
floor during operation. Never use both feet on
the foot pedal or jump on it. Never have one foot
under the foot pedal during operation.

Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, seri­ous personal injury may occur.

Model T10718 (Mfg. Since 1/13)

No list of safety guidelines can be com­plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip­ment, or poor work results.

-7-

SECTION 2: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

Keep children and pets away
from plastic bags or packing
materials shipped with this

Unpacking

If items are damaged

call us immediately at [phone].

Save all packaging materials until

SUFFOCATION HAZARD!

Needed for Setup

The following are needed to complete the setup
process, but are not included with your machine.

Description Qty

• Additional People ....................................... 1

• Safety Glasses ................ 1 for Each Person

• Cleaner/Degreaser (Page 9) ...... As Needed

• Disposable Shop Rags ............... As Needed

• Hex Wrench 8mm ....................................... 1

• Mounting Hardware (Page 11) ... As Needed

• Forklift ......................................................... 1

• Lifting Chains w/Safety Hooks

(rated for 1500 lbs.) .................................... 2

machine. Discard immediately.

-8-

Model T10718 (Mfg. Since 1/13)

Cleanup

The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.

There are many ways to remove this rust preven­tative, but the following steps work well in a wide
variety of situations. Always follow the manufac­turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

1.

2.

amount of cleaner/degreaser, then let it soak

3.

off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe

4.

then coat all unpainted surfaces with a quality

Avoid chlorine-based solvents, such as

Put on safety glasses.

Coat the rust preventative with a liberal

for 5–10 minutes.

Cleaning Blocks

The clamping fingers and bending blocks
(Figure 1) are coated with rust preventative that
must be removed before beginning operation.

Bending

Block

Figure 1. Bending finger and clamping block

removed for cleaning.

Although the rust preventative was applied only
to the visible surfaces of the blocks, some may
have worked in between and underneath them.
We recommend that you remove all of the blocks
to thoroughly clean them.

If you do remove the blocks, properly align them
as described in the Aligning Fingers & Blocks
subsection on Page 17 after re-installing.

Clamping

Finger

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe

off the rest with the rag.

Repeat Steps 2–3 as necessary until clean,

metal protectant to prevent rust.

NOTICE

acetone or brake parts cleaner, that may
damage painted surfaces.

Model T10718 (Mfg. Since 1/13)

-9-

Site Considerations

Weight Load

for the weight

of your machine. Make sure that the surface upon

of the machine, additional equipment that may be

Physical Environment

The physical environment where the machine
is operated is important for safe operation and
longevity of components. For best results, oper­ate this machine in a dry environment that is
free from excessive moisture, hazardous chemi­cals, airborne abrasives, or extreme conditions.
Extreme conditions for this type of machinery are
generally those where the ambient temperature
range is outside 41°–104°F; the relative humidity
range is outside 20–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.

Shadows, glare, or strobe effects that may distract

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main­tenance and service described in this manual.

See below for required space allocation.

Refer to the Machine Data Sheet

which the machine is placed will bear the weight

installed on the machine, and the heaviest work­piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.

Lighting

Lighting around the machine must be adequate
enough that operations can be performed safely.

or impede the operator must be eliminated.

Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.

38"

-10 -

Figure 2. Working clearances.

63"

Model T10718 (Mfg. Since 1/13)

Lifting & Placing

get help from other people

HEAVY LI F T!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,

and use a forklift (or other
lifting equipment) rated for
weight of this machine.

To lift and place the brake:

Mounting

The Model T10718 is shipped fully assembled.
However, due to the significant dynamic forces on
the brake during operation, you must secure it to
the floor to prevent tipping. Because floor materi­als vary, floor mounting hardware is not included.

Anchor studs and lag shield anchors with lag
screws (Figure 4) are two popular methods for
anchoring the brake to a concrete floor. We sug­gest you research the many options and methods
for mounting your machine and choose the best
that fits your specific application.

1. Move the brake to the installation location
while it is still on the shipping pallet.

2. Unbolt the brake from the shipping pallet.

3. Make sure the foot pedal is locked in the

down position.

4. Attach the safety hooks and chains to the
side lifting brackets, as shown in Figure 3,
then connect the chains to the fork lift.

Lifting

Bracket

(1 of 2)

Anchor Stud

Lag Shield

Anchor

Lag Screw

Figure 4. Typical fasteners for mounting to

concrete floors.

Figure 3. Lifting brake with safety hooks and

chains.

5. With the help of another person on the ground
to prevent the brake from swinging or rocking
when lifted, raise the brake just enough to
clear the shipping pallet, then remove the pal­let.

6. Lower the brake into place and mount it to the
floor as recommended in the next subsection.

Model T10718 (Mfg. Since 1/13)

-11-

Leveling

Leveling the brake helps the leafs and other cast­iron components remain straight and flat during
the lifespan of the machine. Components on an
unleveled machine may slowly twist due to the
dynamic loads placed on the machine during
operation, which will negatively affect the ability of
the brake to produce accurate bends.

If needed, use metal shims between the base and
the floor when leveling the machine.

For best results, use a precision level that is at
least 12" long and sensitive enough to show a
distance movement when a 0.003" shim (approxi­mately the thickness of one sheet of standard
newspaper) is placed under one end of the level.

See Figure 5 for an example of a high precision
level available from Grizzly.

Loosening Work

Stop

The clamping cap screw on the work stop collar
(see Figure 6) was tightened at the factory to
keep the bending leaf from moving. Before begin­ning operation, use an 8mm hex wrench to loosen
the clamping cap screw so that the bending leaf
can rotate through its full arc.

Clamping

Cap Screw

Work Stop

Collar

Figure 5. Model H2683 Master Machinist's

Level.

Figure 6. Work stop collar and clamping cap

screw.

-12-

Model T10718 (Mfg. Since 1/13)

SECTION 3: OPERATIONS

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

To reduce your risk of
serious injury, read this
entire manual BEFORE

Operation Overview

To complete a typical operation, the operator
does the following:

1. Examines the workpiece to make sure it is

suitable for bending.

machine controls/components

are easier to understand.

seek additional

, and do additional research

using machine.

Bodily injury could result from using this
machine. Always wear safety glasses,
leather work boots, and heavy duty leather
work gloves when operating this machine
or whenever handling sheet metal.

2. If required for the operation, adjusts the

clamping finger and bending block spacing.

3. Adjusts the clamping pressure for the
workpiece thickness.

4. Correctly adjusts the setback.

5. Puts on safety glasses, leather boots, and

leather gloves.

6. Properly positions the workpiece underneath
the clamping fingers and locks the foot pedal
in the down position to secure the workpiece.

7. Using proper body position and both hands,
raises the bending leaf to form the correct
bend angle.

8. Lowers the bending leaf, then unlocks raises
and the foot pedal to release and remove the
workpiece.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

Model T10718 (Mfg. Since 1/13)

-13-

Basic Controls

Bend Allowance

Use Figure 7 and following descriptions to become
familiar with the basic controls of the brake.

Pressure

Adjustment

Knob

Setback

Adjustment

Knob

Bending Leaf

Handle

Figure 7. Basic controls.

Pressure Adjustment Knobs: Adjust the clamp-

ing pressure for different workpiece thicknesses.

Setback Adjustment Knobs: Adjust the distance
of the bending blocks from the clamping fingers.

Bending Leaf Handle: Allows the operator to lift
the bending leaf to produce the bend.

Foot Pedal & Lock: Controls the action of the
clamping leaf.

Foot Pedal

& Lock

When a bend is made in sheet metal, the inside
surface of the bend compresses and the outside
surface stretches. To bend metal objects accu­rately, you need to consider the length of each
bend, especially when more than one bend is
required. This is called bend allowance.

The bend allowance is added to the sum of the
outside dimensions of the workpiece flat surfaces
to obtain the overall length and width of the blank
needed to make a particular part.

Exact allowances can only be obtained by trial due
to differences in sheet metal hardness, whether
the bend is with or across the grain, and difficul­ties in making an exact bend radius. Formulas for
calculating the bend allowance can be found in
metalworking handbooks or the internet.

Adjusting Setback

Setback is the required distance between the
bending blocks and the clamping fingers to prop­erly make the bend (see Figure 8). A number of
factors determine the correct setback distance,
such as bend allowance, bend radius, and mate­rial thickness.

-14-

Sharp edges of sheet metal
can easily cut fingers,
hands, or other body parts.
Always wear leather gloves
when handling sheet metal,
and always chamfer and
debur the edges.

There are many sources to help you calculate the
correct setback for your operation, such as metal­working handbooks, the internet, or experienced
sheet metal workers.

Setback

Bending

Block

Figure 8. Identification of setback.

Model T10718 (Mfg. Since 1/13)

Clamping

Finger

Clamping

Base

Tools Needed Qty

Wrench or Socket 14mm ................................... 1

Calipers (Optional) ............................................. 1

To adjust the setback:

Adjusting Clamping

Pressure

1. Loosen the hex bolts (see Figure 9) on each

side of the bending leaf.

Hex Bolt

(1 of 2)

Setback

Adjustment

Figure 9. Setback controls.

2. Rotate one setback adjustment knob a small

amount, then rotate the other knob the same
amount and direction. This prevents the
bending leaf from binding on the setback
shafts and keeps it parallel with the clamping
leaf.

Graduated

Dial

Knob

When securing the workpiece with the foot pedal,
the correct clamping pressure depends on the
workpiece thickness. The ideal pressure locks the
workpiece firmly in position between the clamping
fingers and base without excessive compression
that could damage the workpiece or brake.

Rotate one pressure adjustment knob (see
Figure 10) a small amount, then rotate the other
knob the same amount and direction. This pre­vents the clamping leaf from binding on the shafts
and keeps it parallel with the clamping base.

Note: The graduated dials are marked in 0.002"
increments with one full revolution moving the
bending leaf 0.100".

Pressure

Adjustment

Knob

Note: The graduated dials are marked in

0.002" increments with one full revolution
moving the bending leaf 0.100".

3. Repeat Step 2 until you have the correct set­back, then re-tighten the hex bolts.

Tip: Use calipers for a precise method of

checking the setback.

Figure 10. Pressure adjustment knob.

Model T10718 (Mfg. Since 1/13)

-15-

If the clamping pressure is correctly adjusted,
the lock plate (see Figure 11) will spring forward
and secure the foot pedal down when it is fully
depressed.

Lock

Plate

Foot

Pedal

Figure 11. Using the foot pedal.

We recommend that the foot pedal always be
locked down after positioning the workpiece and
before making the bend. This will help ensure
the workpiece stays in the proper position during
bending.

Adjusting Work Stop

The work stop mechanism allows the operator to
produce repetitive bends at the same angle.

Tools Needed Qty

Hex Wrench 8mm .............................................. 1

Wrench 16mm ................................................... 1

To adjust the work stop:

1. Loosen the clamping cap screw on the work

stop collar (see Figure 12) so the stop collar
is loose on the shaft.

Stop Collar

Clamping

Cap Screw

Stop

Block

Scale

Make sure the clamping pressure is cor­rectly adjusted for the workpiece thickness
to prevent workpiece or machine damage
when the foot pedal is fully depressed.

Adjustable

Stop Cap

Screw

Figure 12. Work stop controls.

2. Raise the bending leaf to the correct angle.

Note: The scale on the stop collar displays

the relative angle of the bending leaf.

3. Rotate the stop collar clockwise until it rests
on the stop block, then re-tighten the clamp­ing cap screw to secure the setting.

Note: If needed, loosen the hex nut on the

adjustable stop cap screw, then use the cap
screw for additional adjustment.

-16 -

Model T10718 (Mfg. Since 1/13)

Spacing Fingers &

Aligning Fingers &

Blocks

The clamping and bending blocks can be spaced
apart for clearance when making pans or boxes.
This requires removing one or more sets of blocks
and spacing the others to match the width of your
pan or box. See Figure 13 for an example.

T-Nut

Blocks

To help ensure the bend is even along its length,
the clamping fingers and bending blocks must be
properly aligned with one another.

Tool Needed Qty

Hex Wrench 8mm .............................................. 1

Aligning Clamping Fingers

1. Loosen the cap screws that secure the finger,

but do not remove them.

2. Apply upward pressure to the finger until it
stops, then re-tighten the cap screws.

3. Examine the entire row of clamping fingers
to make sure the upper edges are all aligned
with one another (Figure 14). If necessary,
repeat Steps 1–2 until they are.

Figure 13. Example of block spacing.

The T-nuts under the fingers and blocks that
secure them can be moved along their slots to
allow for any spacing configuration required.

As you space the fingers and blocks, make sure
that you properly align them, as described in the
next subsection.

Clamping Fingers

Bending Blocks

Figure 14. Clamping fingers and bending blocks

properly aligned.

Aligning Bending Blocks

The bending blocks are aligned in a similar man­ner as the clamping fingers except you apply
downward pressure (or toward the operator, if the
bending leaf is raised) to align the block edges
with one another.

Model T10718 (Mfg. Since 1/13)

-17-

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 4: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

Bostitch Compound Action Aviations Snips
T22298—Straight
T22299—Left
T22300—Right

These 10" Aviation Snips are designed for cut­ting heavy stock in a straight, left, or right cut­ting direction. Developed with TiN-coated cutting
blades to reduce wear and extend blade life, they
cut up to 18 gauge cold-rolled steel or 23 gauge
stainless steel. The patented flush-mounted side
hardware also helps prevent metal from catching
while cutting. These snips meet or exceed ANSI
standards.

T23963—Moly-D Multi-Function ISO 32
Machine Oil, 5-Gallons

Formulated with the superior friction-reducing
compound Moly-D, this ISO 32 Multi-Function
Machine Oil is one of the best formulas we've
found for the lubrication tasks on so many of our
metalworking machines.

Figure 16. T23963 Moly-D Machine Oil

T25208—23-Piece Deburring Set

Includes: 380-0060 double burr; 2-piece 380­0088 handle; 380-0097, 380-0098, and 380-0091
holders; D25 and D40 scrapers; C20 countersink;
ES100 and ES200 blades (5 each); V13, and A13
blades; wrench and hex wrenches; case.

T22298

T22299

T22300

Figure 15. Bostitch Compound Aviation Snips.

-18-

Figure 17. Model T25208 Deburring Set.

Model T10718 (Mfg. Since 1/13)

G4956—Super Nibbler

order online at www.grizzly.com or call 1-800-523-4777

The super nibbler is just the ticket for cutting sheet

3

metal up to

⁄64" thick. Extremely narrow headed
design allows cuts in hard-to-reach areas, yet still
features a safety guard to prevent flying splinters.

1

⁄4" overall.

10

G8781—4" Suction Cup

Handle plate glass, glass mirrors, and sheet metal
with safety and security. Simple hand lever action
provides tremendous gripping power on any flat,
smooth material. Buy two Suction Cups for two­handed control!

Figure 18. Model G4956 Super Nibbler.

Recommended Metal Protectants

G5562—SLIPIT® 1 Qt. Gel
G5563—SLIPIT
G2871—Boeshield
G2870—Boeshield
H3788—G96
H3789—G96

®

12 oz Spray

®

T-9 12 oz Spray

®

®

Gun Treatment 12 oz Spray

®

Gun Treatment 4.5 oz Spray

T-9 4 oz Spray

Figure 20. Model G8781 4" Suction Cup.

H5503—Electric Sheet Metal Shear

1

• Motor:

⁄2 HP, 110V, 2500 RPM, 3.8 Amp

• Swivel head adjust 360°

• Variable speed: 0–2500 RPM

• Cuts up to 14-gauge in mild steel and 18
gauge in stainless, at up to 150 in./min.

• Weighs 5 lbs.

Figure 19. Recommended products for protect­ing unpainted cast iron/steel part on machinery.

Figure 21. Model H5503 Electric Sheet Metal

Shear.

Model T10718 (Mfg. Since 1/13)

-19 -

T10717—50" Deluxe Foot Shear

order online at www.grizzly.com or call 1-800-523-4777

7

This 50" Deluxe Foot Shear has

⁄16" blades,
0"–35" front scale length, and 0"–24" rear stop
scale length with dual locks and micro-adjustable
dials. Will cut a maximum of 16-gauge mild steel
at half width and 18-gauge at full width. The
shear head sliding rails feature fully adjustable
gib plates.

G0496—Professional English Wheel

This impressive Professional English Wheel will
easily form ulta-smooth compound curves in sheet
metal. Used extensively throughout the custom
car and motorcycle industry and in the restoration
of antique cars and airplanes whose users find
this tool indispensable. While the design is noth­ing new, we have added wheels and anvils not
even available from other suppliers allowing for
the creation of flanged panels as well as interest­ing raised and embossed panels. Specifications:

3

overall dimensions are 26"W x 62

3

throat is 32
size is 2

3

⁄4" edge radius x 6" crown radius, flat with

and

5

⁄16" x 1⁄4" steep, 1.55"W x 0.65"D groove, 0.82"W

⁄8"; head swivels 90°; upper flat roller

1

⁄4"W x 6" diameter; anvil sizes are 1⁄8", 1⁄2 ",

⁄4"H x 46"D;

x 0.65"D groove, and 2 flat; approximate shipping
weight is 496 lbs.

Figure 22. Model T10717 50" Deluxe Foot

Shear.

T21321—Hand Punch

For repetitive hole punching, nothing beats the
speed of a hand punch. With a throat depth of

9

⁄32", this versatile punch can make a hole in mild

6
steel up to

3

⁄16" thick. Measures 5 1⁄2 " wide by 31 1⁄2 "
tall (without handle). Approximate shipping weight:
192 lbs.

Figure 24. Model G0496 Profession English

Wheel.

Figure 23. Model T21321 Hand Punch.

-20-

Model T10718 (Mfg. Since 1/13)

SECTION 5: MAINTENANCE

Schedule

For optimum performance from your machine,
follow this maintenance schedule and refer to any
specific instructions given in this section.

Daily Maintenance

• Check for loose mounting bolts.

• Check for damaged or worn clamping fingers

or bending blocks.

• Lubricate clamping leaf slide shafts.

• Lubricate bending leaf pivot bushings.

• Check for any other unsafe condition.

Weekly Maintenance

• Lubricate bending leaf cam.

• Lubricate setback shafts.

Cleaning &

Lubrication

Clamping Leaf Slide Shafts

Oil Typ e .....Grizzly T23963 or ISO 32 Equivalent

Oil Amount ..................................... 1 or 2 Squirts

Lubrication Frequency ................................. Daily

The slide shaft ball oilers (see Figure 25) provide
lubrication to the sliding surfaces between the
shafts and the frame.

Ball

Oiler

Protecting

Use a brush to clear away any metal debris and
dust from the clamping fingers, clamping base,
and bending blocks.

Use a shop rag to carefully apply a thin coat of
quality metal protectant (see Page 19 for offerings
from Grizzly) to all exposed unpainted surfaces to
prevent corrosion.

Sliding Surface

Figure 25. Clamping leaf slide shaft ball oiler.

Only lubricate these ball oilers with a pump-type
oil can that has a plastic or rubberized cone tip.
Do not use oil cans with a metal needle or lance
tip, as they can push the ball too far into the oiler,
break the spring seat, and lodge the ball in the oil
galley.

When lubricating the ball oilers, first clean the out­side surface to remove any dust or grime. Push
the tip of the oil can nozzle against the ball oiler
to create a hydraulic seal, then pump the oil can
once or twice to add oil.

Model T10718 (Mfg. Since 1/13)

-21-

Bending Leaf Pivot Bushings

Oil Typ e .....Grizzly T23963 or ISO 32 Equivalent

Oil Amount ..................................... 1 or 2 Squirts

Lubrication Frequency ................................. Daily

Setback Shafts

Oil Typ e .....Grizzly T23963 or ISO 32 Equivalent

Oil Amount .................... 1 Drop at Each Location

Lubrication Frequency ..............................Weekly

The bending leaf rotates around the pivot shaft on
bushings that require lubrication. Use an oil can to
add lubricant to the hole shown in Figure 26 (one
on each side of the bending leaf), then raise and
lower the bending leaf several times to distribute
the lubricant.

Hole for Oil

(1 of 2)

Figure 26. Hole for lubricating bending leaf pivot

bushing.

Raise the bending leaf until it is parallel with the
floor, then add one drop of oil to the setback shaft
locations shown in Figure 28. Use the setback
adjustment knobs to move the bending leaf back
and forth along the shafts to distribute the lubri­cant.

Lubrication Points

Figure 28. Setback shaft lubrication locations.

Bending Leaf Cam

Grease ..... Lithium Grease or NLGI#2 Equivalent

Amount .................................................Thin Coat

Lubrication Frequency ..............................Weekly

Use mineral spirits and a shop rag to clean each
side of the cam (see Figure 27), then apply a thin
coat of grease to each side. Raise and lower the
bending leaf several times to distribute the lubri­cant.

Bending Leaf Cam

-22-

Figure 27. Bending leaf cam.

Model T10718 (Mfg. Since 1/13)

Review the troubleshooting and procedures in this section if a problem develops with your machine. If
you need replacement parts or additional help with a procedure, call our Technical Support.

gather the serial number and manufacture date of your machine before calling.

SECTION 6: TROUBLESHOOTING

Note: Please

Symptom Possible Cause Possible Solution

Heavy resistance
during bends.

Bend radius is not
consistent across
workpiece.

Workpiece moves
while bending.

1. Machine capacities are exceeded.

2. Not enough setback.

1. Bending leaf not parallel with clamping leaf.

2. Clamping fingers or bending blocks not
properly aligned.

3. Too much setback.

1. Clamping pressure not correctly adjusted.

2. Not enough pressure applied with foot
pedal.

1. Use sheet metal that does not exceed machine
capacities (Page 4).

2. Properly calculate and adjust setback (Page 14).

1. Adjust bending leaf parallel with clamping leaf.

2. Properly align clamping fingers and bending blocks
(Page 17).

3. Properly calculate and adjust setback (Page 14).

1. Correctly adjust clamping pressure for workpiece
thickness (Page 15).

2. Lock foot pedal down so clamping leaf secures
workpiece.

Model T10718 (Mfg. Since 1/13)

-23-

SECTION 7: PARTS

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.

Main

20

53

36

22

18

21

52

30

11

23

35

31

19

26

42

5

8

23

1

6

41

40

10

4

11

24

47
48
49
50

7

6

8

33

12

14

62

61

28

27

31

29

3

34

2

32

38

9

43
44
45
46

39

17

51

15

16

37

25

29

13

16

23

12

17

15

-24-

Model T10718 (Mfg. Since 1/13)

Main Part List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PT10718001 FRAME 29 PT10718029 CAP SCREW M10-1.5 X 20
2 PT10718002 CLAMPING LEAF 30 PT10718030 HEX BOLT M12-1.75 X 150
3 PT10718003 LEFT EXTENSION LEG 31 PT10718031 CAP SCREW M8-1.25 X 20
4 PT10718004 RIGHT EXTENSION LEG 32 PT10718032 FOOT PEDAL LOCK PLATE
5 PT10718005 BENDING LEAF PIN 33 PT10718033 ROLL PIN 10 X 40
6 PT10718006 BUSHING 34 PT10718034 GROOVED CLEVIS PIN
7 PT10718007 BENDING LEAF CAM 35 PT10718035 EXT RETAINING RING 10MM
8 PT10718008 SETBACK SHAFT 36 PT10718036 SHIM RING
9 PT10718009 BENDING LEAF 37 PT10718037 RUBBER HANDLE
10 PT10718010 BENDING STOP COLLAR 38 PT10718038 HEX BOLT M8-1.25 X 15
11 PT10718011 BUSHING 39 PT10718039 HEX NUT M20-2.5
12 PT10718012 SETBACK ADJUSTMENT KNURLED KNOB 40 PT10718040 LEAF PIN RETAINER
13 PT10718013 FOOT PEDAL 41 PT10718041 ANGLE SCALE
14 PT10718014 CLAMPING LEAF CONNECTOR 42 PT10718042 LEAF COMPRESSION SPRING
15 PT10718015 FOOT PEDAL PIVOT PLATE 43 PT10718043 BENDING BLOCK 1-1/2"
16 PT10718016 FOOT PEDAL PIVOT PIN 44 PT10718044 BENDING BLOCK 2"
17 PT10718017 FOOT PEDAL LEG PIN 45 PT10718045 BENDING BLOCK 3"
18 PT10718018 CLAMPING LEAF LOWER STRUT 46 PT10718046 BENDING BLOCK 4"
19 PT10718019 PRESSURE ADJUSTMENT KNURLED KNOB 47 PT10718047 CLAMPING FINGER 1-1/2"
20 PT10718020 CLAMPING COMPRESSION SPRING 48 PT10718048 CLAMPING FINGER 2"
21 PT10718021 SPRING RETAINING NUT 49 PT10718049 CLAMPING FINGER 3"
22 PT10718022 CLAMPING LEAF UPPER STRUT 50 PT10718050 CLAMPING FINGER 4"
23 PT10718023 GRADUATED DIAL 51 PT10718051 T-NUT M10-1.5
24 PT10718024 TAP-IN BALL OILER 10MM 52 PT10718052 BUSHING
25 PT10718025 CONNECTOR ROD 53 PT10718053 EXT RETAINING RING 24MM
26 PT10718026 WORKPIECE SUPPORT 61 PT10718061 LIFTING BRACKET
27 PT10718027 CLAMPING BASE 62 PT10718062 CAP SCREW M8-1.25 X 20
28 PT10718028 EXT RETAINING RING 25MM

Model T10718 (Mfg. Since 1/13)

-25-

Labels & Cosmetics

54

60

59

55

56

58

57

REF PART # DESCRIPTION REF PART # DESCRIPTION

54 PT10718054 MACHINE ID LABEL 58 PT10718058 GRIZZLY OBLONG NAMEPLATE
55 PT10718055 EYE INJURY HAZARD LABEL 59 PT10718059 READ MANUAL LABEL
56 PT10718056 LACERATION HAZARD LABEL 60 PT10718060 CRUSHING HAZARD LABEL
57 PT10718057 GRIZZLY GREEN TOUCH-UP PAINT

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-26-

Model T10718 (Mfg. Since 1/13)

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.

1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics

3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group?
____ 20-29 ____ 30-39 ____ 40-49
____ 50-59 ____ 60-69 ____ 70+

5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years

6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____10+

____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood

____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:

7. Do you think your machine represents a good value? _____Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____ Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____Yes _____No

10. Comments: _____________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

FOLD ALONG DOTTED LINE

FOLD ALONG DOTTED LINE

Place

Stamp

Here

GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069

Send a Grizzly Catalog to a friend:

Name_______________________________

Street_______________________________

City______________State______Zip______

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.
