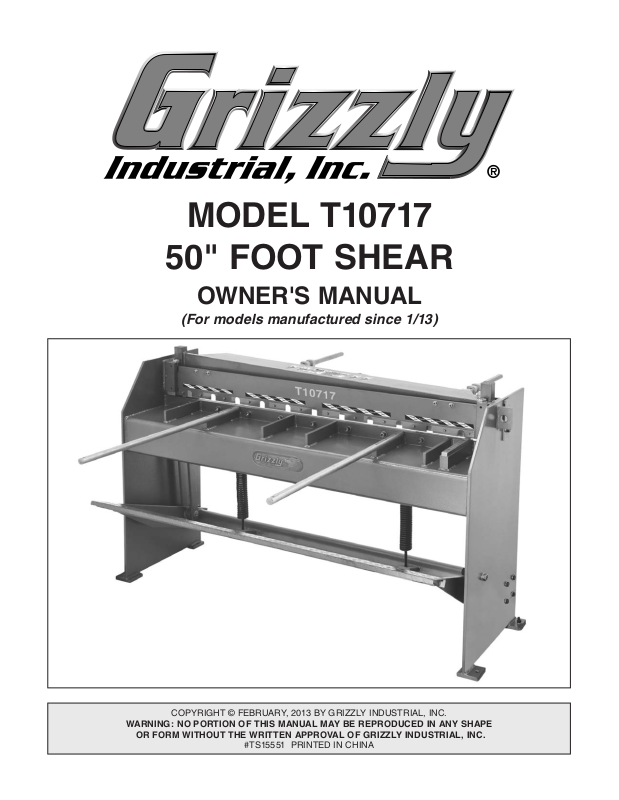

Grizzly T10717 User guide

MODEL T10717

50" FOOT SHEAR

OWNER'S MANUAL

(For models manufactured since 1/13)

COPYRIGHT © FEBRUARY, 2013 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#TS15551 PRINTED IN CHINA

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Machine Description ...................................... 2

Contact Info.................................................... 2

Manual Accuracy ........................................... 2

Identification ................................................... 3

Machine Data Sheet ...................................... 4

SECTION 1: SAFETY ....................................... 5

Safety Instructions for Machinery .................. 5

Additional Safety for Foot Shears .................. 7

SECTION 2: SETUP ......................................... 8

Unpacking ...................................................... 8

Needed for Setup ........................................... 8

Inventory ........................................................ 8

Cleanup .......................................................... 9

Site Considerations ...................................... 10

Lifting & Placing ........................................... 11

Mounting ...................................................... 11

Leveling ........................................................ 12

Assembly ..................................................... 12

SECTION 3: OPERATIONS ........................... 13

Operation Overview ..................................... 13

Basic Controls .............................................. 14

Cutting Tips .................................................. 14

Rear Work Stop ........................................... 15

Side Work Stop ............................................ 15

SECTION 5: MAINTENANCE ......................... 18

Schedule ...................................................... 18

Cleaning & Protecting .................................. 18

Lubrication ................................................... 18

Slide Shaft ......................................................... 18

Pivot Cartridge Bearing ..................................... 19

SECTION 6: SERVICE ................................... 20

Troubleshooting ........................................... 20

Adjusting Blade Gap .................................... 21

Checking Blade Gap ......................................... 21

Adjusting Upper Blade ...................................... 21

Adjusting Blade Bow .................................... 22

Sharpening/Replacing Blades...................... 22

Adjusting Gibs .............................................. 23

SECTION 7: PARTS ....................................... 24

Main ............................................................. 24

Labels & Cosmetics ..................................... 26

WARRANTY & RETURNS ............................. 29

SECTION 4: ACCESSORIES ......................... 16

INTRODUCTION

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
contained inside. Sometimes we make mistakes,
but

also

means that

you receive
will be slightly different than what is shown in
the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused about a procedure
for an updated version. W

manuals

and

www.grizzly.com

Alternatively, you can call our Technical Support
for help. Before calling, please write down the

Manufacture Date

stamped
into the machine ID label (see below). This infor­mation helps us determine if updated documenta­tion is available for your machine.

We stand behind our machines. If you have
any questions or need help, use the information
below to contact us. Before contacting, please get
the serial number and manufacture date of your
machine. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Machine Description

The Model T10717 50" Foot Shear is designed to
use the operator's body weight to cut sheet metal.
A stationary blade is mounted to the machine
base and a moving blade is connected to the
foot pedal. When the foot pedal is pressed down,
the upper blade lowers past the lower stationary
blade, creating a shearing action, similar to a pair
of scissors.

The Model T10717 is equipped with front workpiece
support rods that provide additional support for
large stock and rear micro-adjustable work stops
for making repetitive cuts of the same length.

Contact Info

Manual Accuracy

made every effort to be exact with the

our policy of continuous improvement

sometimes the machine

.

, check our website

e post current

manual updates for free on our website at

.

and Serial Number

Grizzly Technical Support

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Email: [e-mail]

Manufacture Date

Serial Number

-2-

Model T10717 (Mfg. Since 1/13)

To reduce your risk of
serious injury, read this
entire manual BEFORE

Blade

Guard

Workpiece

Support Rod

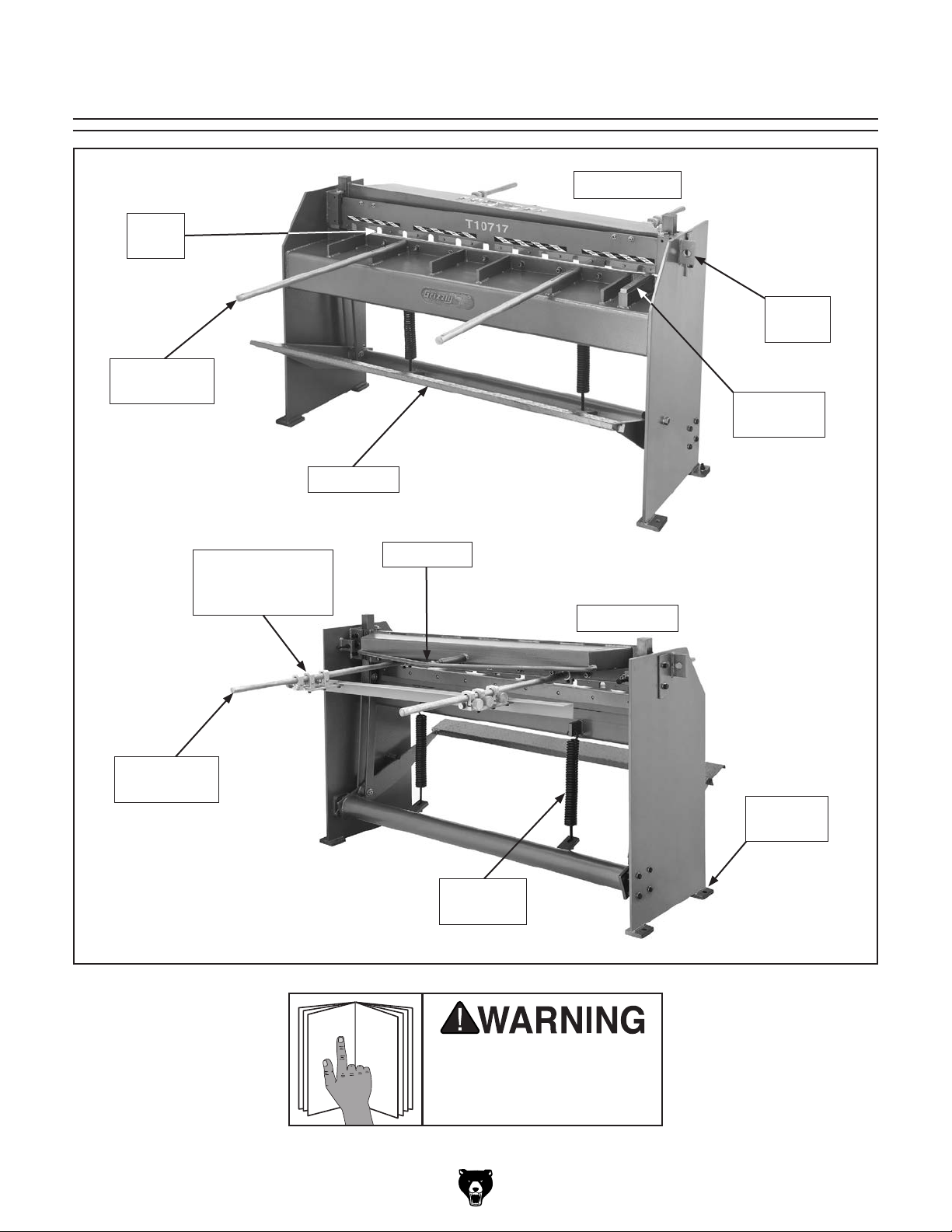

Identification

Front View

Lifting

Bracket

Side Work

Stop

Foot Pedal

Micro-Adjustable

Rear Work Stop

Work Stop

Support Rod

Blade Bow

Assembly

Rear View

Mounting

Foot

Extension

Spring

Model T10717 (Mfg. Since 1/13)

using machine.

-3-

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL T10717 50" DELUXE HEAVY DUTY SHEAR

Product Dimensions:

Weight.............................................................................................................................................................. 635 lbs.

Width (side-to-side) x Depth (front-to-back) x Height............................................................... 62-1/2 x 72 x 39-1/2 in.

Footprint (Length x Width)..................................................................................................................... 62-1/2 x 20 in.

Shipping Dimensions:

Type.......................................................................................................................................................... Wood Crate

Content........................................................................................................................................................... Machine

Weight.............................................................................................................................................................. 720 lbs.

Length x Width x Height..................................................................................................... 68-3/4 x 35-1/2 x 44-1/2 in.

Must Ship Upright................................................................................................................................................... N/A

Main Specifications:

Capacities

Maximum Width......................................................................................................................................... 50 in.

Maximum Thickness at Half Width Mild Steel..................................................................................... 16 Gauge

Maximum Thickness at Full Width Mild Steel..................................................................................... 18 Gauge

Maximum Beam Lift..................................................................................................................................... 2 in.

Front Stop Scale Range...................................................................................................................... 0 – 35 in.

Rear Stop Scale Range....................................................................................................................... 0 – 24 in.

Construction

Frame................................................................................................................................................... Cast Iron

Hold-Down Clamp................................................................................................................................ Cast Iron

Shear Table......................................................................................................................... Machined Cast Iron

Shear Blades............................................................................. 7/16" Thick Precision-Ground Hardened Steel

Shear Blade Type........................................................................................................................ Square-Edged

Other Specifications:

Country Of Origin ............................................................................................................................................... China

Warranty ........................................................................................................................................................... 1 Year

Serial Number Location ............................................................................................ Machine ID Label on Blade Bow

Machine Data Sheet

-4-

Model T10717 (Mfg. Since 1/13)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are not approved safety glasses.

Always discon-

Model T10717 (Mfg. Since 1/13)

-5-

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to avoid
accidental slips, which could cause loss of work­piece control.

HAZARDOUS DUST. Dust created while using
machinery may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material,
and always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

INTENDED USAGE. Only use machine for its
intended purpose and never make modifications
not approved by Grizzly. Modifying machine or
using it differently than intended may result in
malfunction or mechanical failure that can lead to
serious personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

CHECK DAMAGED PARTS. Regularly inspect
machine for any condition that may affect safe
operation. Immediately repair or replace damaged
or mis-adjusted parts before operating machine.

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly.

-6-

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

Model T10717 (Mfg. Since 1/13)

Additional Safety for Foot Shears

FINGER AMPUTATION. The shear blades or hold-

down can easily pinch, crush, or amputate fingers
or other body parts. Always keep hands, fingers,
and other body parts away from the blades and
hold-down during operation.

BLADE CONDITION. Blades that are sharp,
undamaged, and properly adjusted will reduce the
risk of injury from workpiece or machine breakage
and ensure good results. Always keep blades prop­erly adjusted and sharp.

CAPACITY. Exceeding the capacity of the shear
may eject dangerous metal debris at the operator
or bystanders, or cause machine damage. Only
use sheet metal that is within the rated capacity
of this shear (refer to the Machine Data Sheet on

Page 4).

BLADE GUARD. The blade guard is designed to

reduce the risk of amputation when using the shear.
Always keep the guard properly attached and in
good condition during operation.

SHARP METAL EDGES. Sharp sheet metal edges
can easily cause severe laceration injuries. Always
chamfer and debur the workpiece edges, and wear
leather gloves when handling sheet metal.

FOOTING. The foot shear requires you to apply
moderate force to the foot pedal while cutting.
If your foot slips, you could fall down or into the
shear, which could cause personal injury. Always
stand with one foot comfortably on the floor dur­ing operation, and never use both feet on the
foot pedal or jump on it. Never have a foot under
the foot pedal during operation to avoid crushing
injuries.

COMFORTABLE BODY POSITION. The required
body motion to operate the shear can result in
operator injury over time if proper ergonomics are
not used during operation. Always keep your body
centered with the machine and your back straight
when using the foot pedal.

PROPER USAGE. This foot shear was designed
to ONLY cut sheet metal within its rated capacity.
Do not attempt to cut round stock, glass, wood,
drywall, backer board, or plywood. Cutting incor­rect materials can produce unexpected results,
which increases the risk of injury, and may result
in damage to the machine.

SHEET METAL PIECES. Sheet metal pieces left
on the floor can easily slide under foot and cause
falling injuries. Always remove sheet metal pieces
from the floor after operation. Keep work area
clean.

Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, seri­ous personal injury may occur.

Model T10717 (Mfg. Since 1/13)

No list of safety guidelines can be com­plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip­ment, or poor work results.

-7-

SECTION 2: SETUP

Your machine was carefully packaged for safe
transportation. Remove the packaging materials
from around your machine and inspect it. If you
discover any damage, please call us immediately

at [phone]

Save the containers and all packing materials for
possible inspection by the carrier or its agent.

Otherwise, filing a freight claim can be difficult.

When you are completely satisfied with the condi­tion of your shipment, inventory the contents.

Keep children and pets away
from plastic bags or packing
materials shipped with this

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

Unpacking

for advice.

SUFFOCATION HAZARD!

Inventory

Small Component Inventory: (Figure 1) Qty

A. Rear Work Stop Assembly ......................... 1

B. Rear Work Stop Support Rods .................. 2

C. Workpiece Support Rods ........................... 2

D. Cap Screws M6-1 x 25 ............................... 6

A

machine. Discard immediately.

Needed for Setup

The following are needed to complete the setup
process, but are not included with your machine.

Description Qty

• Additional People ....................................... 1

• Safety Glasses ................ 1 for Each Person

• Cleaner/Degreaser (Page 9) ...... As Needed

• Disposable Shop Rags ............... As Needed

• Hex Wrench 5mm ....................................... 1

• Hex Wrench 6mm ....................................... 1

• Mounting Hardware (Page 11) ... As Needed

• Forklift ......................................................... 1

• Lifting Straps (rated for 1000 lbs.) .............. 2

or

• Lifting Chains (rated for 1000 lbs.) ............. 2

• Lifting Safety Hooks (rated for 1000 lbs.) ... 2

-8-

B

C

D

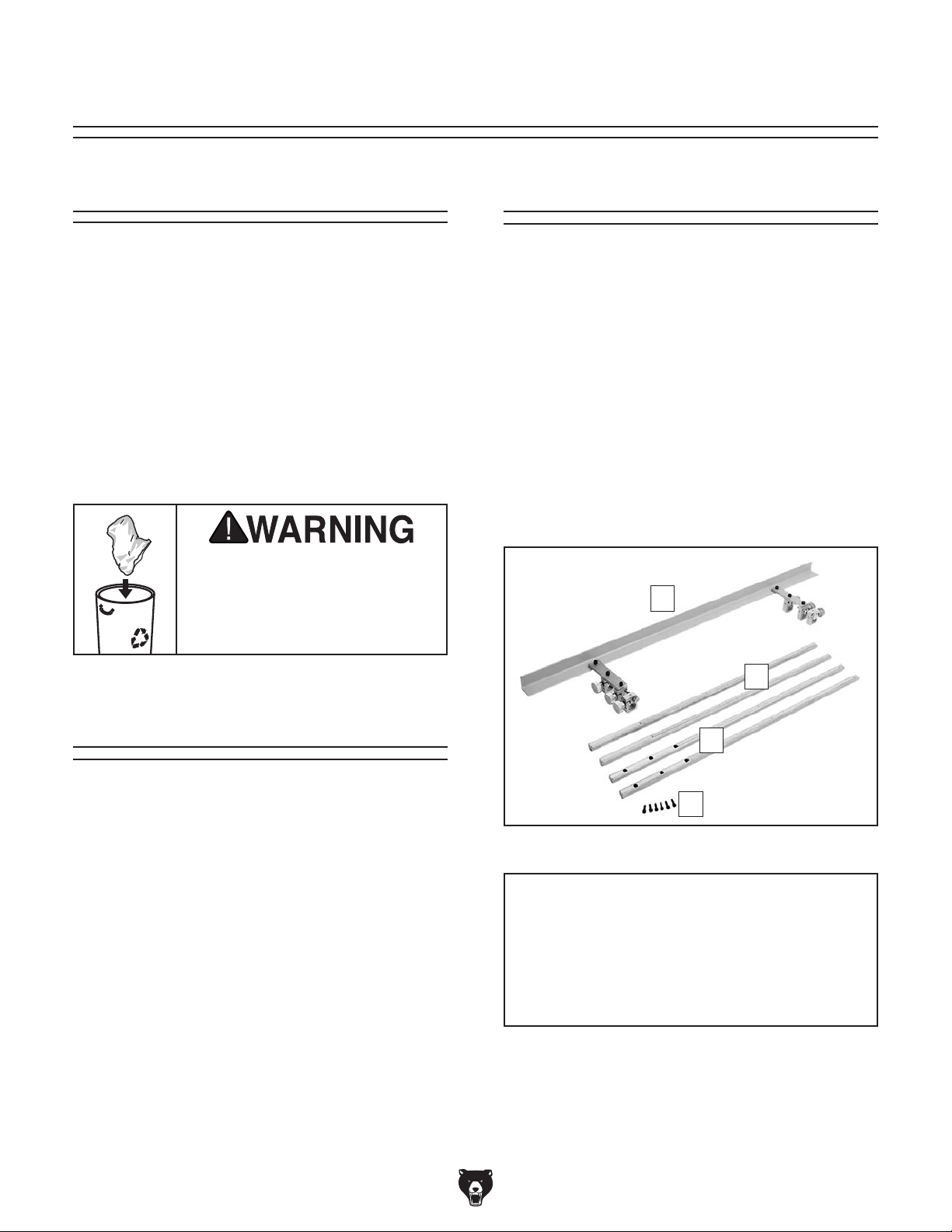

Figure 1. Small component inventory

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

Model T10717 (Mfg. Since 1/13)

The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.

There are many ways to remove this rust preven­tative, but the following steps work well in a wide
variety of situations. Always follow the manufac­turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable Rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

1.

2.

3.

4.

metal protectant to prevent rust.

Many cleaning solvents

work in a well-ventilated

Avoid chlorine-based solvents, such as

Cleanup

Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. Avo id
using these products
to clean machinery.

are toxic if inhaled. Only

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak
for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with the rag.

area.

NOTICE

acetone or brake parts cleaner, that may
damage painted surfaces.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping
grease from your machine during clean up.

Figure 2. T23692 Orange Power Degreaser.

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality

Model T10717 (Mfg. Since 1/13)

-9-

Site Considerations

Weight Load

for the weight

of your machine. Make sure that the surface upon

of the machine, additional equipment that may be

-

Physical Environment

The physical environment where the machine
is operated is important for safe operation and
longevity of components. For best results, oper
ate this machine in a dry environment that is
free from excessive moisture, hazardous chemi
cals, airborne abrasives, or extreme conditions.
Extreme conditions for this type of machinery are
generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20–95% (non-condensing); or the
environment is subject to vibration, shocks, or
bumps.

Shadows, glare, or strobe effects that may distract

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main
tenance and service described in this manual.

See below for required space allocation.

Refer to the Machine Data Sheet

-

-

which the machine is placed will bear the weight

installed on the machine, and the heaviest work
piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.

Lighting

Lighting around the machine must be adequate
enough that operations can be performed safely.

or impede the operator must be eliminated.

Children or untrained people
may be seriously injured by

-

this machine. Only install in an
access restricted location.

-10 -

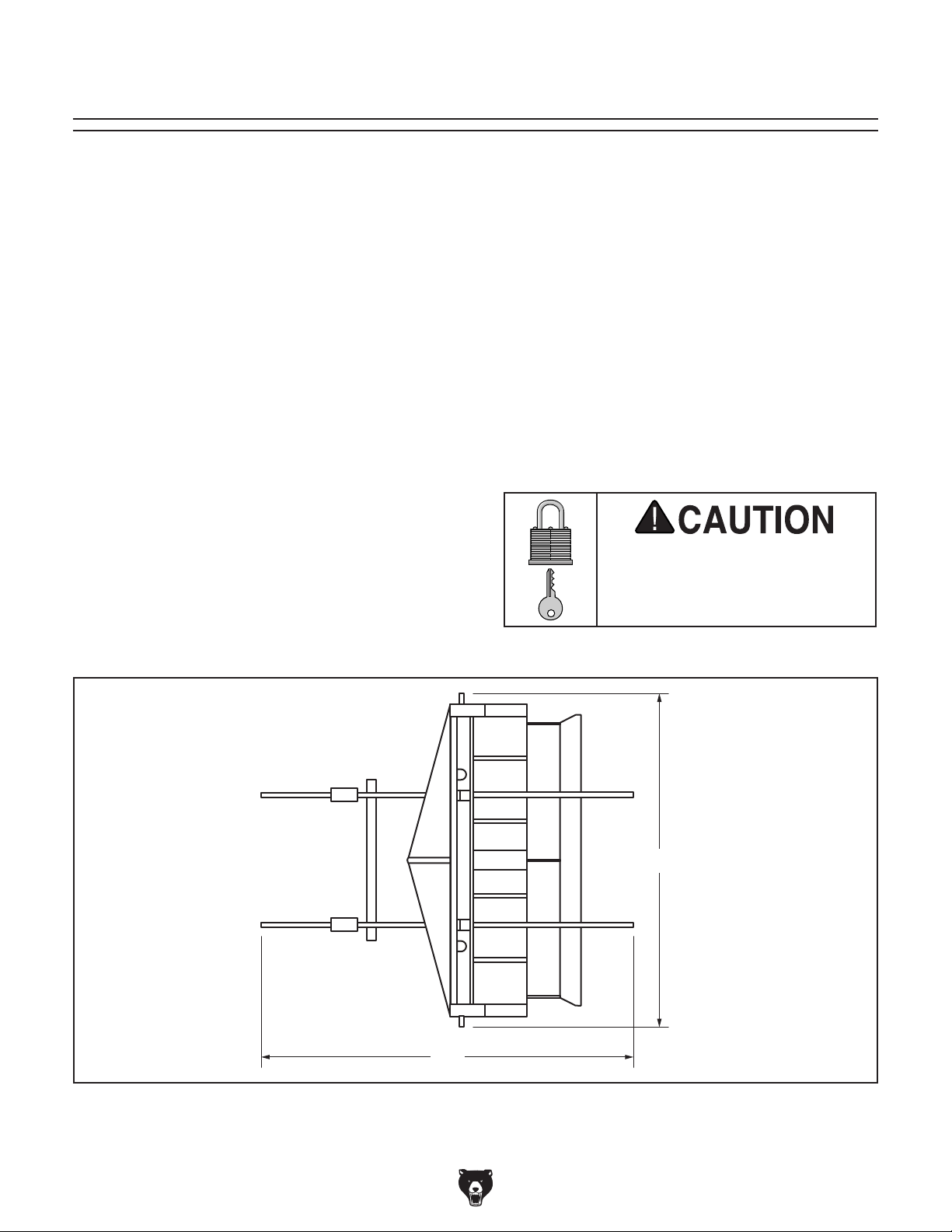

Figure 3. Working clearances.

621⁄2"

72"

Model T10717 (Mfg. Since 1/13)

Lifting & Placing

get help from other people

HEAVY LIF T!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,

and use a fork lift (or other
lifting equipment) rated for
weight of this machine.

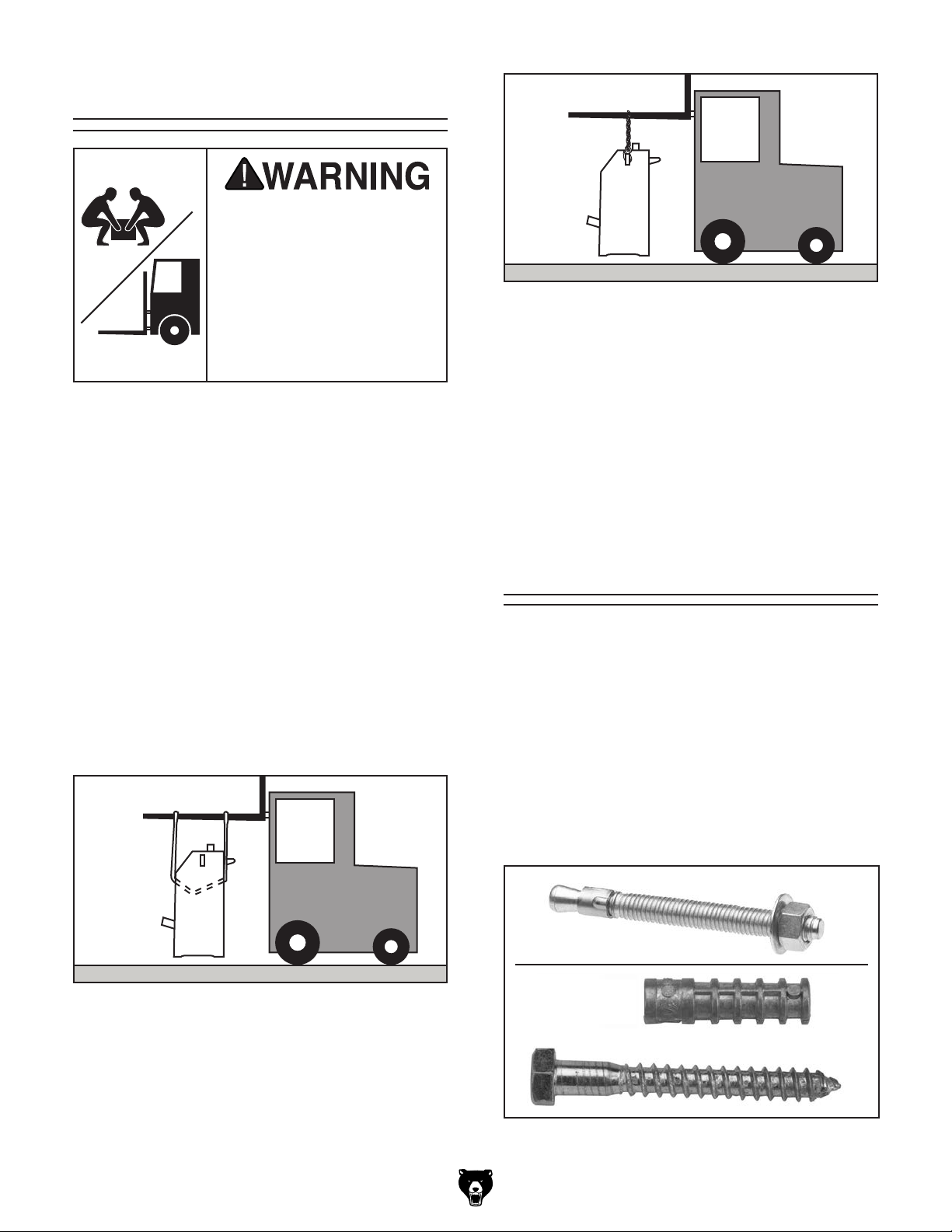

There are two recommended ways to lift the foot
shear: 1) Use a forklift with lifting straps, or 2) Use
a forklift with chains and safety hooks. Whichever
way you choose to lift the shear, make sure each
component is rated for at least 1000 lbs.

To lift and place the foot shear:

Figure 5. Lifting shear with chains and safety

hooks.

4. With the help of another person to steady
the load, use the forklift to raise the shear
just enough to clear the shipping pallet, then
remove the shipping pallet.

5. Lower the shear into place, and mount it to
the floor as recommended in the next sub­section.

1. Move the shear (while it is still on the ship­ping pallet) to the installation location.

2. Unbolt the shear from the shipping pallet.

3. Wrap the lifting straps around the shear, as

illustrated in Figure 4, or attach safety hooks
and chains to the side lifting brackets, as
illustrated in Figure 5.

Figure 4. Lifting shear with lifting straps.

Mounting

Due to the significant dynamic forces on the shear
during operation, you must secure it to the floor to
prevent tipping. Because floor materials may vary,
floor mounting hardware is not included.

Anchor studs and lag shield anchors with lag
screws (Figure 6) are two popular methods for
anchoring an object to a concrete floor. We sug­gest you research the many options and methods
for mounting your machine and choose the best
that fits your specific application.

Anchor Stud

Lag Shield

Anchor

Model T10717 (Mfg. Since 1/13)

Lag Screw

Figure 6. Typical fasteners for mounting to

concrete floors.

-11-

Leveling

Leveling the shear helps the blades and other
cast-iron components remain straight and flat
during the life of the machine. Components on an
unleveled machine may slowly twist over time due
to the dynamic loads placed on the machine dur­ing operation. Twisted components will negatively
affect the ability of the machine to cut straight or
square.

If needed, use metal shims between the base and
the floor to level the machine.

For best results, use a precision level that is at
least 12" long and sensitive enough to show a
distance movement when a 0.003" shim (approxi­mately the thickness of one sheet of standard
newspaper) is placed under one end of the level.

See Figure 7 for an example of a high-precision
level available from Grizzly.

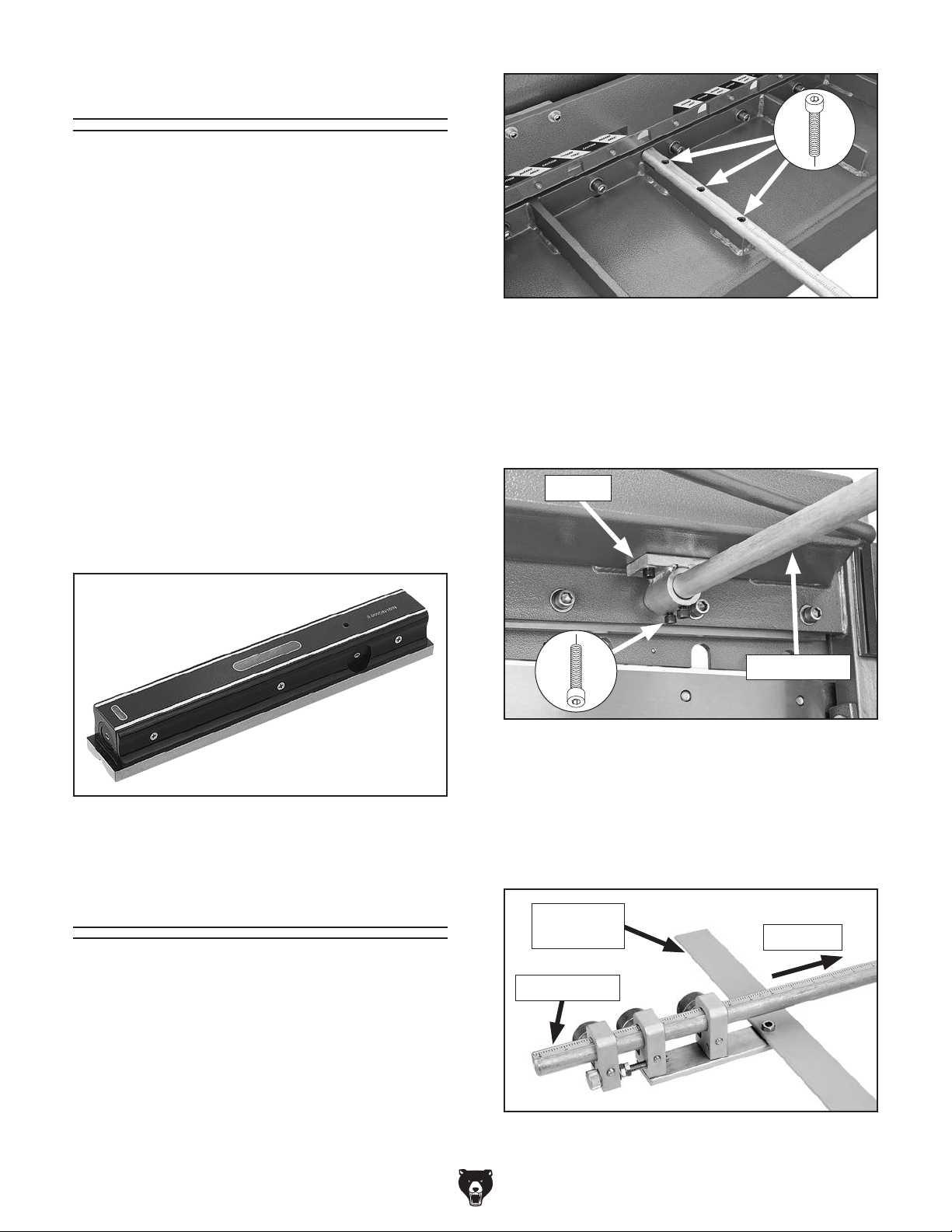

Figure 8. Workpiece support rod attached.

2. Orient the rear work stop support rods so

the scales face up, slide them into the brack­ets underneath the rear of the shear (see
Figure 9), then tighten the pre-installed cap
screws to secure the rods in place.

Bracket

Figure 7. Model H2683 Master Machinist's

Level.

Assembly

Assembly of the Model T10717 consists of attach­ing the workpiece support rods and the rear work
stop assemblies.

To assemble the foot shear:

1. Attach the two workpiece support rods with

the (6) M6-1 x 25 cap screws (see Figure 8).

Support Rod

Figure 9. Rear work stop support rods secured

in brackets with scales facing up.

3. Slide the rear work stop assembly onto
the work stop support rods, as shown in
Figure 10, with the work stop L-bracket fac­ing the shear.

Work Stop

L-Bracket

Support Rod

Figure 10. Rear work stop assembly installed.

To Shear

-12-

Model T10717 (Mfg. Since 1/13)

SECTION 3: OPERATIONS

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual and

­rienced
research outside of this manual by reading "how­to" books, trade magazines, or websites.

To reduce your risk of
serious injury, read this
entire manual BEFORE

Operation Overview

To complete a typical operation, the operator
does the following:

1. Examines the workpiece to make sure it is

suitable for cutting.

machine controls/components

are easier to understand.

seek additional training from expe

machine operators, and do additional

using machine.

Bodily injury could result from using this
machine. Always wear safety glasses,
leather work boots, and heavy duty leather
work gloves when operating this machine
or whenever handling sheet metal.

2. Adjusts the rear work stop for the length of

the cut.

3. Puts on safety glasses, leather boots, and
leather gloves.

4. Places the workpiece on the front support
rods and up against the side work stop.

5. Slides the workpiece under the blades and up
against the rear work stop.

6. Using good body position, firmly presses
down on the foot pedal to make the cut.

7. Raises the foot pedal and either removes
the workpiece or repeats Steps 5–6 to make
additional cuts.

The shear blades or hold­down can easily pinch,
crush, or amputate fingers
or other body parts. Always
keep hands, fingers, and
other body parts away from
the blades and hold-down
during operation.

Model T10717 (Mfg. Since 1/13)

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

-13-

Basic Controls

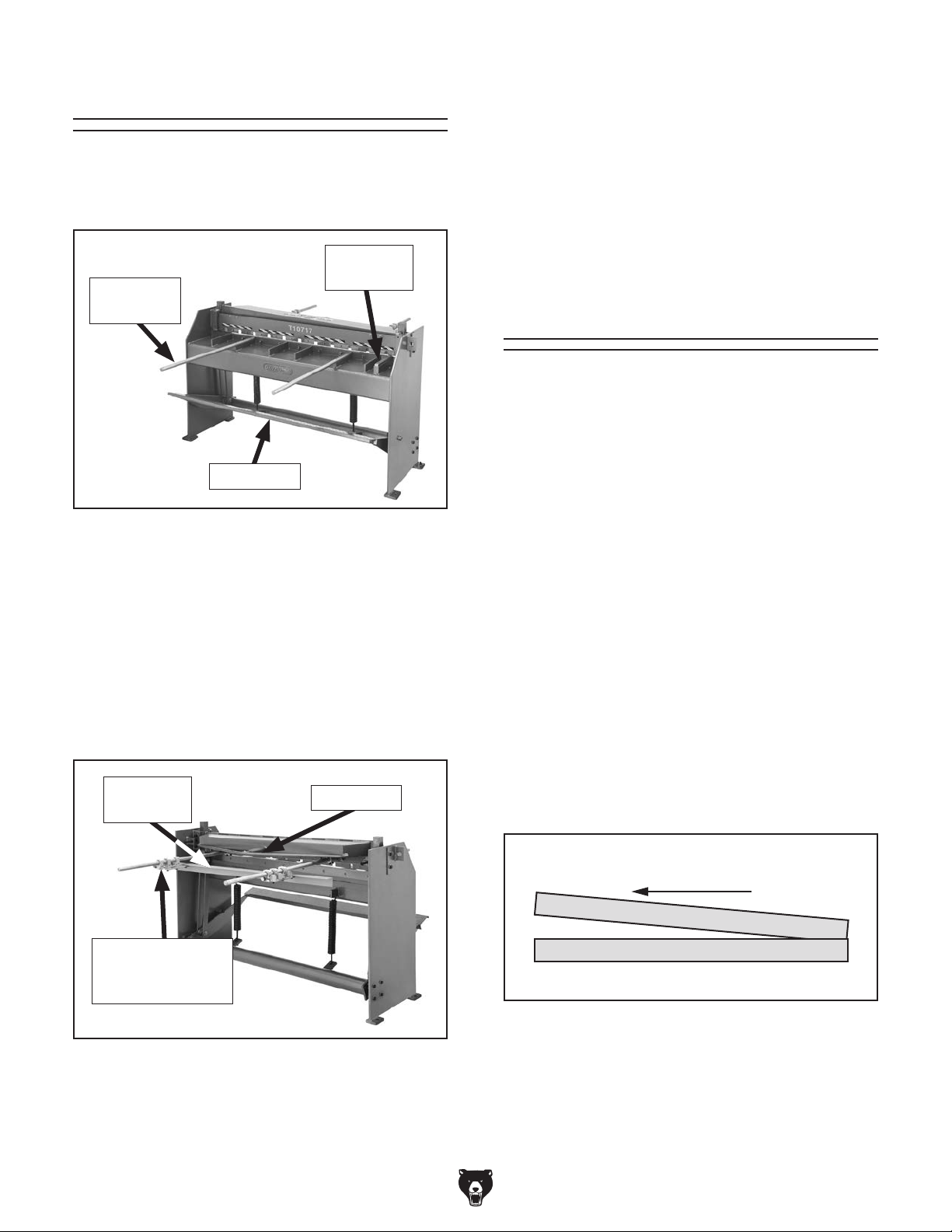

Rear Work Stop. Allows the operator to setup the

shear for multiple cuts of the same length.

Use Figures 11–12 and the descriptions below
to become familiar with the basic controls of the
foot shear.

Side

Work Stop

Workpiece

Support

Foot Pedal

Figure 11. Front basic controls.

Workpiece Supports. Provide support for large

workpieces. Scales along the top show the dis­tance to the blades.

Blade Bow: Adjustable to keep the upper blade
straight along its length.

Micro-Adjustable Work Stop Assembly. Adjusts
and secures the rear work stop at a specific dis­tance from the blades.

Cutting Tips

• Keep the upper blade properly adjusted to
the lower blade (refer to Adjusting Blade
Gap on Page 21 for detailed instructions).
This will help ensure good cutting results and
avoid blade damage.

• Before each operation, clean cut-offs or
debris away from the shear.

• Make sure the side work stop is square with
the blades. This will help ensure the cut is
square.

Side Work Stop. Helps the operator square the
workpiece with the blades.

Foot Pedal. Controls the cutting action of the
upper blade.

Rear

Work Stop

Micro-Adjustable

Work Stop

Assembly

Figure 12. Rear basic controls.

Blade Bow

• Use the foot pedal to engage the hold-down
with the workpiece, then check the workpiece
position. If it is correct, continue lowering the
foot pedal to complete the cut.

• The shearing action of the blades works simi­larly to a pair of scissors (see the illustration
in Figure 13). Use even pressure on the foot
pedal to produce good results.

Shearing Action

Upper Blade

Lower Blade

Figure 13. Blade shearing action.

-14-

Model T10717 (Mfg. Since 1/13)

Rear Work Stop

Side Work Stop

The rear work stop is used for making repetitive
cuts of the same length. The micro-adjustment
assemblies allow for precise positioning of the
work stop.

To position the rear work stop:

1. Slide the work stop assembly evenly along

the support rods so the work stop leading
edge is at the approximate desired distance
from the cutting edges of the blades.

Note: Use the scales on top of the support

rods for approximate positioning. Use a fine
ruler or tape measure for more precise posi­tioning.

2. Tighten the micro-adjustable slide knob (see
Figure 14) on each assembly.

Micro-Adjustable

Slide Knob

Work Stop Knobs

The side work stop (see Figure 15) helps the
operator square the workpiece with the blades. To
work properly, it must be square with the blades.

Side Work Stop

Figure 15. Side work stop.

Needed Qty

Another Person .................................................. 1

Square ............................................................... 1

Hex Wrench 5mm .............................................. 1

To Shear

Micro-Adjustment

Knob

Figure 14. Work stop controls.

3. Use the micro-adjustment knob on each

assembly to position the work stops in small,
precise amounts until they are exactly where
needed.

Note: Move the work stop evenly on both

sides to keep it parallel with the blades.

4. To keep the work stop secured in the desired
position, tighten the work stop knobs on each
assembly (see Figure 14).

Work Stop

To square the side work stop with the blades:

1. Loosen the two cap screws that secure the

side work stop.

2. Have another person use the foot pedal to
lower the upper blade all the way down, then
hold it there.

3. Place the square against the blade guard and
the side work stop.

4. Keeping the square evenly against the blade
guard, adjust the side work stop so that it is
evenly against the square.

5. Without moving the side work stop, re-tighten
the cap screws to secure the setting.

Model T10717 (Mfg. Since 1/13)

-15-

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 4: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

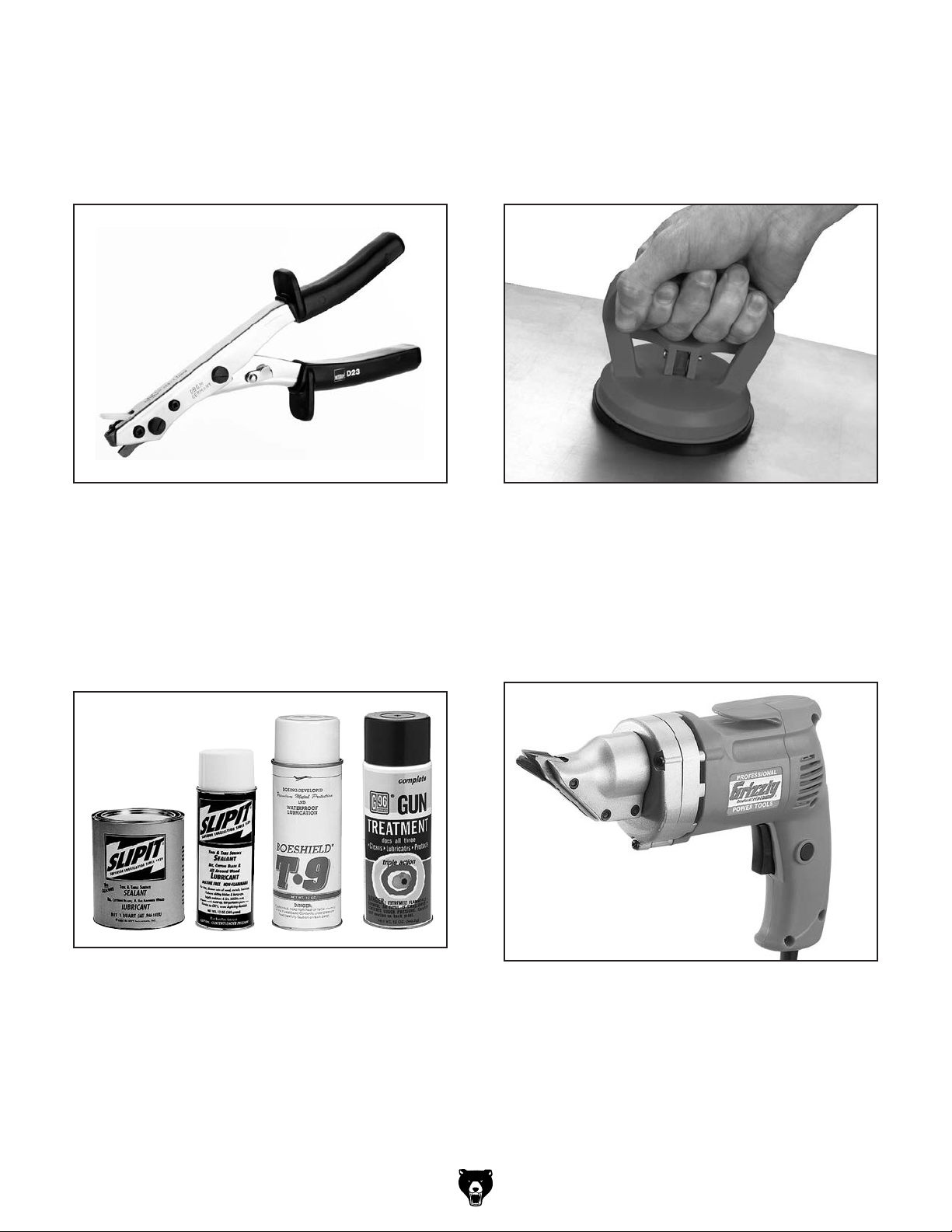

Bostitch Compound Action Aviations Snips
T22298—Straight
T22299—Left
T22300—Right

These 10" Aviation Snips are designed for cut­ting heavy stock in a straight, left, or right cut­ting direction. Developed with TiN-coated cutting
blades to reduce wear and extend blade life, they
cut up to 18 gauge cold-rolled steel or 23 gauge
stainless steel. The patented flush-mounted side
hardware also helps prevent metal from catching
while cutting. These snips meet or exceed ANSI
standards.

H5614—Sheet Metal Gauge US Standard

Calibrated for sheet metal sized from 0 to 30
gauge. The front is marked with gauge sizes, the
back is marked with actual inch measurements.

Figure 17. H5614 Sheet Metal Gauge.

T25208—23-Piece Deburring Set

Includes: 380-0060 double burr; 2-piece 380­0088 handle; 380-0097, 380-0098, and 380-0091
holders; D25 and D40 scrapers; C20 countersink;
ES100 and ES200 blades (5 each); V13, and A13
blades; wrench and hex wrenches; case.

T22298

T22299

T22300

Figure 16. Bostitch Compound Aviation Snips.

-16 -

Figure 18. Model T25208 Deburring Set.

Model T10717 (Mfg. Since 1/13)

G4956—Super Nibbler

order online at www.grizzly.com or call 1-800-523-4777

The super nibbler is just the ticket for cutting sheet

3

metal up to

⁄64" thick. Extremely narrow headed
design allows cuts in hard-to-reach areas, yet still
features a safety guard to prevent flying splinters.

1

⁄4" overall.

10

G8781—4" Suction Cup

Handle plate glass, glass mirrors, and sheet metal
with safety and security. Simple hand lever action
provides tremendous gripping power on any flat,
smooth material. Buy two Suction Cups for two­handed control!

Figure 19. Model G4956 Super Nibbler.

Recommended Metal Protectants

G5562—SLIPIT® 1 Qt. Gel
G5563—SLIPIT
G2871—Boeshield
G2870—Boeshield
H3788—G96
H3789—G96

®

12 oz Spray

®

T-9 12 oz Spray

®

®

Gun Treatment 12 oz Spray

®

Gun Treatment 4.5 oz Spray

T-9 4 oz Spray

Figure 21. Model G8781 4" Suction Cup.

H5503—Electric Sheet Metal Shear

1

• Motor:

⁄2 HP, 110V, 2500 RPM, 3.8 Amp

• Swivel head adjust 360°

• Variable speed: 0–2500 RPM

• Cuts up to 14-gauge in mild steel and 18
gauge in stainless, at up to 150 in./min.

• Weighs 5 lbs.

Figure 20. Recommended products for protect­ing unpainted cast iron/steel part on machinery.

Figure 22. Model H5503 Electric Sheet Metal

Shear.

Model T10717 (Mfg. Since 1/13)

-17-

SECTION 5: MAINTENANCE

Schedule

For optimum performance from your shear, follow
this maintenance schedule and refer to any spe­cific instructions given in this section.

Daily:

• Loose mounting bolts.

• Loose or damaged blade guard.

• Damaged or worn blades.

• Loose or bent support rods.

• Lubricate slide shafts.

• Any other unsafe condition.

Weekly:

• Lubricate pivot cartridge bearings.

Cleaning &

Protecting

Lubrication

Slide Shaft

Oi l Ty pe ... Mobil DTE Light or ISO 32 Equivalent

Oil Amount ..................................... 1 or 2 Squirts

Lubrication Frequency ................................. Daily

The slide shaft ball oilers (see Figure 23) provide
lubrication to the sliding surfaces between the
shafts and the copper slide plates.

Ball Oiler

Slide
Shaft

Use a brush to clear away any metal debris from
the blades, hold-down, and the flat area in front of
the blades.

Use a shop rag to carefully apply a thin coat of
quality metal protectant (see Page 17 for offerings
from Grizzly) to all exposed surfaces of the blades
to prevent corrosion.

Copper

Slide Plates

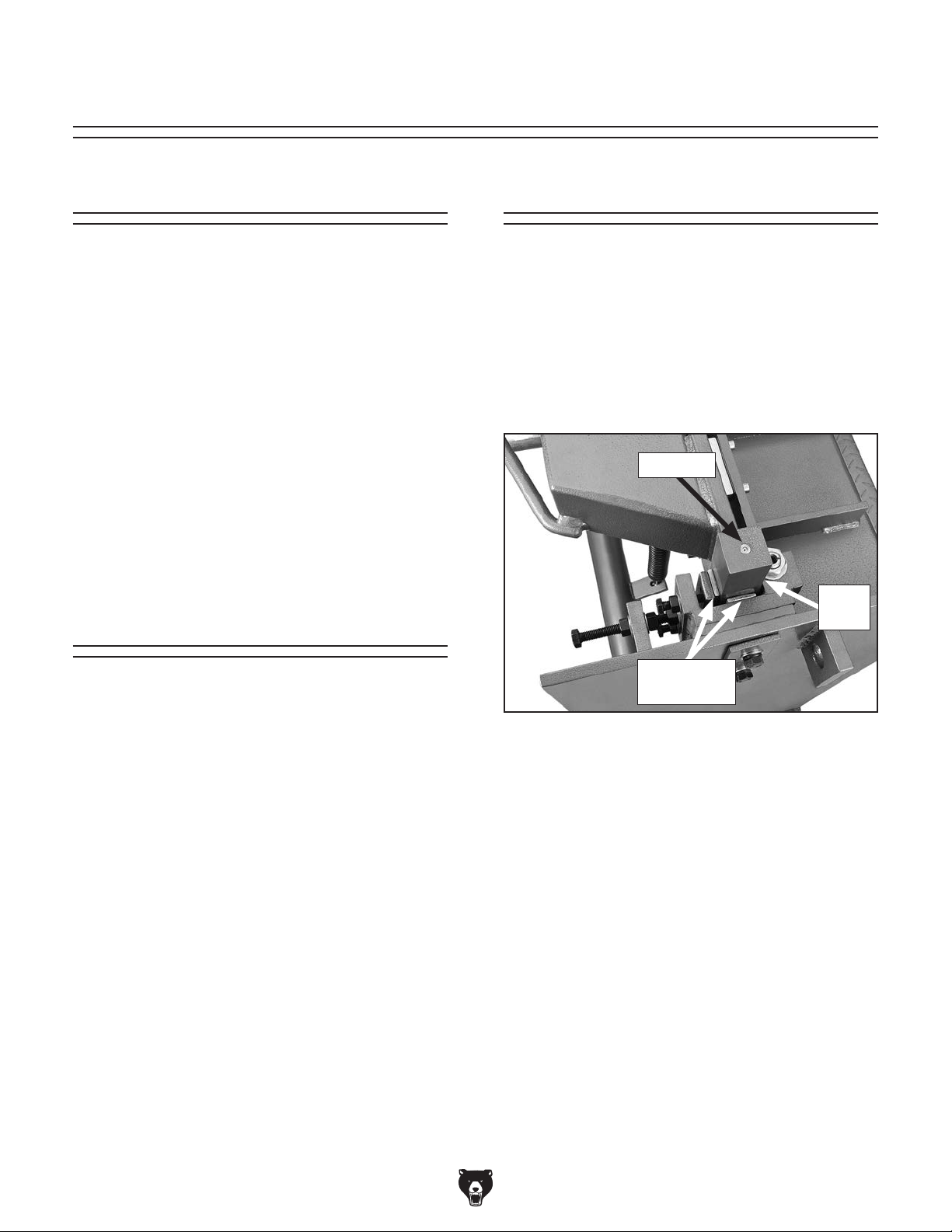

Figure 23. Slide shaft ball oiler.

Only lubricate these ball oilers with a pump-type
oil can that has a plastic or rubberized cone tip.
Do not use oil cans with a metal needle or lance
tip, as they can push the ball too far into the oiler,
break the spring seat, and lodge the ball in the oil
galley.

When lubricating the ball oilers, first clean the out­side surface to remove any dust or grime. Push
the tip of the oil can nozzle against the ball oiler
to create a hydraulic seal, then pump the oil can
once or twice to add oil.

-18-

Model T10717 (Mfg. Since 1/13)

Pivot Cartridge Bearing

Gre as e Ty pe ......... Mobil 1 or NLGI#2 Equivalent

Grease Amount ..................................One Pump

Lubrication Frequency ..............................Weekly

The pivot cartridge bearings handle the majority
of the torque produced by the foot pedal action,
and must remain lubricated for smooth operation
and long life.

Clean the outside of the grease fittings (see
Figure 24) and the immediate area to prevent
contamination of the added grease.

Grease Fitting

(1 of 2)

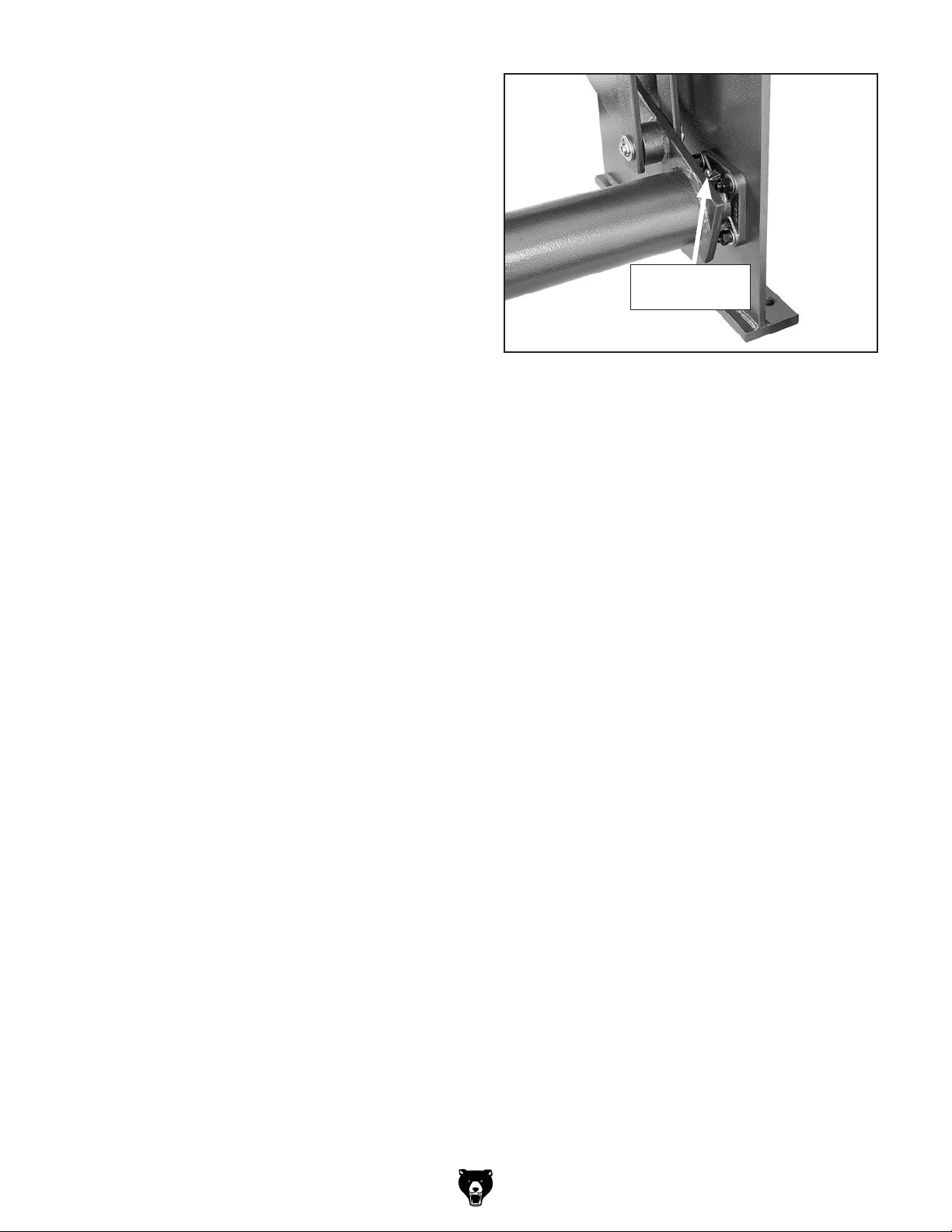

Figure 24. Pivot cartridge bearing grease fitting

(1 of 2).

Fit the nozzle of the grease gun over the grease
fitting and add one pump of grease. Press and
release the foot pedal a few times to distribute the
grease.

Model T10717 (Mfg. Since 1/13)

-19 -

Review the troubleshooting and procedures in this section if a problem develops with your machine. If you
need replacement parts or additional help with a procedure, call our Technical Support at [phone].
Note: Please gather the serial number and manufacture date of your machine before calling.

SECTION 6: SERVICE

Troubleshooting

Symptom Possible Cause Possible Solution

Shear will not cut
workpiece.

Cuts are not square. 1. Side work stop not square with blades.

Poor quality of cuts
(ripping or tearing).

Foot pedal difficult
to use.

1. Workpiece thickness exceeds shear
capacity.

2. Blade gap not correct.

3. Not enough pressure applied to foot pedal.

2. Rear work stop not parallel to blades.

3. Blade gap not correct.

1. Blade gap not correct.

2. Blades worn or damaged.

3. Gibs too loose.

1. Blade gap not correct.

2. Gibs too tight.

1. Only use workpiece material that is within shear
capacity (Page 4).

2. Properly adjust blade gap (Page 21).

3. Safely increase pressure on foot pedal.

1. Adjust side work stop square with blades (Page 15).

2. Properly adjust rear work stop parallel to blades
(Page 15).

3. Properly adjust blade gap (Page 21).

1. Properly adjust blade gap (Page 21).

2. Sharpen/replace blades (Page 22).

3. Properly adjust gibs (Page 23).

1. Properly adjust blade gap (Page 21).

2. Properly adjust gibs (Page 23).

-20-

Model T10717 (Mfg. Since 1/13)

Adjusting Blade Gap

Slide
Shaft

The gap between the upper and lower blades (as
they pass each other) must remain even along the
length of blades to produce clean cuts. Initially,
this adjustment has been made at the factory.
However, over time and with normal wear, you
may need to re-adjust the blade gap.

If the blade gap is too wide, the workpiece will
not cut correctly and show signs of bending, rip­ping, or tearing. If the blade gap is too narrow, the
upper blade will have difficulty lowering past the
lower blade and the cutting edges may become
damaged.

Checking Blade Gap

Use a piece of paper to make cuts along the full
length of the shear blades. All cuts should be
sharp without bending or tearing the paper.

• If the paper does not cut cleanly only on one
end of the shear, the upper blade needs to be
adjusted on that end.

• If the paper does not cut cleanly along the
entire length of the blades, both ends of the
upper blade need to be adjusted.

• If the paper cuts cleanly on the ends but not
the center, or it cuts cleanly in the center
but not the ends, the blade bow needs to be
adjusted (refer to Adjusting Blade Bow on
the next page for detailed instructions).

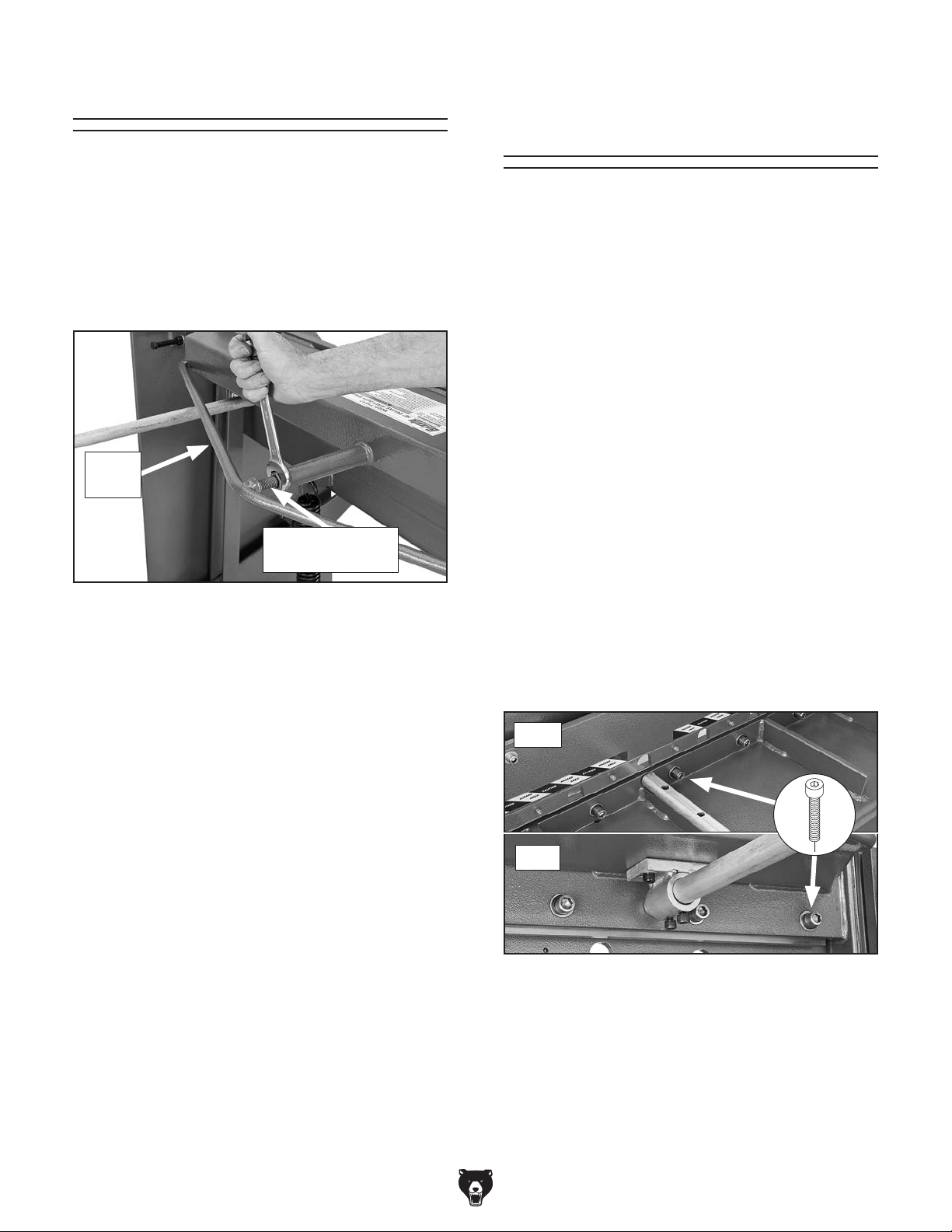

Rear

Lock

Bolt

Side Lock

Bolts & Plate

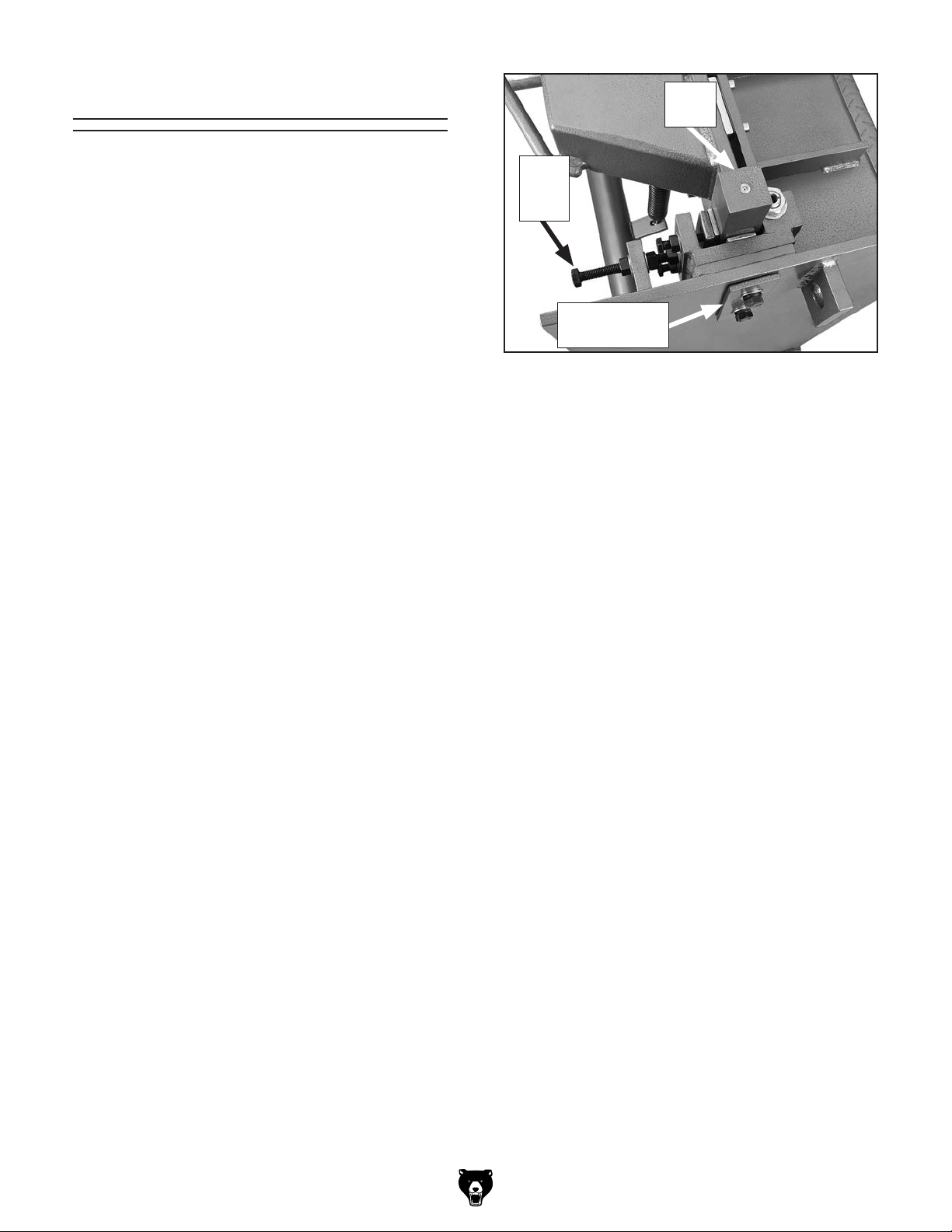

Figure 25. Upper blade adjustment controls.

Tools Needed Qty

Wrench 18mm ................................................... 1

Dead-Blow Hammer .......................................... 1

To adjust the upper blade:

1. Completely remove the rear lock bolt with the

hex nuts and flat washers from the slide shaft
that needs adjustment.

Note: Remember the order that the hex nuts

and flat washers are arranged on the lock
bolt.

2. Loosen the side lock bolts but do not remove
them.

3. Tap the front or back of the slide shaft a small
amount to increase or decrease the blade
gap.

Adjusting Upper Blade

The blade gap is controlled by the position of the
upper blade as it passes the lower blade. This
gap is adjusted by moving one or both slide shafts
(see Figure 25) forward or backward.

If the paper does not cut cleanly after proper
adjustment of the upper blade, the blades may
need to be sharpened or replaced (refer to Blade
Sharpening/Replacing on the next page for
detailed instructions).

Model T10717 (Mfg. Since 1/13)

4. Repeat the previous Checking Blade Gap
procedure to test the adjustment you made.

— If the blade gap is correct, re-tighten the

side lock bolts and re-install the rear lock
bolt with hex nuts and flat washers.

— If the blade gap is not correct, repeat Steps

2–4 until it is.

-21-

Adjusting Blade Bow

The blade bow is used to keep the upper blade
straight along its full length by adjusting the
amount of force that the bow exerts on the blade
ends.

The blade bow is adjusted by loosening or tight­ening the bow nut on the centering rod (see
Figure 26).

Blade

Bow

Bow Nut

& Centering Rod

Sharpening/

Replacing Blades

Both blades have two cutting edges so that if one
cutting edge becomes dull, you can reverse the
blade and use the fresh, sharp cutting edge.

If both cutting edges are dull, re-sharpen the
blades on a surface grinder and make sure they
stay flat along their entire length. If the blade
becomes too thin and the cap screws that secure
it extend beyond the opposite side of the cutting
edge, you will need to replace it. If the blade is
nicked or damaged, replace it. Contact Grizzly
at [phone] or online at grizzly.com to
purchase Part No. P10717031. We recommend
you keep an extra set of blades on hand to avoid
downtime.

Needed Qty

Another Person .................................................. 1

Hex Wrench 10mm ............................................ 1

Figure 26. Using the bow nut to adjust the blade

bow.

Tool Needed Qty

Wrench 24mm ................................................... 1

To adjust the blade bow:

1. Perform Steps 1–2 in the previous Adjusting
Upper Blade procedure for both sliding

shafts.

2. Perform the Checking Blade Gap procedure
on the previous page.

— If the paper cuts cleanly at the ends but

not the center, turn the bow nut clockwise
until the paper cuts cleanly along the entire
length of the blades.

— If the paper cuts cleanly at the center but

not the ends, turn the bow nut counter­clockwise until the paper cuts cleanly along
the entire length of the blades.

To remove/re-install a blade:

1. Have another person support the blade so

it does not fall as you remove the nine cap
screws that secure it (see Figure 27).

Front

Rear

Figure 27. Blade cap screws.

2. Before re-installing the blade, clean it with

mineral spirits, then apply a thin coat of qual­ity metal protectant.

3. Re-tighten the side lock bolts, and re-install
the rear lock bolts with hex nuts and flat
washers.

-22-

3. Orient the cutting edge to the other blade,
then secure the blade in place with the nine
cap screws removed in Step 1.

Model T10717 (Mfg. Since 1/13)

Adjusting Gibs

Tool Needed Qty

Wrench 16mm ................................................... 1

There are three copper sliding plates for each of
the slide shafts (see Figure 28)—front, rear, and
side. They are made of copper so the plates wear
instead of the shafts. The rear sliding plates act
as gibs that apply pressure to keep the movement
tight and precise.

Sliding Shaft

Gib

Adjustment

Bolts

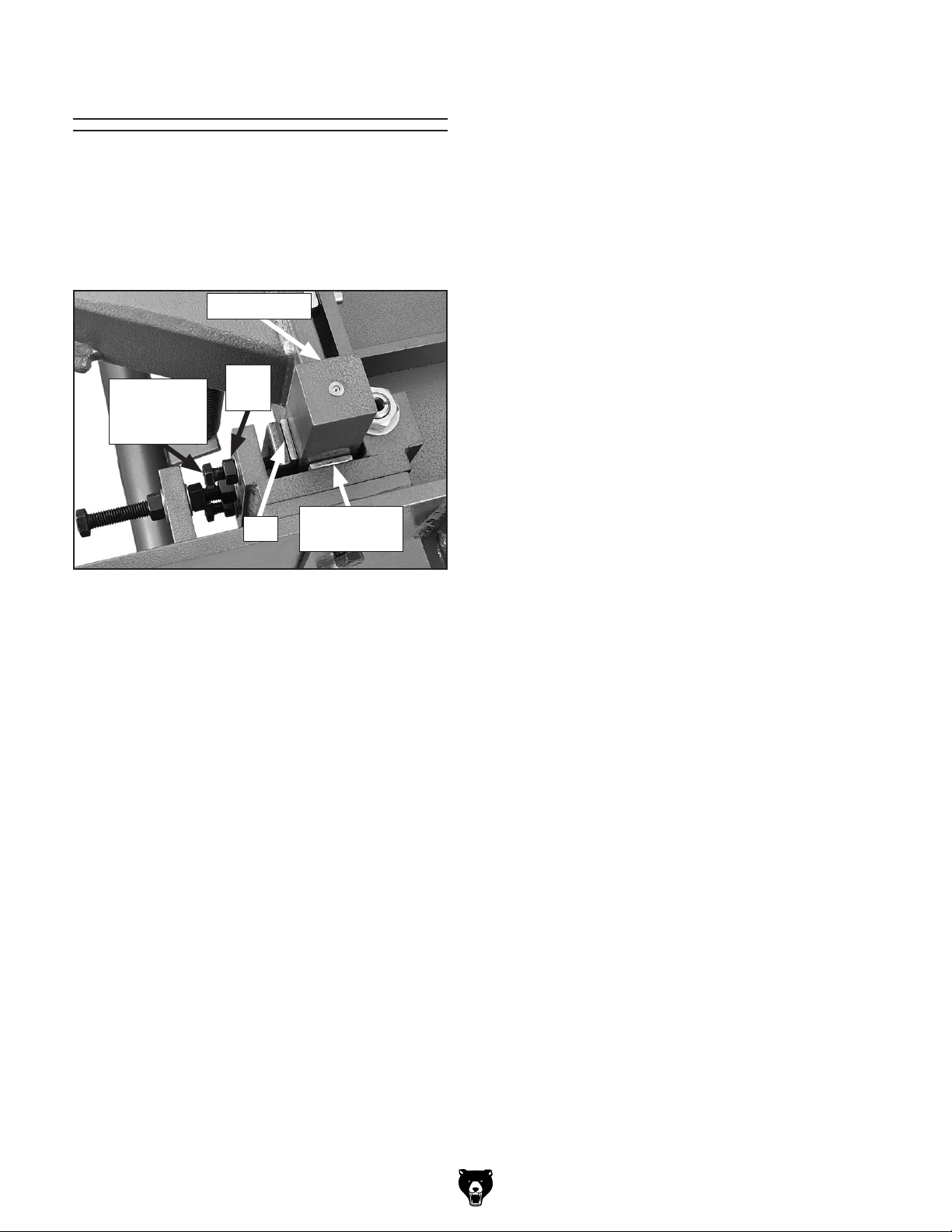

Figure 28. Gib adjustment controls.

Hex

Nuts

Gib

Copper

Sliding Plate

To adjust the gibs:

1. On each side of the shear, loosen the hex

nuts on the gib adjustment bolts.

2. Tighten all four gib adjustment bolts in even
increments until the gibs are snug against the
sliding shafts, then back off the adjustment

1

bolts

3. Make a test cut to check the sliding action
and the quality of the cut. If necessary, rotate
the gib adjustment bolts clockwise to tighten
the gib or counterclockwise to loosen it, then
then repeat the test and adjust as necessary
until you are satisfied with the gib adjustment.

4. Re-tighten the hex nuts without moving the
adjustment bolts.

⁄8th of a turn.

If the gibs are too loose, the quality of the cuts
will suffer because the movement will be sloppy
when the foot pedal is pressed. If the gibs are too
tight, it will be difficult to lower the upper blade,
and the cutting edges of the blades may become
damaged.

The goal of adjusting the gibs is to keep the front­to-back movement of the sliding shafts snug with­out interfering with the sliding action.

Model T10717 (Mfg. Since 1/13)

-23-

48

45

47

44

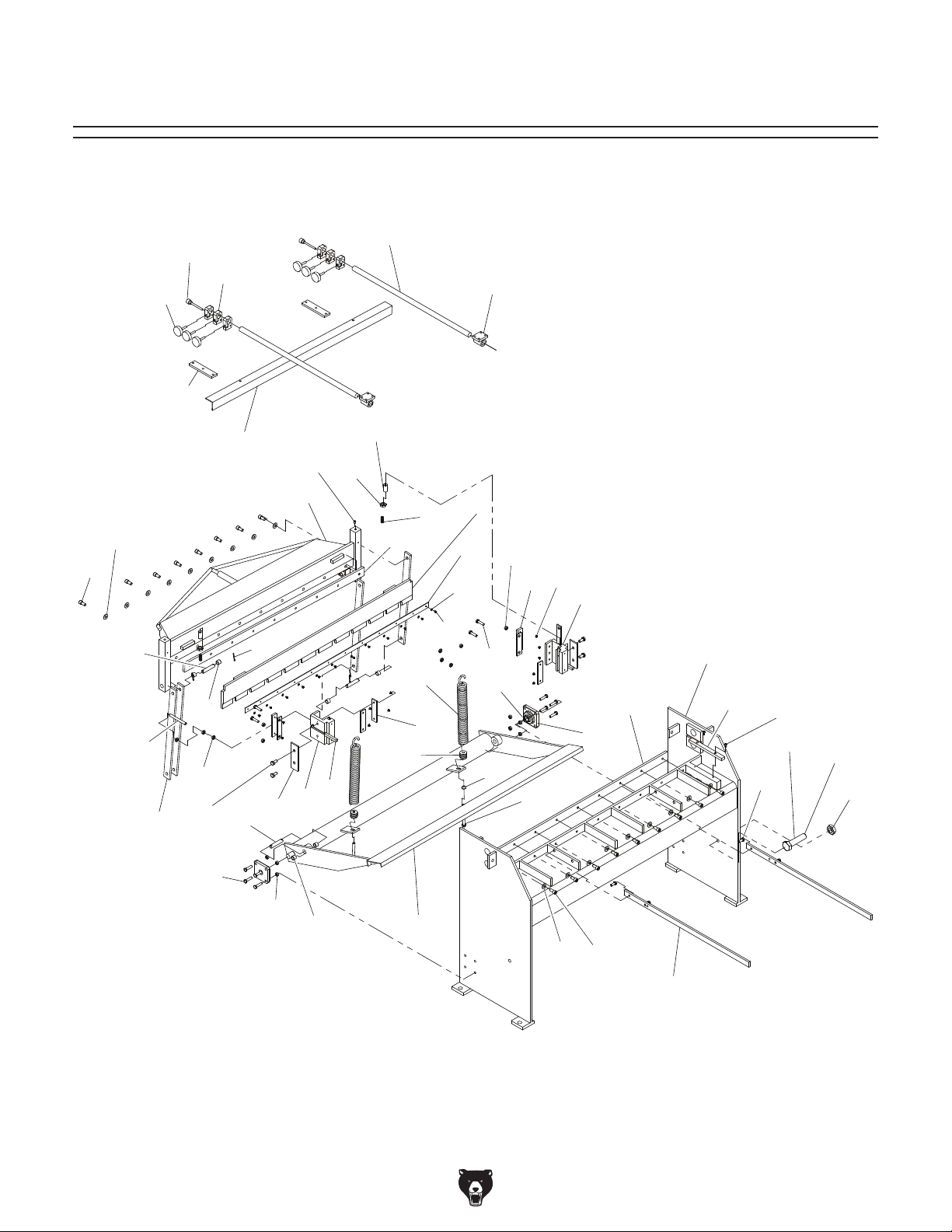

SECTION 7: PARTS

Main

43

42

35

34

17

20

18

21

28

16

24

46

17

33

37

41

38

7

36

31

14

4

15

32

2

5

40

10

39

9

25

27

6

24

13

23

22

3

1

31

49

11

26

30

50

19

29

-24-

25

16

8

34

35

12

Model T10717 (Mfg. Since 1/13)

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523 - 4777 or visit our online parts store at www.grizzly.com to check for availability.

Main Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PT10717001 FRAME 26 PCAP06M CAP SCREW M6-1 X 25
2 PT10717002 LEFT SLIDE BRACKET 27 PFH29M FLAT HD SCR M6-1 X 10
3 PT10717003 RIGHT SLIDE BRACKET 28 PB195M HEX BOLT M12-1.75 X 25 C8.8
4 PT10717004 COPPER SLIDE PLATE 29 PN47M HEX NUT M16-2 C8
5 PT10717005 PRESSURE PLATE 30 PCAP01M CAP SCREW M6-1 X 16
6 PT10717006 CONNECTING PLATE 31 PT10717031 BLADE
7 PT10717007 BLADE BOW ASSEMBLY 32 PK181M KEY 12 X 12 X 100
8 PT10717008 FOOT PLATE 33 PCOT03M STANDARD COTTER PIN 5 X 40MM
9 PT10717009 HOLD-DOWN PLATE 34 PW06M FLAT WASHER 12MM
10 PT10717010 BLADE GUARD 35 PCAP77M CAP SCREW M12-1.75 X 30
11 PT10717011 SIDE WORKPIECE STOP 36 PT10717036 COMPRESSION SPRING
12 PT10717012 WORKPIECE SUPPORT ROD 37 PT10717037 SLOTTED STUD-FT M18-1.5 X 32
13 PUCC205 CARTRIDGE BEARING UCC205 38 PN29M HEX NUT M18-2.5
14 PT10717014 EXTENSION SPRING 39 PW02M FLAT WASHER 5MM
15 PT10717015 SPRING RETAINING NUT 40 PCAP03M CAP SCREW M5-.8 X 8
16 PT10717016 PIVOT SHAFT BUSHING 41 PLUBE003M TAP-IN BALL OILER 10MM
17 PT10717017 PIVOT SHAFT W/2 THREADED HOLES 42 PT10717042 SUPPORT BAR MOUNT
18 PT10717018 CONNECTING PLATE 43 PT10717043 WORK STOP SUPPORT ROD
19 PB192M HEX BOLT M16-2 X 80 C8.8 44 PT10717044 WORK STOP BRACKET
20 PB193M HEX BOLT M12-1.75 X 120 C8.8 45 PT10717045 WORK STOP PLATE
21 PN09M HEX NUT M12-1.75 46 PT10717046 WORK STOP L-BRACKET
22 PB194M HEX BOLT M12-1.75 X 130 C8.8 47 PT10717047 KNURLED KNOB SCREW M8-1.25 X 75
23 PT10717023 SPRING RETAINING WASHER 48 PT10717048 KNURLED KNOB SCREW M8-1.25 X 45
24 PB116M HEX BOLT M10-1.5 X 45 49 PT10717049 BEARING HOUSING
25 PN02M HEX NUT M10-1.5 50 PT10717050 STOP BOLT WRAPPING

Model T10717 (Mfg. Since 1/13)

-25-

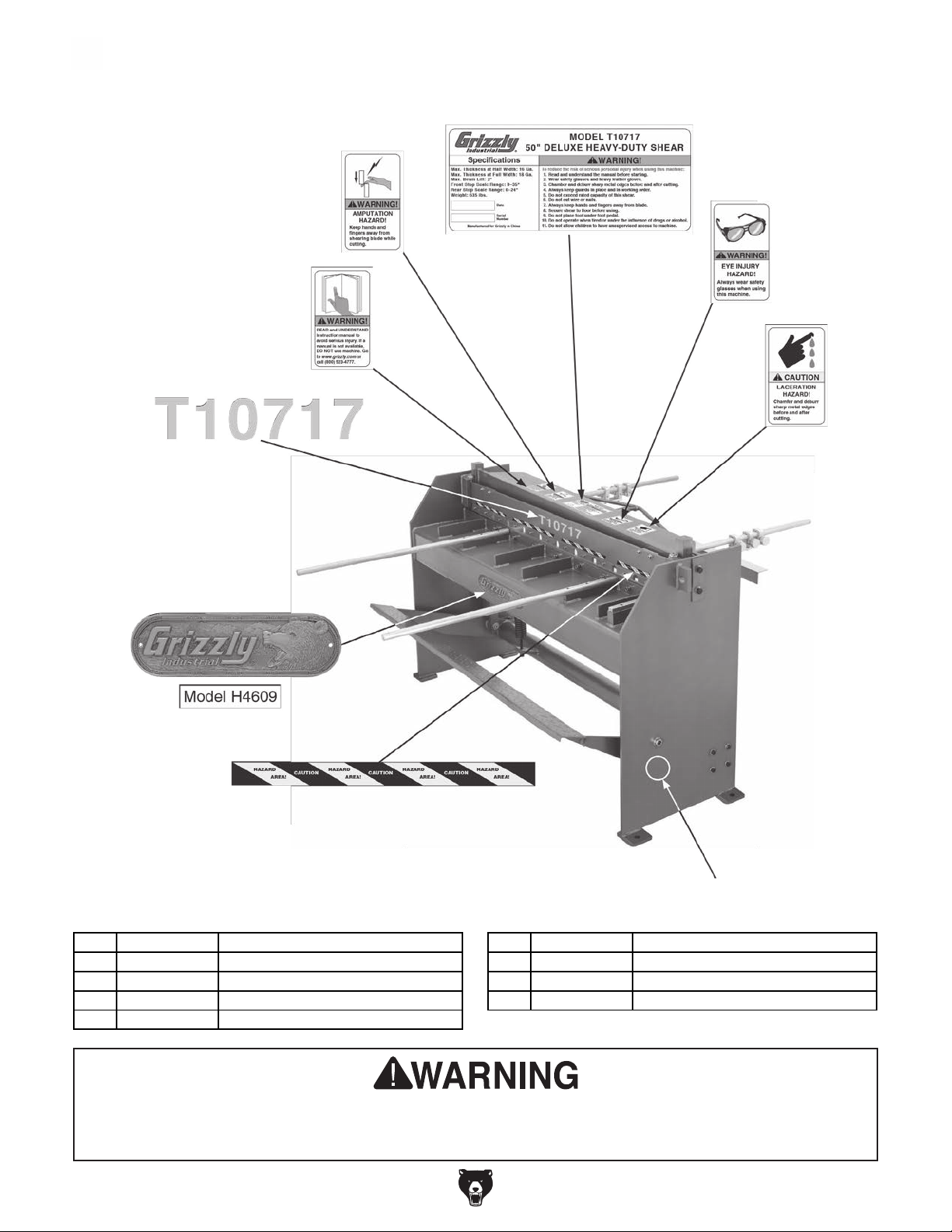

Labels & Cosmetics

57

56

58

59

51

52

53

55

54

REF PART # DESCRIPTION REF PART # DESCRIPTION

51 PT10717051 MACHINE ID LABEL 56 H4609 GRIZZLY OBLONG NAMEPLATE
52 PLABEL-11A EYE INJURY HAZARD LABEL 57 PT10717057 MODEL NUMBER LABEL
53 PT10717053 LACERATION HAZARD LABEL 58 PLABEL-12A READ MANUAL LABEL
54 PPAINT-1 GRIZZLY GREEN TOUCH-UP PAINT 59 PT10717059 AMPUTATION HAZARD LABEL
55 PT10717055 HAZARD AREA LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-26-

Model T10717 (Mfg. Since 1/13)

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.

1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics

3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group?
____ 20-29 ____30-39 ____ 40-49
____ 50-59 ____60-69 ____ 70+

5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____ 20+ Years

6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____ 10+

____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood

____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:

7. Do you think your machine represents a good value? _____Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____Yes _____No

10. Comments: _____________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

FOLD ALONG DOTTED LINE

FOLD ALONG DOTTED LINE

Place

Stamp

Here

GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069

Send a Grizzly Catalog to a friend:

Name_______________________________

Street_______________________________

City______________State______Zip______

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

Buy Direct and Save with Grizzly®– Trusted, Proven and a Great Value!

~Since 1983~

Visit Our Website Today For
Current Specials!

ORDER

24 HOURS A DAY!

1-800-523-4777
