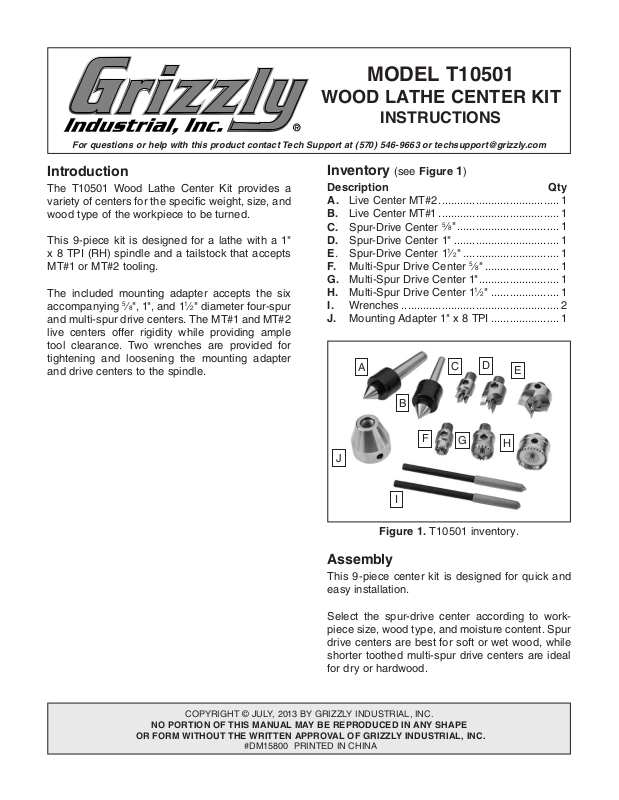

Grizzly T10501 User guide

MODEL T10501

WOOD LATHE CENTER KIT

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Introduction

The T10501 Wood Lathe Center Kit provides a
variety of centers for the specific weight, size, and
wood type of the workpiece to be turned.

This 9-piece kit is designed for a lathe with a 1"
x 8 TPI (RH) spindle and a tailstock that accepts
MT#1 or MT#2 tooling.

The included mounting adapter accepts the six
accompanying
and multi-spur drive centers. The MT#1 and MT#2
live centers offer rigidity while providing ample
tool clearance. Two wrenches are provided for
tightening and loosening the mounting adapter
and drive centers to the spindle.

5

⁄8", 1", and 11⁄2 " diameter four-spur

Inventory (see Figure 1)

Description Qty

A. Live Center MT#2 ....................................... 1

B. Live Center MT#1 ....................................... 1

C. Spur-Drive Center

D. Spur-Drive Center 1" .................................. 1

E. Spur-Drive Center 1
F. Multi-Spur Drive Center

G. Multi-Spur Drive Center 1" .......................... 1

H. Multi-Spur Drive Center 1

I. Wrenches ................................................... 2

J. Mounting Adapter 1" x 8 TPI ...................... 1

A

B

J

5

⁄8" ................................. 1

1

⁄2 " ............................... 1

5

⁄8" ........................ 1

1

⁄2 " ...................... 1

G

D

H

C

F

E

I

Figure 1. T10501 inventory.

Assembly

This 9-piece center kit is designed for quick and
easy installation.

Select the spur-drive center according to work­piece size, wood type, and moisture content. Spur
drive centers are best for soft or wet wood, while
shorter toothed multi-spur drive centers are ideal
for dry or hardwood.

COPYRIGHT © JULY, 2013 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#DM15800 PRINTED IN CHINA

Spur Center Live Center

To install a drive center onto spindle:

1. DISCONNECT LATHE FROM POWER!

2. Make sure threads of spindle and mounting

adapter are free of debris.

3. Thread the 1" female end of the mounting
adapter onto threaded spindle of headstock.
Holding spindle in place, firmly tighten adapt­er using one of the wrenches provided.

4. Select drive center best suited for workpiece

5

to be turned. Thread the

⁄8" male end of
drive center into female end of the mounting
adapter.

5. Place wrenches in both mounting adapter
and drive center, as shown in Figure 2. While
holding mounting adapter, firmly tighten drive
center.

MT#1 and MT#2 live centers install into tailstock
quill and freely rotate with workpiece.

To install a live center:

1. Move the tailstock to a safe working distance

from the head and tool rest.

2. Loosen quill lock lever, then rotate quill
handwheel clockwise until quill extends out
from tailstock about 1", as shown in Figure 3.

Figure 3. Installed live center.

Mounting

Adapter

Drive

Center

Wrenches

Figure 2. Attaching drive center to adapter.

To remove center and adapter from spindle:

1. DISCONNECT LATHE FROM POWER!

2. Insert wrenches into hole on the mounting

adapter and drive center. While firmly holding
wrench, loosen the drive center by rotating it
counterclockwise.

3. Remove drive center by hand.

3. Make sure live center and inside of quill are

free of debris and oily substances that could
interfere with proper mating.

4. Insert tapered end of live center into quill with
a quick, firm motion.

5. Make sure center is secure by attempting to
pull it out by hand—a properly installed cen­ter will not pull out by hand.

6. Rotate quill handwheel to draw quill back into
tailstock as far as possible without forcing
center to release.

Note: For greatest workpiece support, retract

quill as close to tailstock as possible without
disengaging live center.

7. Tighten quill lock lever to hold quill and center
in place.

To remove a live center:

4. While holding the spindle in place, use one

of the wrenches to remove mounting adapter
from the spindle.

-2-

1. While holding onto live center, retract quill
into tailstock with handwheel until center
becomes disengaged.

T10501 Lathe Center Kit (Mfg. 06/12)
