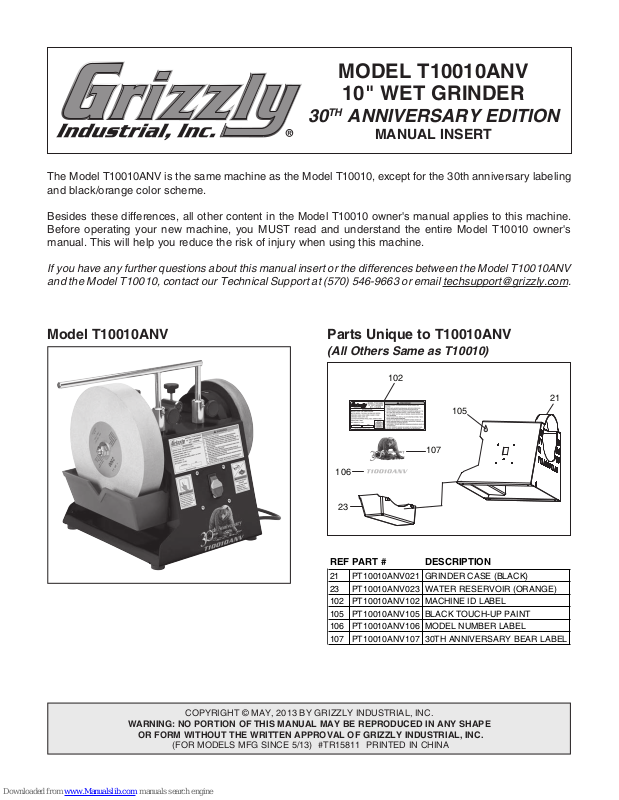

Page 1
MODEL T10010ANV
10" WET GRINDER
30TH ANNIVERSARY EDITION
MANUAL INSERT
The Model T10010ANV is the same machine as the Model T10010, except for the 30th anniversary labeling
and black/orange color scheme.
Besides these differences, all other content in the Model T10010 owner's manual applies to this machine.
Before operating your new machine, you MUST read and understand the entire Model T10010 owner's
manual. This will help you reduce the risk of injury when using this machine.
If you have any further questions about this manual insert or the differences between the Model T10010ANV
and the Model T10010, contact our Technical Support at (570) 546-9663 or email techsupport@grizzly.com.
Model T10010ANV
Parts Unique to T10010ANV
(All Others Same as T10010)
102
21
105
107
106
23
REF PART # DESCRIPTION
21 PT10010ANV021 GRINDER CASE (BLACK)
23 PT10010ANV023 WATER RESERVOIR (ORANGE)
102 PT10010ANV102 MACHINE ID LABEL
105 PT10010ANV105 BLACK TOUCH-UP PAINT
106 PT10010ANV106 MODEL NUMBER LABEL
107 PT10010ANV107 30TH ANNIVERSARY BEAR LABEL
COPYRIGHT © MAY, 2013 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFG SINCE 5/13) #TR15811 PRINTED IN CHINA
Page 2
model t10010 (mfg. since 3/10)
-26-

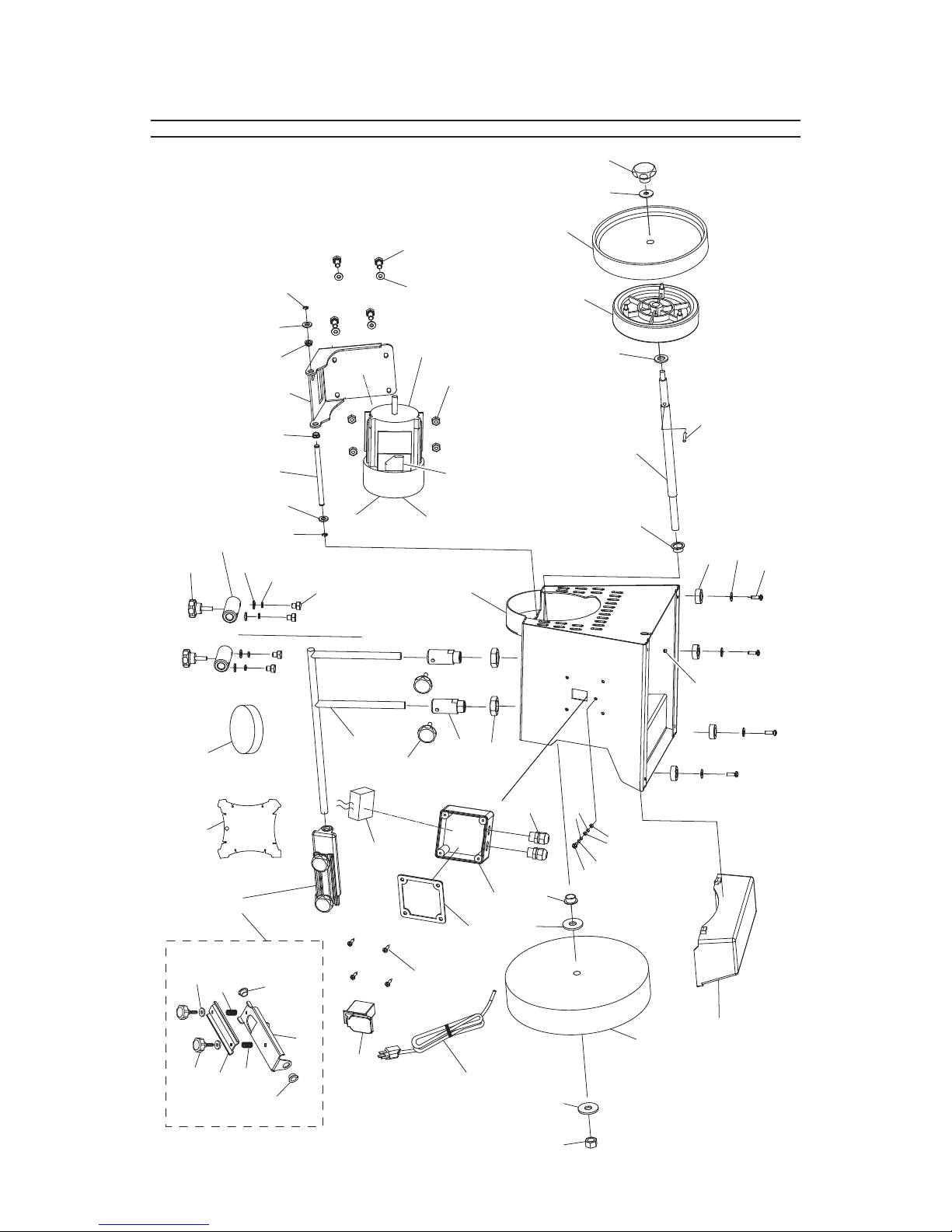

Main Breakdown
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
22
23
24
25
26
27
28
29
30
31
31-1
32
33
34
35
36
37
37-1
37-2
37-3
38
39
39-1
39-2
39-3
39-4
39-5
39-6
40
41
42
43
44
45
46
39-1
39-2
40
25
24
18
7
5
47
10
Page 3
model t10010 (mfg. since 3/10)
-27-
Main Parts List
REF PART # DESCRIPTION
1 PT10010001 ANGLE GUIDE
2 PT10010002 HONING PASTE
3 PT10010003 UNIVERSAL SUPPORT
4 PN16M HEX NUT M12-1.75 LH
5 PT10010005 ARBOR FLAT WASHER 12MM
6 T20683 GRINDING WHEEL 220 GRIT A/O
7 PT10010007 FLANGE BUSHING 15MM ID/17MM OD
8 PT10010008 HORIZONTAL SUPPORT HOLDER
9 PT10010009 VERTICAL SUPPORT HOLDER
10 PT10010010 KNOB BOLT M6-1 X 16
11 PT10010011 DRIVE WHEEL
12 T20684 STROPPING WHEEL
13 PW01M FLAT WASHER 8MM
14 PT10010014 KNOB M8-1.25
15 PW06M FLAT WASHER 12MM
16 PRP23M ROLL PIN 4 X 44
17 PT10010017 ARBOR SHAFT
18 PW03M FLAT WASHER 6MM
19 PTLW05M EXT TOOTH WASHER 6MM
21 PT10010021 GRINDER CASE
22 PT10010022 RUBBER FOOT
23 PT10010023 WATER RESERVOIR
24 PEC015M E-CLIP 8MM
25 PW04M FLAT WASHER 10MM
26 PT10010026 MOTOR BRACKET SHAFT
27 PT10010027 MOTOR BRACKET
28 PN01M HEX NUT M6-1
29 PT10010029 SHOULDER HEX NUT M6-1
30 PN04M HEX NUT M4-.7
31 PT10010031 SWITCH HOUSING
31-1 PT10010031-1 SWITCH HOUSING GASKET
32 PHTEK8M TAP SCREW M4 X 20
33 PS38M PHLP HD SCR M4-.7 X 10
34 G8988 SWITCH W/DISABLING KEY
35 PT10010035 POWER CORD 18G 3W 5-15 PLUG
36 PT10010036 S CAPACITOR 10M 250V 1-3/16 X 1-5/8
37 PT10010037 MOTOR 1/4HP 120V 1PH
37-1 PT10010037-1 MOTOR FAN COVER
37-2 PT10010037-2 MOTOR FAN
37-3 PT10010037-3 MOTOR JUNCTION BOX
38 PB83M HEX BOLT M6-1 X 16
39 T20880 GRINDING JIG ASSEMBLY
39-1 T20880 PIVOT BUSHING
39-2 T20880 COMPRESSION SPRING
39-3 T20880 CLAMP PLATE
39-4 PW03M FLAT WASHER 6MM
39-5 T20880 KNOB BOLT M6-1 X 16
39-6 T20880 BASE PLATE
40 PT10010040 SHAFT BUSHING
41 PS14M PHLP HD SCR M6-1 X 12
42 PW03M FLAT WASHER 6MM
43 PLW02M LOCK WASHER 4MM
44 PTLW01M EXT TOOTH WASHER 4MM
45 PT10010045 STRAIN RELIEF
46 PFN02M FLANGE NUT M6-1
47 PT10010047 THIN HEX NUT M20-2.5
Page 4
model t10010 (mfg. since 3/10)
-28-
Machine Labels Breakdown & Parts List
101
102
103
104
REF PART # DESCRIPTION
101 PT10010101 ROTATION DIRECTION ARROW
102 PT10010102 MACHINE ID LABEL
103 PLABEL-57A GLASSES/RESPIRATOR LABEL
104 PLABEL-12C READ MANUAL LABEL
105 PPAINT-01 GRIZZLY GREEN TOUCH-UP PAINT
105
