MODEL H8193
REPLACEMENT
TRUNNION
INSTRUCTION SHEET
Introduction
The Model H8193 cast iron trunnion assembly
replaces the existing steel trunnion assembly on
your G0513/G0514 series bandsaw.
If you cannot find the original copy of your G0513
or G0513X owner's manual, you can download a
PDF copy from www.grizzly.com. You will need to
refer to the G0513 or G0513X manual for complete instructions for your machine.

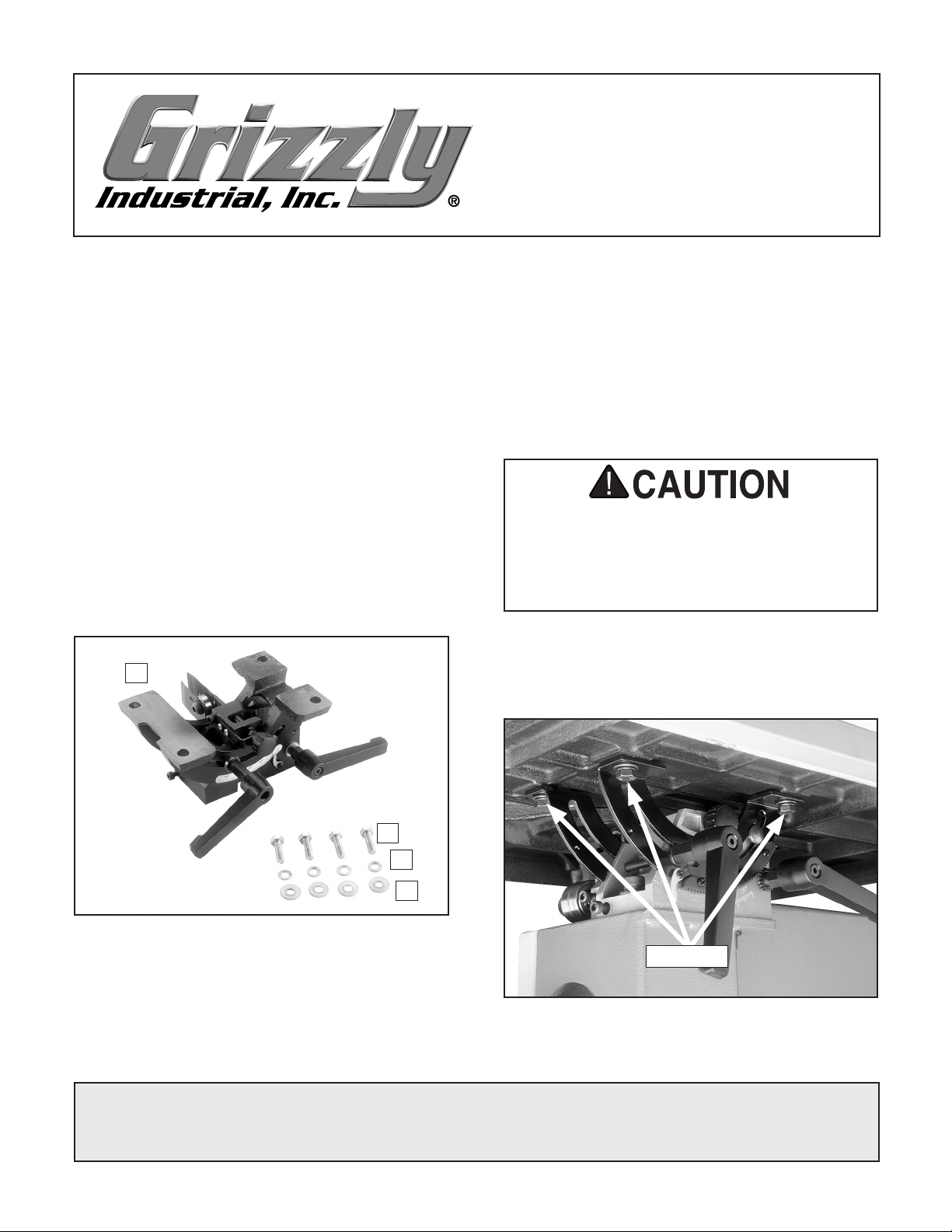

Inventory (Figure 1)
A. Cast Iron Trunnion Assembly ..................... 1
B. Hex Bolts M8-1.25 x 25 .............................. 4
C. Lock Washers 8mm ................................... 4
D. Flat Washers 8mm ..................................... 4
A
Removing Existing Trunnion
1. DISCONNECT THE BANDSAW FROM
POWER!
2. Remove the miter gauge, fence, and blade
(refer to the G0513 manual, Page 16, or
G0513X manual, Page 21 for detailed remov-
al instructions).
During the next step, have two assistants
hold the table on either side, to prevent it
from falling off the bandsaw. Failure to follow
this warning could result in serious personal
injury and damage to the bandsaw.
3. Remove the four hex bolts, flat washers, and
lock washers securing the table to the trunnion (Figure 2).
Figure 1. Model H8193 inventory.
COPYRIGHT © AUGUST, 2007 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#BL9855 PRINTED IN TA IWAN
B
C
D
Hex Bolts
Figure 2. Trunnion mounting hex bolts.
4. With the help of assistants, remove the
table.
5. Remove the cap screws and hex nut securing
the trunnion to the bandsaw (Figure 3), then
remove the trunnion.
Hex Nut and
Cap Screw
Cap Screw
Installing Cast Iron Trunnion
1. Align the mounting holes in the cast iron trun-
nion and bandsaw, and secure with the two
cap screws removed from the previous trunnion (Figure 4). The hex nut you removed will
not be used.
Cap Screws
Figure 3 Cap screws and hex bolt.
Figure 4. New trunnion installed.
2. With the help of assistants, install the table
on the new trunnion with the four included
M8-1.25 x 25 hex bolts, flat washers, and lock
washers.
3. Reinstall the blade, close the wheel covers,
and reinstall the table insert and pin.
4. Follow the Blade Tracking, Test Run/Start
Up, Tensioning Blade/Blade Tension,
Adjusting Support Bearings/Blade Guides
instructions in the G0513/G0513X manual.
5. Follow Table Alignment/Aligning Table
instructions in the G0513/G0513X manual to
align the table.
6. Reinstall the fence and miter gauge, following
instructions on Page 20 of the G0513 manual
and Page 31 of the G0513X manual.
-2-
If you need additional help with this procedure,
call our Tech Support at (570) 546-9663 or by
email at techsupport@grizzly.com.
H8193 Replacement Trunnion

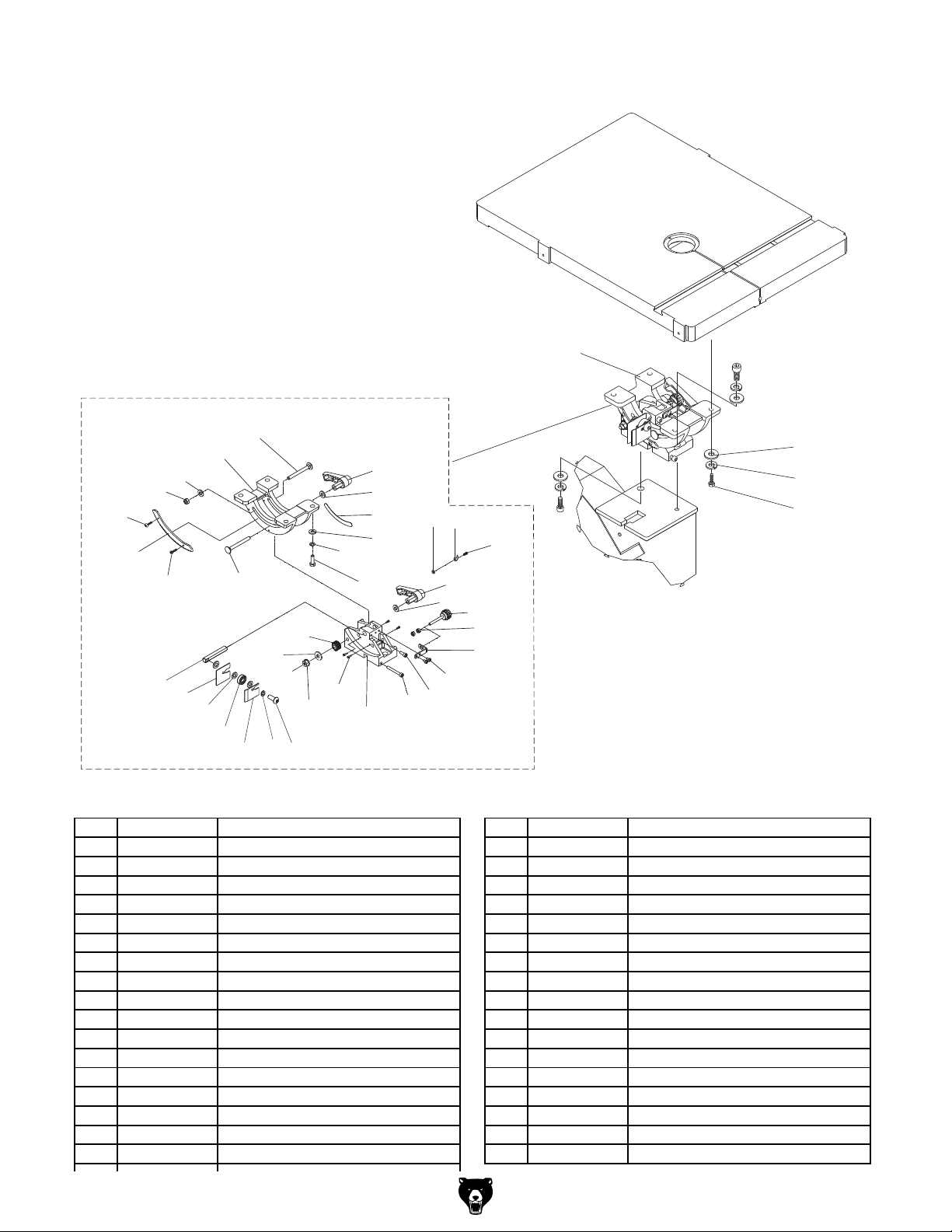

Parts List and Breakdown
REF PART # DES CRIPTION REF PART # DES CRIPTION
1
1-8
1-7
1-31
1-23
1-9
1-1
1-12
1-10
1-11
1-22
1-14
1-13
1-1
1-20
1-21
1-15
1-16
1-17
1-18
1-19
1-1
1-2
1-3
1-4
1-28
1-27
1-6
1-26
1-1
1-33
1-24
1-32
1-2
1-25
1-5
1-30
1-29
1 PH8193001 CAS T IRON TRUNNI ON A SSE MBL Y 1-19 PH8193001-19 ADJUST PLATE
1-1 PW01M FLA T WASHER 8MM 1-20 PS05M PHLP HD SCR M5-.8 X 8
1-2 PLN04M LOCK NUT M8-1.25 1-21 PSB01M CAP SCREW M6-1 X 16
1-3 PS17M PHLP HD SCR M4-.7 X 6 1-22 PSB37M CAP SCREW M6-1 X 50
1-4 PH8193001-4 GEAR PLATE 1-23 PH8193001-23 TRUNNI ON S UPP ORT BRACKE T
1-5 PFH27M FL AT HD S CR M4-.7 X 6 1-24 PH8193001-24 SMALL GEAR
1-6 PCB10M CARRIAGE BOLT M8-1.25 X 85 1-25 PSBS19M BUTTON HD CAP SCR M10-1.5 X 30
1-7 PH8193001-7 TRUNNI ON BLOCK 1-26 PH8193001-26 RI GHT CO VE R
1-8 PCB23M CARRIAGE BOLT M8-1.25 X 80 1-27 P6000 BALL BEARING 6000ZZ
1-9 PH8193001-9 HANDL E 1-28 PW04M FLAT WASHER 10MM
1-10 PH8193001-10 ANGLE LABEL 1-29 PH8193001-29 LEFT COVER
1-11 PW01M FLA T WASHER 8MM 1-30 PH8193001-30 ADJUST BLOCK
1-12 PB07M HEX BOLT M8-1.25 X 25 1-31 PLW04M LOCK WASHER 8MM
1-13 PH8193001-13 LOCK HANDLE 1-32 PSB97M CAP SCREW M5-.8 X 6
1-14 PW05M FLA T WASHER 4MM 1-33 PLW06M LOCK WASHER 10MM
1-15 PH8193001-15 POINTER 2 PW01M FLA T WASHER 8MM
1-16 PS17M PHLP HD SCR M4-.7 X 6 3 PLW04M LOCK WASHER 8MM
1-17 PH8193001-17 ADJUS T BO LT M6 4 PB07M HEX BOLT M8-1.25 X 25
2
3
4
H8193 Replacement Trunnion
-3-
