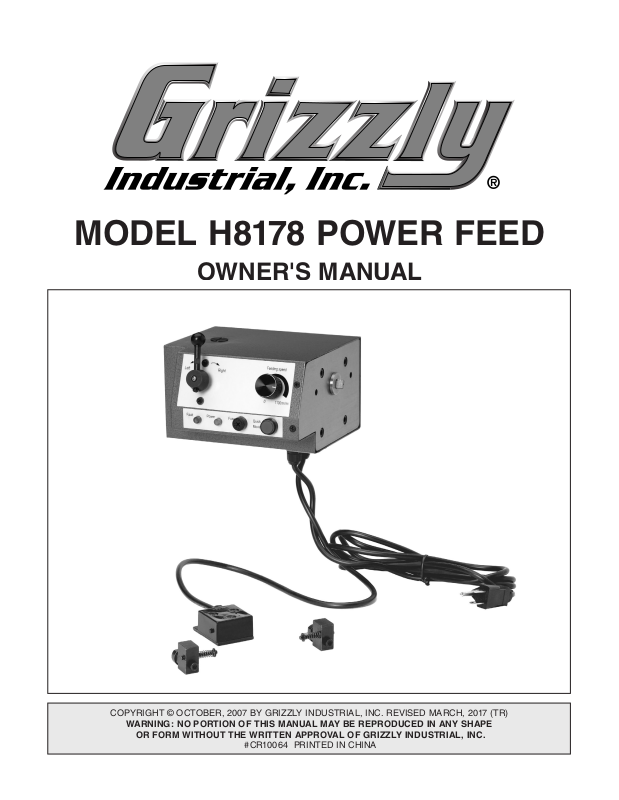

MODEL H8178 POWER FEED
OWNER'S MANUAL
COPYRIGHT © OCTOBER, 2007 BY GRIZZLY INDUSTRIAL, INC. REVISED MARCH, 2017 (TR)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#CR10064 PRINTED IN CHINA
This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
Lead from lead-based paints.
Crystalline silica from bricks, cement and other masonry products.
Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter out microscopic particles.
Table of Contents
INTRODUCTION ............................................... 2
Foreword ........................................................ 2
Contact Info.................................................... 2
Machine Data Sheet ...................................... 3
SECTION 1: SAFETY ....................................... 4
Safety Instructions for Machinery .................. 4
Additional Safety for Power Feeds ................ 6
SECTION 2: CIRCUIT REQUIREMENTS ........ 7
110V Operation .............................................. 7
SECTION 3: SETUP ......................................... 8
Setup Safety .................................................. 8
Unpacking ...................................................... 8
Items Needed for Setup ................................. 8
Inventory ........................................................ 9
Installation ...................................................... 9
SECTION 4: OPERATIONS ........................... 14
Operation Safety .......................................... 14
Power Feed Controls ................................... 14
SECTION 5: ACCESSORIES ......................... 15
SECTION 6: MAINTENANCE ......................... 16
Schedule ...................................................... 16
Brush Replacement ..................................... 16
SECTION 7: SERVICE ................................... 17
About Service............................................... 17
Troubleshooting ........................................... 17
SECTION 8: WIRING ...................................... 18
Wiring Safety Instructions ............................ 18
Electrical Components ................................. 19
Wiring Diagram ............................................ 21
Parts Breakdown.......................................... 22
WARRANTY AND RETURNS ........................ 25
Model H8178 (Mfg. Since 07/07)
-1-

INTRODUCTION

Foreword

We are proud to offer the Model H8178 Power Feed. This machine is part of a growing Grizzly family of fine metalworking machinery. When used according to the guidelines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s com­mitment to customer satisfaction.
The specifications, drawings, and photographs illustrated in this manual represent the Model H8178 when the manual was prepared. However, owing to Grizzly’s policy of continuous improve­ment, changes may be made at any time with no obligation on the part of Grizzly.
For your convenience, we always keep current Grizzly manuals available on our website at www. grizzly.com. Any updates to your machine will be reflected in these manuals as soon as they are complete. Visit our site often to check for the lat­est updates to this manual!

Contact Info

If you have any comments regarding this manual, please write to us at the address below:
C
/O Technical Documentation Manager
We stand behind our machines. If you have any service questions or parts requests, please call or write us at the location listed below.
Grizzly Industrial, Inc.
P.O. Box 2069
Bellingham, WA 98227-2069
Email: manuals@grizzly.com
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: (570) 546-9663
Fax: (800) 438-5901 E-Mail: techsupport@grizzly.com Web Site: http://www.grizzly.com
-2-
Model H8178 (Mfg. Since 07/07)

Machine Data Sheet

MODEL H8178 POWER FEED FOR
MODEL G0463 & G0619 MILL/DRILLS
Product Dimensions:
Weight............................................................................................................................................13 lbs.
Width/Depth/Height................................................................................................7.75"W x 7.5"D x 5"H
Electrical:
Switch................................................................................................................. Dual Micro Limit Switch
Power Supply Voltage......................................................................................................................110V
Cord Length....................................................................................................................................... 7 ft.
Cord Gauge...............................................................................................................................18 gauge
Recommended Breaker Size...................................................................................................... 15 amp
Plug........................................................................................................................................NEMA 5-15
Power Supply.......................................................................................................110VAC, Single-Phase
Circuit Board Protection.............................................................................................................Fuse, 5A
Automatic Motor Overload Protection.....................................Circuit Board Controlled Motor Shutdown
Motor Control....................................................................................................Circuit Board w/Rheostat
Rapid Feed Speed Option............................................................................................Yes, Push Button
Feed Speed Range..........................................................................................................0 -1100 mm/min
Motor:
Type..........................................................................................................Class E, Brush-Type 110VDC
Horsepower.....................................................................................................................................0.2 HP
Amps..................................................................................................................................................1.8A
Watts................................................................................................................................................150W
Speed.......................................................................................................................................4000 RPM
Power Transfer ..............................................................................................Gearbox w/All Steel Gears
Bearings....................................................................Bushing and Permanently Lubricated Ball Bearing
Model H8178 (Mfg. Since 07/07)
-3-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction Manual Before Operating this Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This
manual uses a series of symbols and signal words which are intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures.
Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.
This symbol is used to alert the user to useful information about
NOTICE
proper operation of the machine.

Safety Instructions for Machinery

1. READ THROUGH THE ENTIRE MANUAL BEFORE STARTING MACHINERY.
Machinery presents serious injury hazards to untrained users.
2. ALWAYS USE ANSI APPROVED
SAFETY GLASSES WHEN OPERATING MACHINERY. Everyday eyeglasses only
have impact resistant lenses, they are NOT safety glasses.
4. ALWAYS USE HEARING PROTECTION WHEN OPERATING MACHINERY.
Machinery noise can cause permanent hearing damage.
5. WEAR PROPER APPAREL. DO NOT wear loose clothing, gloves, neckties, rings, or jewelry which may get caught in moving parts. Wear protective hair covering to con­tain long hair and wear non-slip footwear.
3. ALWAYS WEAR AN ANSI APPROVED RESPIRATOR WHEN OPERATING MACHINERY THAT PRODUCES DUST.
Wood dust is a carcinogen and can cause cancer and severe respiratory illnesses.
-4-
6. NEVER OPERATE MACHINERY WHEN TIRED, OR UNDER THE INFLUENCE OF DRUGS OR ALCOHOL. Be mentally alert
at all times when running machinery.
Model H8178 (Mfg. Since 07/07)
Safety Instructions for Machinery
7. ONLY ALLOW TRAINED AND PROP­ERLY SUPERVISED PERSONNEL TO OPERATE MACHINERY. Make sure
operation instructions are safe and clearly understood.
8. KEEP CHILDREN AND VISITORS AWAY.
Keep all children and visitors a safe dis­tance from the work area.
9. MAKE WORKSHOP CHILD PROOF. Use padlocks, master switches, and remove start switch keys.
10. NEVER LEAVE WHEN MACHINE IS RUNNING. Turn power OFF and allow all
moving parts to come to a complete stop before leaving machine unattended.
11. DO NOT USE IN DANGEROUS ENVIRONMENTS. DO NOT use machin-
ery in damp, wet locations, or where any flammable or noxious fumes may exist.
12. KEEP WORK AREA CLEAN AND WELL LIT. Clutter and dark shadows may cause
accidents.
17. REMOVE ADJUSTING KEYS AND WRENCHES. Make a habit of checking for
keys and adjusting wrenches before turn­ing machinery ON.
18. CHECK FOR DAMAGED PARTS BEFORE USING MACHINERY. Check
for binding and alignment of parts, broken parts, part mounting, loose bolts, and any other conditions that may affect machine operation. Repair or replace damaged parts.
19. USE RECOMMENDED ACCESSORIES. Refer to the instruction manual for recom­mended accessories. The use of improper accessories may cause risk of injury.
20. DO NOT FORCE MACHINERY. Work at the speed for which the machine or acces­sory was designed.
21. SECURE WORKPIECE. Use clamps or a vise to hold the workpiece when practi­cal. A secured workpiece protects your hands and frees both hands to operate the machine.
13. USE A GROUNDED EXTENSION CORD RATED FOR THE MACHINE AMPERAGE.
Undersized cords overheat and lose power. Replace extension cords if they become damaged. DO NOT use extension cords for 220V machinery.
14.
ALWAYS DISCONNECT FROM POWER SOURCE BEFORE SERVICING MACHINERY. Make sure switch is in
position before reconnecting.
15. MAINTAIN MACHINERY WITH CARE.
Keep blades sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories.
16. MAKE SURE GUARDS ARE IN PLACE AND WORK CORRECTLY BEFORE USING MACHINERY.
Model H8178 (Mfg. Since 07/07)
OFF
22. DO NOT OVERREACH. Keep proper foot­ing and balance at all times.
23. MANY MACHINES WILL EJECT THE WORKPIECE TOWARD THE OPERATOR.
Know and avoid conditions that cause the workpiece to "kickback."
24. ALWAYS LOCK MOBILE BASES (IF USED) BEFORE OPERATING MACHINERY.
25. BE AWARE THAT CERTAIN DUST MAY BE HAZARDOUS to the respiratory sys-
tems of people and animals, especially fine dust. Make sure you know the hazards associated with the type of dust you will be exposed to and always wear a respirator approved for that type of dust.
-5-

Additional Safety for Power Feeds

1. UNDERSTANDING CONTROLS. Make sure
you understand the use and operation of all power feed controls.
2. SAFETY ACCESSORIES. Always wear your safety glasses when using the power feed.
3. WORK HOLDING. Before starting the power feed, be certain the workpiece has been properly clamped to the table. NEVER hold the workpiece against the table by hand dur­ing power feed operations.
4. SPINDLE SPEEDS. Select the spindle speed that is appropriate for the type of work and material. Allow the mill/drill to gain full speed before beginning a power feed operation.
5. POWER DISRUPTION. In the event of a local power outage when using the power feed, turn OFF all switches to avoid possible sudden start up once power is restored.
6. BE ATTENTIVE. DO NOT leave the area for any reason during any power feed opera­tion.
7. DISCONNECT POWER. Unplug the power feed from power before starting any inspec­tion, adjustment, or maintenance procedure.
8. MACHINE CARE AND MAINTENANCE. Never operate the power feed if the table is out of adjustment, is damaged, or has worn parts. Maintain your mill/drill in proper work­ing condition. Perform routine inspections and maintenance promptly. Put away adjust­ment tools after use.
9. AVOIDING ENTANGLEMENT. Keep loose clothing articles such as sleeves, belts or jew­elry items away from the table handwheels, and moving parts.
10. CLEAN-UP. DO NOT clear chips by hand, or blow off with compressed air. Use a brush, and never clear chips while the power feed is operating.
11. CUTTING TOOL INSPECTION. Inspect end mills for sharpness, chips, or cracks before beginning a power feed operation. Replace dull, chipped, or cracked cutting tools imme­diately. Handle new cutting tools with care. Leading edges are very sharp and can cause lacerations.
12. EXPERIENCING DIFFICULTIES. If at any time you are experiencing difficulties per­forming the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.
No list of safety guidelines can be complete. Every shop environment is different. Like all machines there is danger associated with the Model H8178. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to lessen the possibility of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.
-6-
Model H8178 (Mfg. Since 07/07)
SHOCK HAZARD! Two-prong outlets do not meet the grounding requirements for this machine. Do not modify or use an adapter on the plug provided—if it will not fit the outlet, have a qualified electrician install the proper outlet with a verified ground.

SECTION 2: CIRCUIT REQUIREMENTS

110V Operation

Electrocution or fire could result if this machine is not grounded correctly or
Serious personal injury could occur if you connect the machine to the power source before you have completed the set up pro­cess. DO NOT connect the machine to the power source until instructed to do so.
Amperage Draw
The Model H 8178 motor draws the following amps under maximum load:
Motor Draw ........................................... 1.8 Amps
if your electrical configu­ration does not comply with local and state codes. Ensure compliance by checking with a qualified electrician!
Circuit Recommendations
We recommend connecting your machine to a dedicated and grounded circuit that is rated for the amperage given below. Never replace a circuit breaker on an existing circuit with one of higher amperage without consulting a qualified electri­cian to ensure compliance with wiring codes. If
you are unsure about the wiring codes in your area or you plan to connect your machine to a shared circuit, consult a qualified electrician.
Circuit Breaker ....................................... 15 Amps
Plug/Receptacle Type
Included Plug Type ........................... NEMA 5-15
GROUNDED
5-15 RECEPTACLE
Grounding Prong
Extension Cords
We do not recommend the use of extension cords, if you find it absolutely necessary:
Use at least a 14 gauge cord that does not exceed 50 feet in length!
The extension cord must also contain a ground wire and plug pin.
5-15 PLUG
Figure 1. A 5-15 plug and receptacle.
Model H8178 (Mfg. Since 07/07)
Neutral Hot
A qualified electrician MUST size cords over 50 feet long to prevent motor damage.
-7-

SECTION 3: SETUP

Setup Safety

This machine presents serious injury hazards to untrained users. Read through this entire manu­al to become familiar with the controls and opera­tions before starting the machine!
Wear safety glasses dur­ing the entire set up pro­cess!

Unpacking

The Model H8178 was carefully packed when it left our warehouse. If you discover the machine is damaged after you have signed for delivery,
please immediately call Customer Service at (570) 546-9663 for advice.
Items Needed for
Setup
The following items are needed to complete the setup process, but are not included with your machine:
Tools & Hardware Needed: Qty
Wrench 10mm ............................................ 1
Center Punch ............................................. 1
Power Drill .................................................. 1
Drill Bit (#25) .............................................. 1
Bottoming Tap (#10-24) .............................. 1
Flat Head Screws (#10-24 x 1/2") .............. 2
Hex Wrench (3mm) .................................... 1
Hex Wrench (4mm) .................................... 1
Hex Wrench (5mm) .................................... 1
Phillips Screwdriver (#1) ............................ 1
Phillips Screwdriver (#2) ............................ 1
Flat Tip Screwdriver (#2) ............................ 1
Flat Metal File (10") .................................... 1
Small Hammer ............................................ 1
Dowel Punch 1/8" ....................................... 1
Medium Workbench Vise .......................... 1
Save the containers and all packing materials for possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the con­dition of your shipment, you should inventory the contents.
-8-
Model H8178 (Mfg. Since 07/07)

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.
If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.
Box 1 (see Figures 2–3): Qty
A. Limit Switch Assembly ............................... 1
B. Power Feed Unit ......................................... 1
C. Power Cord ................................................. 1
D. Cap Screws M6-1 x 16 (Power Feed) ........ 2
E. Limit Blocks R/L 10mm ........................1 Set
F. Limit Blocks R/L 8mm ..........................1 Set
G. Limit Blocks R/L 6mm ..........................1 Set

Installation

These instructions cover the power feed instal­lation for the Grizzly Model G0463 and G0619 small mill/drills. Follow these steps carefully, and your power feed installation should be quick and trouble free.
To install the power feed:
1. DISCONNECT THE MILL FROM POWER!
2. Loosen the gib screw lock nuts (Figure 4),
and adjust the X-axis table gib screws, so the table moves with slight resistance as felt in the handwheel.
Note: Make your adjustments on all four
locations equally and in small increments.
A
C
Figure 2. Inventory.
E
F
B
D
Figure 4. X-axis gib adjustment.
3. When properly adjusted, tighten the lock
nuts.
T-Slot Size: 10mm Milling Machines: G0720R & G0722
T-Slot Size: 8mm Milling Machines: G0463 & G0619
G
Figure 3. Limit block styles.
Model H8178 (Mfg. Since 07/07)
T-Slot Size: 6mm Milling Machines: G0727
-9-
4. Locate the X-axis lead screw half-nut (see Figure 5).
5. Adjust both cap screws until the handwheel
has approximately 0.003" backlash as shown by the dial.
8. Carefully slide the circuit board and vent cover from the housing a few inches as shown in Figure 6.
9. Using a standard screwdriver, pry the leadscrew dust cap off (Figure 7).
Milling Table
Lead Screw Half-Nut
Figure 5. X-axis leadscrew backlash
6. Use the #1 Phillips screwdriver to remove the
four flat head screws from both ends of the power feed.
7. Carefully slide the motor and mounting plate from the housing a few inches as shown in Figure 6.
Half-Nut Cap Screws
Lead
Screw
adjustment.
End Plate Retaining
Cap Screw
Figure 7. Cap removal.
10. Use a 5mm hex wrench, remove the two end plate retaining cap screws (Figure 7).
11. Thread the cap screws into the power feed
mounting holes (Figure 8), and in an alternat- ing fashion, tighten the screws to remove the table end plate.
Circuit Board Motor and Mounting Plate
Figure 6. Power feed breakdown.
-10 -
Figure 8. End plate removal.
Model H8178 (Mfg. Since 07/07)
12. On both tapered pins, measure and record the amount of pin protrusion from the face of the end plate (Figure 9).
Face
Figure 9. Pin protrusion.
13. Using a hammer, and working from the inside
out as shown in Figure 10, drive both wedge pins from the end plate.
DO NOT attempt to take a short cut and ham-
mer the protruding pins flush with the end plate cover. The pins are tapered and you
WILL crack the end plate.
15. Using soft jaws, secure the end plate in a vise with the painted surface facing up (Figure
11).
Soft Jaw
Figure 11. End plate surface preparation.
16. Using a 10" or longer flat metal file, remove
any high spots in the paint and give the end cap a flat surface for the power feed to mate with.
Note: We do not recommend removing the
paint completely, just ensure that the surface is flat.
File this portion of the
tapered pin, so when it is reinstalled, the pin is slightly recessed below
the surface of the end
cap.
Figure 10. Pin removal.
14. Using a file or bench grinder, shorten the
pins, so they are recessed slightly below the face when reinstalled.
17. Using a standard screwdriver, scrape away any paint from the bushing bore (Figure 12), so when the power feeder is mounted, the bushing sits properly in the bore without bind­ing.
Figure 12. Bushing bore preparation.
Model H8178 (Mfg. Since 07/07)
-11-
18. Reinstall the end plate, and drive the tapered pins in (Figure 13), so they are slightly recessed in the end plate face.
Figure 13. Pin reinstallation.
19. Rotate the power feed drive tang so it aligns with the lead screw slot (Figure 14).
21. Carefully slide the circuit board and vent cover
back into the power feed housing (Figure 15), but do not install the four mounting screws at this time.
The circuit board and vent cover must be left
loose so you can insert the motor into the case without pinching or crushing wires.
End
Plate
Tang Must Align
with Lead
Screw
Slot
Figure 14. Motor installation.
20. Place the power feed motor onto to the end
plate, and secure the power feed motor to the end plate with the two M6-1 x 16mm cap screws.
Figure 15. Circuit board installation.
22. Being careful not to crush or bind the circuit
board wires, slide the power feed housing onto the end of the motor (Figure 16).
Do not force the housing onto the motor. You
may have to reposition the circuit board and vent cover during this process to avoid motor and circuit board wire interference.
Wires Must be Kept Clear
When Sliding the Motor Into
the Power Feed Housing.
-12-
Figure 16. Final assembly.
23. Secure the vent cover and the mounting plate
to the power feed housing with the eight pre­viously removed flat head screws removed in Step 6.
Model H8178 (Mfg. Since 07/07)
NOTICE
Make sure to position the left and right stops so that the table can travel an addi­tional 10mm before the leadscrew runs out of thread. The reason for this additional table travel is that after using the rapid feed feature, the momentum of the motor arma­ture keeps rotating leadscrew so the table moves a few millimeters past your normal stop location. If the lead screw runs out of travel before the table naturally slows to a stop, a damaging hard stop will occur.
Periodically, make sure that you always have the appropriate table free travel past the stop setting to prevent damaging hard stops.
24. Install the appropriate left and right feed stops
for your milling machine into the table slot, as shown in Figure 17.
26. Install the limit switch mounting plate on the side of the milling table base so the limit switch stop pins are horizontally aligned with the stop pins as shown in Figure 18.
Also make sure that when mounted, the limit
switch housing has enough of a gap (also shown in Figure 18) between the gib screw lock nut so it can be adjusted.
27. When the mounting plate is properly posi­tioned, center punch one mounting hole.
Stop
Pin
Limit Switch
Stop Pin
Limit Switch
Housing
Note: You may want to additionally drill and
insert a roll pin to prevent any chance of a stop block inadvertently moving past the stop setting. If the stop moves past your maximum stop setting, the lead screw will run out of thread and slam the table and power feed to a hard stop causing possible damage.
Optional Roll Pin Installation
Location at Either End of Table
Figure 17. Feed stop and optional pin location.
25. Using a phillips screwdriver, remove the three
mounting screws that secure the limit switch to its mounting plate.
Gap
Figure 18. Alignment specifications.
28. Using your electric drill, drill one #25 mount-
ing hole 1/2" deep into the table base.
29. Using a #10-24 bottoming tap, cut threads into the hole.
30. Secure the limit switch mounting plate to the table base with one #10-24 x 1/2" flat head screw.
31. Center punch the other hole and drill, tap, and install the remaining screw.
32. Install the limit switch to the mounting plate with the three previously removed screws.
33. Secure the power and limit switch power cables away from the path of the moving table and handwheels.
Model H8178 (Mfg. Since 07/07)
-13-

SECTION 4: OPERATIONS

Operation Safety

Loose hair and cloth­ing could get caught in machinery and cause seri­ous personal injury. Keep loose clothing and long hair away from moving machinery.
If you have never used this type of machine or equipment before, WE STRONGLY REC­OMMEND that you read books, trade maga­zines, or get formal training before begin­ning any projects. Regardless of the con­tent in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

Power Feed Controls

Refer to the list below and see Figure 19 to understand the power feed controls.
A. Feed Direction Lever: There are 3 lever
positions: Left, Center (neutral), and Right. Only adjust lever when feed speed dial is turned all the way off. When not in use, keep lever in center (neutral) position.
B. Feed Speed Dial: Slowly rotate right (CW)
to set the feed speed. When finished, always turn the feed speed dial all the way left (CCW) until it clicks off, then move the feed lever to the center position.
C. Fault Lamp: Indicates overload or opera-
tor adjusted feed direction lever without first turning feed speed dial off. To reset and turn lamp off, turn feed speed dial all the way off and move the feed direction lever to center.
D. Power Lamp: Indicates power feed is con-
nected to power supply.
NOTICE
Always disconnect power from the power feed when not in use. Failure to do this may result in power feed damage.
E. Fuse: Protects circuits from damage caused
by thermal overload or electrical short.
F. Rapid Feed Button: Moves table in the
selected direction of feed direction lever at full speed while button is pressed.
A
E
C
D
Figure 19. Power feed controls.
B
F
-14-
Model H8178 (Mfg. Since 07/07)
ACCESSORIES

SECTION 5: ACCESSORIES

H8179—Horizontal Milling Table
Take advantage of the Model G0619 mill/drill 90° tilting headstock feature. Install this lifted cast-iron horizontal milling table for the correct clearance when making those side-milling operations.
H8179
1
G9002—2 G5971 —3 G5972—4" Swivel Base Milling Vise G5973—5" Swivel Base Milling Vise G5974—6" Swivel Base Milling Vise G5975—8" Swivel Base Milling Vise
Vises feature 360° rotation with fine graduations, drop forged handle, precision ground jaw faces, enclosed acme screw and detachable swivel base.
2" Swivel Base Milling Vise
1
2" Swivel Base Milling Vise
Figure 20. Horizontal milling worktable.
H8177—Worktable with Angle
Enjoy having an economical way to support your workpiece at an array of angles. This high-quality tilting worktable is quick and easy to setup and use.
Figure 22. Swivel base milling vise.
H5685—4" Rotary Table
The perfect rotary table for all you model makers and those doing smaller precision work. Comes with clamping kit.
Figure 23. H5685 4" Rotary Table.
Figure 21. Worktable with angle.
Model H8178 (Mfg. Since 07/07)
-15-

SECTION 6: MAINTENANCE

Brush Replacement

Always disconnect power to the machine before performing maintenance. Failure to do this may result in serious person­al injur y.

Schedule

During the life of your power feeder, you may have to replace the brush set if the unit loses RPM or becomes noisy. This is a simple task and only takes a few minutes.
Tools Needed: Qty
Standard Screwdriver (#3) ................................ 1
Needle Nose Pliers ............................................ 1
To replace the brushes:
For optimum performance from your power feed, follow this maintenance schedule and refer to any specific instructions given in this section.
Daily Check:
Loose mounting screws.
Table, leadscrews, and ways are clean and lubricated.
Worn or damaged wires.
Power feed stops are secured and properly adjusted to prevent a table crash or "hard stops."
Monthly Check:
Gibs are adjusted properly.
Oil power feed stop pins (Figure 24).
Annual or Biannual Check:
Lubricate headstock lead screw and gears.
Power Feed Stop Pin
1. DISCONNECT MACHINE FROM POWER!
2. Unscrew the power feed top dust cap (Figure
25).
Dust Cap
Figure 25. Top dust cap location.
3. Unscrew the brush retaining cap, use needle
nose pliers to replace the brush, and reinstall the caps (Figure 26).
4. Replace the remaining brush at the underside of the power feed.
Figure 24. Power feed stop pin lubrication.
-16 -
Motor
Brush
Brush
Bore
Dust
Cap
Brush
Retaining
Cap
Figure 26. Brush components.
Model H8178 (Mfg. Since 07/07)

SECTION 7: SERVICE

About Service

Review the troubleshooting and procedures in this section to fix your machine if a problem develops. If you need replacement parts or you are unsure of your repair skills, then feel free to call our Technical Support at (570) 546-9663.

Troubleshooting

Symptom Possible Cause Possible Solution
Power feed will not turn on or move the table.
Power feed moves table at inconsis­tent speeds during a pass.
Power feed works only in one direc­tion.
Poor surface finish, or vibration when milling with power feed.
1. Power cord is faulty.
2. Power lamp is not lit and fuse has blown.
3. Fault lamp is lit.
4. Limit switch is stuck open.
5. Motor brush is at fault.
6. Feed direction switch is at fault.
7. Feed speed rheostat is at fault.
8. Circuit board is at fault.
9. Gearbox is at fault.
10. Motor is at fault.
1. Table gib is binding table.
2. Leadscrew is binding.
3. Motor brush is at fault.
4. Feed speed rheostat is at fault.
5. Circuit board is at fault.
6. Gearbox is at fault.
7. Motor is at fault.
1. Wiring at fault.
2. Feed direction switch at fault.
3. Limit Switch is at fault.
4. Circuit board is at fault.
1. Table feed rate or cutter speed at fault.
2. Cutter at fault.
3. Loose table.
4. Loose headstock.
5. Power feed gearbox at fault.
1. Check all electrical connections, and repair or replace wires or connections as required.
2. Correct short and replace the fuse.
3. Reset the power feed by moving the feed direction lever to the center position and turning the feed speed dial to 0.
4. Replace limit switch assembly.
5. Replace brush set (Page 15).
6. Replace switch.
7. Replace rheostat.
8. Replace circuit board.
9. Replace motor and gearbox assy.
10. Replace motor and gearbox assy.
1. Clean, lubricate, and adjust table gib.
2. Clean, lubricate, and adjust leadscrew.
3. Replace brush set.
4. Replace switch.
5. Replace circuit board.
6. Replace motor and gearbox assy.
7. Replace motor and gearbox assy.
1. Tighten loose connection, or repair wir­ing.
2. Replace feed direction switch.
3. Replace limit switch assembly.
4. Replace circuit board.
1. Slow feed rate, recalculate cutter speed.
2. Sharpen or replace cutter, or use correct cutter.
3. Adjust gibs, lead screws, and tighten Y­axis gib lock.
4. Tighten Z-axis gib and spindle locks.
5. Replace motor and gearbox assy.
Model H8178 (Mfg. Since 07/07)
-17-
These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one
number and manufacture date of your
machine before calling. This information can be found on the main machine label.
machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.
If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-
nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical com­ponents!
MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire. This includes the installation of unapproved after­market parts.
WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires dis­connected or connected during any wiring task to ensure tight connections.
CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.
WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.
MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.
CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.
EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.
The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.
-18-
Model H8178 (Mfg. Since 07/07)

Electrical Components

Note: Available in color online at grizzly.com
Fault
Power
Lamp
Fuse Housing
Figure 27. Control panel electrical.
Lamp
Feed
Speed
Rheostat
Rapid Feed
Switch
Figure 28. Feed speed rheostat and rapid feed
switch (side view).
Figure 29. Circuit board.
Model H8178 (Mfg. Since 07/07)
READ ELECTRICAL SAFETY
ON PAGE 18!
-19 -
Figure 30. Feed direction switch
(Top-side view A).
Figure 31. Feed direction switch
(Top-side view B).
-20-
READ ELECTRICAL SAFETY
ON PAGE 18!
Figure 32. Limit switch assembly.
Model H8178 (Mfg. Since 07/07)
This wiring diagram can be viewed online in full color at www.grizzly.com.

Wiring Diagram

Neutral
Hot
Ground
POWER FEED HOUSING
CIRCUIT BOARD
FRONT VIEW
K4
K3
XMT-1115J
FEED DIRECTION
10A 300V
ROTARY SWITCH
(FRONT VIEW)
10A, 380V
HZ10-10P/3
RAPID FEED
SWITCH
REAR VIEW
J2
P6 P5 P4 P3 P2 P1
K2
K1
A+
A-
L2
L1
GAN
J1
K2
A
6
2
K1
B
FEED SPEED
RHEOSTAT REAR VIEW
FUSE 2A
125V
L2
FAULT LAMP
ORANGE
SPADE PLUG
SPADE PLUG
GREEN
POWER LAMP
110 VAC
1
SPADE PLUG
SPADE PLUG
BRUSH STYLE MOTOR
ZYT-150
150W DC 110V
1.8A 4000 RPM Class E
GROUND
LIMIT SWITCH
HOUSING
NO
7
NO
Model H8178 (Mfg. Since 07/07)
GROUND
NC
NC
READ ELECTRICAL SAFETY
-21-
ON PAGE 18!
21

Parts Breakdown

8
37
7
35
36
20
33
34
12
14
11
13
19
18
17
40
39
38
15
3
9V2
10
22
23
24
25
31
5
30
4
1V2
2
32
26
16
27
28
29
6
REF PART # DESCRIPTION REF PART # DESCRIPTION
1V2 PH8178001V2 FUSE 2A V2.07.07 21 PFH49M FLAT HD SCR M3-.5 X 6 2 PH8178002 FEED DIRECTION SWITCH 22 PH8178022 FEMALE BALL KNOB M5-.8 3 PH8178003 FEED SHAFT BUSHING 23 PH8178023 LEVER 4 PH8178004 UPPER LABEL 24 PH8178024 LEVER HUB 5 PH8178005 LOWER LABEL 25 PS07M PHLP HD SCR M4-.7 X 8 6 PH8178006 POWER CORD 110V 7' 26 PH8178026 DIAL KNOB 7 PH8178007 BRUSH SET 27 PH8178027 RAPID FEED BUTTON 8 PH8178008 BRUSH CAP 28 PH8178028 MOUNTING PLATE 9V2 PH8178009V2 CIRCUIT BOARD XMT-1115J V2.07.07 29 PSB30M CAP SCREW M6-1 X 45 10 PH8178010 INSULATOR 30 PH8178030 FAULT LAMP 11 PH8178011 RIGHT STOP ASSEMBLY 31 PH8178031 POWER LAMP 12 PH8178012 RIGHT STOP BLOCK 32 PH8178032 FUSE HOUSING 13 PH8178013 LEFT STOP ASSEMBLY 33 PH8178033 T-NUT 14 PH8178014 LEFT STOP BLOCK 34 PH8178034 COMPRESSION SPRING 15 PSB01M CAP SCREW M6-1 X 16 35 PH8178035 SHAFT PIN 16 PFH25M FLAT HD SCR M4-.7 X 12 36 PSB95M CAP SCREW M5-.8 X 30 17 PH8178017 HOUSING 37 PH8178037 CRIMP CLIP 18 PH8178018 DUST PLUG 38 PH8178038 LIMIT SWITCH ASSEMBLY 19 PH8178019 MOTOR AND GEARBOX 39 PH8178039 POTENTIOMETER - SPEED SWITCH 20 PH8178020 VENT COVER 40 PH8178040 GRIZZLY LOGO LABEL 7/8 X 2
-22-
Model H8178 (Mfg. Since 07/07)
WARRANTY CARD
Name _____________________________________________________________________________
Street _____________________________________________________________________________
City _______________________ State _________________________ Zip _____________________
Phone # ____________________ Email _________________________________________________
Model # ____________________ Order # _______________________ Serial # __________________
The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. Of course, all information is strictly confidential.
1. How did you learn about us? ____ Advertisement ____ Friend ____ Catalog ____ Card Deck ____ Website ____ Other:
2. Which of the following magazines do you subscribe to?
____ Cabinetmaker & FDM ____ Family Handyman ____ Hand Loader ____ Handy ____ Home Shop Machinist ____ Journal of Light Cont. ____ Live Steam ____ Model Airplane News ____ Old House Journal ____ Popular Mechanics
3. What is your annual household income? ____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000 ____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+
CUT ALONG DOTTED LINE
4. What is your age group? ____ 20-29 ____ 30-39 ____ 40-49 ____ 50-59 ____ 60-69 ____ 70+
5. How long have you been a woodworker/metalworker? ____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years
6. How many of your machines or tools are Grizzly? ____ 0-2 ____ 3-5 ____ 6-9 ____ 10+
____ Popular Science ____ Popular Woodworking ____ Precision Shooter ____ Projects in Metal ____ RC Modeler ____ Rie ____ Shop Notes ____ Shotgun News ____ Today’s Homeowner ____ Wood
____ Wooden Boat ____ Woodshop News ____ Woodsmith ____ Woodwork ____ Woodworker West ____ Woodworker’s Journal ____ Other:
7. Do you think your machine represents a good value? _____Yes _____No
8. Would you recommend Grizzly Industrial to a friend? _____ Yes _____No
9. Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. _____ Yes _____No
10. Comments: _____________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
FOLD ALONG DOTTED LINE
FOLD ALONG DOTTED LINE
Place
Stamp
Here
GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069
Send a Grizzly Catalog to a friend:
Name_______________________________
Street_______________________________
City______________State______Zip______
TAPE ALONG EDGES--PLEASE DO NOT STAPLE

WARRANTY AND RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
Loading...
