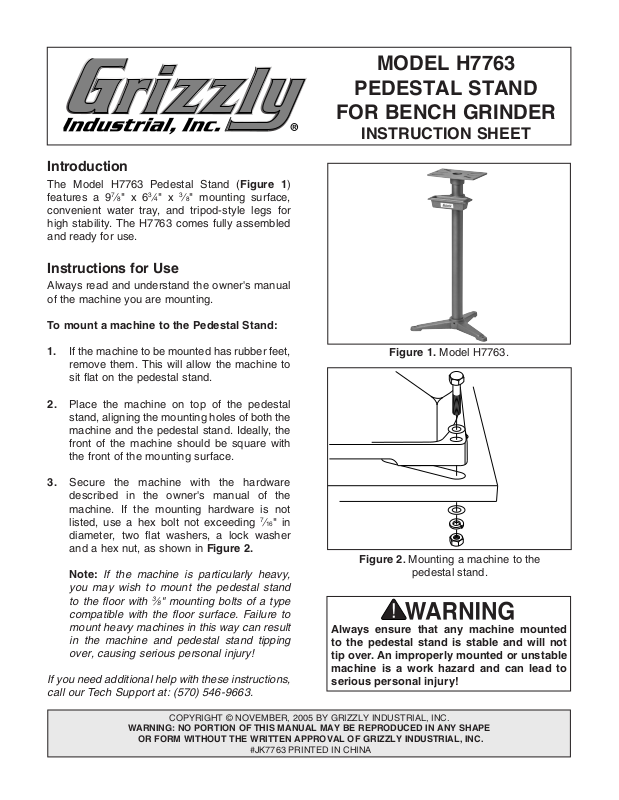

Introduction
The Model H7763 Pedestal Stand (Figure 1)
features a 9
convenient water tray, and tripod-style legs for
high stability. The H7763 comes fully assembled
and ready for use.
7
⁄8 " x 63⁄4" x 3⁄8 " mounting surface,
Instructions for Use
Always read and understand the owner's manual
of the machine you are mounting.
To mount a machine to the Pedestal Stand:
MODEL H7763
PEDESTAL STAND
FOR BENCH GRINDER
INSTRUCTION SHEET
1. If the machine to be mounted has rubber feet,
remove them. This will allow the machine to
sit flat on the pedestal stand.
2. Place the machine on top of the pedestal
stand, aligning the mounting holes of both the
machine and the pedestal stand. Ideally, the
front of the machine should be square with
the front of the mounting surface.
3. Secure the machine with the hardware
described in the owner's manual of the
machine. If the mounting hardware is not
listed, use a hex bolt not exceeding
diameter, two flat washers, a lock washer
and a hex nut, as shown in Figure 2.
Note: If the machine is particularly heavy,
you may wish to mount the pedestal stand
to the floor with
compatible with the floor surface. Failure to
mount heavy machines in this way can result
in the machine and pedestal stand tipping
over, causing serious personal injury!
If you need additional help with these instructions,
call our Tech Support at: (570) 546-9663.
3
⁄8" mounting bolts of a type
7
⁄16" in
Figure 1. Model H7763.
Figure 2
Always ensure that any machine mounted
to the pedestal stand is stable and will not
tip over. An improperly mounted or unstable
machine is a work hazard and can lead to
serious personal injury!
. Mounting a machine to the
pedestal stand.
COPYRIGHT © NOVEMBER, 2005 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#JK7763 PRINTED IN CHINA
