20
17
21
1
19
24
14
7
29
25
23
2
13
15
11
16
27
9
26
3
18
10
22
8
6
5
4
12
20
28
30

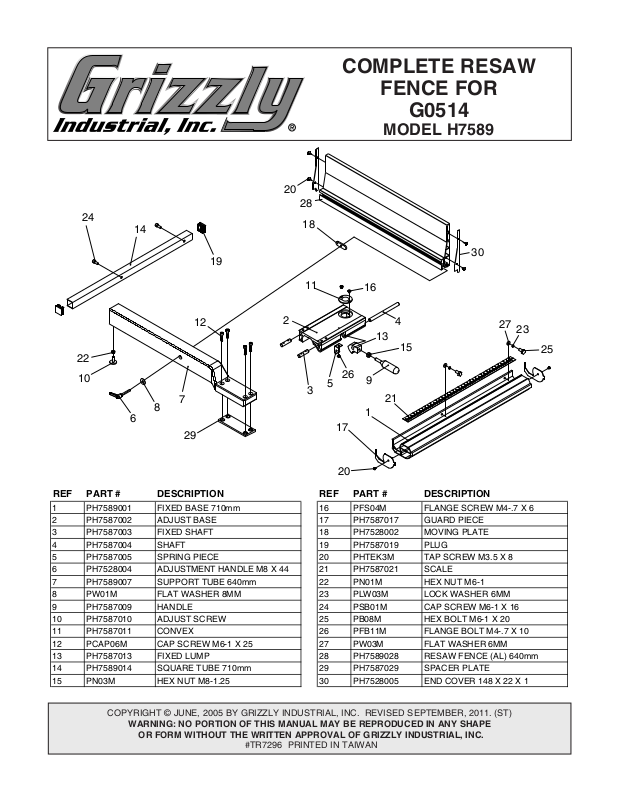

complete resaW
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PH7589001 FIXED BASE 710mm 16 PFS04M FLANGE SCREW M4-.7 X 6
2 PH7587002 ADJUST BASE 17 PH7587017 GUARD PIECE
3 PH7587003 FIXED SHAFT 18 PH7528002 MOVING PLATE
4 PH7587004 SHAFT 19 PH7587019 PLUG
5 PH7587005 SPRING PIECE 20 PHTEK3M TAP SCREW M3.5 X 8
6 PH7528004 ADJUSTMENT HANDLE M8 X 44 21 PH7587021 SCALE
7 PH7589007 SUPPORT TUBE 640mm 22 PN01M HEX NUT M6-1
8 PW01M FLAT WASHER 8MM 23 PLW03M LOCK WASHER 6MM
9 PH7587009 HANDLE 24 PSB01M CAP SCREW M6-1 X 16
10 PH7587010 ADJUST SCREW 25 PB08M HEX BOLT M6-1 X 20
11 PH7587011 CONVEX 26 PFB11M FLANGE BOLT M4-.7 X 10
12 PCAP06M CAP SCREW M6-1 X 25 27 PW03M FLAT WASHER 6MM
13 PH7587013 FIXED LUMP 28 PH7589028 RESAW FENCE (AL) 640mm
14 PH7589014 SQUARE TUBE 710mm 29 PH7587029 SPACER PLATE
15 PN03M HEX NUT M8-1.25 30 PH7528005 END COVER 148 X 22 X 1
fence for
g0514
model h7589
Copyright © june, 2005 By grizzly industrial, inC. reVised septemBer, 2011. (st)
Warning: no portion of this manual may be reproduced in any shape
or form Without the Written approval of grizzly industrial, inc.
#tr7296 printed in taiwan
