24
15
30
14

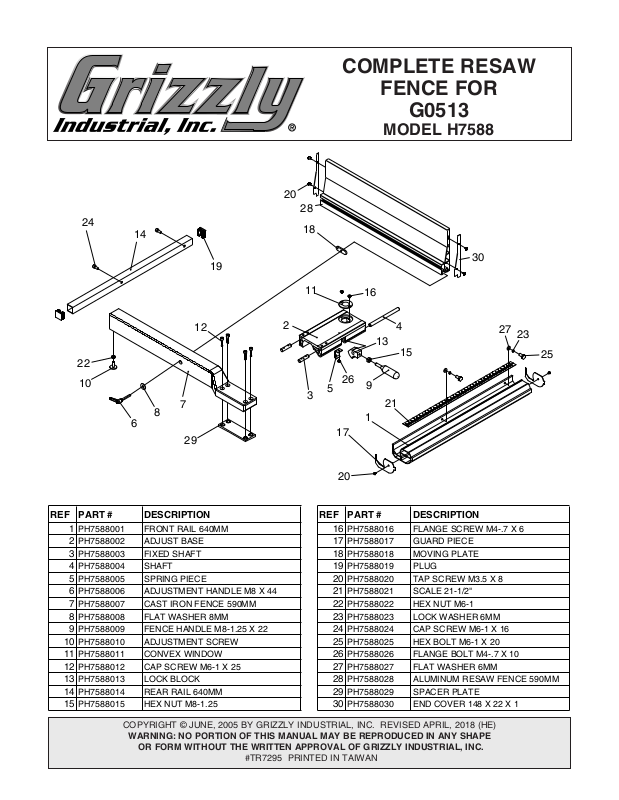

COMPLETE RESAW
FENCE FOR
G0513
MODEL H7588
20
28
18
19
30
12
11
2
16
13
4
27
23
15
22
10
3
7
8
6
26
5
9
21
1
17
29
20
REF PART # DESCRIPTION REF PART # DESCRIPTION
PH7588001 FRONT RAIL 640MM 16 PH7588016 FLANGE SCREW M4-.7 X 6
1
2 PH7588002 ADJUST BASE 17 PH7588017 GUARD PIECE
3 PH7588003 FIXED SHAFT 18 PH7588018 MOVING PLATE
4 PH7588004 SHAFT 19 PH7588019 PLUG
5 PH7588005 SPRING PIECE 20 PH7588020 TAP SCREW M3.5 X 8
6 PH7588006 ADJUSTMENT HANDLE M8 X 44 21 PH7588021 SCALE 21-1/2"
7 PH7588007 CAST IRON FENCE 590MM 22 PH7588022 HEX NUT M6-1
8 PH7588008 FLAT WASHER 8MM 23 PH7588023 LOCK WASHER 6MM
9 PH7588009 FENCE HANDLE M8-1.25 X 22 24 PH7588024 CAP SCREW M6-1 X 16
10 PH7588010 ADJUSTMENT SCREW 25 PH7588025 HEX BOLT M6-1 X 20
11 PH7588011 CONVEX WINDOW 26 PH7588026 FLANGE BOLT M4-.7 X 10
12 PH7588012 CAP SCREW M6-1 X 25 27 PH7588027 FLAT WASHER 6MM
13 PH7588013 LOCK BLOCK 28 PH7588028 ALUMINUM RESAW FENCE 590MM
14 PH7588014 REAR RAIL 640MM 29 PH7588029 SPACER PLATE
PH7588015 HEX NUT M8-1.25
PH7588030 END COVER 148 X 22 X 1
25
COPYRIGHT © JUNE, 2005 BY GRIZZLY INDUSTRIAL, INC. REVISED APRIL, 2018 (HE)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#TR7295 PRINTED IN TAIWAN
