20
20

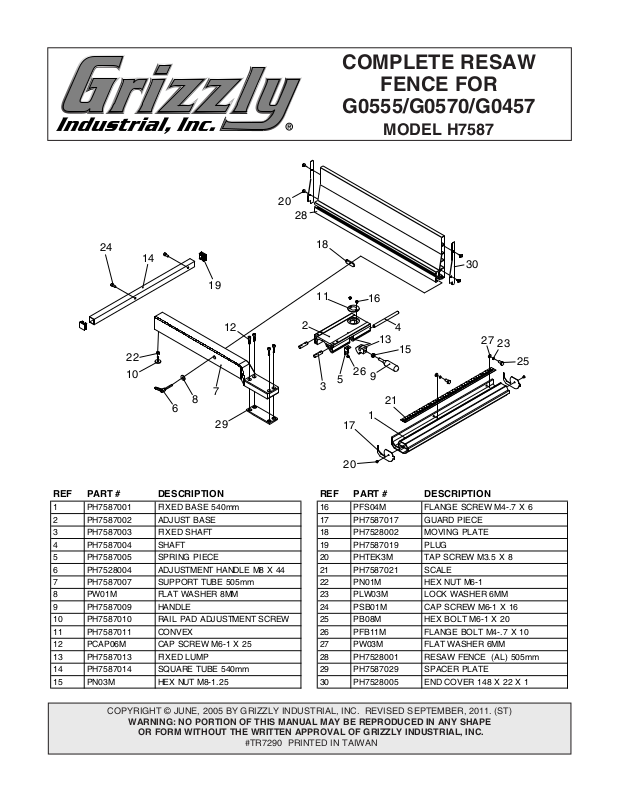

REF PART # DES CRIPTI ON REF PART # DES CRIPTI ON
COMPLETE RESAW
FENCE FOR
G0555/G0570/G0457
MODEL H7587
28
24
18
14
19
12
11
2
16
4
13
15
22
10
7
8
3
6
29
1 PH7587001 FIXED BASE 540mm 16 PFS04M FLANGE SCREW M4-.7 X 6
2 PH7587002 ADJUST BASE 17 PH7587017 GUARD PIECE
3 PH7587003 FIXE D SHAFT 18 PH7528002 MOVING PLATE
4 PH7587004 SHAFT 19 PH7587019 PLUG
5 PH7587005 SPRING PIECE 20 PHTEK3M TAP SCREW M3.5 X 8
6 PH7528004 ADJ US TMENT HANDL E M8 X 44 21 PH7587021 SCALE
7 PH7587007 SUPPORT TUBE 505mm 22 PN01M HEX NUT M6- 1
8 PW01M FLAT WAS HER 8MM 23 PLW03M LOCK WASHER 6MM
9 PH7587009 HANDLE 24 PSB01M CAP SCREW M6-1 X 16
10 PH7587010 RAI L PAD A DJ USTMENT S CREW 25 PB08M HEX BOLT M6-1 X 20
11 PH7587011 CONVEX 26 PFB11M FLANGE BOLT M4-.7 X 10
12 PCAP06M CAP SCREW M6-1 X 25 27 PW03M FLAT WAS HER 6MM
13 PH7587013 FIXE D LUMP 28 PH7528001 RESAW FENCE (AL) 505mm
14 PH7587014 SQUARE TUBE 540mm 29 PH7587029 SPACER PLATE
15 PN03M HEX NUT M8- 1. 25 30 PH7528005 END COVER 148 X 22 X 1
26
5
9
21
1
17
30
27
23
25
COPYRIGHT © JUNE, 2005 BY GRIZZLY INDUSTRIAL, INC. REVISED SEPTEMBER, 2011. (ST)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#TR7290 PRINTED IN TAIWAN
