Introduction
Installing the new fence requires replacing the
original fence with the new fence support tube on
the fence base, attaching the resaw fence, then
putting on the new fence scale.
Inventory
• Resaw Fence ............................................. 1
• Fence Support Tube .................................. 1
• Flat Washer 8mm ....................................... 1
• Moving Plate ............................................... 1
• Adjustment Handle ..................................... 1
• Scale .......................................................... 1
• Cap Screws M6-1 x 25 ............................... 4
MODEL H7584
RESAW FENCE
FOR G0555/G0570/G0457
INSTRUCTION SHEET
Figure 1. Four cap screws to be removed for
changing fences.
Installing Fence Support Tube
1. Remove the four cap screws (Figure 1) and
remove the fence from your original fence
base.
2. Install the fence support tube on the fence
base with the spacer plate between the them,
as shown in Figure 2.
Attaching Resaw Fence
1. Insert the adjustment handle with washer
through the hole in the fence and attach the
moving plate on the other side (Figure 3).
2. Slide the resaw fence over the moving plate,
center it with your original fence, and lock it
in position with the adjustment handle.
Installing Scale
1. Raise the blade guides, and place the resaw
fence against the blade.
Spacer Plate
Between Fence
Support Tube and
Fence Base
Figure 2. New fence support tube installed.
Moving Plate
2. Note where scale indicator line is over the old
scale, and pencil a mark on the rail next to
the scale.
3. Remove the old scale and install the new
scale so the 0 is even with your pencil mark.
Figure 3. Installing resaw fence.

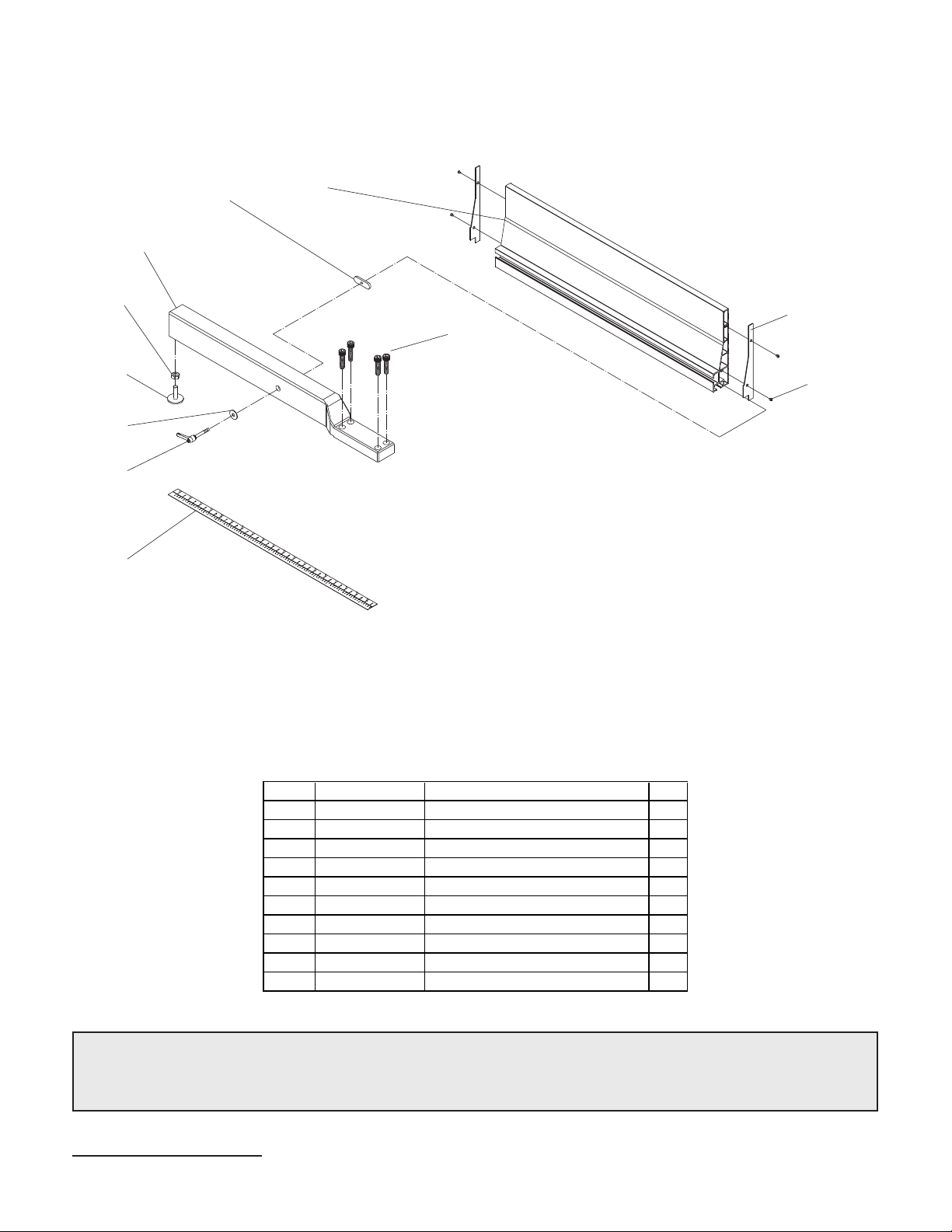

H7584 Parts Breakdown and List
2
1
5
6
10
8
7
11
3
4
9
REF PART # DESCRIPTION QTY
1 PH7584001 RESAW FENCE (AL) 505mm
2 PH7528002 MOVING PLATE
3 PW01M FLAT WASHER 8MM
4 PH7584004 ADJUSTMENT HANDLE M8 X 44
5 PH7584005 FENCE SUPPORT TUBE 505MM
6 PN01M HEX NUT M6-1
7 PH7584007 ADJUST SCREW
8 PCAP06M CAP SCREW M6-1 X 25
9 PH7584009 SCALE
10 PH7528005 END COVER 148 X 22 X 1
11 PHTEK3M TAP SCREW M3.5 X 8
COPYRIGHT © JUNE, 2005 BY GRIZZLY INDUSTRIAL, INC. REVISED JANUARY, 2018 (HE)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#TR7286 PRINTED IN TAIWAN
1
1
1
1
1
1
1
4
1
2
4
For replacement parts, call 1-800-523-4777. For help, call Technical Support at 1-570-546-9663 or email
