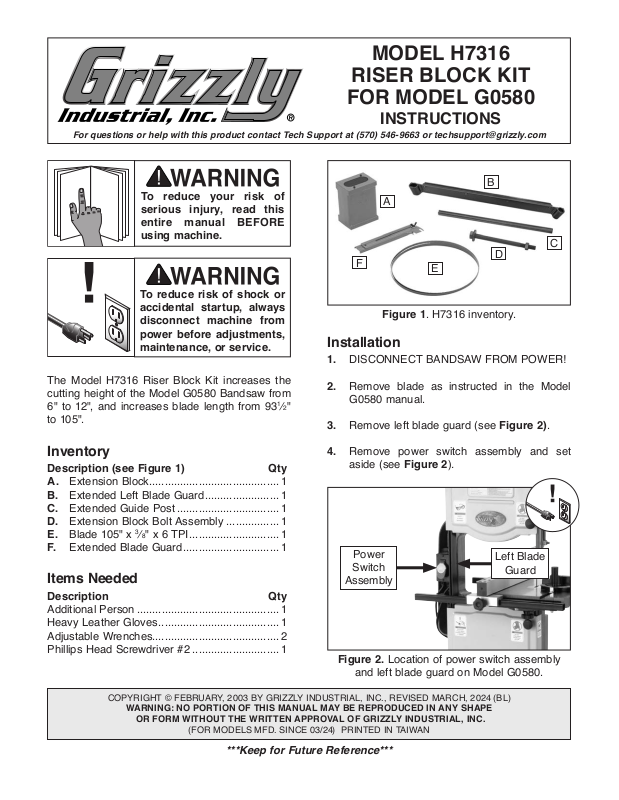

MODEL H7316
RISER BLOCK KIT
FOR MODEL G0580
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
B
A
using machine.
power before adjustments,
maintenance, or service.
The Model H7316 Riser Block Kit increases the
cutting height of the Model G0580 Bandsaw from
6" to 12", and increases blade length from 93
to 10 5".
1
⁄2 "
Inventory
Description (see Figure 1) Qty
A. Extension Block .......................................... 1
Extended Left Blade Guard ........................ 1
B.
Extended Guide Post ................................. 1
C.
D. Extension Block Bolt Assembly ................. 1
E. Blade 105" x
F. Extended Blade Guard ............................... 1
3
⁄8" x 6 TPI ............................. 1
Items Needed
Description Qty
Additional Person
Heavy Leather Gloves
Adjustable Wrenches......................................... 2
Phillips Head Screwdriver #2
.............................................. 1
....................................... 1
............................ 1
C
F
Figure 1. H7316 inventory.
E
D
Installation
1. DISCONNECT BANDSAW FROM POWER!
Remove blade as instructed in the Model
2.
G0580 manual.
Remove left blade guard (see Figure 2).
3.
Remove power switch assembly and set
4.
aside (see Figure 2).
Power
Switch
Assembly
Figure 2. Location of power switch assembly
and left blade guard on Model G0580.
Left Blade
Guard
COPYRIGHT © FEBRUARY, 2003 BY GRIZZLY INDUSTRIAL, INC., REVISED MARCH, 2024 (BL)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 03/24) PRINTED IN TAIWA N
***Keep for Future Reference***
5. While an assistant supports upper arm
assembly (see Figure 3), remove hex nut
and hex bolt securing it to base, then remove
upper arm and set it aside.
Note: Upper arm is pinned to the base. If
removal is difficult, carefully rock it loose.
Upper Arm
Assembly
Figure 3. Example of loosening hex bolt while
assistant supports upper arm assembly.
Place extension block on base pins, then
6.
have assistant place upper arm on extension
block pins and hold it in place (see Figure 4).
Disassemble extension block bolt assembly
7.
and insert (1) extension block bolt and washer through upper arm and extension block
(see Figure 4A).
Attach remaining washer and hex nut to exten-
8.
sion block bolt and tighten (see Figure 4A).
A
Install extended left blade guard using the
9.
fasteners removed in Step 3 (see Figure 5).
Remove guide assembly and blade guard
10.
from guide post, then loosen guide post (see
Figure 5).
While lowering guide post, install extended
11.
guide post into guide post bracket from above
and slowly lower until guide post can be
removed (see Figure 5).
Note: Removing guide post using this meth-
od will help prevent the steel ball inside the
post from falling out.
Attach guide assembly and extended blade
12.
guard to new guide post (see Figure 5).
Guide Post
Bracket
Extended
Blade
Guard
Extended
Left Blade
Guard
Extended
Guide
Assembly
Figure 5. Example of blade guard and guide
post components.
13.
Install 105" bandsaw blade, tension it prop-
erly, test tracking, and adjust blade guides
according to Model G0580 manual.
Guide
Post
Upper Arm
Pins
Extension
Block
Figure 4. Placing upper arm on extension block
and attaching extension block bolt assembly.
-2-
Verify alignment of bandsaw wheels as
14.
instructed in Model G0580 manual.
Install power switch assembly.
15.
Note: Power switch assembly can be placed
in original holes, or in holes drilled into the
new extension block. If you need help, call
Tech Support at (570) 546-9663.
H7316 Extension Block Kit (Mfd. 03/24+)
