EYE INJURY HAZARD!

Quick Connector

Quick Coupler

Air Hose

Quick Coupler

Quick Connector

Lubricator

Filter

Regulator

Air

Compressor

Your Tool

Always wear safety glasses during use to prevent

serious personal injury!

INJURY HAZARD! Always disconnect tool from air to prevent unexpected operation during service!

EXPLOSION HAZARD! Never exceed 120 PSI!

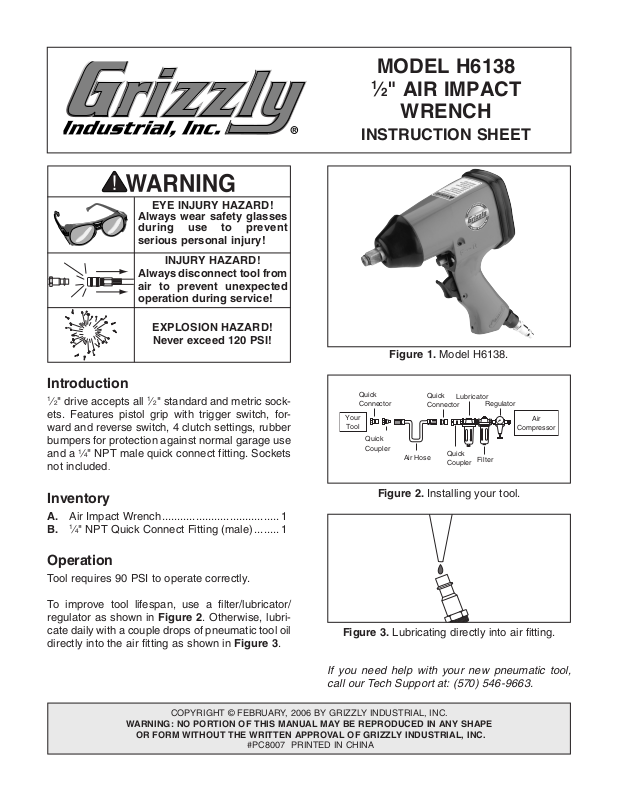

MODEL H6138

⁄2" AIR IMPACT

WRENCH

INSTRUCTION SHEET

Figure 1. Model H6138.

Introduction

⁄2 " drive accepts all 1⁄2 " standard and metric sockets. Features pistol grip with trigger switch, for ward and reverse switch, 4 clutch settings, rubber bumpers for protection against normal garage use and a not included

⁄4" NPT male quick connect fitting. Sockets

Inventory

A. Air Impact Wrench ...................................... 1

B. 1⁄4" NPT Quick Connect Fitting (male) ........ 1

Operation

Tool requires 90 PSI to operate correctly.

To improve tool lifespan, use a filter/lubricator/ regulator as shown in Figure 2. Otherwise, lubri cate daily with a couple drops of pneumatic tool oil directly into the air fitting as shown in Figure 3

Figure 2. Installing your tool.

Figure 3. Lubricating directly into air fitting.

If you need help with your new pneumatic tool, call our Tech Support at: (570) 546-9663.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#PC8007 PRINTED IN CHINA

H6138 Parts Breakdown and List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PH613801 HOUSING 24 PH613824 ANVIL

2 PH613802 VALVE SLEEVE 25 PH613825 HAMMER CAGE

3 PH613803 ANVIL BUSHING 26 PH613826 HAMMER PIN

4 PH613804 EXHAUST DEFLECTOR 27 PH613827 HAMMER DOG

5 PH613805 TAPPING SCREW 28 PH613828 DRIVE CAM

6 PH613806 TRIGGER 29 PH613829 OIL SEAL

7 PH613807 SPRING PIN 30 PH613830 BALL BEARING

8 PH613808 VALVE STEM 31 PH613831 FRONT END PLATE

9 PH613809 BUSHING 32 PH613832 ROTOR BLADE

10 PH613810 STEEL BALL 33 PH613833 ROTOR

11 PH613811 SPRING 34 PH613834 SPRING PIN

12 PH613812 HOSE ADAPTER 35 PH613835 CYLINDER

13 PH613813 SPRING 36 PH613836 REAR END PLATE

14 PH613814 O-RING 37 PH613837 REAR GASKET

15 PH613815 AIR REGULATOR 38 PH613838 REAR COVER

16 PH613816 SET SCREW 39 PH613839 SPRING WASHER

17 PH613817 REVERSE VALVE 40 PH613840 CAP SCREW

18 PH613818 PIN 41 PH613841 NAME PLATE

19 PH613819 SPRING 42 PH613842 RUBBER

20 PH613820 SET SCREW 43 PH613843 PROTECTING RUBBER

21 PH613821 SET SCREW 44 PH613844 STEEL BALL

22 PH613822 ANVIL COLLAR 45 PH613845 1/4 NPT AIR FITTING

23 PH613823 O-RING
