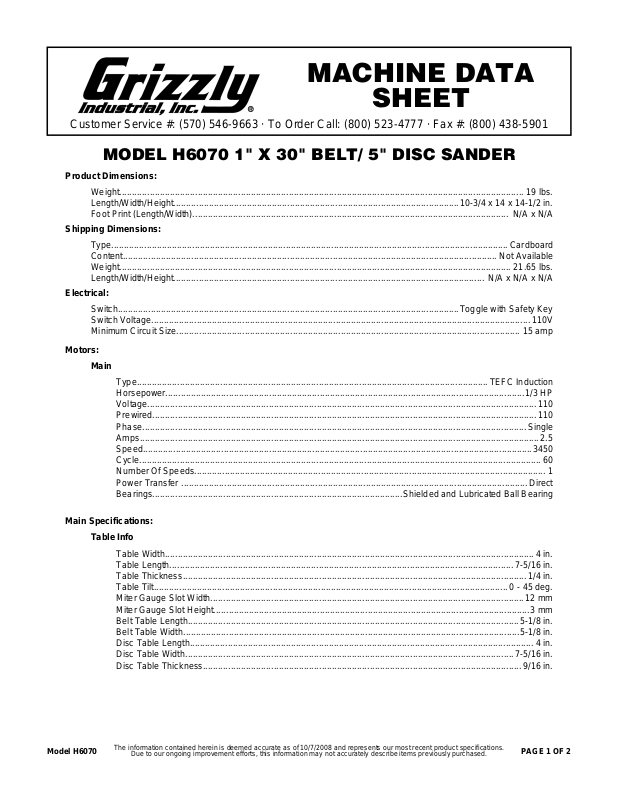

Grizzly H6070 User Manual

MACHINE DATA
SHEET
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
MODEL H6070 1" X 30" BELT/ 5" DISC SANDER
Product Dimensions:
Length/Width/Height.................................................................................................................10-3/4 x 14 x 14-1/2 in.
Foot Print (Length/Width)............................................................................................................................. N/A x N/A
Shipping Dimensions:
Type............................................................................................................................................................. Cardboard
Content.................................................................................................................................................... Not Available
Length/Width/Height........................................................................................................................... N/A x N/A x N/A
Electrical:
Switch.......................................................................................................................................Toggle with Safety Key
Switch Voltage......................................................................................................................................................110V
Minimum Circuit Size........................................................................................................................................ 15 amp
Motors:
Main
Type...........................................................................................................................................TEFC Induction
Horsepower..............................................................................................................................................1/3 HP
Voltage..........................................................................................................................................................110
Prewired........................................................................................................................................................110
Phase........................................................................................................................................................Single
Amps..............................................................................................................................................................2.5
Speed..........................................................................................................................................................3450
Cycle...............................................................................................................................................................60
Number Of Speeds........................................................................................................................................... 1
Power Transfer .........................................................................................................................................Direct
Bearings...................................................................................................Shielded and Lubricated Ball Bearing
Main Specifications:
Table Info
Table Width..................................................................................................................................................4 in.
Table Length........................................................................................................................................7-5/16 in.
Table Thickness........................................................................................................................................1/4 in.
Table Tilt............................................................................................................................................0 - 45 deg.
Miter Gauge Slot Width............................................................................................................................12 mm
Miter Gauge Slot Height.............................................................................................................................3 mm
Belt Table Length...................................................................................................................................5-1/8 in.
Belt Table Width.....................................................................................................................................5-1/8 in.
Disc Table Length........................................................................................................................................ 4 in.
Disc Table Width..................................................................................................................................7-5/16 in.
Disc Table Thickness..............................................................................................................................9/16 in.
The information contained herein is deemed accurate as of 10/7/2008 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased.
PAGE 1 OF 2Model H6070
Belt Info
Sanding Belt Width.......................................................................................................................................1 in.
Sanding Belt Length...................................................................................................................................30 in.
Sanding Belt Speed............................................................................................................................ 3150 SFP
Drive Roller Type......................................................................................................................................Plastic
Drive Wheel Diameter............................................................................................................................3-1/2 in.
Idler Roller Type..................................................................................................................................Aluminum
Idler Roller Diameter.................................................................................................................................... 2 in.
Disc Info
Sanding Disc Diameter.................................................................................................................................5 in.
Sanding Disc Speed...........................................................................................................................3450 RPM
Platen Info
Platen Type.................................................................................................................................................Steel
Platen Length...............................................................................................................................................3 in.
Platen Width.................................................................................................................................................1 in.
Construction
Base Construction....................................................................................................................... Punched Steel
Table Construction.........................................................................................................Ground Cast Aluminum
Miter Gauge Construction.........................................................................................................................Plastic
Paint..........................................................................................................................................................Epoxy
Other
No. Of Dust Ports..............................................................................................................................................2
Dust Port Size..........................................................................................................................1-3/4, 1-13/16 in.
Features:
Dual Dust Ports Safety Guards Adjustable Platen Universal Positioning Lock Levers Removable Safety Key Manual Belt Tracking Adjustment Rubber Foot Mounting Takes Standard 1" X 30" Belts and 5" Discs Machined Aluminum Tables
The information contained herein is deemed accurate as of 10/7/2008 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased.
PAGE 2 OF 2Model H6070
