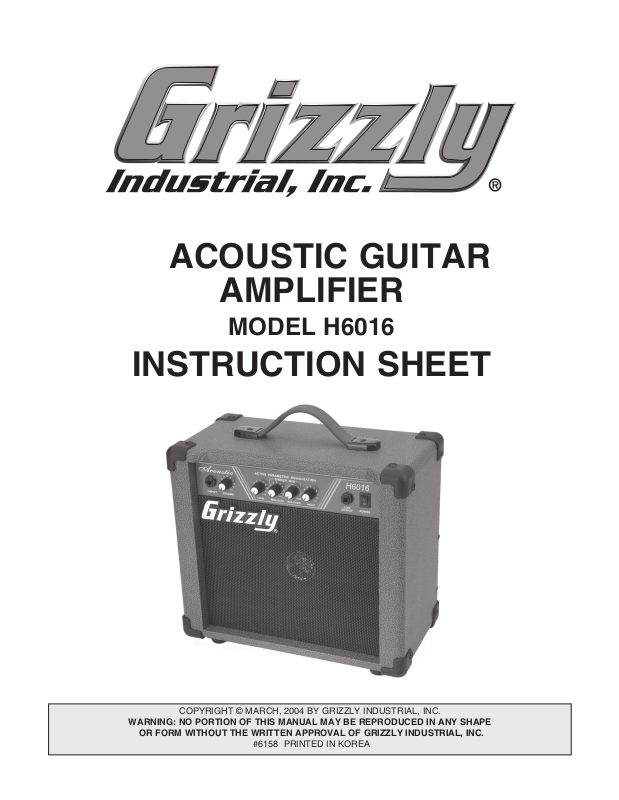

ACOUSTIC GUITAR

AMPLIFIER

MODEL H6016

INSTRUCTION SHEET

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#6158 PRINTED IN KOREA

MODEL H6016 CONTROLS

A. INPUT: Connect your guitar here, using a shielded instrument cable with a 1/4" jack.

B. VOLUME: This knob controls the overall volume of the amplifier.

C. ACTIVE PARAMETRIC EQUALIZATION: This 3 band EQ features Low and High frequency shelving

EQ filters along with a sweepable mid-frequency network that is adjustable to help reduce feedback. The midrange gain control, when turned toward the "-" direction, operates as a variable frequency notch filter.

D. LINE OUTPUT: A line level output is provided for sending a signal from the pre-amp section to a

mixing console for live performance or recording purposes.

CB E

E. POWER LED: The power LED illuminates when the power is ON.

F. POWER SWITCH: Turns power ON and OFF.

Caring For Your

Amplifier

• DO NOT remove the grounding prong to ﬁt the plug into a two-pronged outlet!

• To keep the ampliﬁer working properly, DO NOT expose it to rain or moisture.

• DO NOT pull or lift the ampliﬁer by the power cord.

• UNPLUG the ampliﬁer before cleaning, and only clean with a damp cloth (no chemicals).

SHOCK HAZARD! The amplifier must have a ground prong in the plug to help ensure that it is grounded. DO NOT remove this prong to fit the plug into a two-pronged outlet!
