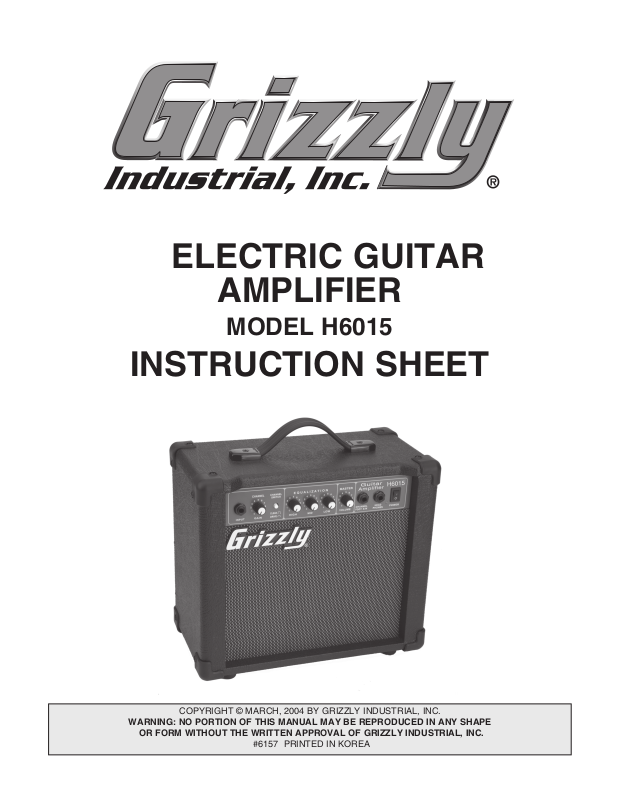

Grizzly H6015 User Manual

ELECTRIC GUITAR

AMPLIFIER

MODEL H6015

INSTRUCTION SHEET

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#6157 PRINTED IN KOREA

MODEL H6015 CONTROLS

A. INPUT: Connect your guitar here, using a shielded instrument cable with a 1⁄4" jack.

B. CHANNEL GAIN: Adjusts the amount of gain in the Drive Channel.

C. CHANNEL SWITCH: This switch allows you to select Clean/Drive Channel.

D. 3 BAND EQUALIZATION: The main equalization of the Model H6015 is a classic 3-band passive

network. All pass (no band cut) is attained with the controls in the full clockwise position—unlike active controls which exhibit a “flat” setting at the 12 o’clock positions.

E. MASTER VOLUME: This knob controls the pre-gain volume of the amplifier.

F. CHANNEL FOOT SWITCH JACK: Connect a one button foot switch here for remote control of the

Clean/Drive Channel.

G. HEADPHONES OUTPUT: For connection to almost any headphone with a 1⁄4" jack.

H. POWER LED: The power LED illuminates when the power is ON.

I. POWER SWITCH: Turns power ON and OFF.

Caring For Your

Amplifier

• DO NOT remove the grounding prong to ﬁt the plug into a two-pronged outlet!

• To keep the ampliﬁer working properly, DO NOT expose it to rain or moisture.

• DO NOT pull or lift the ampliﬁer by the power cord.

• UNPLUG the ampliﬁer before cleaning, and only clean with a damp cloth (no chemicals).

SHOCK HAZARD! The amplifier must have a ground prong in the plug to help ensure that it is grounded. DO NOT remove this prong to fit the plug into a two-pronged outlet!
