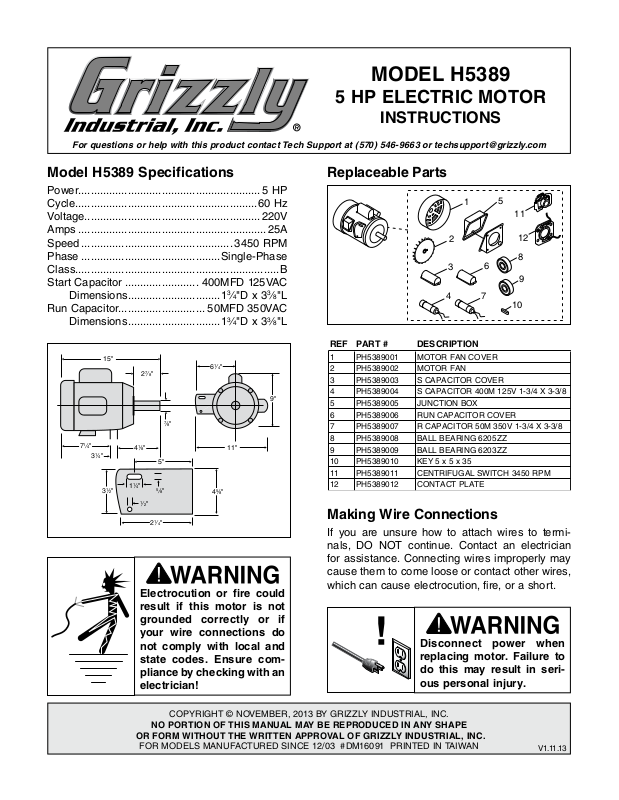

MODEL H5389
REF PART # DESCRIPTION
1 PH5389001 MOTOR FAN COVER 2 PH5389002 MOTOR FAN 3 PH5389003 S CAPACITOR COVER 4 PH5389004 S CAPACITOR 400M 125V 1-3/4 X 3-3/8 5 PH5389005 JUNCTION BOX 6 PH5389006 RUN CAPACITOR COVER 7 PH5389007 R CAPACITOR 50M 350V 1-3/4 X 3-3/8 8 PH5389008 BALL BEARING 6205ZZ 9 PH5389009 BALL BEARING 6203ZZ 10 PH5389010 KEY 5 x 5 x 35 11 PH5389011 CENTRIFUGAL SWITCH 3450 RPM 12 PH5389012 CONTACT PLATE
5 HP ELECTRIC MOTOR
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Power........................................................... 5 HP
Cycle...........................................................60 Hz
Voltage......................................................... 220V
Amps .............................................................25A
Speed .................................................3450 RPM
Phase .............................................Single-Phase
Class..................................................................B
Start Capacitor ........................ 400MFD 125VAC
Dimensions ..............................1
Run Capacitor............................ 50MFD 350VAC
Dimensions ..............................1
15"
7
2
8
"
7
8
"
1
7
4
"
1
3
4
"
1
4
8
"
5"
3
4"D x 33⁄8"L
3
4"D x 33⁄8"L
1
6
4
"
11"
9"
Replaceable Parts
1
5
11
2
12
8
3
6
9
4
7
10
1
1
4
"
1
3
2
"
5
8
"
1
2
"
1
2
4
"
5
4
8
"
Electrocution or fire could result if this motor is not grounded correctly or if your wire connections do not comply with local and state codes. Ensure com­pliance by checking with an electrician!
COPYRIGHT © NOVEMBER, 2013 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
FOR MODELS MANUFACTURED SINCE 12/03 #DM16091 PRINTED IN TAIWAN
Making Wire Connections
If you are unsure how to attach wires to termi­nals, DO NOT continue. Contact an electrician for assistance. Connecting wires improperly may cause them to come loose or contact other wires, which can cause electrocution, fire, or a short.
Disconnect power when replacing motor. Failure to do this may result in seri­ous personal injury.
V1.11.13
Page 2
View this page in color at
www.grizzly.com.
Start
Capacitor
400 MFD 125 VAC
Ground
220V
Bl
Bl
Run
Capacitor
50MFD
350 VAC
COLOR KEY
BLACK
RED
WHITE
GREEN
BLUE
The motor wiring shown here is current at the time of printing, but it may not match your motor. Always use the wiring diagram inside the motor junction box.
Bl
Bl
Bl
H5389 Wiring Diagram
-2-
H5389 5 HP Electric Motor (Mfg. 12/03+)
