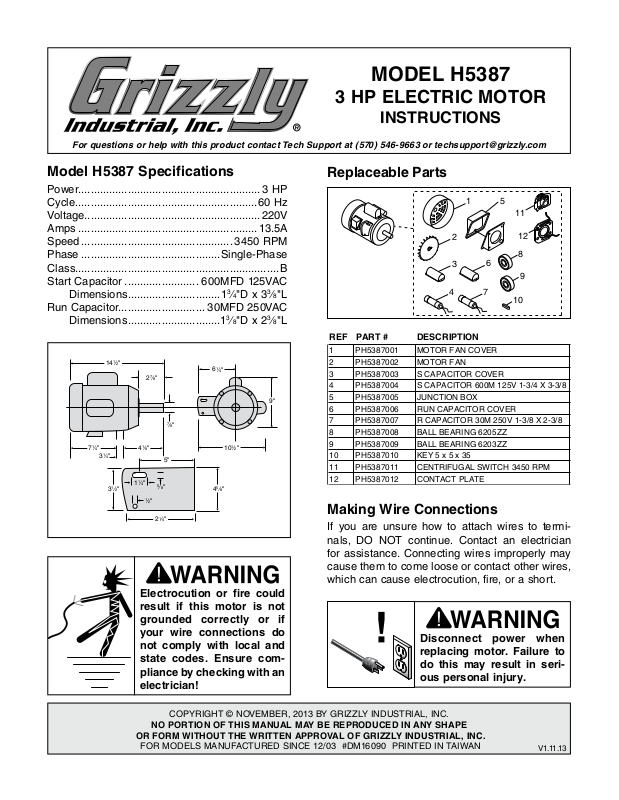

Grizzly H5387 User guide

MODEL H5387

REF PART # DESCRIPTION

1 PH5387001 MOTOR FAN COVER
2 PH5387002 MOTOR FAN
3 PH5387003 S CAPACITOR COVER
4 PH5387004 S CAPACITOR 600M 125V 1-3/4 X 3-3/8
5 PH5387005 JUNCTION BOX
6 PH5387006 RUN CAPACITOR COVER
7 PH5387007 R CAPACITOR 30M 250V 1-3/8 X 2-3/8
8 PH5387008 BALL BEARING 6205ZZ
9 PH5387009 BALL BEARING 6203ZZ
10 PH5387010 KEY 5 x 5 x 35
11 PH5387011 CENTRIFUGAL SWITCH 3450 RPM
12 PH5387012 CONTACT PLATE

3 HP ELECTRIC MOTOR

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

Model H5387 Specifications

Power........................................................... 3 HP

Cycle...........................................................60 Hz

Voltage......................................................... 220V

Amps ..........................................................13.5A

Speed ................................................. 3450 RPM

Phase .............................................Single-Phase

Class..................................................................B

Start Capacitor ........................ 600MFD 125VAC

Dimensions ..............................1

Run Capacitor............................ 30MFD 250VAC

Dimensions ..............................1

1

14

⁄

2

"

7

2

⁄

8

"

7

⁄

8

"

1

7

⁄

4

"

1

3

⁄

4

"

1

4

⁄

8

"

5"

3

⁄4"D x 33⁄8"L

3

⁄8"D x 23⁄8"L

1

6

⁄

4

"

1

10

⁄

2

"

9"

Replaceable Parts

1

5

11

2

12

8

3

6

9

4

7

10

1

1

⁄

4

"

1

3

⁄

2

"

5

⁄

8

"

1

⁄

2

"

1

2

⁄

4

"

5

4

⁄

8

"

Electrocution or fire could
result if this motor is not
grounded correctly or if
your wire connections do
not comply with local and
state codes. Ensure com­pliance by checking with an
electrician!

COPYRIGHT © NOVEMBER, 2013 BY GRIZZLY INDUSTRIAL, INC.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

FOR MODELS MANUFACTURED SINCE 12/03 #DM16090 PRINTED IN TAIWAN

Making Wire Connections

If you are unsure how to attach wires to termi­nals, DO NOT continue. Contact an electrician
for assistance. Connecting wires improperly may
cause them to come loose or contact other wires,
which can cause electrocution, fire, or a short.

Disconnect power when
replacing motor. Failure to
do this may result in seri­ous personal injury.

V1.11.13

H5387 Wiring Diagram

View this page in color at

www.grizzly.com.

The motor wiring shown here is
current at the time of printing, but it
may not match your motor. Always
use the wiring diagram inside the
motor junction box.

COLOR KEY

BLACK

WHITE

GREEN

BLUE

GRAY

Bl

Bl

Bl

Bl

Bl

Ground

Start
Capacitor
600 MFD

125 VAC

Run

Capacitor

30 MFD

250 VAC

220V

-2-

H5387 3 HP Electric Motor (Mfg. 12/03+)
