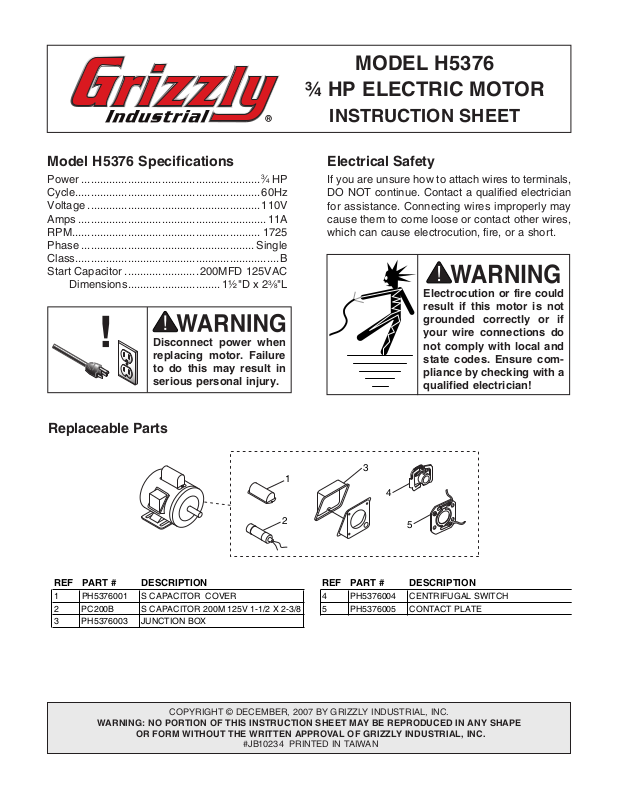

MODEL H5376
¾ HP ELECTRIC MOTOR
INSTRUCTION SHEET
Model H5376 Specifications
Power ..........................................................3⁄4 HP
Cycle ............................................................60Hz
Voltage ........................................................110V
Amps .............................................................11A
RPM ............................................................. 1725
Phase ........................................................ Single
Class ..................................................................B
Start Capacitor ........................200MFD 125VAC
Dimensions .............................. 1½"D x 2
Disconnect power when
replacing motor. Failure
to do this may result in
serious personal injury.
3
⁄8"L
Replaceable Parts
Electrical Safety
If you are unsure how to attach wires to terminals,
DO NOT continue. Contact a qualified electrician
for assistance. Connecting wires improperly may
cause them to come loose or contact other wires,
which can cause electrocution, fire, or a short.
Electrocution or fire could
result if this motor is not
grounded correctly or if
your wire connections do
not comply with local and
state codes. Ensure compliance by checking with a
qualified electrician!
3
1
4
2
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PH5376001 S CAPACITOR COVER 4 PH5376004 CENTRIFUGAL SWITCH
2 PC200B S CAPACITOR 200M 125V 1-1/2 X 2-3/8 5 PH5376005 CONTACT PLATE
3 PH5376003 JUNCTION BOX
COPYRIGHT © DECEMBER, 2007 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS INSTRUCTION SHEET MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#JB10234 PRINTED IN TAIWA N
5
Page 2
COLOR KEY
H5376 Wiring Diagram
BLACK
WHITE
GREEN
Bl
Bl
Bk
Wt
Gn
RED
YELLOW
BLUE
Start
Capacitor
200 MFD
125 VAC
Rd
Yl
Bl
110V
MOTOR DIRECTION
To reverse motor direction,
switch wires #5 & #6.
Bl
Ground
View this page in color at
www.grizzly.com.
6
2
1
5
Bl
The motor wiring shown here is
current at the time of printing, but it
may not match your machine.
Always use the wiring diagram
inside the motor junction box.
-2-
H5376 ¾ HP Electric Motor Instruction Sheet
