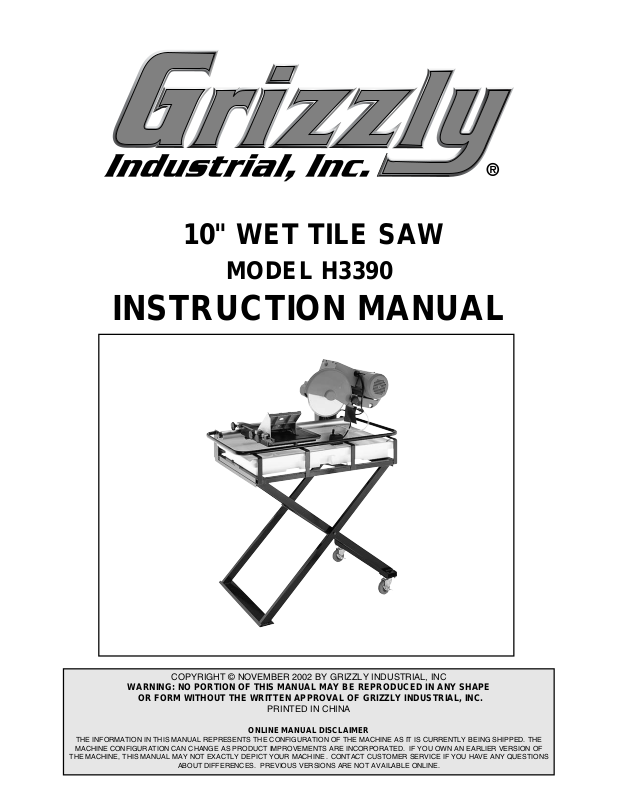

10" WET TILE SAW
MODEL H3390
INSTRUCTION MANUAL
COPYRIGHT © NOVEMBER 2002 BY GRIZZLY INDUSTRIAL, INC
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
PRINTED IN CHINA
ONLINE MANUAL DISCLAIMER
THE INFORMATION IN THIS MANUAL REPRESENTS THE CONFIGURATION OF THE MACHINE AS IT IS CURRENTLY BEING SHIPPED. THE
MACHINE CONFIGURATION CAN CHANGE AS PRODUCT IMPROVEMENTS ARE INCORPORATED. IF YOU OWN AN EARLIER VERSION OF
THE MACHINE, THIS MANUAL MAY NOT EXACTLY DEPICT YOUR MACHINE . CONTACT CUSTOMER SERVICE IF YOU HAVE ANY QUESTIONS
ABOUT DIFFERENCES. PREVIOUS VERSIONS ARE NOT AVAILABLE ONLINE.
WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth
defects or other reproductive harm. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work
with approved safety equipment, such as those dust
masks that are specially designed to filter out microscopic
particles.
TABLE OF CONTENTS
PAGE
1. SAFETY ......................................................................................................................................................2
SAFETY RULES FOR TOOLS ........................................................................................................2-3
SAFETY RULES FOR TILE SAWS ....................................................................................................4
2. INTRODUCTION ........................................................................................................................................5
COMMENTARY....................................................................................................................................5
3. CIRCUIT REQUIREMENTS ........................................................................................................................6
110V ....................................................................................................................................................6
GROUNDING ......................................................................................................................................7
EXTENSION CORDS ..........................................................................................................................7
4. SET UP ........................................................................................................................................................8
CLEAN UP............................................................................................................................................8
SITE CONSIDERATIONS ....................................................................................................................8
MAIN FEATURES ................................................................................................................................9
ASSEMBLY ..................................................................................................................................10-13
BLADE CHANGES ............................................................................................................................13
START UP..........................................................................................................................................14
LUBRICATION ..................................................................................................................................15
5. OPERATION..............................................................................................................................................16
CUT PREPARATION ........................................................................................................................16
CUTTING............................................................................................................................................16
RIP FENCE ........................................................................................................................................17
45˚ FENCE ........................................................................................................................................17
6. MAINTENANCE ........................................................................................................................................18
GENERAL ..........................................................................................................................................18
7. REFERENCE INFO ..................................................................................................................................19
DATA SHEET ........................................................................................................................................................20
PARTS BREAKDOWNS & LIST ......................................................................................................................21-23
WARRANTY AND RETURNS ..........................................................................................................................26-28
-2- H3390 Wet Tile Saw
SECTION 1: SAFETY
For Your Own Safety Read Instruction
Manual Before Operating This Equipment
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury, or MAY cause property
damage.
This symbol is used to alert the user to useful information about
proper operation of the equipment.
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This
manual uses a series of symbols and signal words which are intended to convey the level of
importance of the safety messages. The progression of symbols is described below. Remember
that safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures.
NOTICE
Safety Instructions For Power Tools
5. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors should be
kept at a safe distance from work area.
6. MAKE WORKSHOP CHILD PROOF with
padlocks, master switches, or by removing
starter keys.
7. DO NOT FORCE TOOL. It will do the job
better and safer at the rate for which it was
designed.
8. USE RIGHT TOOL. Do not force tool or
attachment to do a job for which it was not
designed.
1. KEEP GUARDS IN PLACE and in working
order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are
removed from tool before turning on.
3. KEEP WORK AREA CLEAN. Cluttered
areas and benches invite accidents.
4. DO NOT USE IN DANGEROUS ENVIRONMENT. Do not use power tools in
damp or wet locations, or where any flammable or noxious fumes may exist. Keep
work area well lighted.
H3390 Wet Tile Saw -3-
9. USE PROPER EXTENSION CORD. Make
sure your extension cord is in good condition. Conductor size must be in accordance with the chart below. The amperage
rating is listed on the motor or tool nameplate. An undersized cord will cause a drop
in line voltage resulting in loss of power
and overheating. Your extension cord must
also contain a ground wire and plug pin.
Always repair or replace damaged extension cords.
Minimum Gauge for Extension Cords
10. WEAR PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, rings,
bracelets, or other jewelry which may get
caught in moving parts. Non-slip footwear
is recommended. Wear protective hair covering to contain long hair.
11. ALWAYS USE ANSI-APPROVED SAFETY GLASSES. Also use face or dust mask
if cutting operation is dusty. Everyday eyeglasses only have impact resistant lenses,
they are NOT safety glasses.
12. SECURE WORK. Use clamps or a vise to
hold work when practical. It is safer than
using your hand and frees both hands to
operate tool.
13. NEVER OVERREACH. Keep proper foot-
ing and balance at all times.
LENGTH
AMP RATING 25ft 50ft 100ft
0-6 18 16 16
7-10 18 16 14
11-12 16 16 14
13-16 14 12 12
17-20 12 12 10
21-30 10 10 No
Safety Instructions For Power Tools
14. MAINTAIN TOOLS WITH CARE. Keep
tools sharp and clean for best and safest
performance. Follow instructions for lubricating and changing accessories.
15. DISCONNECT TOOLS before servicing
and changing accessories, such as blades,
bits, cutters, and any other item.
16. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure switch is in off
position before plugging in. Also, the magnetic switch on this machine may start if the
switch gets bumped hard enough.
17. USE RECOMMENDED ACCESSORIES.
Consult the owner’s manual for recommended accessories. The use of improper
accessories may cause risk of injury.
18. CHECK DAMAGED PARTS. Before fur-
ther use of the tool, a guard or other part
that is damaged should be carefully
checked to determine that it will operate
properly and perform its intended function.
Check for alignment of moving parts, binding of moving parts, breakage of parts,
mounting, and any other conditions that
may affect its operation. A guard or other
part that is damaged must be properly
repaired or replaced.
19. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. Do not
leave tool until it comes to a complete stop.
20. NEVER USE UNDER THE INFLUENCE of
alcohol or drugs, or when tired.
21. IF AT ANY TIME YOU ARE EXPERIENCING DIFFICULTIES performing the intend-
ed operation, stop using the machine! Then
contact our service department or ask a
qualified expert how the operation should
be performed.
-4- H3390 Wet Tile Saw
1. Water Pump. Replace the water pump
with a replacement pump from our parts
department only.
2. Wet Hands. DO NOT touch connections
with wet hands.
3. Plug In. All plug and receptacles should be
off the ground and in a dry location.
4. Drip Loop. Always make a drip loop with
the power cord when using the saw
(Figure 18, Page 14).
5. GFCI. Always use a GFCI in the electrical
circuit of the saw (Figure 1, Page 6).
6. Water Flow. Ensure that a continuous flow
of water is present on both side of the saw
blade when cutting.
7. Dry Cutting. Never dry cut with blades
designed for wet cutting.
8. Blade Cooling. DO NOT make long con-
tinuous dry cuts. Allow the blade to cool by
running it in the air every few minutes.
9. Dust Mask. Always wear a dust mask
when cutting tile.
10. Diamond Blades. Diamond blades DO
NOT cut material, rather they grind materi-
Safety Instructions For Tile Saws
al. DO NOT feed the tile into the blade
faster than the blade can grind.
11. Blade Selection. Match the correct dia-
mond blade to the cutting operation being
performed.
12. Blade Mounting. Before mounting the
blade, inspect the arbor, arbor nut, and
flanges for damage or wear. Replace any
damaged or worn parts.
13. Blade Direction. Check that the direction-
al arrow on the saw blade points in a
counter-clockwise direction as viewed from
the mounting side.
14. Blade Arbor. Ensure the blade arbor hole
size matches the arbor shaft size on the
saw.
15. Blade Guard. Never operate the saw with-
out the blade guard installed and properly
adjusted.
16. Blade Speed. DO NOT exceed the blades
safe operating speed.
17. Side Grinding. Never grind tile on the side
of the blade, or make radius or curve cuts.
H3390 Wet Tile Saw -5-
SECTION 2: INTRODUCTION
We are proud to offer the Grizzly Model H3390
Wet Tile Saw. The Model H3390 is part of a
growing Grizzly family of fine woodworking
machinery. When used according to the guidelines set forth in this manual, you can expect
years of trouble-free, enjoyable operation and
proof of Grizzly’s commitment to customer satisfaction.
This high quality wet cutting Tile Saw is the perfect addition for the professional tile-setter or the
ambitious homeowner. The motor is a 2.5 HP,
110V, 3450 RPM induction motor. The saw features a belt driven
5
⁄8" arbor, an 18" ripping capac-
ity, a 12" diagonal cutting capacity, a 3
3
⁄4
" cutting
depth, a 16
3
⁄8" x 111⁄8" table size, a 45˚ bullnose
miter gauge, a rip fence, a sliding table, a plastic
water tub, a fully submersible water pump, and a
folding stand with casters for portability.
Grizzly is also pleased to provide this manual
with the Model H3390. It was written to guide you
through assembly, review safety considerations,
and cover general operating procedures. If you
have any comments regarding this manual,
please write to us at the address below:
Grizzly Industrial, Inc.
C
/O Technical Documentation
P.O. Box 2069
Bellingham, WA 98227-2069
Commentary
Most importantly, we stand behind our machines.
If you have any service questions or parts
requests, please call or write us at the location
listed below:
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail: techsupport@grizzly.com
Web Site: http://www.grizzly.com
The specifications, drawings, and photographs
illustrated in this manual represent the Model
H3390 as supplied when the manual was prepared. However, owing to Grizzly’s policy of continuous improvement, changes may be made at
any time with no obligation on the part of Grizzly.
Current Grizzly machine manuals can be viewed
and printed at: www.grizzly.com.
Lack of familiarity with
this manual could
cause serious personal injury. Become
familiar with the contents of this manual,
including all the safety
warnings.
-6- H3390 Wet Tile Saw
SECTION 3: CIRCUIT REQUIREMENTS
110V Operation
The Model H3390 is wired to operate at 110V. A
Ground Fault Circuit Interrupter (GFCI) must be
used at all times when using this saw. If an outlet
is not available that is equipped with a GFCI, use
a GFCI plug adapter between the saw power cord
and a properly grounded outlet. See Figure 1 for
a typical 110V plug and GFCI outlet.
Under normal 110V use, the Model H3390 motor
draws approximately 15 amps. Use a 20 amp circuit breaker or a 20 amp slow-blow fuse.
If the machine is not wired correctly a fire
could result. Make sure your wiring, receptacle, plug, and circuit breaker can handle
the amperage draw of the machine. If you
are not sure that your electrical circuit can
handle the amperage draw, get a qualified
electrician to test your electrical system
and do any required upgrades. DO NOT
attempt to modify an existing circuit by
only replacing the circuit breaker with one
rated for a higher amperage draw than the
wiring, receptacle, and plug are rated for.
The circuit you use should be dedicated, (i.e., the
machine should provide the only draw from that
circuit). If frequent circuit failures occur when
using this machine, contact our Service
Department or your local electrical contractor.
Figure 1. Typical 110V 3-prong plug and
GFCI outlet.
RESET
TEST
H3390 Wet Tile Saw -7-
Grounding Extension Cord
Reduce the risk of electrocution by keeping all
connections dry and off
the ground. DO NOT
touch plugs with wet
hands. Failure to follow
these warning could
result in serious injury.
NOTICE
The wire on the power cord with green or
green and yellow striped insulation is the
grounding conductor.
In the event of an electrical short, grounding provides electric current a path of least resistance to
reduce the risk of electrical shock to the operator.
Ground the power cord and this machine in accordance with all local codes and ordinances.
Operating this machine when it is not properly
grounded can result in electric shock or electrocution.
No single list of electrical guidelines can
be comprehensive for all shop environments. Operating this machinery may
require additional electrical upgrades specific to your machine and shop environment. It is your responsibility to make sure
your electrical systems comply with all
local electrical codes and ordinances.
Only use extension cords that are intended for
outdoor use. These types of extension cords are
designated with a label stating, “Acceptable for
use with outdoor appliances; store indoors when
not in use.” Refer to the chart in Section 1: Safety
Instructions to determine the minimum gauge for
the extension cord. Always repair or replace
extension cords when they become worn or damaged.
-8- H3390 Wet Tile Saw
Clean Up Site Considerations
Unsupervised children
and visitors entering a
shop could receive serious personal injury.
Ensure child and visitor
safety by keeping all
entrances to the shop
locked at all times. DO
NOT allow unsupervised
children or visitors in the
shop at any time.
Unpainted surfaces may be coated with a waxy
oil to protect them from corrosion during shipment. Remove this waxy oil with a solvent cleaner or citrus-based degreaser such as Grizzly’s
G7895 Degreaser. To clean thoroughly, some
parts may need to be removed. The machine
will operate best when the waxy oil is
removed from all moving and sliding parts.
Chlorine-based cleaners and solvents will damage the painted surfaces of the machine. Follow
the manufacturer’s instructions when using any
type of cleaning product.
Gasoline or petroleum
products used to clean
the machinery could
explode causing serious
personal injury. DO NOT
use gasoline or petroleum products to clean the
machinery.
Smoking near solvents
could ignite an explosion
or fire causing serious
injury. DO NOT smoke
while using solvents.
Lack of ventilation while
using solvents could
cause serious personal
health risks, fire, or
environmental hazards.
Always work in a well
ventilated areas to prevent the accumulation
of dangerous fumes.
Supply the work area
with a constant supply
of fresh air using a fan.
Floor Load
The Model H3390 is a medium load with a medium footprint. Most commercial or home shop
floors should be sufficient to carry the weight of
the machine. Reinforce the floor if you question its
ability to support the weight.
Working Clearance
Working clearances can be thought of as the distances between machines and obstacles that
allow safe operation of every machine without limitation. Consider existing and anticipated machine
needs, size of material to be processed through
each machine, and space for auxiliary stands or
work tables. Also, consider the relative position of
each machine to one another for efficient material handling. Be sure to allow yourself sufficient
room to safely run your machines in any foreseeable operation.
Lighting
Lighting should be bright enough to eliminate
shadows and prevent eye strain. Electrical circuits
should be dedicated or large enough to handle
combined motor amp loads. Be sure to follow
local electrical codes for proper installation of new
lighting or circuits.
SECTION 4: SET UP
H3390 Wet Tile Saw -9-
Main Features
C
B
D
A
H
E
F
N
I
J
K
L
M
G
O
Figure 2. Right side of saw.
Figure 3. Left side of saw.
A. Saw Frame
B. Water Reservoir
C. Saw Stand
D. Water Pump
E. Motor
F. Blade Guard
G.Power Switch
H. Water Pump Plug-In
I. V-Belt Cover
J. Rip Fence
K. Table
L. 45˚ Bevel Miter Fence
M.Saw Blade
N. Circuit Reset Button
O. Blade Height Adjustment Knob
Set up and operation instructions will be easier to
understand if you become familiar with the location and names of the basic features.
Match up the feature list below with the letters in
Figure 2 & 3 to identify the tile saw feature loca-
tions.
-10- H3390 Wet Tile Saw
Assembly
Keep clothing rolled up
and out of the way of
machinery and keep
hair pulled back.
Wear safety glasses during the entire assembly
process. Failure to comply may result in serious
personal injury.
Disconnect power to the
machine when performing any maintenance or
assembly. Failure to do
this may result in serious
personal injury.
Some metal parts may
have sharp edges on
them after they are
formed. Please examine
the edges of all metal
parts before handling
them. Failure to do so
could result in injury.
Figure 4. Assembling the stand brackets.
Figure 5. Attaching the casters.
The assembly of the Model H3390 Wet Tile Saw
is straightforward and can be completed in a relatively short period of time.
To assemble the saw:
1. Assemble the two stand brackets using (2)
M8-1.25 x 50 hex bolts and (2) M8-1.25 lock
nuts as shown in
Figure 4
. DO NOT over-
tighten.
2. Attach the casters to the mounting locations
on the stand using M6-1.0 x 40 hex bolts, M6
flat washers, and M6-1.0 hex nuts as shown
in
Figure 5
.
!
H3390 Wet Tile Saw -11-
4. Slide the plastic water reservoir into one end
of the saw frame as shown in
Figure 7
. Be
sure the reservoir is not protruding from
either end of the frame.
Figure 7. Installing the water reservoir.
8. Mount the motor assembly to the frame using
(2) M10-1.5 x 75 hex bolts, (2) M10 lock
washers, (2) M10 flat washers, and (1) M10-
1.5 x 15 setscrew as shown in
Figure 10
.
Figure 10. Mounting the motor assembly.
Water Reservoir
Motor Assembly
5. Slide the pivot shaft into the riser block as
shown in
Figure 8. Be sure the notched end
of the pivot shaft is positioned correctly.
6. Secure the assembly with a M10-1.5 x 10
setscrew as shown in
Figure 8
.
7. Slide the pivot shaft into the mounting holes
on the motor assembly and secure with the
blade height adjustment knob as shown in
Figure 9
.
Figure 8. Attaching the
pivot shaft to the riser
block
.
Figure 9. Securing the riser block to the motor
assembly using the blade height adjustment
knob.
Saw Frame
3. Mount the saw frame to the stand using (2)
M6-1.0 x 20 carriage bolts, (2) M6 external
tooth washers, and (2) M6-1.0 knob bolts as
shown in
Figure 6
.
Figure 6. Mounting the saw frame to the stand.
Setscrew
Setscrew
Mounting Holes
Notch
Blade Height
Adjustment Knob
-12- H3390 Wet Tile Saw
9. Attach the blade guard to the motor assem-
bly using the M8-1.25 x 30 lock knob and M8
flat washer as shown in
Figure 11
. Tile saw
blades are sold separately.
10. Place the water pump inside the water reser-
voir and plug the pump cord into the receptacle on the side of the motor assembly. A plastic hose runs from the pump to a “Y” connector and then slides through two mounting
holes on each side of the blade guard base
(
Figure 12).
11. Slide the chrome table rail through the
mounting holes on the table as shown in
Figure 13
.
12. Slide the silver aluminum rail cover over the
rail as shown in
Figure 14
.
Figure 11. Attaching the blade guard.
Figure 13. Assembling the table rail.
Figure 14. Assembling the rail cover.
Figure 12. Lube system.
Lock Knob
Table Rail
Rail Cover
“Y” Connector
Water Pump
Hose
Mounting
Holes
Blade Guard
Saw Table
H3390 Wet Tile Saw -13-
12. Slide the plastic rail end pieces over each of
the table rail ends as shown in
Figure 15
.
13. Attach the rail/table assembly to the saw
frame, using (2) M14-2.0 x 35 hex bolts, (2)
M14 flat washers, and (2) M14 external tooth
washers as shown in
Figure 16
.
Figure 15. Installing the rail end pieces.
Figure 16. Attaching the rail/table assembly to
the saw frame.
Rail End Pieces
(1 of 2)
Blade Changes
To change/install a blade:
1. Unplug the machine from the power
source!
2. Loosen the lock knob on the side of the blade
guard (
Figure 11, Page 12
).
3. Lift the blade guard to the up position and
tighten the lock knob. The blade guard
should remain in the up position.
4. Press the arbor lock pin (
Figure 17
) and
rotate the arbor nut by hand until the arbor
lock pin fully depresses.
5. Continue to hold the arbor lock pin and use
an open-end wrench to loosen the arbor nut
by turning it as shown in
Figure 17
.
Figure 17. Loosening the arbor nut.
6. Remove the arbor nut and flange, and slide
the blade onto the arbor.
7. Replace the flange onto the arbor and thread
the arbor nut onto the arbor.
8. With the arbor lock pin still fully depressed,
tighten the arbor nut using an open-end
wrench.
9. Reposition the blade guard to the down position and tighten the knob loosened in Step 1.
!
Loosen
-14- H3390 Wet Tile Saw
Before starting the machine:
1. Read this manual and make sure you follow
all safety precautions before operating this
machine.
2. Make sure the blade guard has been cor-
rectly installed and is adjusted properly as
shown on Page 12.
3. Make sure all tools or foreign objects have
been removed from the machine.
4. Review Section 3: Circuit Requirements
beginning on Page 6 and make sure all
wiring is correct.
Starting the machine:
1. Wear ANSI-approved safety glasses at all
times when running the saw.
2. Plug the saw into the power source. Be sure
the cord is positioned with a “drip loop” below
the level of the outlet as shown in
Figure 18
.
This prevents water from running down the
cord and into the outlet. Instead the water
will drip to the floor at the “drip loop” on the
cord.
3. Turn the machine on and make sure your
hand is on the power switch in case you
need to quickly turn the machine off. The
machine should run smoothly with little or no
vibration.
Start Up
Loose hair and clothing
could get caught in
machinery causing serious personal injury.
Keep loose clothing
rolled up and long hair
tied up and away from
machinery.
Projectiles thrown from
the machine could cause
serious eye injury. Wear
safety glasses at all
times.
Figure 18. Correct cord positioning.
“Drip Loop” Below The
Level Of The Outlet
H3390 Wet Tile Saw -15-
Lubrication
To prevent excessive wear on the saw blade, be
sure to maintain a continuous flow of water on
both sides of the blade. Never cut tile without the
water lubrication system running.
To set up the water lube system:
1. Assemble the pump and hoses as described
on Page 12.
2. Position the pump so it does not interfere
with the movement of the table.
3. Fill the water reservoir with enough water to
completely cover the suction inlet on the
pump as shown in
Figure 19
. DO NOT over-
fill the reservoir.
4. The pump turns on when the saw is turned
on. The water flow can be adjusted using the
flow rate lever on the side of the pump.
Figure 19. Filled water reservoir.
-16- H3390 Wet Tile Saw
Cut Preparation
To prepare for a cut:
1. Fill the water reservoir with water.
2. Plug the saw into the power source. Be sure
the cord is positioned with the “drip loop”
below the level of the outlet as shown in
Figure 18, Page 14
.
3. Wear safety glasses and a dust mask.
4. Turn the saw on and allow it to run for one
minute. Be sure the blade runs smoothly. If
the saw is not operating normally, do not use
it. Contact our Service Department.
Cutting
To make a cut:
1. Using a marking pencil, mark the cutline on a
piece of tile.
2. Place one edge of the tile against the raised
lip on the trailing edge of the table as shown
in
Figure 20
.
3. Line up the saw blade with the cut line on the
tile.
4. Turn the saw on and allow to run for one
minute. Be sure the blade runs smoothly. A
constant stream of water should be flowing
onto each side of the blade.
5. Keeping your fingers out of the cutting path,
slowly move the table and tile forward into
the saw blade.
6. Do not feed the tile into the blade too fast. If
the motor sounds like it is slowing down during the cut, you are feeding the tile too fast.
Slow down the feed rate immediately.
If the saw shuts off unexpectedly, stop cutting the
tile and turn the power switch off. Wait 15 minutes
and press the circuit reset button.
SECTION 5: OPERATION
Figure 20. Cutting the tile.
Wear safety glasses. a dust mask, and
hearing protection while cutting with the
machine. Failure to do this could result in
serious personal injury.
H3390 Wet Tile Saw -17-
Rip Fence
When multiple tiles need to be cut to the same
dimension, the rip fence can increase production.
Use the scale on the table to set the rip fence to
the desired cut. Make several test cuts to check
the accuracy.
If the scale on the table does not produce accurate cuts, the scale and table position can be finetuned by loosening the cap screws (See
Figure
21
) and adjusting the table.
Figure 21. Table fine-tuning cap screw.
Figure 22. Bevel cutting a tile edge.
45˚ Fence
45˚ beveled edges are cut on tiles using the 45˚
miter fence. Use the cutting groove in the center
of the table to support the tile edge (
Figure 22
) as
you slide the tile and table into the saw blade.
Cap Screw
(1 of 2)
-18- H3390 Wet Tile Saw
SECTION 6: MAINTENANCE
General
Regular periodic maintenance on your Model
H3390 will ensure its optimum performance.
Make a habit of inspecting your machine each
time you use it.
Check for the following conditions and repair
or replace when necessary:
1. Conditions allowing prolonged exposure of
the motor and electrical components to
water.
2. Loose mounting bolts.
3. Worn switch.
4. Worn or damaged cords and plugs.
5. Damaged V-belt.
6. Any other condition that could hamper the
safe operation of this machine.
7. Inspect blades for damage.
8. Guard alignment and operation.
Disconnect power to the
machine when performing any maintenance on
the table saw. Failure to
do this could result in
serious personal injury.
Loose hair and clothing
could get caught in
machinery causing serious personal injury.
Keep loose clothing
rolled up and long hair
tied up and away from
machinery.
Projectiles thrown from
the machine could cause
serious eye injury. Wear
safety glasses during
assembly.
!
H3390 Wet Tile Saw -19-
SECTION 7: REFERENCE INFO
If you need parts or help in assembling your
machine, or if you need operational information,
call the Grizzly Service Department. Trained service technicians will be glad to help you.
If you have any comments regarding this manual,
please write to Grizzly at the address below:
Grizzly Industrial, Inc.
C
/O Technical Documentation
P.O. Box 2069
Bellingham, WA 98227-2069
Important safety measures that are essential to
the operation of this machine have been
explained in Section 1: Safety. While most safety
measures are generally universal, Grizzly
reminds you that each workshop is different and
safety rules should be considered as they apply to
your specific situation.
We recommend you keep a copy of our current
catalog for complete information regarding
Grizzly's warranty and return policy. If you need
additional technical information relating to this
machine, or if you need general assistance or
replacement parts, please contact the Service
Department at the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Circle
Muncy, PA 17756
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail: techsupport@grizzly.com
Web Site: http://www.grizzly.com.
Additional information sources are necessary to
realize the full potential of this machine. Trade
journals, woodworking magazines, and your local
library are good places to start.
-20- H3390 Wet Tile Saw
Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901
MACHINE DATA
SHEET
Design Type......................................................................................................Floor Model
Overall Dimensions:
Table Height ..........................................................................................................48
3
⁄4"
Table Size ................................................................................................16
3
⁄8" x 111⁄8"
Water Reservoir ................................................................................35
1
⁄4" x 181⁄2" x 3"
Net Weight ........................................................................................................107 lbs.
Construction:
Table ................................................................................Precision Ground Cast Iron
Stand......................................................................................................................Steel
Bearings ............................................Sealed & Permanently Lubricated Ball Bearings
Cutting Capacity:
Maximum Blade Diameter ........................................................................................10"
Maximum Depth of Cut at 90° ................................................................................3
3
⁄4"
Rip Cut Capacity ......................................................................................................18"
Diagonal Cut Capacity..............................................................................................12"
Motor:
Type ............................................................................TEFC Capacitor Start Induction
Horsepower ...................................................................................................... 2
1
⁄2 HP
Phase / Cycle ..............................................................................Single-Phase ⁄ 60 HZ
Voltage ..................................................................................................................110V
Amps ......................................................................................................................15A
Motor Speed ................................................................................................ 3450 RPM
Power Transfer ..............................................................................................Belt Drive
Switch ..................................................................................................ON/OFF Toggle
Arbor:
Diameter ....................................................................................................................
5
⁄8"
Features:
..................................................................................Water Pump Lubrication System
................................................................................Portable Stand With Fixed Casters
......................................................................................................................................
Specifications, while deemed accurate, are not guaranteed.
Model H3390 10" Wet Tile Saw
H3390 Wet Tile Saw -21-
10
11
35
20
38
21
22
18
36
41
33
34
24
42
23
44
43
32
31
30
29
45
28
27
26
25
46
47
59
58
57
45
48
24
50
2
49
51
23
23
56
55
54
53
52
48
19
18
17
16
15
14
9
13
12
9
8
7
37
39
40
6
5
4
3
1
-22- H3390 Wet Tile Saw
63
70
62
61
67
64
69
60
65
66
68
H3390 Wet Tile Saw -23-
36 PH3390036 WHEEL COVER
37 PSB14M CAP SCREW M8-1.25 X 20
38 PH3390038 V-BELT A-680
39 PSB14M CAP SCREW M8-1.25 X 20
40 PH3390040 PULLEY COVER
41 PH3390041 DRIVE PULLEY
42 PK12M KEY 5 X 5 X 30
43 PH3390043 BEARING
44 PH3390044 SPINDLE
45 PH3390045 INSERT
46 PH3390046 RAIL
47 PH3390047 RAIL COVER
48 PH3390048 INSERT
49 PB09M HEX BOLT M8-1.25 X 20
50 PLW04M SPRING WASHER M8
51 PH3390051 TABLE HOLDER
52 PH3390052 TABLE
53 PN03M HEX NUT M8-1.25
54 PH3390054 WHEEL
55 PW01M FLAT WASHER M8
56 PB15M HEX BOLT M8-1.25 X 40
57 PH3390057 RIP FENCE
58 PH3390058 45˚ MITER FENCE
59 PH3390059 PUMP
60 PH3390060 STAND BRACKET
61 PH3390061 STAND BRACKET
62 PTLW05M EXT TOOTH WASHER M6
63 PH3390063 KNOB BOLT M6-1.0
64 PLN04M LOCK NUT M8-1.25
65 PB47M HEX BOLT M6-1.0 X 40
66 PH3390066 CASTER
67 PW03M FLAT WASHER M6
68 PN01M HEX NUT M6-1.0
69 PB22M HEX BOLT M8-1.25 x 50
70 PCB08M
CARRIAGE BOLT M6-1.0 X 20
1 PH3390001 WATER RESERVOIR
2 PH3390002 PLASTIC BLOCK
3 PB36M HEX BOLT M14-2.0 X 35
4PW10M FLAT WASHER M14
5 PTLW04M TEETH WASHER M14
6 PH3390006 SAW FRAME
7 PB44M HEX BOLT M10-1.5 X 75
8 PLW06M SPRING WASHER M10
9PW04M FLAT WASHER M10
10 PSS43M SETSCREW M10-1.5 X 15
11 PH3390011 LOCK KNOB M10-1.5 X 37
12 PH3390012 SUPPORT FRAME
13 PH3390013 SHAFT
14 PH3390014 TENSION ADJUST PLATE
15 PW04M FLAT WASHER M10
16 PB13M HEX BOLT M10-1.5 X 80
17 PH3390017 MOTOR PULLEY
18 PSS01M SETSCREW M6-1.0 X 10
19 PH3390019 MOTOR
20 PH3390020 BLADE GUARD
21 PH3390021 FIXING PLATE
22 PH3390022 Y-CONNECTOR
23 PH3390023 LOCK KNOB M8-1.25 X 30
24 PW01M FLAT WASHER M8
25 PH3390025 BRAKE HOLDER
26 PH3390026 BRAKE SHAFT
27 PH3390027 E-RING
28 PH3390028 SPRING
29 PN02M HEX NUT M10-1.5
30 PH3390030 OUTER FLANGE
31 PH3390031 BLADE (NOT INCLUDED)
32 PH3390032 INNER FLANGE
33 PH3390033 RUBBER BLOCK
34 PH3390034 MACHINE BED
35 PB40M HEX BOLT M10-1.5 X 15
REF PART # DESCRIPTION
REF PART # DESCRIPTION
-24- H3390 Wet Tile Saw
NOTES
H3390 Wet Tile Saw -25-
NOTES
-26- H3390 Wet Tile Saw
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then
issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
WARRANTY AND RETURNS
CUT ALONG DOTTED LINE
9. How many of your woodworking machines are Grizzly? _____________
10. Which benchtop tools do you own? Check all that apply.
___1" x 42" Belt Sander ___6" - 8" Grinder
___5" - 8" Drill Press ___Mini Lathe
___8" Table Saw ___10" - 12" Thickness Planer
___8" - 10" Bandsaw ___Scroll Saw
___Disc/Belt Sander ___Spindle/Belt Sander
___Mini Jointer
___Other__________________________________________________
11. How many of the machines checked above are Grizzly? ____________
12. Which portable/hand held power tools do you own? Check all that apply.
___Belt Sander ___Orbital Sander
___Biscuit Joiner ___Palm Sander
___Circular Saw ___Portable Planer
___Detail Sander ___Saber Saw
___Drill/Driver ___Reciprocating Saw
___Miter Saw ___Router
___Other__________________________________________________
13. What machines/supplies would you like Grizzly Industrial to carry?
__________________________________________________________
__________________________________________________________
14. What new accessories would you like Grizzly Industrial to carry?
__________________________________________________________
__________________________________________________________
15. What other companies do you purchase your tools and supplies from?
__________________________________________________________
__________________________________________________________
16. Do you think your purchase represents good value?
___Yes ___No
17. Would you recommend Grizzly Industrial to a friend?
___Yes ___No
18. Would you allow us to use your name as a reference for Grizzly customers
in your area? Note: We never use names more than three times.
___Yes ___No
19. Comments:_________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
1. How did you learn about us?
___Advertisement ___Friend
___Catalog ___Card Deck
___World Wide Web
___Other__________________________________________________
2. Which of the following magazines do you subscribe to.
___American Woodworker ___Practical Homeowner
___Cabinetmaker ___Shop Notes
___Family Handyman ___Today’s Homeowner
___Fine Homebuilding ___WOOD
___Fine Woodworking ___Wooden Boat
___Home Handyman ___Woodshop News
___Journal of Light Construction ___Woodsmith
___Old House Journal ___Woodwork
___Popular Mechanics ___Woodworker
___Popular Science ___Woodworker’s Journal
___Popular Woodworking ___Workbench
___Other__________________________________________________
3. Which of the following woodworking/remodeling shows do you watch?
___Backyard America ___The New Yankee Workshop
___Home Time ___This Old House
___The American Woodworker ___Woodwright’s Shop
___Other__________________________________________________
4. What is your annual household income?
___$20,000-$29,999 ___$60,000-$69,999
___$30,000-$39,999 ___$70,000-$79,999
___$40,000-$49,999 ___$80,000-$89,999
___$50,000-$59,999 ___$90,000 +
5. What is your age group?
___20-29 ___50-59
___30-39 ___60-69
___40-49 ___70 +
6. How long have you been a woodworker?
___0 - 2 Years ___8 - 20 Years
___2 - 8 Years ___20+ Years
7. How would you rank your woodworking skills?
___Simple ___Advanced
___Intermediate ___Master Craftsman
8. What stationary woodworking tools do you own? Check all that apply.
___Air Compressor ___Panel Saw
___Band Saw ___Planer
___Drill Press ___Power Feeder
___Drum Sander ___Radial Arm Saw
___Dust Collector ___Shaper
___Horizontal Boring Machine ___Spindle Sander
___Jointer ___Table Saw
___Lathe ___Vacuum Veneer Press
___Mortiser ___Wide Belt Sander
___Other__________________________________________________
Name ____________________________________________________________________________________
Street ____________________________________________________________________________________
City ______________________________________________________________State________Zip_________
Phone Number_______________________E-Mail_______________________FAX________________________
MODEL #_______________ Order #___________________ Serial #__________________________________
The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. Of
course, all information is strictly confidential.
WARRANTY CARD
Place
Stamp
Here
FOLD ALONG DOTTED LINE
FOLD ALONG DOTTED LINE
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
Name_______________________________
Street_______________________________
City______________State______Zip______
Send a Grizzly Catalog to a friend:
Buy Direct and Save with Grizzly® – Trusted, Proven and a Great Value!
Visit Our Website Today And Discover Why
Grizzly® Is The Industry Leader!
• SECURE ORDERING
• ORDERS SHIPPED WITHIN 24 HOURS
• E-MAIL RESPONSE WITHIN ONE HOUR
-OR-
Call Today For A
Full Color Catalog
FREE
Loading...
