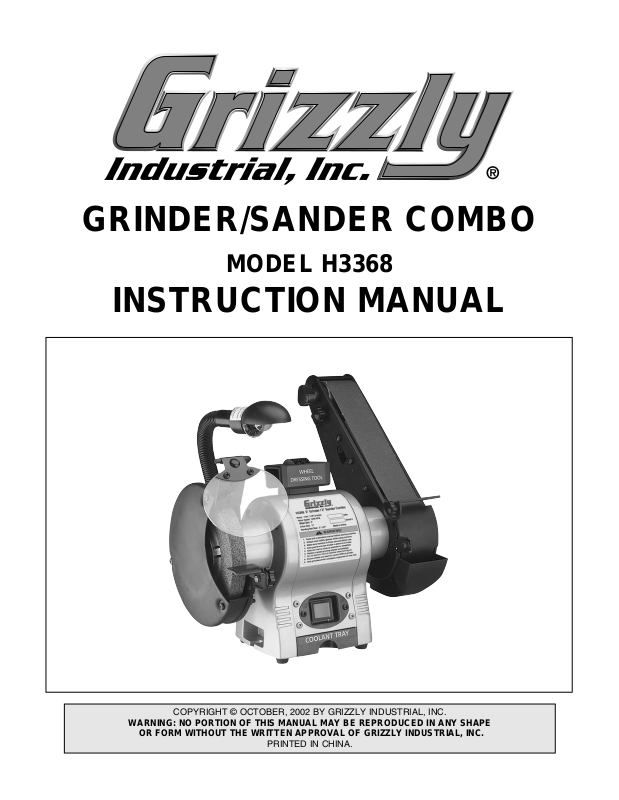

GRINDER/SANDER COMBO
MODEL H3368
INSTRUCTION MANUAL
COPYRIGHT © OCTOBER, 2002 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
PRINTED IN CHINA.
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
as those dust masks that are specially designed to filter out microscopic particles.
Table Of Contents
PAGE
1. SAFETY ....................................................................................................................2
Safety Rules For Power Tools ..........................................................................2-3
Additional Safety Instructions For Grinders..........................................................4
2. INTRODUCTION........................................................................................................5
Commentary ........................................................................................................5
3. CIRCUIT REQUIREMENTS ......................................................................................6
110V Operation ....................................................................................................6
Extension Cords ..................................................................................................6
Grounding ............................................................................................................6
4. MACHINE FEATURES..............................................................................................7
5. SET UP ......................................................................................................................8
Unpacking ............................................................................................................8
Piece Inventory ....................................................................................................8
Mounting ..............................................................................................................9
Tool Rests ..........................................................................................................10
Eye Shield & Spark Guard ................................................................................10
Belt Tracking ......................................................................................................11
Dust Port ............................................................................................................11
5. OPERATIONS..........................................................................................................12
About This Section ............................................................................................12
Test Run ............................................................................................................12
Before Grinding ..................................................................................................13
Operating Grinder ..............................................................................................13
Wheel Care ........................................................................................................14
Wheel Dressing ..................................................................................................14
Wheel Selection..................................................................................................15
Wheel Inspection ..........................................................................................15-16
Replacing Wheels ..............................................................................................16
Sanding ..............................................................................................................17
Replacing Belts ..................................................................................................18
6. MAINTENANCE ......................................................................................................19
General ..............................................................................................................19
Lubrication ..........................................................................................................19
Grinding Wheels ................................................................................................19
Sanding Belts ....................................................................................................19
Maintenance Log................................................................................................20
7. CLOSURE................................................................................................................21
TROUBLESHOOTING ......................................................................................................22
MACHINE DATA................................................................................................................23
PARTS BREAKDOWN AND PARTS LIST..................................................................24-25
WARRANTY AND RETURNS ..........................................................................................26
-2- H3368 Grinder/Sander Combo
SECTION 1: SAFETY
For Your Own Safety Read Instruction
Manual Before Operating This Equipment
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
This symbol is used to alert the user to useful information about
proper operation of the equipment.
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This
manual uses a series of symbols and signal words which are intended to convey the level of
importance of the safety messages. The progression of symbols is described below. Remember
that safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures.
NOTICE
Safety Instructions For Power Tools
5. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors should be
kept at a safe distance from work area.
6. MAKE WORKSHOP CHILD PROOF with
padlocks, master switches, or by removing
starter keys.
7. DO NOT FORCE TOOL. It will do the job
better and safer at the rate for which it was
designed.
8. USE RIGHT TOOL. Do not force tool or
attachment to do a job for which it was not
designed.
1. KEEP GUARDS IN PLACE and in working
order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are
removed from tool before turning on.
3. KEEP WORK AREA CLEAN. Cluttered
areas and benches invite accidents.
4. DO NOT USE IN DANGEROUS ENVIRONMENT. Do not use power tools in
damp or wet locations, or where any flammable or noxious fumes may exist. Keep
work area well lighted.
H3368 Grinder/Sander Combo -3-
9. USE PROPER EXTENSION CORD. Make
sure your extension cord is in good condition. Conductor size should be in accordance with the chart below. The amperage
rating should be listed on the motor or tool
nameplate. An undersized cord will cause
a drop in line voltage resulting in loss of
power and overheating. Your extension
cord must also contain a ground wire and
plug pin. Always repair or replace extension cords if they become damaged.
Minimum Gauge for Extension Cords
10. WEAR PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, rings,
bracelets, or other jewelry which may get
caught in moving parts. Non-slip footwear
is recommended. Wear protective hair covering to contain long hair.
11. ALWAYS USE SAFETY GLASSES. Also
use face or dust mask if cutting operation is
dusty. Everyday eyeglasses only have impact
resistant lenses, they are NOT safety glasses.
12. SECURE WORK. Use clamps or a vise to hold
work when practical. It is safer than using your
hand and frees both hands to operate tool.
13. DO NOT OVER-REACH. Keep proper
footing and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep
tools sharp and clean for best and safest
performance. Follow instructions for lubricating and changing accessories.
15. USE RECOMMENDED ACCESSORIES.
Consult the owner’s manual for recommended accessories. The use of improper
accessories may cause risk of injury.
LENGTH
AMP RATING 25ft 50ft 100ft
0-6 18 16 16
7-10 18 16 14
11-12 16 16 14
13-16 14 12 12
17-20 12 12 10
21-30 10 10 No
Safety Instructions For Power Tools
16. REDUCE THE RISK OF UNINTENTIONAL STARTING. On machines with magnet-
ic contact starting switches there is a risk of
starting if the machine is bumped or jarred.
Always disconnect from power source
before adjusting or servicing. Make sure
switch is in OFF position before reconnecting.
17. MANY WOODWORKING TOOLS CAN
“KICKBACK” THE WORKPIECE toward the
operator if not handled properly. Know what
conditions can create “kickback” and know
how to avoid them. Read the manual accompanying the machine thoroughly.
18. CHECK DAMAGED PARTS. Before fur-
ther use of the tool, a guard or other part
that is damaged should be carefully
checked to determine that it will operate
properly and perform its intended function.
Check for alignment of moving parts, binding of moving parts, breakage of parts,
mounting, and any other conditions that
may affect its operation. A guard or other
part that is damaged should be properly
repaired or replaced.
19. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. Do not
leave tool until it comes to a complete stop.
20. NEVER OPERATE A MACHINE WHEN
TIRED, OR UNDER THE INFLUENCE OF
DRUGS OR ALCOHOL. Full mental alert-
ness is required at all times when running a
machine.
21. NEVER ALLOW UNSUPERVISED OR
UNTRAINED PERSONNEL TO OPERATE THE MACHINE. Make sure any
instructions you give in regards to machine
operation are approved, correct, safe, and
clearly understood.
22. IF AT ANY TIME YOU ARE EXPERIENCING DIFFICULTIES performing the intend-
ed operation, stop using the machine! Then
contact our service department or ask a
qualified expert how the operation should
be performed.
-4- H3368 Grinder/Sander Combo
Additional Safety Instructions For Grinders
1. ALWAYS WEAR EYE PROTECTION!
2. MAKE SURE GRINDER IS SECURED
FIRMLY TO A BENCH OR STAND
BEFORE USE. Any “wobbles” must be
corrected by shimming or blocking before
operation.
3. BEFORE MOUNTING A NEW WHEEL,
BE SURE WHEEL RPM IS RATED AT
AN EQUAL OR HIGHER RPM THAN
THE GRINDER.
4. DO NOT GRIND ON THE SIDES OF
THE GRINDING WHEELS, unless they
are special wheels designed specifically
for this purpose.
5. ONLY USE FLANGES THAT ARE
INCLUDED WITH THE GRINDER.
6. WEAR AN APPROVED DUST MASK
OR RESPIRATOR. Grinding operations
produce dust.
7. REPLACE A CRACKED WHEEL IMMEDIATELY. DO NOT use a grinding wheel
that has cracks or flaws. Before using,
inspect each wheel. Handle wheels carefully to avoid bumping or dropping.
8. DO NOT stand directly in front of grinding
wheels when turning machine on.
9. PERFORM a “ring test” (see page 15) on
grinding wheels to ensure that they are
safe for use. Always inspect grinding
wheels before operation.
10. HOLD THE WORKPIECE FIRMLY
WHILE GRINDING.
11. DO NOT allow your hands to come into
contact with grinding wheels during operation. Abrasive accessories have the
ability to remove a lot of material, including skin, very quickly. However, DO NOT
wear gloves while grinding, they may get
caught in the grinding wheel.
12. KEEP TOOL REST AS CLOSE AS
POSSIBLE TO GRINDING WHEEL.
13. NEVER GRIND BY PLACING THE
WORKPIECE ON TOP OF THE
WHEEL. The wheel may kick the work-
piece toward the operator. Always grind
on the downward part of the wheel.
14. DO NOT USE A DUST COLLECTOR
OR SHOP•VAC
®
WHEN SANDING
METAL or damage to your dust collec-
tion equipment or fire may result!
No list of safety guidelines can be complete. Every shop environment is different.
Always consider safety first, as it applies to
your individual working conditions. Use
this and other machinery with caution and
respect. Failure to follow guidelines could
result in serious personal injury, damage to
equipment or poor work results.
To operate this or any power tool safely and
efficiently, become as familiar with it as
possible. The time you invest before you
begin to use your Model H3368 will be time
well spent. DO NOT operate this machine
until you are completely familiar with the
contents of this manual, or serious personal injury may occur.
H3368 Grinder/Sander Combo -5-
SECTION 2: INTRODUCTION
We are proud to offer the Grizzly Model H3368
Grinder/Sander Combo. The Model H3368 is part
of a growing Grizzly family of fine woodworking
and metalworking machinery. When used according to the guidelines set forth in this manual, you
can expect years of trouble-free, enjoyable operation and proof of Grizzly’s commitment to customer satisfaction.
The Model H3368 offers a
1
⁄2 HP 3450 RPM
motor, a 6" grinding wheel, and a 2" x 27" sanding
belt.
A number of grinding wheels and sanding belt
grits for the Model H3368 are available through
the Grizzly catalog.
We are also pleased to provide this manual with
the Model H3368. It was written to guide you
through assembly, review safety considerations,
and cover general operating procedures. This
manual represents our effort to produce the best
documentation possible. If you have any comments regarding this manual, please write to us at
the address below:
Grizzly Industrial, Inc.
C
/O Technical Documentation
P.O. Box 2069
Bellingham, WA 98227-2069
Most importantly, we stand behind our machines.
If you have any service questions or parts
requests, please call or write us at the location
listed below:
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail: techsupport@grizzly.com
Web Site: http://www.grizzly.com
The specifications, drawings, and photographs
illustrated in this manual represent the Model
H3368 as supplied when the manual was prepared. However, owing to Grizzly’s policy of continuous improvement, changes may be made at
any time with no obligation on the part of Grizzly.
For your convenience, we always keep current
Grizzly manuals available on our website at
www.grizzly.com
. Any updates to your machine
will be reflected in these manuals as soon as they
are complete.
Commentary
Read the manual before
assembly and operation. Become familiar
with the machine and its
operation before beginning any work. Serious
personal injury may
result if safety or operational information is not
understood or followed.
-6- H3368 Grinder/Sander Combo
110V Operation
SECTION 3: CIRCUIT REQUIREMENTS
If you find it necessary to use an extension cord
with the Model H3368, make sure the cord is
rated Hard Service (grade S) or better. Refer to
the chart in the standard safety instructions to
determine the minimum gauge for the extension
cord. The extension cord must also contain a
ground wire and plug pin. Always repair or replace
extension cords when they become worn or damaged.
Extension Cords
Grounding
This equipment must be
grounded. Verify that any
existing electrical outlet
and circuit you intend to
plug into is actually
grounded. Under no circumstances should the
grounding pin from any
three-pronged plug be
removed. Serious injury
may occur.
In the event of an electrical short, grounding
reduces the risk of electric shock by providing
electric current a path of least resistance. This
tool is equipped with a power cord having an
equipment-grounding conductor. See Figure 1B.
The outlet must be properly installed and grounded in accordance with all local codes and ordinances.
The Model H3368 is wired for 110V and will draw
approximately 8 amps under load. If you operate
this machine on any circuit that is already close to
its capacity, it might blow a fuse or trip a circuit
breaker. However, if an unusual load does not
exist and a power failure still occurs, contact a
qualified electrician or our service department.
A 10 amp dedicated circuit should be used with
this grinder. Always check to see if your current
wires are capable of handling a 10 amp load. If
you are unsure, consult the advice of a qualified
electrician.
Figure 1B. Typical 110V plug and outlet.
Figure 1A. DO NOT remove grounding pin.
H3368 Grinder/Sander Combo -7-
SECTION 4: MACHINE FEATURES
To help you understand the set up and operation
instructions, become familiar with the basic features of the Model H3368.
Please match up the list below with the letters in
Figures 2 & 3 to identify the components of the
machine.
A. Wheel Dressing Tool
B. Work Light
C. Eye Shield
D. Grinding Wheel
E. Grinding Wheel Tool Rest
F. Coolant Tray
G. ON/OFF Switch
H. Sanding Belt Tool Rest
I. Sanding Belt
B
A
C
D
F
G
H
I
E
Figure 2. These are features of the Model
H3368 shown from the front of the machine.
Figure 3. These are features of the Model
H3368 shown from the rear of the machine.
J. Dust Port
K. Power Plug
L. Sanding Belt Tension Knob
M. Sanding Belt Tracking Knob
N. Spark Guard
J
M
N
L
K
-8- H3368 Grinder/Sander Combo
SECTION 5: SET UP
Unpacking
The Model H3368 is shipped from the manufacturer in a carefully packed carton. If you discover
the machine is damaged after you have signed
for delivery, immediately call Customer Service
for advice.
When you are completely satisfied with the condition of your shipment, you should inventory its
parts.
Some metal parts may
have sharp edges on
them after they are
formed. Please examine
the edges of all metal
parts before handling
them. Failure to do so
could result in injury.
Piece Inventory
NOTICE
A full parts list and breakdown can be found
toward the end of this manual. For easier
assembly, or to identify specific parts, please
refer to the detailed illustrations at the end of
the manual.
After all the parts have been removed from the
carton, you should have the parts shown in
Figure 4:
A. Spark Guard
B. Wheel Dressing Tool
C. Eye Shield & Bracket
D. Tool Rests
E. Hardware Bag
F. Grinder/Sander Unit
NOTICE
When mounted, the cooling tray can be easily damaged if the grinder is tipped forward.
Figure 4. Model H3368 loose parts from package.
D
C
B
E
F
A
H3368 Grinder/Sander Combo -9-
Mounting
The Model H3368 weighs 27 lbs. Make sure the
workbench on which you plan to mount the
grinder is sturdy enough to hold the weight of the
machine and any downward pressure that may be
applied during operation. The workbench should
have a level surface and be heavy, or attached to
the floor, so that it will not move during operation.
To mount the grinder:
1. Find the best place in your shop to mount the
grinder/sander.
• Pick a spot on the workbench that will
allow enough room to move the size of an
anticipated workpiece around the grinder.
The operator (and possibly bystanders)
should have enough room to stand out of the
way.
• Mount the grinder in an area with proper
lighting and near electrical outlets. Lighting
should be bright enough to eliminate shadow
and prevent eye strain. Electrical circuits
should be dedicated or large enough to han-
dle amperage requirements. Keep power or
extension cords clear of high-traffic areas. If
you install new lighting, outlets, or circuits,
observe all electrical codes.
The Model H3368 can cause
personal injury if operated
by untrained users. Ensure
that your machine is inaccessible to children and visitors by closing and locking
all entrances to your
shop/garage when you are
away.
2. Mount the grinder to the workbench with bolts
that are long enough to exceed the thickness
of your workbench and the grinder base.
Secure each bolt with flat washers, a lock
washer and a hex nut as illustrated in Figure
5. Because sizes vary for each individual sit-
uation, the hardware in this step is not included with the Model H3368.
Figure 5. Mounting machine to the workbench.
H3368
Base
Workbench
Flat
Washer
Flat
Washer
Lock
Washer
Bolt
Nut
-10- H3368 Grinder/Sander Combo
Tool Rests Eye Shield & Spark Guard
The spark guard should be positioned 1⁄8" from the
grinding wheel to minimize sparks flying at the
operator. The eye shield must be positioned
between the grinding wheel and the operator’s
face to protect the operator from flying debris—
this is not a replacement for safety glasses!
To install the spark guard and eye shield:
1. Using the included 5mm screw and washer,
install the spark guard as shown in Figure 7.
Figure 6. Tool rest installed and positioned near
the grinding wheel.
Figure 7. Spark guard attached to rim guard.
Figure 8. Eye shield and support bracket attached.
2. Attach the eye shield to the support bracket
as shown in Figure 8 with the included 6mm
carriage bolt, washer and hex nut. Use the
8mm hex bolt and washer to attach the support bracket to the right wheel cover.
The tool rest attaches to the inward side of the
guard and provides a surface that can be used to
support the workpiece during operation. Certain
types of grinding/sanding may require jigs or
accessories that will be used with the tool rests to
assure the proper angle of the workpiece against
the wheel.
To install the tool rests:
1. Attach the tool rests with the knob bolts and
5mm washers and hex nuts, without tightening them completely.
2. To adjust the angle of the sanding belt tool
rest, use a square or a protractor to set the
angle of the tool rest in relation to the sand-
ing belt. As a general rule, set the tool rest
90˚ to the belt during the set up procedures.
3. Adjust both tool rests approximately
1
⁄16"-1⁄8"
from the grinding wheel and the sanding belt.
Figure 6 shows the correct adjustment for
the tool rest at the grinding wheel.
4. Tighten the tool rests.
Attach Spark
Guard Here
Attach Eye
Shield Here
Attach Support
Bracket Here
H3368 Grinder/Sander Combo -11-
NOTICE
The belt must be tracked before turning the
machine ON.
Belt Tracking
Dust Port
“Tracking” the sanding belt means to center the
belt on its rollers, so that it runs balanced and
does not make contact with the sides of the belt
cover.
Figure 9. Sanding belt centered between belt
cover edges at the upper roller.
Figure 10. Tracking control knob.
4. Adjust the tracking with the tracking control
knob shown in Figure 10.
5. While spinning the wheel, turn the tracking
control knob counterclockwise to make the
belt move to the left, or turn the tracking control knob clockwise to make the belt move to
the right.
6. After the belt is centered between the belt
cover, spin the grinding wheel approximately
ten times to ensure that the belt continues to
track properly.
To track the sanding belt:
1. Unplug the machine!
2. Rotate the grinding wheel.
3. As you rotate the grinding wheel, watch how
the sanding belt rides on the upper roller. If
the belt is tracking properly, the sanding belt
should be centered between the sides of the
belt cover as shown in Figure 9.
The dust port is located behind the sanding belt,
below the belt roller. The opening is 1
1
⁄2" in diameter and can be connected to a utility vacuum
(such as SHOP•VAC
®
) or a dust collector.
To connect the dust port to a dust collection
system:
1. Place a hose clamp over the dust hose.
2. Slide the hose over the dust port.
3. Secure the hose airtight with a hose clamp.
4. Check the hose with a light tug to make sure
it is on tight.
DO NOT use a dust collector or SHOP•VAC
®
when sanding metal, or damage to the dust
collection equipment or fire may result!
-12- H3368 Grinder/Sander Combo
SECTION 6: OPERATIONS
Keep loose clothing
rolled up and out of the
way of machinery and
keep hair pulled back.
Wear safety glasses during the entire operation
process. Failure to comply may result in serious
personal injury.
All grinding wheels have the potential of
breaking apart during operation, causing
serious personal injury or death! Always
stand to the side of the grinder when turning it ON and wear the proper safety equipment to protect yourself.
Using this machine produces dust which may
cause allergic reactions
and respiratory problems.
Use an approved dust
mask to protect yourself
from these hazards!
NOTICE
This section provides only a basic description of grinder/sander applications. There are
many different grinding wheels and sanding
belts available for your grinder/sander. WE
STRONGLY RECOMMEND that you read
books, trade magazines, or get formal training to maximize the potential of your
machine.
Once mounting is complete and adjustments are
done to your satisfaction, you are ready to test the
machine.
Test Run
About This Section
Disconnect power from
the machine when performing any maintenance, assembly or
adjustments. Failure to
do this may result in serious personal injury.
!
This section has three main purposes: 1) Have
you start your machine to become familiar and
comfortable with its controls, 2) Inform you of
basic operations and essential information on
using grinding wheels, and 3) Inform you of the
basic operations and essential information on
using sanding belts.
To test run the grinder/sander:
1. Plug the machine into the power source.
2. Stand to the side of the grinding wheel and
turn the grinder ON.
The machine should run smoothly with little or no
vibration or rubbing noises. Strange or unnatural
noises should be investigated and corrected
before operating the machine further. If the
machine seems okay, stay out of the line of rotation of the grinding wheel and let it run for 1-2 minutes to make sure the wheel is structurally sound.
If you cannot easily locate the source of an
unusual noise or vibration, feel free to contact our
service department for help.
H3368 Grinder/Sander Combo -13-
Before Grinding Operating Grinder
The grinder is a safe tool when used properly. In
addition to the safety instructions in this manual,
the most important safety consideration is to use
common sense at all times. What may be okay in
one situation, may not be safe in another.
Read the following statements to protect yourself before grinding:
• Make sure all guards are in place.
• Stand to the side of the grinder when you turn
it on and allow it to run for 1 full minute before
EVERY use.
•Make sure that you have mounted your
grinder securely and that you have performed
the “Test Run” instructions in this manual.
• Remember that grinding often produces
sparks. DO NOT allow anyone to stand in the
path of the sparks. DO NOT grind near flammable liquids or gases.
• Wear the proper protective clothing.
Remember that particles flying off of a grinding wheel will be traveling very fast—prepare
for this. Wear safety glasses or a face shield,
a dust mask, earplugs, a leather apron, arm
guards, a hardhat and heavy leather boots.
• DO NOT lean into the workpiece in a manner
that may cause your hands to move into the
spinning wheel if the workpiece slips off.
• Concentrate on the task at hand. STOP
grinding/sanding if other people are distracting you. STOP grinding/sanding if your mind
is on something else.
•DONOT grind on the side of the wheel.
Although side grinding is permissible for
some wheel types, the Model H3368 is not
designed for side grinding.
The grinder is designed for use with ferrous metals only. Non-ferrous metals and wood products
should be used on the sanding belt, as they will
quickly load the grinding wheel surface and ruin
its abrasive qualities.
To grind with the grinding wheel:
1. Fill the coolant tray
3
⁄4 full with water.
2. With the machine plugged into power, stand
to the side of the grinding wheel, and move
the red switch to the ON position.
3. Allow the machine to run for at least 1 full
minute to make sure that the grinding wheel
is not going to fly apart and injure you, then
move to the front of the machine.
4. Grasp the workpiece tightly and properly sup-
port it on the tool rest.
5. Place the workpiece against the front surface
of the wheel with moderate pressure, moving
it back and forth in a steady, even motion.
Tip: Using too much pressure will bog the
motor down and may damage the wheel.
Using too little pressure will make the workpiece bounce around and you will not make
good contact with the wheel. Finding a balance with application pressure is part of
developing a good technique!
6. Regularly dip the workpiece into the coolant
tray to cool it off.
7. When you are ready to stop the grinder,
move the red switch to the OFF position. At
this point, DO NOT continue grinding and DO
NOT manually stop the grinding wheel with
your workpiece!
Grinding accidents can cause serious injury
or death! Protect yourself by reading and
following all preceding safety information in
this manual before grinding.
-14- H3368 Grinder/Sander Combo
Wheel Care Wheel Dressing
Your safety when grinding depends, on a large
part, on the condition of the wheel during grinding.
A wheel in poor condition presents the possibility
of breaking apart during rotation, injuring the
operator and possibly causing property damage.
To properly care for your wheel, follow these
tips:
• Always transport, store and handle wheels
with care. Wheels may be damaged if they
are dropped or if heavy objects are stacked
on them.
• Select the right grinding wheel for the job. DO
NOT grind material that is not designed for
the wheel.
• Select the right wheel for the machine. A
machine that rotates at a higher RPM than
the wheel is rated for may cause the wheel to
fly apart.
• Mount the wheels properly. (See the
“Replacing Wheels” instructions on page 16
for guidance.) Never use a wheel with the
wrong arbor size for the grinder.
• DO NOT abuse the wheel by jamming the
work into the grinding wheel with excessive
force.
• Learn how to use the grinder and the grinding
wheels properly. Ask a trusted person with
experience or consult with your local library to
learn more.
• Grinding on side of the wheel may cause
wheel damage.
• Dress the grinding wheel when the surface
loses its abrasive quality or “bite.”
Dressing restores the grinding wheel with a likenew abrasive quality. Whenever the front surface
of the wheel loses its abrasive qualities (loading
or polishing), then the wheel should be dressed. A
dressing tool is included for this purpose.
To dress the grinding wheel:
1. With the machine plugged into power, stand
to the side of the grinding wheel and move
the red switch to the ON position.
2. Allow the machine to run for at least 1 full
minute to make sure that the grinding wheel
is not going to fly apart and injure you, then
move to the front of the machine.
3. Hold the dressing tool firmly on the tool rest
with both hands and press it lightly against
the front surface of the grinding wheel as
shown in Figure 11.
Figure 11. Using wheel dressing tool.
4. Move the dressing tool in a side-to-side
motion, while keeping it even with the front
surface of the grinder.
5. Regularly pull the dressing tool away from the
wheel for visual inspection and repeat steps
3 & 4 until the surface of the wheel appears
to be restored to its normal color and texture.
H3368 Grinder/Sander Combo -15-
Wheel Inspection
Before mounting a new grinding wheel, it must be
inspected. DO NOT assume that a wheel is in
sound condition just because it is new—often,
damage can occur during shipping, with age, or
with exposure to moisture.
First, the wheel should be given a Visual
Inspection. Look for any cracks, chips, nicks, or
dents in the surface of the wheel. If you see any
of these, DO NOT use the wheel.
Second, the wheel should be given a Ring Test.
This test will give you an indication of any internal
damage that may not be obvious during a visual
inspection.
To perform a Ring Test:
1. Make sure the wheel that you test is clean
and dry; otherwise, you may get false results.
2. If size permits, balance the wheel with your
finger in the hole. If this is not possible, hang
the wheel in the air with a piece of cord or
string looped through the hole in the center.
3. At the spots shown in Figure 12, gently tap
the wheel with a light non-metallic device
such as the handle of a screwdriver or a
wooden mallet.
Figure 12. Ring test tapping locations.
The Model H3368 only accepts Type-1 wheels
with a
1
⁄2" bore.
Aluminum oxide and silicon carbide wheels are
marked in a somewhat uniform manner by all the
major manufacturers. Understanding these markings will help you understand the capabilities of
various wheels. Always refer to the manufacturer’s grinding recommendations when selecting a
wheel for your project.
The basic format for wheel numbering is:
Prefix Abrasive Grit Grade Bond
Type Size Type
1A60LV
The Prefix is the manufacturer’s designation for a
particular type.
The most common Abrasive Types used are A for
Aluminum Oxide and C for Silicon Carbide, and
occasionally SG for Seeded Gel.
The Grit Size is a number that refers to the size of
the abrasive grain in the wheel. The lower the
number, the coarser the wheel. 10 is a very
coarse wheel for roughing and 220 is usually the
upper range for fine finish work.
Grade is an indication of the hardness of the
wheel—“A” being the softest and “Z” being the
hardest.
Bond Type refers to the type of bonding material
used to hold the abrasive material. Most general
purpose wheels will have a “V” indicating Vitrified
Clay is used. Vitrified Clay provides high strength
and good porosity. The other common bond type
is “B” for resin where synthetic resins are used.
These are used to grind cemented carbide and
ceramic materials.
There may be other numbers inserted that have
meaning for a particular type of wheel. Refer to
the manufacturer’s technical data for a complete
explanation.
Wheel Selection
-16- H3368 Grinder/Sander Combo
Replacing Wheels
4. An undamaged wheel will emit a clear metal-
lic ring or “ping” sound in each of these spots.
A damaged wheel will respond with a dull
thud that has no clear tone.
5. If you determine from the ring test that the
wheel is damaged, DO NOT use it!
To remove/mount a wheel:
1. Disconnect the machine from the power
supply!
2. Remove the 3 Phillips head screws and nuts
that go through the outer guard. Take off the
outer guard and the rim guard.
3. Use a wrench on the nut that holds the wheel
on the arbor. Hold the wheel from turning
with your other hand. The grinding wheel
arbor has a left-handed thread, so loosening
the nut will require turning it clockwise.
4. Remove the outer wheel flange and the
paper disc. Pull the wheel free from the
arbor. There will also be a paper disc and a
wheel flange on the back side of the wheel.
Omitting the paper discs during assembly
can put undue stress on the wheel, causing
it to crack and possibly fall apart! NEVER
assemble a grinding wheel on the arbor
without paper or fiber discs between the
wheel and the flange.
Figure 13. Wheel mounting order.
Flange
Flange
Nut
Wheel
Paper/Fiber
Disc
Paper/Fiber
Disc
6. Re-install the guards and shields.
7. Run a new wheel for at least 1 minute while
standing clear of the line of rotation. If a
wheel does have defects it will generally fail
as soon as it gets up to full speed.
5. Mount the new wheel in the reverse order or
as shown in Figure 13. Always make certain
there is a paper or fiber disc between the
wheel flanges and the wheel itself. Tighten
the nut snugly but DO NOT over-tighten.
Over-tightening can crack the wheel.
The hazards of using a damaged wheel
include flying chunks of sharp abrasive
material that could cause serious injury or
death. Inspect every grinding wheel before
it is mounted and DO NOT use a damaged
grinding wheel!
The wheel guard assembly must be removed in
order to mount or dismount a grinding wheel.
H3368 Grinder/Sander Combo -17-
The 2" sanding belt on the Model H3368 works
great for non-ferrous metals and wood products.
A wide variety of belts are also available for many
types of materials and stages of finishing.
Sanding
The sanding belt will remove large amounts
of material quickly, including your skin. DO
NOT touch the sanding belt and always
position your hands so they will not slip into
the belt or get caught in the belt.
6. Remove your workpiece regularly to check
the progress the sander has made.
Remember—you can always remove more
material but you cannot add it!
7. When you are finished sanding, move the red
switch to the OFF position. DO NOT continue
grinding and DO NOT manually stop the
sanding belt with your workpiece!
Figure 15. Sanding a workpiece.
Figure 16. Sanding a workpiece.
Figure 14. Examples of tool rest angles.
To sand a workpiece:
1. Before starting the machine, adjust the angle
of the tool rest so your workpiece can be
properly supported and the area you wish to
sand will be parallel with the sanding belt as
illustrated in Figure 14.
4. Grasp the workpiece tightly and properly sup-
port it on the tool rest.
5. Press the workpiece evenly against the sand-
ing belt with light pressure (see Figures 15
and 16). DO NOT press hard—let the the
rotation of the belt do the work
2. With the machine plugged into power, stand
to the side of the grinding wheel, and move
the red switch to the ON position.
3. Allow the machine to run for at least 1 full
minute to make sure that the grinding wheel
is not going to fly apart and injure you, then
move to the front of the machine.
-18- H3368 Grinder/Sander Combo
Many belts are available with different grit sizes.
To remove/replace a sanding belt:
1. Disconnect the machine from the power
supply!
2. Remove the star knob from the right-hand
sanding belt cover as shown in Figure 17.
Replacing Belts
Figure 17. Removing star knob from cover.
Figure 19. Removing sanding belt.
Figure 18. Sanding belt tension knob.
3. Remove the right-hand sanding belt cover.
4. Loosen the sanding belt tension knob (shown
in Figure 18) on the top, left-hand side of the
sanding belt cover.
5. Pull the sanding belt tension knob down with
one hand and work the sanding belt off the
rollers with the other hand as shown in
Figure 19.
6. Install the new sanding belt in the reverse
order of removal and replace the belt cover.
7. Track the new sanding belt BEFORE turning
the machine ON.
H3368 Grinder/Sander Combo -19-
SECTION 7: MAINTENANCE
Always be aware of the condition of your
machine. Routinely check the condition of the following items and repair or replace as necessary:
• Loose mounting bolts
• Worn switch
• Worn or damaged cord
• Worn or damaged support bearings
• Damaged grinding wheel
• Any other condition that could hamper the
safe operation of this machine.
General
Sealed and pre-lubricated ball bearings require
no lubrication for the life of the bearings. All bearings are standard sizes, and replacements can be
purchased from our parts department or a bearing
supply store.
Lubrication
Clean (“unload”) sanding belts regularly with
PRO-STIK
®
belt cleaners. These crepe-rubber
belt cleaners quickly remove gum and grit from
belts with out damage. Just press the cleaning
block against your sanding belt until it is clean.
Sanding Belts
The grinding wheel should be inspected before
every use. Use the “ring test” method from page
15 to verify the structural integrity. Take care in
storing grinding wheels to keep them free from
potential damage by being dropped or having
other items dropped on them.
Replace the wheel when the wheel diameter is
reduced to 5". Operating at anything less than this
diameter does not allow the proper alignment of
the tool rest and the eye shield.
Depending on the type of grinding you do, the
grinding wheel may require periodic dressing.
Refer to the “Wheel Dressing” instructions in this
manual for details on how this is done.
Grinding Wheels
Disconnect power to the
machine when performing any maintenance,
assembly or adjustments. Failure to do this
may result in serious
personal injury.
!
-20- H3368 Grinder/Sander Combo
Maintenance Performed
Approximate Hours Of Use
Maintenance Log
Date
H3368 Grinder/Sander Combo -21-
The following pages contain general machine
data, parts diagrams/lists, a troubleshooting guide
and Warranty/Return information for your Model
H3368.
If you need parts or help in assembling your
machine, or if you need operational information,
we encourage you to call our Service Department.
Our trained service technicians will be glad to help
you.
If you have comments dealing specifically with
this manual, please write to our Bellingham,
Washington location using the address in Section
2: Introduction.
We have included some important safety measures that are essential to the operation of this
machine. While most safety measures are generally universal, Grizzly reminds you that each
workshop is different and safety rules should be
considered as they apply to your specific situation.
We recommend you keep a copy of our current
catalog for complete information regarding
Grizzly's warranty and return policy. If you need
additional technical information relating to this
machine, or if you need general assistance or
replacement parts, please contact the Service
Department listed in Section 2: Introduction.
Additional information sources are necessary to
realize the full potential of this machine. Trade
journals, woodworking magazines, and your local
library are good places to start.
SECTION 8: CLOSURE
The Model H3368 was specifically
designed for grinding/sanding. DO NOT
MODIFY AND/OR USE THIS MACHINE FOR
ANY OTHER PURPOSE. Modifications or
improper use of this tool will void the warranty. If you are confused about any aspect
of this machine, DO NOT use it until all
your questions have been answered or
serious personal injury may occur.
Like all power tools, there is danger associated with the Model H3368. Accidents are
frequently caused by lack of familiarity or
failure to pay attention. Use this tool with
respect and caution to lessen the possibility of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.
Operating this equipment creates the potential for flying debris to cause eye injury.
Always wear safety glasses or goggles
when operating equipment. Everyday glasses or reading glasses only have impact
resistant lenses, they are not safety glasses.
Be certain the safety glasses you wear meet
the appropriate standards of the American
National Standards Institute (ANSI).
This section covers the most common problems encountered during operation and what to do about them.
Do not make any adjustments until machine is unplugged and moving parts have come to a complete stop.
TROUBLESHOOTING
SYMPTOM
Motor will not start.
Motor will not start; fuses or
circuit breakers blow.
Motor overheats.
Motor stalls (resulting in
blown fuses or tripped circuit).
Machine slows when operating.
Wavy condition on surface
of workpiece.
Lines on surface of workpiece.
Burning spots or cracks in
the workpiece.
Wheel dulls quickly, grit falls
off.
Wheel clogs and workpiece
shows burn marks.
Abrasive belt runs off wheel.
POSSIBLE CAUSE
1. Low voltage.
2. Open circuit in motor or loose
connections.
1. Short circuit in line cord or plug.
2. Short circuit in motor or loose
connections.
3. Incorrect fuses or circuit breakers in power line.
1. Motor overloaded.
1. Short circuit in motor or loose
connections.
2. Low voltage.
3. Incorrect fuses or circuit breakers
in power line.
4. Motor overloaded.
1. Depth of cut too great.
1. Machine vibrating.
2. Workpiece not being held firmly.
3. Wheel face uneven.
4. Wheel is too hard.
1. Impurity on wheel surface.
2. Workpiece not being held tightly.
1. Improper type of grinding wheel.
2. Improper feed rate.
3. Coolant required.
1. Depth of cut too great.
2. Wheel is too soft.
3. Wheel diameter too small.
4. Bad wheel dress.
5. Defective wheel bonding.
1. Wheel is too hard.
2. Feed rate too slow.
3. Bad wheel dress.
4. Coolant required.
1. Belt not tracking properly.
CORRECTIVE ACTION
1. Check power line for proper voltage.
2. Inspect all lead connections on motor for loose or open connections.
1. Inspect cord or plug for damaged insulation and shorted wires.
2. Inspect all connections on motor for loose or shorted terminals or
worn insulation.
3. Install correct fuses or circuit breakers.
1. Reduce load on motor.
1. Inspect connections on motor for loose or shorted terminals or
worn insulation.
2 Correct the low voltage conditions.
3. Install correct fuses or circuit breakers.
4. Reduce load on motor.
1. Slow down the rate of movement of the workpiece into wheel.
1. Make sure machine is securely mounted on a solid surface.
2. Use a holding device to firmly retain the workpiece.
3. Dress the grinding wheel.
4. Use softer wheel, or reduce the feed rate.
1. Dress the grinding wheel.
2. Use a holding device to firmly retain the workpiece.
1. Try a wheel which is softer style or a coarser grit.
2. Slow down the rate of movement of the workpiece into wheel.
3. Add optional coolant system or introduce coolant by hand.
1. Slow down the rate of movement of the workpiece into wheel.
2. Wheel too soft for the material being ground, select harder bond.
3. Replace the wheel.
4. Dress the wheel.
5. Consult manufacturer of grinding wheel.
1. Wheel too hard for the material being ground, select softer bond.
2. Increase the rate of movement of the workpiece into wheel.
3. Dress the wheel.
4. Add optional coolant system or introduce coolant by hand.
1. Adjust belt tracking.
2. Belt platen may be interfering. Adjust away from belt.
Disconnect power to the
machine when performing any maintenance or
adjustments. Failure to
do this may result in serious personal injury.
H3368 Grinder/Sander Combo-22-
!
Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901
MODEL H3368 GRINDER/SANDER COMBO
MACHINE DATA
SHEET
Design Type.......................................................................... Bench Model
Overall Dimensions:
Height (w/Work Light Extended) ..................................................19
3
⁄4"
Width ............................................................................................15
1
⁄4"
Depth ............................................................................................11
3
⁄4"
Shipping Weight ........................................................................26 lbs.
Net Weight..................................................................................22 lbs.
Box Size ....................................................17
3
⁄8" L x 153⁄16" W x 91⁄4" H
Footprint......................................................................................5" x 6"
Arbor ................................................................................................
1
⁄2"
Wheel Size ................................................................................6" x
3
⁄4"
Sanding Belt Size ....................................................................2" x 27"
Motor:
Type ....................................................TEFC Capacitor-Start Induction
Horsepower ..................................................................................
1
⁄2 HP
Phase / Voltage ....................................................Single-Phase ⁄ 110V
Amps ..................................................................................................8
Cycle / RPM ........................................................60 Hertz ⁄ 3450 RPM
Bearings ......................................Shielded & Permanently Lubricated
Features:
......................................................................................Wheel Flanges
............................................................................................Tool Rests
..............................................................................Rocker-Type Switch
....................................................Extended Wheel-to-Motor Clearance
........................................................................Convenient Water Tray
..............................................................Included 80 Grit Sanding Belt
..............................Included Aluminum Oxide 36 Grit Grinding Wheel
Specifications, while deemed accurate, are not guaranteed.
H3368 Grinder/Sander Combo -23-
-24- H3368 Grinder/Sander Combo
78
61
79
45
64
63
27
32
21
10
65
26
39
24
22
47
43
42
44
39
37
73
71
39
36
72
51
71
50
25
70
24
69
80
41
53
74
68
54
13
44
76
20
52
39
67
66
59
35
77
82
56
39
75
32
40
32
9
58
78
27
9
81
9
62
60
27
9
6
54
6
46
14
13
12
11
15
18
16
48
27
7
30
17
28
33
49
56
34
32
54
57
55
23
21
9
19
9
10
8
32
4
6
44
5
4
3
2
1
38
56
44
39
56
31
29
27
9
H3368 Grinder/Sander Combo -25-
Ref# Part# Description
1 PS54M PHLP HD SCR M5-.8 X 45
2 PH3368002 LEFT WHEEL COVER
3 PN16M HEX NUT M12-1.75 LH
4 PH3368004 FLANGE
5 PH3368005 GRINDING WHEEL A36N5V
6 PS09M PHLP HD SCR M5-.8 X 10
7 PH3368007 LEFT SAFE GUARD
8 PH3368008 SPARK BREAKER
9 PW02M FLAT WASHER 5MM
10 PS05M PHLP HD SCR M5-.8 X 8
11 PH3368011 SUPPORT ARM
12 PH3368012 BRACKET
13 PW01M FLAT WASHER 8MM
14 PB84M HEX BOLT M8-1.25 X 14
15 PCB07M CARR BOLT M6-1.0 X 18
16 PH3368016 EYESHIELD PLATE
17 PW03M FLAT WASHER 6MM
18 PS53M PHLP HD SCR M4-.7 X 10
19 PH3368019 HOUSING SCR M5-.8 X 123
20 PH3368020 KNOB M8-1.25
21 PH3368021 END BELL
22 PN03M HEX NUT M8-1.25
23 PH3368023 WAVY WASHER 28MM
24 P6202RS BEARING 6202-RS
25 PH3368025 STATOR
26 PH3368026 ROTOR
27 PN06M HEX NUT M5-.8
28 PTLW02M EXT TOOTH WASHER 5MM
29 PH3368029 LEFT MOUNT TOOL REST
30 PH3368030 EYESHIELD
31 PH3368031 KNOB BOLT M5-.8 X 10
32 PLW01M LOCK WASHER 5MM
33 PW05M FLAT WASHER 4MM
34 PN04M HEX NUT M4-.7
35 PN09M HEX NUT M12-1.75
36 PH3368036 SANDING BELT 2" X 27"
37 PH3368037 RIGHT WHEEL COVER
38 PTLW01M EXT TOOTH WASHER 4MM
39 PS07M PHLP HD SCR M4-.7 X 8
40 PH3368040 RIGHT SAFE GUARD
41 PH3368041 CORD BUSHING
Ref# Part# Description
42 PC060 CAPACITOR CBB60
43 PH3368043 CAPACITOR SUPPORT
44 PLW02M LOCK WASHER 4MM
45 PH3368045 WHEEL DRESSING TOOL
46 PH3368046 LAMP SUPPORT
47 PH3368047 MOTOR HOUSING
48 PH3368048 CORD & PLUG
49 PH3368049 CORD CLIP
50 PN14M HEX NUT M10-1.0
51 PLW06M LOCK WASHER 10MM
52 PH3368052 SWITCH PLATE
53 PH3368053 SWITCH
54 PN04M HEX NUT M4-.7
55 PS21M PHLP HD SCR M4-.7 X 15
56 PW05M FLAT WASHER 4MM
57 PH3368057 RUBBER FOOT
58 PH3368058 COOLANT TRAY
59 PH3368059 BOTTOM PLATE
60 PH3368060 RIGHT MOUNT TOOL REST
61 PW02M FLAT WASHER 5MM
62 PS09M PHLP HD SCR M5-.8 X 10
63 PH3368063 BULB S-25 12V 10W
64 PH3368064 LAMPSHADE
65 PH3368065 DRESSING BASE
66 PH3368066 KNOB M6-1.0 X 10
67 PH3368067 ADJUSTMENT ROD
68 PH3368068 SPRING
69 PH3368069 TENSION PLATE
70 PH3368070 DRIVE SHAFT WASHER
71 P6201 BEARING 6201-RS
72 PH3368072 UPPER DRIVE CYLINDER
73 PH3368073 DRIVE SHAFT
74 PH3368074 WORK SUPPORT
75 PH3368075 DRIVE SHAFT SPACER
76 PH3368076 LOWER DRIVE CYLINDER
77 PN01M HEX NUT M6-1.0
78 PH3368078 KNOB BOLT M5-.8 X 10
79 PH3368079 DUST PORT
80 PR29M INT RETAIN RING 32MM
81 PH3368081 SAFE BOARD
82 PN06M HEX NUT M5-.8
MODEL H3368 PARTS
-26- H3368 Grinder/Sander Combo
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then
issue you a “Return Number,” which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
WARRANTY AND RETURNS
Name ____________________________________________________________________________________
Street ____________________________________________________________________________________
City ______________________________________________________________State________Zip_________
Phone Number_______________________E-Mail_______________________FAX________________________
MODEL # H3368 Grinder/Sander Combo Serial# ___________________ Order# ________________
The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. Of
course, all information is strictly confidential.
10. Which benchtop tools do you own? Check all that apply.
___1" x 42" Belt Sander ___6" - 8" Grinder
___5" - 8" Drill Press ___Mini Lathe
___8" Table Saw ___10" - 12" Thickness Planer
___8" - 10" Bandsaw ___Scroll Saw
___Disc/Belt Sander ___Spindle/Belt Sander
___Mini Jointer
___Other__________________________________________________
11. How many of the machines checked above are Grizzly? ____________
12. Which portable/hand held power tools do you own? Check all that apply.
___Belt Sander ___Orbital Sander
___Biscuit Joiner ___Palm Sander
___Circular Saw ___Portable Planer
___Detail Sander ___Saber Saw
___Drill/Driver ___Reciprocating Saw
___Miter Saw ___Router
___Other__________________________________________________
13. What machines/supplies would you like Grizzly Industrial to carry?
__________________________________________________________
__________________________________________________________
14. What new accessories would you like Grizzly Industrial to carry?
__________________________________________________________
__________________________________________________________
15. What other companies do you purchase your tools and supplies from?
__________________________________________________________
__________________________________________________________
16. Do you think your purchase represents good value?
___Yes ___No
17. Would you recommend Grizzly Industrial to a friend?
___Yes ___No
18. Would you allow us to use your name as a reference for Grizzly customers
in your area? Note: We never use names more than three times.
___Yes ___No
19. Comments:_________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
1. How did you learn about us?
___Advertisement ___Friend
___Catalog ___Card Deck
___World Wide Web
___Other__________________________________________________
2. Which of the following magazines do you subscribe to.
___American Woodworker ___Practical Homeowner
___Cabinetmaker ___Shop Notes
___Family Handyman ___Today’s Homeowner
___Fine Homebuilding ___WOOD
___Fine Woodworking ___Wooden Boat
___Home Handyman ___Woodshop News
___Journal of Light Construction ___Woodsmith
___Old House Journal ___Woodwork
___Popular Mechanics ___Woodworker
___Popular Science ___Woodworker’s Journal
___Popular Woodworking ___Workbench
___Other__________________________________________________
3. Which of the following woodworking/remodeling shows do you watch?
___Backyard America ___The New Yankee Workshop
___Home Time ___This Old House
___The American Woodworker ___Woodwright’s Shop
___Other__________________________________________________
4. What is your annual household income?
___$20,000-$29,999 ___$60,000-$69,999
___$30,000-$39,999 ___$70,000-$79,999
___$40,000-$49,999 ___$80,000-$89,999
___$50,000-$59,999 ___$90,000 +
5. What is your age group?
___20-29 ___50-59
___30-39 ___60-69
___40-49 ___70 +
6. How long have you been a woodworker?
___0 - 2 Years ___8 - 20 Years
___2 - 8 Years ___20+ Years
7. How would you rank your woodworking skills?
___Simple ___Advanced
___Intermediate ___Master Craftsman
8. What stationary woodworking tools do you own? Check all that apply.
___Air Compressor ___Panel Saw
___Band Saw ___Planer
___Drill Press ___Power Feeder
___Drum Sander ___Radial Arm Saw
___Dust Collector ___Shaper
___Horizontal Boring Machine ___Spindle Sander
___Jointer ___Table Saw
___Lathe ___Vacuum Veneer Press
___Mortiser ___Wide Belt Sander
___Other__________________________________________________
9. How many of your woodworking machines are Grizzly? _____________
WARRANTY CARD
FOLD ALONG DOTTED LINE
FOLD ALONG DOTTED LINE
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
Place
Stamp
Here
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
Name_______________________________
Street_______________________________
City______________State______Zip______
Send a Grizzly Catalog to a friend:
Buy Direct and Save with Grizzly® – Trusted, Proven and a Great Value!
Visit Our Website Today And Discover Why
Grizzly® Is The Industry Leader!
• SECURE ORDERING
• ORDERS SHIPPED WITHIN 24 HOURS
• E-MAIL RESPONSE WITHIN ONE HOUR
-OR-
Call Today For A
Full Color Catalog
FREE
Loading...
