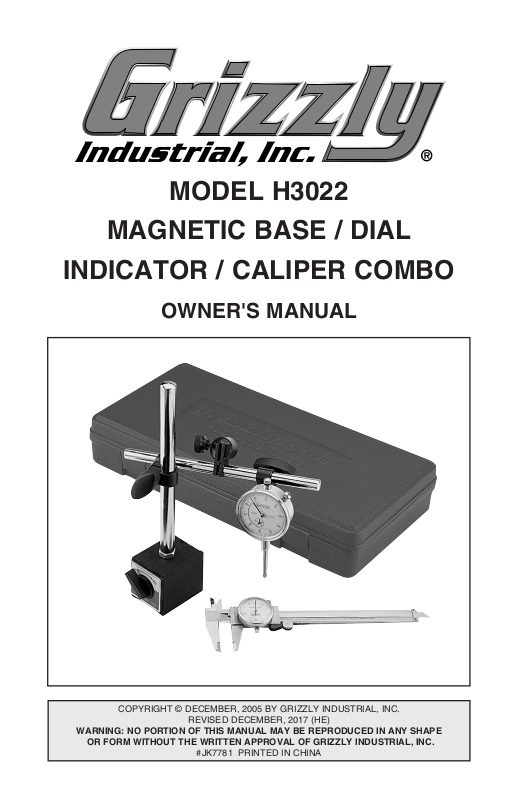

MODEL H3022
MAGNETIC BASE / DIAL
INDICATOR / CALIPER COMBO
OWNER'S MANUAL
COPYRIGHT © DECEMBER, 2005 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
REVISED DECEMBER, 2017 (HE)
#JK7781 PRINTED IN CHINA
Model H3022 Magnetic Base / Dial Indicator / Caliper Combo -B-
SECTION 1: INTRODUCTION
Foreword Contact Information
We are proud to offer the Grizzly Model
H3022 Magnetic Base/Dial Indicator/
Caliper Combo. This Model is part of a
growing Grizzly family of fine measuring tools. When used according to the
guidelines set forth in this manual, you
can expect years of trouble-free, enjoyable
operation and proof of Grizzly’s commitment to customer satisfaction.
It is our pleasure to provide this manual
with the Model H3022. It was written
to encourage safety considerations and
guide you through general operating procedures and maintenance.
The specifications, details, and photographs in this manual represent the Model
H3022 as supplied when the manual was
prepared. However, owing to Grizzly’s policy of continuous improvement, changes
may be made at any time with no obligation on the part of Grizzly.
If you have any comments regarding this
manual, please write to us at the following
address:
Grizzly Industrial, Inc.
C/O Technical Documentation
P.O. Box 2069
Bellingham, WA 98227-2069
Most importantly, we stand behind our
tools. If you have any service questions or
parts requests, please call or write us at
the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail: techsupport@grizzly.com
Web Site: http://www.grizzly.com
Read the manual before operation.
Become familiar with these tools, its
safety instructions, and its operation
before beginning any work. Serious
personal injury may result if safety or
operational information is not understood or followed.
Model H3022 Magnetic Base / Dial Indicator / Caliper Combo -3-
SECTION 2: IDENTIFICATION
0
1 2 3 4 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 2 3 4 5 6 7 8 9
6 in3
0
10
20
30
40
50
60
70
80
90
.
001in
SHOCK-PROOF
ON
OFF
0
10
20
30
40
50
60
70
80
90
0—1.0 in
90
80
70
60
40
30
20
10
.001in
0
5
2
3 7
8
4 6
1 9
Support Assembly Identification
(Figure 1)
A. Support Column
B. Lock Knobs
C. Mounting Stud/Screw
D. ON/OFF Switch
E. Magnetic Base
F. Fine-Tune Adjustment Knob
G. Boom
Dial Indicator Identification (Figure 2)
A. Dial Lock
B. Rotation Counter (in 0.1" increments)
C. Dial Numbers (in 0.01" increments)
D. Dial Ticks (in 0.001" increments)
E. Contact Point
F. Adjustable Dial Markers
Caliper Identification (Figure 3)
A. Internal Caliper Jaws
B. Dial Needle
C. Caliper Lock
D. Thumb Wheel
E. Depth Blade (retracted)
F. Inch Numbers (in 1" increments)
G. Ruler Ticks (in 0.1" increments)
H. Dial Numbers (in 0.01" increments)
I. Dial Ticks (in 0.001" increments)
J. Dial Lock
K. External Caliper Jaws
G
A
B
F
C
E
D
Figure 1. Support Assembly Identification.
A
B
F
C
D
E
Figure 2. Dial Indicator Identification.
B
D
C
E
A
K
I
J
Figure 3. Caliper Identification.
Model H3022 Magnetic Base / Dial Indicator / Caliper Combo -4-
H
G
F
SECTION 3: SET UP
Unpacking
Your magnetic base/dial indicator/caliper
combo left our warehouse in a carefully
packed box. If you discover the magnetic
base/dial indicator/caliper combo is damaged after you have signed for delivery,
please immediately call Customer Service
at (570) 546-9663 for advice.
Save the containers and all packing materials for possible inspection by the carrier or
its agent. Otherwise, filing a freight claim
can be difficult.
When you are completely satisfied with
the condition of the shipment, you should
inventory the equipment.
A
Inventory
After you have unpacked the carrying case
you should find the following.
Model H3022 Inventory (Figure 4)
A. Dial Indicator ...................................... 1
B. Support Assembly .............................. 1
C. Magnetic Base ................................... 1
D. Flat Washer 10mm ............................ 1
E. Dial Caliper ........................................ 1
F. Carrying Case (not shown) ................ 1
B
C
D
E
Figure 4. Model H3022 inventory
Model H3022 Magnetic Base / Dial Indicator / Caliper Combo -5-
Base and Indicator
Assembly
A drop of machine oil should be put on all
connections during this process.
To attach the base to the support
assembly:
1. Place the 10mm flat washer on the
threaded end of the support column.
2. Thread the support column into the
magnetic base, as shown in Figure
5, and tighten the jam nut against the
washer.
Support
Column
Flat
Washer
Base
Knurled Nut
Mounting
Stud
Figure 6. Dial Indicator installation.
3. Secure the dial indicator with the
knurled nut.
4. Insert the mounting stud back into the
large mounting hole and tighten the
lock knob.
Figure 5. Magnetic base assembly.
To attach the dial indicator to the boom:
1. Loosen the lock knob that secures the
mounting stud to the boom and remove
the stud.
2. Unscrew and remove the knurled nut
and flat washer from the mounting stud,
and insert the threaded end of the stud
into the flange on the back of the dial
indicator, as shown in Figure 6.
Note: The stud can be inserted from
the left- or the right-hand side depending on your mounting needs.
Model H3022 Magnetic Base / Dial Indicator / Caliper Combo -6-
SECTION 4: DIAL INDICATOR
General Usage Tips
The dial indicator can be used for many
precise measuring tasks. The magnetic
base can be positioned on flat or round
surfaces. Below are some tips to follow
when using the dial indicator and base.
• Turn the magnetic base OFF when
moving the unit to prevent damage to
the current mounting surface, and to
prevent sudden jarring that could damage the internal components of the dial
indicator.
• Make adjustments to the support
assembly only with the base magnetically secured to a steel or iron object.
• Always loosen the lock knobs when
positioning the boom and dial indicator.
Make sure they are tight before making
fine adjustments to the dial indicator.
Adjusting the
Assembly
The support assembly can be adjusted
to provide a longitudinal reach of 21" and
a 360° lateral reach of 111⁄2 ", as shown in
Figure 7. This means the contact point of
the dial indicator can reach virtually any
point within this space.
Boom
30
20
70
80
40
10
60
90
0—1.0 in
8
5
0
0
50
4 6
1 9
2
3 7
.001in
40
10
60
90
20
30
80
21"
Figure 7. Support Assembly Reach.
To adjust the boom position:
70
111⁄2"
1. Loosen the lock knob on the support
column enough to allow the boom arm
to pivot, and the lock knob to slide
along the length of both the support
column and the boom.
2. Set the boom height and rotation to the
desired position, and tighten the lock
knob so that it allows the boom to pivot
with slight resistance.
3. Make any adjustments to the boom
angle and tighten the lock knob completely.
Model H3022 Magnetic Base / Dial Indicator / Caliper Combo -7-
Positioning the Dial
0
10
20
30
40
50
60
70
80
90
0—1.0 in
90
80
70
60
40
30
20
10
.
001in
0
5
2
3 7
8
4 6
1 9
0
10
20
30
40
50
60
70
80
90
0—1.0 in
90
80
70
60
40
30
20
10
.
001in
0
5
2
3 7
8
4 6
1 9
Indicator
Setting the Contact
Point
The dial indicator position can be finetuned to provide the optimum measuring
conditions.
To adjust the dial indicator position:
1. Loosen the lock knob on the boom
enough to allow the boom arm to pivot,
and the lock knob to slide along the
length of the boom.
2. Set the dial indicator position along the
boom and tighten the lock knob so that
it allows the dial indicator to rotate with
slight resistance.
3. Loosen the knurled nut with a screwdriver or by hand so that the dial indicator can pivot freely. Set the dial indicator to the desired angle and tighten
both the knurled nut and the lock knob
completely.
4. If the dial indicator is in position but
the measuring angle is still not exact,
the fine-tune adjustment knob may be
turned clockwise or counterclockwise
to change the angle of the boom, as
shown in Figure 8. It can also be
used when setting the contact point, as
shown in Figure 9.
One of the most important setup considerations with a dial indicator is to ensure
the contact point is perpendicular to the
expected motion of the object being tested. Failure to ensure a proper setup will
result in an error in measurement.
To set the contact point:
1. Follow all previous instructions about
the positioning of the support assembly, boom and dial indicator.
2. Adjust the dial indicator so that it is
perpendicular (at a 90° angle) to the
object being measured. The contact
point should touch the object, as shown
in Figure 9.
Note: If the object being measured is
cylindrical, position the dial indicator
perpendicular to both the cross-sectional axis and the longitudinal axis of
the object, as shown in Figure 9. When
the object rotates, the needle of the dial
indicator will show the lateral motion or
deviation of the object.
90°
Fine-tune
Clockwise
Adjustment
Knob
Counter-clockwise
Figure 8. Fine-Tune Adjustment.
Cross-sectional axis
0
90
10
10
90
0
1 9
2
8
80
3 7
20
4 6
5
20
80
0—1.0 in
.001in
30
70
70
30
60
40
40
60
50
90°
Model H3022 Magnetic Base / Dial Indicator / Caliper Combo -8-
Figure 9. Positioning the contact point.
Zeroing the Dial
The dial can be adjusted by loosening the
dial lock. This can be helpful for making
comparison measurements or if the contact point has been set and the dial needs
to be reset to zero.
To zero the dial:
1. Release the dial by loosening the dial
lock a half turn.
2. Rotate the dial so the needle and the
zero mark line up.
3. Tighten the dial lock to fix the dial in
place.
Reading the Dial
The dial is relatively straightfor ward and
easy to read.
• Every tick on the outer rim of the dial
represents 1⁄1000" or 0.001". One complete revolution of the large needle is
equal to 1⁄10" or 0.1".
• To read the dial as a whole, read the
value of the small dial first, and then
add the value of the large dial. The dial
in Figure 10 shows a reading of just
over 0.886".
0.086"
0
90
10
0
8
7
6
5
0—1.0 in
80
0.8"
20
20
80
Adjustable
10
90
.001in
Marker
2
3
1 9
4
Figure 10. Reading a dial measurement.
Adjustable Markers
The rim of the dial indicator is fitted with
two adjustable markers, which can be
moved even with the dial locked in position. These are very useful when performing range testing. Figure 10 shows one
of the adjustable markers at the 0.083"
position.
• The small dial indicates the number of
full revolutions made by the large dial
needle; each full revolution is equal
to 1/10" or 0.1". If the needle is situated
between two numbers, then the dial is
read as if it equalled the lower number.
For example, if the dial needle was
resting at any point between four and
five, the dial reading would be 4⁄10" or
0.4".
Note: It is important to remember the
small dial needle rotates counterclockwise.
Model H3022 Magnetic Base / Dial Indicator / Caliper Combo -9-
SECTION 5: CALIPER
General Usage Tips
• Use the thumbwheel to open and close
the caliper.
• Always keep the jaws of the caliper
clean and free of dust, grease, oils
or grit. The calipers are accurate to
0.001", and even something as small
as a grain of sand or human hair can
cause a false measurement.
• Never drop, mishandle or otherwise jar
the caliper. Jarring can damage vital
internal components and cause the
caliper to provide false measurements.
• Always store the caliper in a safe place
where it will not be bumped by or
beneath other objects.
Zeroing the Dial
Locking the Caliper
The caliper lock can be tightened at any
point to prevent the jaws from opening
or closing. This is useful for per forming
manual measurement comparisons. The
caliper can also be partially tightened to
provide greater resistance, alllowing for
more precise manual measurements. The
caliper lock is shown in Figure 11.
Caliper Lock
0
10
20
Figure 11. Caliper lock.
The dial can be adjusted by loosening the
dial lock. This can be helpful for making
comparison measurements.
To zero the dial:
1. Release the dial by loosening the dial
lock a half turn.
2. Rotate the dial so the needle and the
zero mark line up.
3. Tighten the dial lock to fix the dial in
place.
Model H3022 Magnetic Base / Dial Indicator / Caliper Combo -10-
Reading the Caliper
The caliper is ver y straightforward and
easy to read. Reading a measurement is
the same for both internal and external jaw
measurements and depth gauge measurements.
• Every tick on the caliper dial represents
1
⁄1000" or 0.001". As with the dial indicator, each full revolution of the needle
is equal to 1⁄10" or 0.1". The dial ticks
are separated into units of ten for easy
reading.
2 3 4 5 6 7 8 9
8
2"
0 1 2
10
20
30
70
.001in
10
20
30
70
1 2 3 4 5 6 7 8 9
3
4 5 6
1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9
10
90
0
10
90
0
90
90
10
10
0 1 2
0.1"
Figure 12. Reading a caliper measurement.
• The caliper ruler is marked with increments of 1⁄10" or 0.1". For every ten
ticks, there is a raised number indicating 1" or one full inch. As the caliper
jaws are opened, the ruler becomes
visible to the left of the caliper dial.
Read the numbers closest to the inner
edge of the right caliper jaw when taking a measurement.
• To take a measurement, first read
the rightmost raised number (if any)
to the inner edge of the right caliper
jaw to determine the number of whole
inches. Next, read the rightmost lower
number to the left of the jaw edge for
1/10" or 0.1" increments. Lastly, read
the dial itself to determine any remainder. Figure 12 shows a caliper set to
2.147".
.001in
20
20
30
30
40
40
80
80
70
70
3
1 2 3 4 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9
SHOCK-PROOF
60
60
50
50
0.047"
20
80
20
80
30
70
30
.001in
0 1 2
1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9
70
SHOCK-PROOF
60
60
40
40
50
50
Figure 13. Measuring the outside of a nut.
0
90
90
80
80
Measuring Objects
Figure 14. Measuring the inside of a nut.
The caliper can be used to measure
both internal and external dimensions of
objects, as well as depth dimensions.
Figures 13, 14 & 15 show how to measure
objects in this way.
Model H3022 Magnetic Base / Dial Indicator / Caliper Combo -11-
20
20
30
30
4 5
1 2 3
1 2 3 4 5 6 7 8 9
Figure 15. Using the depth gauge.
WARRANTY AND RETURNS
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original
purchaser from the date of purchase. This warranty does not apply to defects due directly
or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of
maintenance. This is Grizzly’s sole written warranty and any and all warranties that may
be implied by law, including any merchantability or fitness, for any particular purpose, are
hereby limited to the duration of this written warranty. We do not warrant or represent that
the merchandise complies with the provisions of any law or acts unless the manufacturer so
warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price
paid for the product and any legal actions brought against Grizzly shall be tried in the State
of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental,
contingent, special, or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details.
We will then issue you a “Return Authorization Number,” which must be clearly posted on
the outside as well as the inside of the carton. We will not accept any item back without this
number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they
constantly strive to achieve better quality equipment. We make every effort to ensure that
our products meet high quality and durability standards and we hope you never need to
use this warranty.
Please feel free to write or call us if you have any questions about the machine or the
manual.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail:
techsupport@grizzly.com
Web Site: http://www.grizzly.com
Thank you again for your business and continued support. We hope to serve you again
soon!
Model H3022 Magnetic Base / Dial Indicator / Caliper Combo -12-
Loading...
