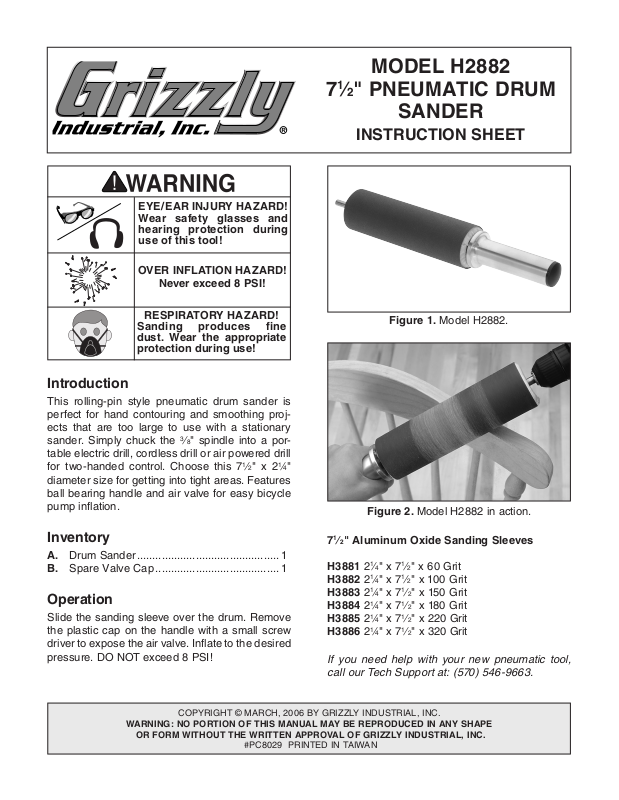

Grizzly H2882 User Manual

EYE/EAR INJURY HAZARD! Wear safety glasses and hearing protection during use of this tool!

OVER INFLATION HAZARD!

Never exceed 8 PSI!

MODEL H2882

71⁄2" PNEUMATIC DRUM

SANDER

INSTRUCTION SHEET

RESPIRATORY HAZARD! Sanding produces fine dust. Wear the appropriate protection during use!

Introduction

This rolling-pin style pneumatic drum sander is perfect for hand contouring and smoothing proj ects that are too large to use with a stationary sander. Simply chuck the table electric drill, cordless drill or air powered drill for two-handed control. Choose this 7 diameter size for getting into tight areas. Features ball bearing handle and air valve for easy bicycle pump inflation.

⁄8 " spindle into a por-

⁄2 " x 21⁄4"

Inventory

A. Drum Sander .............................................. 1

B. Spare Valve Cap ........................................ 1

Operation

Slide the sanding sleeve over the drum. Remove the plastic cap on the handle with a small screw driver to expose the air valve. Inflate to the desired pressure. DO NOT exceed 8 PSI!

Figure 1. Model H2882.

Figure 2. Model H2882 in action.

71⁄2" Aluminum Oxide Sanding Sleeves

H3881 H3882 H3883 H3884 H3885 H3886

If you need help with your new pneumatic tool, call our Tech Support at: (570) 546-9663.

21⁄4" x 71⁄2 " x 60 Grit 21⁄4" x 71⁄2 " x 100 Grit 21⁄4" x 71⁄2 " x 150 Grit 21⁄4" x 71⁄2 " x 180 Grit 21⁄4" x 71⁄2 " x 220 Grit 21⁄4" x 71⁄2 " x 320 Grit

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#PC8029 PRINTED IN TAIWAN
