Introduction
This simple, yet effective protractor is made from
ground stainless steel and features easy-to-read
engraved lettering, an 8" beam and an 11
blade. The scale reads from 0° to 180°.
1
/2"
Inventory (Figure 1)
A. 8" Beam ...................................................... 1
B. 111/2" Blade ................................................. 1
C. Knob ........................................................... 1
Operation Instructions
1. Loosen the black knob that holds the blade to
the beam.

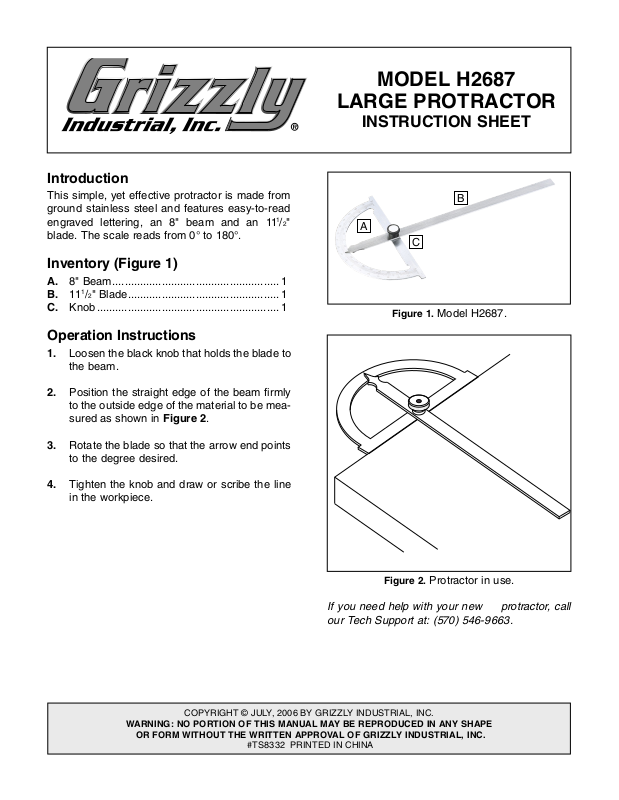

MODEL H2687
LARGE PROTRACTOR
INSTRUCTION SHEET
B
A
C
Figure 1. Model H2687.
2. Position the straight edge of the beam firmly
to the outside edge of the material to be mea
sured as shown in Figure 2
3. Rotate the blade so that the arrow end points
to the degree desired.
4. Tighten the knob and draw or scribe the line
in the workpiece.
.
-
Figure 2. Protractor in use.
If you need help with your new protractor, call
our Tech Support at: (570) 546-9663.
COPYRIGHT © JULY, 2006 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#TS8332 PRINTED IN CHINA
