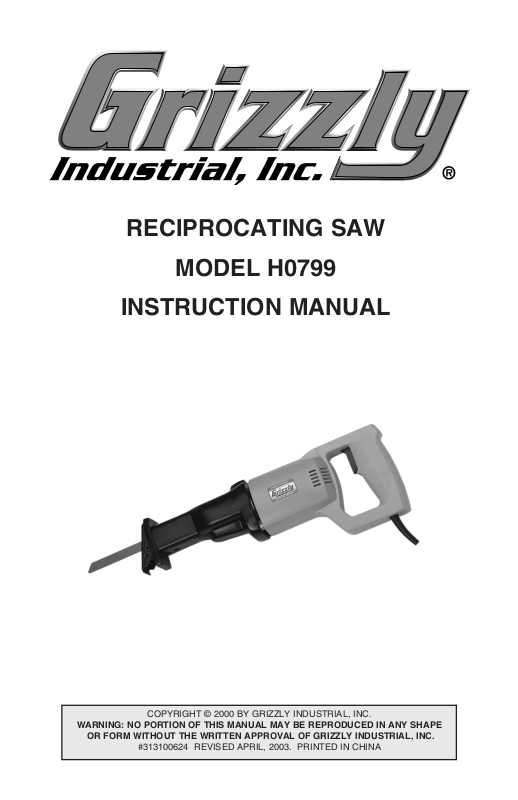

Grizzly H0799 User Manual

RECIPROCATING SAW

MODEL H0799

INSTRUCTION MANUAL

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#313100624 REVISED APRIL, 2003. PRINTED IN CHINA

SAFETY

For Your Own Safety Read Instruction Manual

Before Operating This Equipment

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words which are intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the equipment.

Safety Instructions For Power Tools

1. KEEP ALL SAFETY DEVICES IN

PLACE and in working order.

2. REMOVE ADJUSTING KEYS AND

WRENCHES. Form habit of check-

ing to see that keys and adjusting wrenches are removed from tool before turning on.

3. KEEP WORK AREA CLEAN.

Cluttered areas and benches invite accidents.

4. DON’T USE IN DANGEROUS

ENVIRONMENT. Don’t use power

tools in damp or wet locations, or where any flammable or noxious fumes may exist. Keep work area well lighted.

H0799 Reciprocating Saw

5. KEEP CHILDREN AND VISITORS

AWAY. All children and visitors

should be kept a safe distance from work area.

6. MAKE WORK SHOP CHILD

PROOF with padlocks, master

switches, or by removing starter keys.

7. DON’T FORCE TOOL. It will do the job better and safer at the rate for which it was designed.

8. USE RIGHT TOOL. Don’t force tool or attachment to do a job for which it was not designed.

-1-

Safety Instructions For Power Tools

9. USE PROPER EXTENSION CORD

for the tool. Make sure your extension cord is in good condition. Conductor size should be in accordance with the chart below. The amperage rating should be listed on the motor or tool nameplate. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Your extension cord must also contain a ground wire and plug pin. Always repair or replace extension cords if they become damaged.

Minimum Gauge for Extension Cords

AMP LENGTH RATING 25ft 50ft 100ft

0-6 18 16 16 7-10 18 16 14 11-12 16 16 14 13-16 14 12 12 17-20 12 12 10 21-30 10 10 No

10. WEAR PROPER APPAREL. Do not wear loose clothing, gloves, neck ties, rings, bracelets, or other jewelry which may get caught in moving parts. Non-slip footwear is recommended. Wear protective hair covering to contain long hair.

11. ALWAYS USE SAFETY GLASSES.

Also use face or dust mask if cutting operation is dusty. Everyday eyeglasses only have impact resistant lenses, they are NOT safety glasses.

12. SECURE WORK. Use clamps or a vise to hold work when practical. It’s safer than using your hand and frees both hands to operate tool.

13. DON’T OVERREACH. Keep proper footing and balance at all times.

14. MAINTAIN TOOLS WITH CARE.

Keep tools sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories.

15. DISCONNECT TOOLS before ser vicing and changing accessories, such as blades, bits, cutters, and the like.

16. REDUCE THE RISK OF UNINTENTIONAL STARTING.

Make sure switch is in off position before plugging in.

17. U SE RECOMMENDED ACCESSORIES. Consult the

owner’s manual for recommended accessories. The use of improper accessories may cause risk of injury.

18. CHECK DAMAGED PARTS.

Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate

properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced.

-2-

H0799 Reciprocating Saw

INTRODUCTION

Commentary

We are proud to offer the Grizzly Model H0799 Reciprocating Saw. The Model H0799 is part of a growing Grizzly family of fine power tools. When used according to the guidelines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s commitment to customer satisfaction.

The Model H0799 Reciprocating Saw, weighing 71⁄4 pounds, is heavy duty enough to perform all of your tough cutting jobs. The dial controlled variable speed adjustment lets you choose between 300-2000 strokes per minute. The Model H0799 also features 5.5 amp power with a 13⁄8" stroke, lock-on trigger and easy Allen® wrench blade changing capabilities.

We are pleased to provide this manual with the Model H0799. It was written to encourage safety considerations and guide you through general operating procedures and maintenance. It represents our effort to produce the best documentation possible.

Most importantly, we stand behind our tools. If you have any service questions or parts requests, please call or write us at the location listed below.

Grizzly Industrial, Inc.

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: (570) 546-9663

Fax: (800) 438-5901 E-Mail: techsupport@grizzly.com Web Site: http://www.grizzly.com

To operate this, or any power tool, safely and efficiently, it is essential to become as familiar with its character istics as possible. The time you invest before you begin to use your Model H0799 will be time well spent. DO NOT operate this machine until you are competely familiar with the contents of this manual. Make sure you read and understand all of the safety proce dures. If you do not understand some thing, DO NOT operate the machine.

The specifications, details, and photographs in this manual represent the Model H0799 as supplied when the manual was prepared. However, owing to Grizzly’s policy of continuous improvement, changes may be made at any time with no obligation on the part of Grizzly. If you have any comments regarding this manual, please write to us at the address below:

Grizzly Industrial, Inc.

/O Technical Documentation

P.O. Box 2069

Bellingham, WA 98227-206

H0799 Reciprocating Saw

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment or poor work results.

-3-
