COPYRIGHT © 2000 BY GRIZZLY INDUSTRIAL, INC.
1821 VALENCIA ST., BELLINGHAM, WA 98227
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
PRINTED IN CHINA

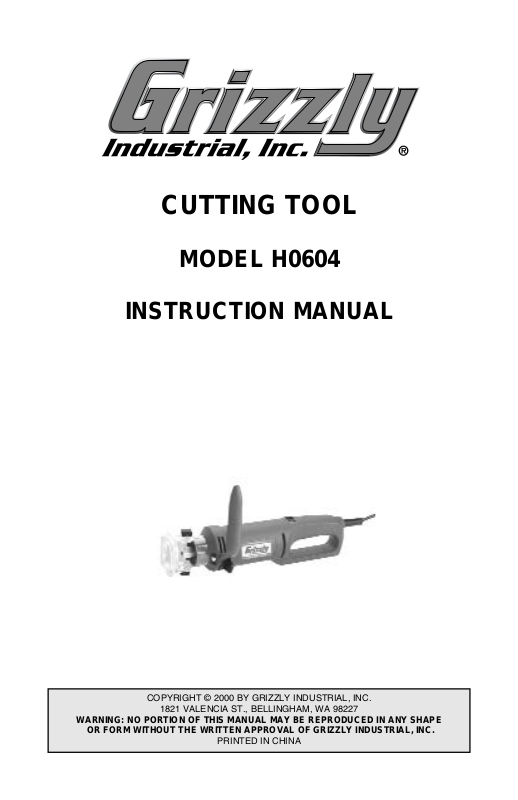

CUTTING TOOL
MODEL H0604
INSTRUCTION MANUAL
H0604 Cutting Tool
-2-
H0604 Cutting Tool
-1-
For Your Own Safety Read Instruction Manual
Before Operating This Equipment
Indicates an imminently hazardous situation which, if
not avoided, WILL
result in death or serious injury.
Indicates a potentially hazardous situation which, if
not avoided, COULD
result in death or serious injury.
Indicates a potentially hazardous situation which, if
not avoided, MAY
result in minor or moderate injury.
It may also be used to alert against unsafe practices.
This symbol is used to alert the user to useful information
about proper operation of the equipment.
The purpose of safety symbols is to attract your attention to possible hazardous
conditions. This manual uses a series of symbols and signal words which are
intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures.
NOTICE
Safety Instructions For Power Tools
5. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors
should be kept a safe distance from
work area.
6. MAKE WORK SHOP CHILD
PROOF with padlocks, master
switches, or by removing starter
keys.
7. DON’T FORCE TOOL. It will do the
job better and safer at the rate for
which it was designed.
8. USE RIGHT TOOL. Don’t force tool
or attachment to do a job for which it
was not designed.
1. KEEP ALL SAFETY DEVICES IN
PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of check-
ing to see that keys and adjusting
wrenches are removed from tool
before turning on.
3. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite
accidents.
4. DON’T USE IN DANGEROUS
ENVIRONMENT. Don’t use power
tools in damp or wet locations, or
where any flammable or noxious
fumes may exist. Keep work area
well lighted.
SAFETY
No list of safety guidelines can be
complete. Every shop environment is
different. Always consider safety
first, as it applies to your individual
working conditions. Use this and
other machinery with caution and
respect. Failure to do so could result
in serious personal injury, damage to
equipment or poor work results.
H0604 Cutting Tool-2-
9. USE PROPER EXTENSION CORD
for the tool. Make sure your extension cord is in good condition.
Conductor size should be in accordance with the chart below. The
amperage rating should be listed on
the motor or tool nameplate. An
undersized cord will cause a drop in
line voltage resulting in loss of power
and overheating. Your extension
cord must also contain a ground wire
and plug pin. Always repair or
replace extension cords if they
become damaged.
Minimum Gauge for Extension Cords
10. WEAR PROPER APPAREL. Do not
wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry which may get caught in moving
parts. Non-slip footwear is recommended. Wear protective hair covering to contain long hair.
11. ALWAYS USE SAFETY GLASSES.
Also use face or dust mask if cutting
operation is dusty. Everyday eyeglasses only have impact resistant
lenses, they are NOT safety glasses.
12. SECURE WORK. Use clamps or a
vise to hold work when practical. It’s
safer than using your hand and frees
both hands to operate tool.
13. DON’T OVERREACH. Keep proper
footing and balance at all times.
Safety Instructions For Power Tools
AMP LENGTH
RATING 25ft 50ft 100ft
0-6 18 16 16
7-10 18 16 14
11-12 16 16 14
13-16 14 12 12
17-20 12 12 10
21-30 10 10 No
14. MAINTAIN TOOLS WITH CARE.
Keep tools sharp and clean for best
and safest performance. Follow
instructions for lubricating and
changing accessories.
15. DISCONNECT TOOLS before ser-
vicing and changing accessories,
such as blades, bits, cutters, and
the like.
16. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure
switch is in off position before plugging in.
17. USE RECOMMENDED ACCESSORIES. Consult the owner’s man-
ual for recommended accessories.
The use of improper accessories
may cause risk of injury.
18. CHECK DAMAGED PARTS.
Before further use of the tool, a
guard or other part that is damaged
should be carefully checked to
determine that it will operate properly and perform its intended function.
Check for alignment of moving
parts, binding of moving parts,
breakage of parts, mounting, and
any other conditions that may affect
its operation. A guard or other part
that is damaged should be properly
repaired or replaced.
H0604 Cutting Tool
-3-
INTRODUCTION
Commentary
Most importantly, we stand behind our
tools. If you have any service questions or
parts requests, please call or write us at
the location listed below.
Grizzly Industrial, Inc.
2406 Reach Road
Williamsport, PA 17701
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail: techsupport@grizzly.com
Web Site: http://www.grizzly.com
To operate this, or any power tool,
safely and efficiently, it is essential to
become as familiar with its characteristics as possible. The time you invest
before you begin to use your Model
H0604 will be time well spent. DO NOT
operate this machine until you are
completely familiar with the contents
of this manual. Make sure you read
and understand all of the safety procedures. If you do not understand something, DO NOT operate the machine.
We are proud to offer the Grizzly Model
H0604 Cutting Tool. The Model H0604 is
part of a growing Grizzly family of fine
power tools. When used according to the
guidelines set forth in this manual, you can
expect years of trouble-free, enjoyable
operation and proof of Grizzly’s commitment to customer satisfaction.
The Model H0604 Cutting Tool is great for
cutting holes in drywall or plywood sheathing. When equipped with a spiral cutter
(sold separately), this tool can plunge cut
like a drill and cut sideways like a jig saw.
Operates at 28,000 RPM. A number of
accessories for the Model H0604 are
available through the Grizzly catalog.
We are pleased to provide this manual
with the Model H0604. It was written to
encourage safety considerations and
guide you through general operating procedures and maintenance. It represents
our effort to produce the best documentation possible.
The specifications, details, and photographs in this manual represent the
Model H0604 as supplied when the manual was prepared. However, owing to
Grizzly’s policy of continuous improvement, changes may be made at any time
with no obligation on the part of Grizzly. If
you have any comments regarding this
manual, please write to us at the address
below:
Grizzly Industrial, Inc.
C
/O Technical Documentation
P.O. Box 2069
Bellingham, WA 98227-2069
The Model H0604 was specifically
designed for cutting and boring
holes. Do not modify and/or use this
machine for any other purpose.
Modifications or improper use of
this tool will void the warranty. If you
are confused about any aspect of
this machine, DO NOT use it until
you have answered all your questions. Serious personal injury may
occur.
H0604 Cutting Tool
-4-
OPERATIONS
Operating this equipment has the
potential for flying debris to cause eye
injury. Always wear safety glasses or
goggles when operating equipment.
Everyday glasses or reading glasses
only have impact resistant lenses, they
are not safety glasses. Be certain the
safety glasses you wear meet the
appropriate standards of the American
National Standards Institute (ANSI).
Like all power tools, there is danger
associated with the Model H0604.
Accidents are frequently caused by
lack of familiarity or failure to pay
attention. Use this tool with respect
and caution to lessen the possibility of
operator injury. If normal safety precautions are overlooked or ignored,
serious personal injury may occur.
Inserting and Removing Bits
UNPLUG TOOL WHEN CHANGING BITS
1. Push the silver spindle lock button on
the side of the cutter and turn silver
collet with fingers until the lock
engages.
2. Use the supplied wrench to loosen
the silver collet while continuing to
push the spindle lock button.
3. Slide the desired bit into the collet as
far as possible without covering the
bit’s cutting edge.
4. With the spindle lock button still
pressed, tighten the collet with the
supplied wrench until securely seated. Do not over tighten.
Operating the cutting tool
1. With appropriate bit in place, turn
power switch on and slowly engage
bit into or against the material to be
cut. Do not turn power on while the bit
is resting against surface to be cut.
2. If at any time during the cut the blade
stalls or stops abruptly, turn power off
immediately and wait for blade to
come to rest before removing from
material.
3. Do not make a blind cut into a wall
without first determining if there are
hazards behind the material to be
cut. Check behind walls for wires,
other electrical hazards, or plumbing.
4. Make sure to use the appropriate bit
for the specified cutting task.
H0604 Cutting Tool
-5-
Regular periodic maintenance on your
H0604 will ensure its optimum performance. Make a habit of inspecting your
tool each time you use it. Check for the following conditions and repair or replace
when necessary:
1. Loose fasteners.
2. Worn switch.
3. Worn or damaged cords and plugs.
4. Any other condition that could hamper the safe operation of this
machine.
Since this tool is encased in a double insulated plastic cover, leave repair and service issues to a qualified service technician. This includes brush replacement,
lubrication or any other internal operation.
Ensure that no air passages get blocked. If
they do, blow them out with compressed
air. WARNING: Wear safety glasses when
cleaning tool with compressed air.
Plastic parts can easily be cleaned with a
damp cloth, but never use water to clean
any electrical parts. Solvents should also
be avoided on plastic because of the possibility of damage.
MAINTENANCE
Disassembly and improper reassembly of this device can result in electrical shock danger. Always have this
device serviced by an qualified electrical repair technician. Serious injury
will result.
The potential for injury using this
device is great. Use extreme caution
and care when operating, adjusting and
maintaining this saw. Failure to observe
safe handling practices will result in
serious personal injury.
Operating Guides and Tips
Avoid overloading the cutting tool
Always use sharpened cutting bits.
Do not apply excessive pressure to
the cutting tool while using. If the
speed drops abnormally, decrease
pressure immediately. If the bit stops
abruptly or becomes blocked,
release the trigger at once.
Ensure the safety of the workplace.
Clear the work area of all parts and
debris that may cause injury by flying
objects. Securely fix the object to be
cut or fastened in a vise or otherwise
clamp to avoid injury. Do not attempt
to hold workpiece by hand.
Inspect the cutting tool before use. Run
the cutting tool before using to
ensure all parts are running smoothly and there are no abnormal sounds
or sparks. If any defect is found,
have unit serviced.
Know your worksite. Only cut as deep as
necessary. Check behind walls for
wires, other electrical hazards, or
plumbing.
Maintenance
H0604 Cutting Tool-6-
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original
purchaser from the date of purchase. This warranty does not apply to defects due directly
or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be
implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the
merchandise complies with the provisions of any law or acts unless the manufacturer so
warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price
paid for the product and any legal actions brought against Grizzly shall be tried in the State
of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details.
We will then issue you a “Return Number’’, which must be clearly posted on the outside as
well as the inside of the carton. We will not accept any item back without this number. Proof
of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our
products meet high quality and durability standards and we hope you never need to use this
warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Grizzly Industrial, Inc.
2406 Reach Road
Williamsport, PA 17701
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail:
techsupport@grizzly.com
Web Site: http://www.grizzly.com
Thank you again for your business and continued support. We hope to serve you again
soon.
WARRANTY AND RETURNS
H0604 Cutting Tool
-7-
Name__________________________________________________________
Street__________________________________________________________
City____________________State________Zip_________
Phone Number____________E-Mail___________________FAX____________
Model # H0604 Cutting Tool Order #_______________________
The following information is given on a voluntary basis. It will be used for marketing purposes to help
us develop better products and services. Of course, all information is strictly confidential.
WARRANTY CARD
9. How many of the machines checked above are
Grizzly? ____________
10. Which portable/hand held power tools do you own?
Check all that apply.
___Belt Sander ___Orbital Sander
___Biscuit Joiner ___Palm Sander
___Circular Saw ___Portable Planer
___Detail Sander ___Saber Saw
___Drill/Driver ___Reciprocating Saw
___Miter Saw ___Router
___Other_________________________________
11. What machines/supplies would you like Grizzly
Industrial to carry?
___12" Table Saw ___Radial Arm Saw
___12" Jointer ___Panel Saw
___Brass Hardware ___Lumber
___Paint & Finishing Supplies
___Contractor’s Supplies
___Combination Planer/Jointer
___Other_________________________________
12. What new accessories would you like Grizzly
Industrial to carry?
___Builders Hardware ___Hand Tools
___Fasteners
___Wood Components
___Other_________________________________
13. What other companies do you purchase your tools
and supplies from?
_________________________________________
_________________________________________
_________________________________________
14. Do you think your purchase represents good value?
___Yes ___No
15. Would you recommend Grizzly to a friend?
___Yes ___No
16. Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We
never use names more than three times.
___Yes ___No
17.Comments:________________________________
_________________________________________
_________________________________________
_________________________________________
1. How did you learn about us?
___Advertisement ___Friend
___Catalog ___Card Deck
___World Wide Web
___Other__________________________
2. What is your annual household income?
___$20,000-$29,999 ___$60,000-$69,999
___$30,000-$39,999 ___$70,000-$79,999
___$40,000-$49,999 ___$80,000-$89,999
___$50,000-$59,999 ___$90,000 +
3. What is your age group?
___20-29 ___50-59
___30-39 ___60-69
___40-49 ___70 +
4. How long have you been a woodworker?
___0 - 2 Years ___8 - 20 Years
___2 - 8 Years ___20+ Years
5. How would you rank your woodworking skills?
___Simple ___Advanced
___Intermediate ___Master Craftsman
6. What stationary woodworking tools do you own?
Check all that apply.
___Air Compressor ___Panel Saw
___Band Saw ___Planer
___Drill Press ___Power Feeder
___Drum Sander ___Radial Arm Saw
___Dust Collector ___Shaper
___Spindle Sander ___Jointer
___Table Saw ___Lathe
___Mortiser ___Wide Belt Sander
___Horiz.Boring Machine
___Vacuum Veneer Press
___Other______________________________
7. How many of your woodworking machines are
Grizzly? _____________
8. Which benchtop tools do you own? Check all
that apply.
___1"x42" Belt Sander ___6" - 8" Grinder
___5" - 8" Drill Press ___Mini Lathe
___8" Table Saw ___8" - 10" Bandsaw
___Scroll Saw ___Disc/Belt Sander
___Spindle/Belt Sander ___Mini Jointer
___10"-12"Thickness Planer
___Other______________________________
FOLD ALONG DOTTED LINE
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
Name________________________________
Street________________________________
City______________State______Zip_______
Send a Grizzly Catalog to a friend:
Loading...
