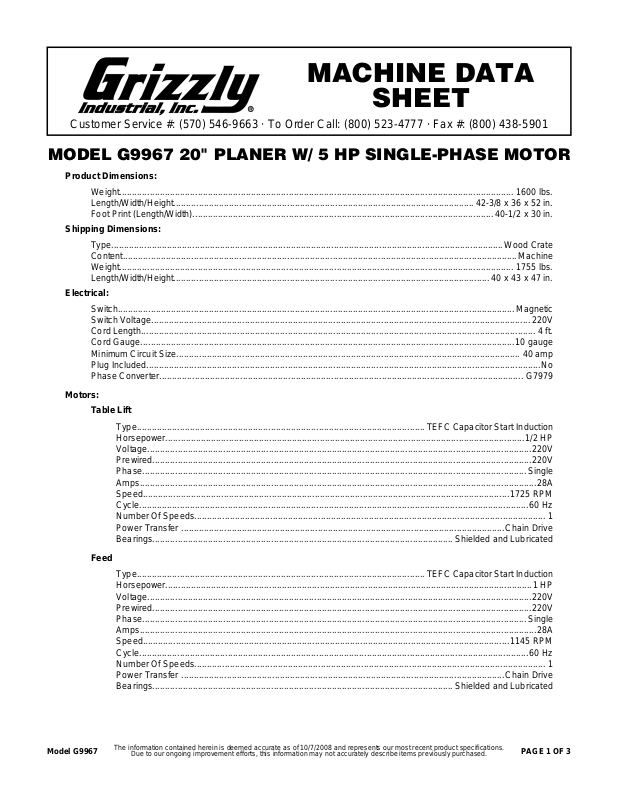

Grizzly G9967 User Manual

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL G9967 20" PLANER W/ 5 HP SINGLE-PHASE MOTOR

Product Dimensions:

Weight............................................................................................................................................................ 1600 lbs.

Length/Width/Height.......................................................................................................................42-3/8 x 36 x 52 in.

Foot Print (Length/Width)....................................................................................................................... 40-1/2 x 30 in.

Shipping Dimensions:

Type...........................................................................................................................................................Wood Crate

Content............................................................................................................................................................Machine

Weight............................................................................................................................................................ 1755 lbs.

Length/Width/Height............................................................................................................................. 40 x 43 x 47 in.

Electrical:

Switch.............................................................................................................................................................Magnetic

Switch Voltage......................................................................................................................................................220V

Cord Length............................................................................................................................................................ 4 ft.

Cord Gauge....................................................................................................................................................10 gauge

Minimum Circuit Size........................................................................................................................................ 40 amp

Plug Included............................................................................................................................................................No

Phase Converter................................................................................................................................................ G7979

Motors:

Table Lift

Type..................................................................................................................TEFC Capacitor Start Induction

Horsepower..............................................................................................................................................1/2 HP

Voltage........................................................................................................................................................220V

Prewired......................................................................................................................................................220V

Phase........................................................................................................................................................Single

Amps.............................................................................................................................................................28A

Speed.................................................................................................................................................1725 RPM

Cycle..........................................................................................................................................................60 Hz

Number Of Speeds........................................................................................................................................... 1

Power Transfer ................................................................................................................................Chain Drive

Bearings.......................................................................................................................Shielded and Lubricated

Feed

Type..................................................................................................................TEFC Capacitor Start Induction

Horsepower.................................................................................................................................................1 HP

Voltage........................................................................................................................................................220V

Prewired......................................................................................................................................................220V

Phase........................................................................................................................................................Single

Amps.............................................................................................................................................................28A

Speed.................................................................................................................................................1145 RPM

Cycle..........................................................................................................................................................60 Hz

Number Of Speeds........................................................................................................................................... 1

Power Transfer ................................................................................................................................Chain Drive

Bearings.......................................................................................................................Shielded and Lubricated

The information contained herein is deemed accurate as of 10/7/2008 and represents our most recent product specifications.

Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased.

PAGE 1 OF 3Model G9967

Cutterhead

Type..................................................................................................................TEFC Capacitor Start Induction

Horsepower.................................................................................................................................................5 HP

Voltage........................................................................................................................................................220V

Prewired......................................................................................................................................................220V

Phase........................................................................................................................................................Single

Amps.............................................................................................................................................................28A

Speed.................................................................................................................................................3450 RPM

Cycle..........................................................................................................................................................60 Hz

Number Of Speeds........................................................................................................................................... 1

Power Transfer ...................................................................................................................................Belt Drive

Bearings.......................................................................................................................Shielded and Lubricated

Main Specifications:

Operation Info

Max. Cut Width...........................................................................................................................................20 in.

Max. Cut Height............................................................................................................................................9 in.

Min. Stock Length......................................................................................................................................10 in.

Min. Stock Width....................................................................................................................................... 1/4 in.

Max. Stock Thickness.................................................................................................................................. 9 in.

No. Of Cuts Per Inch................................................................................................................................42 - 84

No. Of Cuts Per Minute.............................................................................................................................20000

Cutterhead Speed..............................................................................................................................5000 RPM

Planing Feed Rate...........................................................................................................................20 - 40 FPM

Max. Cut Depth Planing Full Width......................................................................................................... 3/16 in.

Max. Cut Depth Planing 6 Inch Wide Board............................................................................................5/16 in.

Cutterhead Info

Cutterhead Type......................................................................................................................................4 Knife

Cutterhead Dia.......................................................................................................................................4-5/8 in.

No. Of Knives....................................................................................................................................................4

Knife Type....................................................................................................................................................HSS

Knife Size Length.................................................................................................................................20-1/8 in.

Knife Size Width...................................................................................................................................1-3/16 in.

Knife Size Thickness.................................................................................................................................1/8 in.

Knife Adjustment............................................................................................................. Gibs and Jack Screws

Table Info

Table Movement.................................................................................................................................. 1/4 - 9 in.

Table Bed Size Length...............................................................................................................................24 in.

Table Bed Size Width...........................................................................................................................35-1/2 in.

Table Bed Size Thickness............................................................................................................................5 in.

No. Of Bed Rollers............................................................................................................................................2

Floor To Table Height......................................................................................................................... 24 - 33 in.

Construction

Table Construction...................................................................................................Precision Ground Cast Iron

Body Construction................................................................................................................................Cast Iron

Cutterhead Assembly Construction....One Piece Machined Steel Shaft; 4 Knife Slots; Shielded Ball Bearings

Infeed Roller Construction.......................................................................................................Segmented Steel

Outfeed Roller Construction.........................................................................................................Polished Steel

Paint..........................................................................................................................................................Epoxy

Other

Table Locks.................................................................................................................................... One Positive

Measurement Scale....................................................................................................................Inch and Metric

No. Of Dust Ports..............................................................................................................................................1

Dust Port Size.............................................................................................................................................. 5 in.

The information contained herein is deemed accurate as of 10/7/2008 and represents our most recent product specifications.

Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased.

PAGE 2 OF 3Model G9967
