Always wear safety glasses when setting up or using bender!

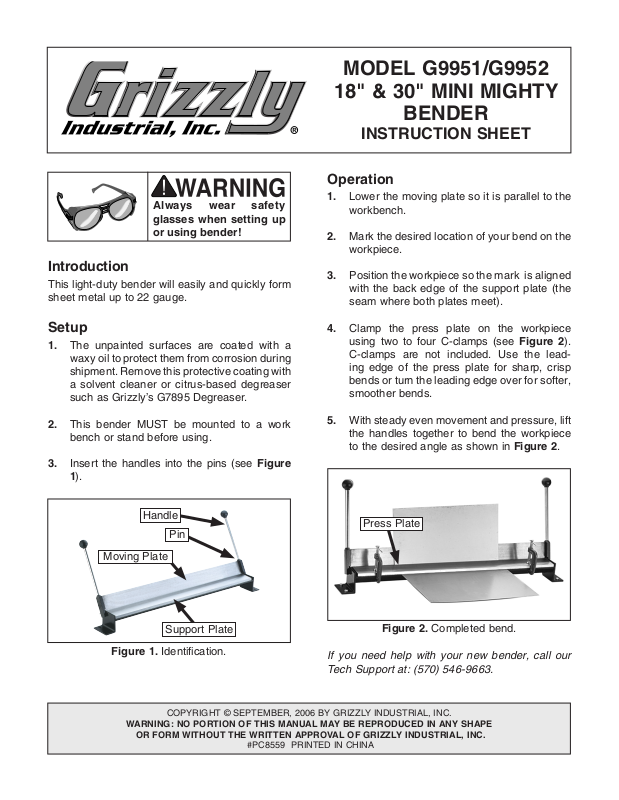

MODEL G9951/G9952
18" & 30" MINI MIGHTY
BENDER
INSTRUCTION SHEET
Operation
1. Lower the moving plate so it is parallel to the
workbench.
2. Mark the desired location of your bend on the workpiece.
Introduction
This light-duty bender will easily and quickly form sheet metal up to 22 gauge.
Setup
1. The unpainted surfaces are coated with a
waxy oil to protect them from corrosion during shipment. Remove this protective coating with a solvent cleaner or citrus-based degreaser such as Grizzly’s G7895 Degreaser.
2. This bender MUST be mounted to a work bench or stan
3. Insert the handles into the pins (see Figure
1).
Moving Plate
d before using.
Handle
Pin
3. Position the workpiece so the mark is aligned with the back edge of the support plate (the seam where both plates meet).
4. Clamp the press plate on the workpiece using two to four C-clamps (see Figure 2). C-clamps are not included. Use the lead ing edge of the press plate for sharp, crisp bends or turn the leading edge over for softer, smoother bends.
5. With steady even movement and pressure, lift the handles together to bend the workpiece to the desired angle as shown in Figure 2
Press Plate
.
-
Support Plate
Figure 1. Identification.
COPYRIGHT © SEPTEMBER, 2006 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#PC8559 PRINTED IN CHINA
If you need help with your new bender, call our Tech Support at: (570) 546-9663.
Figure 2. Completed bend.
G9951/G9952 Parts Breakdown and List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P9951001 STAND 1 P9952001 STAND
2 P9951002 SUPPORTING PLATE 2 P9952002 SUPPORTING PLATE
3 P9951003 PRESS PLATE 3 P9952003 PRESS PLATE
4 P9951004 MOVING PLATE 4 P9952004 MOVING PLATE
5 P9951005 PIN 5 P9952005 PIN
6 P9951006 HANDLE LEVER 6 P9952006 HANDLE LEVER
7 P9951007 HANDLE BALL 7 P9952007 HANDLE BALL
