Grizzly G9948 User Manual

SECTION 7: PARTS

Parts Breakdown

.(

*-

+*

('

*.

+(

&%

+'

.)

+)

+,

+&

,%

+%

(,

(-

()

(*

(+

'+

(.

+-

-

+%

'-

+-

.

)%

(&

*%

')

((

'

)'

&+

'*

&,

&(

&)

)

),

))

)*

.&

&

'(

'.

',

,

+

)&

)&6

*(

*&

)+

)(

.'

"')"

'&

''

(

).

&-

&'

&&

&*

*

&.

)-

,*

,)

,&

,'

<..)-(,;ddiH]ZVg

Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 P9948001 TABLE 38 PN05M HEX NUT M16-1.5
2 P9948002 CUTTER BAR 39 PW08M FLAT WASHER 16MM
3 P9948003 HOLDDOWN 40 PSS10M SET SCREW M10-1.5 X 20
4 P9948004 RIGHT SIDE PANEL 41 P9948041 COMPRESSION SPRING
5 P9948005 LEFT SIDE PANEL 41A P9948041A SPRING CAP
6 P9948006 FRONT EXTENSION ARM 42 P9948042 SWIVEL TOP
7 PB24M HEX BOLT M12-1.75 x 45 43 P9948043 SWIVEL BOTTOM
8 P9948008 HOLDDOWN SPRING 44 P9948044 SPRING STUD
9 P9948009 HOLDDOWN SHAFT 45 PW08M FLAT WASHER 16MM
10 PN09M HEX NUT M12-1.75 46 PN13M HEX NUT M16-2
11 P9948011 SPECIAL BOLT 47 P9948047 SPRING MOUNTING BRACKET
12 P9948012 SPECIAL WASHER 12MM 48 PSB64M CAP SCREW M10-1.5 X 25
13 P9948013 FINGER GUARD 49 PW04M FLAT WASHER 10MM
14 PSB58M CAP SCREW M8-1.25 x 12 50 P9948050 SPECIAL BOLT M12 X 70
15 P9948015 LEFT TABLE SCALE 51 P9948051 SPECIAL BOLT M12 X 50
16 P9948016 RIGHT TABLE SCALE 53 P9948053 FOOT PEDAL SHAFT
17 PB09M HEX BOLT M8-1.25 X 20 58 P9948058 REAR EXTENSION ARM
18 PSS39M SET SCREW M10-1.5 X 50 59 P9948059 REAR STOP
19 PSB47M CAP SCREW M10-1.5 X 40 60 P9948060 REAR STOP BRACKET
21 P9948021 SPECIAL BOLT M16-2 X 100 61 P9948061 REAR STOP BLOCK
22 PW08M FLAT WASHER 16MM 62 P9948062 ADJUSTER DIAL
23 P9948023 SPECIAL NUT M16-2 63 P9948063 ADJUSTER SHAFT
24 P9948024 TOP BLADE 64 PN08M HEX NUT M10-1.25
25 P9948025 BOTTOM BLADE 65 P9948065 LOCK KNOB M8-1.25 X 25
26 PSB47M CAP SCREW M10-1.5 X 40 67 P9948067 ADJUSTER BLOCK
27 PSB90M CAP SCREW M10-1.5 X 55 68 P9948068 KNURLED SCREW M10-1.5 X 12
28 PW04M FLAT WASHER 10MM 70 PN02M HEX NUT M10-1.5
29 PW04M FLAT WASHER 10MM 71 P9948071 FRONT STOP
31 P9948031 GIB 72 P9948072 T BOLT M10-1.5 X 45
32 PSB143M CAP SCREW M10-1.5 X 50 74 PWN04M WING NUT M10-1.5
33 PN02M HEX NUT M10-1.5 75 P9948075 BEVEL GAUGE
34 P9948034 STRAIGHTENER ROD 91 P9948091 TOP SPRING CAP
35 PW08M FLAT WASHER 16MM 92 P9948092 PEDAL FRAME
36 PN05M HEX NUT M16-1.5 93 P9948093 BACK GAUGE ASSEMBLY
37 P9948037 ADJ SCREW STRAIGHTENER ROD 94 PW06M FLAT WASHER 12MM

<..)-(,;ddiH]ZVg

"'*"

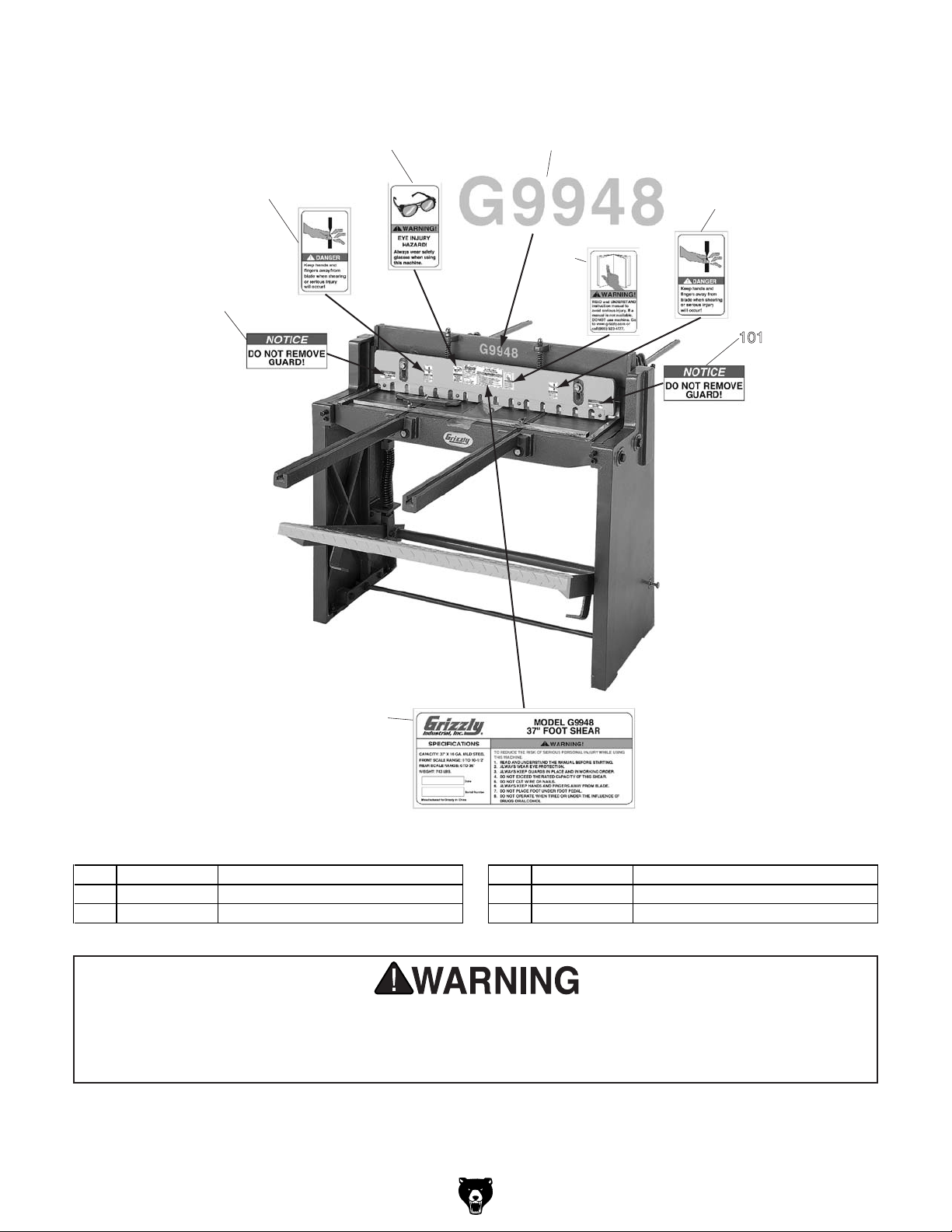

Labels Breakdown & List

&%&

&%'

&%(

&%)

&%'

&%*

&%&

&%+

REF PART # DESCRIPTION REF PART # DESCRIPTION

101 P9948101 GUARD REMOVAL LABEL 104 P9948104 MODEL NUMBER LABEL
102 P9948102 SHEARING HAZARD LABEL 105 PLABEL-12C READ MANUAL LABEL
103 PLABEL-11B SAFETY GLASSES LABEL 106 P9948106 MACHINE ID LABEL

Safety labels warn about machine hazards and ways to prevent injury. The owner of this machine
MUST maintain the original location and readability of the labels on the machine. If any label is
removed or becomes unreadable, REPLACE that label before using the machine again. Contact
Grizzly at [phone] or www.grizzly.com to order new labels.

"'+"
