Page 1
REF PART # DESCRIPTION REF PART # DESCRIPTION
Parts information is provided for
service purposes only. Not all
parts are available for purchase.
18
5

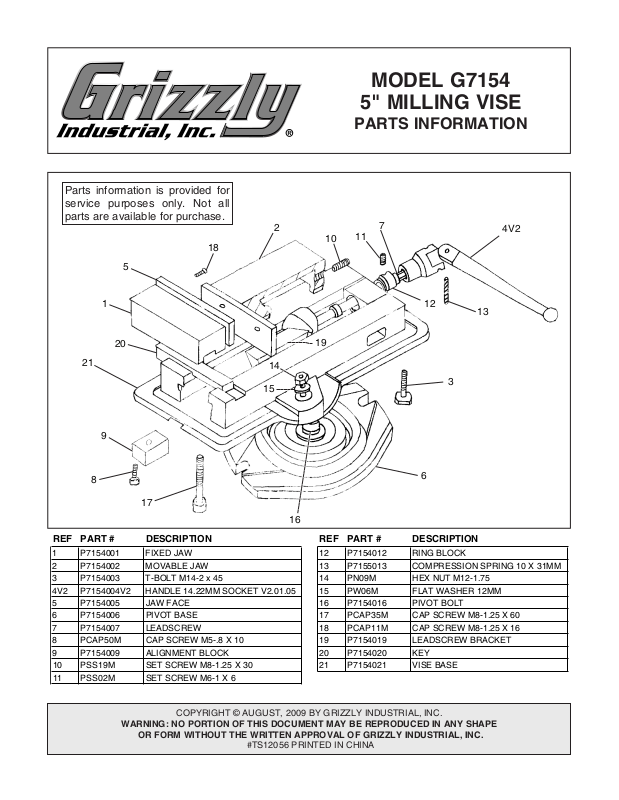

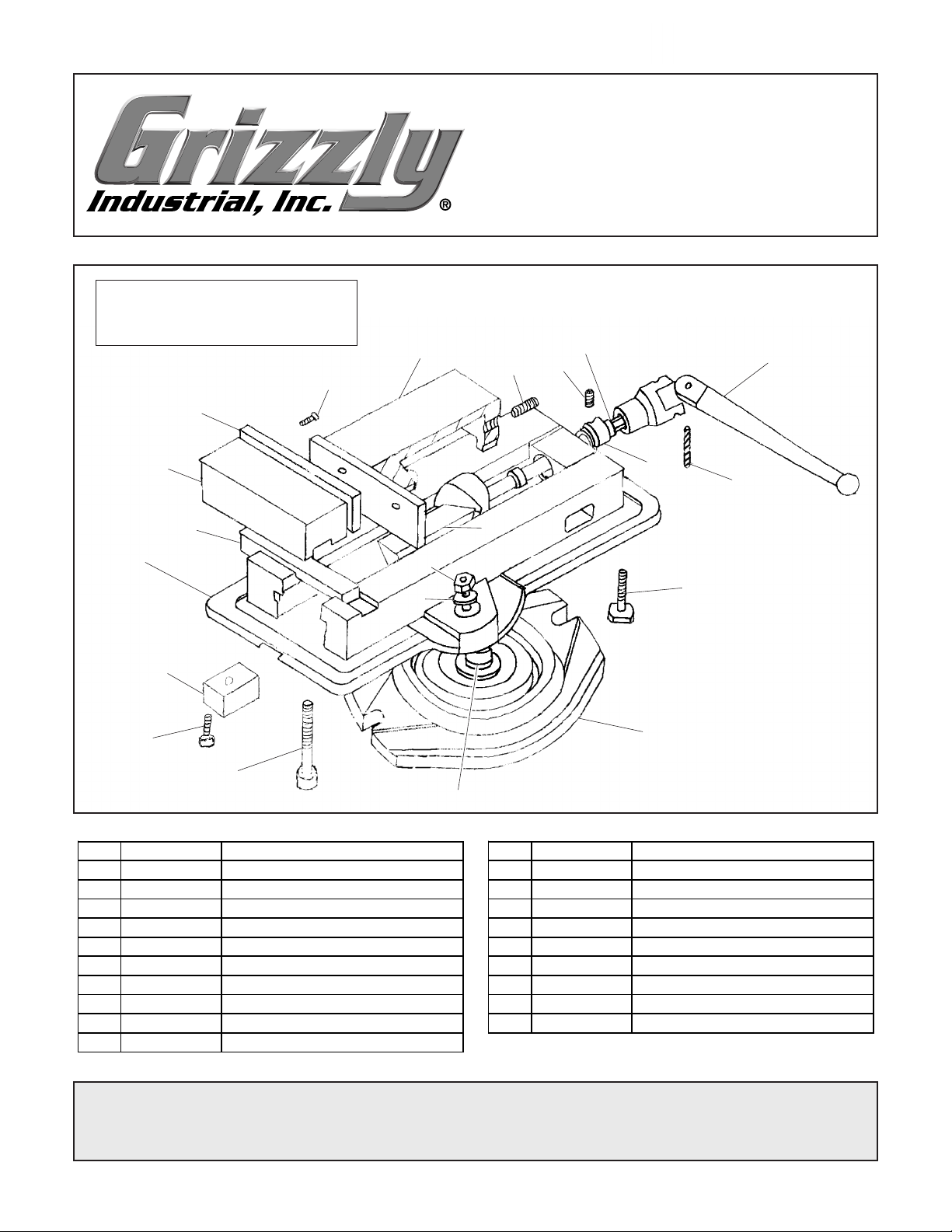

MODEL G7154
5" MILLING VISE
PARTS INFORMATION
2
10
11
7
4V2
1
20
21
9
8
17
1 P7154001 FIXED JAW 12 P7154012 RING BLOCK
2 P7154002 MOVABLE JAW 13 P7155013 COMPRESSION SPRING 10 X 31MM
3 P7154003
4V2 P7154004V2 HANDLE 14.22MM SOCKET V2.01.05 15 PW06M FLAT WASHER 12MM
5 P7154005 JAW FACE 16 P7154016 PIVOT BOLT
6 P7154006 PIVOT BASE 17 PCAP35M CAP SCREW M8-1.25 X 60
7 P7154007 LEADSCREW 18 PCAP11M CAP SCREW M8-1.25 X 16
8 PCAP50M CAP SCREW M5-.8 X 10 19 P7154019 LEADSCREW BRACKET
9 P7154009 ALIGNMENT BLOCK 20 P7154020 KEY
10 PSS19M SET SCREW M8-1.25 X 30 21 P7154021 VISE BASE
11 PSS02M SET SCREW M6-1 X 6
T-BOLT M14-2 x 45
14
15
19
16
14 PN09M HEX NUT M12-1.75
12
13
3
6
COPYRIGHT © AUGUST, 2009 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF ThIS DOCUMENT MAy bE REPRODUCED IN ANy ShAPE
OR FORM WIThOUT ThE WRITTEN APPROVAL OF GRIzzLy INDUSTRIAL, INC.
#TS12056 PRINTED IN CHINA
