18 GAUGE STAPLER KIT
MODEL G6042/3
INSTRUCTION MANUAL
Model G6042
Model G6043
For Your Own Safety Read Instruction Manual
Before Operating This Equipment
Indicates an imminently hazardous situation which, if
not avoided, WILL
result in death or serious injury.
Indicates a potentially hazardous situation which, if
not avoided, COULD
result in death or serious injury.
Indicates a potentially hazardous situation which, if
not avoided, MAY
result in minor or moderate injury.
It may also be used to alert against unsafe practices.
This symbol is used to alert the user to useful information
about proper operation of the equipment.
The purpose of safety symbols is to attract your attention to possible hazardous
conditions. This manual uses a series of symbols and signal words which are
intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures.
NOTICE
Safety Instructions For Power Tools
1. KEEP ALL SAFETY DEVICES IN
PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of check-
ing to see that keys and adjusting
wrenches are removed from tool
before operation.
3. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite
accidents.
4. DO NOT USE IN DANGEROUS
ENVIRONMENT. Do not use power
tools in damp or wet locations, or
where any flammable or noxious
fumes may exist. Keep work area
well lighted.
SAFETY
5. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors
should be kept a safe distance from
work area.
6. MAKE WORKSHOP CHILD
PROOF with padlocks, master
switches, or by removing starter
keys.
7. DO NOT FORCE TOOL. It will do
the job better and safer at the rate
for which it was designed.
8. USE THE RIGHT TOOL. Do not
force tool or attachment to do a job
for which it was not designed.
9. DO NOT USE UNDER THE INFLUENCE OF DRUGS OR ALCOHOL.
G6042/G6043 18 Gauge Stapler Kit
-2-
10. USE PROPER EXTENSION CORD
for the tool. Make sure your extension
cord is in good condition. Conductor
size should be in accordance with the
chart below. The amperage rating
should be listed on the motor or tool
nameplate. An undersized cord will
cause a drop in line voltage resulting
in loss of power and overheating.
Your extension cord must also contain a ground wire and plug pin.
Always repair or replace extension
cords if they become damaged.
Minimum Gauge for Extension Cords
11. WEAR PROPER APPAREL. Do not
wear loose clothing, gloves, neckties,
rings, bracelets, or other jewelry
which may get caught in moving
parts. Non-slip footwear is recommended. Wear protective hair covering to contain long hair.
12. ALWAYS USE SAFETY GLASSES.
Also use face or dust mask if cutting
operation is dusty. Everyday eyeglasses only have impact resistant
lenses, they are NOT safety glasses.
13. SECURE WORK. Use clamps or a
vise to hold work when practical. It is
safer than using your hand and frees
both hands to operate tool.
14. DO NOT OVERREACH. Keep proper
footing and balance at all times.
Safety Instructions For Power Tools
AMP LENGTH
RATING 25ft 50ft 100ft
0-6 18 16 16
7-10 18 16 14
11-12 16 16 14
13-16 14 12 12
17-20 12 12 10
21-30 10 10 No
15. MAINTAIN TOOLS WITH CARE.
Keep tools sharp and clean for best
and safest performance. Follow
instructions for lubricating and
changing accessories.
16. DISCONNECT TOOLS before ser-
vicing and changing accessories.
17. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure
switch is in off position before plugging in.
18. USE THE RECOMMENDED
ACCESSORIES. Consult the
owner’s manual for recommended
accessories. The use of improper
accessories may cause risk of injury.
19. CHECK DAMAGED PARTS. Before
further use of the tool, a guard or
other part that is damaged should be
carefully checked to determine that it
will operate properly and perform its
intended function. Check for alignment of moving parts, binding of
moving parts, breakage of parts,
mounting, and any other conditions
that may affect its operation. A guard
or other part that is damaged should
be properly repaired or replaced.
20. NEVER LEAVE TOOL RUNNING
UNATTENDED. Turn the power off,
and do not leave tool until it comes to
a complete stop.
21. NEVER ALLOW UNTRAINED
USERS TO RUN THIS TOOL
WHILE UNSUPERVISED.
22. IF YOU ARE UNSURE OF THE
INTENDED OPERATION, STOP
USING THE TOOL. Seek formal
training or research books or magazines that specialize in power tools.
G6042/G6043 18 Gauge Stapler Kit
-3-
Operating this stapler can propel
objects into the air, causing immediate eye damage. To protect yourself,
always wear American National
Standards Institute (ANSI) approved
safety glasses or goggles when operating this equipment. In addition, this
stapler discharges at 85-90 decibels.
To protect your hearing, always wear
ANSI approved ear protection when
operating this stapler.
Basic Stapler Safety
In addition to the rules stated in the previous section, and those in the warning
boxes throughout this manual, please
observe the following safety tips for your
new stapler:
1. READ THIS ENTIRE MANUAL
BEFORE OPERATING THE STAPLER.
2. ALWAYS DISCONNECT AIR FROM
THE STAPLER whenever servicing
or installing staples. During maintenance, a stapler connected to air may
fire accidentally, causing serious personal injury.
3. DO NOT PLACE HANDS NEAR
STAPLE POINT OF ENTRY. Staple
can deflect and tear through the surface of the workpiece, puncturing
your hand or fingers.
4. NEVER CONNECT THE STAPLER
TO PRESSURIZED OXYGEN OR
OTHER COMBUSTIBLE GASES as
a power source. Only use filtered,
lubricated, and regulated compressed
air.
5. NEVER USE GASOLINE OR
OTHER FLAMMABLE LIQUIDS TO
CLEAN THE STAPLER. Vapors in
the tool will ignite by a spark and
cause the tool to explode.
6. DO NOT CARRY THE STAPLER BY
ANY OTHER PART THAN THE
HANDLE, and do not carry the sta-
pler by the air hose.
7. DO NOT KEEP THE TRIGGER
PULLED ON THE SAFETY YOKE
MECHANISM WHEN CARRYING
OR HOLDING THE TOOL.
8. DO NOT USE A CHECK VALVE OR
ANY OTHER FITTING that allows air
to remain in the tool.
Never point this stapler at yourself or
another person! Always pay attention
to the direction this stapler is pointed.
Use this tool with respect and caution
to lessen the possibility of operator or
bystander injury. Ignoring this warning may result in serious personal
injury.
G6042/G6043 18 Gauge Stapler Kit
-4-
INTRODUCTION
Commentary
Most importantly, we stand behind our
tools. If you have any service questions or
parts requests, please call or write us at
the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Pennsdale, PA 17756
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail: techsupport@grizzly.com
Web Site: http://www.grizzly.com
We are proud to offer the Grizzly Model
G6042/G6043 18 Gauge Stapler. This
model is part of a growing Grizzly family of
fine power tools. When used according to
the guidelines set forth in this manual, you
can expect years of trouble-free, enjoyable operation and proof of Grizzly’s commitment to customer satisfaction.
This stapler features 360˚ adjustable
exhaust, a convenient bottom-loading
magazine, a safety trigger and a durable
plastic carrying case.
We are pleased to provide this manual
with the Model G6042/G6043. It was written to encourage safety considerations
and guide you through general operating
procedures and maintenance. This manual represents our effort to produce the best
documentation possible.
The specifications, details, and photographs in this manual represent the
Model G6042/G6043 as supplied when
the manual was prepared. However,
owing to Grizzly’s policy of continuous
improvement, changes may be made at
any time with no obligation on the part of
Grizzly. If you have any comments regarding this manual, please write to us at the
address below:
Grizzly Industrial, Inc.
C
/O
Technical Documentation
P.O. Box 2069
Bellingham, WA 98227-2069
Read the manual before assembly
and operation. Become familiar with
this tool, its safety instructions, and
its operation before beginning any
work. Serious personal injury may
result if safety or operational information is not understood or followed.
G6042/G6043 18 Gauge Stapler Kit
-5-
Compressed Air System Safety Yoke Mechanism
The safety yoke is a mechanical
device that can fail. Never rely on the
safety yoke mechanism as an excuse
to point the stapler at yourself or any
bystanders. Serious injury may occur.
Exceeding the maximum permissible
operating pressure may cause the stapler to explode, blowing metal fragments in all directions. To protect
yourself from serious personal injury,
DO NOT allow your air compressor to
exceed the recommended pressure
when connected to this stapler!
The Model G6042/G6043 is designed to be
operated at 60-100 psi. Do not exceed
the maximum operating pressure for
your model.
Before you use your new stapler, install the
3
⁄8
" quick connect fitting that comes with the
stapler. Install a female
3
⁄8
" fitting on the air
hose. Regulate the air pressure on your air
compressor to barely over the minimum psi
for your model.
Many pneumatic tools benefit from an inline filter/lubricator/regulator unit. This
attachment is connected by hoses
between the air compressor and the stapler. Using this unit protects your tool from
damaging water build-up, allows you to
adjust and maintain constant air pressure
to your tool, and saves you the inconvenience of having to manually lubricate your
tool every time you use it. Check the current Grizzly catalog for availability of this
unit. If you plan on installing a filter/lubricator/regulator unit in your compressed air
system, always follow the connection
instructions that come with the unit.
A safety yoke mechanism (bump fire) on
the nose of the stapler acts as a secondary
safety device. When the trigger is pressed,
the stapler will not fire until the safety yoke
mechanism is depressed.
Before you use your stapler for the first
time, check the safety yoke mechanism to
ensure proper function. To do this:
1. Make sure the stapler is disconnected from the air supply!
2. Make sure the magazine is empty and
contains no staples.
3. Make sure the trigger and the safety
yoke mechanism move up and down
without sticking.
4. Connect the stapler to the air supply.
5. Without pressing the trigger,
depress the safety yoke mechanism
against a scrap piece of wood that is
clean and free of any knots, staples,
or other foreign objects. If the stapler
does not fire, then the safety yoke
mechanism is working correctly. If the
stapler does fire when you do this,
immediately disconnect the stapler
from the air supply and call our customer service for help.
Similarly if the stapler fires when the trigger
is pulled, without the safety yoke mech-
anism being depressed, then the stapler
is not working properly.
If either of these two conditions develop
after you have used your stapler for a period of time, check the lubrication of these
mechanisms.
G6042/G6043 18 Gauge Stapler Kit
-6-
OPERATION
Loading Stapler
To load your stapler:
1. Disconnect the air supply from the
stapler!
2. Push the magazine latch in the direc-
tion shown in Figure 1.
3. Pull back the magazine cover until it
stops.
Figure 1. Releasing magazine latch.
Figure 2. Loading staples into stapler.
5. Push the magazine cover forward
until the magazine latch locks in
place.
4. Point the stapler up and insert a stick
of staples into the magazine as shown
in Figure 2. Make sure that the point-
ed ends of the staples point in the
same direction as the stapler nose
piece.
G6042/G6043 18 Gauge Stapler Kit
-7-
Operating Stapler
If you have not read the safety instructions in this manual, do not operate the
stapler.
Before you operate your stapler, place one
drop of the included oil into the quick connect fitting where the stapler connects to
the air supply. Fire the EMPTY stapler 3-4
times before beginning, so oil does not
come out onto the project during regular
operation.
To operate your stapler:
1. Connect the air supply to the quick
connect fitting.
2. Test the loaded stapler for proper
penetration. Hold the stapler perpendicular to the surface of a piece of
clean scrap wood that is thick enough
for the length of staples you have
loaded. Depress the safety yoke
mechanism on your workpiece.
3. Before pressing the trigger, make
sure your free hand is positioned out
of the way of a potential path of a staple in case of deflection. (Deflection is
caused when the staple changes its
path, resulting in the staple puncturing
the surface of the workpiece as
shown in Figure 3.)
Figure 3. Example of staple deflection.
Besides damaging your workpiece,
deflection can cause injury if your free
hand is securing the workpiece in the
location that the staple deflects.
4. Press the trigger. If the staple drove
into the wood far enough, continue
with your intended operations. If the
staple either went too far or not far
enough, then adjust the air pressure.
More air pressure will make the staple
go deeper and less air pressure will
decrease the staple penetration.
Always disconnect air from stapler
whenever clearing a jammed staple!
G6042/G6043 18 Gauge Stapler Kit
-8-
Clearing Jammed Staples
The most frequent situation with any type
of stapler is a staple jam. A jammed staple
must be cleared before using the stapler
again. The two places where a staple can
get jammed are the magazine and the discharge area.
To clear a jammed staple from the discharge area:
1. Disconnect the stapler from the air
supply!
2. Remove all of the staples from the
magazine.
3. The jammed staple should now be
visible; remove it from the discharge
area with needle nose pliers.
4. Replace the staples. Push the magazine closed and snap the quick
release latch back into operating position.
To clear a jammed staple from the magazine:
1. Disconnect the stapler from the air
supply!
2. Open the magazine cover and pull the
magazine all the way back.
3. Locate and remove the jammed staple with a pair of needle nose pliers.
Close the magazine cover so it latches.
G6042/G6043 18 Gauge Stapler Kit
-9-
Cleaning Stapler
Use a good solvent to clean the nose
assembly of the stapler. Always be sure
that the stapler is dry before using it again.
Do not allow dust, chips, sand, etc. into the
air connectors or into the body of the stapler; this may result in leaks and damage
to the stapler and the air couplings.
Never use use gasoline or other flammable liquids to clean this tool.
Vapors in the tool may ignite, causing
the tool to explode. Ignoring this
warning may lead to serious personal
injury or even death!
Always disconnect air from stapler
whenever servicing! During maintenance, a stapler connected to air
may fire accidentally, causing serious personal injury!
Oiling Stapler
Special oil has been included with you new
Grizzly stapler to help maintain its useful
life. Place one drop of oil in the stapler air
inlet (as shown in Figure 4) before every
use. Wipe off any excess oil near the stapler exhaust to avoid dust build-up. When
the oil that was included with the stapler
has been completely used, replace with
Grizzly Model G2820 Pneumatic Tool Oil.
Another option to manual oiling would be
to install a lubricator in your air compressor
line. If your air compressor line already has
a lubricator, then regular lubrication of your
stapler will not be necessary. Just make
sure there is always oil in the lubricator.
As mentioned before, the best option is to
install a filter/lubricator/regulator unit such
as the Grizzly Model H2333 in your air line.
Figure 4. Lubricating stapler via air inlet.
G6042/G6043 18 Gauge Stapler Kit
-10-

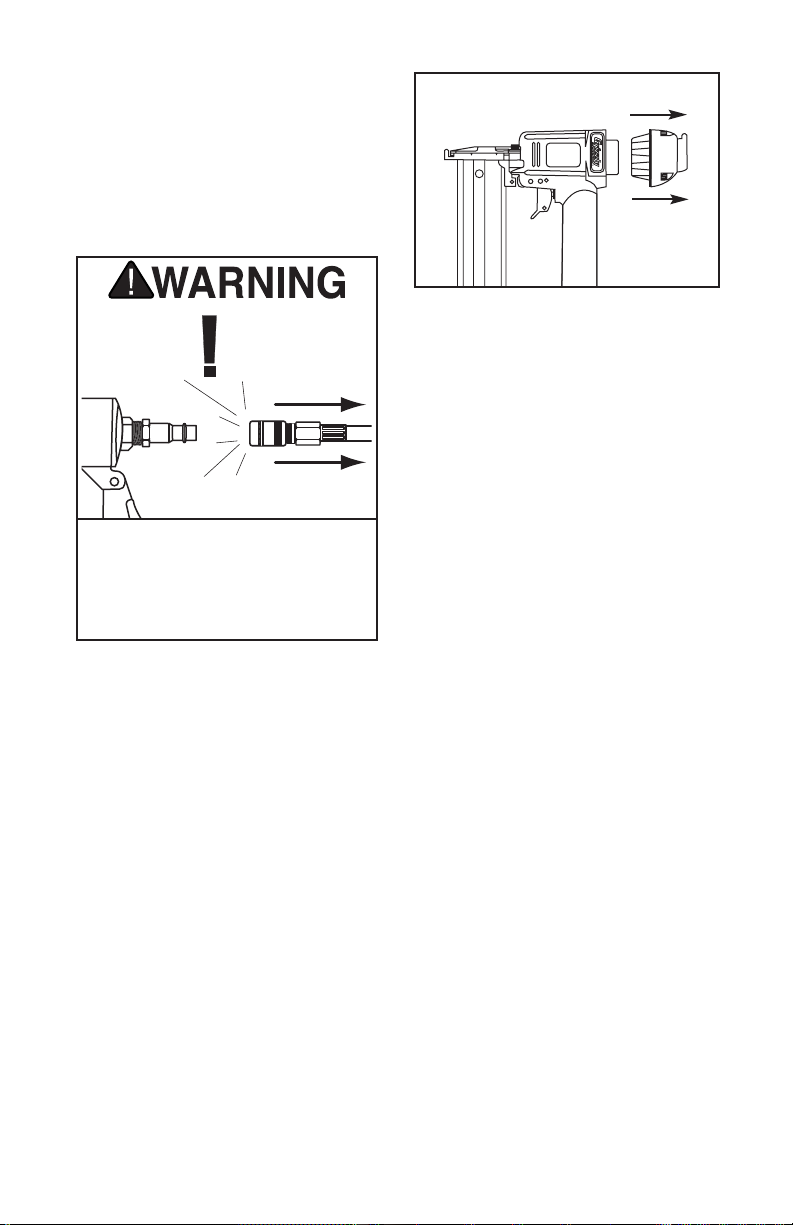

Replacing Pistons/O-Rings
If you use your stapler day in and day out,
Grizzly offers repair pistons as cheap
insurance against wasted down time and
lost profits in the event that a piston or piston shaft becomes worn out. To replace a
piston:
Figure 5. Removing stapler exhaust cap.
8. With a long flathead screwdriver or
similarly shaped tool, push the piston
shaft back inside the stapler until you
can grip the piston head and remove
it from the cylinder. (Be careful not to
scratch the discharge area when
pushing the piston shaft with the
screwdriver.)
9. Place a new O-ring on the new piston
and apply a thin film of the stapler
lubricating oil on the O-ring.
10. Insert the new piston in the cylinder.
Make sure that the grooves on the
piston shaft line up with those on the
guide. The new piston should easily
slide into the cylinder. Do not force
the piston into the cylinder! If the
piston is not easily inserted, doublecheck the alignment of the piston
shaft with the grooves on the guide.
11. After the piston is inserted correctly,
close the magazine. Replace the rear
cap assembly and tighten the 4 cap
screws.
12. For more assistance, or to install a
complete O-ring set, refer to the
appropriate breakdown diagram in the
back of this manual.
Always disconnect air from stapler
whenever servicing! During maintenance, a stapler connected to air
may fire accidentally, causing serious personal injury!
1. Disconnect the stapler from the air
supply!
2. Remove all staples from the maga-
zine cartridge.
3. Remove the 4 cap screws from the
stapler exhaust cap.
4. Remove the exhaust cap as shown in
Figure 5.
5. The top of the piston should now be
visible inside the cylinder, which is
housed in the head of the stapler.
6. Open the magazine.
7. Watch the discharge area and push
the top of the piston with your finger.
You will see the piston shaft slide
down the discharge area.
G6042/G6043 18 Gauge Stapler Kit
-11-
MAINTENANCE NOTES
G6042/G6043 18 Gauge Stapler Kit
-12-

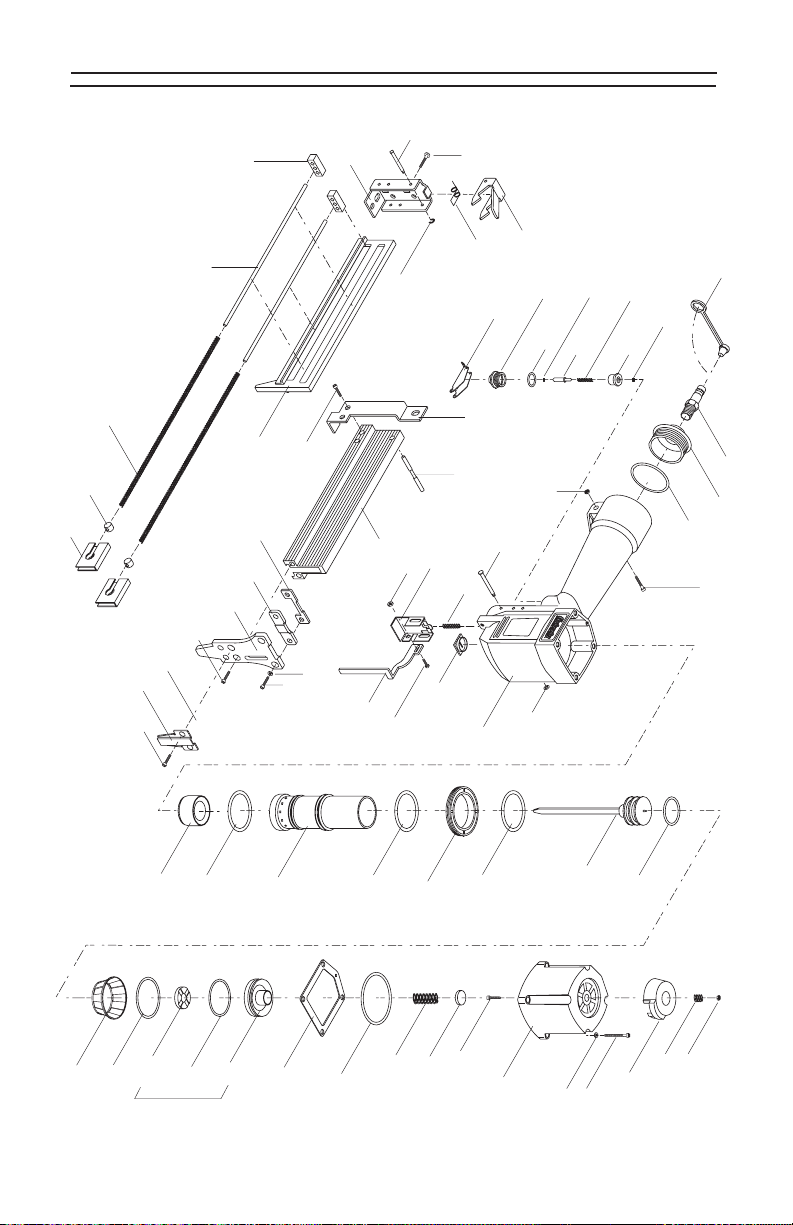

G6042 PART BREAKDOWN
52
51
53
54
42
41
56
49A
31
43
58
46
57
48
47
44
62
63
45
59
27
50
60
26
25
61
32
55
23
69
40A
24
37
65
38
35
36
39
34
76
33
67
66
68
64
12
11
20
10
8A
75
14A
3
2
1
13
74
72
71
19
8
9
21
7
6
18
19A
5
4
G6042/G6043 18 Gauge Stapler Kit
-13-
01 P6042001 CAP SCREW
02 P6042002 LOCK WASHER
03 P6042003 CAP
04 P6042004 SEAL
05 P6042005 SPRING
06 P6042006 O-RING
07 P6042007 CAP SEAL
08 P6042008 PISTON HEAD VALVE
08A P604200A PISTON HEAD ASSY
09 P6042009 O-RING
10 P6042010 STOPPER
11 P6042011 O-RING
12 P6042012 COLLAR
13 P6042013 O-RING
14A P6042014A DRIVER ASSEMBLY
18 P6042018 O-RING
19 P6042019 CYLINDER
19A P6042019A COLLAR
20 P6042020 BUMPER
21 P6042021 O-RING
23 P6042023 BODY
24 P6042024 E-RING
25 P6042025 JOINT GUIDE
26 P6042026 SPRING
27 P6042027 GUIDE SAFETY LVR
31 P6042031 SAFETY YOKE
32 P6042032 STEPPED PIN
33 P6042033 O-RING
34 P6042034 TRGR VALVE HEAD
35 P6042035 TRGR VALVE STEM
36 P6042036 O-RING
37 P6042037 O-RING
38 P6042038 TRGR VALVE GUIDE
39 P6042039 SPRING
40A P6042040A TRIGGER
41 P6041041 CAP SCREW
42 P6042042 NOSE COVER
43 P6042043 CAP SCREW
44 P6042044 CAP SCREW
45 P6042045 LOCK WASHER
46 P6042046 NOSE
47 P6042047 SET PLATE
48 P6042048 SET PLATE
49A P6042049A STAPLE GUIDE UNIT
50 P6042050 MAGAZINE
51 P6042051 PUSHER
52 P6042052 SLIDE BLOCK
53 P6042053 SPRING
54 P6042054 ROD
55 P6042055 SHAFT
56 P6042056 SET BLOCK
57 P6042057 STEPPED PIN
58 P6042058 END CORE
59 P6042059 ROUND HD CAP SCR
60 P6042060 TORSION SPRING
61 P6042061 STOPPER
62 P6042062 E-RING
63 P6042063 CAP SCREW
64 P6042064 CAP SCREW
65 P6042065 LOCK NUT
66 P6042066 COVER
67 P6042067 AIR FITTING
68 P6042068 O-RING
69 P6042069 BRACKET
71 P6042071 LOCK NUT
72 P6042072 SPRING
74 P6042074 EXHAUST COVER
75 P6042075 CAP SCREW
76 PRP50M RUBBER INLET PLUG
500 P6042500 PISTON/O-RING SET*
501 P6042501 CARRYING CASE*
502 P6042502 O-RING SET*
* These items are not shown in the illustration.
REF PART # DESCRIPTION
REF PART # DESCRIPTION
G6042/G6043 18 Gauge Stapler Kit
-14-
G6043 PART BREAKDOWN
51
52
53
42
41
31
54
43
46
56
49A
48
47
63
44
45
58
31
62
50
30
57
29
27
25
59
55
26
60
69
23
40A
32
61
24
38
37
65
35
36
76
39
33
34
67
66
68
64
12
11
20
10
9
8A
22
2
14A
1
13
74
72
71
19
8
7
21
5
6
18
19A
75
4
3
G6042/G6043 18 Gauge Stapler Kit
-15-
01 P6043001 CAP SCREW
02 P6043002 LOCK WASHER
03 P6043003 CAP
04 P6043004 SEAL
05 P6043005 SPRING
06 P6043006 O-RING
07 P6043007 CAP SEAL
08 P6043008 PISTON HEAD VALVE
08A P604300A PISTON HEAD ASSY
09 P6043009 O-RING
10 P6043010 STOPPER
11 P6043011 O-RING
12 P6043012 COLLAR
13 P6043013 O-RING
14A P6043014A DRIVER ASSEMBLY
18 P6043018 O-RING
19 P6043019 CYLINDER
19A P6043019A COLLAR
20 P6043020 BUMPER
21 P6043021 O-RING
22 P6043022 O-RING
23 P6043023 BODY
24 P6043024 E-RING
25 P6043025 JOINT GUIDE
26 P6043026 SPRING
27 P6043027 GUIDE SAFETY LVR
29 P6043029 LOCK NUT
30 P6043030 PHLP HD SCREW
31 P6043031 SAFETY YOKE
32 P6043032 STEPPED PIN
33 P6043033 O-RING
34 P6043034 TRGR VALVE HEAD
35 P6043035 TRGR VALVE STEM
36 P6043036 O-RING
37 P6043037 O-RING
38 P6043038 TRGR VALVE GUIDE
39 P6043039 SPRING
40A P6043040A TRIGGER
41 P6045041 CAP SCREW
42 P6043042 NOSE COVER
43 P6043043 CAP SCREW
44 P6043044 CAP SCREW
45 P6043045 LOCK WASHER
46 P6043046 NOSE
47 P6043047 SET PLATE
48 P6043048 SET PLATE
49A P6043049A STAPLE GUIDE UNIT
50 P6043050 MAGAZINE
51 P6043051 PUSHER
52 P6043052 SLIDE BLOCK
53 P6043053 SPRING
54 P6043054 ROD
55 P6043055 SHAFT
56 P6043056 SET BLOCK
57 P6043057 STEPPED PIN
58 P6043058 END CORE
59 P6043059 CAP SCREW
60 P6043060 TORSION SPRING
61 P6043061 STOPPER
62 P6043062 E-RING
63 P6043063 CAP SCREW
64 P6043064 CAP SCREW
65 P6043065 LOCK NUT
66 P6043066 COVER
67 P6043067 AIR FITTING
68 P6043068 O-RING
71 P6043071 LOCK NUT
72 P6043072 SPRING
74 P6043074 EXHAUST COVER
75 P6043075 CAP SCREW
76 P6043077 RUBBER INLET PLUG
500 P6043500 PISTON/O-RING SET*
501 P6043501 CARRYING CASE*
502 P6043502 O-RING SET*
* These items are not shown in the illustration.
REF PART # DESCRIPTION
REF PART # DESCRIPTION
TROUBLESHOOTING
Air leaking at trigger valve
area.
Air leaking between housing and hose.
Air leaking between housing and cap assembly.
Tool skips staples while discharging.
Tool runs slowly or has a
loss of power.
Fasteners frequently jam
the stapler.
Stapler does not fire.
1. O-rings must be replaced
& operation of safety
yoke must be checked.
1. Tighten screws.
2. Replace O-ring.
3. Tighten air fitting.
1. Replace damaged seals.
1. Tighten screws and fittings.
2. Clean nose.
3. Clean magazine and
inspect/repair damage.
4. Check fitting, hose, compressor & air pressure.
5. Replace piston O-ring.
Lubricate.
6. Replace trigger valve Orings.
7. Replace bumper.
8. Replace cap seal.
1. Lubricate stapler.
2. Replace spring.
3. Clean or replace damaged internal parts.
1. Use correct staples.
2. Use undamaged staples
3. Tighten magazine and
nose screws.
4. Replace worn or damaged parts.
1. Clear stapler magazine
or discharge area.
2. Replace piston shaft.
3. Check/increase air pressure.
PROBLEM
CAUSE
ACTION
-16-
1. O-rings in trigger valve
housing are damaged.
1. Loose screws in housing.
2. Damaged O-ring.
3. Loose air fitting.
1. Damaged seal.
1. Air leaks.
2. Dirt in nose.
3. Dirt or damage prevents staples from moving freely in
magazine.
4. Inadequate air flow to tool.
5. Worn O-ring on piston or
lack of lubrication.
6. Damaged O-rings on trigger
valve.
7. Worn bumper.
8. Cap seal leaking.
1. Stapler is not sufficiently
lubricated.
2. Broken spring in cap assembly.
3. Exhaust port in cap is
blocked.
1. Staples are the wrong size.
2. Staples are bent.
3. Magazine or nose screws
are loose.
4. Driver or driver guide are
worn or damaged.
1. Staple is jammed in magazine or discharge area.
2. Piston shaft is damaged.
3. Air pressure too low.
G6042/3 18 Gauge Stapler Kit
G6042/G6043 18 Gauge Stapler Kit
-17-
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original
purchaser from the date of purchase. This warranty does not apply to defects due directly
or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be
implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the
merchandise complies with the provisions of any law or acts unless the manufacturer so
warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price
paid for the product and any legal actions brought against Grizzly shall be tried in the State
of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details.
We will then issue you a “Return Authorization Number,” which must be clearly posted on
the outside as well as the inside of the carton. We will not accept any item back without this
number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our
products meet high quality and durability standards and we hope you never need to use this
warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Pennsdale, PA 17756
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail:
techsupport@grizzly.com
Web Site: http://www.grizzly.com
Thank you again for your business and continued support. We hope to serve you again
soon!
WARRANTY AND RETURNS
Name__________________________________________________________
Street__________________________________________________________
City____________________State________Zip_________
Phone Number____________E-Mail___________________FAX____________
Model #___________________________ Order #_______________________
The following information is given on a voluntary basis. It will be used for marketing purposes to help
us develop better products and services. Of course, all information is strictly confidential.
WARRANTY CARD
9. How many of the machines checked above are
Grizzly? ____________
10. Which portable/hand held power tools do you own?
Check all that apply.
___Belt Sander ___Orbital Sander
___Biscuit Joiner ___Palm Sander
___Circular Saw ___Portable Planer
___Detail Sander ___Saber Saw
___Drill/Driver ___Reciprocating Saw
___Miter Saw ___Router
___Other_________________________________
11. What machines/supplies would you like Grizzly
Industrial to carry?
________________________________________
________________________________________
________________________________________
________________________________________
12. What new accessories would you like Grizzly
Industrial to carry?
________________________________________
________________________________________
________________________________________
________________________________________
13. What other companies do you purchase your tools
and supplies from?
_________________________________________
_________________________________________
_________________________________________
14. Do you think your purchase represents good value?
___Yes ___No
15. Would you recommend Grizzly to a friend?
___Yes ___No
16. Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We
never use names more than three times.
___Yes ___No
17.Comments:________________________________
_________________________________________
_________________________________________
_________________________________________
1. How did you learn about us?
___Advertisement ___Friend
___Catalog ___Card Deck
___World Wide Web
___Other__________________________
2. What is your annual household income?
___$20,000-$29,999 ___$60,000-$69,999
___$30,000-$39,999 ___$70,000-$79,999
___$40,000-$49,999 ___$80,000-$89,999
___$50,000-$59,999 ___$90,000 +
3. What is your age group?
___20-29 ___50-59
___30-39 ___60-69
___40-49 ___70 +
4. How long have you been a woodworker?
___0 - 2 Years ___8 - 20 Years
___2 - 8 Years ___20+ Years
5. How would you rank your woodworking skills?
___Simple ___Advanced
___Intermediate ___Master Craftsman
6. What stationary woodworking tools do you own?
Check all that apply.
___Air Compressor ___Panel Saw
___Band Saw ___Planer
___Drill Press ___Power Feeder
___Drum Sander ___Radial Arm Saw
___Dust Collector ___Shaper
___Spindle Sander ___Jointer
___Table Saw ___Lathe
___Mortiser ___Wide Belt Sander
___Horiz.Boring Machine
___Vacuum Veneer Press
___Other______________________________
7. How many of your woodworking machines are
Grizzly? _____________
8. Which benchtop tools do you own? Check all
that apply.
___1"x42" Belt Sander ___6" - 8" Grinder
___5" - 8" Drill Press ___Mini Lathe
___8" Table Saw ___8" - 10" Bandsaw
___Scroll Saw ___Disc/Belt Sander
___Spindle/Belt Sander ___Mini Jointer
___10"-12"Thickness Planer
___Other______________________________
FOLD ALONG DOTTED LINE
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
Name________________________________
Street________________________________
City______________State______Zip_______
Send a Grizzly Catalog to a friend:
Place
Stamp
Here
Loading...
