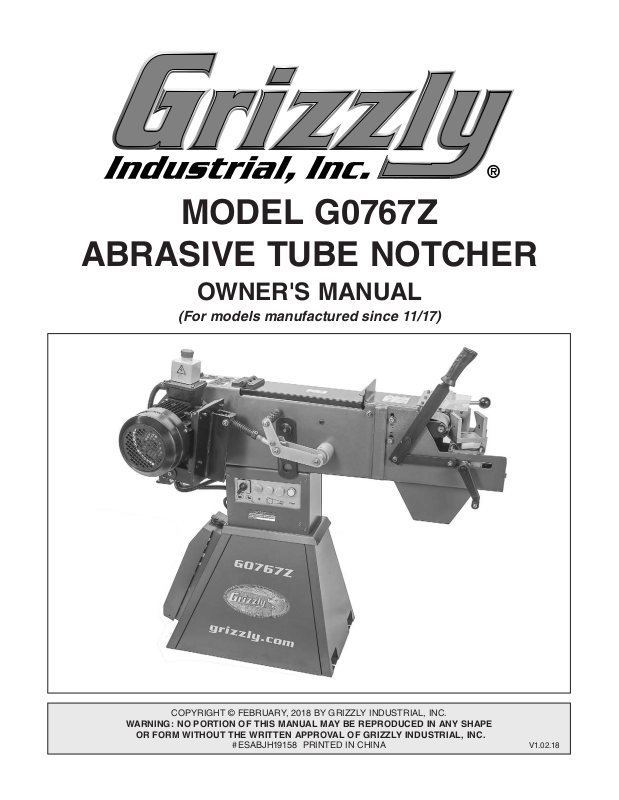

Grizzly G0767Z User guide

MODEL G0767Z

ABRASIVE TUBE NOTCHER

OWNER'S MANUAL

(For models manufactured since 11/17)

COPYRIGHT © FEBRUARY, 2018 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#ESABJH19158 PRINTED IN CHINA

V1. 0 2.18

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Machine Description ...................................... 2

Contact Info.................................................... 2

Manual Accuracy ........................................... 2

Identification ................................................... 3

Controls & Components ................................. 4

Machine Data Sheet ...................................... 5

SECTION 1: SAFETY ....................................... 7

Safety Instructions for Machinery .................. 7

Additional Safety for Abrasive Tube

Notchers ......................................................... 9

SECTION 2: POWER SUPPLY ...................... 10

SECTION 3: SETUP ....................................... 12

Needed for Setup ......................................... 12

Unpacking .................................................... 12

Inventory ...................................................... 13

Hardware Recognition Chart ....................... 14

Site Considerations ...................................... 15

Lifting & Placing ........................................... 16

Cleanup ........................................................ 18

Anchoring to Floor ....................................... 18

Assembly ..................................................... 19

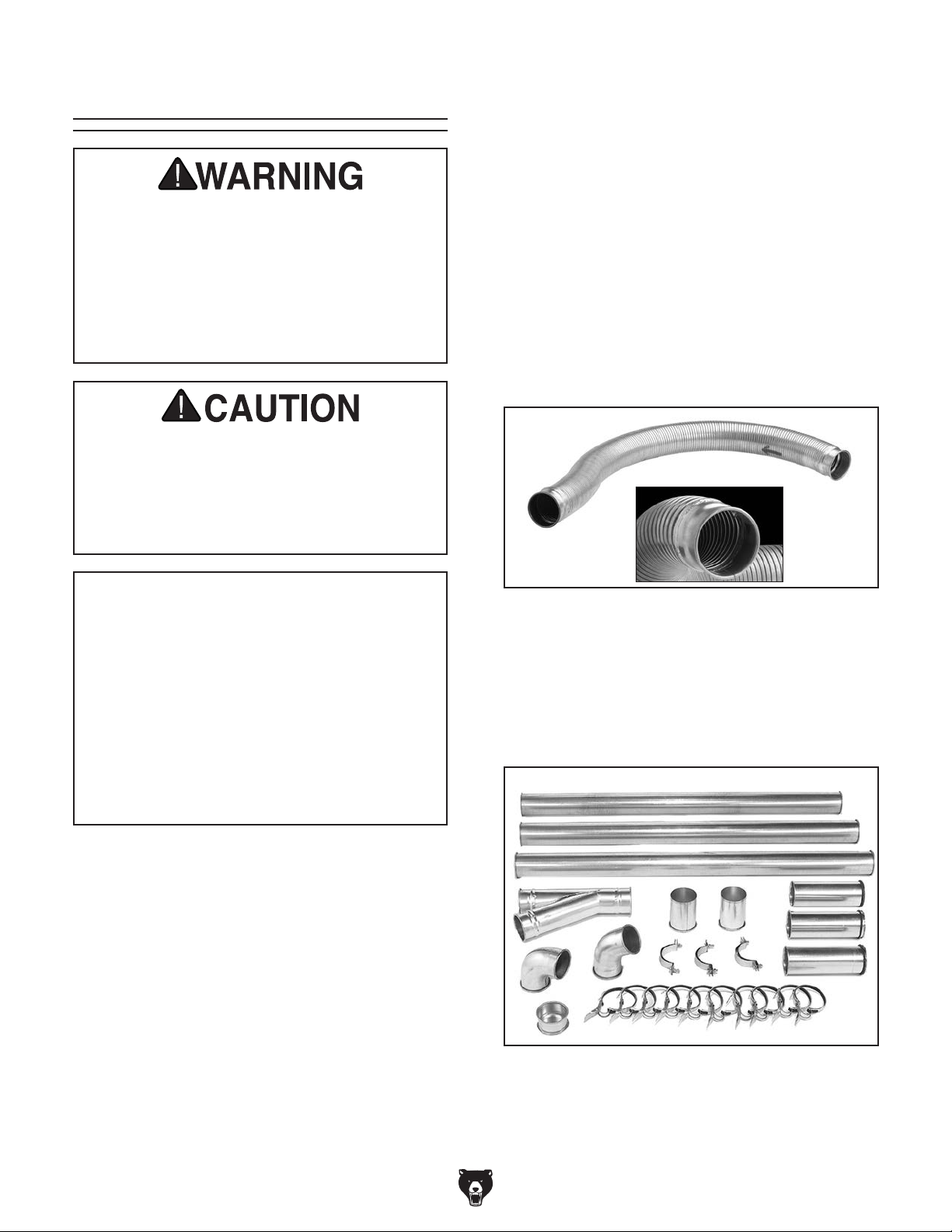

Dust Collection ............................................. 20

Power Connection........................................ 21

Test Run ...................................................... 21

SECTION 5: ACCESSORIES ......................... 31

SECTION 6: MAINTENANCE ......................... 33

Schedule ...................................................... 33

Cleaning ....................................................... 33

Lubrication ................................................... 33

SECTION 7: SERVICE ................................... 34

Troubleshooting ........................................... 34

Adjusting Profile Roller Height ..................... 36

Emptying Spark Trap ................................... 36

SECTION 8: WIRING ...................................... 37

Wiring Safety Instructions ............................ 37

Electrical Components ................................. 38

Wiring Diagram ............................................ 39

SECTION 9: PARTS ....................................... 40

Body ............................................................. 40

Motor & Belt Rollers ..................................... 41

Pipe Vise Assembly & Accessories ............. 43

Electrical Box ............................................... 45

Labels & Cosmetics ..................................... 46

WARRANTY & RETURNS ............................. 49

SECTION 4: OPERATIONS ........................... 23

Operation Overview ..................................... 23

Replacing/Tensioning .................................. 24

Abrasive Belt ................................................ 24

Changing Profile Rollers .............................. 25

Abrasive Belt Tracking ................................. 25

Operational Tips........................................... 26

Making Notches ........................................... 27

Deburring ..................................................... 29

INTRODUCTION

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the

from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documenta­tion is available for your machine.

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Machine Description

The Model G0767Z Abrasive Tube Notcher is
designed to quickly notch or cope the ends of
metal tubing, so two pieces of tubing can be weld­ed together with clean, strong joints. It is an ideal
machine for production work with fencing, gates,
roll cages, bicycle frames, stainless steel piping,
or any other type of tubing work that requires join­ing multiple pieces together.

The vise allows the tube to be set at any angle
from 30° to 90° to the grinding belt. Using the
variety of included profile rollers, notches can be
formed in diameters from
is complete, tubing edges can be deburred using
the deburring stations located on the top and rear
of the machine.

Contact Info

3

⁄4" to 3". After notching

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

Manufacture Date and Serial Number

Email: [e-mail]

Grizzly Documentation Manager

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

P.O. Box 2069

Bellingham, WA 98227-2069

Email: [e-mail]

Manufacture Date

Serial Number

-2-

Model G0767Z (Mfd. Since 11/17)

Identification

To reduce your risk of
serious injury, read this
entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

Motor

Column

Base

Belt Tension

Lever

Front

Vise

Assembly

Feed

Lever

Control

Panel

Spark

Shield

Clamp

Lever

Traverse

Crank

Top

Deburring

Station

Abrasive

Belt

Emergency

Stop

Rear

Deburring

Station

Workpiece

Rest

Model G0767Z (Mfd. Since 11/17)

Spark

Trap

Floor Mounts

using machine.

Rear

Dust Port

Profile

Roller

Storage

Rack

-3-

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

F

G

H

I

using machine.

Refer to Figures 1–2 and the following descrip­tions to become familiar with the basic controls of
this machine.

A

B

C D

E

Figure 1. Control panel.

J

K

Figure 2. Other controls.

F. Emergency Stop Button: Cuts power to

motor and prevents restarting until reset.
Twist clockwise to reset.

G. Belt Tension Lever: Controls abrasive belt

tension.

H. Feed Lever: Moves tube toward or away

from abrasive belt.

I. Clamp Lever: Locks tube between vise jaws

so it will not move during grinding.

L

M

N

A. Motor Speed Switch: Changes motor speed

between high & low.

B. OFF Button: Press to turn motor OFF.

C. ON/Clockwise Button: Press to start

abrasive belt movement clockwise.

D. ON/Counterclockwise Button: Press to

start abrasive belt movement counterclock­wise.

E. Power Lamp: Indicates power to machine is

turned ON.

-4-

J. Rest Lock: Locks rest at rear deburring sta-

tion in position.

K. Profile Roller Storage Rack: Stores profile

rollers away from debris and grime.

L. Traverse Crank: Moves tube from side-to-

side across abrasive belt. This will increase
the life of the belt.

M. Spark Shield Lock Handle: Secures spark

shield in place.

N. Clamp Crank: Adjusts distance between

jaws and clamp plate to accommodate diam­eter of tube.

Model G0767Z (Mfd. Since 11/17)

Machine Data Sheet

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL G0767Z

ABRASIVE TUBE NOTCHER

Product Dimensions:

Weight ........................................................................................................................................................................... 290 lbs.

Width (side-to-side) x Depth (front-to-back) x Height .................................................................... 31-1/2 x 49-1/2 x 47-1/2 in.

Footprint (Length/Width) ......................................................................................................................................25-1/2 x 16 in.

Shipping Dimensions:

Type ........................................................................................................................................................................ Wood Crate

Content .......................................................................................................................................................................... Machine

Weight ............................................................................................................................................................................ 381 lbs.

Length x Width x Height ..................................................................................................................................... 48 x 28 x 45 in.

Must Ship Upright .................................................................................................................................................................Yes

Electrical:

Power Requirement ................................................................................................................................ 220V, 3-Phase, 60 Hz

Full-Load Current Rating ................................................................................................................................................... 11.6A

Minimum Circuit Size ........................................................................................................................................................... 15A

Connection Type ..................................................................................................................................................... Cord & Plug

Power Cord Included ............................................................................................................................................................Yes

Power Cord Length ...............................................................................................................................................................6 ft.

Power Cord Gauge .......................................................................................................................................................14 AWG

Plug Included ......................................................................................................................................................................... No

Recommended Plug Type ...................................................................................................................................NEMA L15-15

Switch Type ..........................................................................................................................................................Control Panel

Motor:

Main

Type ...................................................................................................................................................................TEFC Induction

Horsepower ................................................................................................................................................................3 HP/4 HP

Phase ............................................................................................................................................................................ 3-Phase

Amps ......................................................................................................................................................................... 9.7A/11.6A

Speeds .....................................................................................................................................................1720 RPM/3440 RPM

Power Transfer ................................................................................................................................................................. Direct

Bearings ................................................................................................................................ Sealed & Permanently Lubricated

Main Specifications:

Belt Sander Info

Sanding Belt Speed .........................................................................................................................................3580, 6180 FPM

Sanding Belt Length .....................................................................................................................................................78-3/4 in.

Sanding Belt Width ..............................................................................................................................................................4 in.

Number of Profile Rollers .........................................................................................................................................................7

Profile Roller Sizes .................................................................................................................3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3 in.

Grinding Capacity ...............................................................................................................................................3/4 - 3 in. O.D.

Grinding Angle Range ............................................................................................................................................... 0 - 60 deg.

Model G0767Z (Mfd. Since 11/17)

-5-

Platen Info:

Platen Type ...................................................................................................................................................... Graphite Coated

Platen Length ...............................................................................................................................................................15-3/8 in.

Platen Width ...................................................................................................................................................................4-1/2 in.

Construction:

Stand ..................................................................................................................................................................... Formed Steel

Body ...................................................................................................................................................................... Formed Steel

Rollers ..................................................................................................................................................................Polished Steel

Paint ................................................................................................................................................................... Powder Coated

Other Specifications:

Country of Origin ............................................................................................................................................................... China

Warranty ........................................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time .............................................................................................................................1 Hour

Serial Number Location ................................................................................................................................................ ID Label

ISO 9001 Factory ..................................................................................................................................................................Yes

Certified by a Nationally Recognized Testing Laboratory (NRTL) ......................................................................................... No

Features:

Two Belts Speeds (3580 & 6180 FPM)
Ratcheting System for Easy Tensioning of Sanding Belt
Front Debris-Catching Tray
3" Dust Port
Easy Belt Alignment/Tracking System
Top and Rear Sanding-Belt Access for Deburring
Self-Aligning Vise with Side-to-Side Adjustment to Prevent Uneven Belt Wear
Vise Rotates 0 - 60 degrees
Transparent Safety Guard
Removable Spark Tray

Accessories:

Seven Rollers: 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Toolbox with Service Tools

-6-

Model G0767Z (Mfd. Since 11/17)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model G0767Z (Mfd. Since 11/17)

-7-

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

-8-

Model G0767Z (Mfd. Since 11/17)

Additional Safety for Abrasive Tube Notchers

nearby explosive or flammable materials. ALWAYS

Long-term respiratory damage, cancer, or birth defects can occur from inhalation of dust.
You can get seriously injured or killed if clothing, jewelry, or long hair become entangled in
rotating machine parts. You can be blinded or burned by hot metal particles that fly out during
operation. Flying sparks can ignite nearby explosive or flammable materials. Sanding belt
quickly removes skin upon contact. To reduce your risk of these hazards when operating this
machine, completely heed and understand the following:

USE FOR INTENDED PURPOSE. This machine

is designed for grinding certain metals. DO NOT
use it to grind materials made from wood or wood
products, lead, magnesium, asbestos, crystalline
silica, gypsum, or any other non-metal products.

PROTECTION FROM HOT SPARKS. Properly
adjust and lock spark shield prior to grinding
operations. ALWAYS wear approved safety
glasses or goggles, a face shield, a respirator,
hearing protection, long leather gloves, and a
leather apron to reduce the risk of injury from hot,
flying sparks when operating. Never allow anyone
to stand in path of sparks.

PROTECTION FROM ENTANGLEMENT. DO
NOT wear loose clothing, jewelry or other items
that can get caught in moving parts. Tie back hair
and roll up long sleeves. Make sure machine is
turned OFF, disconnected from power, and that
all moving parts come to a complete stop before
opening belt cover.

MINIMIZE EXPOSURE TO SANDING BELT.

Keep hands away from rotating sanding belt
during operation. Keep deburring station covers
closed when not in use.

WEAR PROPER RESPIRATOR. Dust created
from grinding metals may cause cancer, birth
defects, or long-term respiratory damage. Be
aware of dust hazards, exposure limits, and
toxicity associated with each type of workpiece
material. Very fine dust/particles are unlikely to
be captured and may become airborne in work
area. Anyone working with or around this machine
MUST wear a NIOSH-approved respirator rated
for the workpiece material.

RISK OF FIRE AND EXPLOSIONS. This machine
creates a shower of hot sparks that can ignite

keep these materials away from machine. Fine
metal dust particles can ignite, depending on
material type and circumstances. Know about and
be prepared to safely fight a combustible metal fire
by conducting a combustible screening test under
Chapter 4 of NFPA 484. Keep machine away from
pilot lights, open flames, or other ignition sources.
Never use machine to grind magnesium—as
these particles can ignite from exposure to water/
moisture.

TOXIC METALS. Exposure (or over-exposure) to
certain types of metal dusts or fumes can result
in serious, potentially deadly health effects. To
reduce this risk, research toxic effects of metal
types you work with and always seek to minimize/
eliminate exposure to yourself and others.

REDUCE RISK OF BURNS. Workpieces get
very hot while grinding. Always wear long leather
gloves when operating machine.

PROPERLY MAINTAIN MACHINE. Keep
machine in proper working condition to help
ensure all guards and other components
work as intended and function safely. Perform
routine inspections and all necessary main­tenance, as indicated in owner’s manual. Never
operate machine with damaged or worn parts that
can break during operation.

AVOID SUDDEN STARTUP. In event of power loss
during operation, immediately press Emergency
Stop button to avoid a sudden startup once power
is restored.

Model G0767Z (Mfd. Since 11/17)

-9-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Requirements for 220V

Nominal Voltage .........208V, 220V, 230V, 240V

Cycle ..........................................................60 Hz

Phase .................................................... 3-Phase

Power Supply Circuit ......................... 15 Amps

Plug/Receptacle ..........................NEMA L15-15

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

Full-Load Current Rating at 220V ...11.6 Amps

-10 -

Model G0767Z (Mfd. Since 11/17)

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Grounding Instructions

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

Serious injury could occur if you connect

process. DO NOT connect to power until

The power cord and plug specified under “Circuit
Requirements for 220V”
has an equipment-grounding wire and a ground­ing prong. The plug must only be inserted into
a matching receptacle (outlet) that is properly
installed and grounded in accordance with all
local codes and ordinances (see figure below).

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

process. DO NOT connect to power until

on the previous page

GROUNDED

L15-15 RECEPTACLE

Grounding Prong

is Hooked

L15-15

PLUG

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

Current Carrying Prongs

Figure 3. Typical L15-15 plug and receptacle.

machine to power before completing setup

instructed later in this manual.

Model G0767Z (Mfd. Since 11/17)

Extension Cords

Extension Cords

If you must use an extension

Minimum Gauge Size ...........................14 AWG

Maximum Length (Shorter is Better).......50 ft.

-11-

SECTION 3: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

Keep children and pets away
from plastic bags or packing
materials shipped with this

get help from other people

Needed for Setup

This machine presents
serious injury hazards
to untrained users. Read
through this entire manu­al to become familiar with
the controls and opera­tions before starting the
machine!

Wear safety glasses during
the entire setup process!

HEAV Y LIF T!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,

and use a forklift (or other
lifting equipment) rated for
weight of this machine.

The following are needed to complete the setup
process:

Description Qty

• Additional People ....................................... 2

• Safety Glasses .....................................1 Ea.

• Forklift or Crane

(Rated For at Least 500 lbs.) ...................... 1

• Web Slings

(Rated For at Least 500 lbs. Each) ............ 2

• Lifting Chain & Safety Hook (Optional)

(Rated For at Least 500 lbs. Each) ............ 1

• Wrench or Socket 13mm ............................ 1

• Wrench or Socket 16mm ............................ 1

• Wrench or Socket 17mm ............................ 1

• Metal Dust Collection System .................... 1

• Metal Flex Hose 4" ..................................... 1

• Hose Clamps 4" ......................................... 1

Unpacking

-12-

If items are damaged

call us immediately at [phone].

Save all packaging materials until

SUFFOCATION HAZARD!

machine. Discard immediately.

Model G0767Z (Mfd. Since 11/17)

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

Inventory

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

Inventory (Figure 4) Qty

A. Machine Body ............................................ 1

B. Machine Base with Profile Rollers .............. 1

—Profile Roller

—Profile Roller 1" Dia. (Installed) ............... 1

—Profile Roller 1
—Profile Roller 1

—Profile Roller 2" Dia. ............................... 1

—Profile Roller 2

—Profile Roller 3" Dia. ............................... 1

C. Feed Lever Assembly ................................. 1

D. Spark Trap .................................................. 1

E. Vise Assembly ............................................ 1

F. Hex Wrenches 2.5, 3, 4, 5, 6, 8mm ......1 Ea

G. Phillips Screwdriver #2 ............................... 1

H. Spanner Wrenches 22, 26mm ................... 2

I. Open-End Wrench 13/16mm ...................... 1

J. Toolbox ....................................................... 1

3

⁄4" Dia. .............................. 1

1

⁄4" Dia. ............................ 1

1

⁄2 " Dia. ............................ 1

1

⁄2 " Dia. ............................ 1

A

D

C

F

G

H

I

B

E

J

Model G0767Z (Mfd. Since 11/17)

Figure 4. Model G0767Z inventory.

-13-

Hardware Recognition Chart

USE THIS CHART TO MATCH UP
HARDWARE DURING THE INVENTORY
AND ASSEMBLY PROCESS.

Flat
Head
Cap
Screw

-14-

5mm

5mm

Model G0767Z (Mfd. Since 11/17)

Site Considerations

Weight Load

Refer to the
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest work­piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main­tenance and service described in this manual.

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract
or impede the operator must be eliminated.

Machine Data Sheet for the weight

Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.

The physical environment where the machine is
operated is important for safe operation and lon­gevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemi­cals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20%–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.

Electrical Installation

Make sure all power cords are protected from
traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or
apply a lockout/tagout device, if required.

Lighting

Lighting around the machine must be adequate
enough that operations can be performed safely.

Figure 5. Minimum working clearances.

Model G0767Z (Mfd. Since 11/17)

311/2"

491/2"

-15-

Lifting & Placing

get help from other people

6. Remove (4) cap screws that secure riser
column front cover (see Figure 7).

HEAV Y LIF T!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,

and use a forklift (or other
lifting equipment) rated for
weight of this machine.

The following procedure details how to place the
machine's base, and then how to lift and secure
the machine to the base.

To lift and place machine:

1. Place shipping crate near installation

location, then remove crate from shipping
pallet and set small items aside.

2. Unbolt base from shipping pallet.

Cap

Screw

(1 of 4)

Riser

Column

Figure 7. Location of cap screws that secure

front cover.

7. Remove (6) pre-installed cap screws, lock
washers, and flat washers from top of base
(see Figure 8).

Front

Cover

Cap

Screw

(1 of 6)

3. Move base to selected location and properly
anchor it to floor (refer to Anchoring to Floor
on Page 18).

4. Remove (4) cap screws that secure electrical
box inside riser column (see Figure 6).

Cap

Screw

(1 of 4)

Electrical Box

Figure 6. Location of cap screws that secure

electrical box.

Figure 8. Cap screws on top of base.

8. Have another person hold machine steady so

that it does not tip, then remove hex nuts that
secure machine body to pallet.

5. Slide electrical box out of riser column and
place on top of machine.

-16 -

Model G0767Z (Mfd. Since 11/17)

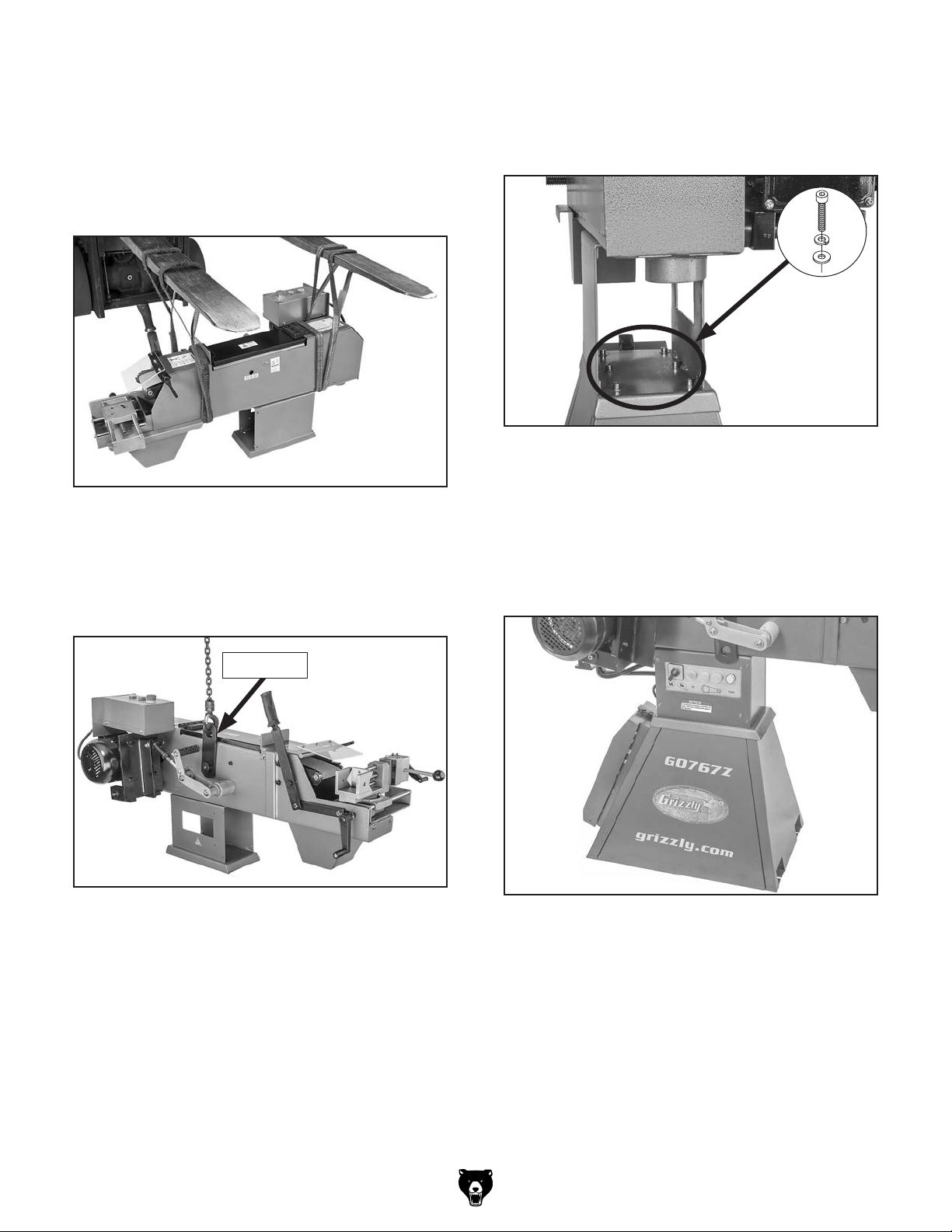

9. Below are two methods for lifting machine
onto base. Use the best one for your
operation.

— Wrap web slings around machine and

attach them to a forklift or other lifting
device (see Figure 9).

Figure 9. Example of lifting machine with web

slings.

— Rotate lifting bar up (see Figure 10),

and attach lifting chain and safety hook
between lifting bar and lifting device.

10. Lift machine onto base with roller storage
rack underneath motor, and secure machine
to base with (6) cap screws removed in
Step 7 (see Figure 11).

x 6

Figure 11. Machine attached to base.

11. Re-install riser column front cover with (4)
cap screws removed in Step 6.

12. Re-install electrical box in riser column with
(4) cap screws removed in Step 4 (see
Figure 12).

Lifting Bar

Figure 10. Example of lifting machine with chain

and hook.

Figure 12. Electrical box re-installed.

Model G0767Z (Mfd. Since 11/17)

-17-

Lag shield anchors with lag screws (see below)
are a popular way to anchor machinery to a con­crete floor, because the anchors sit flush with the
floor surface, making it easy to unbolt and move
the machine later, if needed. However, anytime
local codes apply, you MUST follow the anchoring
methodology specified by the code.

Cleanup

The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.

There are many ways to remove this rust preven­tative, but the following steps work well in a wide
variety of situations. Always follow the manufac­turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

1.

2.

amount of cleaner/degreaser, then let it soak

3.

scrape off as much as you can first, then wipe

4.

then coat all unpainted surfaces with a quality

Avoid chlorine-based solvents, such as

Anchoring to Floor

Number of Mounting Holes ............................ 4

Diameter of Mounting Hardware ................

Anchoring machinery to the floor prevents tipping
or shifting and reduces vibration that may occur
during operation, resulting in a machine that runs
more quietly and feels more solid.

Because of the top heavy nature of the
Model G0767Z and the dynamic forces exert­ed during operation, this machine MUST be
solidly anchored to floor.

7

⁄16"

Anchoring to Concrete Floors

Put on safety glasses.

Coat the rust preventative with a liberal

for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,

off the rest with the rag.

Repeat Steps 2–3 as necessary until clean,

metal protectant to prevent rust.

NOTICE

acetone or brake parts cleaner, that may
damage painted surfaces.

Lag Screw

Flat Washer

Machine Base

Concrete

Figure 13. Popular method for anchoring

machinery to a concrete floor.

Lag Shield Anchor

Drilled Hole

-18-

Model G0767Z (Mfd. Since 11/17)

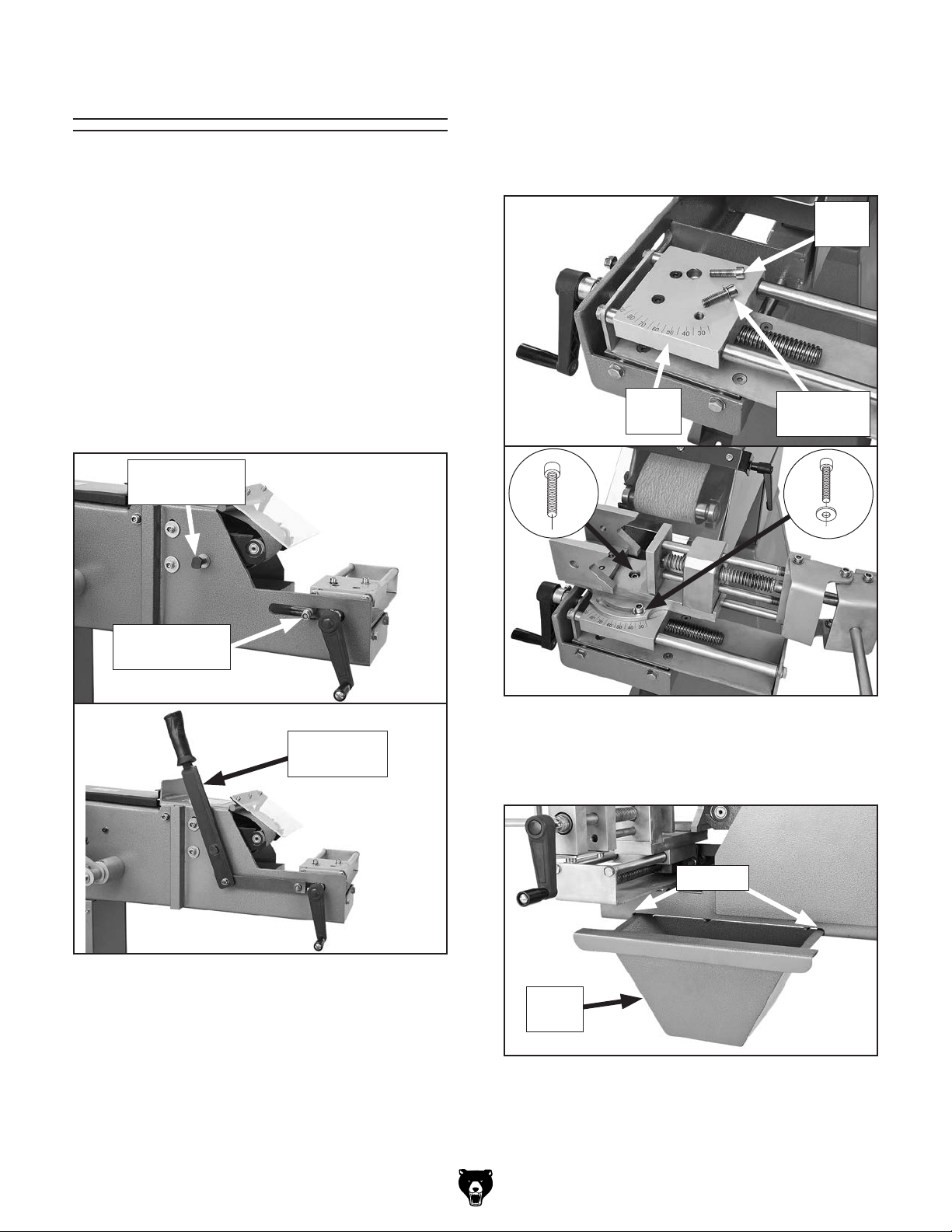

Assembly

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
all
goes smoothly, first clean any
ered or coated in heavy-duty rust preventative (if
applicable).

Needed for Setup and gather

listed items. To ensure the assembly process

parts that are cov-

To assemble machine:

1. Remove pre-installed T-bolt, lock nut, and flat

washers (shown in Figure 14), then attach
feed lever assembly to machine with same
fasteners (see Figure 14).

T-Bolt

w/Flat Washer

2. Remove pre-installed vise mounting cap
screws and washer (shown in Figure 15),
and then position vise assembly on vise
mount and secure it to machine with same
fasteners (see Figure 15).

Cap

Screw

Vise

Mount

Cap Screw

w/Washer

Lock Nut

w/Flat Washer

Feed Lever

Assembly

Figure 14. Feed lever assembly attached.

Figure 15. Vise assembly attached.

3. Slide spark trap into grooves on right side of

machine, as shown in Figure 16.

Grooves

Spark

Trap

Figure 16. Spark trap positioned in grooves.

Model G0767Z (Mfd. Since 11/17)

-19 -

Dust Collection

To connect dust collection system to machine:

1. Fit a 4" metal flex hose over the dust port

located at the rear deburring station. Secure
it in place with a 4" hose clamp.

EXPLOSION OR FIRE HAZARD
DO NOT use any plastic duct material with
this machine. The National Fire Protection
Agency (NFPA) warns of explosion or fire
hazard because of static electrical buildup
if plastic or non-conductive duct material
is used for metal dust collection and is not
completely grounded and bonded.

This machine creates a lot of metal chips/
dust during operation. Breathing airborne
dust on a regular basis can result in perma­nent respiratory illness. Reduce your risk
by wearing a respirator and capturing the
dust with a dust-collection system.

Minimum CFM at Dust Port: 400 CFM

Do not confuse this CFM recommendation with
the rating of the dust collector. To determine the
CFM at the dust port, you must consider these
variables: (1) CFM rating of the dust collector,
(2) hose type and length between the dust col­lector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines
throughout the system. Explaining how to cal­culate these variables is beyond the scope of
this manual. Consult an expert or purchase a
good dust collection "how-to" book.

2. Tug hose to make sure it does not come off.

Note: A tight fit is necessary for proper

performance.

H7215—4" x 5' Rigid Metal Flex Hose

This flex hose provides just enough flexibility to
make difficult connections while still keeping the
inside wall as smooth as possible to minimize
static pressure loss.

Figure 17. Rigid metal flex hose.

H5293—4" Metal Duct Starter Kit

Save over 20% with this great starter kit. Includes:
(2) machine adapters, (10) pipe clamps, (3) 5'
straight pipes, (1) branch, (3) pipe hangers, (1)
end cap, (3) adjustable nipples, (1) 90˚ elbow, and
(1) 60˚ elbow.

-20-

Figure 18. Metal duct starter kit.

Model G0767Z (Mfd. Since 11/17)

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine

ed results that can lead to serious injury,

Serious injury or death can result from

Power Connection

or equipment damage
may occur if machine is
not properly grounded
and connected to power

Before the machine can be connected to the power
source a connection device must be prepared per
the POWER SUPPLY section in this manual; and
all previous setup instructions in this manual must
be complete to ensure that the machine has been
assembled and installed properly.

Test Run

Troubleshooting

Electrocution, fire, shock,

supply.

Note About Extension Cords: Using an incor-

rectly-sized extension cord may decrease the life
of electrical components on your machine. If you
must use an extension cord, refer to Extension
Cords on Page 11 for more information.

To connect plug to power cord, install L15-15 plug
on end of power cord per plug manufacturer's
instructions. If no instructions were included, use
Wiring Diagram on Page 39.

The test run consists of verifying the following:

1) The motor powers up and runs correctly and

2) the emergency stop button works correctly.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

may result in malfunction or unexpect-

death, or machine/property damage.

Model G0767Z (Mfd. Since 11/17)

To make the test run quicker and easier to per­form, you will be instructed to remove the abrasive
belt from the machine. If you choose to leave the
belt on the machine for the test run, you MUST
perform the Replacing/Tensioning Abrasive

Belt procedure on Page 24 and Abrasive Belt
Tracking procedure on Page 25 to make sure the

belt is properly tensioned and tracked, and will not
fall off the rollers during the test run.

-21-

To test run machine:

3. Remove abrasive belt.

1. Loosen cap screw securing belt cover

and open cover to expose abrasive belt
(see Figure 19).

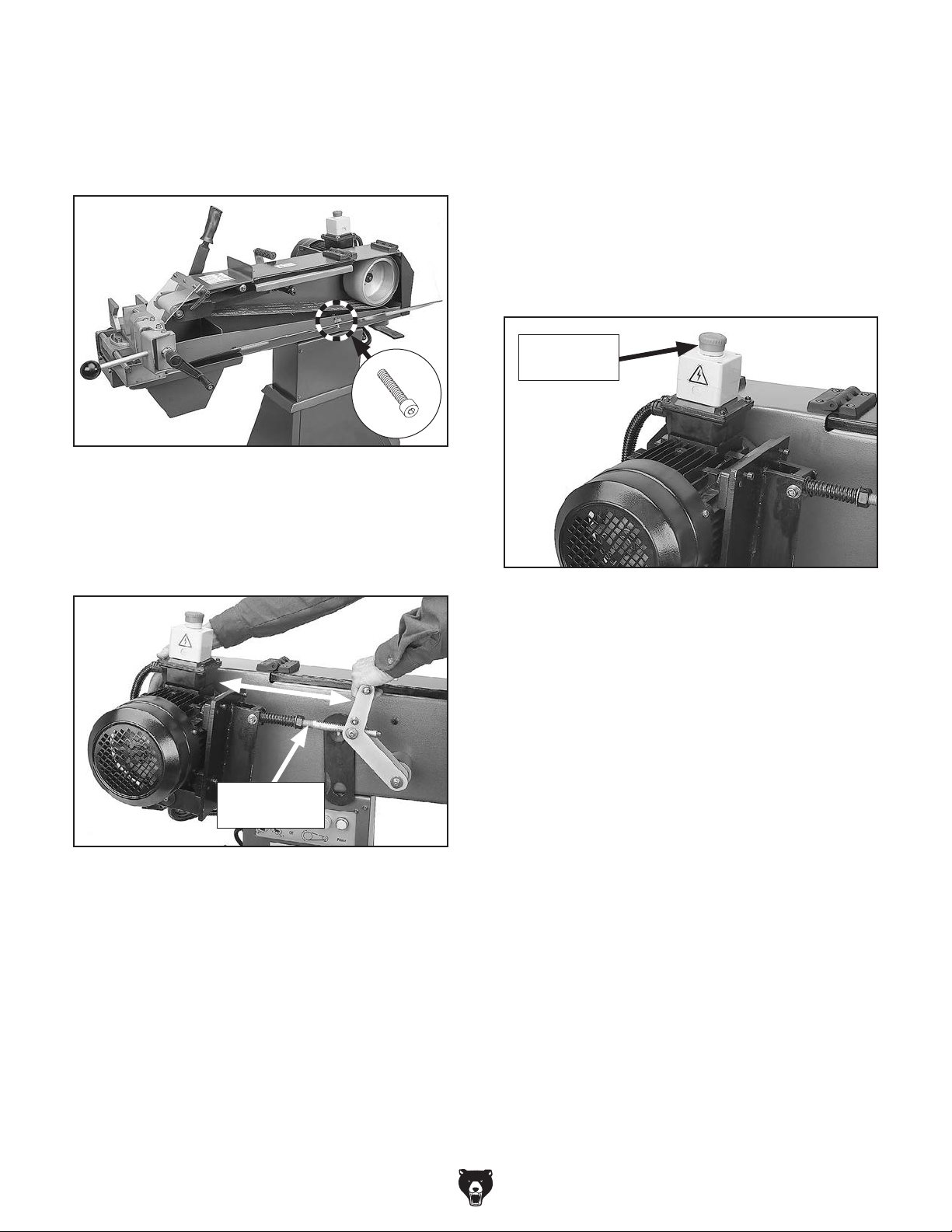

Figure 19. Belt cover opened.

2. Pull belt tension lever up and toward front of

machine with one hand as you guide motor
forward with other hand (see Figure 20). This
releases abrasive belt tension.

4. Close and secure belt cover.

5. Clear all setup tools away from machine.

6. Connect machine to power supply.

7. Twist emergency stop button clockwise until

it pops out—this resets switch so machine
will start (see Figure 21).

Emergency

Stop Button

Figure 21. Location of emergency stop button.

Belt Tension

Lever

Figure 20. Releasing abrasive belt tension.

8. Push ON button to start machine. A correctly

operating machine runs smoothly with little or
no vibration or rubbing noises.

9. Press emergency stop button to turn machine
OFF.

10. WITHOUT resetting the emergency stop
button, press ON button. Machine should not
start.

— If machine does start (with emergency

stop button in depressed position), im­mediately disconnect power to machine.
The emergency stop button safety
feature is not working correctly. This safety
feature must work properly before
proceeding with regular operations. Call
Tech Support for help.

Note: To re-install abrasive belt, perform

Replacing/Tensioning Abrasive Belt procedure
on Page 24.

-22-

Model G0767Z (Mfd. Since 11/17)

To reduce your risk of
serious injury, read this
entire manual BEFORE

Keep hair, clothing, and

ing parts at all times.
Entanglement can result
in death, amputation, or

SECTION 4: OPERATIONS

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

Operation Overview

machine controls/components

are easier to understand.

seek additional

, and do additional research

To complete a typical operation, the operator
does the following:

1. Examines tube to make sure the diameter is

appropriate for operation and the end does
not have any burrs that could damage abra­sive belt or machine.

2. Adjusts vise angle, if necessary, to correct
angle of desired cut.

3. Makes sure abrasive belt is properly
tensioned and tracking correctly.

4. Puts on personal protective equipment.

5. Secures tube in vise.

6. Properly adjusts spark shield.

using machine.

jewelry away from mov-

severe crushing injuries!

To reduce risk of eye or face injury from
flying sparks, always wear approved safety
glasses and a face shield when operating
this machine.

7. Starts machine.

8. Uses feed lever and traverse crank to make

light side-to-side passes of tube against
abrasive belt.

9. Stops machine and removes tube.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

Model G0767Z (Mfd. Since 11/17)

-23-

Removing/Installing Sanding Belt

Replacing/

Tensioning

Abrasive Belt

Whenever the abrasive belt becomes worn or
damaged, replace it. The Model G0767Z uses
a 4" x 79" silicon-carbide abrasive belt (refer to
Page 31 for abrasive belts available from Grizzly).

Cap Screw

Use coarser grit belts for fast cutting and hard
metals. Use finer grit belts for softer metals and a
smoother finish.

Tool Needed Qty

Hex Wrench 6mm .............................................. 1

To replace abrasive belt:

1. DISCONNECT MACHINE FROM POWER!

2. Pull belt tension lever up and toward front of

machine with one hand as you guide motor
forward with other hand (see Figure 22). This
releases abrasive belt tension.

Figure 23. Belt cover opened.

4. Place desired profile roller in support bracket
(refer to Changing Profile Rollers on Page
25 for instructions).

5. Slide abrasive belt onto profile roller, drive

pulley, and over deburring platen so that
direction arrows printed on inside of belt
are pointing in same direction as arrows on
machine (see Figure 24).

Note: Arrows on bottom inside of belt must

point to the right.

Deburring

Platen

Belt Tension

Lever

Figure 22. Releasing abrasive belt tension.

3. Loosen cap screw that secures belt cover

(see Figure 23), then open cover and remove
abrasive belt from machine.

-24-

Drive

Belt

Profile Roller

Figure 24. Correct installation and orientation of

abrasive belt.

6. Center belt on drive pulley.

7. Without holding abrasive belt lever, push

motor back with moderate force until it stops.
This applies correct abrasive belt tension.

8. Ajust abrasive belt tracking (refer to Abrasive
Belt Tracking on Page 25 for instructions).

Model G0767Z (Mfd. Since 11/17)

Pulley

Sanding Belt Tracking

Changing Profile

Rollers

The Model G0767Z includes seven profile rollers
ranging from
you use will depend on the size of tubing your
workpiece will be mated to.

To install profile roller:

1. DISCONNECT MACHINE FROM POWER!

2. Remove abrasive belt, then remove profile

roller from support bracket (see Figure 25).

3

⁄4" to 3". The size of profile roller

Profile

Roller

Abrasive Belt

Tracking

The abrasive belt must track in the center of the
drive pulley and profile roller to avoid presenting
an injury hazard or damaging the belt or machine.

Tools Needed Qty

Hex Wrench 6mm .............................................. 1

Hex Wrench 8mm .............................................. 1

Checking Abrasive Belt Tracking

1. DISCONNECT MACHINE FROM POWER!

2. Open belt and deburring station covers.

3. Rotate drive pulley (see Figure 26) counter-

clockwise several times and watch how belt
tracks on drive pulley.

Support
Bracket

Figure 25. 1" profile roller installed.

3. Thoroughly clean all surfaces of profile roller

with shop rag and mineral spirits, then apply
a light coat of rust preventative before placing
roller in storage cabinet.

4. Repeat Step 3 with desired profile roller to be
installed.

5. Place desired profile roller in support bracket
and replace abrasive belt.

Drive

Pulley

Figure 26. Location of drive pulley.

— If abrasive belt tracks in center of drive

pulley, close and secure belt and deburr­ing station covers.

— If abrasive belt moves to one side or the

other while it is rotating, the belt tracking
needs to be adjusted. Perform Adjusting

Abrasive Belt Tracking procedure on Page 26.

Model G0767Z (Mfd. Since 11/17)

-25-

Adjusting Abrasive Belt Tracking

Adjustments to the abrasive belt tracking are
made with the machine running. These adjust­ments are made in small amounts to make sure
the belt does not track too far from the center,
which could damage the belt and machine.

Operational Tips

• Hot particles flying off of abrasive belt travel
very fast—prepare for this! Wear proper per­sonal protective equipment.

To adjust abrasive belt tracking:

1. Make sure belt and deburring station covers

are closed and secured.

2. Have another person position his hand
over emergency stop button to quickly
turn machine OFF and prevent damage if
abrasive belt moves too close to side of
machine.

3. Connect machine to power, turn it ON, and
observe to which side abrasive belt tracks.

— If abrasive belt tracks to the left (as viewed

from front of machine), rotate tracking
adjustment cap screw (see Figure 27)
counterclockwise in small amounts until
abrasive belt tracks in center.

Tracking Adjustment

Cap Screw

• Grinding metal produces flying sparks. DO
NOT allow anyone to stand in path of sparks.
DO NOT grind near flammable materials or
combustible fumes.

• When grinding against the profile roller, make
sure all covers are closed securely and spark
shield is properly positioned.

• Use multiple light passes instead of a few
heavy passes to increase the life of abrasive
belt and decrease the need to deburr along
notch edges.

• Make sure the tube is firmly secured in the
vise and any tube longer than 3' is supported
at the opposite end by another person.

• Tube will get hot as you continue grinding
operations. Cool it frequently by quenching in
water or quenching salt solution.

• Change belts frequently and use the correct
grit for best performance.

Figure 27. Location of tracking adjustment cap

screw.

— If abrasive belt tracks to the right (as

viewed from front of machine), rotate
tracking adjustment cap screw clockwise
in small amounts until abrasive belt tracks
in center.

-26-

• DO NOT force or jam tube into abrasive belt.

• When deburring, hold tube securely with both
hands. Use rest when possible to support the
tube.

• Concentrate on task at hand. STOP grinding
if you become distracted.

• When not in use, release abrasive belt
tension to increase life of belt.

Model G0767Z (Mfd. Since 11/17)

Making Notches

Making a notch in the tube consists of preparing
the tube, properly setting up the machine, mount­ing the tube in the vise, and grinding the notch.

Notched

Tubes

Figure 28. Examples of fitting notched tubes.

PERSONAL PROTECTIVE

EQUIPMENT (PPE)

This machine produces a large amount of
sparks that can cause burns and injuries to
skin, eyes, and face. ALWAYS wear protec­tive equipment to reduce the risk of injury
from flying sparks when operating.

EXPLOSION OR FIRE HAZARD
ALWAYS empty spark trap and clean
machine thoroughly before switching
workpiece metal types. DO NOT allow dust
from different metal types to mix in spark
trap and on machine.

Items Needed Qty

Hex Wrench 6mm .............................................. 1

To make a notch:

1. DISCONNECT MACHINE FROM POWER!

2. Make sure tube end to be notched is

smoothly cut without any burrs.

3. Install profile roller that will produce
correct diameter notch for size of tubing
your workpiece will be welded to. (Refer to
Replacing Profile Rollers on Page 25 for
instructions.)

4. Make sure abrasive belt is properly tensioned
and tracking correctly. (Refer to Abrasive

Belt Tracking on Page 25 for instructions.)

5. Push feed lever (see Figure 29) toward

motor to move vise away from abrasive belt.

Loose hair and cloth­ing could get caught in
machinery and cause seri­ous personal injury. Keep
loose clothing and long
hair away from moving
machinery.

Model G0767Z (Mfd. Since 11/17)

Feed

Lever

Figure 29. Feed lever pushed toward motor.

-27-

6. Loosen vise cap screws (see Figure 30).

Cap

Screws

Angle Scale

Figure 30. Vise angle controls.

When mounting tubes longer than 3', have
another person support end of tube. This
will reduce risk of tube unexpectedly coming
loose in vise during operation and causing
impact injuries or equipment damage.

In next step, make sure tube end you
plan to notch is protruding far enough
out of vise that vise will not contact belt
during operation. Otherwise, material and
equipment damage may occur.

7. Using angle scale, rotate vise to desired

angle of notch (from 90° to 30° in relation to
front profile roller), then retighten both cap
screws.

8. Use crank handle (see Figure 31) to adjust
space between clamp plate and jaws to
accept tube.

Crank

Jaws

Handle

Clamp

Plate

Clamp Lever

Figure 31. Vise clamping controls.

9. Insert tube between jaws and clamp plate

(see Figure 32), making sure tube extends
far enough that notching operation can be
performed without vise contacting belt.

Spark

Shield

Jaws

Spark

Shield

Clamp

Handle

Plate

Vise

Profile

Roller

Figure 32. Tube inserted in vise.

10. Loosen clamp lever (see Figure 31), then

use crank handle to position clamp plate

1

within

⁄16" of tube.

11. Tighten clamp lever to lock tube in place.

-28-

Note: If it is difficult to secure tube with clamp

lever, use crank handle to slightly increase
distance between clamp plate and tube, then
try again.

Model G0767Z (Mfd. Since 11/17)

12. Position spark shield over profile roller and
lock it in place (see Figure 32 on Page 28).

Deburring

13. Turn machine ON/Clockwise and wait until

abrasive belt reaches full speed. Stand to
side of machine to avoid path of sparks
during next step.

14. Use feed lever (see Figure 33) to slowly
move tube into contact with abrasive belt.
Use traverse crank to move tube back and
forth across abrasive belt as contact is made.

Note: Moving tube back and forth across

abrasive belt reduces wear in any one spot
and increases life of belt.

Feed

Lever

Sharp burrs in the tube are typically created
during notching. These should be ground off
for safe handling and clean welds. Use the top
deburring station to grind off burrs from large
workpieces; use the rear deburring station to grind
off burrs from small workpieces that require more
support.

PERSONAL PROTECTIVE

EQUIPMENT (PPE)

This machine produces a large amount of
sparks that can cause burns and injuries to
skin, eyes, and face. ALWAYS wear protec­tive equipment to reduce the risk of injury
from flying sparks when operating.

Traverse

Crank

Figure 33. Feed and traverse controls.

15. When notch is complete, use feed lever to

move tube away from abrasive belt (see

Figure 34 for an example).

Figure 34. Example of notch in end of tubing.

Loose hair and cloth­ing could get caught in
machinery and cause seri­ous personal injury. Keep
loose clothing and long
hair away from moving
machinery.

16. Turn machine OFF, wait for abrasive belt to

completely stop, then loosen clamp lever and
remove tube.

Model G0767Z (Mfd. Since 11/17)

-29-

Using Top Deburring Station Using Rear Deburring Station

1. Open top station cover to expose abrasive
belt (see Figure 35).

1. Open rear station cover to expose abrasive

belt (see Figure 36).

Station

Cover

Abrasive Belt

Back Stop

Figure 35. Top deburring station.

2. Push ON/Clockwise button, then wait until

abrasive belt reaches full speed.

IMPORTANT: Make sure abrasive belt

travels towards front of machine.

3. Stand to side of machine and position
workpiece at a slight angle to abrasive belt,
against back stop (see Figure 35), and then
slowly make light contact with belt. Move and
rotate tube as needed to remove burrs.

4. When finished, turn machine OFF, wait for
abrasive belt to completely stop, and close
deburring station cover.

Station

Cover

Abrasive

Belt

Rest

Figure 36. Rear deburring station.

2. Adjust and secure workpiece rest in position
(see Figure 36).

3. Push the ON/Counterclockwise button, then

wait until abrasive belt reaches full speed.

IMPORTANT: Make sure abrasive belt

travels towards rear of machine.

4. Stand behind machine and position workpiece
at a slight angle to abrasive belt, against rest
(see Figure 36), and then slowly make light
contact with belt. Move and rotate tube as
needed to remove burrs.

-30-

5. When finished, turn machine OFF, wait for
abrasive belt to completely stop, and close
deburring station cover.

Model G0767Z (Mfd. Since 11/17)

ACCESSORIES

Installing unapproved accessories may

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

4" x 79" Silicon-Carbide Abrasive Belts
T26604—60-Grit, 10-Pk.
T26605—80-Grit, 10-Pk.
T26606—100 - Grit, 10 -Pk.
T26607—120-Grit, 10-Pk.
T26608—150-Grit, 10-Pk.

G9018 —16 -Ton

Capacities:

1

⁄2", 3⁄4", 1", 1 1⁄4", 1 1⁄2", 2 1⁄2", and 3" pipe

•

• 3" maximum pipe size while bending to

90°

• Schedule 40 wall thickness

Figure 38. G9017 Hydraulic Tube Bender.

Figure 37. 4" x 79" Silicon-Carbide Abrasive

Belts.

Hydraulic Tube Benders

Any serious do-it-yourselfer or job shop must have
one of these! The included bending dies are sized
in pipe diameters.

G9017—12-To n

Capacities:

1

⁄2", 3⁄4", 1", 1 1⁄4", 1 1⁄2", and 2" pipe

•

• 2" maximum pipe size while bending to
90°

• Schedule 40 wall thickness

G0818 — Metal Dust Collector

The G0818 helps keep your shop safe and
clean. This sturdy steel-constructed dust collec­tor features a removable chip clean-out drawer
for easy disposal of metal chips and collected
particulate. Incoming air from the dual 4" inlets
passes through a three-stage filtering system
that includes a 30-micron stainless steel fil­ter, 5-micron active carbon filter, and a pleated
1-micron filter. An industrial-duty 220V, 1.5 HP
direct-drive motor powers the 12-3/4" aluminum
impeller for an impressive 755 CFM! Also features
locking caster wheels and a push handle for easy
placement and positioning.

Model G0767Z (Mfd. Since 11/17)

Figure 39. G0818 Metal Dust Collector.

-31-

G0622—4" x 6" Metal-Cutting Bandsaw

This metal-cutting bandsaw is perfect for the
small shop. It features a maximum cutting capac-

1

ity of 4

⁄2 " round and 41⁄2 " x 6" rectangular, three
cutting speeds, automatic shut-off, and a vertical
cutting attachment.

Figure 40. G0622 4" x 6" Metal-Cutting

Bandsaw.

Phase Converters
G5843— Static Phase Converter

Capacities:

• Operates 3-phase motors at 70%
continuous horsepower or 90% intermit­tent-duty

• For 3–7 HP motors

G5844—Rotary Phase Converter

Features:

• Operates 3-phase motors at at 100%
power and 95% efficiency

• For 5 HP motors

• "Stackable" for higher HP requirements

H5844

G0783—11" S low-Speed Cold Cut Saw

This machine's 2.7 HP, 220V, 3-phase motor
and gear drive produce a blade speed of either
114 RPM or 57 RPM. It features a dual-vise sys­tem that clamps on each side of the blade and a
coolant system prevents the blade from overheat­ing. A perfect choice for clean, precise, spark-free
metal cutting!

H5843

Figure 42. H5843 and H5844 Phase Converters.

Figure 41. G0783 11" Slow-Speed Cold Cut

Saw.

-32-

Model G0767Z (Mfd. Since 11/17)

SECTION 6: MAINTENANCE

To reduce risk of shock or
accidental startup, always
disconnect machine from

Schedule

power before adjustments,
maintenance, or service.

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing:

To maintain a low risk of injury and proper
machine operation, if you ever observe any of the
items below, shut down the machine immediately
and fix the problem before continuing operations:

• Loose mounting bolts.

• Worn or damaged abrasive belt.

• Debris in spark trap.

• Debris on or around machine.

• Worn or damaged wires.

• Any other unsafe condition.

Weekly Maintenance

• Clean machine.

• Clean and protect profile rollers.

• Clean and lubricate vise guide rods and lead­screws.

Cleaning

Lubrication

Vise Guide Rods

The tube vise moves side-to-side and front-to­back on four guide rods (see Figure 43).

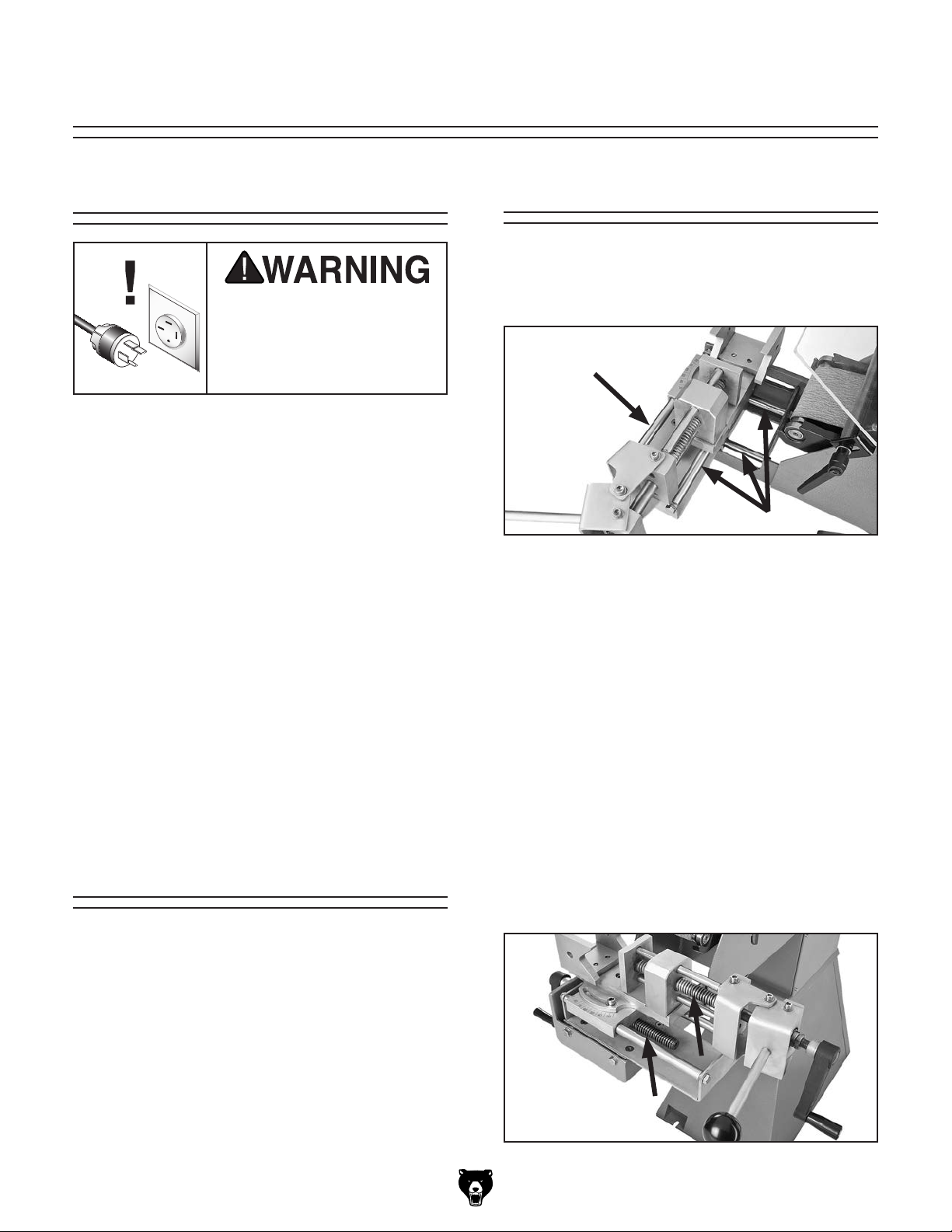

Figure 43. Locations of vise guide rods.

Move the vise as necessary to access the full
length of the guide rods and clean any debris from
their surfaces with shop rags and mineral spirits.
When dry, wipe guide rods with light machine oil
using a clean shop rag.

Leadscrews

The vise has two leadscrews (see Figure 44).
Move the vise as necessary through the full length
of the leadscrews and clean any debris from the
threads with a stiff brush and mineral spirits.
When dry, apply a thin coat of light machine oil
and work the lubricant into the threads with a
clean, stiff brush. Wipe away any excess oil. Move
the vise through the full length of each leadscrew
to distribute the oil.

Use a shop vacuum to remove debris from the
outside of the machine, especially from the mov­ing parts of the belt tension lever and vise. Open
the belt and deburring station covers, remove the
abrasive belt, and vacuum all debris from inside
machine, rollers, and deburring platen. Vacuum
debris on floor around the machine on a daily
basis.

Wipe the profile rollers clean with shop rags and
mineral spirits. When dry, apply a light coat of rust
preventative.

Model G0767Z (Mfd. Since 11/17)

Figure 44. Locations of vise leadscrews.

-33-

Review the troubleshooting and procedures in this section if a problem develops with your machine. If

Please

gather the serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

you need replacement parts or additional help with a procedure, call our Technical Support. Note:

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not
start or a breaker
trips.

Machine stalls or is
overloaded.

Loud repetitious
noise coming from
machine.

1. Emergency Stop button engaged/at fault.

2. Power supply switched OFF or at fault.

3. Motor connection wired incorrectly.

4. Thermal overload relay has tripped.

5. Power supply fuse/circuit breaker is blown/
tripped.

6. Contactor not getting energized or has
burnt contacts.

7. Wiring is open/has high resistance.

8. Motor at fault.

1. Feed rate too fast.

2. Motor connection wired incorrectly.

3. Machine undersized for task.

4. Motor has overheated.

5. Contactor not getting energized/has burnt
contacts.

6. Motor bearings at fault.

7. Motor at fault.

1. Motor mounting loose.

2. Motor fan hitting cover.

3. Abrasive belt worn/damaged/torn.

1. Rotate clockwise until it pops out/replace.

2. Ensure power supply is switched ON; ensure power
supply has correct voltage.

3. Correct motor wiring connections (Page 39).

4. Disconnect machine from power, turn amperage
dial on thermal overload relay to a higher setting
(Page 39).

5. Ensure power supply circuit size is adequate for this
machine (Page 10); replace weak breaker.

6. Test for power on all legs and contactor operation.
Replace if faulty.

7. Check for broken wires or disconnected/corroded
connection; repair/replace as necessary.

8. Test/repair/replace.

1. Reduce feed rate.

2. Correct motor wiring connections (Page 39).

3. Use new abrasive belt with appropriate grit; reduce
feed rate.

4. Clean off motor, let cool, and reduce workload.

5. Test for power on all legs and contactor operation.
Replace if faulty.

6. Test by rotating motor shaft; rotational grinding/
loose shaft requires bearing replacement.

7. Test/repair/replace.

1. Retighten motor mount fasteners.

2. Repair/replace motor fan; remove any dents in
cover.

3. Replace abrasive belt (Page 24).

-34-

Model G0767Z (Mfd. Since 11/17)

Operation

Symptom Possible Cause Possible Solution

Abrasive belt stops
rotating under load.

Abrasive belt tracks
to one side under
load.

Abrasive belt
excessively worn in
one spot.

Tube has burn
marks at notch.

1. Abrasive belt not properly tensioned.

2. Feed rate too fast.

1. Abrasive belt tracking not properly set.

2. Abrasive belt not properly tensioned.

1. Tube not moved across face of abrasive
belt during operation.

1. Abrasive belt worn/not correct grit for task.

2. Feed rate too fast.

1. Properly tension abrasive belt (Page 24).

2. Reduce feed rate.

1. Properly set abrasive belt tracking (Page 25).

2. Properly tension abrasive belt (Page 24).

1. Use traverse crank to evenly move tube across face
of abrasive belt during operation (Page 29).

1. Use new abrasive belt with appropriate grit.

2. Reduce feed rate.

Notch not centered
on tube.

1. Profile roller not even with center of tube. 1. Adjust profile roller height (Page 36).

Model G0767Z (Mfd. Since 11/17)

-35-

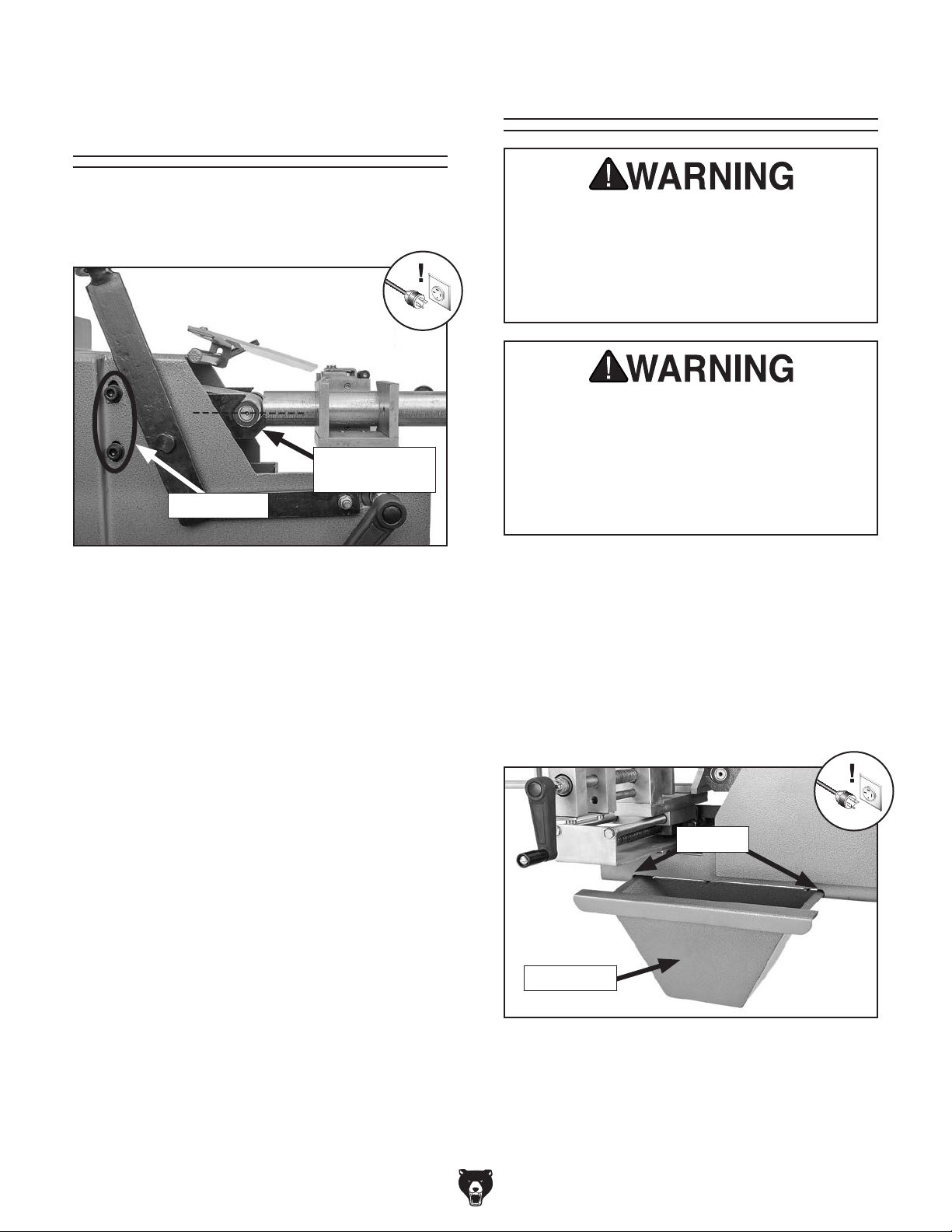

Adjusting Profile

Roller Height

Emptying Spark Trap

To produce an accurate notch, the center of the
profile roller must be even with the center of the
tube when mounted in the vise (see Figure 45).

Roller Support

Bracket

Cap Screws

Figure 45. Profile roller and tube even with each

other.

The correct height of the profile roller depends
on the height of the roller support bracket. This
was set properly at the factory. However, if you
determine that the center of the profile roller is not
even with the center of the tube when mounted
in the vise, perform the following procedure to
adjust it.

EXPLOSION OR FIRE HAZARD
ALWAYS empty spark trap and clean
machine thoroughly before switching
workpiece metal types. DO NOT allow dust
from different metal types to mix in spark
trap and on machine.

Wear ANSI-approved safety goggles, a
NIOSH-approved respirator, and leather
gloves when emptying spark trap. Minimize
amount of dust allowed to become airborne,
and prevent spread of dust onto clothing.
Dispose of all waste properly according to
local regulations for material type.

Empty spark trap contents daily or before switch­ing to a new material type. Do not allow dust from
different material types to mix. Dust particles can,
depending on material type and circumstances
react and ignite. Dispose of waste according to
local regulations for material type.

The spark trap slides into grooves on the right
side of the machine (see Figure 46).

Items Needed Qty

Hex Wrench 8mm .............................................. 1

To adjust roller support bracket height:

1. DISCONNECT MACHINE FROM POWER!

2. Properly mount tube in vise.

3. Loosen roller support bracket cap screws
(see Figure 45).

4. Move profile roller up or down to center

profile roller with center of tube.

5. Retighten cap screws loosened in Step 3.

-36-

Grooves

Spark Trap

Figure 46. Spark trap positioned in grooves.

Model G0767Z (Mfd. Since 11/17)

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

Wiring Safety Page

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

Model G0767Z (Mfd. Since 11/17)

-37-

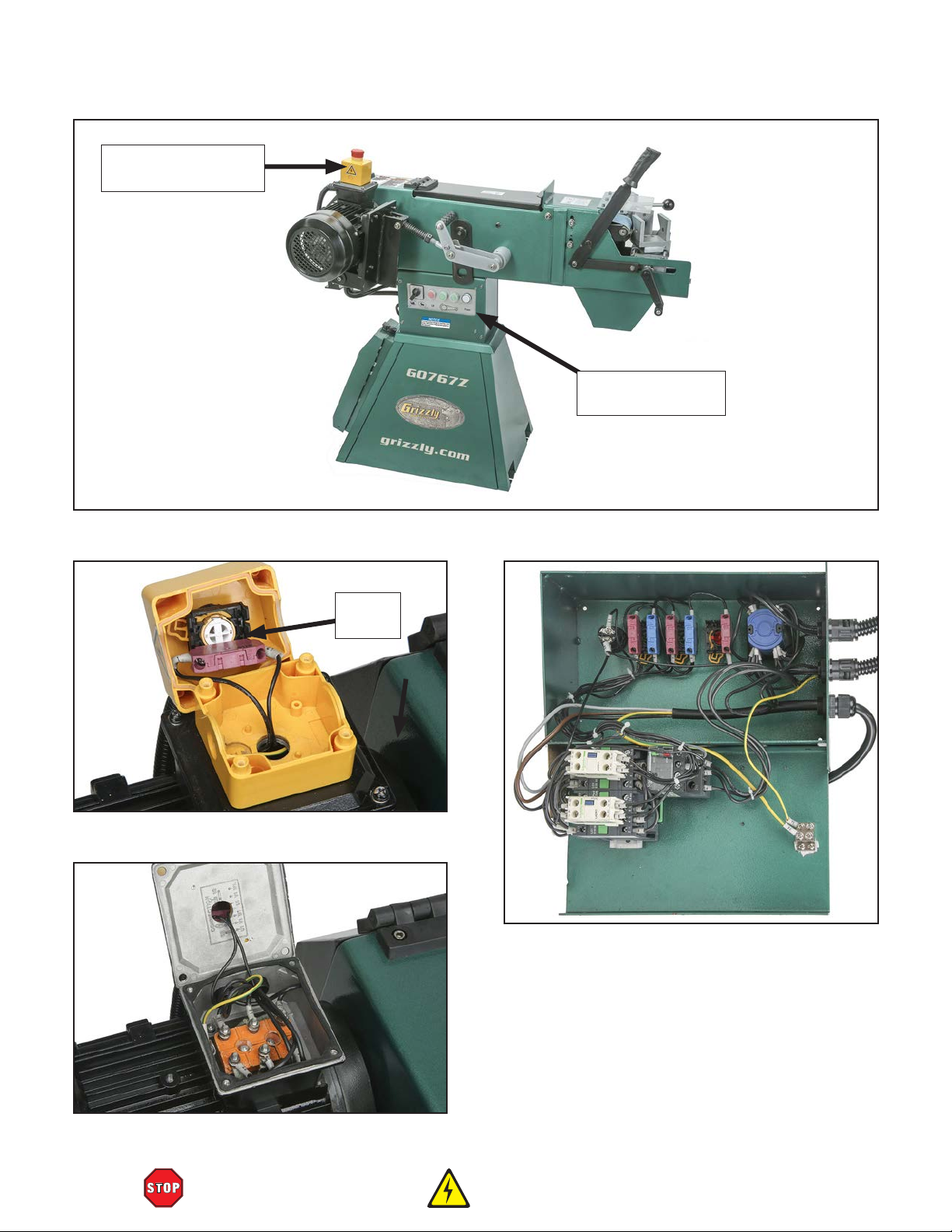

Wiring

Emergency Stop &

Motor Junction Box

Electrical Components

Control Panel &

Control Box Wiring

Figure 47. Wiring component overview.

E-Stop

Button

Figure 48. Emergency stop button wiring.

Figure 50. Control panel and control box wiring.

Figure 49. Motor junction box wiring.

-38-

READ ELECTRICAL SAFETY

ON PAGE 37!

Model G0767Z (Mfd. Since 11/17)

Wiring Diagram

Control Panel (Viewed from Behind)

Power

Lamp

L1

ONPOW

AD16-22DS 220V

1

Motor ON

3

2

NC

1

L2

IDEC YW-E01

6

6

4

2

NO

IDEC YW-E10

3

6

64

6

A2

L1

L2

L3

A1

A2

5

Motor ON

2

3

NC

1

IDEC YW-E01

7

22

1L1 5L3 13NO 3L2

5

Wiring Diagram

High/Low Switch

Glelee LW28-20A 220V

2

4

4 3

NO

IDEC YW-E10

3

8

53NO 61NC

LC1E18

Motor OFF

2

Schneider

LAD N11C

54NO 62NC

N 220V

Schneider

U1

8

W1

V1

12

16

2

2

NC

1

IDEC YW-E01

1

14NO

7

3

6T3

4T2

2T1

14NO

T1

S1

R1

Schneider LRE21N

6

TOP

VIEW

10

14

V1

STOP

RESET

18

17

15

U2

V2

W2

Set to 13

12

96NC

95NC

97NO 98NO

Glelee LW28-20A 220V

6

0

4T2 6T3

2T1

R2

S2

517

T2

9

U1

13

PE

3

R2

S2

11

T2

15

U1

T2

S2

R2

PE

220V

3-Phase

Motor

L3

1

L2

L1

8

Motor Junction Box

A1

PE

GND

V2

T1

S1

R1

GND

1L1 5L3 13NO 3L2

2

LAD N11C

53NO 61NC

54NO 62NC

LC1E18

N 220V

6T3

4

4T2

6

2T1

0

Emergency Stop

IDEC

V1

U1

W2

U1

U2 V2

V1

U2

W1

W1

W2

YW-E01

L2

NC

2

1

1

Hot

Ground

PE

Hot

L3

Hot

L1

L2

G

Z

X

W

220 VAC

3-Phase

15-15 PLUG

Model G0767Z (Mfd. Since 11/17)

READ ELECTRICAL SAFETY

ON PAGE 37!

-39-

SECTION 9: PARTS

REF PART # DESCRIPTION REF PART # DESCRIPTION

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

Body

40

33

14

13

39

15

34

37

31

32

12

20

30

38

29

35

36

16

11

5

8

4

3

2

22

1

24

1 P0767Z001 CAP SCREW M5-.8 X 12 21 P0767Z021 PROFILE ROLLER STORAGE RACK
2 P0767Z002 BELT COVER (SIDE) 22 P0767Z022 COVER LATCH
3 P0767Z003 HEX NUT M5-.8 23 P0767Z023 PHLP HD SCR M3-.5 X 5
4 P0767Z004 BELT COVER LATCH 24 P0767Z024 STORAGE RACK COVER
5 P0767Z005 SPARK TRAP 25 P0767Z025 SHOULDER SCR M5-.8 X 8, 6 X 16
6 P0767Z006 CAP SCREW M8-1.25 X 12 26 P0767Z026 HEX NUT M6-1
7 P0767Z007 PHLP HD SCR M5-.8 X 8 27 P0767Z027 CAP SCREW M8-1.25 X 20
8 P0767Z008 RISER FRONT PLATE 28 P0767Z028 FLAT WASHER 8MM
9 P0767Z009 HEX BOLT M8-1.25 X 20 29 P0767Z029 CAP SCREW M6-1 X 16
10 P0767Z010 LOCK WASHER 8MM 30 P0767Z030 HINGE
11 P0767Z011 FLAT WASHER 8MM 31 P0767Z031 REAR COVER
12 P0767Z012 PHLP HD SCR M6-1 X 10 32 P0767Z032 HEX NUT M6-1
13 P0767Z013 CAP SCREW M12-1.75 X 35 33 P0767Z033 CAP SCREW M8-1.25 X 16
14 P0767Z014 FLAT WASHER 12MM 34 P0767Z034 ADJUSTABLE HANDLE 90L, M10-1.5 X 17
15 P0767Z015 RISER 35 P0767Z035 WORK REST MOUNTING PLATE
16 P0767Z016 ELECTRICAL CABINET 36 P0767Z036 WORK REST
17 P0767Z017 ELECTRICAL MOUNTING BOARD 37 P0767Z037 FENDER WASHER 10MM
18 P0767Z018 PHLP HD SCR M4-.7 X 6 38 P0767Z038 FLAT WASHER 6MM
19 P0767Z019 BASE 39 P0767Z039 FLAT WASHER 8MM
20 P0767Z020 BODY 40 P0767Z040 LOCK WASHER 8MM

23

6

23

25

26

10

9

7

22

21

28

27

17

19

18

-40-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0767Z (Mfd. Since 11/17)

Motor & Belt Rollers

164-3

164-1

164-2

164-4

164-5

185

184

167

118

117

101

119

115

102

103

114

124

125

120

122

121

116

104

126

106

105

140

139

128

129

123

107

137

130

113

127

131

108

112

132

110

109

141

136

142

138

143

133

134

111

154

151

146

145

161

149

160

135

153

150

147

144

152

148

158

159

155

162

156

163

164

168

166

165

156

169

170

171

172

173

174

Model G0767Z (Mfd. Since 11/17)

175

181

183

183

178

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

182

180

179

-41-

Motor & Belt Rollers Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

101 P0767Z101 CRANK 5"L W/HANDLE 145 P0767Z145 HEX NUT M16-2
102 P0767Z102 SET SCREW M6-1 X 8 CONE-PT 146 P0767Z146 SPRING RETAINER
103 P0767Z103 SPANNER NUT M12-1.25 147 P0767Z147 COMPRESSION SPRING 1.4 X 20 X 35
104 P0767Z104 CAP SCREW M8-1.25 X 25 148 P0767Z148 SPRING BASE
105 P0767Z105 FLAT WASHER 8MM 149 P0767Z149 FLAT WASHER 16MM
106 P0767Z106 STUD-DE M8-1.25 X 37, 9 150 P0767Z150 HEX NUT M16-2
107 P0767Z107 SPACER 151 P0767Z151 CAP SCREW M10-1.5 X 20
108 P0767Z108 CAP SCREW M12-1.75 X 35 152 P0767Z152 FENDER WASHER 10MM
109 P0767Z109 FLAT WASHER 12MM 153 P0767Z153 FLAT WASHER 10MM
110 P0767Z110 CAP SCREW M8-1.25 X 100 154 P0767Z154 CAP SCREW M10-1.5 X 20
111 P0767Z111 FLAT WASHER 8MM 155 P0767Z155 MOTOR MOUNT
112 P0767Z112 STEP BOLT M8-1.25 X 12 156 P0767Z156 BUSHING (COPPER)
113 P0767Z113 CONNECTING BAR 158 P0767Z158 HEX NUT M10-1.5
114 P0767Z114 FLAT WASHER 8MM 159 P0767Z159 PIVOT SHAFT W/FLANGE
115 P0767Z115 HEX NUT M8-1.25 160 P0767Z160 LIFTING BAR RETAINER
116 P0767Z116 HANDLE 55L, M8-1.25 X 20 161 P0767Z161 LIFTING BAR
117 P0767Z117 HEX NUT M5-.8 162 P0767Z162 SPACER
118 P0767Z118 EYE SHIELD BRACKET 163 P0767Z163 BELT COVER (TOP)
119 P0767Z119 EYE SHIELD (PLASTIC) 164 P0767Z164 MOTOR 3HP 220V 3-PH
120 P0767Z120 PHLP HD SCR M5-.8 X 8 164-1 P0767Z164-1 MOTOR FAN COVER
121 P0767Z121 HEX NUT M10-1.5 164-2 P0767Z164-2 MOTOR FAN
122 P0767Z122 FLAT WASHER 10MM 164-3 P0767Z164-3 MOTOR JUNCTION BOX
123 P0767Z123 LEVER W/GRIP 164-4 P0767Z164-4 BALL BEARING 6205ZZ (FRONT)
124 P0767Z124 CAP SCREW M8-1.25 X 14 164-5 P0767Z164-5 BALL BEARING 6205ZZ (REAR)
125 P0767Z125 FENDER WASHER 8MM 165 P0767Z165 FLAT WASHER 10MM
126 P0767Z126 ACORN NUT M8-1.25 166 P0767Z166 LOCK WASHER 10MM
127 P0767Z127 ACORN NUT M10-1.5 167 P0767Z167 HEX BOLT M10-1.5 X 40
128 P0767Z128 CONNECTING PLATE (LS) 168 P0767Z168 KEY 8 X 8 X 40
129 P0767Z129 SUPPORT SLEEVE 169 P0767Z169 DRIVE PULLEY
130 P0767Z130 CONNECTING PLATE (RS) 170 P0767Z170 SANDING BELT 4" X 79" 80-GRIT
131 P0767Z131 SPACER 171 P0767Z171 FENDER WASHER 12MM
132 P0767Z132 PIVOT SHAFT 172 P0767Z172 LOCK WASHER 12MM
133 P0767Z133 DOWEL PIN 6 X 16 173 P0767Z173 CAP SCREW M12-1.75 X 50
134 P0767Z134 FENDER WASHER 12MM 174 P0767Z174 CAP SCREW M12-1.75 X 30
135 P0767Z135 CAP SCREW M12-1.75 X 30 175 P0767Z175 CONTACT ROLLER BRACKET
136 P0767Z136 ROLL PIN 6 X 50 178 P0767Z178 CONTACT ROLLER 1" DIA W/BEARINGS
137 P0767Z137 RATCHET SLEEVE 179 P0767Z179 HEX NUT M8-1.25
138 P0767Z138 BACKING PIN 180 P0767Z180 FLAT WASHER 8MM
139 P0767Z139 COMPRESSION SPRING 0.9 X 7 X 15 181 P0767Z181 COMPRESSION SPRING 1 X 12 X 19
140 P0767Z140 PAWL 182 P0767Z182 CAP SCREW M8-1.25 X 100
141 P0767Z141 HANDLE 183 P0767Z183 BALL BEARING 6002-ZZ
142 P0767Z142 PUSH-ON HANDLE GRIP 184 P0767Z184 E-STOP BUTTON IDEC YW-E01
143 P0767Z143 DOWEL PIN 5 X 20 185 P0767Z185 WOOD SCREW M4 X 3
144 P0767Z144 RATCHET SHAFT

-42-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0767Z (Mfd. Since 11/17)

Pipe Vise Assembly & Accessories

215

216

223

217

220

219

222

218

225

224

221

226

231

234

227

229

230

228

232

230
233

236

237

235

250

244

238
239

240

242

241

245

244

247

246

248

243

264

201

202

211

210

203

206

204

214

207

212

213

267

205

208

204

209

202

266

207

206

265

249

260

261

262

258

259

251

252

253

254

255

256

257

263

Model G0767Z (Mfd. Since 11/17)

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-43-

Pipe Vise Assembly & Accessories Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 P0767Z201 CAP SCREW M8-1.25 X 20 235 P0767Z235 MOVABLE BLOCK
202 P0767Z202 BUSHING 236 P0767Z236 LEVER M8-1.25 X 20 W/KNOB
203 P0767Z203 Y-AXIS SLIDE ROD 237 P0767Z237 SET SCREW M3-.5 X 10 CONE-PT
204 P0767Z204 BUSHING (COPPER) 238 P0767Z238 CAP SCREW M6-1 X 16
205 P0767Z205 SLIDE BAR BRACKET (BOTTOM) 239 P0767Z239 FLAT WASHER 6MM
206 P0767Z206 HEX BOLT M8-1.25 X 20 240 P0767Z240 BUSHING
207 P0767Z207 FLAT WASHER 8MM 241 P0767Z241 PRESSURE BRACKET (RIGHT)
208 P0767Z208 PIPE CLAMP BASE 242 P0767Z242 FLAT WASHER 6MM
209 P0767Z209 PHLP HD SCR M6-1 X 12 243 P0767Z243 HEX NUT M8-1.25
210 P0767Z210 FLAT WASHER 14MM 244 P0767Z244 THRUST BEARING 51101
211 P0767Z211 LEADSCREW END CAP 245 P0767Z245 STATIONARY BLOCK
212 P0767Z212 SLIDER SHAFT 246 P0767Z246 SPANNER NUT M12-1.25
213 P0767Z213 LONGITUDINAL LEADSCREW NUT 247 P0767Z247 CRANK 4"L W/HANDLE
214 P0767Z214 LONGITUDINAL LEADSCREW 248 P0767Z248 ROLL PIN 3 X 22
215 P0767Z215 FLAT WASHER 14MM 249 P0767Z249 HEX WRENCH 8MM
216 P0767Z216 X-AXIS SLIDE ROD 250 P0767Z250 PROFILE ROLLER 3/4" DIA W/BEARINGS
217 P0767Z217 GUIDE BAR BUSHING (COPPER) 251 P0767Z251 PROFILE ROLLER 1-1/4" DIA W/BEARINGS
218 P0767Z218 CAP SCREW M8-1.25 X 40 252 P0767Z252 PROFILE ROLLER 1-1/2" DIA W/BEARINGS
219 P0767Z219 FLAT WASHER 8MM 253 P0767Z253 PROFILE ROLLER 2" DIA W/BEARINGS
220 P0767Z220 CAP SCREW M8-1.25 X 20 254 P0767Z254 PROFILE ROLLER 2-1/2" DIA W/BEARINGS
221 P0767Z221 CAP SCREW M8-1.25 X 30 255 P0767Z255 PROFILE ROLLER 3" DIA W/BEARINGS
222 P0767Z222 ROTARY TABLE 256 P0767Z256 SCREWDRIVER PHILLIPS #2
223 P0767Z223 PIPE JAW 257 P0767Z257 SPANNER WRENCH 22-26MM
224 P0767Z224 CAP SCREW M10-1.5 X 30 258 P0767Z258 TOOLBOX
225 P0767Z225 PIPE CLAMP PLATE 259 P0767Z259 HEX WRENCH 6MM
226 P0767Z226 PIPE CLAMP LEADSCREW NUT 260 P0767Z260 HEX WRENCH 5MM
227 P0767Z227 INT/EXT THREADED ROD 261 P0767Z261 HEX WRENCH 4MM
228 P0767Z228 PIPE CLAMP LEADSCREW 262 P0767Z262 HEX WRENCH 3MM
229 P0767Z229 CAP SCREW M6-1 X 16 263 P0767Z263 WRENCH 13 X 16MM OPEN-ENDS
230 P0767Z230 FLAT WASHER 6MM 264 P0767Z264 FLAT WASHER 8MM
231 P0767Z231 BUSHING 265 P0767Z265 HEX WRENCH 2.5MM
232 P0767Z232 CAP SCREW M6-1 X 20 266 P0767Z266 SLIDE BAR BRACKET (TOP)
233 P0767Z233 BUSHING 267 P0767Z267 HEX NUT M12-1.75
234 P0767Z234 PRESSURE BRACKET (LEFT)

-44-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0767Z (Mfd. Since 11/17)

Electrical Box

#

N

N

305

309

1

5

9

13

3

715

11

301

3

IDEC

YW-E-10

308

2T1

4T2 6T3

2

NC

1

97NO 98NO

95NC

96NC

12

Set to 13

STOP

302

303

304

IDEC

YW-E-10

306

1L1 5L3 13NO 3L2

4

NO

3

A1

A2

1

2

NC

YW-E-10

3

IDEC

307

4

3

NO

2T1

4T2

6T3

14NO

1

2

LC1

E18

Schneider

LADN11

NC

3

306

A1

Schneider LRE 21

15

17

18

RESET

2T1

4T2

6T3

14NO

Schneider

LADN11

LC1

E18

1L1 5L3 13NO 3L2

A2

307

RREEFFPPAARRTT #

301 P0767Z301 OFF BUTTON I DEC Y W-E-10 22 MM RED 306 P0767Z306 CONTACTOR SCHNEI DER LADN11 22 0V
302 P0767Z302 ON BUTTON I DEC Y W-E-10 22 MM GRN 307 P0767Z307 CONTACTOR SCHN L C1E 1810
303 P0767Z303 ON BUTTON I DEC Y W-E-10 22 MM GRN 308 P0767Z308 OL RELAY SCHNEIDER LRE21N 12-18A
304 P0767Z304 POWER LAMP ONPOW AD16-22DS AC220V 309 P0767Z309 TERMINAL BAR 2P
305 P0767Z305 ROTARY SWITCH GLELE LW28-20A 1/2 22MM

Model G0767Z (Mfd. Since 11/17)

DDEESSCCRRIIPPTTIIOON

RREEFFPPAARRTT ##DDEESSCCRRIIPPTTIIOON

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-45-

Labels & Cosmetics

MODEL G0767Z

ABRASIVE TUBE NOTCHER

To reduce risk of serious personal injury:

1. Read and understand owner’s manual
before operating.

2. Always wear approved eye and ear
protection, respirator, leather gloves, and
protective clothes to guard against flying
sparks.

3. Only plug power cord into grounded outlet.

4. Never touch moving sandpaper or reach
over machine when sandpaper is moving
and covers are open.

5. Make sure grinder is properly assembled,
adjusted, and stable before operating.

6. Never force workpiece into sanding surface.

7. DO NOT sand in a flammable environment
or near combustibles.

8. Turn motor OFF and disconnect power
before changing sandpaper, making
adjustments, or servicing.

9. DO NOT wear loose clothing, jewelry, or
other articles that can get entangled. Tie
back long hair and roll up sleeves.

10. DO NOT expose to rain or use in damp
locations.

11. DO NOT operate when tired or under
influence of drugs or alcohol.

12. Prevent unauthorized use by children or
untrained users.

Motor: 2.4, 3 HP, 220V, 3-Phase, 60 Hz
Full-Load Curent Rating: 15A
Motor Speed (High): 3440 RPM
Motor Speed (Low): 1720 RPM
Sanding Belt Speed (High): 6181 FPM
Sanding Belt Speed (Low): 3583 FPM
Sanding Belt Length: 78-3/4"
Sanding Belt Width: 4"
Number of Profile Rollers: 7
Grinding Capacity: 3/4" – 3" O.D.
Angle Range: 90° – 30°
Weight: 290 lbs.

Specifications

WARNING!

Manufactured for Grizzly in China

Date

Serial Number

INJURY/SHOCK

HAZARD!
Disconnect power
before adjustments,
maintenance, or
service.

READ MANUAL!

WARNING!

To reduce risk of death
or serious injury, read
manual BEFORE using
machine.

To get a new manual, call
[phone] or go to
www.grizzly.com.

EYE/EAR/LUNG

INJURY HAZARD!

Always wear safety
glasses, ear protection,
and respirator when using
this machine.

ABRASION

INJURY HAZARD!

Do not touch moving belt
or personal injury could
occur!

ABRASION INJURY

HAZARD!

Rotating belt below.
Keep cover closed
when belt is not
used for deburring.

NOTICE

To avoid serious damage to machine, turn
power OFF before changing belt speed or
belt direction.

ABRASION INJURY

HAZARD!

Rotating belt below.
Keep cover closed
when belt is not
used for deburring.

G0767Z

grizzly.com

401

402

403

404

405

406

407

401

409

410

411

412

413

REF PART # DESCRIPTION REF PART # DESCRIPTION

401 P0767Z401 ELECTRICITY LABEL 407 P0767Z407 MACHINE ID LABEL
402 P0767Z402 ABRASION INJURY HAZARD LABEL 409 P0767Z409 DISCONNECT POWER LABEL
403 P0767Z403 WARNING LABEL 410 P0767Z410 GRIZZLY NAMEPLATE
404 P0767Z404 BELT SPEED NOTICE LABEL 411 P0767Z411 ABRASION INJURY HAZARD LABEL
405 P0767Z405 MODEL NUMBER LABEL 412 P0767Z412 TOUCH-UP PAINT, GRIZZLY GREEN
406 P0767Z406 GRIZZLY.COM LABEL 413 P0767Z413 TOUCH-UP PAINT, GLOSSY BLACK

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-46-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0767Z (Mfd. Since 11/17)

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.

1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics

3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group?
____ 20-29 ____ 30-39 ____ 40-49
____ 50-59 ____ 60-69 ____ 70+

5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____ 20+ Years

6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____10+

____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood

____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:

7. Do you think your machine represents a good value? _____ Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____Yes _____No

10. Comments: _____________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

FOLD ALONG DOTTED LINE

FOLD ALONG DOTTED LINE

Place

Stamp

Here

GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069

Send a Grizzly Catalog to a friend:

Name_______________________________

Street_______________________________

City______________State______Zip______

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.
