Grizzly G0767 User guide

MODEL G0767

ABRASIVE TUBE NOTCHER

OWNER'S MANUAL

(For models manufactured since 1/14)

COPYRIGHT © JULY, 2014 BY GRIZZLY INDUSTRIAL, INC. REVISED JANUARY, 2018 (HE)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#TS16171 PRINTED IN CHINA

V1.01.18

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Machine Description ...................................... 2

Contact Info.................................................... 2

Manual Accuracy ........................................... 2

Identification ................................................... 3

Controls & Components ................................. 4

Machine Data Sheet ...................................... 5

SECTION 1: SAFETY ....................................... 7

Safety Instructions for Machinery .................. 7

Additional Safety for Abrasive Tube Notchers 9

SECTION 2: POWER SUPPLY ...................... 10

Availability .................................................................10

Full-Load Current Rating ...........................................10

Circuit Requirements for 220V ..................................10

Grounding Instructions ..............................................11

Extension Cords ........................................................11

SECTION 3: SETUP ....................................... 12

Needed for Setup ......................................... 12

Unpacking .................................................... 12

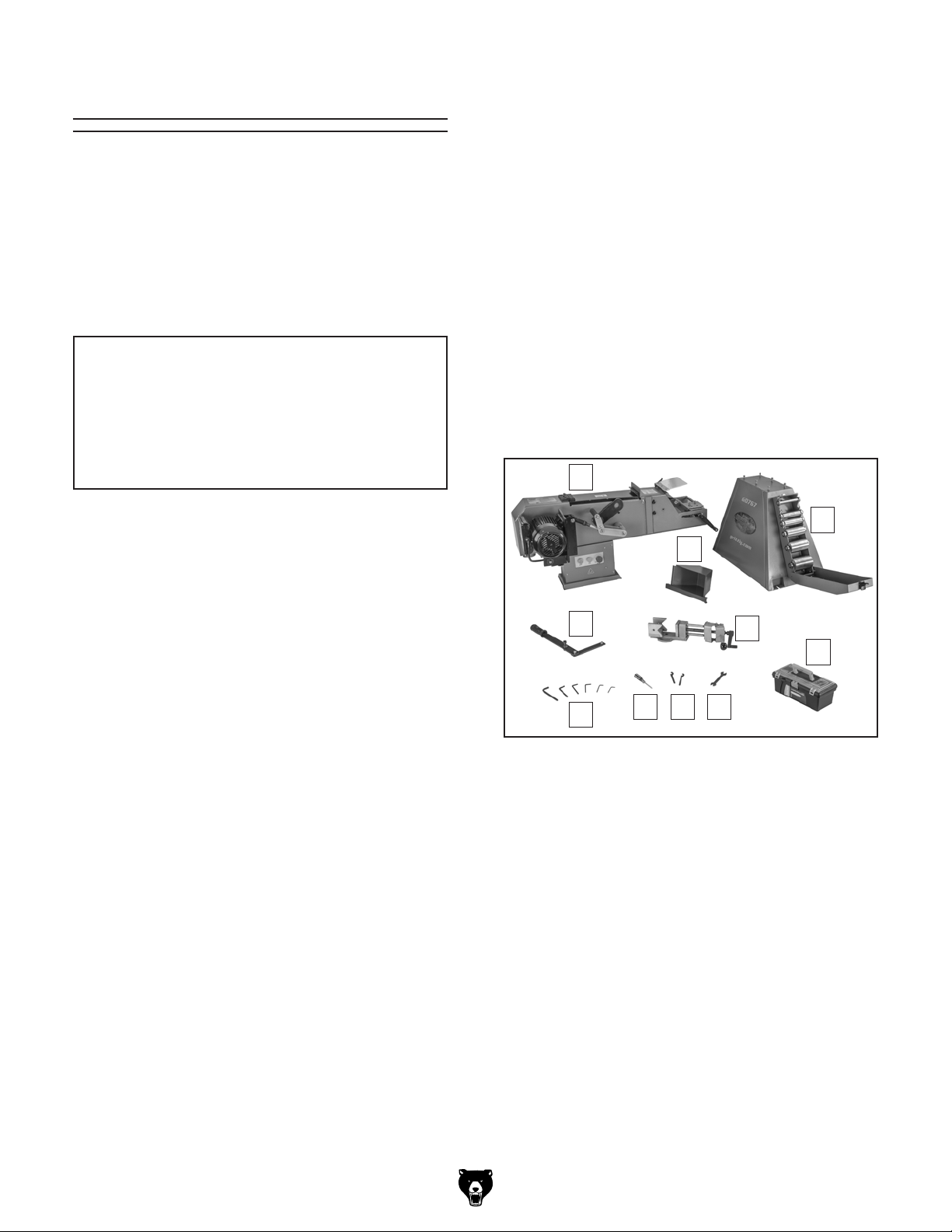

Inventory ...................................................... 13

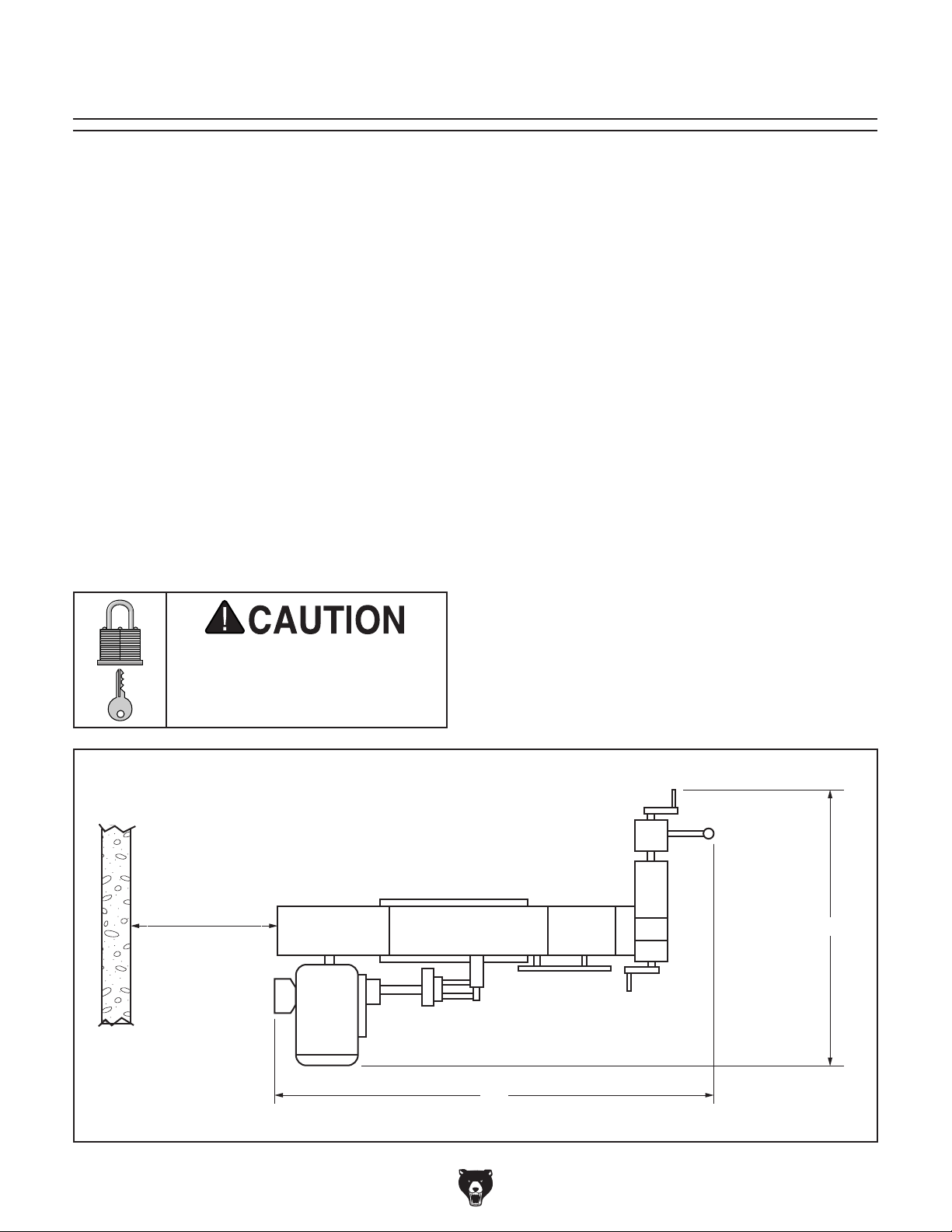

Site Considerations ...................................... 14

Cleanup ........................................................ 15

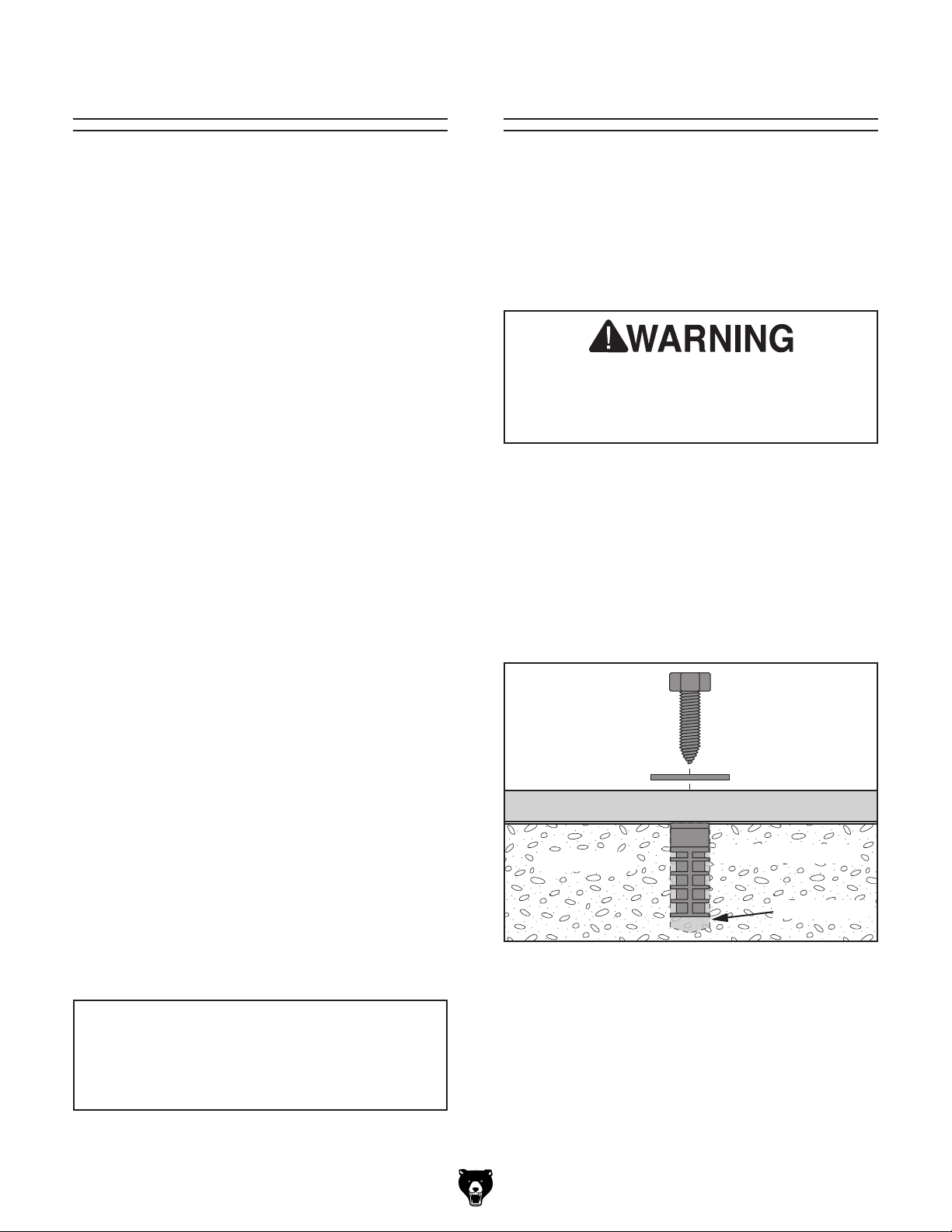

Anchoring to Floor ....................................... 15

Anchoring to Concrete Floors ...................................15

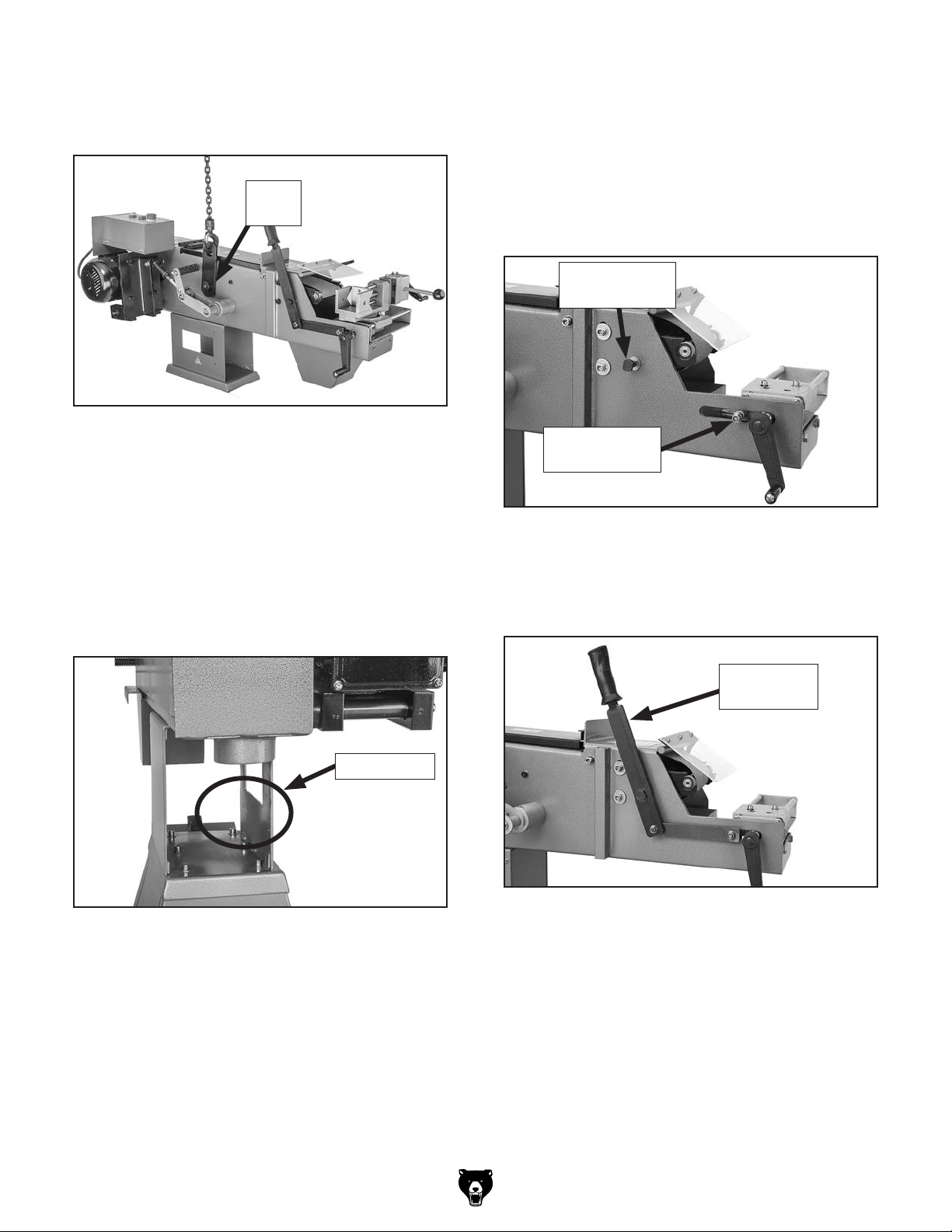

Assembly ..................................................... 16

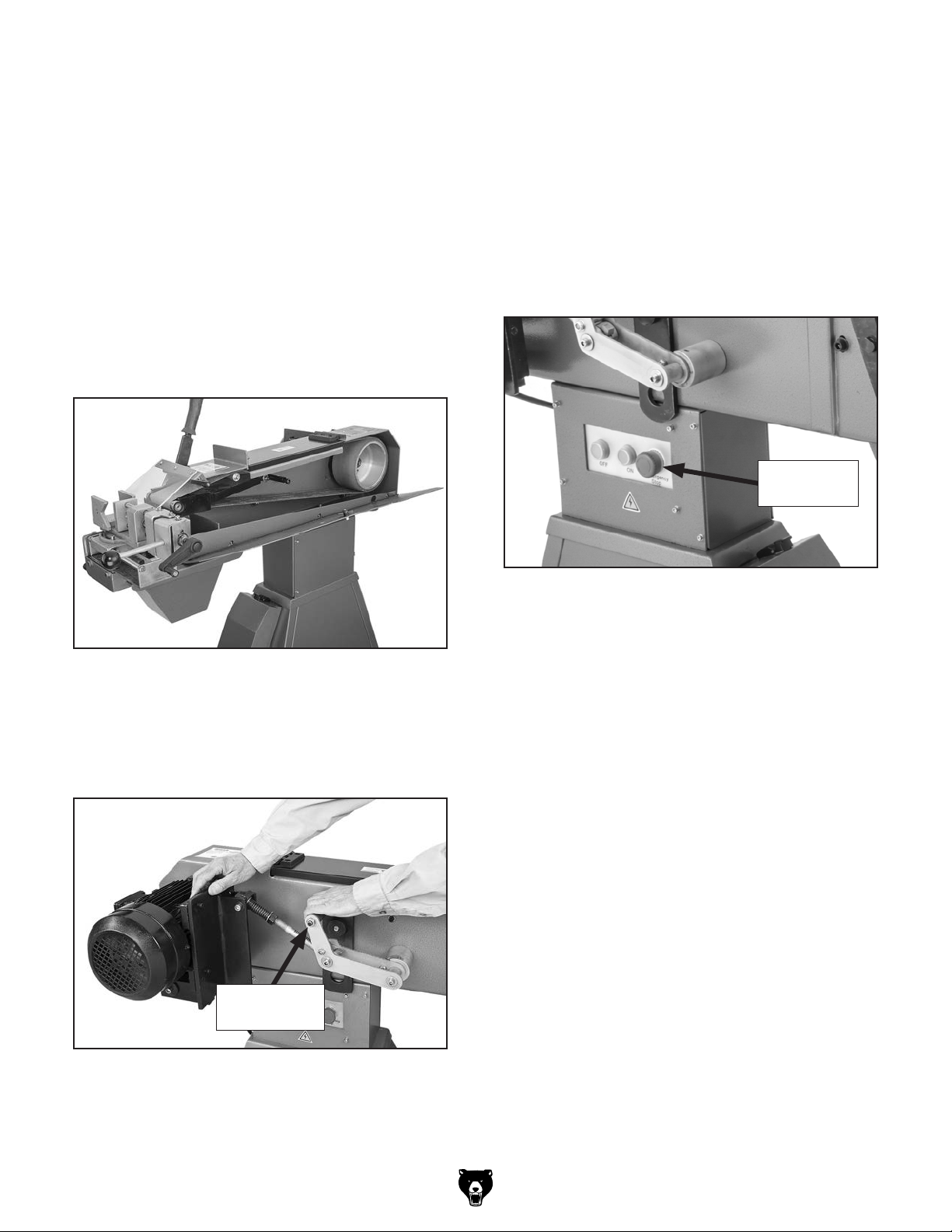

Test Run ...................................................... 18

SECTION 5: ACCESSORIES ......................... 28

SECTION 6: MAINTENANCE ......................... 29

Schedule ...................................................... 29

Cleaning ....................................................... 29

Lubrication ................................................... 29

Vise Guide Rods .......................................................29

Leadscrews ...............................................................29

SECTION 7: SERVICE ................................... 30

Troubleshooting ........................................... 30

Adjusting Profile Roller Height ..................... 31

SECTION 8: WIRING ...................................... 32

Wiring Safety Instructions ............................ 32

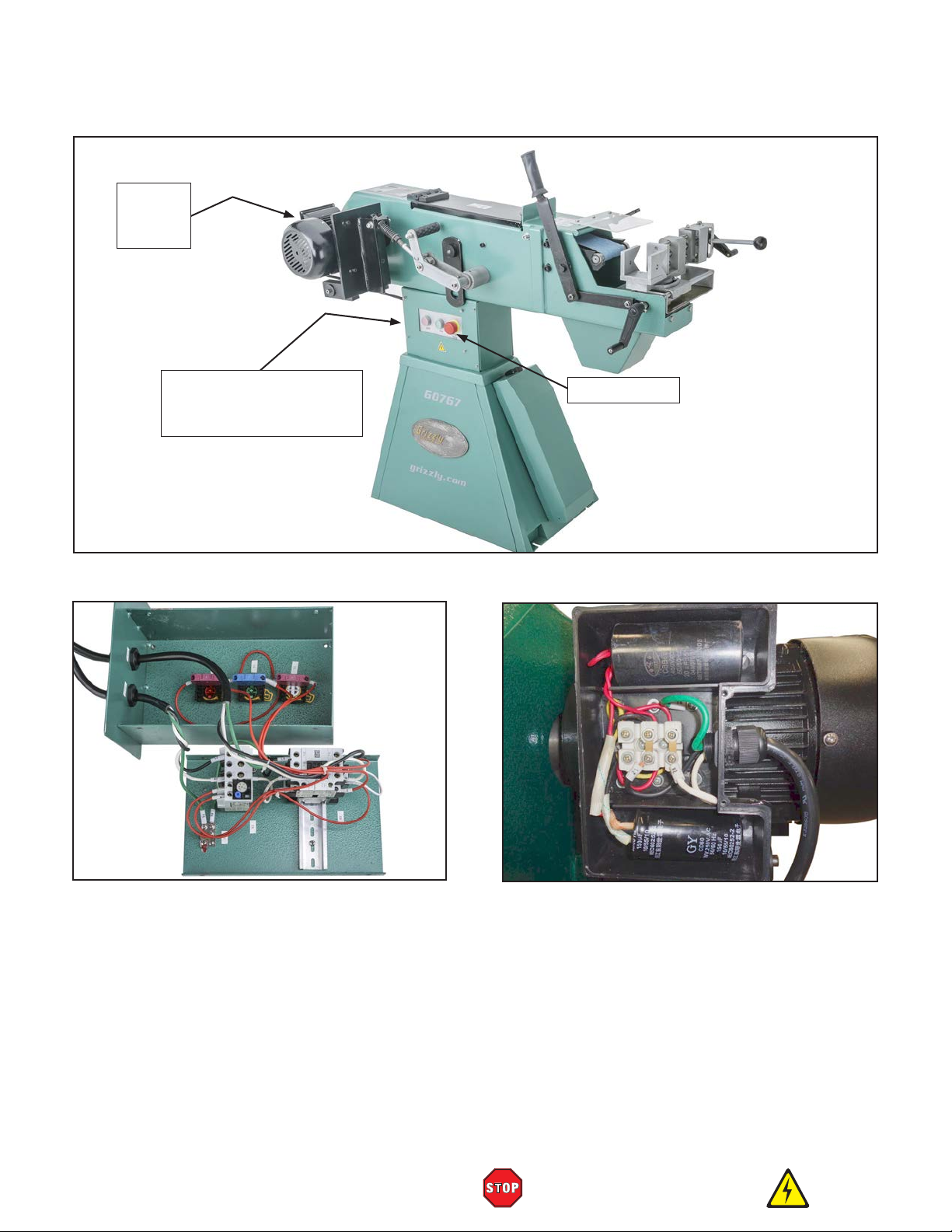

G0767 Wiring .............................................. 33

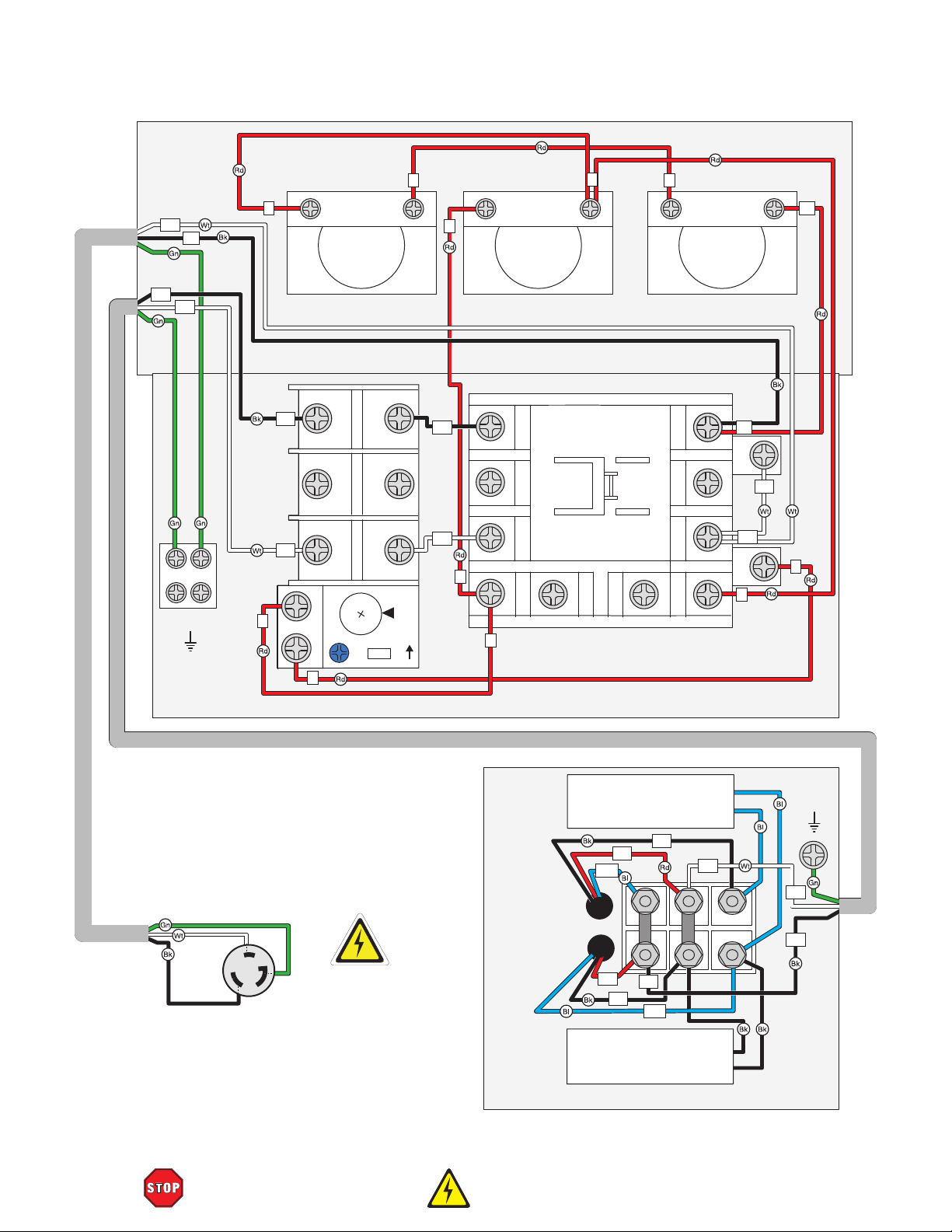

Wiring Diagram ............................................ 34

SECTION 9: PARTS ....................................... 35

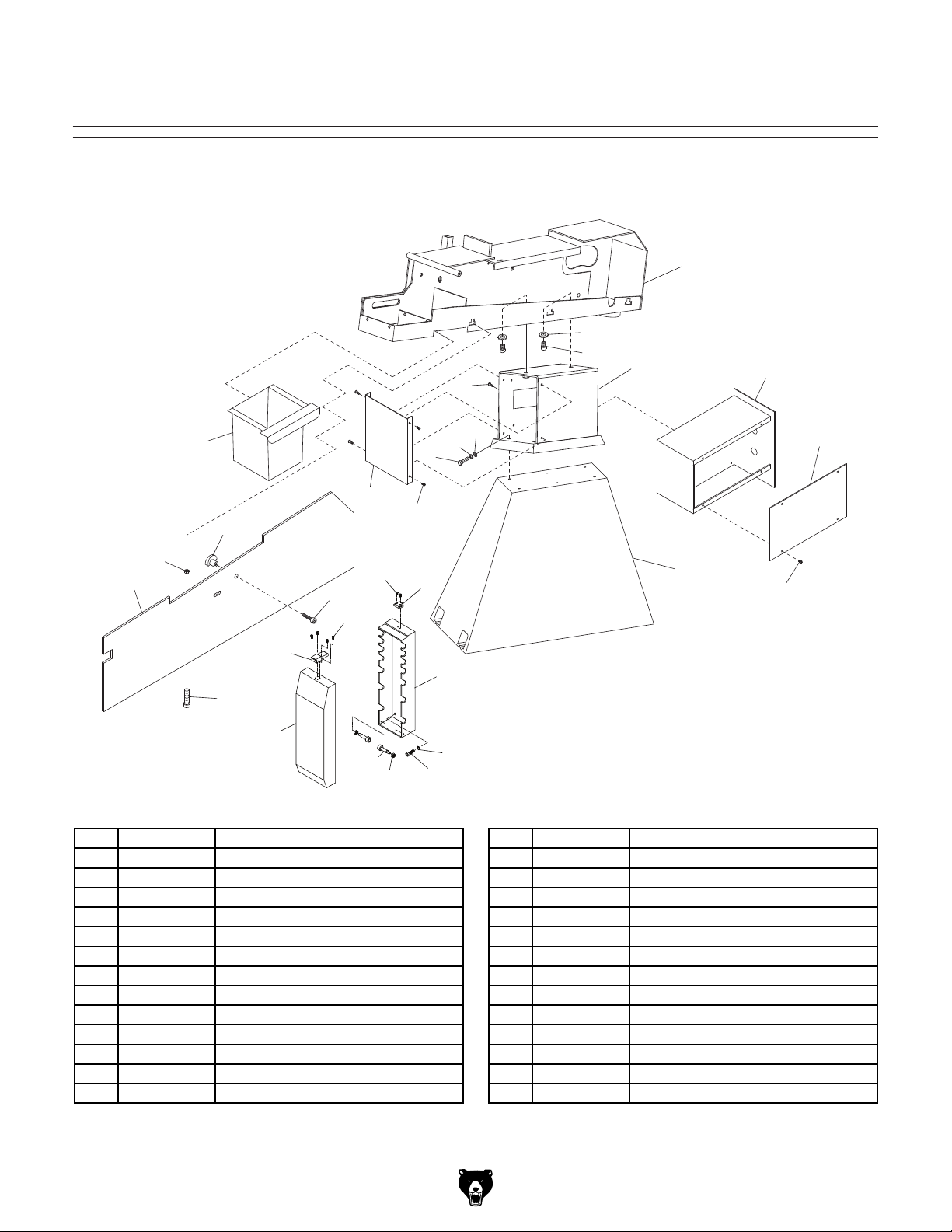

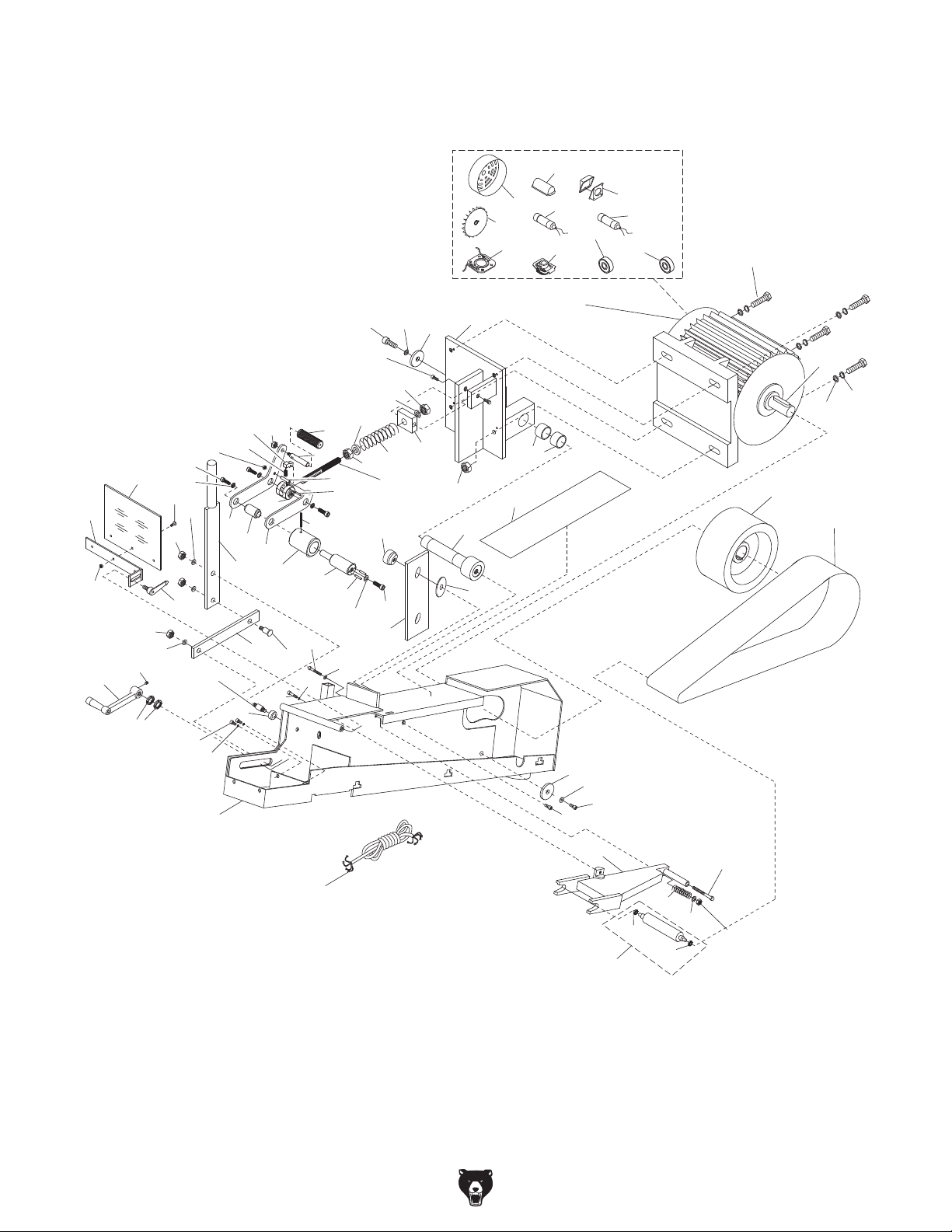

Body ............................................................. 35

Main ............................................................. 36

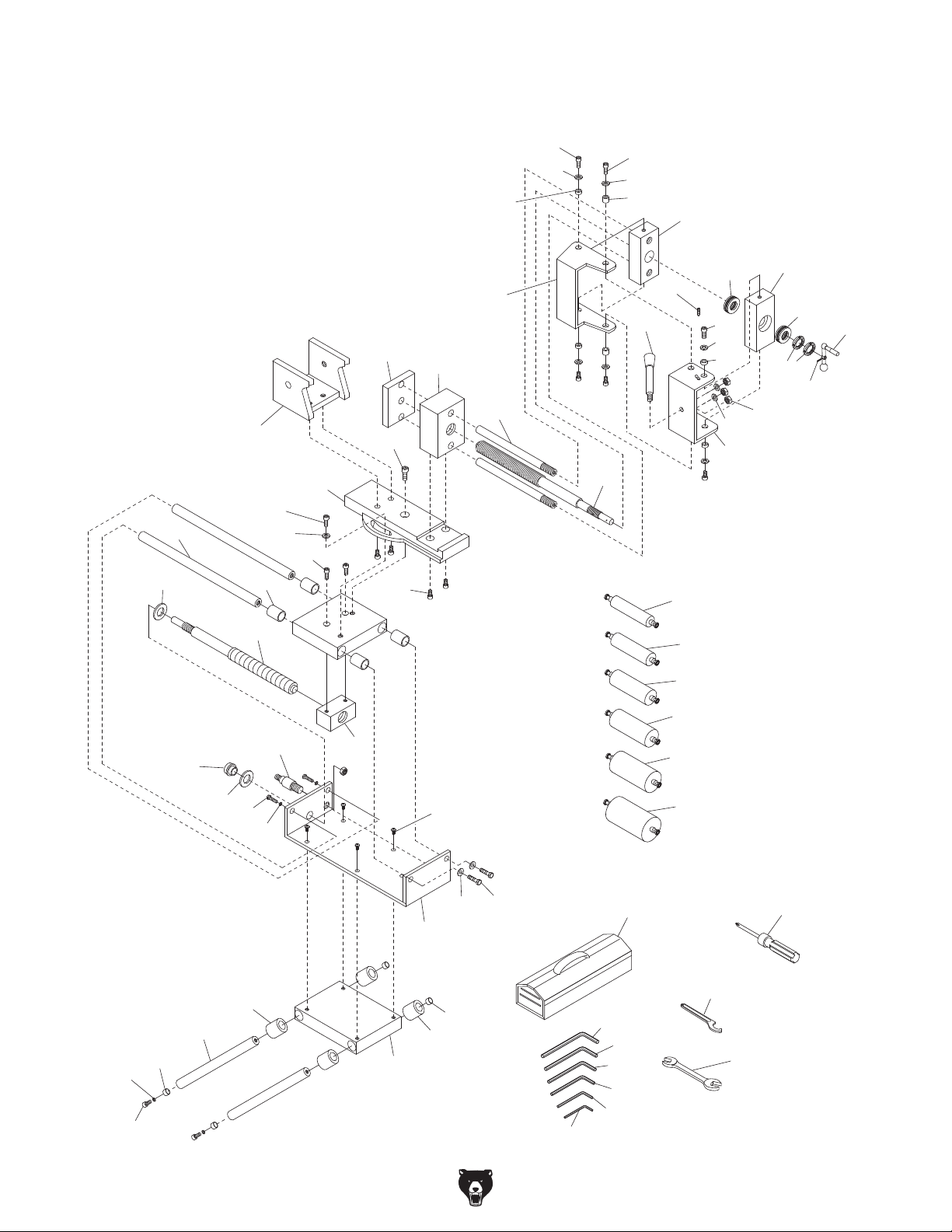

Pipe Vise Assembly & Accessories ............. 38

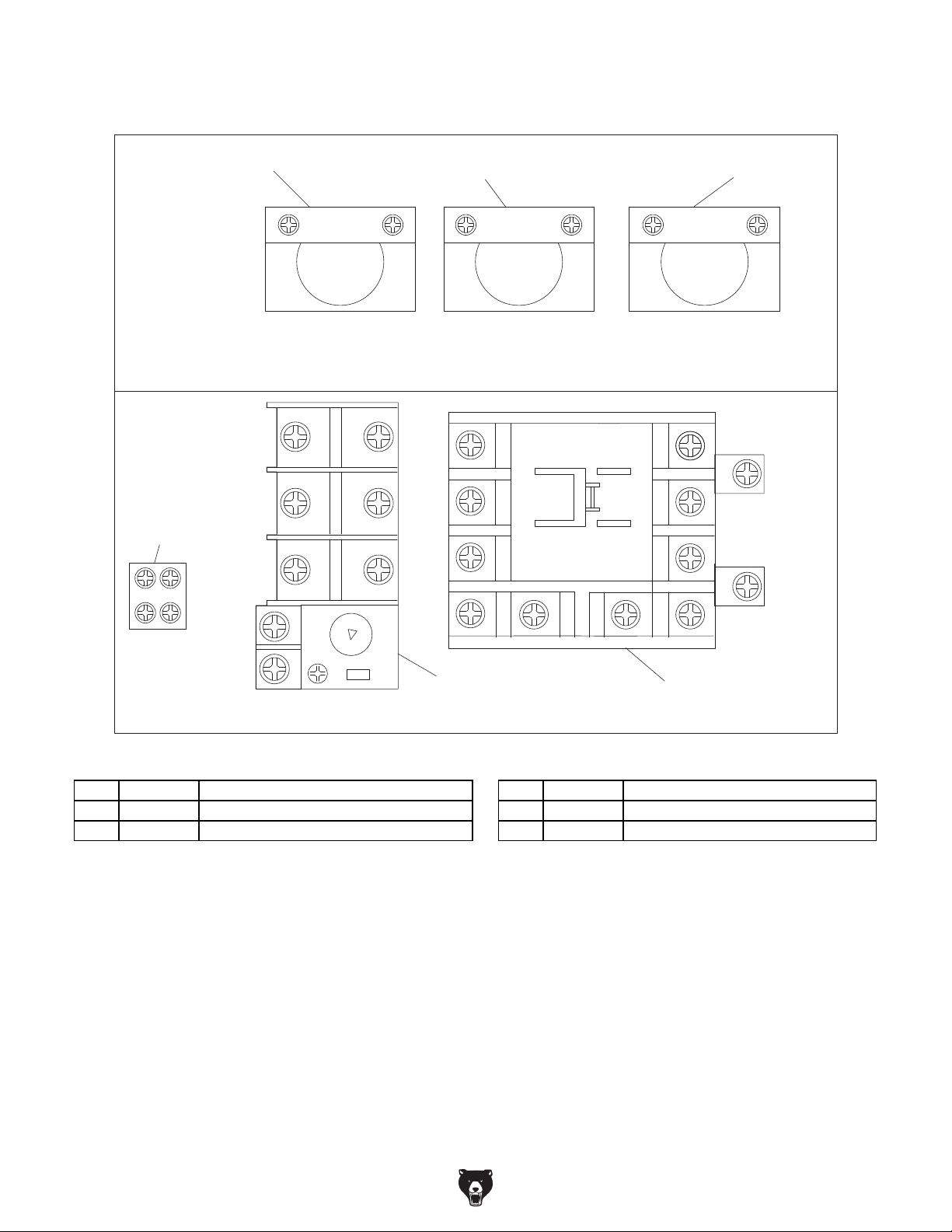

Electrical Box ............................................... 40

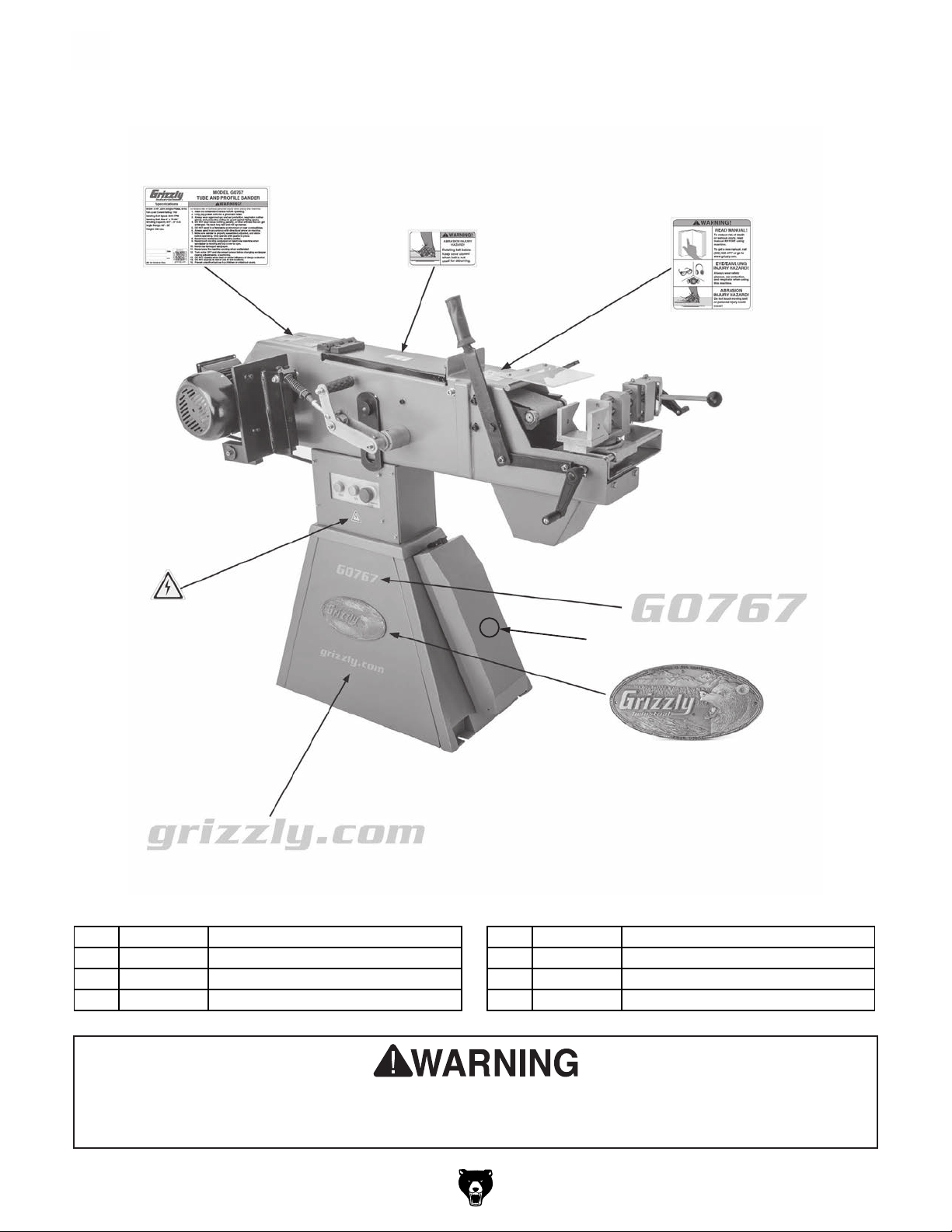

Labels (Front)............................................... 41

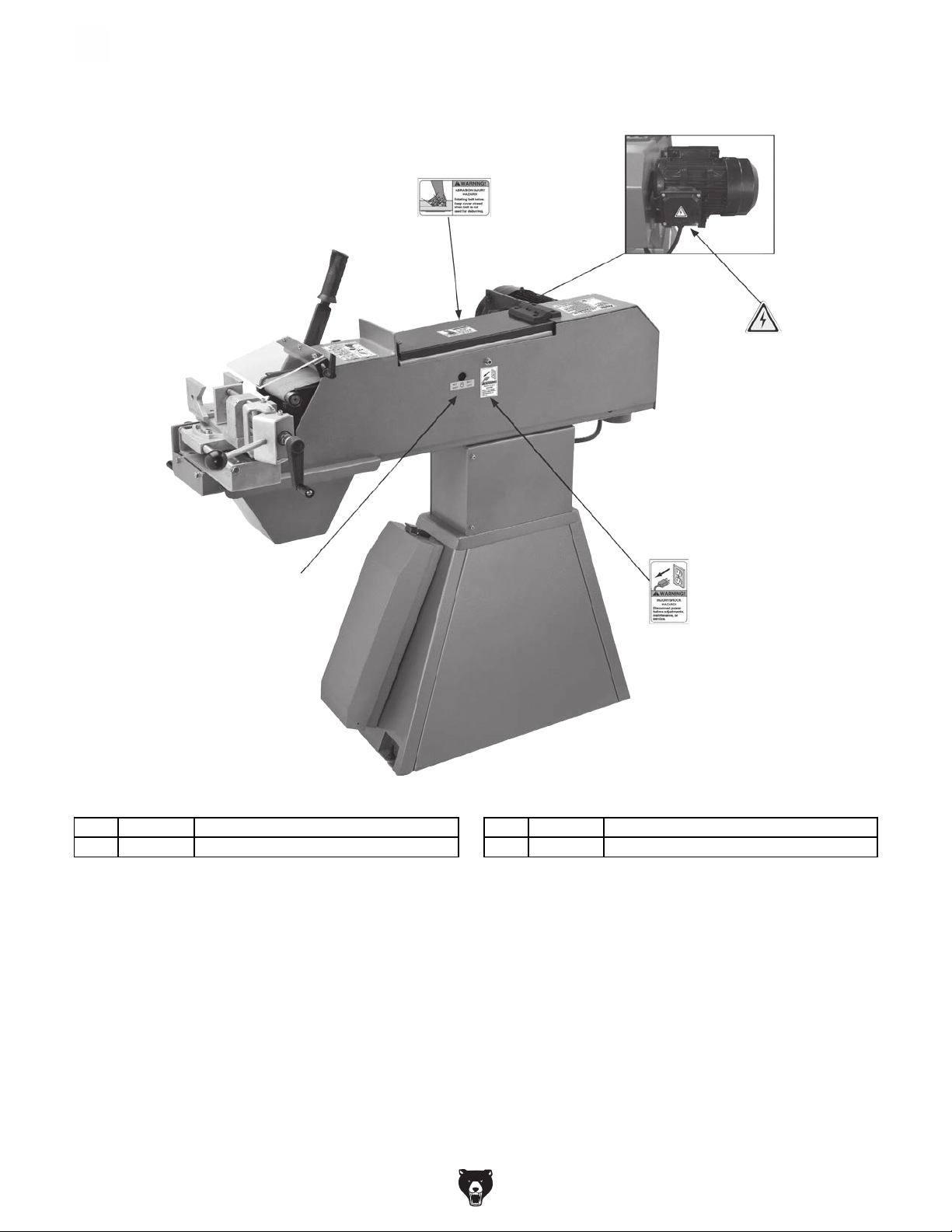

Labels (Rear) ............................................... 42

WARRANTY & RETURNS ............................. 45

SECTION 4: OPERATIONS ........................... 20

Operation Overview ..................................... 20

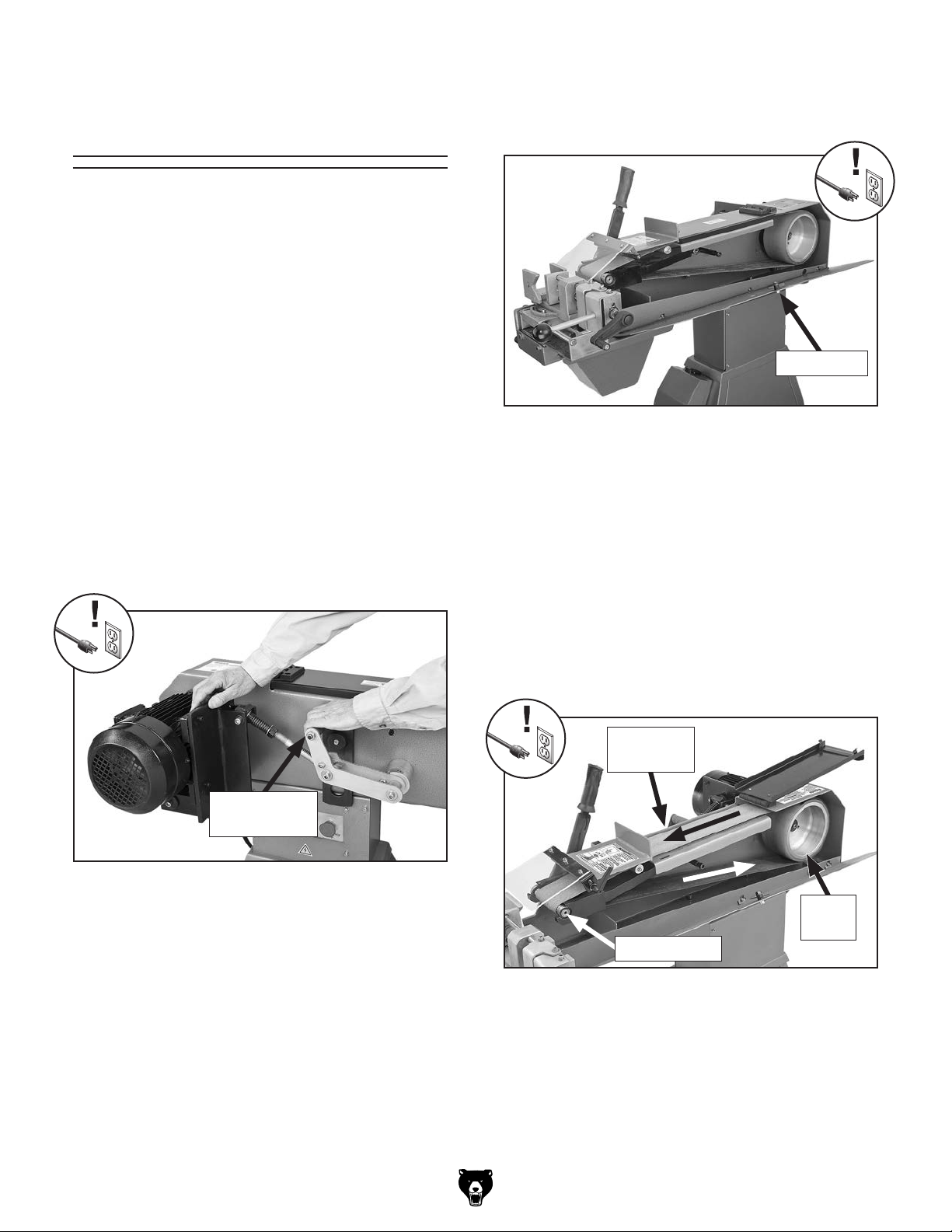

Replacing Abrasive Belt ............................... 21

Replacing Profile Roller ............................... 22

Abrasive Belt Tracking ................................. 23

Checking Abrasive Belt Tracking ..............................23

Adjusting Abrasive Belt Tracking ..............................23

Operational Tips........................................... 24

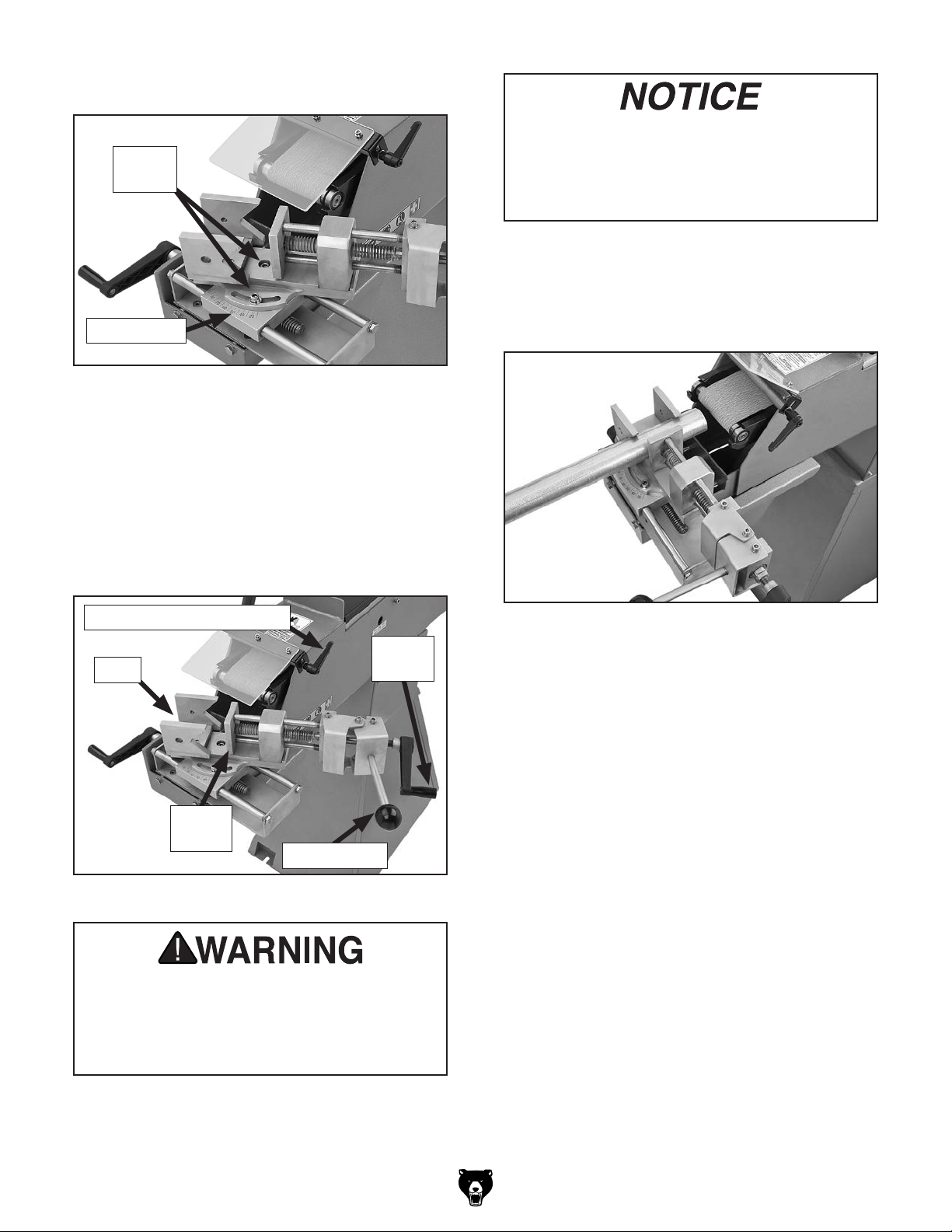

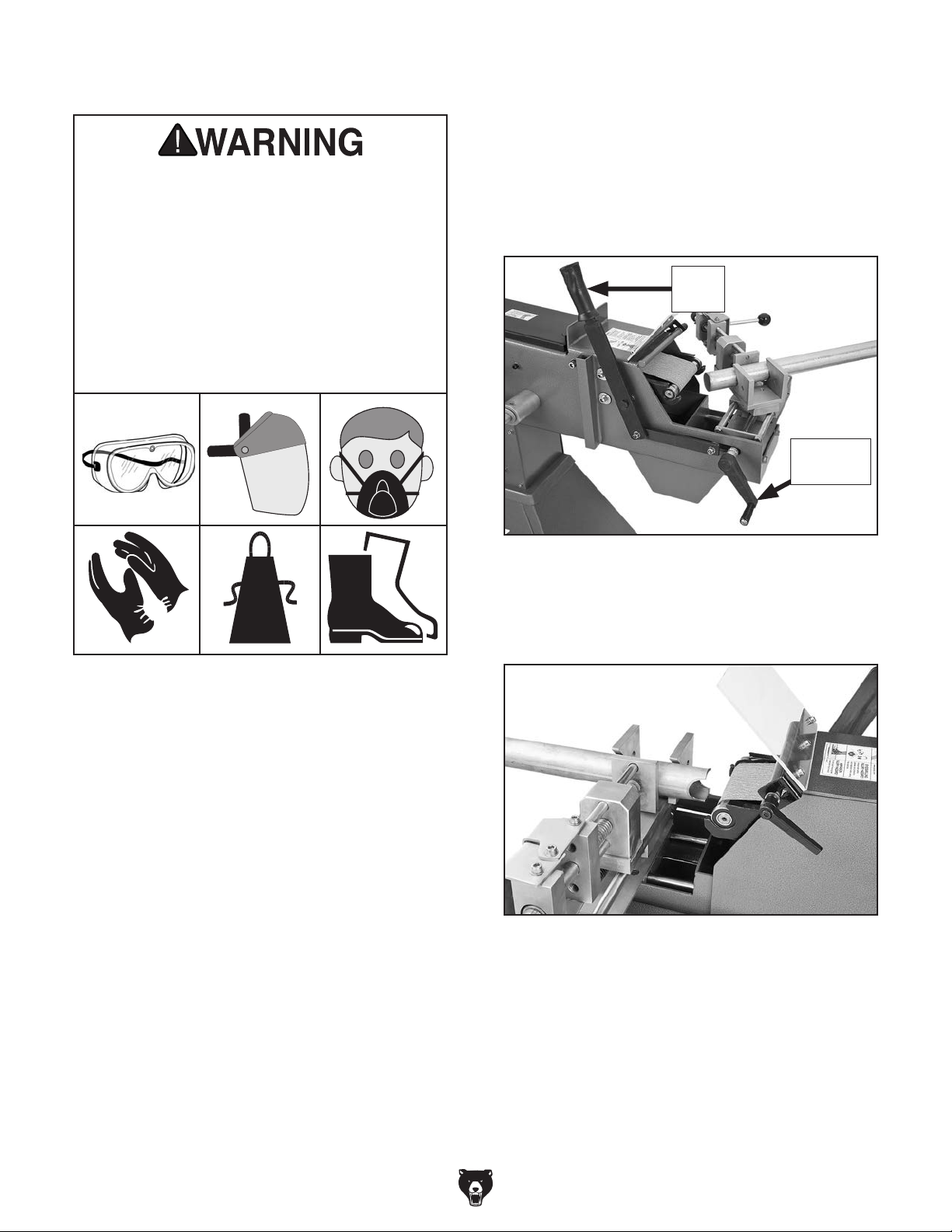

Making Notch ............................................... 24

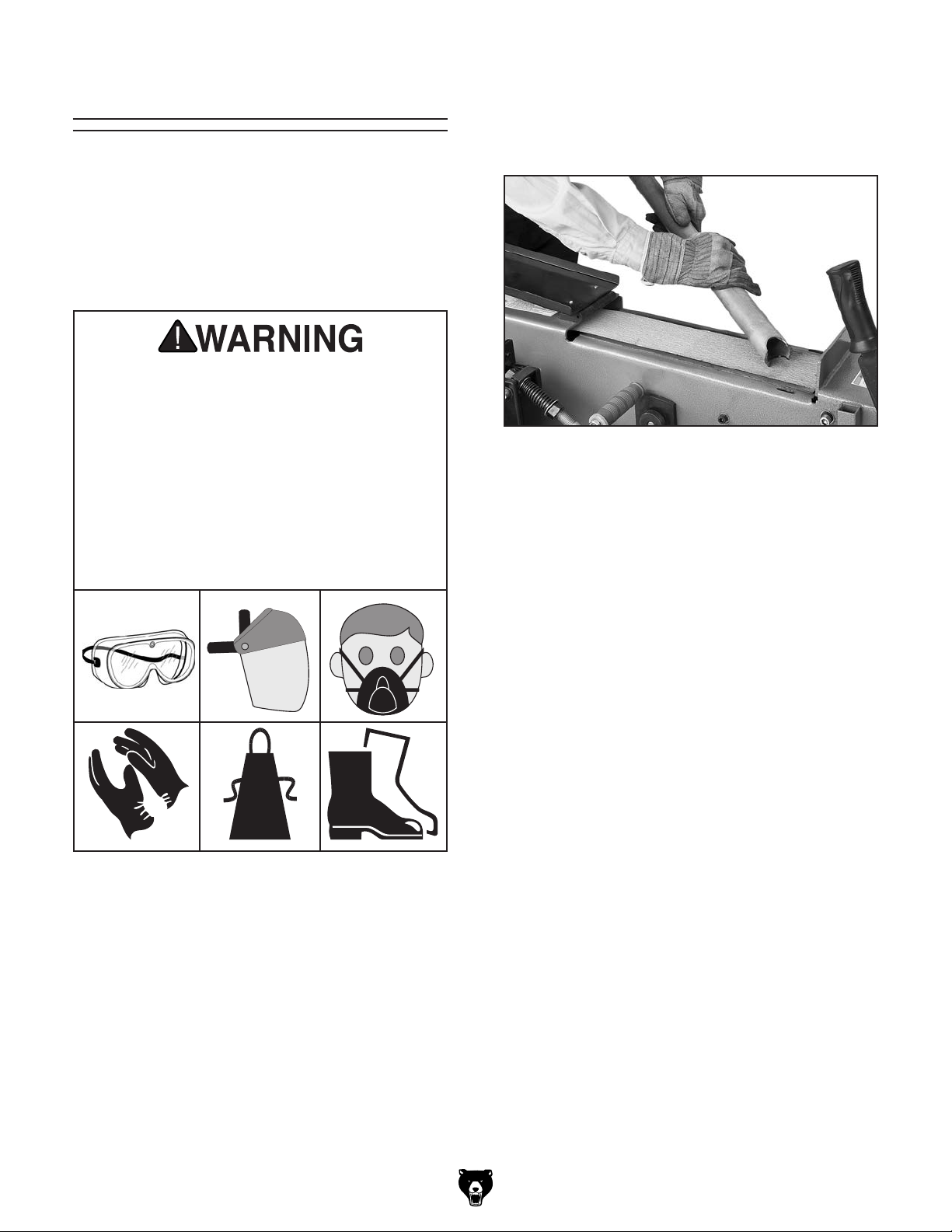

Deburring ..................................................... 27

INTRODUCTION

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the

from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documenta­tion is available for your machine.

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Machine Description

The Model G0767 Abrasive Tube Notcher is
designed to quickly notch or cope the ends of
metal tubing, so two pieces of tubing can be weld­ed together with clean, strong joints. It is an ideal
machine for production work with fencing, gates,
roll cages, bicycle frames, stainless steel piping,
or any other type of tubing work that requires join­ing multiple pieces together.

The vise allows the tube to be set at any angle
from 30° to 90° to the grinding belt. Using the
variety of included profile rollers, notches can be
formed in diameters from
is complete, tubing edges can be deburred using
an exposed flat section of the grinding belt.

Contact Info

3

⁄4" to 3". After notching

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

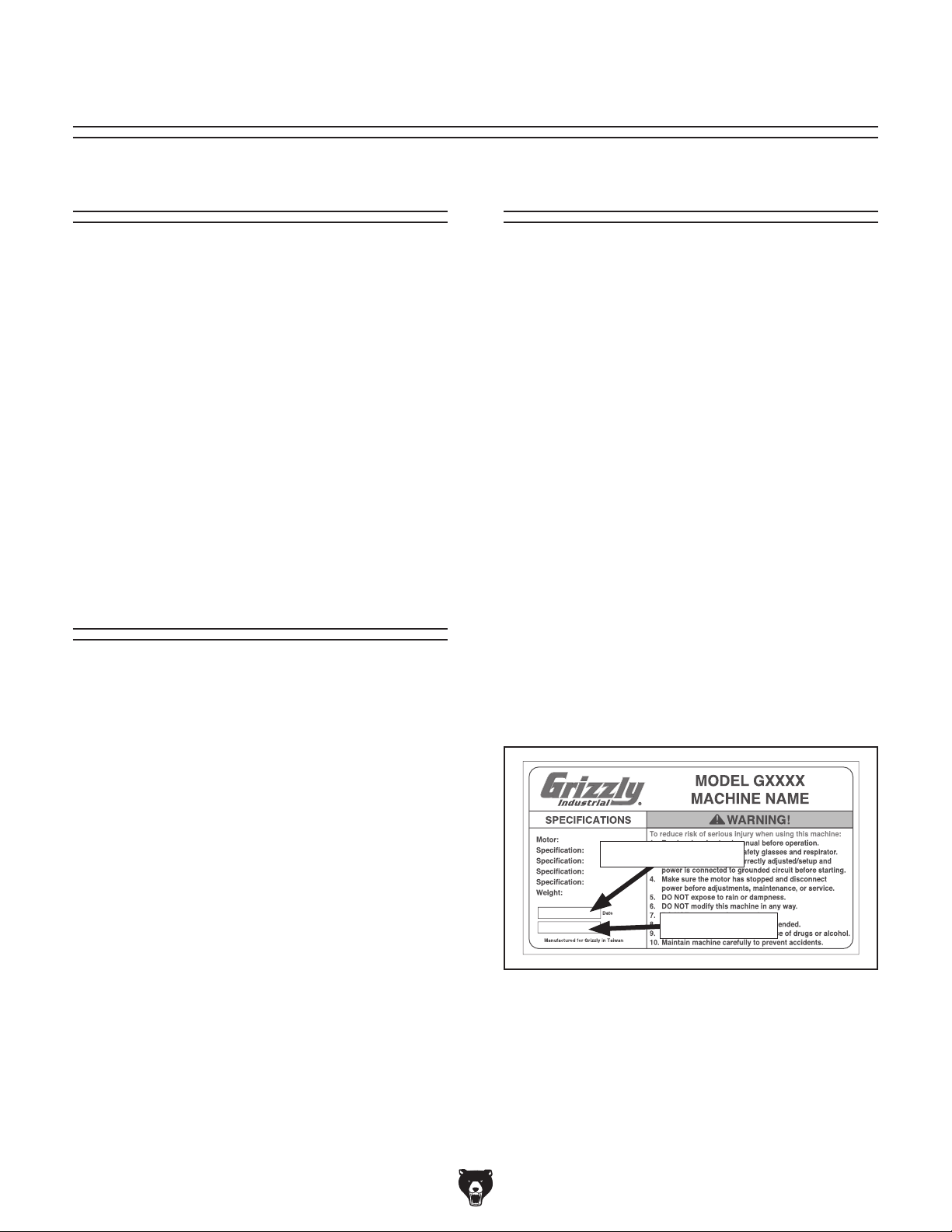

Manufacture Date and Serial Number

Email: [e-mail]

Grizzly Documentation Manager

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

P.O. Box 2069

Bellingham, WA 98227-2069

Email: [e-mail]

Manufacture Date

Serial Number

-2-

Model G0767 (Mfd. Since 1/14)

Identification

To reduce your risk of
serious injury, read this
entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

Motor

Control

Panel

Base

Column

Belt Tension

Lever

Deburring

Station

Feed

Lever

Spark

Trap

Abrasive

Belt

Traverse

Crank

Spark

Shield

Clamp

Lever

Vise

Assembly

Profile Roller

Storage Cabinet

Model G0767 (Mfd. Since 1/14)

Anchor Points

using machine.

-3-

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

using machine.

E

F

D

G

H

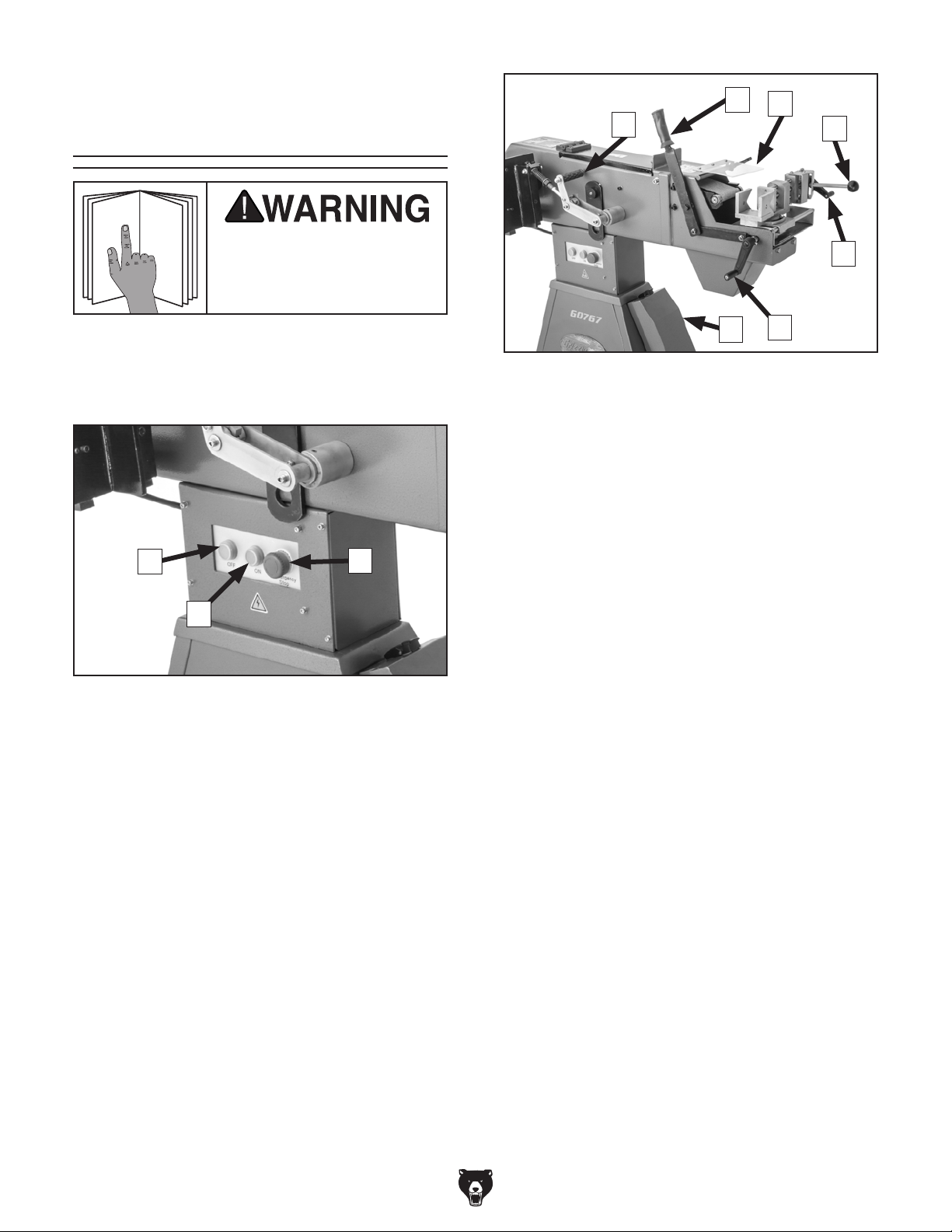

Refer to Figures 1–2 and the following descrip­tions to become familiar with the basic controls of
this machine.

A

B

Figure 1. Control panel.

A. Abrasive Belt OFF Button

B. Abrasive Belt ON Button

C

J

Figure 2. Other controls.

D. Belt Tension Lever: Controls abrasive belt

tension.

E. Feed Lever: Moves tube toward or away

from abrasive belt.

F. Spark Shield Lock Handle: Secures spark

shield in place.

G. Clamp Lever: Locks tube between vise jaws

so it will not move during grinding.

H. Clamp Crank: Adjusts distance between

jaws and clamp plate to accommodate diam­eter of tube.

I. Traverse Crank: Moves tube from side-to-

side across abrasive belt. This will increase
the life of the belt.

I

C. Emergency Stop Button: Cuts power to the

motor and remains depressed until reset.
Twist clockwise until it pops out to reset.

-4-

J. Profile Roller Storage Cabinet: Safely

stores profile rollers away from debris and
grime.

Model G0767 (Mfd. Since 1/14)

Machine Data Sheet

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL G0767

ABRASIVE TUBE NOTCHER

Product Dimensions:

Weight ........................................................................................................................................................................... 290 lbs.

Width (side-to-side) x Depth (front-to-back) x Height ..................................................................... 31-1/2" x 49-1/4" x 47-1/4"

Foot Print (Length/Width) .................................................................................................................................25-1/2" x 15-3/4"

Shipping Dimensions:

Type ........................................................................................................................................................................ Wood Crate

Weight ............................................................................................................................................................................ 381 lbs.

Length/Width/Height ............................................................................................................................................ 48" x 28" x 45"

Must Ship Upright .................................................................................................................................................................Yes

Electrical:

Required Requirement .................................................................................................................... 220V, Single-Phase, 60 Hz

Full-Load Current Rating ................................................................................................................................................... 14.8A

Minimum Circuit Size ........................................................................................................................................................... 20A

Connection Type ..................................................................................................................................................... Cord & Plug

Power Cord Included ............................................................................................................................................................Yes

Power Cord Length ........................................................................................................................................................ 6-1/2 ft.

Power Cord Gauge .......................................................................................................................................................12 AWG

Plug Included .........................................................................................................................................................................No

Recommended Plug Type ...................................................................................................................................................6-20

Switch Type ............................................................................................................................................. ON/OFF Push Button

Motor:

Main

Type ................................................................................................................................ TEFC Capacitor-Start Induction

Horsepower ...............................................................................................................................................................3 HP

Voltage ..................................................................................................................................................................... 220V

Phase .......................................................................................................................................................... Single-Phase

Amps ....................................................................................................................................................................... 14.8A

Speed ...............................................................................................................................................................3360 RPM

Cycle ........................................................................................................................................................................ 60 Hz

Power Transfer ........................................................................................................................................................ Direct

Bearings .....................................................................................................................Shielded and Permanently Sealed

Model G0767 (Mfd. Since 1/14)

-5-

Main Specifications:

Operation Information

Sanding Belt Speed .......................................................................................................................................... 5900 FPM

Sanding Belt Length .............................................................................................................................................. 78-3/4"

Sanding Belt Width ........................................................................................................................................................ 4"

Number of Profile Rollers ................................................................................................................................................7

Profile Roller Sizes ...................................................................................................3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"

Grinding Capacity ....................................................................................................................................... 3/4" – 3" O.D.

Grinding Angle Range ........................................................................................................................................90° – 30°

Construction

Stand ........................................................................................................................................................... Formed Steel

Body ............................................................................................................................................................Formed Steel

Rollers ........................................................................................................................................................Polished Steel

Paint .........................................................................................................................................................Powder Coated

Other Specifications:

Country of Origin ............................................................................................................................................................... China

Warranty ........................................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time .............................................................................................................................1 Hour

Serial Number Location ................................................................................................................................................ ID Label

ISO 9001 Factory ..................................................................................................................................................................Yes

CSA Certified .........................................................................................................................................................................No

Features:

Convenient ratcheting system for sanding belt tensioning
Front debris-catching tray
Rear 3" dust port
Easy sanding belt alignment
Top sanding belt access for deburring
Compound self-aligning vise with side-to-side adjustment to prevent uneven belt wear
Transparent safety guard
Removable spark tray

Accessories:

7 rollers (3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3")
Toolbox with service tools

-6-

Model G0767 (Mfd. Since 1/14)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model G0767 (Mfd. Since 1/14)

-7-

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

-8-

Model G0767 (Mfd. Since 1/14)

Additional Safety for Abrasive Tube Notchers

The primary risks of operating a Tube Sander are as follows: You can get seriously injured or
killed if clothing, jewelry, or long hair become entangled in rotating machine parts. You can

ignite explosive or flammable materials, if nearby. Sanding belt will quickly remove skin upon

get burned or blinded by hot metal particles that fly out during operation. Flying sparks can

contact. To reduce your risk of serious injury when operating this machine, completely heed and
understand the following:

PROTECT YOURSELF FROM HOT SPARKS.

ALWAYS wear approved safety glasses or gog­gles, a face shield, a respirator, hearing protec­tion, long leather gloves, and a leather apron to
reduce the risk of injury from hot, flying sparks
when operating. Never allow anyone to stand in
path of sparks.

PROTECT YOURSELF FROM ENTANGLEMENT.
Do not wear loose clothing, jewelry or other items
that can get caught in moving parts. Tie back hair
and roll up long sleeves. Never operate machine
with belt cover open.

REDUCE EXPOSURE TO SANDING BELT.

Keep hands away from rotating sanding belt
during operation. Keep deburring station cover
closed when not in use.

REDUCE RISK OF FIRE AND EXPLOSIONS.
This machine creates a shower of hot sparks
that can ignite explosive or flammable materials
nearby. Move these types of materials a safe dis­tance away.

WEAR RESPIRATOR. Sanding creates large
amounts of fine particles that may cause long­term respiratory damage. Reduce risk of this
hazard by wearing a respirator when using this
machine.

REDUCE RISK OF BURNS. Workpieces and
parts of this machine can get very hot during
operation. Always wear long leather gloves when
operating machine.

REDUCE RISK OF CUTS. This machine creates
burrs, which can cut hands or fingers. Always
wear long leather gloves.

PROPERLY MAINTAIN MACHINE. K e e p machine
in proper working condition to help ensure all
guards and other components work as intended
and function safely. Perform routine inspections
and all necessary maintenance, as indicated in
owner’s manual. Never operate machine with
damaged or worn parts that can break during
operation.

DISCONNECT POWER FIRST. To reduce the
risk of electrocution or injury from unexpected
startup, make sure machine is turned OFF, dis­connected from power, and all moving parts have
come to a complete stop before changing sanding
belt or doing any inspection, adjustment, or main­tenance procedure.

AVOID SUDDEN STARTUP. In the event of a
local power outage during operation, immediately
press Emergency Stop button to avoid a sudden
startup once power is restored.

USE SPARK SHIELD. Properly adjust and lock
spark shield prior to sanding operations.

Model G0767 (Mfd. Since 1/14)

-9-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

This machine is prewired to operate on a 220V
power supply circuit that has a verified ground and
meets the following requirements:

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Requirements for 220V

Nominal Voltage .........208V, 220V, 230V, 240V

Cycle ..........................................................60 Hz

Phase ........................................... Single-Phase

Power Supply Circuit ......................... 20 Amps

Plug/Receptacle .............................NEMA 6-20

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

Full-Load Current Rating at 220V .. 14.8 Amps

-10 -

Model G0767 (Mfd. Since 1/14)

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Grounding Instructions

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

Serious injury could occur if you connect

process. DO NOT connect to power until

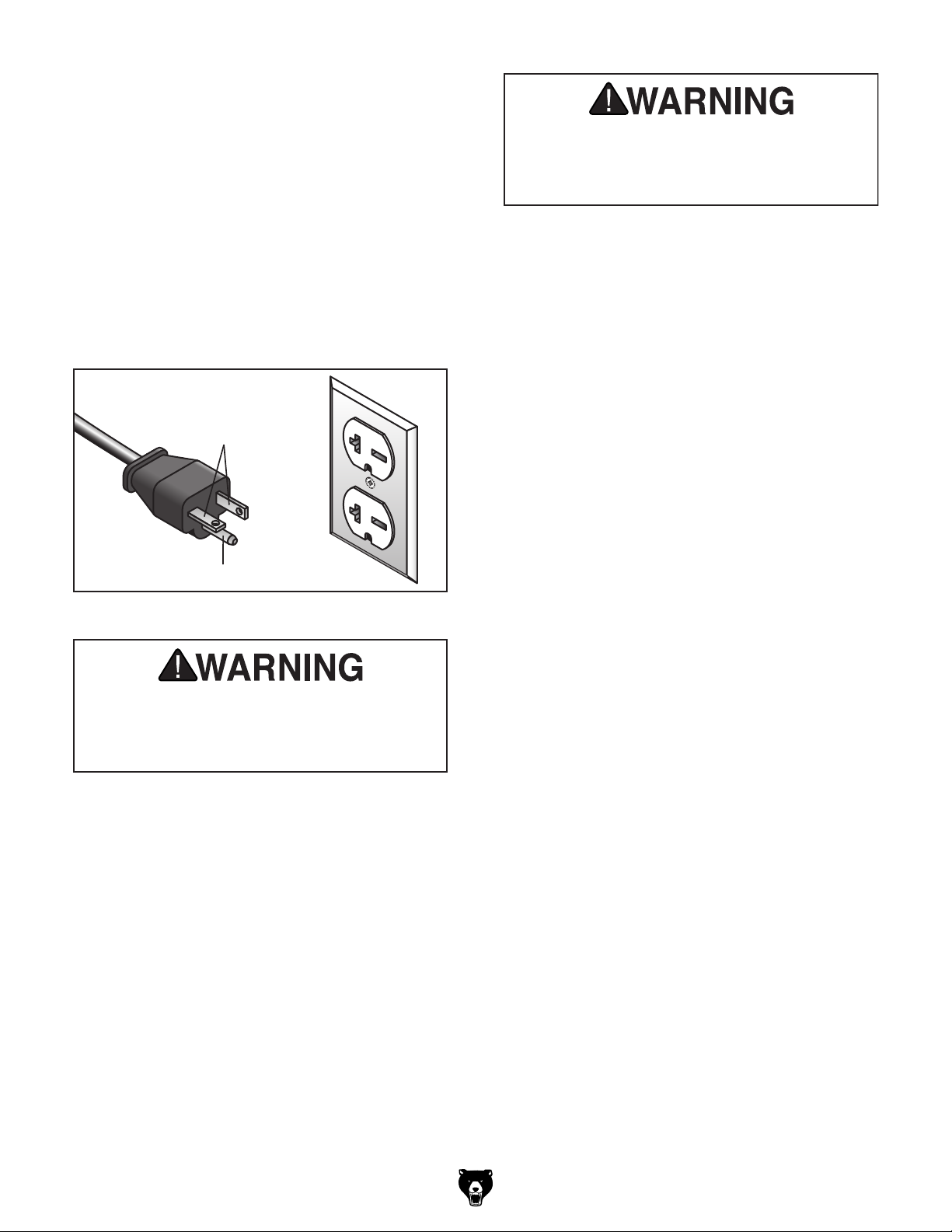

The power cord and plug specified under “Circuit
Requirements for 220V”
has an equipment-grounding wire and a ground­ing prong. The plug must only be inserted into
a matching receptacle (outlet) that is properly
installed and grounded in accordance with all
local codes and ordinances (see figure below).

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

process. DO NOT connect to power until

on the previous page

GROUNDED

6-20 RECEPTACLE

Current Carrying Prongs

6-20 PLUG

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

Grounding Prong

Figure 3. Typical 6-20 plug and receptacle.

machine to power before completing setup

instructed later in this manual.

Model G0767 (Mfd. Since 1/14)

Extension Cords

If you must use an extension

Minimum Gauge Size ...........................12 AWG

Maximum Length (Shorter is Better).......50 ft.

-11-

SECTION 3: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

Keep children and pets away
from plastic bags or packing
materials shipped with this

get help from other people

Needed for Setup

This machine presents
serious injury hazards
to untrained users. Read
through this entire manu­al to become familiar with
the controls and opera­tions before starting the
machine!

Wear safety glasses during
the entire setup process!

The following are needed to complete the setup
process:

Description Qty

• Additional People ....................................... 2

• Safety Glasses ........................ 1 Per Person

• Forklift or Crane

(Rated For at Least 500 lbs.) ...................... 1

• Web Slings

(Rated For at Least 500 lbs. Each) ............ 2

• Lifting Chain & Safety Hook (Optional)

(Rated For at Least 500 lbs. Each) ............ 1

• Wrench or Socket 13mm ............................ 1

• Wrench or Socket 16mm ............................ 1

• Wrench or Socket 17mm ............................ 1

HEAV Y LIF T!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,

and use a forklift (or other
lifting equipment) rated for
weight of this machine.

Unpacking

If items are damaged

call us immediately at [phone].

Save all packaging materials until

SUFFOCATION HAZARD!

machine. Discard immediately.

-12-

Model G0767 (Mfd. Since 1/14)

Inventory

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

Main Inventory (Figure 4) Qty

A. Machine Body ............................................ 1

B. Spark Trap .................................................. 1

C. Machine Base with Profile Rollers .............. 1

—Profile Roller

—Profile Roller 1" Dia. (Installed) ............... 1

—Profile Roller 1
—Profile Roller 1

—Profile Roller 2" Dia. ............................... 1

—Profile Roller 2

—Profile Roller 3" Dia. ............................... 1

D. Toolbox ....................................................... 1

E. Vise Assembly ............................................ 1

F. Feed Lever Assembly ................................. 1

G. Hex Wrenches 2.5, 3, 4, 5, 6, 8mm ......1 Ea

H. Phillips Screwdriver #2 ............................... 1

I. Spanner Wrenches 22–26mm ................... 2

J. Open-End Wrench 13/16mm ...................... 1

A

3

⁄4" Dia. .............................. 1

1

⁄4" Dia. ............................ 1

1

⁄2 " Dia. ............................ 1

1

⁄2 " Dia. ............................ 1

C

B

F

G

Figure 4. Model G0767 inventory.

H I J

E

D

Model G0767 (Mfd. Since 1/14)

-13-

Site Considerations

Weight Load

Refer to the
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest work­piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main­tenance and service described in this manual.

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract
or impede the operator must be eliminated.

Machine Data Sheet for the weight

Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.

The physical environment where the machine is
operated is important for safe operation and lon­gevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemi­cals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20%–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.

Electrical Installation

Make sure all power cords are protected from
traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or
apply a lockout/tagout device, if required.

Lighting

Lighting around the machine must be adequate
enough that operations can be performed safely.

-14-

30" Minimum

Wall

Clearance

Figure 5. Minimum working clearances.

30"

51"

Model G0767 (Mfd. Since 1/14)

Lag shield anchors with lag screws (see below)
are a popular way to anchor machinery to a con­crete floor, because the anchors sit flush with the
floor surface, making it easy to unbolt and move
the machine later, if needed. However, anytime
local codes apply, you MUST follow the anchoring
methodology specified by the code.

Cleanup

The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.

There are many ways to remove this rust preven­tative, but the following steps work well in a wide
variety of situations. Always follow the manufac­turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

1.

2.

amount of cleaner/degreaser, then let it soak

3.

scrape off as much as you can first, then wipe

4.

then coat all unpainted surfaces with a quality

Avoid chlorine-based solvents, such as

Anchoring to Floor

Number of Mounting Holes ............................ 4

Diameter of Mounting Hardware ................

Anchoring machinery to the floor prevents tipping
or shifting and reduces vibration that may occur
during operation, resulting in a machine that runs
more quietly and feels more solid.

Because of the top heavy nature of the
Model G0767 and the dynamic forces exert­ed during operation, this machine MUST be
solidly anchored to floor.

7

⁄16"

Anchoring to Concrete Floors

Put on safety glasses.

Coat the rust preventative with a liberal

for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,

off the rest with the rag.

Repeat Steps 2–3 as necessary until clean,

metal protectant to prevent rust.

NOTICE

acetone or brake parts cleaner, that may
damage painted surfaces.

Lag Screw

Flat Washer

Machine Base

Concrete

Figure 6. Popular method for anchoring

machinery to a concrete floor.

Lag Shield Anchor

Drilled Hole

Model G0767 (Mfd. Since 1/14)

-15-

Assembly

To assemble machine:

1. Place shipping crate near operational loca-

tion, then remove crate from shipping pallet
and set small items aside.

2. Unbolt base from shipping pallet.

3. Move base to selected location and properly

anchor it to floor (refer to Anchoring to Floor
on previous page).

7. Remove the six pre-installed cap screws from

top of base (see Figure 9).

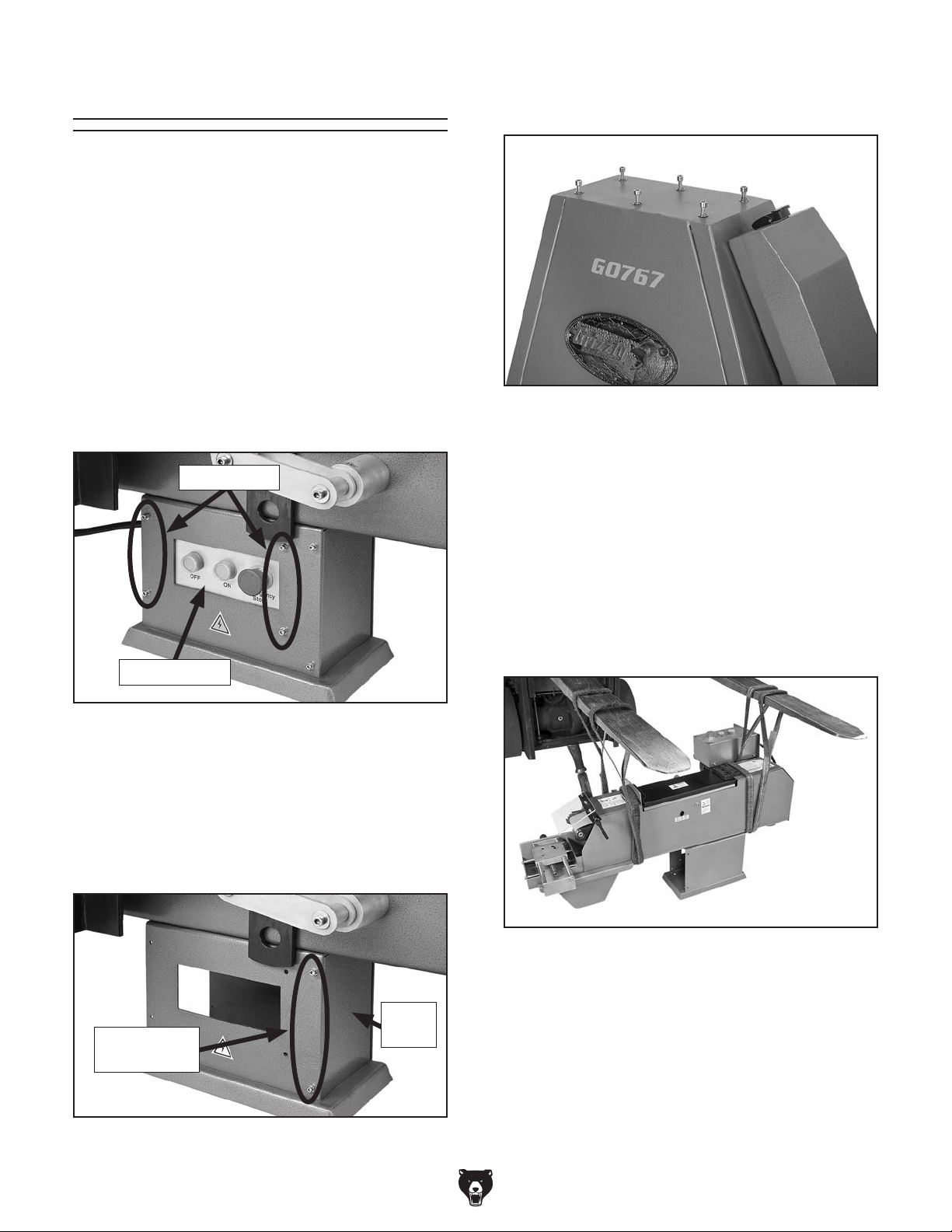

4. Remove the four cap screws that secure
electrical box inside column (see Figure 7).

Cap Screws

Electrical Box

Figure 7. Location of cap screws that secure

electrical box.

5. Slide electrical box out of column and place
on top of motor.

6. Remove column front cover by removing the
four cap screws that secure it (see Figure 8).

Figure 9. Cap screws on top of base.

8. Have another person hold machine steady so

that it does not tip, then remove hex nuts that
secure machine column to pallet.

9. Listed below are two methods for lifting
machine onto base. Use method that is best
for your operation.

— Wrap web slings around machine and

attach them to a lifting device (see Figure
10 for an example).

Front

Cap Screws

(2 of 4)

Figure 8. Location of column front cover and

securing cap screws.

-16 -

Cover

Figure 10. Example photo of web slings

positioned on machine and lifting device.

Model G0767 (Mfd. Since 1/14)

— Rotate lifting bar up (see Figure 11),

and attach lifting chain and safety hook
between lifting bar and lifting device.

12. Re-install column front cover removed in
Step 6.

13. Re-install electrical box in column.

Lifting

Bar

Figure 11. Example photo of lifting machine with

chain and hook.

10. With two other people holding onto machine
to steady and balance the load, lift machine
onto base and position it so vise and roll­er storage cabinet both face the front of
machine.

11. Secure machine to base with six cap screws
removed in Step 7 (see Figure 12).

14. Remove pre-installed fasteners shown in
Figure 13. These fasteners will secure feed

lever assembly in next step.

T-Bolt

w/Flat Washer

Lock Nut

w/Flat Washer

Figure 13. Locations of feed lever fasteners.

15. Attach feed lever assembly to machine
with fasteners removed in Step 14 (see
Figure 14).

Cap Screws

Figure 12. Machine attached to base.

Feed Lever

Assembly

Figure 14. Feed lever assembly attached.

Model G0767 (Mfd. Since 1/14)

-17-

16. Remove the two pre-installed vise mounting

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine

Serious injury or death can result from

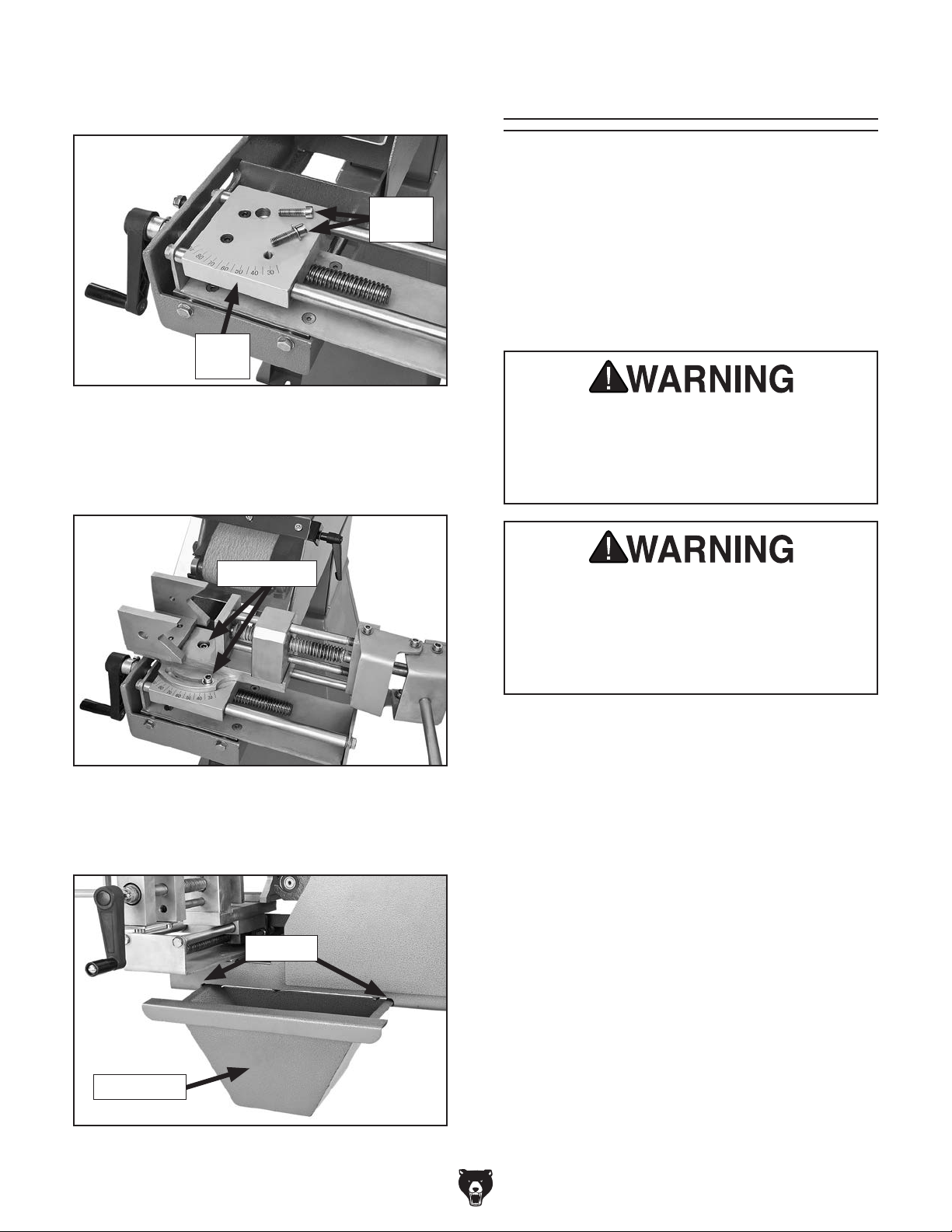

cap screws shown in Figure 15.

Cap

Screws

Vise

Mount

Figure 15. Vise mounting cap screws.

Test Run

Troubleshooting

17. Position vise assembly on vise mount and

secure it with cap screws removed in Step 16
(see Figure 16).

Cap Screws

Figure 16. Vise assembly attached.

18. Slide spark trap into grooves on right side of
machine, as shown in Figure 17.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

may result in malfunction or unexpect­ed results that can lead to serious injury,
death, or machine/property damage.

Grooves

Spark Trap

Figure 17. Spark trap positioned in grooves.

-18-

Model G0767 (Mfd. Since 1/14)

To make the test run quicker and easier to per­form, you will be instructed to remove the abrasive
belt from the machine. If you choose to leave the
belt on the machine for the test run, you MUST
perform the Replacing Abrasive Belt procedure
on Page 21 and Abrasive Belt Tracking proce-
dure on Page 23 to make sure the belt is properly
tensioned and tracked, and will not fall off the roll­ers during the test run.

To test run machine:

1. Using a 6mm hex wrench, loosen cap screw

that secures belt cover and open cover to
expose abrasive belt (see Figure 18).

3. Remove abrasive belt.

4. Close and secure belt cover.

5. Clear all setup tools away from machine.

6. Connect machine to power supply.

7. Twist Emergency Stop button clockwise until

it pops out—this resets switch so machine
will start (see Figure 20).

Emergency

Stop Button

Figure 18. Belt cover opened.

2. Pull belt tension lever up and toward front of

machine with one hand as you guide motor
forward with other hand (see Figure 19). This
releases abrasive belt tension.

Belt Tension

Lever

Figure 20. Location of Emergency Stop button.

8. Push ON button to start machine. A correctly

operating machine runs smoothly with little or
no vibration or rubbing noises.

9. Press Emergency Stop button to turn machine
OFF.

10. WITHOUT resetting the Emergency Stop
button, press ON button. Machine should not
start.

—If machine does start (with Emergency Stop

button pressed in), immediately disconnect
power to machine. The Emergency Stop
button safety feature is not working correct­ly. This safety feature must work properly
before proceeding with regular operations.
Call Tech Support for help.

Note: To re-install abrasive belt, perform Installing
Abrasive Belt procedure on Page 21.

Figure 19. Releasing abrasive belt tension.

Model G0767 (Mfd. Since 1/14)

-19 -

To reduce your risk of
serious injury, read this
entire manual BEFORE

Keep hair, clothing, and

ing parts at all times.
Entanglement can result
in death, amputation, or

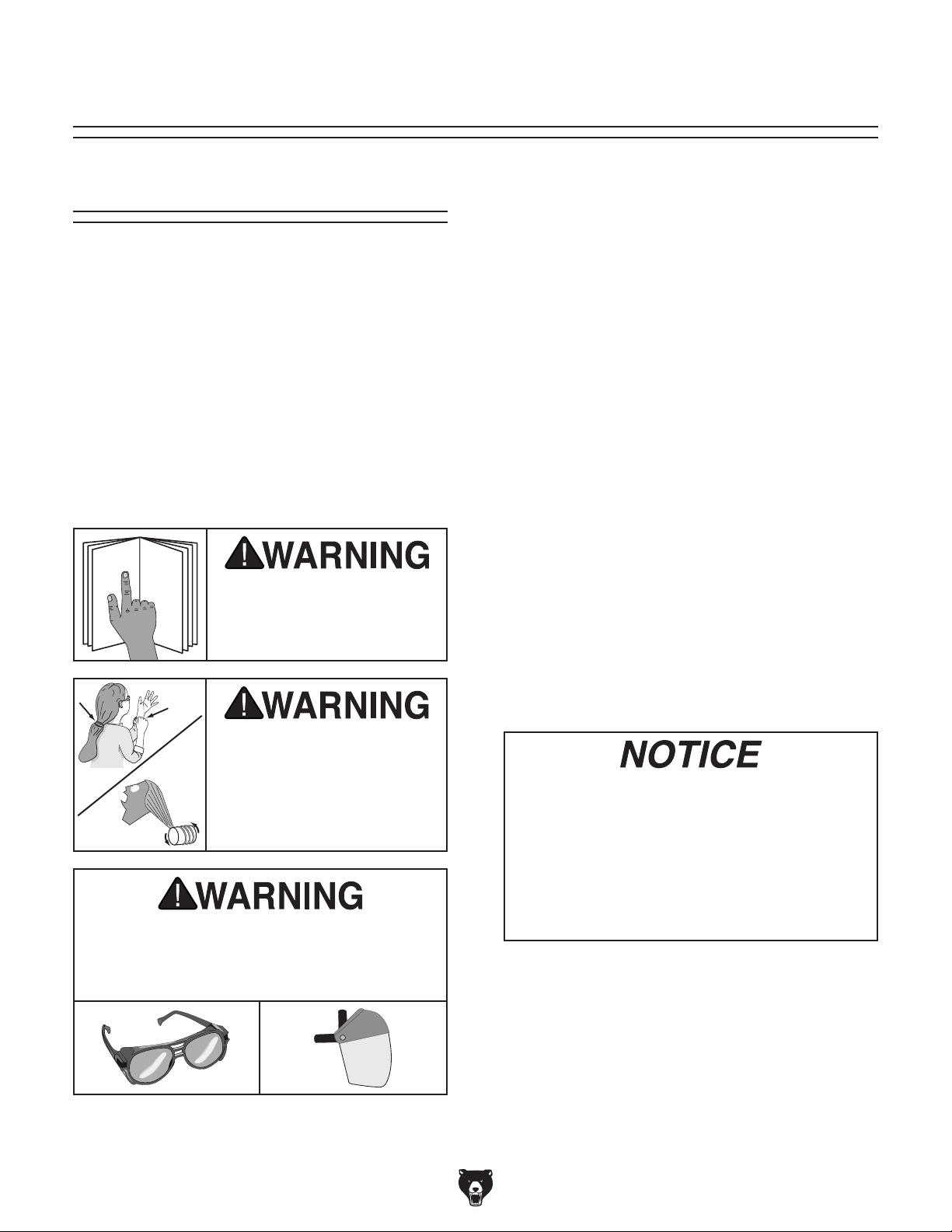

SECTION 4: OPERATIONS

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

Operation Overview

machine controls/components

are easier to understand.

seek additional

, and do additional research

To complete a typical operation, the operator
does the following:

1. Examines tube to make sure the diameter is

appropriate for operation and the end does
not have any burrs that could damage abra­sive belt or machine.

2. Adjusts vise angle, if necessary, to the cor­rect angle of the desired cut.

3. Makes sure abrasive belt is properly ten­sioned and tracked.

4. Puts on personal protective equipment.

5. Secures tube in vise.

6. Properly adjusts spark shield.

using machine.

jewelry away from mov-

severe crushing injuries!

To reduce risk of eye or face injury from
flying sparks, always wear approved safety
glasses and a face shield when operating
this machine.

7. Starts machine.

8. Uses feed lever and traverse crank to make

light side-to-side passes of tube against abra­sive belt.

9. Stops machine and removes tube.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

-20-

Model G0767 (Mfd. Since 1/14)

Replacing Abrasive

Belt

Whenever the abrasive belt becomes worn or
damaged, replace it. The Model G0767 uses a 4"
x 79" silicon-carbide abrasive belt (refer to Page
28 for abrasive belts available from Grizzly).

Use coarser grit belts for fast cutting and hard
metals. Use finer grit belts for softer metals and a
smoother finish.

3. Loosen cap screw that secures belt cover
(see Figure 22), then open cover and remove
abrasive belt from machine.

Tool Needed Qty

Hex Wrench 6mm .............................................. 1

To replace abrasive belt:

1. DISCONNECT MACHINE FROM POWER!

2. Pull belt tension lever up and toward front of

machine with one hand as you guide motor
forward with other hand (see Figure 21). This
releases abrasive belt tension.

Belt Tension

Lever

Cap Screw

Figure 22. Belt cover opened.

4. Place desired profile roller in support bracket

(refer to Replacing Profile Roller on next
page for detailed instructions).

5. Slide abrasive belt onto profile roller, drive
pulley, and over deburring platen so that
direction arrows stamped on inside of belt are
pointing in same direction as arrows shown in
Figure 23.

Note: Arrows on bottom inside of belt should

point to the right.

Deburring

Platen

Figure 21. Releasing abrasive belt tension.

Model G0767 (Mfd. Since 1/14)

Drive

Pulley

Profile Roller

Figure 23. Correct installation and orientation of

abrasive belt direction arrows.

-21-

6. Center belt on drive pulley.

7. Without holding abrasive belt lever, push

motor back with moderate force until it stops.
This applies correct abrasive belt tension.

Replacing Profile

Roller

8. Perform Abrasive Belt Tracking procedure

on next page.

The Model G0767 includes seven profile rollers
ranging from
you use will depend on the size of tubing your
workpiece will be welded to.

To install profile roller:

1. DISCONNECT MACHINE FROM POWER!

2. With abrasive belt removed, remove profile

roller from support bracket (see Figure 24).

3

⁄4" to 3". The size of profile roller

Profile

Roller

Support
Bracket

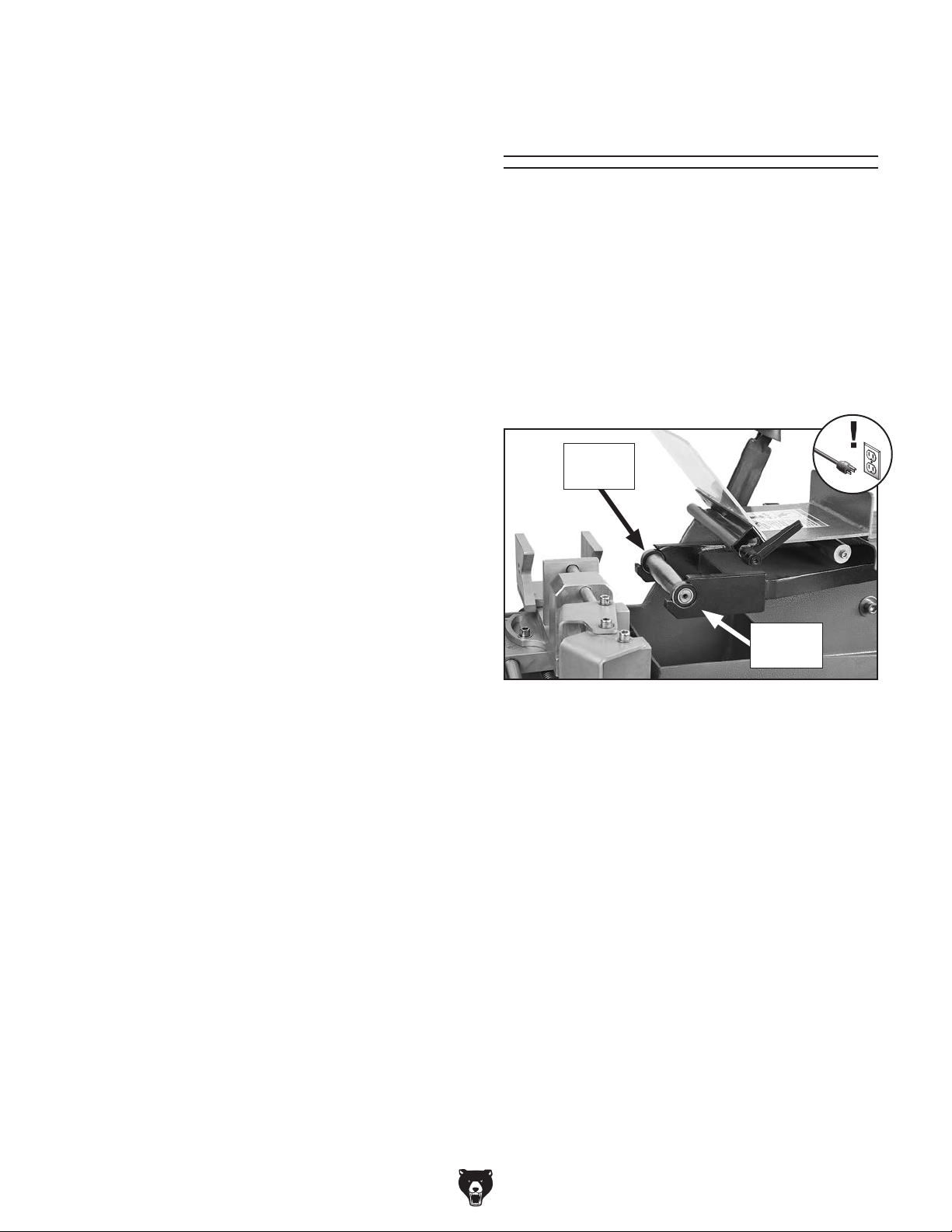

Figure 24. 1" profile roller installed.

3. Thoroughly clean all surfaces of profile roller

with sop rag and mineral spirits, then apply a
light coat of rust preventative before placing
roller in storage cabinet.

4. Repeat Step 3 with desired profile roller to be
installed.

5. Place desired profile roller in support bracket
and install abrasive belt.

-22-

Model G0767 (Mfd. Since 1/14)

Abrasive Belt

Tracking

The abrasive belt must track in the center of the
drive pulley and profile roller to avoid presenting
an injury hazard or damaging the belt or machine.

Adjusting Abrasive Belt Tracking

Adjustments to the abrasive belt tracking are
made with the machine running. These adjust­ments are made in small amounts to make sure
the belt does not track too far from the center,
which could damage the belt and machine.

To adjust abrasive belt tracking:

Tools Needed Qty

Hex Wrench 6mm .............................................. 1

Hex Wrench 8mm .............................................. 1

Checking Abrasive Belt Tracking

1. DISCONNECT MACHINE FROM POWER!

2. Open belt and deburring station covers.

3. Rotate drive pulley (see Figure 25) counter-

clockwise several times by hand.

1. Make sure belt and deburring station covers
are closed and secured.

2. Have another person position their hand
over Emergency Stop button to quickly turn
machine OFF and prevent damage if abra­sive belt moves too close to side of machine.

3. Connect machine to power, turn it ON, and
observe to which side abrasive belt tracks.

— If abrasive belt tracks to the left (as viewed

from front of machine), rotate tracking
adjustment cap screw (see Figure 26)
counterclockwise in small amounts until
abrasive belt tracks in center.

Drive

Pulley

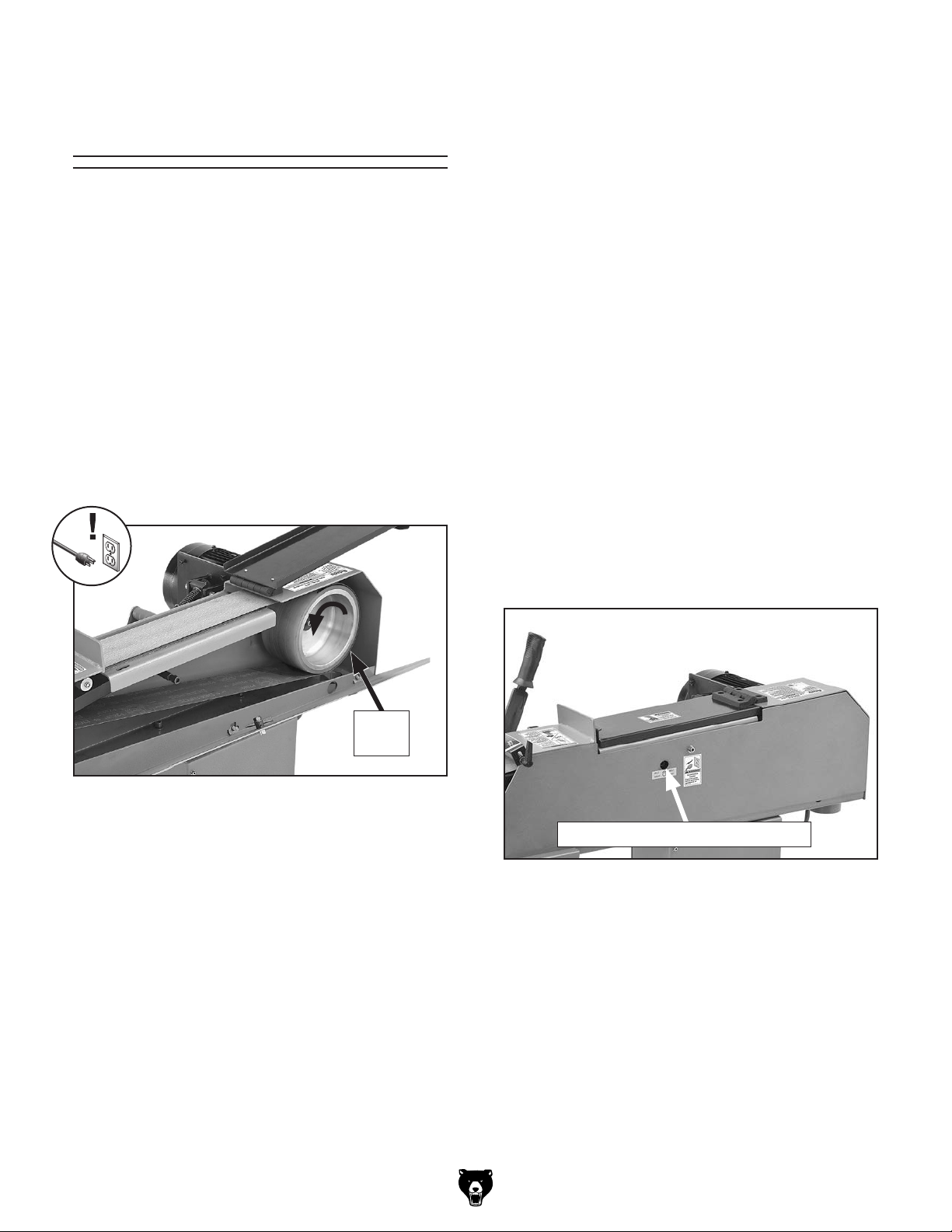

Figure 25. Location of drive pulley.

— If abrasive belt tracks in center of drive pul-

ley, close and secure belt and deburring
station covers.

— If abrasive belt moves to one side or the

other while it is rotating, the belt tracking needs to be adjusted. Perform Adjusting Abrasive Belt Tracking procedure on this page.

Tracking Adjustment Cap Screw

Figure 26. Location of tracking adjustment cap

screw.

— If abrasive belt tracks to the right (as

viewed from front of machine), rotate track­ing adjustment cap screw clockwise in
small amounts until abrasive belt tracks in
center.

Model G0767 (Mfd. Since 1/14)

-23-

Operational Tips

Making Notch

• When grinding against the profile roller, make
sure all covers are closed securely and spark
shield is properly positioned.

• Use multiple light passes instead of a few
heavy passes to increase the life of abrasive
belt and decrease the need to deburr along
notch edges.

• Make sure tube is firmly secured in vise and
any tube longer than 3' is supported at the
opposite end by another person.

• Tube gets hot as you continue operation.
Cool it frequently by quenching in water or
quenching salt solution.

• Change belts frequently and use correct grit
for best performance.

• DO NOT force or jam tube into abrasive belt.

• When not in use, release abrasive belt ten­sion to increase life of belt.

Making a notch in the tube consists of preparing
the tube, properly setting up the machine, mount­ing the tube in the vise, and grinding the notch.

Notched

Tubes

Figure 27. Example illustrations of fitting notched

tubes.

Tool Needed Qty

Hex Wrench 6mm .............................................. 1

To make a notch:

• Hot particles flying off of abrasive belt travel
very fast—prepare for this! Wear proper per­sonal protective equipment (refer to Warning
box on Page 26 for additional details).

• Grinding metal produces flying sparks. DO
NOT allow anyone to stand in path of sparks.
DO NOT grind near flammable materials or
fumes.

• Concentrate on task at hand. STOP grinding
if you become distracted.

1. Make sure tube end to be notched is smooth­ly cut without any burrs.

2. Install profile roller that will produce the cor­rect diameter notch for size of tubing your
workpiece will be welded to.

3. Make sure abrasive belt is properly tensioned
and tracked.

4. DISCONNECT MACHINE FROM POWER!

5. Push feed lever (see Figure 28) toward

motor to move vise away from abrasive belt.

Feed
Lever

-24-

Figure 28. Feed lever pushed toward motor.

Model G0767 (Mfd. Since 1/14)

6. Loosen vise cap screws shown in Figure 29.

Cap

Screws

Angle Scale

Figure 29. Vise angle controls.

7. Using angle scale, rotate vise to desired

angle of notch (from 90° to 30° in relation to
front profile roller), then retighten both cap
screws.

8. Use crank handle (see Figure 30) to adjust
space between clamp plate and jaws to
accept tube.

In next step, make sure tube end you plan
to notch is protruding far enough out of
vise that vise will not contact belt during
operation. Otherwise, property damage
may occur.

9. Insert tube between jaws and clamp plate

(see Figure 31), making sure tube extends
far enough that notching operation can be
performed without vise contacting belt.

Spark Shield Lock Handle

Crank

Jaws

Handle

Clamp

Plate

Clamp Lever

Figure 30. Vise clamping controls.

When mounting tubes longer than 3', have
another person support end of tube. This
will reduce risk of tube unexpectedly coming
loose in vise during operation and causing
impact injuries or property damage.

Figure 31. Tube inserted in vise.

10. Loosen clamp lever (Figure 30), then use

crank handle to position clamp plate within

1

⁄16" of tube.

11. Tighten clamp lever to lock tube in place.

Note: If it is too difficult to secure tube with

clamp lever, use crank handle to slightly
increase distance between clamp plate and
tube, then try again.

12. Position spark shield over profile roller and
lock it in place (see Figure 30).

Model G0767 (Mfd. Since 1/14)

-25-

13. Put on PPE (Personal Protective Equipment).

16. Use feed lever (see Figure 32) to bring tube

in light contact with abrasive belt as you use
rotate traverse crank to move tube across
abrasive belt.

PERSONAL PROTECTIVE

EQUIPMENT (PPE)

The Model G0767 produces a large amount
of sparks that can cause burns and injuries
to skin, eyes, and face. ALWAYS wear safety
goggles, face shield, dust mask, heavy
leather, long sleeve gloves, and leather
apron to reduce the risk of injury from flying
sparks when operating. Also, wear leather
boots with toe protection to reduce risk of
injury from a falling tube.

Note: Moving tube back and forth across

abrasive belt reduces wear in any one spot
and increases life of belt.

Feed

Lever

Traverse

Crank

Figure 32. Feed and traverse controls.

17. When notch is complete, use feed lever to

move tube away from abrasive belt (see

Figure 33 for an example).

14. Turn machine ON and wait until abrasive belt

reaches full speed.

15. Stand to side of machine to avoid path of
sparks during next step.

Figure 33. Example of notch in end of tubing.

18. Turn machine OFF and wait for abrasive belt

to completely stop.

19. Loosen clamp lever and remove tube.

-26-

Model G0767 (Mfd. Since 1/14)

Deburring

Sharp burrs in the tube are typically created dur­ing notching. These should be ground off for safe
handling and clean welds during tubing.

To deburr notched tubing:

1. Put on PPE.

PERSONAL PROTECTIVE

EQUIPMENT (PPE)

The Model G0767 produces a large amount
of sparks that can cause burns and injuries
to skin, eyes, and face. ALWAYS wear safety
goggles, face shield, dust mask, heavy
leather, long sleeve gloves, and leather
apron to reduce the risk of injury from flying
sparks when operating. Also, wear leather
boots with toe protection to reduce risk of
injury from a falling tube.

4. Position tube at a slight angle to abrasive belt

(see Figure 34) and make light contact with
belt. Rotate tube to deburr entire circumfer­ence of notched end.

Figure 34. Tube positioned for deburring.

5. When finished, turn machine OFF, wait for

abrasive belt to completely stop, and close
deburring station cover.

2. Open deburring station cover to expose abra­sive belt.

3. Stand to side of machine and turn machine
ON, then wait until abrasive belt reaches full
speed.

Note: Abrasive belt travels towards front of

machine at the deburring station.

Model G0767 (Mfd. Since 1/14)

-27-

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

4" x 79" Silicon-Carbide Abrasive Belts
T26604—60 Grit, 10-Pk.
T26605—80 Grit, 10-Pk.
T26606—100 Grit, 10-Pk.
T26607—120 Grit, 10-Pk.
T26608—150 Grit, 10-Pk.

Hydraulic Tube Benders

Any serious do-it-yourselfer or job shop must have
one of these! The included bending dies are sized
in pipe diameters.

G9017—12 Ton

Capacities:

G9018—16 Ton

Capacities:

1

⁄2", 3⁄4", 1", 1 1⁄4", 1 1⁄2", and 2" pipe

•

• 2" maximum pipe size while bending to 90°

• Schedule 40 wall thickness

1

⁄2", 3⁄4", 1", 1 1⁄4", 2 1⁄2", 1 1⁄2", and 3" pipe

•

• 3" maximum pipe size while bending to 90°

• Schedule 40 wall thickness

Figure 36. Hydraulic tube bender.

Figure 35. 4" x 79" silicon-carbide abrasive

belts.

-28-

Model G0767 (Mfd. Since 1/14)

SECTION 6: MAINTENANCE

accidental startup, always
disconnect machine from

Lubrication

To reduce risk of shock or

Vise Guide Rods

power before adjustments,
maintenance, or service.

The tube vise moves side-to-side and from front­to-back on four guide rods (see Figure 37).

Schedule

For optimum performance from your machine,
follow this maintenance schedule and refer to any
specific instructions given in this section.

Daily Maintenance

• Check/tighten mounting bolts.

• Check/replace worn/damaged abrasive belt.

• Empty spark trap.

• Vacuum debris from floor around machine.

• Check/repair worn or damaged wires.

• Check/resolve any other unsafe issues.

Weekly Maintenance

• Clean machine.

• Clean and protect front profile rollers.

• Clean and lubricate vise guide rods and lead­screws.

Cleaning

Use a shop vacuum to remove debris from the
outside of the machine, especially from the mov­ing parts of the belt tension lever and vise. Open
the belt and deburring station covers, remove the
abrasive belt, and vacuum all debris from inside
machine, rollers, and deburring platen.

Guide Rod

Guide Rods

Figure 37. Locations of vise guide rods.

Move the vise as necessary to access the full
length of the guide rods and clean any debris from
their surfaces with shop rags and mineral spirits.
When dry, wipe with a clean shop rag damp with
light machine oil.

Leadscrews

The vise has two leadscrews (see Figure 38).
Move the vise as necessary through the full length
of the leadscrews and clean any debris from the
threads with a stiff brush and mineral spirits.
When dry, apply a thin coat of light machine oil
and work the lubricant into the threads with a
clean, stiff brush. Wipe away any excess oil. Move
the vise through the full length of each leadscrew
to distribute the oil.

Metal debris from flying sparks left on the floor
presents a slipping hazard. Vacuum the area
around the machine on a daily basis.

Wipe the profile rollers clean with shop rags and
mineral spirits. When dry, apply a light coat of rust
preventative.

Model G0767 (Mfd. Since 1/14)

Leadscrews

Figure 38. Locations of vise leadscrews.

-29-

Review the troubleshooting and procedures in this section if a problem develops with your machine. If

Please

gather the serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

you need replacement parts or additional help with a procedure, call our Technical Support. Note:

Troubleshooting

Symptom Possible Cause Possible Solution

Machine does not
start or a breaker
trips.

Machine stalls or is
overloaded.

Loud repetitious
noise coming from
machine.

Abrasive belt stops
rotating under load.

Abrasive belt tracks
to one side under
load.

Abrasive belt
excessively worn in
one spot.

Tube has burn
marks at notch.

Notch not centered
on tube.

1. Emergency Stop button engaged/at fault.

2. Power supply switched OFF or at fault.

3. Motor connection wired incorrectly.

4. Thermal overload relay has tripped.

5. Power supply fuse/circuit breaker is blown/
tripped.

6. Contactor not getting energized or has
burnt contacts.

7. Wiring is open/has high resistance.

8. Motor at fault.

1. Feed rate too fast.

2. Motor connection wired incorrectly.

3. Motor bearings at fault.

4. Machine undersized for task.

5. Contactor not getting energized/has burnt
contacts.

6. Motor has overheated.

7. Motor at fault.

1. Motor mounting loose.

2. Motor fan hitting cover.

3. Abrasive belt torn.

1. Abrasive belt not properly tensioned.

2. Feed rate too fast.

1. Abrasive belt tracking not properly set.

2. Abrasive belt not properly tensioned.

1. Tube not moved across face of abrasive
belt during operation.

1. Abrasive belt worn/not correct grit for task.

2. Feed rate too fast.

1. Profile roller not even with center of tube. 1. Adjust profile roller height (Page 31).

1. Rotate clockwise until it pops out/replace.

2. Ensure power supply is switched ON; ensure power
supply has correct voltage.

3. Correct motor wiring connections (Page 34).

4. Disconnect machine from power, turn amperage
dial on thermal overload relay to a higher setting.

5. Ensure power supply circuit size is adequate for this
machine (Page 10); replace weak breaker.

6. Test for power on all legs and contactor operation.
Replace if faulty.

7. Check for broken wires or disconnected/corroded
connection, and repair/replace as necessary.

8. Test/repair/replace.

1. Reduce feed rate.

2. Correct motor wiring connections (Page 34).

3. Test by rotating motor shaft; rotational grinding/
loose shaft requires bearing replacement.

4. Use new abrasive belt with appropriate grit; reduce
feed rate.

5. Test for power on all legs and contactor operation.
Replace if faulty.

6. Clean off motor, let cool, and reduce workload.

7. Test/repair/replace.

1. Retighten motor mount fasteners.

2. Repair/replace motor fan; remove any dents in
cover.

3. Replace abrasive belt (Page 21).

1. Properly tension abrasive belt (Page 21).

2. Reduce feed rate.

1. Properly set abrasive belt tracking (Page 23).

2. Properly tension abrasive belt (Page 21).

1. Use traverse crank to evenly move tube across face
of abrasive belt during operation.

1. Use new abrasive belt with appropriate grit.

2. Reduce feed rate.

-30-

Model G0767 (Mfd. Since 1/14)

Adjusting Profile

Tool Needed Qty

Hex Wrench 8mm .............................................. 1

Roller Height

To produce an accurate notch, the center of the
profile roller must be even with the center of the
tube when mounted in the vise (see Figure 39).

Roller Support

Bracket

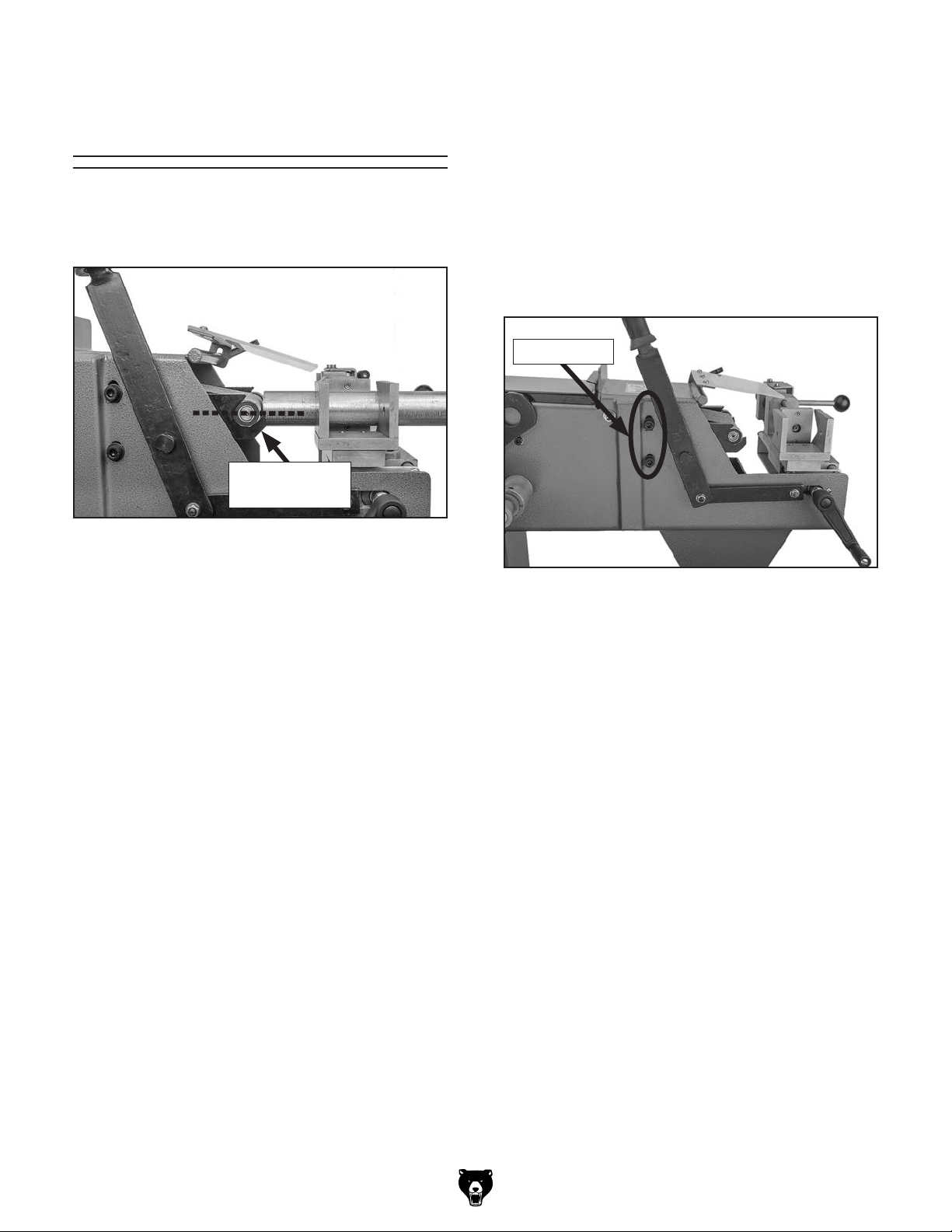

Figure 39. Profile roller and tube even with each

other.

The correct height of the profile roller depends on
the height of the roller support bracket. This was
set properly at the factory. However, if you deter­mine that the center of the profile roller is not even
with the center of the tube when mounted in the
vise, perform the following procedure to adjust it.

To adjust roller support bracket height:

1. DISCONNECT MACHINE FROM POWER!

2. Properly mount a tube in vise.

3. Loosen the two roller support bracket cap

screws shown in Figure 40.

Cap Screws

Figure 40. Location of roller support bracket cap

screws.

4. Move profile roller up or down to center pro­file roller with center of tube.

5. Retighten the two cap screws loosened in
Step 3.

Model G0767 (Mfd. Since 1/14)

-31-

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

-32-

Model G0767 (Mfd. Since 1/14)

Motor

Junction

Box

G0767 Wiring

Electrical Box

(Contactor and Overload

Relay Inside)

Figure 41. Wiring overview showing component locations.

Control Panel

Figure 42. Control panel (viewed from behind)

and electrical box pulled out and opened.

Model G0767 (Mfd. Since 1/14)

Figure 43. Motor junction box.

READ ELECTRICAL SAFETY

ON PAGE 32!

-33-

Wiring Diagram

L2

N1

L1

N2

GND

1 1

2

NC

2 4 3

1

3

IDEC

YW-E-01

NO

3

IDEC

YW-E-10

MOTOR ONMOTOR OFF

2

NC

IDEC

1

L1

2

YW-E-01

EMERGENCY STOP

Control Panel (Viewed From Behind)

L2

1L1 3L2 5L3

L3

4T2 6T3

2T1

4T2

2T1

6T3

Shihlin

Set to 18

TRIP

N3

3

14NO

3

N2

TH-P20E

24

RCA

21

17

RESET

96

3

NC

95

S-P21

Shihlin

22NC

21NC

1L1 5L3 13NO 3L2

L1

A2 A1

N1

N1

4

2

Ground

Hot

Hot

4

Overload Relay and Contactor (Inside Electrical Box)

G

X

Y

220 VAC

L6-30 PLUG

(as recommended)

250MF

250VAC

Start Capacitor

V2

W2

U1

U2

L2

N2

V1U1

V1

W1

35MF

450VAC

Run Capacitor

Motor Junction Box

V2U2W2Z2

Z1W1

GND

N2

L2

-34-

READ ELECTRICAL SAFETY

ON PAGE 32!

Model G0767 (Mfd. Since 1/14)

SECTION 9: PARTS

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.

Body

14

13

12

15

20

16

5

8

7

4

3

2

22

1

24

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 P0767001 CAP SCREW M5-.8 X 12 15 P0767015 RISER
2 P0767002 BELT COVER, SIDE 16 P0767016 ELECTRICAL CABINET
3 P0767003 HEX NUT M5-.8 17 P0767017 ELECTRICAL MOUNTING BOARD
4 P0767004 BELT COVER LATCH 18 P0767018 PHLP HD SCR M4-.7 X 6
5 P0767005 SPARK TRAP 19 P0767019 BASE
6 P0767006 CAP SCREW M8-1.25 X 12 20 P0767020 BODY
7 P0767007 PHLP HD SCR M5-.8 X 8 21 P0767021 PROFILE ROLLER STORAGE RACK
8 P0767008 RISER FRONT PLATE 22 P0767022 COVER LATCH
9 P0767009 HEX BOLT M8-1.25 X 20 23 P0767023 PHLP HD SCR M3-.5 X 5
10 P0767010 LOCK WASHER 8MM 24 P0767024 STORAGE RACK COVER
11 P0767011 FLAT WASHER 8MM 25 P0767025 SHOULDER M5-.8 X 8, 6 X 16MM
12 P0767012 PHLP HD SCR M6-1 X 10 26 P0767026 HEX NUT M6-1
13 P0767013 CAP SCREW M12-1.75 X 35 27 P0767027 CAP SCREW M8-1.25 X 20
14 P0767014 FLAT WASHER 12MM 28 P0767028 FLAT WASHER 8MM

23

6

23

25

22

26

9

27

10

21

28

11

19

17

18

Model G0767 (Mfd. Since 1/14)

-35-

Main

164-4

118

117

101

119

115

102

103

114

124
125

120

122

121

116

104

126

106

105

20

140

139

128

129

123

107

127

137

130

113

108

131

112

132

110

109

141

136

142

138

143

133

111

134

154

151

149

146

145

161

144

160

135

153

150

147

152

148

158

159

155

162

164-1

164-2

164-7

156

163

164-5

164-9

164-8

164

171

174

172

173

164-3

164-6

164-10

167

168

166

165

169

170

-36-

184

175

178

182

181

183

180

179

183

Model G0767 (Mfd. Since 1/14)

Main

REF PART # DESCRIPTION REF PART # DESCRIPTION

20 P0767020 BODY 146 P0767146 SPRING RETAINER
101 P0767101 CRANK 5"L W/HANDLE 147 P0767147 COMPRESSION SPRING 1.4 X 20 X 35
102 P0767102 SET SCREW M6-1 X 8 CONE-PT 148 P0767148 SPRING BASE
103 P0767103 SPANNER NUT M12-1.25 149 P0767149 FLAT WASHER 16MM
104 P0767104 CAP SCREW M8-1.25 X 25 150 P0767150 HEX NUT M16-2
105 P0767105 FLAT WASHER 8MM 151 P0767151 CAP SCREW M10-1.5 X 20
106 P0767106 STUD-DE M8-1.25 X 37, 9 152 P0767152 FENDER WASHER 10MM
107 P0767107 SPACER 153 P0767153 FLAT WASHER 10MM
108 P0767108 CAP SCREW M12-1.75 X 35 154 P0767154 CAP SCREW M10-1.5 X 20
109 P0767109 FLAT WASHER 12MM 155 P0767155 MOTOR MOUNT
110 P0767110 CAP SCREW M8-1.25 X 100 156 P0767156 BUSHING, COPPER
111 P0767111 FLAT WASHER 8MM 158 P0767158 HEX NUT M10-1.5
112 P0767112 STEP BOLT M8-1.25 X 12 159 P0767159 PIVOT SHAFT W/FLANGE
113 P0767113 CONNECTING BAR 160 P0767160 LIFTING BAR RETAINER
114 P0767114 FLAT WASHER 8MM 161 P0767161 LIFTING BAR
115 P0767115 HEX NUT M8-1.25 162 P0767162 SPACER
116 P0767116 ADJUSTABLE HANDLE M8-1.25 X 20 163 P0767163 BELT COVER, TOP
117 P0767117 HEX NUT M5-.8 164 P0767164 MOTOR 3HP 220V 1-PH
118 P0767118 EYE SHIELD BRACKET 164-1 P0767164-1 MOTOR FAN COVER
119 P0767119 EYE SHIELD PLASTIC 164-2 P0767164-2 MOTOR FAN
120 P0767120 PHLP HD SCR M5-.8 X 8 164-3 P0767164-3 MOTOR JUNCTION BOX
121 P0767121 HEX NUT M10-1.5 164-4 P0767164-4 CAPACITOR COVER
122 P0767122 FLAT WASHER 10MM 164-5 P0767164-5 S CAPACITOR 250M 250V
123 P0767123 LEVER W/GRIP 164-6 P0767164-6 R CAPACITOR 30M 450V
124 P0767124 CAP SCREW M8-1.25 X 14 164-7 P0767164-7 CONTACT PLATE
125 P0767125 FENDER WASHER 8MM 164-8 P0767164-8 CENTRIFUGAL SWITCH
126 P0767126 ACORN NUT M8-1.25 164-9 P0767164-9 BALL BEARING 6205ZZ
127 P0767127 ACORN NUT M10-1.5 164-10 P0767164-10 BALL BEARING 6205ZZ
128 P0767128 CONNECTING PLATE (LS) 165 P0767165 FLAT WASHER 10MM
129 P0767129 SUPPORT SLEEVE 166 P0767166 LOCK WASHER 10MM
130 P0767130 CONNECTING PLATE (RS) 167 P0767167 HEX BOLT M10-1.5 X 40
131 P0767131 SPACER 168 P0767168 KEY 8 X 8 X 40
132 P0767132 PIVOT SHAFT 169 P0767169 DRIVE PULLEY
133 P0767133 DOWEL PIN 6 X 16 170 P0767170 SANDING BELT 4" X 79" 80-GRIT
134 P0767134 FENDER WASHER 12MM 171 P0767171 FENDER WASHER 12MM
135 P0767135 CAP SCREW M12-1.75 X 30 172 P0767172 LOCK WASHER 12MM
136 P0767136 ROLL PIN 6 X 50 173 P0767173 CAP SCREW M12-1.75 X 50
137 P0767137 RATCHET SLEEVE 174 P0767174 CAP SCREW M12-1.75 X 30
138 P0767138 BACKING PIN 175 P0767175 CONTACT ROLLER BRACKET
139 P0767139 COMPRESSION SPRING 0.9 X 7 X 15 178 P0767178 CONTACT ROLLER 1" DIA W/BEARINGS
140 P0767140 PAWL 179 P0767179 HEX NUT M8-1.25
141 P0767141 HANDLE 180 P0767180 FLAT WASHER 8MM
142 P0767142 HANDLE GRIP 181 P0767181 COMPRESSION SPRING 1 X 12 X 19
143 P0767143 DOWEL PIN 5 X 20 182 P0767182 CAP SCREW M8-1.25 X 100
144 P0767144 RATCHET SHAFT 183 P0767183 BALL BEARING 6002-RZ
145 P0767145 HEX NUT M16-2 184 P0767184 POWER CORD 12G 3W 72"

Model G0767 (Mfd. Since 1/14)

-37-

Pipe Vise Assembly & Accessories

216

215

223

220

217

219

218

222

225

224

221

226

231

234

227

229

230

228

232

230
233

236

237

235

250

244

238
239

240

242

241

245

244

247

246

248

243

264

201

202

211

210

203

206

204

214

207

212

213

205

208

204

209

202

207

206

265

249

260

261

262

258

259

251

252

253

254

255

256

257

263

-38-

Model G0767 (Mfd. Since 1/14)

Pipe Vise Assembly & Accessories

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 P0767201 CAP SCREW M8-1.25 X 20 234 P0767234 PRESSURE BRACKET (LS)
202 P0767202 BUSHING 235 P0767235 MOVABLE BLOCK
203 P0767203 Y-AXIS SLIDE ROD 236 P0767236 LEVER M8-1.25 X 20 W/KNOB
204 P0767204 BUSHING, COPPER 237 P0767237 SET SCREW M3-.5 X 10 CONE-PT

205 P0767205 SLIDE BAR BRACKET 238 P0767238 CAP SCREW M6-1 X 16
206 P0767206 HEX BOLT M8-1.25 X 20 239 P0767239 FLAT WASHER 6MM
207 P0767207 FLAT WASHER 8MM 240 P0767240 BUSHING
208 P0767208 PIPE CLAMP BASE 241 P0767241 PRESSURE BRACKET (RS)
209 P0767209 PHLP HD SCR M6-1 X 12 242 P0767242 FLAT WASHER 6MM
210 P0767210 FLAT WASHER 14MM 243 P0767243 HEX NUT M8-1.25
211 P0767211 LEADSCREW END CAP 244 P0767244 THRUST BEARING 51101
212 P0767212 SLIDER SHAFT 245 P0767245 STATIONARY BLOCK
213 P0767213 LONGITUDINAL LEADSCREW NUT 246 P0767246 SPANNER NUT M12-1.25
214 P0767214 LONGITUDINAL LEADSCREW 247 P0767247 CRANK 4"L W/HANDLE
215 P0767215 FLAT WASHER 14MM 248 P0767248 ROLL PIN 3 X 22
216 P0767216 X-AXIS SLIDE ROD 249 P0767249 HEX WRENCH 8MM
217 P0767217 GUIDE BAR BUSHING, COPPER 250 P0767250 CONTACT ROLLER 3/4" DIA W/BEARINGS
218 P0767218 CAP SCREW M8-1.25 X 40 251 P0767251 CONTACT ROLLER 1-1/4" DIA W/BEARINGS
219 P0767219 FLAT WASHER 8MM 252 P0767252 CONTACT ROLLER 1-1/2" DIA W/BEARINGS
220 P0767220 CAP SCREW M8-1.25 X 20 253 P0767253 CONTACT ROLLER 2" DIA W/BEARINGS
221 P0767221 CAP SCREW M8-1.25 X 30 254 P0767254 CONTACT ROLLER 2-1/5" DIA W/BEARINGS
222 P0767222 ROTARY TABLE 255 P0767255 CONTACT ROLLER 3" DIA W/BEARINGS
223 P0767223 PIPE JAW 256 P0767256 SCREWDRIVER PHILLIPS #2
224 P0767224 CAP SCREW M10-1.5 X 30 257 P0767257 SPANNER WRENCH 22-26MM
225 P0767225 PIPE CLAMP PLATE 258 P0767258 TOOLBOX
226 P0767226 PIPE CLAMP LEADSCREW NUT 259 P0767259 HEX WRENCH 6MM
227 P0767227 INT/EXT THREADED ROD 260 P0767260 HEX WRENCH 5MM
228 P0767228 PIPE CLAMP LEADSCREW 261 P0767261 HEX WRENCH 4MM
229 P0767229 CAP SCREW M6-1 X 16 262 P0767262 HEX WRENCH 3MM
230 P0767230 FLAT WASHER 6MM 263 P0767263 WRENCH 13 X 16MM OPEN-ENDS
231 P0767231 BUSHING 264 P0767264 FLAT WASHER 8MM
232 P0767232 CAP SCREW M6-1 X 20 265 P0767265 HEX WRENCH 2.5MM
233 P0767233 BUSHING

Model G0767 (Mfd. Since 1/14)

-39-

Electrical Box

304

301

TH-20E

96

95

1

NC

IDEC

YW-E-01

2T1

1L1 3L2 5L3

4T2 6T3

RCA

24

17

RESET

2

21

TRIP

Shihlin

Set to 18

305

302

MOTOR ONMOTOR OFF

3

NO

3

IDEC

YW-E-10

2T1

4T2

6T3

14NO

4

Shihlin

22NC

S-P21KM

1

EMERGENCY STOP

1L1 5L3 13NO 3L2

21NC

306

NC

IDEC

YW-E-01

303

2

A1

A2

REF PART # DESCRIPTION REF PART # DESCRIPTION

301 P0767301 OFF BUTTON IDEC YW-E-01 22MM RED 304 P0767304 TERMINAL BAR 2P

302 P0767302 ON BUTTON IDEC YW-E-10 22MM GRN 305 P0767305 OL RELAY SHIHLIN TH-20E 17-21A

303 P0767303 E-STOP BUTTON IDEC YW-E-01 22MM 306 P0767306 CONTACTOR SHIHLIN S-P21 220V

-40-

Model G0767 (Mfd. Since 1/14)

401

REF PART # DESCRIPTION REF PART # DESCRIPTION

401 P0767401 MACHINE ID LABEL 405 P0767405 GRIZZLY GREEN TOUCH-UP PAINT
402 P0767402 ABRASION HAZARD LABEL 406 P0767406 GRIZZLY NAMEPLATE-SMALL
403 P0767403 COMBO WARNING LABEL 407 P0767407 GRIZZLY.COM LABEL P-7527C
404 P0767404 MODEL NUMBER LABEL P-7527C 408 P0767408 ELECTRICITY LABEL

Labels (Front)

403

402

408

404

405

406

407

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

Model G0767 (Mfd. Since 1/14)

-41-

Labels (Rear)

402

408

409

410

REF PART # DESCRIPTION REF PART # DESCRIPTION

402 P0767402 ABRASION HAZARD LABEL 409 P0767409 DISCONNECT POWER WARNING LABEL

408 P0767408 ELECTRICITY LABEL 410 P0767410 BELT TENSION DIRECTION LABEL

-42-

Model G0767 (Mfd. Since 1/14)

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.

1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics

3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group?
____ 20-29 ____30-39 ____ 40-49
____ 50-59 ____60-69 ____ 70+

5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years

6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____10+

____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood

____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:

7. Do you think your machine represents a good value? _____Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____Yes _____No

10. Comments: _____________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

FOLD ALONG DOTTED LINE

FOLD ALONG DOTTED LINE

Place

Stamp

Here

GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069

Send a Grizzly Catalog to a friend:

Name_______________________________

Street_______________________________

City______________State______Zip______

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.
