Grizzly G0765 User Manual

Download

MODEL G0765

7" X 14" BENCHTOP LATHE

OWNER'S MANUAL

(For models manufactured since 12/13)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#BLTSDM16229 PRINTED IN CHINA

V1.3.14

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 3

Machine Description ...................................... 3

Contact Info.................................................... 3

Manual Accuracy ........................................... 3

Identification ................................................... 4

Controls & Components ................................. 5

Control Panel .............................................................. 5

Carriage ....................................................................... 5

Tailstock ......................................................................6

Rear Controls ..............................................................6

End Gears ...................................................................6

G0765 Data Sheet ......................................... 7

SECTION 1: SAFETY ..................................... 10

Safety Instructions for Machinery ................ 10

Additional Safety for Metal Lathes ............... 12

Additional Chuck Safety ............................... 13

SECTION 2: POWER SUPPLY ...................... 14

Availability .................................................................14

Full-Load Current Rating ...........................................14

110V Circuit Requirements .......................................14

Grounding & Plug Requirements ..............................15

Extension Cords ........................................................15

SECTION 3: SETUP ....................................... 16

Preparation .................................................. 16

Unpacking .................................................... 16

Needed for Setup ......................................... 16

Inventory ...................................................... 17

Cleanup ........................................................ 18

Site Considerations ...................................... 19

Lifting & Placing ........................................... 20

Assembly ..................................................... 20

Power Connection........................................ 20

Connecting Power .....................................................20

Disconnecting Power ................................................20

Test Run ...................................................... 21

Spindle Break-In .......................................... 23

Recommended Adjustments ........................ 23

Using Quill .................................................................30

Installing Tooling .......................................................31

Removing Tooling .....................................................31

Offsetting Tailstock ....................................................31

Aligning Tailstock to Spindle Centerline ....................32

Centers ........................................................ 34

Dead Centers ............................................................34

Mounting Dead Center in Spindle .............................34

Removing Center from Spindle .................................34

Mounting Center in Tailstock ....................................35

Removing Center from Tailstock ...............................35

Mounting Workpiece Between Centers .....................35

Steady Rest ................................................. 36

Compound Rest ........................................... 37

Four-Way Tool Post ..................................... 37

Installing Tool ............................................................37

Aligning Cutting Tool with Spindle Centerline ...........38

Manual Feed ................................................ 39

Carriage Handwheel .................................................39

Spindle Speed.............................................. 39

Determining Spindle Speed ......................................39

Setting Spindle Speed Range ...................................40

Setting Spindle Direction & Speed ............................40

Configuration Example ..............................................40

Power Feed.................................................. 41

Power Feed Controls ................................................41

Setting Power Feed Rate ..........................................42

End Gears .................................................... 43

Power Feed Configuration ........................................43

Primary Threading Configuration ..............................43

Secondary Threading Configuration .........................43

End Gear Configuration Example .............................44

Threading ..................................................... 46

Headstock Threading Controls ..................................46

Apron Threading Controls .........................................47

Thread Dial ................................................................47

Thread Dial Chart ......................................................47

SECTION 5: ACCESSORIES ......................... 49

SECTION 4: OPERATIONS ........................... 24

Operation Overview ..................................... 24

Chuck & Faceplate Mounting....................... 25

Installation & Removal Device ..................... 25

Chuck Installation......................................... 26

Scroll Chuck Clamping ................................ 27

Changing Jaw Set ........................................ 27

Faceplate ..................................................... 29

Tailstock ....................................................... 30

Tailstock Quill Specs .................................................30

Positioning Tailstock .................................................30

SECTION 6: MAINTENANCE ......................... 50

Schedule ...................................................... 50

Ongoing .....................................................................50

Daily, Before Operations ...........................................50

Daily, After Operations ..............................................50

Annually .....................................................................50

Cleaning/Protecting ...................................... 50

Lubrication ................................................... 51

Lubrication Frequency ...............................................51

Ball Oilers ..................................................................51

Leadscrew & Carriage Rack .....................................52

Bedways ....................................................................52

Cross Slide & Compound Slide .................................52

Change Gear Bushing ...............................................53

Tumbler Gears ..........................................................53

Machine Storage .......................................... 53

Preparing Lathe for Storage ......................................53

Bringing Lathe Out of Storage ..................................53

SECTION 7: SERVICE ................................... 54

Troubleshooting ........................................... 54

Lathe Operation ........................................................55

Backlash Adjustment ................................... 56

Cross Slide ................................................................56

Leadscrew End-Play Adjustment ................. 56

Gib Adjustment ............................................ 57

Half Nut Adjustment ..................................... 58

Fuse Replacement ....................................... 58

Brush Replacement ..................................... 59

Timing Belt Tension & Replacement ........... 60

Tensioning Timing Belt ..............................................60

Replacing Timing Belt ...............................................61

SECTION 8: WIRING ...................................... 62

Wiring Safety Instructions ............................ 62

Control Panel Wiring ................................. 63

Control Panel Wiring Photos........................ 64

Motor/Speed Sensor/ Plug Wiring ............... 65

SECTION 9: PARTS ....................................... 66

Main ............................................................. 66

Labels & Cosmetics (Front) ......................... 69

SECTION 10: APPENDIX ............................... 70

Threading Charts ......................................... 70

WARRANTY & RETURNS ............................. 73

INTRODUCTION

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs contained inside. Sometimes we make mistakes, but

also

means that

you receive will be slightly different than what is shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused about a procedure for an updated version. W

manuals

and

www.grizzly.com

Alternatively, you can call our Technical Support for help. Before calling, please write down the

Manufacture Date

stamped into the machine ID label (see below). This information helps us determine if updated documentation is available for your machine.

We stand behind our machines. If you have any questions or need help, use the information below to contact us. Before contacting, please get the serial number and manufacture date of your machine. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Machine Description

The metal lathe is used to remove material from a workpiece that is mounted to the spindle and rotated over the bed. The cutting tool is mounted alongside the bed and moved against the spinning workpiece to cut it.

Typical metal lathe cutting operations include facing, turning, parting, drilling, reaming, grooving, knurling, and threading. There are a wide variety of tools and workpiece holding devices available for each of these operations.

The G0765 features an electronic variable-speed control and digital RPM display that make it possible to select speeds within the selected range while the machine is running.

Contact Info

Manual Accuracy

made every effort to be exact with the

our policy of continuous improvement

sometimes the machine

, check our website

e post current

manual updates for free on our website at

and Serial Number

Grizzly Technical Support

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: (570) 546-9663

Email: techsupport@grizzly.com

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Email: manuals@grizzly.com

Manufacture Date

Serial Number

Model G0765 (Mfd. Since 12/13)

-3-

Identification

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.

G H

Figure 1. Model G0765 identification.

A. On/Off Switch w/Emergency Stop Button B. Power Light C. High/Low Range Lever D. Feed Direction Lever E. 3-Jaw Chuck F. Steady Rest G. 4-Way Tool Post H. Backsplash I. Compound Rest J. MT#2 Dead Center K. Tailstock (see Page 6 for details) L. Bedway

Serious personal injury could occur if you connect the machine to power before completing the setup process. DO NOT connect power until instructed to do so later in this manual.

M. Compound Rest Handwheel N. Chip Pan O. Thread Dial P. Half Nut Lever Q. Cross Slide Handwheel R. Carriage Handwheel S. Leadscrew T. Spindle Direction Switch U. Fuse V. Variable Speed Dial W. End Cover

Untrained users have an increased risk of seriously injuring themselves with this machine. Do not operate this machine until you have understood this entire manual and received proper training.

-4-

Model G0765 (Mfd. Since 12/13)

Controls &

To reduce your risk of serious injury, read this entire manual BEFORE

Carriage

Components

using machine.

Refer to Figures 2–6 and the following descriptions to become familiar with the basic controls of this lathe.

Control Panel

Figure 3. Carriage controls.

G. 4-Way Tool Post: Holds up to four cutting

tools at once that can be individually indexed to the workpiece.

H. Compound Rest Handwheel: Moves the

tool toward and away from the workpiece at the preset angle of the compound rest.

A. On/Off Switch w/Emergency Stop Button:

When pressed, cuts power to motor and control panel. To reset, press in side tab, lift switch cover, and press On button.

B. Spindle Speed RPM Display: Shows a digi-

tal readout of the spindle speed.

C. Power Light: Illuminates when machine is

connected to power source, Emergency Stop Button is reset, and On button is pressed.

D. Spindle Switch: Starts, stops, and reverses

spindle rotation.

E. Fuse: Protects control panel in case of an

electrical overload.

Figure 2. Control panel.

I. Thread Dial: Indicates when to engage the

half nut during threading operations.

J. Half Nut Lever: Engages/disengages half

nut for power feed and threading operations.

K. Cross Slide Handwheel: Moves the cross

slide toward and away from the workpiece.

L. Carriage Handwheel: Moves the carriage

along the bedway.

F. Variable Speed Dial: Controls the variable

speed of the spindle.

Model G0765 (Mfd. Since 12/13)

-5-

Tailstock Rear Controls

Figure 4. Tailstock controls.

M. Tailstock Quill: Moves a tool or center

mounted in the tailstock toward or away from the workpiece.

N. Tailstock Quill Lock Lever: Secures the

quill position.

O. Tailstock Lock Lever: Secures tailstock in

position along the bedway.

P. Graduated Scale: Indicates quill movement

in increments of 0.001", with one full revolution equaling 0.04" of quill travel.

Q. Quill Handwheel: Moves quill toward or

away from spindle.

R. Offset Scale: Indicates relative distance of

tailstock offset from spindle centerline.

Figure 5. Rear controls.

T. High/Low Range Lever: Sets the spindle

speed range to LOW (100–1000 RPM) or HIGH (100–2000 RPM). Do NOT shift while lathe is running or damage to machine may occur!

U. Feed Direction Lever: Used to select

leadscrew rotation direction. Up is for clockwise rotation and leftward carriage movement. Center is neutral. Down is for counterclockwise leadscrew rotation and rightward carriage movement.

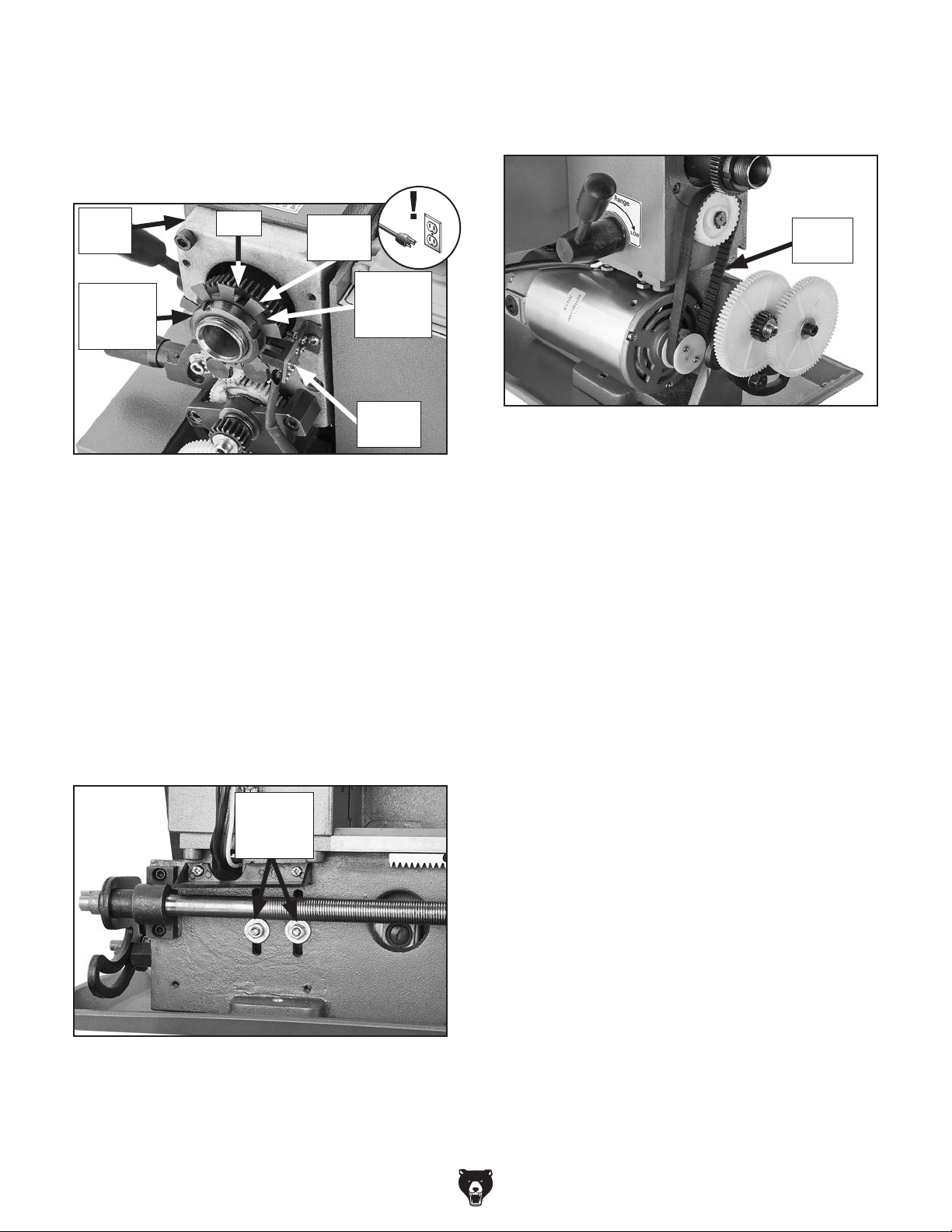

End Gears

S. Tailstock Offset Screws: Adjusts tailstock

offset left or right from spindle centerline (1 of

2).

-6-

End

Gears

Figure 6. End gear components.

Configuring the end gears (shown in Figure

6) controls the speed of the leadscrew for threading or power feed operations.

Model G0765 (Mfd. Since 12/13)

MACHINE DATA

SHEET

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0765 7" X 14" VARIABLE SPEED BENCHTOP

LATHE

Product Dimensions:

Weight................................................................................................................................................................ 88 lbs.

Width (side-to-side) x Depth (front-to-back) x Height............................................................................. 30 x 9 x 10 in.

Footprint (Length x Width)................................................................................................................. 29-3/4 x 8-1/2 in.

Shipping Dimensions:

Type............................................................................................................................................................. Cardboard

Content........................................................................................................................................................... Machine

Weight.............................................................................................................................................................. 100 lbs.

Length x Width x Height....................................................................................................................... 32 x 13 x 13 in.

Must Ship Upright................................................................................................................................................... Yes

Electrical:

Power Requirement........................................................................................................... 110V, Single-Phase, 60 Hz

Full-Load Current Rating........................................................................................................................................ 10A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length................................................................................................................................................. 6 ft.

Power Cord Gauge......................................................................................................................................... 14 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type.................................................................................................................................... NEMA 5-15

Switch Type........................................................................................... ON/OFF Push Button Switch w/Safety Cover

Motors:

Main

Type................................................................................................................................. Universal Brush Type

Horsepower............................................................................................................................................. 3/4 HP

Phase............................................................................................................................................ Single-Phase

Amps............................................................................................................................................................ 10A

Speed................................................................................................................................................ 5000 RPM

Power Transfer .................................................................................................................................. Belt Drive

Bearings........................................................................................................... Shielded & Permanently Sealed

Main Specifications:

Operation Info

Swing Over Bed........................................................................................................................................... 7 in.

Distance Between Centers.................................................................................................................. 13-3/4 in.

Swing Over Cross Slide......................................................................................................................... 2-1/8 in.

Swing Over Saddle...................................................................................................................................... 5 in.

Maximum Tool Bit Size........................................................................................................................... 5/16 in.

Compound Travel.................................................................................................................................. 2-3/4 in.

Carriage Travel.................................................................................................................................... 12-1/2 in.

Cross Slide Travel................................................................................................................................. 2-3/4 in.

Model G0765 (Mfd. Since 12/13)

-7-

Headstock Info

Spindle Bore........................................................................................................................................... 0.78 in.

Spindle Size................................................................................................................................................. 3 in.

Spindle Taper............................................................................................................................................ MT#3

Number of Spindle Speeds................................................................................................................... Variable

Spindle Speeds....................................................................................................................... 100 – 2000 RPM

Spindle Type........................................................................................................................ Intrinsic Back Plate

Spindle Bearings...................................................................... Sealed & Permanently Lubricated Ball Bearing

Spindle Length....................................................................................................................................... 7-1/4 in.

Spindle Length with 3-Jaw Chuck......................................................................................................... 9-1/8 in.

Tailstock Info

Tailstock Quill Travel................................................................................................................................... 2 in.

Tailstock Taper.......................................................................................................................................... MT#2

Tailstock Barrel Diameter..................................................................................................................... 0.870 in.

Threading Info

Number of Longitudinal Feeds......................................................................................................................... 1

Range of Longitudinal Feeds........................................................................................................... 0.04 in./rev.

Number of Inch Threads................................................................................................................................. 18

Range of Inch Threads.................................................................................................................... 12 – 52 TPI

Number of Metric Threads.............................................................................................................................. 10

Range of Metric Threads.................................................................................................................. 0.4 – 2 mm

Dimensions

Bed Width.............................................................................................................................................. 3-1/4 in.

Carriage Leadscrew Diameter.................................................................................................................. 5/8 in.

Leadscrew TPI......................................................................................................................................... 16 TPI

Carriage Leadscrew Length................................................................................................................ 19-3/4 in.

Steady Rest Capacity.................................................................................................................................. 2 in.

Construction

Base..................................................................................................................................................... Cast Iron

Headstock............................................................................................................................................ Cast Iron

End Gears.......................................................................................... Machine-Cut Plastic (Polyoxymethylene)

Bed.......................................................................................................................... Precision-Ground Cast Iron

Body..................................................................................................................................................... Cast Iron

Paint......................................................................................................................................................... Epoxy

Other

Optional Stand......................................................................................................................................... D3640

Other Specifications:

Country Of Origin ............................................................................................................................................... China

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................ 45 Minutes

Serial Number Location .................................................................................................................................. ID Label

Sound Rating ..................................................................................................................................................... 76 dB

ISO 9001 Factory .................................................................................................................................................. Yes

CSA Certified .......................................................................................................................................................... No

-8-

Model G0765 (Mfd. Since 12/13)

Features:

16 TPI Reversible Leadscrew Chip Tray and Backsplash Guard Emergency Stop Forward and Reverse in All Speeds Inch/Metric Dials Threading Dial Indicator Variable Speed Quick-Locking Tailstock

Accessories Included:

3" Three-Jaw Chuck with Internal and External Jaws 6-1/4" Faceplate Steady Rest 4-Way Turret Tool Post Complete Set of Change Gears MT#2 and MT#3 Dead Centers Service Wrenches Bottle for Oil Extra Fuse

Model G0765 (Mfd. Since 12/13)

-9-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

-10 -

Model G0765 (Mfd. Since 12/13)

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to avoid accidental slips, which could cause loss of workpiece control.

HAZARDOUS DUST. Dust created while using machinery may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material, and always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

CHECK DAMAGED PARTS. Regularly inspect machine for any condition that may affect safe operation. Immediately repair or replace damaged or mis-adjusted parts before operating machine.

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly.

Model G0765 (Mfd. Since 12/13)

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

-11-

Additional Safety for Metal Lathes

Serious injury or death can occur from getting entangled in, crushed between, or struck by rotating parts on a lathe! Unsecured tools or workpieces attached to rotating objects can also strike nearby operators with deadly force. To minimize the risk of getting hurt or killed, anyone operating this machine MUST completely heed the hazards and warnings below.

CLOTHING, JEWELRY & LONG HAIR. Tie back

long hair, remove jewelry, and do not wear loose clothing or gloves. These can easily get caught on rotating parts and pull you into lathe.

ROTAT ING PARTS. Always keep hands and body at a safe distance from rotating parts—especially those with projecting surfaces. Never hold anything against rotating workpiece, such as emery cloth, that can pull you into lathe.

GUARDING. Guards and covers protect against entanglement or flying objects. Always ensure they are properly installed while machine is running.

ADJUSTMENT TOOLS. Remove all chuck keys, wrenches, and adjustment tools before turning lathe ON. A tool left on the lathe can become a deadly projectile when spindle is started.

SAFE CLEARANCES. Before starting spindle, verify workpiece has adequate clearance by handrotating it through its entire range of motion.

NEW SETUPS. Test each new setup by starting spindle rotation at the lowest speed and standing to the side of the lathe until workpiece reaches full speed and you can verify safe rotation.

SPINDLE SPEEDS. Using spindle speeds that are too fast for the workpiece or clamping equipment can cause rotating parts to come loose and strike nearby people with deadly force. Always use slow spindle speeds with large or non-concentric workpieces. Never exceed rated RPM of the chuck.

CHUCKS. Chucks can be heavy and difficult to hold. During installation and removal, protect your hands and precision bed ways by using a chuck cradle or piece of plywood over the bed ways. Use lifting equipment, as necessary, for large chucks.

LONG STOCK SAFETY. Long stock can whip violently if not properly supported. Always support any stock that extends from the chuck/headstock more than three times its own diameter.

CLEARING CHIPS. Metal chips can be razor sharp. Avoid clearing them by hand or with a rag. Use a brush or vacuum instead.

SECURE WORKPIECE. An improperly secured workpiece can fly off spindle with deadly force. Make sure workpiece is properly secured before starting the lathe.

STOPPING SPINDLE. Always allow spindle to completely stop on its own, or use a brake, if provided. Never put hands or another object on a spinning workpiece to make it stop faster.

CRASHING. A serious explosion of metal parts can occur if cutting tool or other lathe component hits rotating chuck or a projecting part of workpiece. Resulting metal fragments can strike nearby people and lathe will be seriously damaged. To reduce risk of crashing, ALWAYS release automatic feeds after use, NEVER leave lathe unattended, and CHECK all clearances before starting lathe.

TOOL SELECTION. Cutting with incorrect or dull tooling increases risk of injury from broken or dislodged components, or as a result of extra force required for operation. Always use sharp tooling that is right for the job.

SANDING/POLISHING. To reduce risk of entanglement, never wrap emery cloth around rotating workpiece. Instead, use emery cloth with the aid of a tool or backing board.

MEASURING WORKPIECE. To reduce risk of entanglement, never measure rotating workpieces.

-12-

Model G0765 (Mfd. Since 12/13)

Additional Chuck Safety

ENTANGLEMENT. Entanglement with a rotat-

ing chuck can lead to death, amputation, broken bones, or other serious injury. Never attempt to slow or stop the lathe chuck by hand, and always roll up long sleeves, tie back long hair, and remove any jewelry or loose apparel BEFORE operating.

CHUCK SPEED RATING. Excessive spindle speeds greatly increase the risk of the workpiece or chuck being thrown from the machine with deadly force. Never use spindle speeds faster than the chuck RPM rating or the safe limits of your workpiece.

USING CORRECT EQUIPMENT. Many workpieces can only be safely turned in a lathe if additional support equipment, such as a tailstock or steady/ follow rest, is used. If the operation is too hazardous to be completed with the lathe or existing equipment, the operator must have enough experience to know when to use a different machine or find a safer way.

TRAINED OPERATORS ONLY. Using a chuck incorrectly can result in workpieces coming loose at high speeds and striking the operator or bystanders with deadly force. To reduce the risk of this hazard, read and understand this document and seek additional training from an experienced chuck user before using a chuck.

CHUCK CAPACITY. Avoid exceeding the capacity of the chuck by clamping an oversized workpiece. If the workpiece is too large to safely clamp with the chuck, use a faceplate or a larger chuck if possible. Otherwise, the workpiece could be thrown from the lathe during operation, resulting in serious impact injury or death.

CLAMPING FORCE. Inadequate clamping force can lead to the workpiece being thrown from the chuck and striking the operator or bystanders. Maximum clamping force is achieved when the chuck is properly maintained and lubricated, all jaws are fully engaged with the workpiece, and the maximum chuck clamping diameter is not exceeded.

PROPER MAINTENANCE. All chucks must be properly maintained and lubricated to achieve maximum clamping force and withstand the rigors of centrifugal force. To reduce the risk of a thrown workpiece, follow all maintenance intervals and instructions in this document.

DISCONNECT POWER. Serious entanglement or impact injuries could occur if the lathe is started while you are adjusting, servicing, or installing the chuck. Always disconnect the lathe from power before performing these procedures.

Model G0765 (Mfd. Since 12/13)

-13-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrican or qualified service personnel in accordance with all applicable codes and standards.

Electrocution, fire, or equipment damage may occur if machine is not correctly grounded and connected to the power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the requirements in the following section.

For your own safety and protection of

Note: The circuit requirements listed in this man-

ual apply to a dedicated circuit—where only one machine will be running at a time. If this machine will be connected to a shared circuit where multiple machines will be running at the same time, consult a qualified electrician to ensure that the circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

Availability

Serious injury could occur if you connect the machine to power before completing the setup process. DO NOT connect to power until instructed later in this manual.

110V Circuit Requirements

Nominal Voltage .................... 110V, 115 V, 120V

Cycle .......................................................... 60 Hz

Phase ........................................... Single-Phase

Power Supply Circuit ......................... 15 Amps

supply.

Full-Load Current Rating

Full-Load Rating .......................................... 10A

-14-

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

Model G0765 (Mfd. Since 12/13)

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

We do not recommend using an extension cord with this machine. cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which may damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must contain a ground wire, match the required plug and receptacle, and meet the following requirements:

Grounding & Plug Requirements

it will not fit the outlet, have a qualified electrician install the proper outlet with a

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

This machine is equipped with a power cord that has an equipment-grounding wire and a grounding plug (similar to the figure below). The plug must only be inserted into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances.

GROUNDED

5-15 RECEPTACLE

Grounding Prong

5-15 PLUG

Extension Cords

If you must use an extension

Neutral Hot

Figure 7. Typical 5-15 plug and receptacle.

SHOCK HAZARD! Two-prong outlets do not meet the grounding requirements for this machine. Do not modify or use an adapter on the plug provided—if

verified ground.

Model G0765 (Mfd. Since 12/13)

Minimum Gauge Size ...........................14 AWG

Maximum Length (Shorter is Better).......50 ft.

-15-

SECTION 3: SETUP

Your machine was carefully packaged for safe transportation. Remove the packaging materials from around your machine and inspect it. If you discover any damage, please call us immediately

at (570) 546-9663

Save the containers and all packing materials for possible inspection by the carrier or its agent.

Otherwise, filing a freight claim can be difficult.

When you are completely satisfied with the condi tion of your shipment, inventory the contents.

Keep children and pets away from plastic bags or packing materials shipped with this

Preparation

The list below outlines the basic process of preparing your machine for operation. Specific steps are covered later in this section.

The typical preparation process is as follows:

SUFFOCATION HAZARD!

machine. Discard immediately.

1. Unpack lathe and inventory contents of box/ crate.

2. Clean lathe and its components.

3. Identify an acceptable location for lathe and

move it to that location.

4. Assemble loose components and make any necessary adjustments or inspections to ensure lathe is ready for operation.

5. Connect lathe to power source.

6. Test run lathe to ensure it functions properly.

7. Perform spindle break-in procedure to pre-

pare lathe for operation.

Unpacking

Needed for Setup

The following are needed to complete the setup process, but are not included with your machine.

Description Qty

• Additional People ....................................... 1

• Safety Glasses ............... 1 For Each Person

• Cleaner/Degreaser (Page 18) .... As Needed

• Quality Metal Protectant ............. As Needed

• Disposable Shop Rags ............... As Needed

for advice.

-16 -

Model G0765 (Mfd. Since 12/13)

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

— Change Gear (57-tooth) ................................ 1

— Change Gear (60-tooth) ......................... 1

— Change Gear (65-tooth) ......................... 1

— Change Gear (80-tooth, Installed) ......... 2

S. 6

⁄4" Faceplate ............................................. 1

Installed Components (Figure 8) Qty.

A. 3" Three-Jaw Chuck w/Internal Jaw Set .... 1

B. Steady Rest ................................................ 1

C. 4-Way Tool Post ......................................... 1

D. Compound Rest ......................................... 1

E. Ta ils t o ck ...................................................... 1

F. Chi p Tray .................................................... 1

G. Feet (not shown) ......................................... 4

Figure 9. Packaged components.

Figure 8. Installed components.

Packaged Components (Figures 9–11) Qty.

H. Hex Wrench Set (2.5, 3, 4, 5, 6mm) ......1 Ea

I. Wrench Set (6/7, 8/10, 13/16mm) ..........1 Ea

J. Bottle for Oil ............................................... 1

K. 3-Jaw Chuck External Jaw Set .................. 1

L. Dead Center MT#3 ..................................... 1

M. Dead Center MT#2 .................................... 1

N. Fuse ............................................................ 1

O. Cross Slide Handwheel Handle ................. 1

P. Carriage Handwheel Handle ...................... 1

Q. 3-Jaw Chuck Key ....................................... 1

R. Change Gear Set ....................................... 1

— Change Gear (20-tooth, Installed) ......... 1

— Change Gear (30-tooth) ......................... 1

— Change Gear (35-tooth) ......................... 1

— Change Gear (40-tooth) ......................... 2

— Change Gear (45-tooth) ......................... 1

— Change Gear (50-tooth) ......................... 1

— Change Gear (55-tooth) ......................... 1

Model G0765 (Mfd. Since 12/13)

Figure 10. Change gears.

Figure 11. Faceplate.

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

-17-

The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean.

Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.

There are many ways to remove this rust preventative, but the following steps work well in a wide variety of situations. Always follow the manufacturer’s instructions with any cleaning product you use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

metal protectant to prevent rust.

Many cleaning solvents

work in a well-ventilated

Avoid chlorine-based solvents, such as

Cleanup

Gasoline and petroleum products have low flash points and can explode or cause fire if used to clean machinery. Avo id using these products to clean machinery.

are toxic if inhaled. Only

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe off easily. If you have a plastic paint scraper, scrape off as much as you can first, then wipe off the rest with the rag.

area.

NOTICE

acetone or brake parts cleaner, that may damage painted surfaces.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from your machine during clean up.

Figure 12. T23692 Orange Power Degreaser.

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality

-18-

Model G0765 (Mfd. Since 12/13)

Site Considerations

Weight Load

Physical Environment

Place this machine near an existing power source.

Shadows, glare, or strobe effects that may distract

Refer to the Machine Data Sheet for the weight of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

See below for required space allocation.

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.

Electrical Installation

Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave access to a means of disconnecting the power source or engaging a lockout/tagout device, if required.

Lighting

Lighting around the machine must be adequate enough that operations can be performed safely.

or impede the operator must be eliminated.

Keep

Workpiece

Loading Area

Unobstructed

= Electrical Connection Illustration Not To Scale

Model G0765 (Mfd. Since 12/13)

301/2"

Lathe

121/2"

Figure 13. Minimum working clearances.

-19 -

Lifting & Placing

HEAVY LI F T! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk, get help from another person.

With the help of another person, lift the machine to a suitable location.

Power Connection

Before the machine can be connected to the power source, all previous setup instructions in this manual must be completed to ensure that the machine has been assembled and installed properly.

Connecting Power

Always make sure the spindle dial on the headstock is turned to "0" (rotated fully counterclockwise) before connecting power.

Insert the power cord plug into a matching power supply receptacle.

Assembly

With the exception of the handwheel handles, the lathe is shipped fully assembled.

Thread the handles into the cross slide handwheel and carriage handwheel, (see Figure 14).

Cross Slide

Handwheel

Carriage

Handle

Disconnecting Power

If you need to disconnect the machine from power for maintenance, service, or adjustments, turn the machine OFF and pull the plug completely out of the receptacle.

Figure 14. Handwheel handles installed.

-20-

Model G0765 (Mfd. Since 12/13)

Test Run

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components function properly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

setup instructions have been performed. Operating an improperly setup machine

Serious injury or death can result from

2. Shift high/low range lever on back of lathe to

LOW, and feed direction lever to neutral (see

Figure 16).

Troubleshooting

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

DO NOT start machine until all preceding

High/Low

Range Lever

Feed Direction Lever

UP (Clockwise Rotation)

CENTER (Neutral)

DOWN (CCW Rotation)

High/Low

Range Lever

Feed

Direction

Lever

may result in malfunction or unexpected results that can lead to serious injury, death, or machine/property damage.

To test run machine:

1. Set spindle direction switch to neutral ("0"

position), and turn variable speed dial all the way counterclockwise to "0".

Emergency

Stop Button

Variable Speed Dial

Set to "0"

Figure 15. Headstock controls.

Model G0765 (Mfd. Since 12/13)

Spindle Direction

Switch Set to "0"

HIGH

Figure 16. Lever settings.

3. Make sure chuck and jaws, if installed, are

secure (see Chuck Installation on Page 26).

Note: If a chuck is not installed on the lathe,

you do not need to install one for this test run.

LOW

-21-

4. Disengage half nut with lever shown in Figure 17.

Thread Dial

Half Nut

Lever

Disengaged

6. Verify lathe is operating correctly by turning spindle direction switch to "F" position. Slowly turn variale speed dial clockwise until spindle speed display shows 100 RPM. The spindle should rotate counterclockwise—down and toward the front of the lathe.

7. Push Emergency Stop button to turn lathe OFF. Then, without resetting Emergency Stop button, try to restart spindle rotation by turning variable speed dial all the way counterclockwise to "0" and then clockwise. The spindle should not start.

Halfnut

Lever

Engaged

Figure 17. Half nut lever disengaged.

5. Press tab in on side of Emergency Stop

button, lift switch cover, and press green ON button to reset Emergency Stop button. The spindle speed display and power button should illuminate to indicate that lathe is connected to power supply.

—If spindle does start with Emergency Stop

button pressed in, the button is not operating correctly. This safety feature must operate properly before continuing operation. Turn variable speed dial counterclockwise to "0" to stop lathe, disconnect it from power, and call Tech Support for help.

Congratulations! The test run is complete. Turn lathe OFF and perform the following Spindle Break-In procedure.

-22-

Model G0765 (Mfd. Since 12/13)

Spindle Break-In

dently of the Test Run section. The lathe

are set differently than instructed in that

Recommended

Adjustments

The following adjustments have been made at the factory. However, because of the many variables involved with shipping, we recommend you verify these adjustments to ensure the best results:

Test Ru n procedure described in this

DO NOT perform this procedure indepen-

could be seriously damaged if the controls

section.

To perform the spindle break-in:

1. Successfully complete the Test Run proce- dure beginning on Page 21.

2. Set spindle direction switch to "F" (forward),

ensure range lever is in LOW, and operate lathe for 10 minutes at 100 RPM.

3. Operate lathe at 1000 RPM for 10 minutes, then turn variable speed dial to "0" to stop spindle.

Factory adjustments that should be verified:

• Tailstock alignment (Page 32).

• Cross slide backlash adjustment (Page 56).

• Gib adjustments (Page 57).

4. Shift range control lever to HIGH, then operate lathe at 2000 RPM for 10 minutes, then stop spindle.

5. Run lathe in reverse at 2000 RPM for 10 minutes, then turn speed dial to "0", turn spindle direction switch to "0", and press Emergency Stop button.

Congratulations! Spindle break-in is complete.

Model G0765 (Mfd. Since 12/13)

-23-

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed later

in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual and

rienced research outside of this manual by reading "howto" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

Operation Overview

To complete a typical operation, the operator does the following:

1. Puts on safety glasses, rolls up sleeves,

removes jewelry, and secures any clothing or hair that could get entangled in moving parts.

machine controls/components

are easier to understand.

seek additional training from expe

machine operators, and do additional

using machine.

To reduce the risk of eye injury from flying chips always wear safety glasses.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

2. Examines workpiece to make sure it is suit-

able for turning, then securely mounts it in lathe.

3. Installs tooling, aligns it with workpiece, then backs it away to establish a safe startup clearance.

4. Removes all setup tools from lathe.

5. Checks for safe clearances by rotating

workpiece by hand at least one full revolution.

6. Moves slides to where they will be used during operation.

7. If using power feed, selects appropriate feed rate and direction.

8. Resets Emergency Stop button and turns spindle direction switch to "F".

9. Rotates variable speed dial to set correct spindle speed.

10. Uses carriage handwheels or power feed options to move the tooling into workpiece for operations.

11. When finished turning, rotates variable speed dial to "0" to stop spindle, presses Emergency Stop button, then removes workpiece.

-24-

Model G0765 (Mfd. Since 12/13)

Chuck & Faceplate

This lathe ships with the 3-jaw chuck installed. This is a scroll-type chuck where all three jaws move in unison when the chuck key is used.

The included 4-jaw chuck features independent jaws, which are used for square or unevenly- shaped stock, and to mount work that needs to be adjusted to near zero total indicated runout.

The included faceplate has slots for T-bolts that hold standard or custom clamping hardware. With the correct clamping hardware, a faceplate offers a wide range of uses, including machining nonconcentric workpieces, straight turning between centers, off-center turning, and boring.

chuck RPM rating or the safe limits of

Installation &

Mounting

This lathe is equipped with an intrinsic backplate spindle nose. With this type of spindle, a chuck or faceplate is mounted directly to the backplate with hex nuts.

Never use spindle speeds faster than the

your workpiece. Excessive spindle speeds greatly increase the risk of the workpiece or chuck being thrown from the machine with deadly force!

Removal Device

Place a piece of plywood over the bedways to protect them from damage if a chuck or other tooling is dropped (see below).

Plywood Protection Plate for Chucks Installed by Hand

Figure 18. Example of common device used

during chuck installation and removal.

Model G0765 (Mfd. Since 12/13)

-25-

Chuck Installation

To ensure accurate work, it is extremely important to make sure the spindle nose and chuck mating surfaces are clean. Even a small amount of lint or debris can affect accuracy.

The chuck is properly installed when it is seated against the backplate shoulder (see Figure 19 below).

Backplate

Shoulder

Mounting

Hole

4. Insert chuck screws through mounting holes in spindle backplate, as shown in Figure 20. Make sure chuck seats firmly and evenly against backplate shoulder.

Intrinsic

Backplate

Figure 20. Inserting chuck into backplate.

5. Use a lock washer and hex nut on each chuck screw to secure chuck (see Figure

21).

Chuck Screw

Inside Taper

Figure 19. Spindle backplate.

Tools Needed: Qty

Open-End Wrench 10mm .................................. 1

To install the chuck:

1. DISCONNECT LATHE FROM POWER!

2. Use an appropriate device to protect ways dur- ing installation process (refer to Installation & Removal Device on Page 25).

3. Thoroughly clean and wipe-down all mating

surfaces with a lightly-oiled, lint-free rag.

Hex Nut

Lock Washer

Figure 21. Chuck secured against backplate.

-26-

Model G0765 (Mfd. Since 12/13)

This 3-jaw scroll-type chuck has an internal scrollgear

djusted

with the chuck key

cylindrical parts on-center with the axis of spindle rotation and can be

at high speeds if the workpiece

is properly clamped and balanced.

Never mix jaw types or

positions to

accommodate an odd-shaped workpiece.

chuck will spin out of balance an

may throw the

workpiece

Instead, use an independent jaw chuck

or a faceplate.

Scroll Chuck

The 3-jaw scroll chuck included with the lathe features inside and outside sets

move in unison to

center a concentric workpiece.

When installing the jaws sure they are installed correctly. Incorrect installation will result in jaws that do not converge evenly and are unable to securely clamp a workpiece.

Jaws are numbered from 1–3 (see Figure below). The number is typically stamped on the side or bottom. Jaws are designed to be installed counterclockwise in numerical order in the jaw guides, so they will hold a concentric workpiece evenly.

Clamping

that moves all jaws in unison when a

. This chuck holds

rotated

Changing Jaw Set

hardened steel jaw

(see Figure below), which

, it is important to make

Safer Inside

Jaw Use

CORRECT

Safer Outside

Jaw Use

CORRECT

Safer Outside

Jaw Use

CORRECT

Insufficient Jaw Clamping

Bar Stock

INCORRECT

Unsafe Jaw Position and Poor Scroll Gear Engagement

Poor Grip

Shallow

Bar Stock

INCORRECT

Unsafe Inside

Jaw Use

Poor Scroll

Shallow

Bar Stock

Unsafe Jaw Position

Gear Engagement

INCORRECT

Unstable

Workpiece

Unstable

Workpiece

Inside SetOutside Set

Figure 23. Chuck and jaw selection.

Jaw Guides

Jaw Numbers

Safer Inside

Jaw Use

Unsafe Jaw Position

CORRECT

Cylinder

Poor Scroll

Gear Engagement

INCORRECT

Figure 22. Jaw selection and workpiece holding.

Model G0765 (Mfd. Since 12/13)

Figure 24. Jaw guide and jaw numbers.

-27-

To change the jaw set:

DISCONNECT LATHE FROM POWER!

(refer

subsec-

n safe place free

of outer scroll-gear lead thread about to enter a jaw guide (see Figure below).

7. Insert jaw #1 into jaw guide and hold jaw

engage tip of scroll-gear lead thread into jaw.

and

gear lead thread during its first rotation.

Use appropriate device to protect ways

to Installation & Removal Device tion).

Insert chuck key and turn it counterclockwise

to back jaws out and remove them individually in descending order (i.e., 3, 2, 1).

Use mineral spirits to clean debris and grime

from jaws and chuck jaw guides.

Apply thin coat of NLGI #2 grease to surfaces

of removed jaw set. Store i from moisture and abrasives.

Rotate chuck key clockwise until you see tip

against scroll-gear.

. Rotate chuck key clockwise one turn to

Pull jaw; it should be locked into jaw guide.

. Install remaining jaws in numerical order, in

same manner. The jaws should converge evenly at center of chuck.

— If jaws do not converge evenly, remove

them. Re-install jaws sequentially 1–3, make sure each one engages with scroll-

Lead Thread

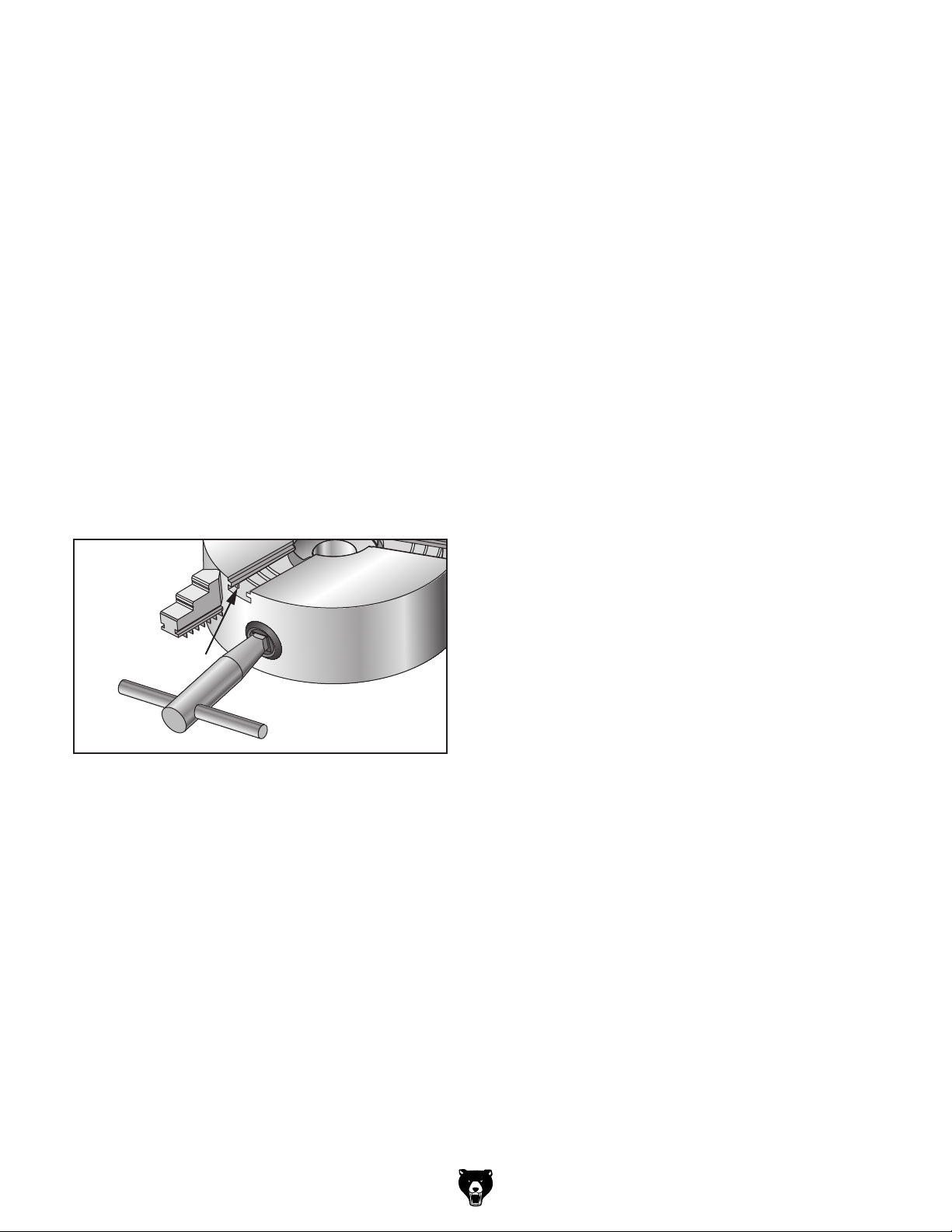

Figure 25. Lead thread on scroll gear.

-28-

Model G0765 (Mfd. Since 12/13)

To mount a non-concentric workpiece to the faceplate:

(refer

subsec-

piece when clamping it to faceplate. If neces-

operation.

Faceplate

Failure to properly secure a workpiece to the faceplate could cause the workpiece to be thrown from the lathe with deadly force. To reduce this risk, use a minimum

Refer to the prior Chuck Installation and Chuck Removal subsections for instructions on installing

or removing the faceplate.

The faceplate included with your lathe can be used for a wide range of operations, including machining non-concentric workpieces, straight turning between centers, off-center turning, and boring.

The tools needed for mounting a workpiece will vary depending on the type of setup you have.

Machining non-concentric workpieces at

high speeds could cause the workpiece to be thrown from the lathe with deadly force. To reduce this risk, use a low RPM, and use counter-weights to balance the faceplate or workpiece.

DISCONNECT LATHE FROM POWER!

Use appropriate device to protect ways

to Installation & Removal Device tion).

With help from another person or holding

device to support workpiece, position it onto faceplate and clamp it in place with a minimum of three independent clamping devices (see Figure below for an example).

Be sure to take into account rotational and cutting forces that will be applied to work-

sary, use counter-weights to balance assembly and use a dial indicator to make sure workpiece is properly positioned for your

Non-Cylindrical

Workpiece

of THREE independent clamping devices to hold the workpiece onto the faceplate.

Model G0765 (Mfd. Since 12/13)

Clamp

Faceplate

Figure 26. Example of a workpiece clamped in a

faceplate.

-29-

Tailstock

The tailstock is typically used to support long workpieces at the side opposite the spindle, using a live or dead center. It can also hold a tapered drill bit (or a drill chuck with a regular drill bit) for boring holes. Unlike boring done with a drill press where the workpiece is fixed and the drill bit rotates, the drill bit in a tailstock remains stationary while the workpiece is rotated by the spindle.

The entire tailstock can be repositioned and locked in place along the length of the bed. An independently controlled offset adjustment allows the upper part of the tailstock to move perpendicular to the bedways so it can be aligned with the spindle center (for concentric turning) or offset from the spindle center (for tapered turning).

The tailstock quill also features independent adjustment controls that allow it to be advanced toward the spindle or locked firmly in position.

1. Rotate tailstock lock lever clockwise (facing

to lock tailstock against bedways.

Tailstock Quill Specs

Graduated Dial on Handwheel

Increments ................................................. 0.001"

One Full Revolution ................................... 0.200"

Quill Lock

Lever

Tailstock Lock

Lever

Increments on Quill Scale

Inch ................................ 0"–2" in

Metric .................... 0–50mm in 1mm Increments

⁄8" Increments

Positioning Tailstock

machine) to unlock tailstock from bedways.

Slide tailstock to desired position by pushing

it along the bedways.

Rotate tailstock lock lever counterclockwise

Using Quill

1. Loosen quill lock lever.

2. Turn quill handwheel clockwise to move quill

toward spindle or counterclockwise to move it away from it.

3. Tighten quill lock lever.

Quill

Offset Adjustment

Screw (1 of 2)

Figure 27. Tailstock controls and features.

-30-

Quill

Handwheel

Model G0765 (Mfd. Since 12/13)

To install tooling in the tailstock:

attempting to twist it—a firmly seated tool will

is close to, but not touching, workpiece, then

tool into workpiece.

Installing Tooling

Note: If the tooling has an open hole in the end,

then a screw can be threaded into the end of the tool to provide a solid surface for the quill pin to push against when the quill is retracted for tool removal. Otherwise, removal of such tooling may be difficult.

The tailstock quill can be offset from the spindle centerline for turning tapers. Offsetting quill toward the front of the lathe results in a taper at the tailstock end. Conversely, offsetting quill toward the back of the lathe results in a taper at the spindle end.

1. Use shop rag to hold tool.

forced out of quill.

The tailstock quill accepts MT#2 tapered arbors (see the Figures below for examples).

Tang

Solid

End

Figure 28. Types of tapered arbors and tooling.

Open

End

Solid

End

Screw

End

Tang

With tailstock locked in place, unlock quill,

then use handwheel to extend it approximately 1".

Thoroughly clean and dry tapered mating surfaces of quill and center, making sure no lint or oil remains on tapers.

With a firm and quick motion, insert tool into

quill. Check to see if it is firmly seated by

not twist.

Unlock tailstock and move it until tip of tool

Figure 29. Example photos of inserting tools into

the tailstock.

lock tailstock.

Start spindle rotation, unlock quill lock lever,

then turn quill handwheel clockwise to feed

Removing Tooling

Rotate quill handwheel counterclockwise to

fully retract quill into tailstock until tool is

Offsetting Tailstock

Model G0765 (Mfd. Since 12/13)

-31-

Note: The marks on the offset indicator are arbitrary. For a precise offset, use a dial indicator to check quill movement while adjusting the screws.

This is an essential adjustment that should be verified or performed each time the tailstock is used to turn concentric workpieces between centers or immediately after offsetting the tailstock when turning a taper. If the tailstock is not aligned with the spindle centerline when it is supposed to be, turning results will be inaccurate along the length of the workpiece.

Adjustment

Set Screw (1 of 2)

Offset

Indicator

Aligning Tailstock to Spindle Centerline

Items Needed Qty

Hex Wrench 4mm .............................................. 1

Round Stock 2" x 6" .......................................... 2

To align the tailstock to the spindle centerline:

Figure 30. Left offset adjustment.

Tools Needed Qty

Hex Wrench 4mm .............................................. 1

To offset the tailstock:

1. Loosen tailstock lock to release clamping

pressure on top and bottom castings.

2. Rotate adjustment set screws in opposite directions for desired offset (see Figure below).

Turn CCW

Turn CW

Turn CCW

1. Center drill both ends of one piece of round stock, then set it aside for use in Step 5.

2. Use the other piece of round stock to make a dead center, and turn it to a 60° point, as illustrated in the Figure below.

Figure 32. Turning a dead center.

Figure 31. Example of set screw adjustment in

relation to tailstock movement.

3. Tighten tailstock lock to secure the offset.

-32-

Model G0765 (Mfd. Since 12/13)

Note: As long as this dead center remains in

— If test stock is thinner at tailstock end,

the

in the Figure below.

the chuck, the point of the center will remain true to the spindle centerline. The point will have to be refinished whenever the center is removed and then returned to the chuck.

3. Install center in tailstock.

4. Attach lathe dog to test stock from Step 1,

then mount it between centers, as shown in

Figure below.

7. Use calipers to measure both ends of

workpiece.

— If test stock is thicker at tailstock end,

move tailstock toward front of lathe

⁄2 the distance of the amount of taper, as shown in the Figure below.

Move tailstock toward

front of lathe

/2 the

amount of taper.

Looking down from above.

Figure 34. Adjust tailstock toward the operator.

Figure 33. Example of stock mounted between

the centers.

5. Turn 0.010" off stock diameter.

6. Mount test or dial indicator so plunger is on

tailstock quill.

move tailstock toward back of lathe 1⁄2 distance of the amount of taper, as shown

Looking down from above.

Move tailstock toward

back of lathe

/2 the

amount of taper.

Figure 35. Adjust tailstock away from the

operator.

8. Repeat Steps 5–7 until desired accuracy is achieved.

Model G0765 (Mfd. Since 12/13)

-33-

Centers

Mounting Dead Center in Spindle

1. DISCONNECT LATHE FROM POWER!

Figure 36 shows the MT#2 and MT#3 dead cen-

ters included with the lathe.

MT#3 Dead

Center

MT#2 Dead

Center

Figure 36. Dead centers.

Dead Centers

Dead centers are one-piece high-speed steel centers that require low spindle speeds and a small amount of oil to reduce friction heat that may damage the workpiece.

Mount the MT#2 dead center (see Figure 36) in the tailstock. Since the workpiece will rotate against the center and generate friction, the tip of the center must be lubricated to avoid premature wear and maximize smooth operation.

2. Thoroughly clean and dry all mating surfaces of spindle bore and center, making sure that no lint or oil remains on these surfaces.

3. Mount chuck or faceplate onto spindle, whichever is correct for your operation.

4. Insert MT#3 center into spindle bore through chuck or faceplate.

Below is an example photo of a dead center

installed in spindle, using a lathe dog and faceplate for turning between centers.

Dead Center

Lathe

Dog

Mount the MT#3 dead center (see Figure 36) in the spindle for operations where the workpiece rotates with the center and does not generate friction.

Figure 37. Example of using dead center with a

faceplate and lathe dog.

Removing Center from Spindle

To remove center from the spindle, insert a piece of round bar stock (or similar tool) through outside end of spindle. Hold onto center with gloved hand or shop rag, then tap bar stock to knock center loose.

-34-

Model G0765 (Mfd. Since 12/13)

To mount a center in the tailstock:

making sure no lint or oil remains on tapers.

Mounting Center in Tailstock

3. Use quill handwheel to feed quill out from

casting approximately 1”.

4. Insert center into tailstock quill.

Note: Only apply enough pressure with

tailstock quill to securely mount workpiece

ter against workpiece, or it may become difficult to remove later, and it will result in

age workpiece and center.

To remove the center from the quill, hold onto it with a gloved hand or shop rag, then rotate the quill handwheel counterclockwise to draw the quill back into the casting until the center releases.

dog and chuck, faceplate or drive plate, then install live center or carbide-tipped dead cen- ter in tailstock.

center holes, then mount workpiece between centers and hold it in place with light pressure from tailstock center.

against workpiece (see example below).

Note: Only apply enough pressure to securely mount the workpiece between centers. Avoid over-tightening the center against the workpiece, or it may become difficult to remove later. Also, over-tightening will result in excessive friction and heat, which may damage the workpiece or center.

The included MT#2 dead center or a live center (not included) can be used in tailstock. Mounting instructions are the same for both. Figure below shows an example photo of a dead center mounted in a tailstock.

Removing Center from Tailstock

Mounting Workpiece Between Centers

Dead Center

Figure 38. Example of using dead center

installed in the tailstock.

DISCONNECT LATHE FROM POWER!

Thoroughly clean and dry the tapered mating

surfaces of tailstock quill bore and center,

1. DISCONNECT LATHE FROM POWER!

2. Drill center holes in both ends of the workpiece.

3. Install MT#3 dead center in spindle with lathe

dog and chuck or faceplate, then install live center or MT#2 dead center in tailstock.

4. Lubricate MT#2 dead center point and workpiece center holes, then mount workpiece between centers and hold it in place with light pressure from tailstock center.

To avoid premature wear of the dead center or damage to the workpiece, use low spindle speeds and keep the tip of the dead center mounted in the tailstock well lubricated.

handwheel clockwise to apply pressure

Note: The maximum quill travel is 2", but we

do not recommend extending quill more than 1" or stability and accuracy will be reduced.

Seat center firmly into quill during workpiece

installation by rotating quill handwheel clockwise, to apply pressure with center engaged in center hole in workpiece.

between centers. Avoid overtightening cen-

excessive friction and heat, which may dam-

Model G0765 (Mfd. Since 12/13)

Figure 39. Example photo of a workpiece

mounted between two centers.

-35-

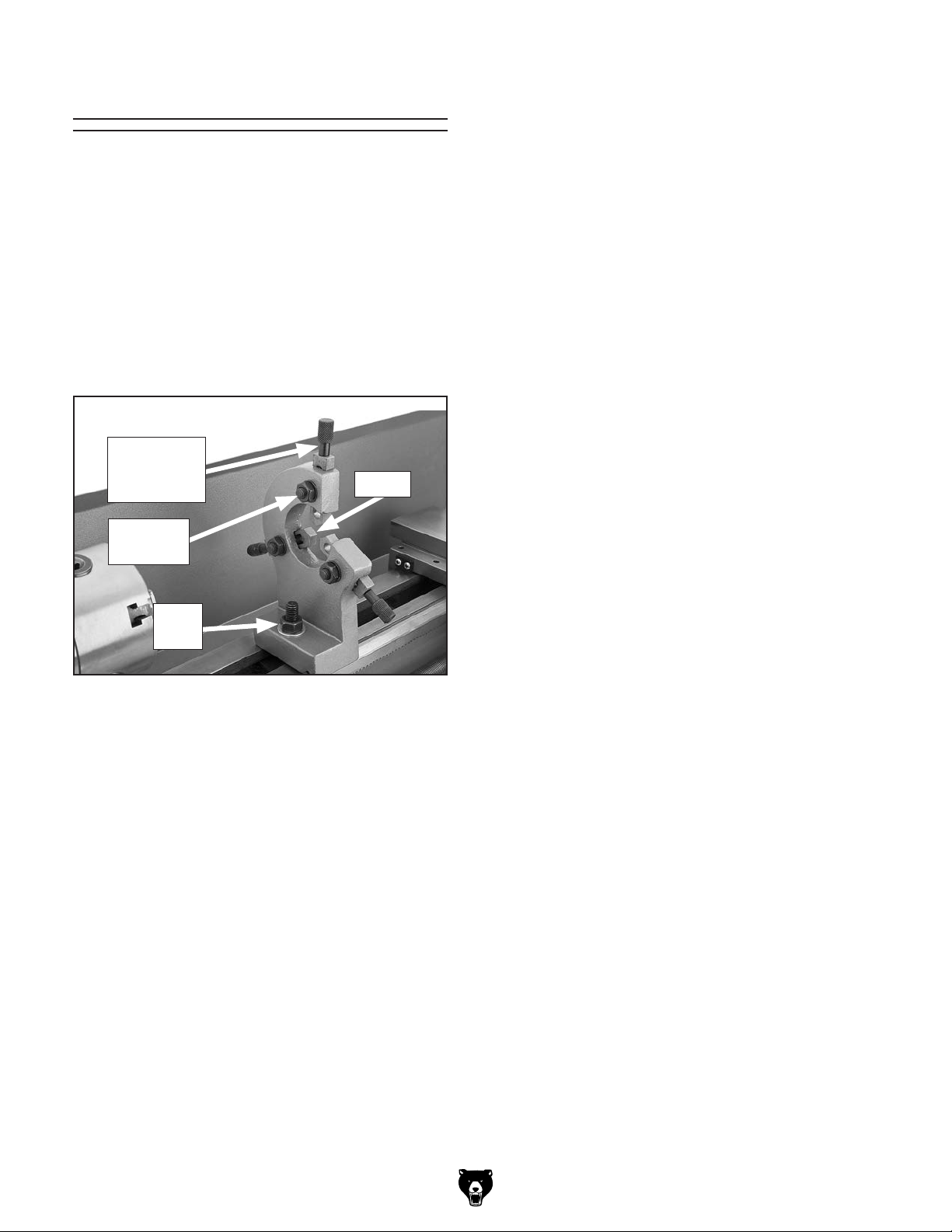

Steady Rest

The steady rest supports long shafts and can be mounted anywhere along the length of the bedway

Familiarize yourself with the steady rest components shown below controls.

to better understand the

Tools Needed for Installation/Removal Qty

Open-End Wrench 14 mm .................................. 1

Open-End Wrench 16mm .................................. 1

Finger

Adjustment

Knob

Finger

To install and use the steady rest:

1. DISCONNECT LATHE FROM POWER!

2. Thoroughly clean all mating surfaces, then

place steady rest base on bedways.

3. Loosen finger lock nuts (see Figure 40), turn finger adjustment knobs, and adjust fingers as required for workpiece.

4. Loosen steady rest lock nut, position steady rest where required to properly support workpiece, then secure lock nut.

5. Turn finger adjustment knobs so fingers barely touch workpiece, then tighten finger lock nuts.

6. Lubricate finger tips with an anti-seize lubricant during operation. Note: Mill or file tips if

they show wear.

Finger

Lock Nut

Lock

Nut

Figure 40. Steady rest components.

-36-

Model G0765 (Mfd. Since 12/13)

Compound Rest

The four-way tool post is mounted on top of the compound rest tools

Each tool can be quickly indexed to the workpiece by post to the desired position, then retightening the handle to lock the tool into position.

To install a tool in the tool post:

so cutting tool can fit

underneath them (see Figure below).

2. Firmly secure cutting tool with at least two

terline, as instructed in next subsection.

The compound rest handwheel has an indirectread graduated scale. This means that the distance shown on the scale represents the actual distance the cutting tool moves. The base of the compound rest has another graduated scale used for setting the cutting tool to a specific angle.

Graduated Dial

Increments ............................... 0.001" (0.025mm)

One Full Revolution ..................... 0.04" (1.02mm)

Tool Needed Qty

Hex Wrench 5mm .............................................. 1

To set compound rest angle:

Four-Way Tool Post

and allows a maximum of four

to be loaded simultaneously.

loosening the top handle, rotating the tool

Installing Tool

Tool Needed Qty

Hex Wrench 5mm .............................................. 1

1. Loosen cap screws shown in Figure 41.

Cap Screws

Angle Scale

Figure 41. Compound rest angle adjustments.

2. Rotate rest to desired angle, as indicated by

scale at base, then retighten cap screws.

Tip: The first time you set the compound rest

angle for cutting threads, mark the location on the cross slide as a quick reference point. This will allow you to quickly return the compound rest to that exact angle the next time you need to cut threads.

. Adjust tool post screws

Tool Post

Screw

Cutting

Tool

Figure 42. Example of tool mounted in tool post.

Over-extending a cutting tool from the post will increase risk of tool chatter, breakage, or tool loosening during operation, which could cause metal pieces to be thrown at the operator or bystanders with great force. DO NOT extend a cutting tool more than 2.5 times the width of its cross-section (e.g.,

2.5 x 0.5" = 1.25").

Model G0765 (Mfd. Since 12/13)

tool post screws.

Check and adjust cutting tool to spindle cen-

-37-

Aligning Cutting Tool with Spindle

For most operations, the cutting tool tip should be aligned with the

centerline, as illustrated

below.

There are a number of ways to check and align the cutting tool to the spindle centerline. If necessary, you can raise the cutting tool by placing steel shims underneath it. The shims should be as long and as wide as the cutting tool to properly support it.

Below are two common methods:

• Move the tailstock center over the cross slide to measure the distance

cutting tool height so

•

tailstock

Aligning Tailstock To Spindle Centerline in this manual for detailed instructions).

To align cutting tool with tailstock center:

aligned vertically with center tip, as illustrated below.

Centerline

spindle

Tools Needed Qty

Hex Wrench 6mm .............................................. 1

Steel Shims ....................................... As Needed

Cutting Tool ....................................................... 1

Tailstock Center ................................................. 1

Cutting

Tool

Figure 43. Cutting tool aligned with spindle

centerline (viewed from tailstock).

Spindle Center

Line

Mount cutting tool in tool post, then secure

post so tool faces tailstock.

Install a center in tailstock, and position the

center tip near cutting tool tip.

Lock tailstock and quill in place.

Adjust height of cutting tool so tool tip is

(Top View)

Tailstock

Center

Cutting

Tool

and use a fine ruler from the surface of the cross slide to the tip of the center. Adjust the it is the same distance above the cross slide as the tailstock center.

Align the tip of the cutting tool with a

center, as instructed in the following procedure. For this to work, the tailstock must be aligned to the spindle centerline (refer to

-38-

Cutting

Tool

Figure 44. Cutting tool aligned to the tailstock

center.

Model G0765 (Mfd. Since 12/13)

Tailstock

Center

(Side View)

Manual Feed

Spindle Speed

The cutting tool can be manually fed into the workpiece using the carriage, cross slide, and compound rest handwheels shown below.

Carriage

Handwheel

Compound

Rest

Handwheel

Cross Slide

Handwheel

Figure 45. Manual feeding controls.

Carriage Handwheel

Graduated Dial

Increments ................................... 0.01" (0.25mm)

One Full Revolution .......................0.8" (20.3mm)

The carriage handwheel moves the carriage left or right along the bed. Adjust the position of the graduated scale by holding the handwheel with one hand and turning the dial with the other.

Cross Slide Handwheel

Graduated Dial

Increments ............................... 0.001" (0.025mm)

One Full Revolution ..................... 0.04" (1.02mm)

Using the correct spindle speed is important for getting safe and satisfactory results, as well as maximizing tool life.

To set the spindle speed for your operation, you will need to: 1) Determine the best spindle speed for the cutting task, and 2) configure the lathe controls to produce the required spindle speed.

Determining Spindle Speed

Many variables affect the optimum spindle speed to use for any given operation, but the two most important are the recommended cutting speed for the workpiece material and the diameter of the workpiece, as noted in the formula shown below.

*Recommended

Cutting Speed (FPM) x 12

Dia. of Cut (in inches) x 3.14

Spindle

Speed

(RPM)

*Double if using carbide cutting tool

Figure 46. Spindle speed formula for lathes.

Cutting speed, typically defined in feet per minute (FPM), is the speed at which the edge of a tool moves across the material surface.

A recommended cutting speed is an ideal speed for cutting a type of material in order to produce the desired finish and optimize tool life.

Use this handwheel to move the tool toward and away from the work. The cross slide handwheel has an indirect-read graduated dial. This means the distance shown on the scale represents the actual distance the tool moves.

Compound Rest Handwheel

Graduated Dial

Increments .............................. 0.001" (0.025mm)

One Full Revolution ..................... 0.04" (1.02mm)

Use this handwheel to move the cutting tool linearly along the set angle of the compound rest. Set the compound rest angle by hand-rotating it and securing in place with two cap screws. The compound rest has an indirect-read graduated dial.

Model G0765 (Mfd. Since 12/13)

The books Machinery’s Handbook or Machine Shop Practice, and some internet sites, pro-

vide excellent recommendations for which cutting speeds to use when calculating the spindle speed. These sources also provide a wealth of additional information about the variables that affect cutting speed and they are a good educational resource.

Also, there are a large number of easy-to-use spindle speed calculators that can be found on the internet. These sources will help you take into account the applicable variables in order to determine the best spindle speed for the operation.

-39-

Setting Spindle Speed Range

The high/low range lever shown in Figure 47, is used to select one of the two spindle speed ranges.

Configuration Example

Follow this example to gain a better understanding of how to set the spindle speed.

To set spindle speed to 100 RPM:

High/Low

Range Lever

Figure 47. High/low range lever set to low.

When the lever is moved to the right, as shown in Figure 47, the low spindle speed range (100–1000 RPM) is selected. When the lever is moved to the left, the high spindle speed range (100–2000) RPM is selected.

Setting Spindle Direction & Speed

Set the spindle rotation direction to forward or reverse with the spindle direction switch, shown in Figure 48. Reset the Emergency Stop button, press the ON button, then turn the variable speed dial clockwise until the desired spindle speed displays on the spindle speed display.

1. Make sure spindle is completely stopped, and shift high/low range lever to LOW, as shown in Figure 47.

Note: If high/low range lever does not eas-

ily adjust into position, rotate chuck by hand while you apply pressure to lever. When gears align, the lever will easily move into place.

2. Turn variable speed dial to "0".

3. Turn spindle direction switch to "F", and

press ON button.

4. Adjust variable speed dial until spindle speed display reads 100 RPM.

Emergency Stop

Variable

Speed

Dial

Spindle

Direction

Switch

Figure 48. Spindle speed and direction controls.

-40-

Button

Spindle

Speed

Display

Model G0765 (Mfd. Since 12/13)

Power Feed

The carriage has power feed options for either threading or non-threading operations. However, this subsection only covers using the power feed option for non-threading operations. To learn how to power the carriage for threading operations, refer to Threading on Page 46.

To avoid damaging lathe, ALWAYS make sure spindle is completely stopped BEFORE using headstock controls to make changes.

Power Feed Controls

Use the following descriptions and figures to understand the power feed controls.

Before using power feed, you may have to reconfigure the end gears, depending on how they are set up. The lathe comes from the factory with the end gears setup in the standard configuration (refer to End Gears on Page 43). This end gear configuration achieves a fixed feed rate of 0.04 in/ rev. Refer to End Gears on Page 43 for detailed instructions on how to configure the end gears.

B. Feed Direction Lever: Selects carriage trav-

el direction. The carriage moves left when feed direction lever is up, half nut lever is engaged, and spindle switch is set to "F".

The carriage moves right when the feed

direction lever is all the way down. The carriage will not move when the lever is in the center position.

Carriage travel direction reverses when the

spindle switch is set to "R".

Figure 50. Feed direction lever.

A. Spindle Switch: Starts, stops, and reverses

carriage travel when feed direction lever and half nut lever are engaged.

Figure 49. Spindle switch.

Figure 51. Half nut lever.

C. Half Nut Lever: Engages/disengages half

nut for power feed operations.

To avoid potential carriage/chuck crash, disengage half-nut lever immediately after completing power feeding operations.

Model G0765 (Mfd. Since 12/13)

-41-

Setting Power Feed Rate

Engaged

Disengaged

Follow the example below to better understand how to set the lathe power feed.

8. Reposition adjuster so gears mesh, tighten adjuster hex nut, then secure gears with cap screws and flat washers removed earlier.

Tools Needed:

Hex Wrenches 4 & 5mm ..............................1 Ea

Open-End Wrenches 13 & 14mm .................1 Ea

To set power feed for 0.04 in. /rev.:

1. DISCONNECT LATHE FROM POWER!

2. Gather two 80T and two 20T gears.

Note: All change gears are stamped with the

number of teeth they have except the 20T gears, which are black.

3. Remove end cover.

4. Remove cap screws and flat washers that

secure existing gears.

5. Loosen hex nut shown in Figure 52, and pivot adjuster down to disengage gears from each other.

9. Re-install end cover.

10. Push half nut lever down to engage power

feed (see Figure 53).

Half Nut

Lever

Halfnut

Lever

Figure 53. Half nut lever engaged.

The lathe is now set for a power feed rate of 0.04 in./rev.

Hex

Nut

Figure 52. Adjuster and change gears.

6. Remove existing A, B, C and D change gears

(see Figure 52). Note: Some gears may be difficult to remove due to excess grease and debris. Once they are removed, clean gears with mineral spirits and wipe them down with a clean rag.

7. Replace A and C gears with 20T gears, and B and D gears with 80T gears (see Figure 55 on Page 43). The printed gear letters should face outward.

Adjustor

-42-

Model G0765 (Mfd. Since 12/13)

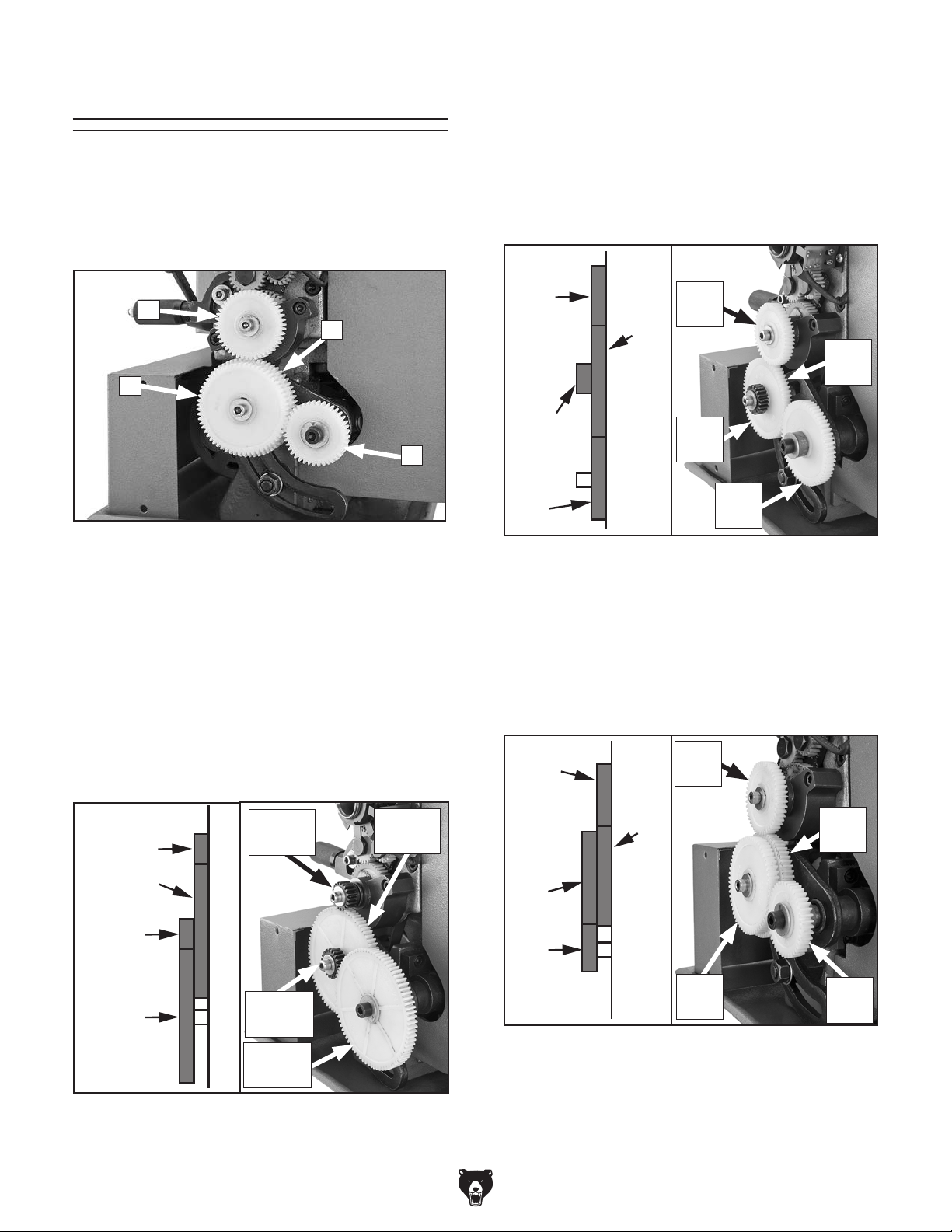

End Gears

The end gears must be correctly setup for power feed and threading. Use the photo below to identify the A, B, C, and D change gears, which are also referenced on the headstock feed rate gear chart.

Primary Threading Configuration

This threading configuration is used for inch and metric threading. Mesh the A, B, and D gears, as shown in Figure 56. The C gear does not mesh with any other gears in this configuration, so it is not important which gear is installed in the C position. The B and C gears share a keyed bushing.

Figure 54. Change gear identification.

The following subsections explain how to configure the end gears, which are accessed by removing the end cover.

Power Feed Configuration

The end gears are preset by the factory in this configuration, which is only used for power feeding. Mesh the top 20T A gear with the 80T B gear, and mesh the 20T C gear with the 80T D gear (see Figure 55).

A (20T)

A Gear

(20T)

B Gear

(80T)

Figure 56. Primary threading configuration.

Gear

Secondary Threading Configuration

This threading configuration is used for a different range of threads and feed rates than the primary threading configuration. Mesh the A and B gears, and mesh the C and D gears, as shown in Figure

57. The B and C gears share a keyed bushing.

Gear

B (80T)

C (20T)

D (80T)

Figure 55. Power feed end gear configuration.

Model G0765 (Mfd. Since 12/13)

C Gear

(20T)

D Gear

(80T)

Gear

Figure 57. Secondary threading configuration.

Gear

-43-

End Gear Configuration Example

Follow the example below to better understand how to configure the end gears for inch threading.

Tools Needed Qty

Hex Wrench 4 & 5mm ..................................1 Ea

Open-End Wrenches 13 & 14mm .................1 Ea

To configure end gears for threading 20 TPI:

4. Remove end cover.

5. Loosen adjuster hex nut shown in Figure 60,

pivot adjuster down, and disengage gears.

A Gear

1. DISCONNECT LATHE FROM POWER!

2. Locate 20 TPI on gear chart shown in Figure

58.

TPI Gear Setup TPI Gear Setup

A B C D A B C D

40 30 26 40 60 65

40T

Gear

20 TPI

65 65

40 30

65 65

65T

Gear

60 60

50T

Gear

202050 60

Gear

Figure 58. Locating change gears for 20 TPI.

3. Gather 40T, 65T, and 50T gears per change

gear chart. The C gear, which is indicated by a "/", is installed on existing B/C change gear keyed bushing (see Figure 59).

B Gear

C Gear

D Gear

Adjuster Hex Nut

Figure 60. Adjuster hex nut location.

6. Loosen hex nut behind B/C change gear

shaft shown in Figure 61, then slide B/C gear away from D gear.

B/C Gear

Hex Nut

Cap Screws

& Washers

C Gear

Keyed Bushing

Front Back

B Gear

Figure 59. B/C change gear and keyed bushing

(gears removed for clarity).

Note: Depending upon configuration, C gear

may not be 20T, as shown in Figure 59.

-44-

D Gear

Figure 61. B/C change gear hex nut.

7. Remove cap screws and washers that secure

gears, then remove gears.

Note: If any gears are difficult to remove, use

a large flat head screwdriver to gently wiggle them off.

Leave existing C gear on keyed bushing. The

C gear will not mesh with any of the other gears in this 20 TPI threading setup.

Model G0765 (Mfd. Since 12/13)

8. Remove key and bushing from D gear shaft (see Figure 62).

Key

Bushing

11. Slide 40T, 65T, and 50T gears onto gear shafts (see Figure 63), making sure to reinstall key with 50T gear.

A (40T)

D (50T)

B (65T)

C (20 or 60T)

Adjuster

Hex Nut

Figure 62. D gear shaft key and bushing.

9. Remove existing B gear from keyed bushing

shared with C gear.

10. Slide 65T B gear onto keyed bushing and firmly against C gear.

Figure 63. End gear placement.

12. Slide bushing removed in Step 8 onto 50T

gear.

13. Position adjuster so gears mesh. Then tighten adjuster hex nut and B/C gear shaft hex nut.

14. Secure gears with cap screws and washers removed earlier.

15. Re-install end cover.

Model G0765 (Mfd. Since 12/13)

-45-

Threading

The following subsections describe how to use the threading controls and charts to set up the lathe for a threading operation. If you are unfamiliar with how to cut threads on a lathe, we strongly recommend that you read books, review industry trade magazines, or get formal training before attempting any threading projects.

Headstock Threading Controls

The threading chart on the headstock face displays the settings for inch threading; a metric thread chart is provided on Page 70.

Using the controls on the lathe, follow the example below to understand how to set up the lathe for a threading operation.

To set the lathe to thread 20 TPI:

High/Low

Range Lever

Feed Direction Lever

UP (Clockwise Rotation)

CENTER (Neutral)

DOWN (CCW Rotation)

High/Low

Range Lever

Feed

Direction

Lever

1. Configure gears as instructed in End Gear Configuration Example on Page 44.

2. Move high/low range lever to low, and move

feed direction lever all the way up, as shown in Figure 64.

The lathe is now set up to cut 20 TPI threads.

HIGH

Figure 64. Lever and dial settings for 20TPI.

LOW

-46-

Model G0765 (Mfd. Since 12/13)

Apron Threading Controls

Halfnut

Disengaged

TPI Gear Setup TPI Gear Setup

A B C D A B C D

40 30 26 40 60 65

40 30

60 60

65 65

202050 60

The half nut lever engages the carriage with the leadscrew, which moves the carriage and cutting tool along the length of the workpiece for threading operations (see Figure 65).

Thread Dial Chart

The thread dial chart is located on the headstock, as shown in Figure 66.

Thread Dial

Chart

Figure 65. Apron threading controls.

Thread Dial

The numbers on the thread dial (Figure 65) are used with the thread dial chart to show when to engage the half nut during inch threading.

Note: The thread dial is not used for metric threading. You must leave the half nut engaged from the beginning until the turning is complete for this type of operation.

Half Nut

Lever

Engaged

Thread Dial

Figure 66. Thread dial chart location.

Find the TPI (threads per inch) that you want to cut on the thread dial chart (see Figure 67), then reference the scale number to the right. The scale numbers indicate when to engage the half nut for a specific thread pitch as indicated by the thread dial.

Thread Dial Chart

TPI Scale TPI Scale

1,3,5,7

1,5

1,3,5,7

1 – 8

When threading, we recommend using the slowest speed possible and avoiding deep cuts, so you are able to disengage the half nut when required to prevent a carriage crash!

When the first cutting pass is complete, the operator disengages the carriage from the leadscrew using the half nut lever. The operator returns the carriage for the next pass and re-engages the half nut using the same thread dial setting to resume the cut in the previous pass.

Model G0765 (Mfd. Since 12/13)

1 – 8

Figure 67. Thread dial chart.

1,5

1,3,5,7

1,5

1 – 8

1,3,5,7

1,5

1 – 8

1,3,5,7

1 – 8

1,3,5,7

-47-

The following examples explain how to use the thread dial and the thread dial chart.

TPI Divisible by 8: Use any line on the thread dial (see example in Figure 68).

Even TPI Not Divisible by 4 or 8: Use opposing

number pairs 1 and 5 on thread dial (see example in Figure 70).

TPI Dial Number

Thread Dial

TPI Dial Number

16, 24, 32, 40, 48

1–8

Thread Dial

Figure 68. Any position on dial for threading TPI

divisible by 8.

Even TPI Divisible by 4: Use any numbered line on thread dial (see example in Figure 69).

TPI Dial Number

12, 20, 28, 36, 44, 52

1, 3,5, 7

Thread Dial

Figure 69. Example of inch thread pitch divisible

by 4.

1, 514, 18, 22, 26, 38

Figure 70. Example of even numbered inch

thread pitch.

Odd TPI: Use line 1 on thread dial (Figure 71).

TPI Dial Number

113, 19

Thread Dial

Figure 71. Example of odd numbered inch

thread pitch.

-48-

Model G0765 (Mfd. Since 12/13)

ACCESSORIES

order online at www.grizzly.com or call 1-800-523-4777

Installing unapproved accessories may

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

H2987—½" Bent Lathe Dog H2988—1" Bent Lathe Dog H29 89 —1½" Bent Lathe Dog H2990—2" Bent Lathe Dog H2991—3" Bent Lathe Dog

D3640—Shop Fox Tool Table Plus

This new, tool table plus was designed to answer customer requests for a slightly wider and taller table than our D2056 to accommodate a variety of bench-top machines.

Figure 73. D3640 Shop Fox Tool Table Plus.

T25206—11 Pc. Carbide Bit Set

This 11-Pc. Carbide-Tipped Tool Bit Set includes a wide variety of tool types for just about any machining operation. This set also includes two boring bars. Boring bars measure 4 Shank size for all is

Figure 72. 11-Pc. Carbide-Tipped Tool Set.

⁄16".

⁄16"

⁄8" long.

SB1365—South Bend Way Oil for Lathes

Engineered for the high pressure exerted on horizontal or vertical ways and slides. Protects against rust and corrosion. Ensures stick-free, smooth motion which maximizes finishes and extends the life of your machine. Won’t gum up! 12 oz. AMGA#2 (ISO 68 Equivalent).

Figure 74. Way Oil.

Model G0765 (Mfd. Since 12/13)

-49-

SECTION 6: MAINTENANCE

Always disconnect power to the machine before performing maintenance. Failure to do this may result in serious personal injury.

Schedule

Ongoing

To maintain a low risk of injury and proper machine operation, if you ever observe any of the items below, shut down the machine immediately and fix the problem before continuing operations:

• Loose mounting bolts or fasteners.

• Worn, frayed, cracked, or damaged wires.

• Guards or covers removed.

• Emergency Stop button not working correctly.

• Damaged or malfunctioning components.

Daily, Before Operations

• Add oil to the ball oilers (Page 51).

• Lubricate the leadscrew and carriage rack (Page 52).

• Lubricate the bedways (Page 52).

• Clean/lubricate the cross slide and compound slide (Page 52).

• Disengage the half nut on the carriage (to prevent crashes upon startup).

Daily, After Operations

• Press the Emergency Stop button (to prevent accidental startup).

• Vacuum/clean all chips and swarf from bed, slides.

• Wipe down all unpainted or machined surfaces with an oiled rag.

Annually

• Lubricate change gear bushing and tumbler gears (Page 53).

Cleaning/Protecting

Because of its importance, we recommend that the cleaning routine be planned into the workflow schedule.

Typically, the easiest way to clean swarf from the machine is to use a wet/dry shop vacuum that is dedicated for this purpose. The small chips left over after vacuuming can be wiped up with a slightly oiled rag. Avoid using compressed air to blow off chips, as this may drive them deeper into the moving surfaces or cause sharp chips to fly into your face or hands.

All unpainted and machined surfaces should be wiped down daily to keep them rust free and in top condition. This includes any surface that is vulnerable to rust if left unprotected. Use a quality ISO 68 way oil (see Page 49 for offerings from Grizzly) to prevent corrosion.

-50-

Model G0765 (Mfd. Since 12/13)

Lubrication

The lathe has metal-to-metal sliding surfaces that require regular lubrication to maintain smooth movement and ensure long-lasting operation.

Items Needed Qty

Clean Rag ........................................ As Needed

Mineral Spirits .................................... As Needed

Stiff Brush .......................................................... 1

Wrench 4mm ..................................................... 1

Pump-Type Oil Can w/Plastic Cone Tip ............ 1

Other than the lubrication points covered in this section, all other bearings are internally lubricated and sealed at the factory. Simply leave them alone unless they need to be replaced.

Before performing any lubrication task, DISCONNECT LATHE FROM POWER!

We recommend using Model SB1365 Way Oil or equivalent (see Page 49) for most of the lubrication tasks.

Lubrication Frequency

Lubrication Task Frequency

Ball Oilers Daily

Leadscrew & Carriage Rack

Bedways Daily

Cross Slide & Compound Slide

Change Gear Bushing Annually

Tumbler Gears Annually

Daily

Page Ref.

This

Page

Ball Oilers

Oil Type ..............................ISO 32 or Equivalent

Amount ..................................... 1 or 2 Squirts/Fill

Lubrication Frequency ................................. Daily

This lathe has four ball oilers that should be oiled on a daily basis before beginning operation.

Proper lubrication of ball oilers is done with a pump-type oil can that has a plastic or rubberized cone tip. We do not recommend using metal needle or lance tips, as they can push the ball too far into the oiler, break the spring seat, and lodge the ball in the oil galley.

Lubricate the ball oilers before and after machine use, and more frequently under heavy use. When lubricating ball oilers, first clean the outside surface to remove any dust or grime. Push the tip of the oil can nozzle against the ball oiler to create a hydraulic seal, then pump the oil can once or twice. If you see sludge and contaminants coming out of the lubrication area, keep pumping the oil can until the oil runs clear. When finished, wipe away any excess oil.

Refer to Figure 75 to identify the location of each ball oiler.

NOTICE

The recommended lubrication is based on light-to-medium usage. Keeping in mind that lubrication helps to protect the value and operation of the lathe, these lubrication tasks may need to be performed more frequently than recommended here, depending on usage.

Failure to follow reasonable lubrication practices as instructed in this manual could lead to premature failure of lathe components and will void the warranty.

Model G0765 (Mfd. Since 12/13)

Ball Oilers

Figure 75. Ball oilers.

-51-

Leadscrew & Carriage Rack

Oil Type ....Grizzly SB1365 or ISO 68 Equivalent

Amount .............................................. As Needed

Lubrication Frequency ................................. Daily

Cross Slide & Compound Slide

Oil Type ....Grizzly SB1365 or ISO 68 Equivalent

Amount .................................................Thin Coat

Lubrication Frequency ................................. Daily

Before lubricating the leadscrew and carriage rack (see Figure 76), clean them first with mineral spirits. Use a stiff brush to help remove any debris or grime. Apply a thin coat of oil along the entire length of the carriage rack. Use a stiff brush to make sure oil is applied into the leadscrew threads.

Note: In some environments, abrasive material can become caught in the leadscrew lubricant and drawn into the half nut. In this case, lubricate the leadscrew with a quality dry lubricant.

Rack

Bedways

Use the handwheels to separately move the cross slide and compound slide as far forward as possible (see Figure 77). Clean the slides with mineral spirits and wipe down with a rag. Apply lubricant and move the slides back and forth to distribute the oil.

Compound

Bottom

Slide

Cross Slide

Bottom Slide

Figure 77. Location of bottom slides.

Leadscrew

Figure 76. Leadscrew, rack and bedways.

Bedways

Oil Type ....Grizzly SB1365 or ISO 68 Equivalent

Amount .............................................. As Needed

Lubrication Frequency ................................. Daily

Before lubricating the bedways (see Figure 76), clean them with mineral spirits. Apply a thin coat of oil along the length of the bedways. Move the steady rest, carriage, and tailstock to access the entire length of the bedways.

-52-

Model G0765 (Mfd. Since 12/13)

Change Gear Bushing

Grease Type .....................White Lithium NLGI#2

Frequency .............................................. Annually

Amount .................................................Thin Coat

The plastic end gears do not need to be lubricated. However, we recommend lightly lubricating the B/C change gear keyed bushing with white lithium grease.

Keyed Bushing

Gear Shaft

Figure 78. B/C change gear removed to access

keyed bushing.

Machine Storage

Preparing Lathe for Storage

1. DISCONNECT LATHE FROM POWER!

2. Thoroughly clean all unpainted, bare metal

surfaces, then apply a liberal coat of way oil, heavy grease, or rust preventative. Take care to ensure these surfaces are completely covered but that the rust preventative or grease is kept off of painted surfaces.

3. Lubricate machine as outlined in lubrication section. Be sure to use an oil can to purge all ball oilers and oil passages with fresh oil.

4. Place a few moisture absorbing desiccant packs inside of the electrical box.

5. Cover lathe and place it in a dry area that is out of direct sunlight and away from hazardous fumes, paint, solvents, or gas. Fumes and sunlight can bleach or discolor paint.

Remove the end cover and B/C change gear, clean the shaft and keyed bushing with mineral spirits and dry. Apply a thin coat of white lithium grease to the inside of the bushing shaft, then reinstall it.

Tumbler Gears

Oil Type ....Grizzly SB1365 or ISO 68 Equivalent

Amount ................................................ 2-3 Drops

Lubrication Frequency ........................... Annually

Add lubricant between the bolt heads and tumbler gears shown in Figure 79.

Bolts

6. Every few months, rotate by hand all geardriven components a few times in several gear selections. This will keep bearings, bushings, gears, and shafts well lubricated and protected from corrosion—especially during winter months.

Slide carriage, tailstock, and steady rest

down lathe bed to make sure that way spotting is not beginning to occur.

Bringing Lathe Out of Storage

1. Remove moisture-absorbing desiccant packs

from electrical box.

2. Repeat Test Run and Spindle Break-In procedures, beginning on Page 21.

Figure 79. Tumbler gear lubrication points.

Model G0765 (Mfd. Since 12/13)

-53-

Review the troubleshooting and procedures in this section if a problem develops with your machine. If you need replacement parts or additional help with a procedure, call our Technical Support at (570) 546-9663. Note: Please gather the serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

Troubleshooting

Symptom Possible Cause Possible Solution

Machine does not start or a circuit breaker trips.

Machine stalls or is underpowered.

Machine has vibration or noisy operation.

1. Emergency stop button engaged or at fault.

2. Variable speed dial in OFF position or at fault.

3. Spindle direction switch turned to "0" or at fault.

4. Blown fuse.

5. Incorrect power supply voltage.

6. Power supply circuit breaker tripped or fuse blown.

7. Wiring open/has high resistance.

8. Motor brushes at fault.

9. On/Off switch at fault.

10. Motor at fault.

1. Feed rate/cutting speed too fast.

2. Wrong workpiece material.

3. Machine undersized for task.

4. Motor overheated.

5. Computer board at fault.

6. Motor speed dial at fault.

7. Timing belt slipping.

8. Motor brushes at fault.

9. Pulley/sprocket slipping on shaft.

10. Motor bearings at fault.

11. Motor at fault.

1. Motor or component loose.

2. Pulley loose.

3. Motor fan rubbing on fan cover.

4. Motor bearings at fault.

5. Cutting tool chattering.

6. Workpiece or chuck at fault.

1. Press side tab in and lift switch cover. Press On button to reset; replace if not working properly.

2. Turn variable speed dial past "0". Ensure dial has correct voltage. Replace if faulty.

3. Turn spindle direction switch to "F" or "R". Ensure dial has correct voltage. Replace if faulty.

4. Replace fuse/ensure no shorts (Page 58).

5. Ensure correct power supply voltage.

6. Ensure circuit is sized correctly and free of shorts. Reset circuit breaker or replace fuse.

7. Check/ﬁx broken, disconnected, or corroded wires.

8. Remove/replace brushes (Page 59).

9. Replace switch.

10. Test/repair/replace.

1. Decrease feed rate/cutting speed.

2. Use correct type/size of metal.

3. Inspect and replace if at fault.

4. Use sharp bits; reduce feed rate/depth of cut.

5. Clean motor, let cool, and reduce workload.

6. Test and replace if at fault.

7. Tension/replace belt; ensure pulleys are aligned.

8. Remove/replace brushes (Page 59).

9. Replace loose pulley/shaft.

10. Test/repair/replace.

11. Test/repair/replace.

1. Inspect/replace damaged bolts/nuts, and retighten with thread locking fluid.

2. Realign/replace shaft, pulley, setscrew, and key.

3. Fix/replace fan cover; replace loose/damaged fan.

4. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

5. Replace/sharpen cutting tool; index tool to spindle centerline; use correct feed rate and cutting RPM.

6. Properly secure or center workpiece in chuck or faceplate; replace defective chuck.

-54-

Model G0765 (Mfd. Since 12/13)

Lathe Operation

Symptom Possible Cause Possible Solution

Bad surface ﬁnish. 1. Wrong spindle speed or feed rate.

2. Dull tooling or wrong tool selection.

3. Tool height not at spindle centerline.

4. Too much play in gibs.

Tapered tool difﬁcult to remove from tailstock quill.

Cross slide, compound rest, or carriage feed has sloppy operation.

Cross slide, compound, or carriage handwheels hard to move.

Cutting tool or machine components vibrate excessively during cutting.

Workpiece is tapered.

Chuck jaws will not move or do not move easily.

1. Quill not fully retracted into tailstock.

2. Contaminants not removed from taper before inserting into quill.

1. Ways loaded with shavings, dust, or grime.

2. Gibs are out of adjustment.

3. Handwheel loose or excessive backlash.

4. Leadscrew mechanism worn or out of adjustment.

1. Ways loaded with chips, dust, or grime.

2. Gibs are too tight.

3. Backlash setting too tight.

4. Bedways are dry.

5. Half nut lever engaged.

1. Tool holder not tight enough.

2. Cutting tool sticks too far out of tool holder; lack of support.

3. Gibs are out of adjustment.

4. Dull cutting tool.

5. Incorrect spindle speed or feed rate.

1. Headstock and tailstock not properly aligned.

1. Chips lodged in jaws or scroll plate. 1. Remove jaws, clean and lubricate scroll plate, then

1. Adjust for appropriate spindle speed and feed rate.

2. Sharpen tooling or select a better tool for the intended operation.

3. Adjust tool height to spindle centerline (see Page

38).

4. Tighten gibs (see Page 57).

1. Turn quill handwheel until tapered tool is forced out of quill.

2. Clean taper and bore, then re-install tool.

1. Clean ways and relubricate.

2. Adjust gibs (see Page 57).

3. Tighten handwheel fasteners, adjust handwheel backlash to a minimum (see Page 56).

4. Adjust leadscrew to remove end play (see Page

56).

1. Clean ways and lubricate.

2. Loosen gibs slightly (see Page 57).

3. Slightly loosen backlash setting (see Page 56).

4. Lubricate bedways.

5. Disengage half nut lever for manual feeding.

1. Check for debris, clean, and retighten.

2. Re-install cutting tool so no more than length is sticking out of tool holder.

3. Adjust gibs at affected component (see Page 57).

4. Replace or resharpen cutting tool.

5. Use the recommended spindle speed and feed rate.

1. Re-align tailstock to headstock spindle centerline (see Page 32).

replace jaws.

⁄3 of the total

Model G0765 (Mfd. Since 12/13)

-55-

Backlash Adjustment

Backlash is the amount of free play felt while changing rotation directions with the handwheel. This can be adjusted on the cross slide leadscrew. Before beginning any adjustment, make sure all associated components are cleaned and lubricated and locks are loose.

Angle the compound rest so you can access the cap screws shown in Figure 80. Loosen the outer cap screws, adjust the inner cap screw, then tighten the outer cap screws. Move the cross slide handwheel back and forth and adjust backlash until it is approximately 0.002"–0.003", as indicated on the graduated dial. Re-adjust the compound rest angle when you are finished.

When adjusting backlash, tighten the components enough to remove backlash, but not so much that the components bind the leadscrew, making it hard to turn. Overtightening will cause excessive wear to the sliding block and leadscrew.

Reducing backlash to less than 0.002" is impractical and can lead to accelerated wear in the leadscrew and other components. Avoid the temptation to overtighten the backlash nut or screw while adjusting.

Cross Slide

Tools Needed: Qty

Hex Wrench 2.5mm ........................................... 1

Hex Wrench 3mm ............................................. 1

The cross slide backlash is adjusted by tightening and loosening the inner and outer cap screws shown in Figure 80. The inner screw adjusts the height of the leadscrew nut, taking up lash between the nut and leadscrew.

Leadscrew End-Play

Adjustment

After a long period of time, you may find that the leadscrew develops excessive end-play or lateral movement. This lathe is designed so that endplay can be removed with a simple adjustment.

Tools Needed Qty

Hex Wrench ................................................. 4mm

Open-End Wrench 12mm .................................. 1

To remove leadscrew end play:

1. DISCONNECT LATHE FROM POWER.

2. Loosen set screw shown in Figure 81 sev-

eral turns.

Leadscrew

Retaining Nut

Inner Cap

Screw

Outer Cap

Screws

Figure 80. Cross slide backlash adjustment cap

screw.

-56-

Set Screw

End Bracket

Figure 81. Leadscrew end-play adjustments.

3. Tighten retaining nut with your fingers so it

just contacts end bracket, then back nut off

⁄8 turn.

4. Hold nut in position and tighten set screw against leadscrew until snug.

Model G0765 (Mfd. Since 12/13)

Gib Adjustment

The goal of adjusting the gib screws is to remove sloppiness or "play" from the ways without overadjusting them to the point where they become stiff and difficult to move.

In general, loose gibs cause poor finishes and tool chatter; however, over-tightened gibs cause premature wear and make it difficult to turn the handwheels.

Compound Slide

Adjustment

Fasteners

Figure 83. Compound slide gib adjustment hex

nuts and cap screws.

The gib adjustment process usually requires some trial-and-error. Repeat the process as necessary until you find the best balance between loose and stiff movement. Most machinists find that the ideal gib adjustment is one where a small amount of drag or resistance is present, yet the handwheels are still somewhat easy to move.

Clean and lubricate the ways before beginning any adjustments. Refer to Lubrication on Page

51 for instructions and lubricant specifications.

Tools Needed Qty

Open-End Wrench 7mm .................................... 1

Hex Wrench 3mm .............................................. 1

To adjust cross slide and compound slide gibs:

1. DISCONNECT LATHE FROM POWER!

2. Loosen three hex nuts on side of cross slide or compound slide (see Figures 82–83).

3. Adjust all three cap screws in small and equal

increments, then test movement of slide by rotating handwheel.

Note: Turning cap screws clockwise tightens

the gib, and turning them counterclockwise loosens the gib.

4. When satisfied with gib adjustment, use hex wrench to prevent cap screws from moving, then retighten hex nuts to secure the settings.

5. Recheck movement of slide and, if necessary, repeat Steps 2–4.

Cross Slide

Adjustment

Fasteners

Figure 82. Cross slide gib adjustment hex nuts

and cap screws.

Model G0765 (Mfd. Since 12/13)

-57-

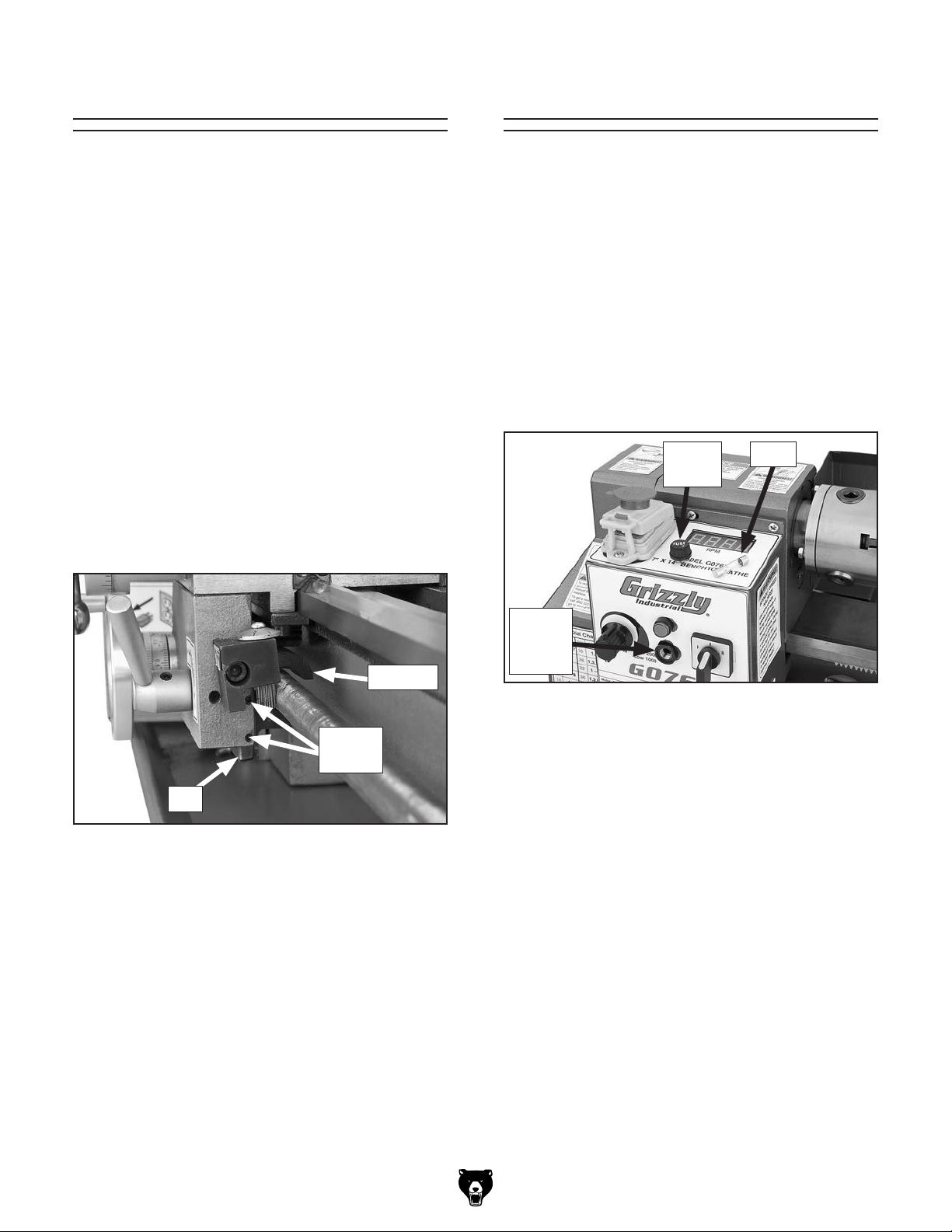

Half Nut Adjustment Fuse Replacement

The rigidity of the half nut engagement is adjusted by tightening or loosening the half nut gib screws. Adjust the half nut if it feels too loose or too tight when being engaged. Movement that is too stiff will accelerate wear. Movement that is too sloppy will produce inaccurate turning or threading results.

Tool Needed Qty

Hex Wrench 2mm .............................................. 1

To adjust half nut:

1. DISCONNECT LATHE FROM POWER!

2. Disengage half nut.

3. Adjust gib set screws (see Figure 84) in

small, even increments so one end of gib does not become tighter than the other.

This lathe features an on-board fuse designed to blow to protect sensitive electrical parts from thermal damage in the event of an overload. If the spindle does not start, replace the fuse.

Replacement fuse part number: P0765166.

To replace fuse:

1. DISCONNECT LATHE FROM POWER!

2. Unthread fuse holder by rotating counter-

clockwise (see Figure 85) and remove fuse.

Fuse

Holder

Fuse

Half-Nut

Set

Screws

Gib

Figure 84. Half nut gib adjustment set screws.

4. Engage/disengage half nut several times and

notice how it feels. The adjustment is correct when half nut firmly and easily engages leadscrew while opening and closing.

5. Repeat Steps 3–4, if necessary, until satisfied with feel of half nut engagement.

Fuse

Holder

Hole

Figure 85. Fuse holder and fuse.

3. Insert new fuse into fuse holder.

4. Re-install fuse holder.

-58-

Model G0765 (Mfd. Since 12/13)

Brush Replacement

This lathe is equipped with a universal motor that uses two carbon brushes to transmit electrical current inside the motor. These brushes are considered to be regular "wear items" or "consumables" that will need to be replaced during the life of the motor. The frequency of required replacement is often related to how much the motor is used and how hard it is pushed.

3. Unscrew rear brush cap and carefully remove brush from motor (see Figure 87).

Brush

Replace the carbon brushes when the motor no longer reaches full power, or when the brushes measure less than

Tools Needed Qty

Flat Head Screwdriver #2 .................................. 1

Phillips Head Screwdriver #2 ............................ 1

Replacement brush part number: P 076515 0 -1

To replace motor brushes:

1. DISCONNECT LATHE FROM POWER!

2. Remove the three screws that secure rear

motor cover, then remove cover to gain access to rear brush (see Figure 86).

⁄4" long (new brushes are 5⁄8" long).

Screws

Cap

Figure 87. Rear motor brush components

removed.

4. Unscrew front brush cap and remove brush from motor (see Figure 88).

BrushBrush Cap

Figure 88. Front brush components removed.

Brush Cap

Figure 86. Location of rear motor brush cap.

Model G0765 (Mfd. Since 12/13)

5. Install new brushes.

6. Re-install brush caps.

7. Replace rear motor cover.

-59-

Timing Belt Tension

& Replacement

The timing belt transfers power from the motor to the drive pulley (see Figure 89).

Because the molded teeth in the belt fit together with matching teeth in the pulley, the timing belt will not slip unless the belt teeth become overly worn or belt tension is overly loose.

An improperly tensioned timing belt will slip, which quickly causes it to become damaged and unsuitable for further use. Therefore, it is essential to maintain belt tension properly to prevent slippage.

Once a timing belt begins to slip, it must be replaced in order to regain proper power transmission.

Drive

Pulley

Timing

Belt

Motor Mount

Hex Nuts

Tensioning Timing Belt

1. DISCONNECT LATHE FROM POWER!

2. Perform Steps 2–5 on Page 61 to remove

components to access timing belt.

3. Verify belt is centered on drive pulley (see Figure 89) by hand-rotating chuck. The belt

should be seated so it does not contact headstock or hang out at end of pulley.

— If belt is not centered, loosen motor mount

hex nuts (see Figure 89), re-adjust motor position and re-tension belt.

4. Loosen both motor mount hex nuts.

5. Ensure belt teeth are properly engaged in

pulley notches, push down on motor with light/moderate pressure, and tighten motor mount hex nuts.

Note: Position motor so you can access

brush cap through hole in bed.

The timing belt is correctly tensioned when

there is approximately is pushed with moderate pressure, as shown in Figure 90.

⁄8" deflection when it

Motor Pulley

Figure 89. Timing belt and motor mount hex

nuts (components removed for clarity).

Tools Needed Qty

Hex Wrench 4mm .............................................. 1

Hex Wrench 5mm .............................................. 1

Open-End Wrench/Socket 10mm ...................... 1

Phillips Head Screwdriver .................................. 1

Punch & Hammer or

Adjustable Spanner Wrench .............................. 1

Black Fine-Tip Felt Marker ................................ 1

-60-

Pulley

Deflection

⁄8"

Pulley

Figure 90. Correct timing-belt deflection.

—If there is more than

timing belt is pushed with moderate pressure, loosen motor mount hex nuts, and adjust tension until it is correct.

6. Perform Steps 9–11 on Page 61 to re-install components you removed earlier.

Model G0765 (Mfd. Since 12/13)

⁄8" deflection when

Replacing Timing Belt

1. DISCONNECT LATHE FROM POWER!

2. Remove end cover, rear motor cover, and

electrical cabinet.

7. Slide off old timing belt and install the new one, making sure that belt teeth are seated together with pulley teeth (see Figure 93).

Side

Cover

Outer

Spanner

Nut

Figure 91. Components to be removed to

3. Using a fine-tip felt marker, place alignment

marks on inner spanner nut and gear shown in Figure 91. The purpose or these marks is to help re-install the outer spanner nut.

4. Carefully remove outer spanner nut, speed sensor, and sensor wheel.

Gear

replace timing belt.

Sensor

Wheel

Inner

Spanner

Nut

Speed

Sensor

Timing

Belt

Figure 93. Timing belt installed.

8. Tension timing belt. (Refer to Tensioning Timing Belt on Page 60 for detailed instruc-

tions.)

9. Check alignment marks you made on inner spanner nut and gear in Step 3. The marks should still be aligned.

—If marks are not aligned, adjust inner span-

ner nut as needed to align them.

5. Remove side cover assembly.

6. Loosen motor mount hex nuts shown in Figure 92.

Motor

Mount

Hex Nuts

Figure 92. Location of motor mount hex nuts.

10. Re-install side cover, sensor wheel, speed

sensor, and outer spanner nut.

11. Re-install electrical cabinet, rear motor cover, and end cover.

Model G0765 (Mfd. Since 12/13)

-61-

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is connected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

-62-

Model G0765 (Mfd. Since 12/13)

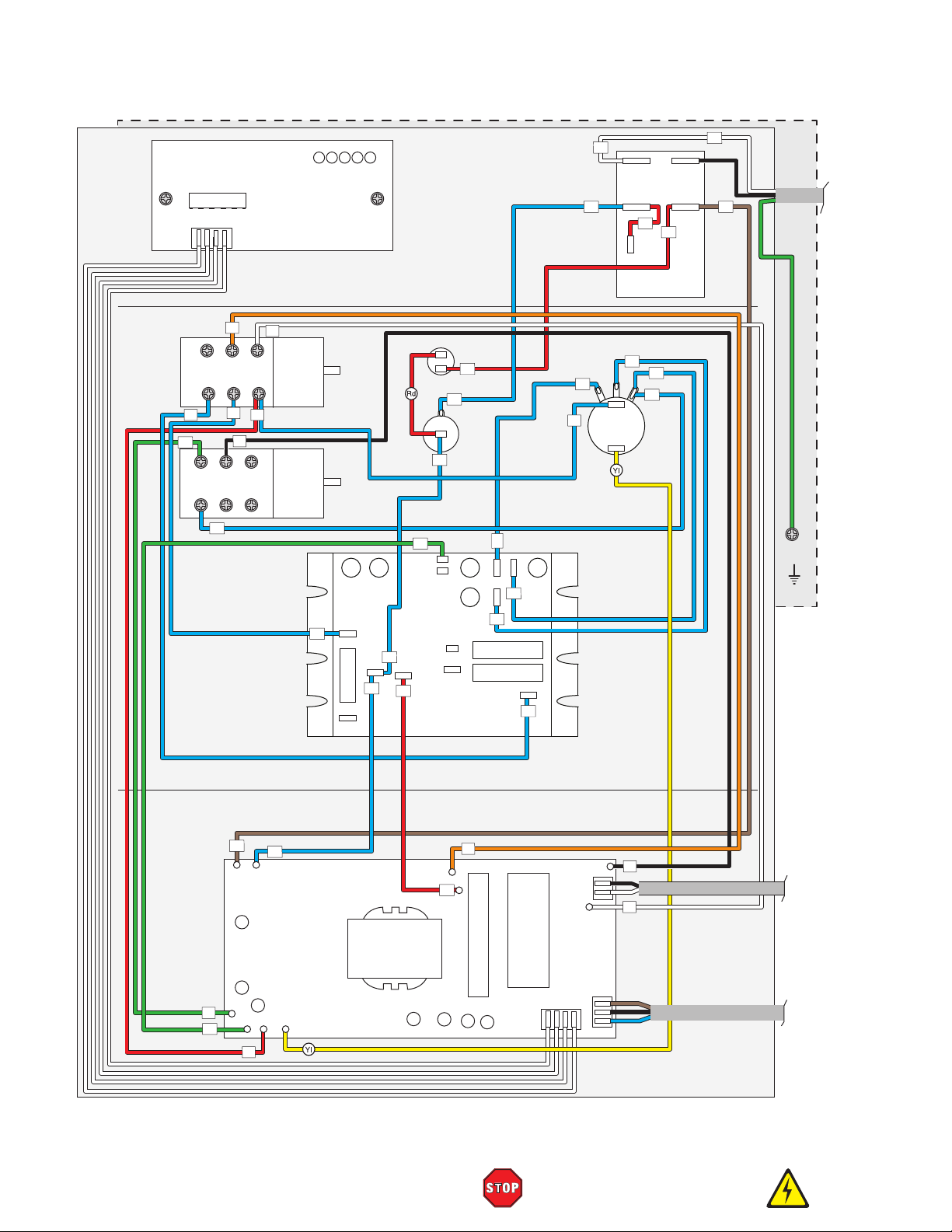

11 2

3 3 4

Top of Control Panel

Bottom of Control Panel

Front of Control Panel

KEDU KJD17B

ON/OFF SWITCH

4WPLJ-2T

DIGITAL READOUT

CON4

KEDU

ZHA

Left Side

From

Behind

KEDU

ZHA

Right Side

From

Behind

DIRECTION SWITCH

POWER LAMP

1 5 9

2 6

8 412

A-

A+

4 3 2 1

A−

A+

JD−014

REV A 09111

CIRCUIT BOARD

KSP

CIRCUIT BOARD

FUSE

VARIABLE

SPEED

GND

Control Panel Wiring

Plug

Page

Machine

Frame

To M oto r

Page 65

Model G0765 (Mfd. Since 12/13)

READ ELECTRICAL SAFETY

ON PAGE 62!

To Speed

Sensor

Page 65

-63-

Control Panel Wiring Photos

Figure 94. G0765 wiring overview.

Figure 96. Control panel wiring (top).

Figure 97. Control panel wiring (front).Figure 95. Control panel wiring (bottom).

-64-

READ ELECTRICAL SAFETY

ON PAGE 62!

Model G0765 (Mfd. Since 12/13)

Motor/Speed Sensor/ Plug Wiring

Figure 98. Motor wiring.

Speed Sensor

MOTOR

83ZYT007

110V

To Control Panel

Page 63

Figure 99. Speed sensor location.

Figure 100. Speed sensor

wiring.

To Control Panel

Page 63

SPEED SENSOR

To Control Panel

Page 63

Wires connect on back

side of circuit board

Neutral

Hot

110 VAC

5-15 Plug

Ground

Model G0765 (Mfd. Since 12/13)

READ ELECTRICAL SAFETY

ON PAGE 62!

-65-

177

153

178

179

191

181

180

190

175

174

152

189

176

168

173

188

169

194

187

193

SECTION 9: PARTS

Main

185

186

157

183

184

192

151

124

150

148

182

150-2

117

150-1

110

157

146

112

111

109

145

113

107

171

144

167

108

143

106

142

138

102

114

101

140

137

115

116

100

139

136

128

105

141

119

127

135

196

4 5

123

129

133

195

134

131

160

162

126

125

170

166

165

159

158

164

163

161

-66-

Model G0765 (Mfd. Since 12/13)

Main

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 P0765001 BED 56 P0765056 CAP SCREW M6-1 X 6 2 P0765002 3-JAW CHUCK 3" W/INTERNAL JAWS 57 P0765057 FLAT WASHER 6MM 3 P0765003 SPINDLE MT#3 58 P0765058 BUSHING W/KEYWAY 4 P0765004 STUD-DE M6-1 X 60, 15 59 P0765059 GEAR 80T 5 P0765005 FLAT WASHER 6MM 60 P0765060 SHAFT 6 P0765006 HEX NUT M6-1 61 P0765061 PIVOT ARM 7 P0765007 KEY 5 X 5 X 40 62 P0765062 FLAT WASHER 8MM 8 P0765008 KEY 4 X 4 X 8 63 P0765063 HEX NUT M8-1.25 9 P0765009 CAP SCREW M5-.8 X 10 64 P0765064 SHAFT 10 P0765010 BEARING COVER 65 P0765065 THREAD DIAL 11 P0765011 BALL BEARING 6206ZZ 66 P0765066 GEAR SHAFT 16T 12 P0765012 SPACER 67 P0765067 CAP SCREW M6-1 X 16 13 P0765013 HEADSTOCK CASTING 68 P0765068 THREAD DIAL BODY 14 P0765014 COMBO GEAR 21T/29T 69 P0765069 SET SCREW M4-.7 X 10 15 P0765015 SPACER 70 P0765070 APRON 16 P0765016 GEAR 45T 71 P0765071 HALF NUT GIB 17 P0765017 SPANNER NUT 74 P0765074 HALF NUT SHAFT 18 P0765018 SET SCREW M5-.8 X 8 75 P0765075 HALF NUT 2-PC SET 19 P0765019 STEEL BALL 5MM 76 P0765076 COMPOUND REST ANGLE SCALE 20 P0765020 COMPRESSION SPRING 4 X 9 77 P0765077 FLAT HD SCR M4-.7 X 10 21 P0765021 SET SCREW M6-1 X 6 78 P0765078 CAM 22 P0765022 EXT RETAINING RING 12MM 79 P0765079 HALF NUT LEVER 23 P0765023 BALL BEARING 6201ZZ 80 P0765080 SHAFT 24 P0765024 COMBO GEAR 12T/20T 81 P0765081 COMBO GEAR 11T/54T 25 P0765025 KEY 4 X 4 X 45 82 P0765082 GEAR SHAFT 24T 26 P0765026 H/L SHAFT 83 P0765083 SET SCREW M6-1 X 12 27 P0765027 SPINDLE PULLEY 84 P0765084 HANDWHEEL 28 P0765028 EXT RETAINING RING 10MM 85 P0765085 HANDWHEEL HANDLE M5-.8 X 6 29 P0765029 TIMING BELT 1.5M-70-9.5 86 P0765086 CROSS BALL HANDLE 30 P0765030 SHIFTING FORK 87 P0765087 GRADUATED DIAL 31 P0765031 SHIFTING ARM 88 P0765088 CROSS LEADSCREW BRACKET 32 P0765032 H/L LEVER HUB 89 P0765089 CROSS LEADSCREW 33 P0765033 H/L LEVER M8-1.25 X 10 90 P0765090 HEX NUT M5-.8 35 P0765035 HANDLE 91 P0765091 CAP SCREW M6-1 X 12 36 P0765036 HANDLE MOUNT 92 P0765092 SADDLE CLAMP PLATE 37 P0765037 COMPRESSION SPRING 93 P0765093 SADDLE 38 P0765038 PINION GEAR 25T 94 P0765094 CROSS SLIDE GIB 39 P0765039 INDICATOR 95 P0765095 CROSS LEADSCREW NUT 40 P0765040 GEAR SHOULDER BOLT M8-1.25 X 5 96 P0765096 COMPOUND REST SWIVEL BASE 41 P0765041 PINION GEAR 20T 97 P0765097 CAP SCREW M8-1.25 X 20 42 P0765042 HEADSTOCK SIDE COVER 98 P0765098 HEX NUT M4-.7 43 P0765043 CAP SCREW M6-1 X 20 99 P0765099 SET SCREW M4-.7 X 16 44 P0765044 CAP SCREW M5-.8 X 10 100 P0765100 CROSS SLIDE 45 P0765045 GEAR 45T 101 P0765101 SET SCREW M5-.8 X 10 46 P0765046 SHAFT 102 P0765102 CAP SCREW M4-.7 X 10 47 P0765047 KEY 4 X 4 X 8 105 P0765105 COMPOUND REST SLIDE BASE

48 P0765048 GEAR MOUNT 106 P0765106 CAP SCREW M4-.7 X 14 49 P0765049 CAP SCREW M5-.8 X 15 107 P0765107 COMPOUND REST GIB 50 P0765050 PINION GEAR 20T 108 P0765108 COMPOUND REST 51 P0765051 FLAT WASHER 5MM 109 P0765109 INDENT PIN 52 P0765052 CAP SCREW M5-.8 X 10 110 P0765110 TOOL POST CAP SCREW M8-1.25 X 25 53 P0765053 END GEAR COVER 111 P0765111 TOOL POST LOCK LEVER 54 P0765054 CAP SCREW M5-.8 X 40 112 P0765112 TOOL POST BODY

Model G0765 (Mfd. Since 12/13)

-67-

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.

Main

REF PART # DESCRIPTION REF PART # DESCRIPTION

113 P0765113 STUD-DE M10-1.5 X 50, 15 159 P0765159 FUSE HOLDER 114 P0765114 COMPOUND LEADSCREW 160 P0765160 SPINDLE SPEED DIGITAL READOUT 4WPLJ-2T 115 P0765115 COMPOUND LEADSCREW BRACKET 161 P0765161 POTENTIOMETER B4K7 4.7KOHM 116 P0765116 CAP SCREW M4-.7 X 14 162 P0765162 F/O/R ROTARY SWITCH TUV ZH-A 117 P0765117 MOTOR COVER (FRONT) 163 P0765163 CIRCUIT BOARD KSP (SMALL) 119 P0765119 HEX NUT M10-1.5 164 P0765164 CIRCUIT BOARD KBHC (LARGE) 123 P0765123 ELECTRICAL CABINET 165 P0765165 E-STOP KEDU KJD17B/120V 124 P0765124 POWER CORD 18G 3W 60" 5-15 166 P0765166 FUSE 10A 250V FAST-ACTING GLASS 125 P0765125 FOOT (RUBBER) 167 P0765167 COMPOUND REST BALL HANDLE 126 P0765126 CHIP TRAY 168 P0765168 SPEED SENSOR WHEEL 127 P0765127 LEADSCREW OUTBOARD BRACKET 169 P0765169 SPEED SENSOR H12A5 128 P0765128 KEY 4 X 4 X 8 170 P0765170 CAP SCREW M8-1.25 X 25 129 P0765129 LONGITUDINAL LEADSCREW 16TPI 171 P0765172 DEAD CENTER MT#3 131 P0765131 LEADSCREW END BRACKET 173 P0765173 STEADY REST ASSEMBLY 133 P0765133 CAP SCREW M3-.5 X 10 174 P0765174 FACEPLATE 6-1/4" 134 P0765134 RACK 175 P0765175 LATHE CHUCK KEY 3/8" STD 135 P0765135 TAILSTOCK CLAMP PLATE 176 P0765176 EXTERNAL JAWS 3-PC SET 136 P0765136 FLAT WASHER 10MM 177 P0765177 HEX WRENCH 2.5MM 137 P0765137 SET SCREW M5-.8 X 16 178 P0765178 HEX WRENCH 3MM 138 P0765138 TAILSTOCK CASTING (UPPER/LOWER) 179 P0765179 HEX WRENCH 4MM 139 P0765139 TAILSTOCK LEADSCREW 180 P0765180 HEX WRENCH 5MM 140 P0765140 TAILSTOCK LEADSCREW BRACKET 181 P0765181 HEX WRENCH 6MM 141 P0765141 CAP SCREW M4-.7 X 10 182 P0765182 BOTTLE FOR OIL 142 P0765142 TAILSTOCK QUILL 183 P0765183 GEAR 30T 143 P0765143 DEAD CENTER MT#2 184 P0765184 GEAR 35T 144 P0765144 STUD-DE M8-1.25 X 60, 25 185 P0765185 GEAR 40T 145 P0765145 CLAMP SLEEVE 186 P0765186 GEAR 45T 146 P0765146 QUILL LOCK LEVER 187 P0765187 GEAR 50T 148 P0765148 MOTOR PULLEY 188 P0765188 GEAR 55T 150 P0765150 MOTOR 600W 110VDC 189 P0765189 GEAR 57T 150-1 P0765150-1 MOTOR CARBON BRUSH 2-PC SET 190 P0765190 GEAR 57T 150-2 P0765150-2 CARBON BRUSH CAP 191 P0765191 GEAR 60T 151 P0765151 MOTOR COVER (REAR) 192 P0765192 WRENCH 6 X 7MM OPEN-ENDS 152 P0765152 STRAIN RELIEF 3/4" NPT LT STRAIGHT 193 P0765193 WRENCH 8 X 10MM OPEN-ENDS 153 P0765153 SPLASH GUARD 194 P0765194 WRENCH 13 X 16MM OPEN-ENDS 157 P0765157 FLAT WASHER 5MM 195 P0765195 ELECTRICAL BARRIER 158 P0765158 POWER LIGHT 196 P0765196 PHLP HD SCR M5-.8 X 12

-68-

Model G0765 (Mfd. Since 12/13)

Labels & Cosmetics (Front)

255

254

252

253

256 257

251

259

258

261

260

REF PART # DESCRIPTION REF PART # DESCRIPTION

251 P0765251 MACHINE ID LABEL 257 P0765257 DRO LABEL 252 P0765252 THREAD DIAL CHART LABEL 258 P0765258 SPINDLE SPEED WARNING LABEL 253 P0765253 READ MANUAL LABEL 259 P0765259 GRIZZLY GREEN TOUCH-UP PAINT 254 P0765254 GLASSES/FACE SHIELD WARNING LABEL 260 P0765260 HALF NUT LEVER LABEL 255 P0765255 CHANGE DIRECTION NOTICE LABEL 261 P0765261 DISCONNECT POWER WARNING LABEL 256 P0765256 ENTANGLEMENT WARNING LABEL

Model G0765 (Mfd. Since 12/13)

-69-

SECTION 10: APPENDIX

Threading Charts

Inch and metric thread charts for the Model G0765 are provided below for your reference. An inch thread chart is provided on the headstock, but a metric chart is not.

TPI GEARS TPI GEARS

A B C D A B C D

40 65

40 65 60 30 28 20 65

40 65

40 50 60 57 40 20 65

40 65

Figure 101. Threads per inch chart (TPI).

30 26 40 60

⁄

35 32 20 65

⁄

40 36 20 65

⁄

45 38 20 50 60 57

⁄

50 44 20 65

⁄

55 48 20 65

⁄

60 52 20 60

⁄

mm/

pitch

0.4

0.5

0.6

0.7

0.8

1.0

1.25

1.5

1.75

2.0

A B C D

20 50 40 60

20 50 ⁄ 60

40 50 30 60

40 50 35 60

40 50 40 60

20 60 ⁄ 30

50 40 ⁄ 60

40 60 ⁄ 40

35 60 ⁄ 30

40 60 ⁄ 30

Gear

Figure 102. Metric thread pitch chart.

-70 -

Model G0765 (Mfd. Since 12/13)

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. Of course, all information is strictly confidential.

1. How did you learn about us? ____ Advertisement ____ Friend ____ Catalog ____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM ____ Family Handyman ____ Hand Loader ____ Handy ____ Home Shop Machinist ____ Journal of Light Cont. ____ Live Steam ____ Model Airplane News ____ Old House Journal ____ Popular Mechanics

3. What is your annual household income? ____ $20,000-$29,000 ____$30,000-$39,000 ____ $40,000-$49,000 ____ $50,000-$59,000 ____$60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group? ____ 20-29 ____ 30-39 ____ 40-49 ____ 50-59 ____ 60-69 ____ 70+

5. How long have you been a woodworker/metalworker? ____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____ 20+ Years

6. How many of your machines or tools are Grizzly? ____ 0-2 ____ 3-5 ____ 6-9 ____10+

____ Popular Science ____ Popular Woodworking ____ Precision Shooter ____ Projects in Metal ____ RC Modeler ____ Rie ____ Shop Notes ____ Shotgun News ____ Today’s Homeowner ____ Wood

____ Wooden Boat ____ Woodshop News ____ Woodsmith ____ Woodwork ____ Woodworker West ____ Woodworker’s Journal ____ Other:

7. Do you think your machine represents a good value? _____ Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. _____ Yes _____No

10. Comments: _____________________________________________________________________

_________________________________________________________________________________

FOLD ALONG DOTTED LINE

Place

Stamp

Here

GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069

Send a Grizzly Catalog to a friend:

Name_______________________________

Street_______________________________

City______________State______Zip______

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

Grizzly G0765 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
