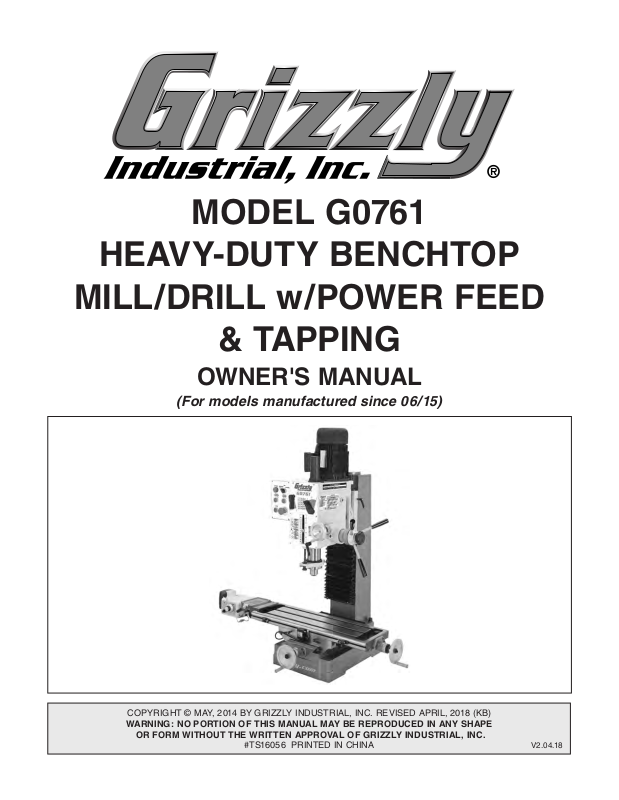

MODEL G0761

HEAVY-DUTY BENCHTOP

MILL/DRILL w/POWER FEED

& TAPPING

OWNER'S MANUAL

(For models manufactured since 06/15)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#TS16056 PRINTED IN CHINA

V2 . 0 4 .18

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Machine Description ...................................... 2

Contact Info.................................................... 2

Manual Accuracy ........................................... 2

Identification ................................................... 3

Basic Controls ................................................ 4

Machine Data Sheet ...................................... 5

SECTION 1: SAFETY ....................................... 7

Safety Instructions for Machinery .................. 7

Additional Safety for Mill/Drills ....................... 9

SECTION 2: POWER SUPPLY ...................... 10

SECTION 3: SETUP ....................................... 12

Unpacking .................................................... 12

Needed for Setup ......................................... 12

Inventory ...................................................... 12

Cleanup ........................................................ 13

Site Considerations ...................................... 14

Lifting & Placing ........................................... 15

Bench Mounting ........................................... 15

Assembly ..................................................... 16

Joining Drill Chuck & Arbor .......................... 16

Lubricating Mill/Drill ...................................... 17

Test Run ...................................................... 17

Spindle Bearing Break-In ............................. 19

Inspections & Adjustments .......................... 19

SECTION 5: ACCESSORIES ......................... 28

SECTION 6: MAINTENANCE ......................... 30

Schedule ...................................................... 30

Cleaning and Protecting .............................. 30

Lubrication ................................................... 30

SECTION 7: SERVICE ................................... 35

Troubleshooting ........................................... 35

Adjusting Gibs .............................................. 37

Adjusting Leadscrew Backlash .................... 37

Tightening Return Spring Tension ............... 38

SECTION 8: WIRING ...................................... 39

Wiring Safety Instructions ............................ 39

Electrical Box & Control Panel Wiring ......... 40

Motor & Tapping Switches Wiring ............... 42

SECTION 9: PARTS ....................................... 43

Headstock .................................................... 43

Table & Column ........................................... 46

Electrical ...................................................... 48

Accessories .................................................. 49

Labels & Cosmetics ..................................... 50

WARRANTY & RETURNS ............................. 53

SECTION 4: OPERATIONS ........................... 20

Operation Overview ..................................... 20

Downfeed Controls ...................................... 21

Depth Stop ................................................... 21

Headstock Movement .................................. 22

Table Travel ................................................. 23

Installing/Removing Tooling ......................... 24

Spindle Speed.............................................. 26

Tapping Mode .............................................. 27

INTRODUCTION

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Email: manuals@grizzly.com

Contact Info

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

Email: techsupport@grizzly.com

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

Manufacture Date and Serial Number

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to lessen the possibility of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

Manufacture Date

Serial Number

-2-

Model G0761 (Mfd. Since 06/15)

To reduce your risk of serious injury, read this entire manual BEFORE

Gearbox

Levers

Control

Panel

Depth Stop

& Scale

Drawbar

Cover

Identification

Motor

Z-Axis

Lock

Headstock

Tilt Scale

Coarse Downfeed

Handle

X-Axis

Power Feed

Stop

Fine Downfeed

Handwheel

Quill Lock

Y-Axis

Handwheel

Spindle

X-Axis

Table Locks

Y-Axis

Table Lock

Downfeed

Selector

Knob

Dovetail Column

Power Feed

Stop

Table

X-Axis

Handwheel

Model G0761 (Mfd. Since 06/15)

using machine.

-3-

Basic Controls

A. POWER Lamp: Illuminates when the machine

is connected to power.

Use Figure 1 and the descriptions below to gain a basic understanding of the control panel and spindle speed controls. Knowing this information is required to safely complete the Test Ru n in the SETUP section.

Figure 1. Control panel and spindle speed

controls.

B. Mode Switch: Sets the spindle mode to

either drilling/milling or tapping.

C. High/Low Range Lever: Selects either high

or low spindle speed range.

D. Spindle Speed Lever: Selects one of three

spindle speeds in the selected speed range.

E. SPINDLE REVERSE Button: Starts coun-

terclockwise spindle rotation (as viewed from above). The spindle must be completely stopped before this button is pushed.

F. EMERGENCY STOP Button: Cuts power

to the spindle motor and remains depressed until reset. Twist clockwise until it pops out to reset.

G. STOP Button: Stops spindle rotation.

H. SPINDLE FORWARD Button: Starts clock-

wise spindle rotation (as viewed from above). The spindle must be completely stopped before this button is pushed.

-4-

Model G0761 (Mfd. Since 06/15)

Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0761 HEAVY‐DUTY BENCHTOP MILL/DRILL WITH

POWER FEED AND TAPPING

Product Dimensions:

Weight.............................................................................................................................................................. 647 lbs.

Width (side-to-side) x Depth (front-to-back) x Height............................................................... 49-5/8 x 30-3/4 x 57 in.

Footprint (Length x Width)............................................................................................................... 21-5/8 x 17-3/4 in.

Shipping Dimensions:

Type.......................................................................................................................................................... Wood Crate

Content........................................................................................................................................................... Machine

Weight.............................................................................................................................................................. 714 lbs.

Length x Width x Height....................................................................................................................... 34 x 30 x 46 in.

Electrical:

Power Requirement............................................................................................................ 220V, Single-Phase, 60Hz

Prewired Voltage.................................................................................................................................................. 220V

Full-Load Current Rating....................................................................................................................................... 8.6A

Minimum Circuit Size.............................................................................................................................................. 15A

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length................................................................................................................................................. 5 ft.

Power Cord Gauge......................................................................................................................................... 14 AWG

Plug Included........................................................................................................................................................... No

Recommended Plug Type..................................................................................................................................... 6-15

Switch Type........................................................................................... Control Panel w/ Magnetic Switch Protection

Motors:

Main

Horsepower................................................................................................................................................ 2 HP

Phase............................................................................................................................................ Single-Phase

Amps........................................................................................................................................................... 8.6A

Speed................................................................................................................................................ 1720 RPM

Type................................................................................................................. TEFC Capacitor-Start Induction

Power Transfer ................................................................................................................................. Gear Drive

Bearings..................................................................................................... Shielded & Permanently Lubricated

Centrifugal Switch/Contacts Type.......................................................................................................... Internal

Main Specifications:

Operation Info

Spindle Travel........................................................................................................................................ 4-3/4 in.

Max Distance Spindle to Column........................................................................................................ 10-1/8 in.

Max Distance Spindle to Table............................................................................................................ 18-1/8 in.

Longitudinal Table Travel (X-Axis).............................................................................................................. 22 in

Cross Table Travel (Y-Axis).................................................................................................................. 7-1/2 in.

Vertical Head Travel (Z-Axis)............................................................................................................... 13-3/4 in

Head Tilt (Left/Right)........................................................................................................ Right 45, Left 45 deg.

Drilling Capacity for Cast Iron................................................................................................................ 1-3/4 in.

Drilling Capacity for Steel...................................................................................................................... 1-1/4 in.

End Milling Capacity............................................................................................................................. 1-1/4 in.

Face Milling Capacity............................................................................................................................ 3-1/8 in.

Model G0761 (Mfd. Since 06/15)

-5-

Table Info

Table Length........................................................................................................................................ 31-1/2 in.

Table Width........................................................................................................................................... 9-1/2 in.

Table Thickness.................................................................................................................................... 2-1/2 in.

Number of T-Slots............................................................................................................................................ 3

T-Slot Size................................................................................................................................................ 1/2 in.

T-Slots Centers...................................................................................................................................... 3-1/8 in.

Spindle Info

Spindle Taper............................................................................................................................................... R-8

Number of Vertical Spindle Speeds.................................................................................................................. 6

Range of Vertical Spindle Speeds............................................................................................... 90–1970 RPM

Quill Diameter.............................................................................................................................................. 3 in.

Drawbar Thread Size............................................................................................................................. 7/16-20

Drawbar Length................................................................................................................................... 17-3/4 in.

Spindle Bearings........................................................................... High-Precision "P5" Tapered Roller Bearing

Construction

Spindle Housing/Quill........................................................................................................................... Cast Iron

Table.................................................................................................................................................... Cast Iron

Head.................................................................................................................................................... Cast Iron

Column/Base....................................................................................................................................... Cast Iron

Paint Type/Finish.................................................................................................................................... Enamel

Other Specifications:

Country of Origin ................................................................................................................................................ China

Warranty ........................................................................................................................................................... 1 Year

Serial Number Location .................................................................................................................................. ID Label

Sound Rating ................................................................................................................................................... <80 dB

ISO 9001 Factory ................................................................................................................................................. Yes

Certified by a Nationally Recognized Testing Laboratory (NRTL) .......................................................................... No

Features:

Dovetail ways Tapping capability High-precision P5 tapered-roller spindle bearings Coolant trough built into table 45 degree right/left head tilt

Accessories Included:

Drill chuck 1-13mm with B16 taper Tool box Oil bottle

-6-

Model G0761 (Mfd. Since 06/15)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

Model G0761 (Mfd. Since 06/15)

-7-

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

-8-

Model G0761 (Mfd. Since 06/15)

Additional Safety for Mill/Drills

You can be seriously injured or killed by getting clothing, jewelry, or long hair entangled with rotating cutter/spindle. You can be severely cut or have fingers amputated from contact with rotating cutters. You can be blinded or struck by broken cutting tools, metal chips, workpieces, or adjustment tools thrown from the rotating spindle with great force. To reduce your risk of serious injury when operating this machine, completely heed and understand the following:

UNDERSTAND ALL CONTROLS. Make sure

you understand the function and proper use of all controls before starting. This will help you avoid making mistakes that result in serious injury.

AVOIDING ENTANGLEMENT. DO NOT wear loose clothing, gloves, or jewelry, and tie back long hair. Keep all guards in place and secure. Always allow spindle to stop on its own. DO NOT stop spindle using your hand or any other object.

WEAR FACE SHIELD. Always wear a face shield in addition to safety glasses. This provides more complete protection for your face than safety glasses alone.

USE CORRECT SPINDLE SPEED. Follow recommended speeds and feeds for each size and type of cutting tool. This helps avoid tool breakage during operation and ensures best cutting results.

INSPECT CUTTING TOOL. Inspect cutting tools for sharpness, chips, or cracks before each use. Replace dull, chipped, or cracked cutting tools immediately.

PROPERLY SECURE CUTTER. Firmly secure cutting tool or drill bit so it does not fly out of spindle during operation.

POWER DISRUPTION. In the event of a local power outage during operation, turn spindle switch OFF to avoid a possible sudden startup once power is restored.

CLEAN MACHINE SAFELY. Metal chips or shavings can be razor sharp. DO NOT clear chips by hand or compressed air that can force chips farther into machine—use a brush or vacuum instead. Never clear chips while spindle is turning.

SECURE WORKPIECE TO TABLE. Clamp workpiece to table or secure in a vise mounted to table, so workpiece cannot unexpectedly shift or spin during operation. NEVER hold workpiece by hand during operation.

PROPERLY MAINTAIN MACHINE. Keep machine in proper working condition to help ensure that it functions safely and all guards and other components work as intended. Perform routine inspections and all necessary maintenance. Never operate machine with damaged or worn parts that can break or result in unexpected movement during operation.

DISCONNECT POWER FIRST. To reduce risk of electrocution or injury from unexpected startup, make sure mill/drill is turned OFF, disconnected from power, and all moving parts have come to a complete stop before changing cutting tools or starting any inspection, adjustment, or maintenance procedure.

REMOVE CHUCK KEY & SPINDLE TOOLS. Always remove chuck key, drawbar wrench, and other tools used on the spindle immediately after use. This will prevent them from being thrown by the spindle upon startup.

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so may result in serious personal injury or property damage.

Model G0761 (Mfd. Since 06/15)

-9-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrican or qualified service personnel in accordance with all applicable codes and standards.

Electrocution, fire, or equipment damage may occur if machine is not correctly grounded and connected to the power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the requirements in the following section.

This machine is prewired to operate on a 220V power supply circuit that has a verified ground and meets the following requirements:

For your own safety and protection of

Note: The circuit requirements listed in this manual apply to a dedicated circuit—where only one machine will be running at a time. If this machine will be connected to a shared circuit where multiple machines will be running at the same time, consult a qualified electrician to ensure that the circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

Availability

supply.

Full-Load Current Rating

Circuit Requirements for 220V

Nominal Voltage ................... 220V, 230V, 240V

Cycle .......................................................... 60 Hz

Phase .................................................... 1-Phase

Power Supply Circuit ......................... 15 Amps

Plug/Receptacle ............................. NEMA 6-15

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

Full-Load Current Rating at 220V .... 8.6 Amps

-10 -

Model G0761 (Mfd. Since 06/15)

We do not recommend using an extension cord with this machine. cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which may damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must contain a ground wire, match the required plug and receptacle, and meet the following requirements:

Grounding Instructions

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

Serious injury could occur if you connect

The power cord and plug specified under “Circuit Requirements for 220V” has an equipment-grounding wire and a grounding prong. The plug must only be inserted into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances (see figure below).

No adapter should be used with the required plug. If the plug does not fit the available receptacle, or the machine must

on the previous page

GROUNDED

6-15 RECEPTACLE

Current Carrying Prongs

6-15 PLUG

Extension Cords

If you must use an extension

Grounding Prong

Figure 2. Typical 6-15 plug and receptacle.

the machine to power before completing the setup process. DO NOT connect to power until instructed later in this manual.

be reconnected for use on a different type of circuit, the reconnection must be made by a qualified electrician and comply with all local codes and ordinances.

Model G0761 (Mfd. Since 06/15)

Minimum Gauge Size ...........................14 AWG

Maximum Length (Shorter is Better).......50 ft.

-11-

SECTION 3: SETUP

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

IMPORTANT:

you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

Unpacking

If items are damaged

call us immediately at (570) 546-9663.

Save all packaging materials until

Needed for Setup

The following are needed to complete the setup process, but are not included with your machine.

Description Qty

• Additional People ....................................... 1

• Safety Glasses ........................ 1 Per Person

• Cleaner/Degreaser (Page 13) .... As Needed

• Disposable Shop Rags ............... As Needed

• Forklift ......................................................... 1

• Lifting Strap (rated for at least 1000 lbs.) ... 1

• Mounting Hardware (Page 15) ... As Needed

• Flat Head Screwdriver #2 ........................... 1

• Brass Hammer (Page 16) .......................... 1

• Mineral Spirits (Page 16) ............ As Needed

Inventory

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Small Item Inventory (Figure 3) Qty

A. Handwheel Handles w/Screws ................... 2

B. T-Bolts M12-1.75 x 55 w/Washers & Nuts .. 2

C. Bottle for Oil ............................................... 1

D. Toolbox ....................................................... 1

E. Open-End Wrenches 17/19, 22/24mm ..1 Ea

F. Hex Wrenches 2.5, 3, 4, 5mm ...............1 Ea

G. Drift Key ...................................................... 1

H. Drill Chuck w/Chuck Key B16, 1–13mm ..... 1

I. Spindle Sleeve R-8 x MT#3 ....................... 1

J. Drill Chuck Arbor R-8 x B16 ....................... 1

K. Spindle Sleeve MT#3 x MT#2 .................... 1

-12-

Figure 3. Small item inventory.

Model G0761 (Mfd. Since 06/15)

The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean.

Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.

There are many ways to remove this rust preventative, but the following steps work well in a wide variety of situations. Always follow the manufacturer’s instructions with any cleaning product you use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

Many cleaning solvents

work in a well-ventilated

Avoid chlorine-based solvents, such as

Cleanup

Gasoline and petroleum products have low flash points and can explode or cause fire if used to clean machinery. Avo id using these products to clean machinery.

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe off easily. If you have a plastic paint scraper, scrape off as much as you can first, then wipe off the rest with the rag.

are toxic if inhaled. Only

area.

NOTICE

acetone or brake parts cleaner, that may damage painted surfaces.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from your machine during clean up.

Figure 4. T23692 Orange Power Degreaser.

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality metal protectant to prevent rust.

Model G0761 (Mfd. Since 06/15)

-13-

Site Considerations

Weight Load

Physical Environment

Place this machine near an existing power source.

Shadows, glare, or strobe effects that may distract

Refer to the Machine Data Sheet for the weight of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

See below for required space allocation.

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.

Electrical Installation

Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave access to a means of disconnecting the power source or engaging a lockout/tagout device, if required.

Lighting

Lighting around the machine must be adequate enough that operations can be performed safely.

or impede the operator must be eliminated.

-14-

495⁄8"

621⁄2"

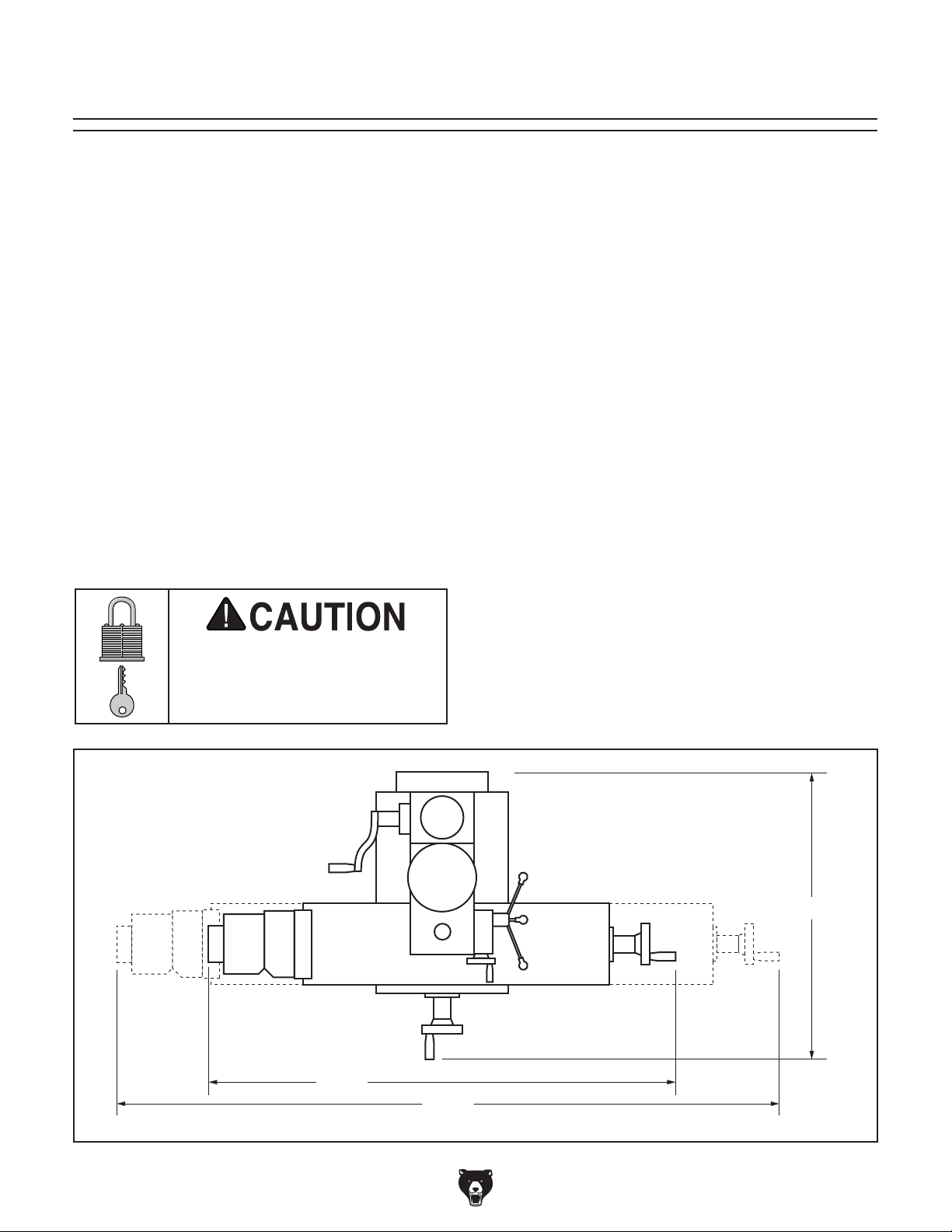

Figure 5. Minimum working clearances.

31"

Model G0761 (Mfd. Since 06/15)

Lifting & Placing

Another option is a "direct mount" (see example below) where the machine is secured directly to the workbench with lag screws and washers.

The base of this machine has mounting holes that allow it to be fastened to a workbench or other mounting surface to prevent it from moving during operation and causing accidental injury or damage.

The strongest mounting option is a "Through Mount" (see example below) where holes are drilled all the way through the workbench—and hex bolts, washers, and hex nuts are used to secure the machine in place.

Bench Mounting

HEAVY LIF T! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk, get help from other people and use a forklift (or other lifting equipment) rated for weight of this machine.

To move machine into position:

1. Move shipping crate next to workbench or

stand, then unbolt machine from pallet.

2. Move table as close to column as possible, and raise headstock to its highest position. This will help balance machine when moving.

3. Tighten Z-axis locks to avoid sudden shifts when lifting.

4. Place a lifting strap under headstock, as shown in Figure 6, connect strap ends to a forklift, then lift and place machine.

Lifting

Strap

Lifting

Strap

Number of Mounting Holes ............................ 4

Diameter of Mounting Hardware .................

Hex Bolt

Flat Washer

Machine Base

Workbench

Flat Washer

Lock Washer

Hex Nut

Figure 7. Example of a "Through Mount" setup.

⁄2"

Figure 6. Recommended lifting strap position.

Model G0761 (Mfd. Since 06/15)

Lag Screw

Flat Washer

Machine Base

Workbench

Figure 8. Example of a "Direct Mount" setup.

-15-

Assembly

The mill/drill was fully assembled at the factory except for the handwheel handles.

Use a flat-head screwdriver to attach the handwheels handles, as shown in Figure 9.

Handwheel Handles

Joining Drill Chuck

& Arbor

An arbor is included for the drill chuck that comes with this machine. The following procedure describes how to install the arbor in the chuck.

After the arbor is installed in the drill chuck, it is very difficult to separate the assembly. If you would like to use a different chuck in the future, we recommend obtaining a new arbor.

Important: DO NOT install the drill chuck and arbor into the spindle until AFTER the test run.

To join the drill chuck and arbor:

1. Use mineral spirits to clean drill chuck and

arbor mating surfaces, especially the bore.

Figure 9. Handwheel handles attached.

2. Retract chuck jaws completely into chuck.

3. Insert small end of arbor into chuck.

4. Hold assembly by arbor and tap chuck onto

a block of wood with medium force, as illustrated in Figure 10.

Figure 10. Tapping drill chuck/arbor on block of

wood.

-16 -

5. Try to separate drill chuck and arbor by hand . If you can pull them apart, repeat this procedure.

Model G0761 (Mfd. Since 06/15)

Lubricating Mill/Drill

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine

Serious injury or death can result from

HEADSTOC K M UST

BE FILLED WITH OIL!

Test Run

OIL MAY NOT BE

SHIPPED WITH MACHINE!

Refer to Lubrication Section

for Correct Oil Type.

The headstock oil reservoir must have the proper amount of oil in it before the mill/drill can be operated for the first time.

Damage caused by running the mill/drill without oil in the reservoir will not be covered under warranty. Refer to the Lubrication subsection, begin- ning on Page 30, for details on how to check and add oil.

Troubleshooting

The Test Run consists of verifying the following:

1) The motor powers up and runs correctly, and

2) the safety disabling mechanism on the emer-

gency stop button works correctly.

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

may result in malfunction or unexpected results that can lead to serious injury, death, or machine/property damage.

Model G0761 (Mfd. Since 06/15)

To test run the mill/drill:

1. Clear all setup tools away from machine.

2. Connect machine to power supply. Power

lamp should light.

-17-

Button

3. Press EMERGENCY STOP button (see Figure 11). This will help prevent unexpected

startup when machine is connected to power.

7. Press SPINDLE FORWARD button. Spindle should rotate clockwise (as viewed from top) and machine should run smoothly with little to no vibration or rubbing noises.

Mode Switch

Spindle

Direction

Buttons

Stop

Button

Emergency

Stop

Figure 11. Control panel and spindle speed

controls.

4. Rotate mode switch left to DRILLING/ MILLING.

5. Shift high/low range lever right to “L” and spindle speed lever left to “2”. This selects a spindle speed of 210 RPM (refer to spindle speed chart on headstock).

Spindle Range

& Speed Levers

8. Press STOP button and wait for spindle to completely stop.

9. Press SPINDLE REVERSE button. Spindle should rotate counterclockwise (as viewed from top).

10. Press EMERGENCY STOP button and wait for spindle to completely stop.

11. Without resetting EMERGENCY STOP but- ton, press SPINDLE FORWARD button. Machine should not start.

—If machine does start (with EMERGENCY

STOP button pushed in), immediately disconnect power to machine. EMERGENCY STOP safety feature is not working correctly. This safety feature must work properly before proceeding with regular operations. Refer to Troubleshooting on Page for help.

13. Twist EMERGENCY STOP button clockwise to reset it.

Note: You may need to rotate spindle back-

and-forth by hand while putting pressure on the shift lever to allow gears to mesh.

6. Twist EMERGENCY STOP button clockwise until it pops out (see Figure 12)—this resets button and enables power to control panel and motor.

EMERGENCY STOP

Figure 12. Twisting EMERGENCY STOP button

to reset it.

14. Rotate mode switch right to TAPPING.

15. Use coarse downfeed lever to move spindle

down. Spindle should rotate clockwise.

16. Continue to move spindle down until it bottoms out at depth stop—spindle should momentarily stop, then rotate counterclockwise.

17. Use coarse downfeed lever to move spindle all the way up. Spindle rotation should stop.

Congratulations! The Tes t Run is complete. Continue to the next subsection, Spindle Bearing Break-In.

-18-

Model G0761 (Mfd. Since 06/15)

Spindle Bearing

Inspections &

Break-In

Before placing operational loads on the spindle bearings, complete this break-in procedure to fully distribute internal lubrication and reduce the risk of early failure.

You must complete this procedure to maintain the warranty. Failure to do this could cause rapid wear and tear of spindle bearings once the machine is place into operation.

To perform spindle break-in procedure:

1. Set spindle speed to 90 RPM.

2. Run spindle for a minimum of 5 minutes in

each direction.

Adjustments

The following adjustments were performed at the factory before the machine was shipped:

• Gib Adjustments ..............................Page 37

• Leadscrew Backlash .......................Page 37

Be aware that these can change during the shipping process. Pay careful attention to these adjustments when first operating the machine. If you find that the adjustments are not set to your personal preferences, re-adjust them.

3. Stop spindle. Select the next highest speed and repeat Step 2.

4. Continue with this process for each remaining speeds, working from lowest ot highest.

5. Change headstock oil (refer to Lubrication on Page 31 for detailed instructions).

The spindle break-in of the mill is now complete!

Model G0761 (Mfd. Since 06/15)

-19 -

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed later

in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual and

rienced research outside of this manual by reading "howto" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

Operation Overview

To complete a typical operation, the operator does the following:

1. Examines workpiece to make sure it is suit-

able for cutting.

machine controls/components

are easier to understand.

seek additional training from expe

machine operators, and do additional

using machine.

To reduce risk of eye or face injury from flying chips, always wear approved safety glasses and a face shield when operating this machine.

2. Puts on protective gear.

3. Securely clamps workpiece to table.

4. With machine disconnected from power,

installs correct cutting tool.

5. Adjusts headstock height above table.

6. Selects correct spindle speed.

7. Connects machine to power and turns it ON.

8. Uses downfeed controls or table controls to

perform cutting operation.

9. Turns machine OFF and waits for spindle to completely stop before removing workpiece, changing tooling, or changing spindle speeds.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

-20-

Model G0761 (Mfd. Since 06/15)

Downfeed Controls

Using Coarse Downfeed

1. Loosen quill lock lever.

Identification

Figure 13. Downfeed controls.

A. Fine Downfeed Handwheel

B. Depth Stop and Scale

C. Quill Lock Lever

2. Loosen downfeed selector knob to engage

coarse downfeed handles.

3. Position depth stop with adjustment knob.

4. Use coarse downfeed handles to raise and lower spindle.

Using Fine Downfeed

1. Loosen quill lock lever.

2. Tighten downfeed selector knob to engage fine downfeed handwheel.

3. Position depth stop with adjustment knob.

4. Rotate fine downfeed handwheel to raise and

lower spindle.

Depth Stop

D. Depth Stop Adjustment Knob

E. Downfeed Selector Knob

F. Coarse Downfeed Handle

The depth stop limits the downward movement of the cutting tool. With the use of the depth stop adjustment knob (see “D” in Figure 13), it can be positioned anywhere within 0"–5". This is useful when performing the same operation multiple times or with tapping operations.

Model G0761 (Mfd. Since 06/15)

-21-

Headstock

Movement

The headstock moves in the following ways:

• Travels up and down the column (Z-axis)

• Tilts 90° left or right relative to the table.

Tilting Headstock

1. DISCONNECT MACHINE FROM POWER!

2. Loosen the three locking hex nuts (see Figures 16–17).

Hex Nut

Raising/Lowering Headstock

1. DISCONNECT MACHINE FROM POWER!

2. Loosen both Z-axis lock levers shown in Figure 14.

Lock

Levers

Figure 14. Location of Z-axis lock levers.

3. Use Z-axis crank shown in Figure 15 to

adjust headstock height.

Tilt

Scale

Figure 16. Tilt locking hex nut

(one on each side of head).

Hex Nut

Z-Axis

Crank

Figure 15. Z-axis crank.

4. Tighten Z-axis lock levers to secure setting.

-22-

Figure 17. Hex nut underneath headstock.

3. Using scale shown in Figure 16 as a guide,

swivel headstock and retighten the three hex nuts to secure it.

Model G0761 (Mfd. Since 06/15)

Table Travel

The table travels in two directions, as illustrated in Figure 18:

X-Axis Handwheel

Tool Needed Qty

Hex Wrench 5mm .............................................. 1

To use the X-axis handwheel:

• X-axis (longitudinal)

• Y-axis (cross)

These movements are controlled by handwheels and the X-axis power feed.

X-Axis or Longitudinal Travel

(Left & Right)

Y-Axis or Cross Travel (In & Out)

Figure 18. The directions of table movement.

Graduated Dials

The handwheels have graduated dials that are used to determine table movement in 0.001" increments, with one full revolution equalling 0.100".

Use the thumb screw shown in Figure 19 to adjust the graduated dial to a relative starting point.

1. Loosen the two X-axis table locks shown in Figure 20.

Note: When tightened, table locks provide

table rigidity in that path of table travel for increased precision.

Limit Stops

X-Axis

Table Locks

Figure 20. Table locks and limit stops.

2. Position limit stops so they will not interfere

with intended table travel.

Y-Axis

Table Lock

Graduated Dial

Thumb Screw

Figure 19. Graduated dial and thumb screw.

3. Adjust X-axis graduated dial to zero, then use

handwheel to move table.

Y-Axis Handwheel

The saddle does not have limit stops. To move the table along the Y-axis, loosen the Y-axis table lock shown in Figure 20, then use the handwheel in front of the table in the same manner as the X-axis handwheel.

Model G0761 (Mfd. Since 06/15)

-23-

X-Axis Power Feed

Use Figures 21–22 and the following descriptions to become familiar with the power feed controls.

Note: The power feed must be connected to an independent, grounded 110V power supply to operate.

G. Limit Stops. Work with limit switch to restrict

X-axis table movement.

H. Limit Switch. Stops table movement when

either side plunger contacts a limit stop.

Installing/Removing

Figure 21. X-axis power feed controls.

Tooling

The Model G0761 includes the following spindle tools (see Figure 23):

A. B16 Drill Chuck w/R-8 Arbor. Joined with

the drill chuck.

B. R-8–MT#3 Spindle Sleeve. Used for MT#3

tools and will accommodate tools with a tang. It also has a drift key slot for tool removal.

C. MT#3–MT#2 Spindle Sleeve. Used with the

R-8–MT#3 spindle sleeve for MT#2 tools and has a drift key slot for tool removal.

Alignment Slot

Drift Key Slot

Figure 22. Limit switch and limit stops.

A. ON/OFF Light. Illuminates when the unit is

turned ON.

B. Direction Lever. Controls the direction of

powered table travel.

C. Rapid Switch. Moves the table rapidly in the

direction chosen when held down.

D. Power Light. Illuminates when the unit is

connected to power.

E. Speed Dial. Controls the rate of power feed.

F. ON/OFF Switch. Turns the power feed ON

and OFF.

-24-

Figure 23. Tool and arbors included with

Model G0761.

Cutting tools are sharp and can easily cause laceration injuries. Always protect your hands with leather gloves or shop rags when handling cutting tools.

Model G0761 (Mfd. Since 06/15)

Installing Tooling

Tools Needed Qty

Wrench 19mm ................................................... 1

To install tooling:

1. DISCONNECT MACHINE FROM POWER!

2. Remove drawbar cap, as shown in Figure 24.

Removing Tooling

Tools Needed Qty

Wrench 19mm ................................................... 1

Brass Head or Dead Blow Hammer .................. 1

To remove tooling:

1. DISCONNECT MACHINE FROM POWER!

2. Remove drawbar cap.

Drawbar

Cap

Adjustment

Nut

Drawbar

Figure 24. Drawbar components.

3. Position tool alignment slot (see Figure 23

on previous page) with pin inside spindle, then insert tooling into spindle until it contacts drawbar.

Note: Height of drawbar inside spindle can

be changed by rotating adjustment nut (see Figure 24).

3. Unthread drawbar from tooling one full rotation.

Note: Do not fully unthread tooling from

drawbar, or the drawbar and tool threads could be damaged in the next step.

4. Tap top of drawbar with hammer to unseat taper.

5. Hold onto tooling with one hand and fully unthread drawbar.

4. Working from the top, thread drawbar by hand into tooling until it is snug, then use wrench to tighten it.

Note: Do not overtighten drawbar.

Overtightening makes tool removal difficult and will damage arbor and threads.

5. Re-install drawbar cap.

Model G0761 (Mfd. Since 06/15)

-25-

Spindle Speed

Using the correct spindle speed is important for safe and satisfactory results, as well as maximizing tool life.

To set the spindle speed for your operation, you will need to: 1) Determine the best spindle speed for the cutting task, and 2) configure the spindle speed levers to produce the required spindle speed.

Determining Spindle Speed

Many variables affect the optimum spindle speed to use for any given operation, but the two most important are the recommended cutting speed for the workpiece material and the diameter of the cutting tool, as noted in the formula shown in

Figure 25.

Setting Spindle Speed

Use the chart below or the one on the headstock when setting the spindle speed.

Spindle Speed High/Low

Range Lever

90 RPM L 1

210 RPM L 2

345 RPM L 3

670 RPM H 1

118 0 R PM H 2

1970 RPM H 3

Change spindle speed ONLY when the spindle is completely stopped. Otherwise, machine damage could occur.

Spindle

Speed Lever

*Recommended

Cutting Speed (FPM) x 12

Tool Dia. (in inches) x 3.14

Spindle

Speed (RPM)

*Double if using carbide cutting tool

Figure 25. Spindle speed formula for mill/drills.

Cutting speed, typically defined in feet per minute (FPM), is the speed at which the edge of a tool moves across the material surface.

A recommended cutting speed is an ideal speed for cutting a type of material in order to produce the desired finish and optimize tool life.

The books Machinery’s Handbook or Machine Shop Practice, and some internet sites, provide excellent recommendations for which cutting speeds to use when calculating the spindle speed. These sources also provide a wealth of additional information about the variables that affect cutting speed and they are a good educational resource.

With the spindle completely stopped, position the high/low range and spindle speed levers (see

Figure 26) to set the spindle speed.

Note: If necessary, rotate the spindle by hand to

mesh the gears when changing speeds.

High/Low

Range Lever

Figure 26. Spindle speed controls.

Spindle Speed

Lever

Also, there are a large number of easy-to-use spindle speed calculators that can be found on the internet. These sources will help you take into account the applicable variables in order to determine the best spindle speed for the operation.

-26-

Model G0761 (Mfd. Since 06/15)

Tapping Mode

In tapping mode, the spindle rotates clockwise when the tap is lowered into the workpiece until the depth stop is engaged, then the spindle will rotate counterclockwise to unthread the tap from the hole.

Pilot holes must be drilled prior to beginning any tapping operation.

To use tapping mode:

1. DISCONNECT MACHINE FROM POWER!

6. Rotate depth stop adjustment knob (see Figure 27) to adjust depth stop for depth of

hole.

Depth

Stop

Adjustment

Knob

2. Clamp workpiece to table.

3. Select spindle speed of 90 RPM (lowest).

4. Install tap.

5. Adjust Z-axis position of headstock so tap is

just above workpiece.

Figure 27. Locations of depth stop adjustment

knob and depth stop.

7. Apply tapping fluid to contact point on workpiece.

8. Connect machine to power.

9. Rotate the mode selection switch to TAPPING.

10. Slowly lower spindle until tap begins thread-

ing into workpiece, then release pressure on the downfeed control.

When the spindle dog makes contact with

depth stop, spindle rotation will reverse and tap will unthread from hole.

Model G0761 (Mfd. Since 06/15)

-27-

SECTION 5: ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

SB1365 —South Bend Lathe Way Oil, 12 Oz. T23962—ISO 68 Moly-D Machine/Way Oil 5-Gal. T23963—ISO 32 Moly-D Machine Oil 5-Gal.

Moly-D oils are some of the best we've found for maintaining the critical components of machinery because they tend to resist run-off and maintain their lubricity under a variety of conditions—as well as reduce chatter or slip. Buy in bulk and save with 5-gallon quantities.

SB1365

G7156—4" (3 G7154—5" (4 G7155—6" (5

Swiveling Milling Vises feature perfectly aligned, precision ground jaws, large Acme easy to read 0°–360° scales.

Figure 28. G7154 Precision Milling Vise.

G7066—5" Tilting/Swiveling Milling Vise H7576—Precision Self-Centering Vise

⁄8") Precision Milling Vise

⁄2") Precision Milling Vise

⁄8") Precision Milling Vise

screws and

T23963

Figure 30. 12 oz. way oil & 5 gal. machine oil.

High-Pressure Oil Can For Ball Oilers H7617—Flexible Plastic Nozzle

Whether you are lubricating cutting tools or maintaining machinery in top operating condition, you will appreciate this High Pressure Oil Can. It holds 5 ounces of oil and has a trigger-activated, highpressure pump.

H7576

G7066

Figure 29. Specialty milling vises.

-28-

Figure 31. H7617 High-Pressure Oil Can.

Model G0761 (Mfd. Since 06/15)

order online at www.grizzly.com or call 1-800-523-4777

H7527—6" Rotary Table Set

Use this 6" Rotary Table in either the horizontal or vertical position for a variety of milling applications, and with the set of dividing plates and adjustable tailstock, your milling applications are nearly unlimited. With 4° table movement per handle rotation and 20 second vernier scale, control

is very accurate and precise. Also includes a

⁄8" clamping set for the 4-slot table. Everything you need in one great set!

Figure 32. H7527 6" Rotary Table Set.

G1075—58-Pc. Clamping Kit

This clamping kit includes 24 studs, 6 step block pairs, 6 T-nuts, 6 flange nuts, 4 coupling nuts, and 6 end hold-downs. The rack is slotted so it can be mounted close to the machine for easy access.

Figure 34. G1075 58-Pc. Clamping Kit.

SB1348—South Bend SB1349—South Bend

Get true South Bend

8-Pc. R-8 Collet Set

16-Pc. R-8 Collet Set

quality and precision with one of these Quick-Change Collet Sets. Each set includes hardened and precision-ground spring collets for maximum holding power, collet chuck, spanner wrench, and protective moulded case.

T26419—Syn-o-Gen High Speed Bearing Grease

Syn-O-Gen Multi-purpose Synthetic Grease is formulated with 100% pure synthesized hydrocarbon basestocks to impart its remarkable properties. Superior lubricating properties coupled with extremely low pour point and extremely high temperature oxidation and thermal stability produce a grease that is unmatched in performance for numerous applications.

Figure 33. T26419 Syn-O-Gen Grease.

Figure 35. Model SB1349 South Bend 16-Pc.

R-8 Collet Set.

Model G0761 (Mfd. Since 06/15)

-29-

SECTION 6: MAINTENANCE

accidental startup, always disconnect machine from

Cleaning and

To reduce risk of shock or

power before adjustments, maintenance, or service.

Schedule

Ongoing

To maintain a low risk of injury and proper machine operation, if you ever observe any of the items below, shut down the machine immediately and fix the problem before continuing operations:

• Loose mounting bolts.

• Damaged saw blade.

• Worn or damaged wires.

• Any other unsafe condition.

Every 8 Hours of Operation:

• Check/add headstock oil (Page 31).

• Lubricate ball oilers (Page 32).

• Lubricate table and column ways (Page 32).

• Lubricate quill outside surface (Page 33).

Every 40 Hours of Operation:

• Lubricate table leadscrews (Page 33).

Every 90 Hours of Operation:

• Lubricate column leadscrew, nut, and pinion gear (Page 34).

• Lubricate quill rack and pinion (Page 34).

Annually

• Change headstock oil (Page 31).

Protecting

Metal chips left on the machine that have been soaked with water-based coolant will invite oxidation and a gummy residue build-up around the moving parts. Use a brush and shop vacuum to remove chips and debris from the working surfaces of the mill/drill. Never blow off the mill/drill with compressed air, as this will force metal chips deep into the mechanisms and may cause injury to yourself or bystanders.

Remove any rust build-up from unpainted cast iron surfaces of your mill/drill and treat with a nonstaining lubricant after cleaning.

Keep unpainted cast iron surfaces rust-free with regular applications of ISO 68 way oil (see Page

28 for offerings from Grizzly).

Lubrication

An essential part of lubrication is cleaning the components before lubricating them.

This step is critical because grime and chips build up on lubricated components, which makes them hard to move. Simply adding more lubricant will not result in smooth moving parts.

Clean all exterior components in this section with mineral spirits, shop rags, and brushes before lubricating.

DISCONNECT MACHINE FROM POWER BEFORE PERFORMING LUBRICATION!

-30-

NOTICE

Follow reasonable lubrication practices as outlined in this manual. Failure to do so could lead to premature failure of your machine and will void the warranty.

Model G0761 (Mfd. Since 06/15)

Headstock

Lube Type ...Model T23962 or ISO 68 Equivalent

Lube Amount ............................................. 3

Check/Add Frequency ........... 8 hrs. of Operation

Change Frequency ................................ Annually

The headstock has the proper amount of oil when the sight glass shown in Figure 36 is halfway full.

Sight

Glass

Figure 36. Headstock oil sight glass.

⁄4 qt.

4. Place a 1-gallon or larger drain pan on table under headstock.

5. Remove drain plug (see Figure 38) from underneath headstock and allow oil to drain into pan.

Drain

Plug

Figure 38. Headstock drain plug

(headstock tilted 90° for clarity).

Tool Needed Qty

Hex Wrench 8mm .............................................. 1

To change headstock oil:

1. Run spindle at 670 RPM for approximately 10

minutes to warm oil.

2. DISCONNECT MACHINE FROM POWER!

3. Remove fill plug (see Figure 37).

Fill

Plug

Follow federal, state, and local requirements for proper disposal of used oil.

6. Replace drain plug.

7. Add oil until sight glass is halfway full, then

replace fill plug.

8. Clean up any spilled oil to reduce slipping hazards.

Figure 37. Headstock oil fill plug.

Model G0761 (Mfd. Since 06/15)

-31-

Ball Oilers

Lube Type ...Model T23963 or ISO 32 Equivalent

Lube Amount ..................................... 1–2 Pumps

Lubrication Frequency ........... 8 hrs. of Operation

Table & Column Ways

Lube Type ...Model T23962 or ISO 68 Equivalent

Lube Amount ........................................Thin Coat

Lubrication Frequency ........... 8 hrs. of Operation

Proper lubrication of the handwheel ball oilers shown in Figure 39 is done with a pump-type oil can that has a plastic or rubberized cone tip (see Page 28 for offerings from Grizzly). We do not recommend using metal needle or lance tips, as they can push the ball too far into the oiler, break the spring seat, and lodge the ball in the oil galley.

Ball Oilers

Figure 39. Location of handwheel ball oilers.

Push the tip of the oil can nozzle against the ball oiler to create a hydraulic seal, then pump the oil can once or twice. If you see sludge and contaminants coming out of the lubrication area, continue pumping the oil can until the oil runs clear. When finished, wipe away the excess oil.

Using a 4mm hex wrench, disconnect one side of the column way cover, then move the table and headstock to access the entire length of the table and column ways for this procedure (see Figure

40).

Note: Each sliding component has two dovetail

ways—one on each side of the component.

Column Way

(1 of 2)

Table Ways

Figure 40. Location of table and column ways.

Clean the ways with mineral spirits and shop rags. When dry, apply a liberal coat of lubricant, then move the sliding components through their full path a few times to evenly distribute the oil. Re-install the column way cover.

-32-

Model G0761 (Mfd. Since 06/15)

Quill Outside Surface

Lube Type ...Model T23962 or ISO 68 Equivalent

Lube Amount ........................................Thin Coat

Lubrication Frequency ........... 8 hrs. of Operation

Table Leadscrews

Lube Type ...Model T23962 or ISO 68 Equivalent

Lube Amount ........................................Thin Coat

Lubrication Frequency ......... 40 hrs. of Operation

Without disturbing the grease on the quill rack, clean the outside smooth surface of the quill (see Figure 41) with mineral spirits and shop rags.

Quill Outside

Surface

Figure 41. Outside surface of quill.

When dry, apply a thin coat of lubricant to the smooth surface, then move the spindle up and down to evenly distribute the oil.

Move the table as necessary to access the entire length of the X- and Y-axis leadscrews (see Figures 42–43), then use mineral spirits, shop rags, and a brush to clean them.

X-Axis Leadscrew

Figure 42. X-axis leadscrew.

Use a 4mm hex wrench to remove the way cover from the base to access the Y-axis leadscrew.

Model G0761 (Mfd. Since 06/15)

Y-Axis Leadscrew

Figure 43. Y-axis leadscrew.

When dry, use a clean brush to apply a thin coat of oil to the leadscrew threads, then move the table through the X- and Y-axis paths to distribute the oil.

-33-

Column Leadscrew, Nut, & Pinion Gear

Lube Type . . Model T23964 or NLGI#2 Equivalent

Lube Amount ........................................Thin Coat

Lubrication Frequency ......... 90 hrs. of Operation

Using a 5mm hex wrench, remove the column rear cover to access Z-axis leadscrew components (see Figure 44).

Quill Rack & Pinion

Lube Type . . Model T23964 or NLGI#2 Equivalent

Lube Amount ........................................Thin Coat

Lubrication Frequency ......... 90 hrs. of Operation

Move the quill up and down to gain full access to the quill rack and pinion (see Figure 45), then clean the teeth with mineral spirits, shop rags, and a brush.

Nut

Leadscrew

Pinion

Gear

Figure 44. Column rear cover removed to

access Z-axis leadscrew components.

Use shop rags, a stiff brush, and mineral spirits to clean away the grease and grime from the Z-axis components. When dry, apply a medium coat of grease to the components and threads of the leadscrew. Move the headstock up and down a few times to evenly distribute the lubricant. Re-install rear cover.

Pinion

Rack

Figure 45. Quill rack and pinion.

When dry, use a brush to apply a thin coat of grease to the teeth, then raise/lower the quill several times to evenly distribute the grease.

Note: Re-apply oil to the quill outside smooth surface that may have been removed during the cleaning process.

-34-

Model G0761 (Mfd. Since 06/15)

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Symptom Possible Cause Possible Solution

Machine does not start.

Machine stalls or is overloaded.

Machine has vibration or noisy operation.

1. Plug at fault or wired incorrectly.

2. Incorrect power supply voltage.

3. Wall fuse/circuit breaker is blown/tripped.

4. Wiring is open/has high resistance.

5. Spindle switch is at fault.

6. Motor wired incorrectly.

7. Motor is at fault.

1. Feed rate/cutting speed too fast.

2. Wrong cutter type.

3. Machine is undersized for the task or tooling is incorrect for the task.

4. Motor has overheated.

5. Motor wired incorrectly.

6. Motor bearings are at fault.

7. Motor is at fault.

1. Motor or machine component is loose.

2. Workpiece not secure.

3. Excessive depth of cut.

4. Cutter/tooling is loose.

5. Cutter is dull or at fault.

6. Bit is chattering.

7. Machine is incorrectly mounted or sits unevenly.

8. Motor fan is rubbing on fan cover.

9. Motor bearings are at fault.

1. Ensure plug is not damaged and is wired correctly.

2. Ensure power supply voltage matches circuit requirements (Page 10).

3. Ensure circuit size is correct and a short does not exist. Reset breaker or replace fuse.

4. Check for broken wires or disconnected/corroded connections; repair/replace as necessary.

5. Ensure switch is wired correctly; replace if at fault.

6. Ensure motor wiring is correct (Page 42).

7. Test/repair/replace.

1. Decrease feed rate/cutting speed.

2. Use the correct cutter for the task.

3. Use smaller or sharper tooling; reduce feed rate or spindle speed; use cutting ﬂuid if possible.

4. Clean off motor, let cool, and reduce workload.

5. Ensure motor wiring is correct (Page 42).

6. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

7. Test/repair/replace motor.

1. Inspect/replace stripped or damaged bolts/nuts, and retighten with thread locking ﬂuid.

2. Properly clamp workpiece on table or in vise.

3. Decrease depth of cut.

4. Make sure tooling is properly secured.

5. Replace/resharpen cutter.

6. Replace/sharpen bit; index bit to workpiece; use appropriate feed rate and cutting RPM.

7. Tighten/replace mounting bolts in bench; relocate/ shim machine.

8. Replace dented fan cover or damaged fan.

9. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

Model G0761 (Mfd. Since 06/15)

-35-

Symptom Possible Cause Possible Solution

Tool slips in spindle. 1. Tool is not fully drawn up into

spindle taper.

2. Debris on tool or in spindle taper.

3. Taking too big of a cut.

Breaking tools or cutters. 1. Spindle speed/feed rate is too fast.

2. Cutting tool too small.

3. Cutting tool getting too hot.

4. Taking too big of a cut.

5. Spindle extended too far down.

Workpiece vibrates or chatters during operation.

Table is hard to move. 1. Table locks are tightened down.

Bad surface ﬁnish. 1. Spindle speed/feed rate is too fast.

1. Table locks not tight.

2. Workpiece not secure.

3. Spindle speed/feed rate is too fast.

4. Spindle extended too far down.

2. Chips have loaded up on ways.

3. Ways are dry and need lubrication.

4. Table limit stops are interfering.

5. Gibs are too tight.

2. Using a dull or incorrect cutting tool.

3. Wrong rotation of cutting tool.

4. Workpiece not secure.

5. Spindle extended too far down.

1. Tighten drawbar.

2. Clean collet and spindle taper.

3. Lessen depth of cut and allow chips to clear.

1. Set spindle speed correctly (Page 26) or use slower feed rate.

2. Use larger cutting tool and slower feed rate.

3. Use coolant or oil for appropriate application.

4. Decrease depth of cut.

5. Fully retract spindle and lower headstock. This increases rigidity.

1. Tighten down table locks.

2. Properly clamp workpiece on table or in vise.

3. Set spindle speed correctly (Page 26) or use a slower feed rate.

4. Fully retract spindle and lower headstock. This increases rigidity.

1. Make sure table locks are fully released.

2. Frequently clean away chips that load up during milling operations.

3. Lubricate ways (Page 32).

4. Check to make sure that all table limit stops are not in the way.

5. Adjust gibs (see Page 37).

1. Set spindle speed correctly (Page 26) or use a slower feed rate.

2. Sharpen cutting tool or select one that better suits the operation.

3. Check for proper cutting rotation for cutting tool.

4. Properly clamp workpiece on table or in vise.

5. Fully retract spindle and lower headstock. This increases rigidity.

-36-

Model G0761 (Mfd. Since 06/15)

Adjusting Gibs

Gibs are tapered lengths of metal that are sandwiched between two moving surfaces. Gibs control the gap between these surfaces and how they slide past one another. Correctly adjusting the gibs is critical to producing good milling results.

Tight gibs make table movement more accurate but stiff. Loose gibs make moving the table sloppy but easier to do. The goal of gib adjustment is to remove unnecessary sloppiness without causing the ways to bind.

Tip: Some experienced machinists recommend adjusting the gibs until there is a slight drag in table movement.

Screws on each end of the gib allow gib adjustment to increase or decrease the friction pressure between the sliding surfaces. Correctly positioning the gib is a matter of trial and error and patience.

DISCONNECT MACHINE FROM POWER BEFORE ADJUSTING THE GIBS!

Make sure all table locks are loose. Then, loosen one gib adjustment screw (see Figure 46) and tighten the opposing screw the same amount to move the gib, while at the same time using the handwheels to move the table until you feel a slight drag in that path of movement.

Adjusting Leadscrew

Backlash

Leadscrew backlash is the amount of free-play movement in the leadscrew (when changing the direction of rotation) before the attached device begins to move.

Leadscrews must have a certain amount of backlash, but over time, this will increase with normal wear. Generally, 0.003"–0.006" leadscrew backlash is acceptable to ensure smooth movement and reduce the risk of premature thread wear.

The X- and Y-axis leadscrew backlash is adjusted by using a long 5mm hex wrench to tighten/loosen the cap screw on the leadscrew nut. This adjusts the force the split leadscrew nut exerts on the leadscrew threads.

The X-axis leadscrew nut shown in Figure 47 is accessed from underneath the left side of the table.

The Y-axis leadscrew nut is similar and is accessed from underneath the machine base.

X-Axis Leadscrew Nut

Cap Screw

Y-Axis Gib Screw

(1 of 2)

Figure 46. Location of table gib screws.

Model G0761 (Mfd. Since 06/15)

X-Axis Gib Screw

Figure 47. X-axis leadscrew nut adjusting cap

screw.

(1 of 2)

-37-

Tightening Return

Spring Tension

The return spring moves the spindle back up when the coarse downfeed handles are released. The tension of this spring was adjusted at the factory, but it may need to be tightened during the life of the mill/drill.

Important: Do not perform this procedure unless it is absolutely necessary.

To adjust the return spring tension:

1. DISCONNECT MACHINE FROM POWER!

2. Wipe off any oil on spring cover so it does not

slip when you hold it during adjustments.

3. Mark slot on cover that engages roll pin—this is the factory setting.

4. Put on heavy leather gloves to protect your hands from lacerations if spring uncoils during next step.

During this procedure, you will loosen the spring cover thumb screw (see Figure 48) just enough to pull the cover back to clear the roll pin, then rotate the cover clockwise to fit the roll pin in the next slot.

Cover

Thumb

Screw

Figure 48. Return spring components.

Roll Pin

Cover

Slot

Note: Keep a good grip on spring cover dur-

ing next step. Letting go of cover when roll pin is not engaged will cause spring to rapidly uncoil.

5. While holding spring cover against side of headstock so spring will not unwind, loosen thumb screw approximately

6. Pull cover out just enough to disengage it with roll pin, then rotate it clockwise to engage roll pin in next slot in cover.

7. Retighten thumb screw to secure setting.

⁄4".

-38-

If the return spring should come loose from the spring cap and rapidly unwind, laceration or impact injuries could occur. Always wear heavy leather gloves and safety glasses when adjusting the return spring tension.

Model G0761 (Mfd. Since 06/15)

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is connected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

Model G0761 (Mfd. Since 06/15)

-39-

Electrical Box & Control Panel Wiring

Control Panel

(As Viewed From Behind)

Component Legend:

* = Minger AD62-22D/S

§ = Minger LA125H-BE101C ‡ = Minger LA125H-BE102C

Electrical Box

Ground

Transformer

Mach Tool Elec

JBK5-63VA

0 110

0 24

Power

Lamp *

Drilling/Milling

-Tapping Switch

220

3 4NO

43 NO

6 3

1L1

3L2 5L3

13NO 21NC 31NC 43NO

KM1 Contactor

Siemens 3TB41 24V

14NO 22NC 32NC 44NO

2T1 4T2 6T3

Spindle

Forward

43 NO

Spindle

‡

Stop

Spindle

Reverse

43 NO

Ground

Emegency

‡

Stop

13NO 21NC 31NC 43NO

14NO 22NC 32NC 44NO

1L1

3L2 5L3

Siemens 3TB41 24V

KM2 Contactor

2T1 4T2 6T3

-40-

Timer

Omron H3Y-2

8 5

14 13

To Motor

(

Page 42)

To Tapping

Switches

(

Page 42)

READ ELECTRICAL SAFETY

ON PAGE 39!

121210

Ground

Hot

2A Fuse Ceramic 250V 2A Ø5 x 25

PEPE

Ground

Plate

6-15 Plug

Hot

(As Recommended)

Model G0761 (Mfd. Since 06/15)

Electrical Box & Control Panel Wiring

Figure 49. Control panel switches (top) and electrical box wiring.

Model G0761 (Mfd. Since 06/15)

READ ELECTRICAL SAFETY

ON PAGE 39!

-41-

Motor & Tapping Switches Wiring

Ground

220V Motor

To Electrical Box

(Page 40)

Run

Capacitor

20 MFD

450 VAC

Tapping Switches

COM

Start

Capacitor

150 MFD 250 VAC

Figure 51. Motor wiring.

To Electrical Box

(Page 40)

-42-

COM

READ ELECTRICAL SAFETY

ON PAGE 39!

Figure 52. Tapping switch wiring.

Model G0761 (Mfd. Since 06/15)

SECTION 9: PARTS

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

are available for purchase. Call (800) 523 - 4777 or visit our online parts store at www.grizzly.com to check for availability.

Headstock

112

108

109

121

119

110

115

113

122

104

116

112

105

120

113

111

114

118

107

117

106

101

41 47

48A

33A

103

100

102

7-2

7-7

7-8

7-1

7-3

7-4

7-5

7-6

7-9

Model G0761 (Mfd. Since 06/15)

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Par ts Store.

-43-

Headstock Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 P0761001 HEADSTOCK HOUSING 45 P0761045 GEAR 25T 2 P0761002 HEADSTOCK TOP COVER 46 P0761046 GEAR 18T 3 P0761003 INT RETAINING RING 62MM 47 P0761047 GEAR 32T 4 P0761004 INT RETAINING RING 35MM 48A P0761048A MATCHED GEAR SET43T/16T (3 PCS) 5 P0761005 FLANGED END CAP 48 P0761048 GEAR 43T 6 P0761006 SHAFT SEAL 45 X 35 X 10 49 P0761049 GEAR 16T 7 P0761007 MOTOR 2HP 220V 1-PH 50 P0761050 KEY 5 X 5 X 50

7-1 P0761007-1 MOTOR FAN COVER 51 P0761051 KEY 6 X 6 X 18 7-2 P0761007-2 MOTOR FAN 52 P0761052 KEY 6 X 6 X 18 7-3 P0761007-3 MOTOR JUNCTION BOX 53 P0761053 QUILL 7-4 P0761007-4 S CAPACITOR 150M 250V 1-5/8 X 3 54 P0761054 SPINDLE R-8 7-5 P0761007-5 R CAPACITOR 20M 450V 1-1/2 X 3-1/4 55 P0761055 TAPERED ROLLER BEARING 30207 P5 7-6 P0761007-6 CENTRIFUGAL SWITCH 25MM 1725 RPM 56 P0761056 TAPERED ROLLER BEARING 30206 P5 7-7 P0761007-7 CONTACT PLATE 57 P0761057 GEAR SHAFT 25T 7-8 P0761007-8 BALL BEARING 6205ZZ 58 P0761058 GEAR 53T 7-9 P0761007-9 BALL BEARING 6205ZZ 59 P0761059 EXT RETAINING RING 35MM 8 P0761008 HEX BOLT M8-1.25 X 25 60 P0761060 DEPTH ROD MOUNT 9 P0761009 FLAT WASHER 8MM 61 P0761061 INT THREADED SHOULDER BOLT M16-2 X 10 10 P0761010 HEADSTOCK FRONT COVER 62 P0761062 HEX NUT M16-2 THIN 11 P0761011 DRAWBAR CAP 63 P0761063 DEPTH ROD KNURLED THUMB KNOB M16-2 12 P0761012 DRAWBAR CAP RUBBER SEAL 64 P0761064 STUD-FT M12-1.75 X 230 13 P0761013 CAP SCREW M8-1.25 X 45 65 P0761065 DEPTH ROD DOG 14 P0761014 TAPER PIN 8 X 40 66 P0761066 DEPTH POINTER 15 P0761015 CAP SCREW M10-1.5 X 8 67 P0761067 SPANNER NUT LOCK WASHER 30MM 16 P0761016 SET SCREW M10-1.5 X 10 DOG-PT 68 P0761068 SPANNER NUT M30-1.5 17 P0761017 KEY 6 X 6 X 28 69 P0761069 RUBBER SEAL 90 X 75 X 6 18 P0761018 OIL FILL PLUG 3/8" ZG 70 P0761070 CAP SCREW M4-.7 X 8 19 P0761019 CASTING PLUG 71 P0761071 ROLL PIN 3 X 18 20 P0761020 SHIFT LEVER 72 P0761072 CAP SCREW M8-1.25 X 30 21 P0761021 ROLL PIN 3 X 18 73 P0761073 SPACER 22 P0761022 OIL DRAIN PLUG 3/8" ZG 74 P0761074 SPINDLE END SEAL 23 P0761023 PHLP HD SCR M5-.8 X 10 75 P0761075 SET SCREW M5-.8 X 6 DOG-PT 24 P0761024 BUTTON HD CAP SCR M4-.7 X 8 76 P0761076 SET SCREW M5-.8 X 4 25 P0761025 OIL SIGHT GLASS M18-1.5 77 P0761077 WORM GEAR HOUSING 26 P0761026 DRIVE SHAFT 78 P0761078 WORM SHAFT 27 P0761027 GEAR 14T 79 P0761079 WORM SHAFT END BRACKET 28 P0761028 BALL BEARING 6003ZZ 80 P0761080 SET SCREW M6-1 X 12 29 P0761029 BALL BEARING 6007ZZ 81 P0761081 SPACER 30 P0761030 KEY 5 X 5 X 25 82 P0761082 WORM GEAR 31 P0761031 IDLER SHAFT 83 P0761083 PINION SHAFT 32 P0761032 GEAR 29T 84 P0761084 LEVER HUB 33A P0761033A MATCHED GEAR SET 35T/21T (3 PCS) 85 P0761085 SPRING BASE 33 P0761033 GEAR 35T 86 P0761086 SPRING COVER 34 P0761034 GEAR 21T 87 P0761087 COILED SPRING 35 P0761035 GEAR 41T 88 P0761088 KNOB BOLT M10-1.5 X 45 36 P0761036 BALL BEARING 6202-OPEN P5 89 P0761089 COMPRESSION SPRING 37 P0761037 KEY 6 X 6 X 14 90 P0761090 FINE DOWNFEED GRADUATED DIAL 38 P0761038 KEY 6 X 6 X 28 91 P0761091 SHOULDER STUD-UDE M12-1.75 X 145 15,20 39 P0761039 STEEL BALL 8MM 92 P0761092 TAPERED KNOB M12-1.75 40 P0761040 COMPRESSION SPRING 93 P0761093 FINE DOWNFEED HANDWHEEL 41 P0761041 EXT RETAINING RING 18MM 94 P0761094 HANDWHEEL HANDLE 42 P0761042 KEY 5 X 5 X 50 95 P0761095 CAP SCREW M8-1.25 X 25 43 P0761043 SET SCREW M6-1 X 12 96 P0761096 KNURLED THUMB SCREW M5-.8 X 12 44 P0761044 SPINDLE SHAFT 97 P0761097 SPRING COVER FLAT WASHER 6MM

-44-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

Model G0761 (Mfd. Since 06/15)

Headstock Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

98 P0761098 KNURLED THUMB SCREW M6-1 X 12 111 P0761111 SPEED SHIFT FORK (LH) 99 P0761099 CAP SCREW M6-1 X 12 112 P0761112 EXT RETAINING RING 12MM 100 P0761100 SET SCREW M5-.8 X 12 113 P0761113 CAP SCREW M6-1 X 16 101 P0761101 ROLL PIN 3 X 12 114 P0761114 SHIFT ROD 102 P0761102 KEY 8 X 8 X 20 115 P0761115 SHAFT SEAL 12 X 22 X 8 103 P0761103 CAP SCREW M5-.8 X 20 116 P0761116 SPEED SHIFT SHAFT (RH) 104 P0761104 ROLL PIN 3 X 15 117 P0761117 SPEED SHIFT FORK (RH) 105 P0761105 LOCK LEVER SHAFT 118 P0761118 SPEED SHIFT ROCKER ARM (RH) 106 P0761106 INNER LOCK PLUNGER 119 P0761119 DRAWBAR ASSEMBLY 7/16-20 X 17-3/4 107 P0761107 OUTER LOCK PLUNGER 120 P0761120 ELECTRICAL CABINET 108 P0761108 ADJUSTABLE HANDLE 121 P0761121 ELECTRICAL CABINET FRONT COVER 109 P0761109 SPEED SHIFT SHAFT (LH) 122 P0761122 ELECTRICAL CABINET SIDE COVER 110 P0761110 SPEED SHIFT ROCKER ARM (LH)

Model G0761 (Mfd. Since 06/15)

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Par ts Store.

-45-

Table & Column

229

212

274-2

278

217

242

210

274-4

274

282

280

244

231

274-3

279

275

211

281

268

209

219

274-5

206

222

277

276

249

220

252

221

235

206

211

265

240

274-1

237

218

219

259

238

236

289

220

257

241

203

255

258

245

221

265

233

273

246

245

262

256

234

272

227

207

206

266

239

206

222

207

267

261

264

271

221

248

207

231

210

209

208

261

254

263

226

260

262

256

249

220

212

206

205

219

201

206

211

214

215

204

222

244

242

287

217

216

202

230

228

225

223

224

284

283

285

283

286

287

288

-46-

244

242

212

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

207

209

210

218

231

Model G0761 (Mfd. Since 06/15)

Table & Column Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 P0761201 BASE 248 P0761248 X-AXIS GIB 202 P0761202 COLUMN 249 P0761249 CAP SCREW M8-1.25 X 25 203 P0761203 Y-AXIS LEADSCREW BRACKET 252 P0761252 Y-AXIS GIB 204 P0761204 HEADSTOCK MOUNT 254 P0761254 Z-AXIS CRANK SHAFT BRACKET 205 P0761205 Z-AXIS GIB 255 P0761255 Z-AXIS CRANK SHAFT 206 P0761206 GIB ADJUSTMENT SCREW 256 P0761256 WORM GEAR 207 P0761207 THRUST BEARING 51103 257 P0761257 BALL BEARING 6004ZZ 208 P0761208 Y-AXIS LEADSCREW 258 P0761258 SPACER 209 P0761209 DIAL CLUTCH 259 P0761259 CRANK SHAFT END FLANGE ASSY 210 P0761210 GRADUATED DIAL 260 P0761260 Z-AXIS LEADSCREW 211 P0761211 HANDWHEEL 261 P0761261 THRUST BEARING 51104 212 P0761212 HANDWHEEL HANDLE W/SCREW 262 P0761262 KEY 6 X 6 X 20 214 P0761214 Z-AXIS LEADSCREW NUT 263 P0761263 SPANNER NUT LOCK WASHER 20MM 215 P0761215 Z-AXIS LEADSCREW NUT BRACKET 264 P0761264 SPANNER NUT M20-1.5 216 P0761216 COLUMN TOP COVER 265 P0761265 CAP SCREW M6-1 X 20 217 P0761217 CAP SCREW M8-1.25 X 20 266 P0761266 WORM GEAR FLAT WASHER 8MM 218 P0761218 CAP SCREW M8-1.25 X 25 267 P0761267 CAP SCREW M8-1.25 X 16 219 P0761219 ROLL PIN 5 X 35 268 P0761268 Z-AXIS CRANK HANDLE ASSY 220 P0761220 KNURLED THUMB SCREW M5-.8 X 12 271 P0761271 T-BOLT M14-2 X 55 221 P0761221 BALL OILER 8MM TAP-IN 272 P0761272 FLAT WASHER 14MM 222 P0761222 ADJUSTMENT HANDLE M8-1.25 273 P0761273 HEX NUT M14-2 223 P0761223 LOCK WASHER 16MM 274 P0761274 POWER FEED ASSY ALIGN AS-235 224 P0761224 FLAT WASHER 16MM 274-1 P0761274-1 MOUNTING BRACKET 2-PC 225 P0761225 CAP SCREW M16-2 X 60 274-2 P0761274-2 CONTROL HANDLE 226 P0761226 HEADSTOCK MOUNT FLAT WASHER 12MM 274-3 P0761274-3 SPEED CONTROL KNOB 227 P0761227 CAP SCREW M12-1.75 X 35 274-4 P0761274-4 ON/OFF SWITCH 228 P0761228 COLUMN REAR COVER 274-5 P0761274-5 ZYTEL GEAR ASSEMBLY 229 P0761229 COLUMN FRONT COVER 275 P0761275 CAP SCREW M8-1.25 X 6 230 P0761230 BUTTON HD CAP SCR M6-1 X 12 276 P0761276 FLAT WASHER 8MM 231 P0761231 ROLL PIN 8 X 30 277 P0761277 POWER FEED LIMIT SWITCH 233 P0761233 COOLANT DRAIN SCREEN 278 P0761278 EXT RETAINING RING 8MM 234 P0761234 PHLP HD SCR M3-.5 X 25 279 P0761279 SQUARE NUT M8-1.25 235 P0761235 SADDLE 280 P0761280 POWER FEED LIMIT STOP 236 P0761236 TABLE 281 P0761281 COMPRESSION SPRING 237 P0761237 X-AXIS LEADSCREW NUT 282 P0761282 LIMIT STOP HOUSING 238 P0761238 Y-AXIS LEADSCREW NUT 283 P0761283 PHLP HD SCR M4-.7 X 6 239 P0761239 X-AXIS LEADSCREW BRACKET (RH) 284 P0761284 Z-AXIS WAY COVER UPPER PLATE 240 P0761240 X-AXIS LEADSCREW BRACKET (LH) 285 P0761285 Z-AXIS WAY COVER 241 P0761241 X-AXIS LEADSCREW 286 P0761286 Z-AXIS WAY COVER LOWER BRACKET 242 P0761242 CAP SCREW M6-1 X 12 287 P0761287 PHLP HD SCR M5-.8 X 12 244 P0761244 HANDWHEEL STEP WASHER 6MM 288 P0761288 Y-AXIS WAY COVER 245 P0761245 CAP SCREW M5-.8 X 20 289 P0761289 TABLE SCALE 246 P0761246 CAP SCREW M8-1.25 X 45

Model G0761 (Mfd. Since 06/15)

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Par ts Store.

-47-

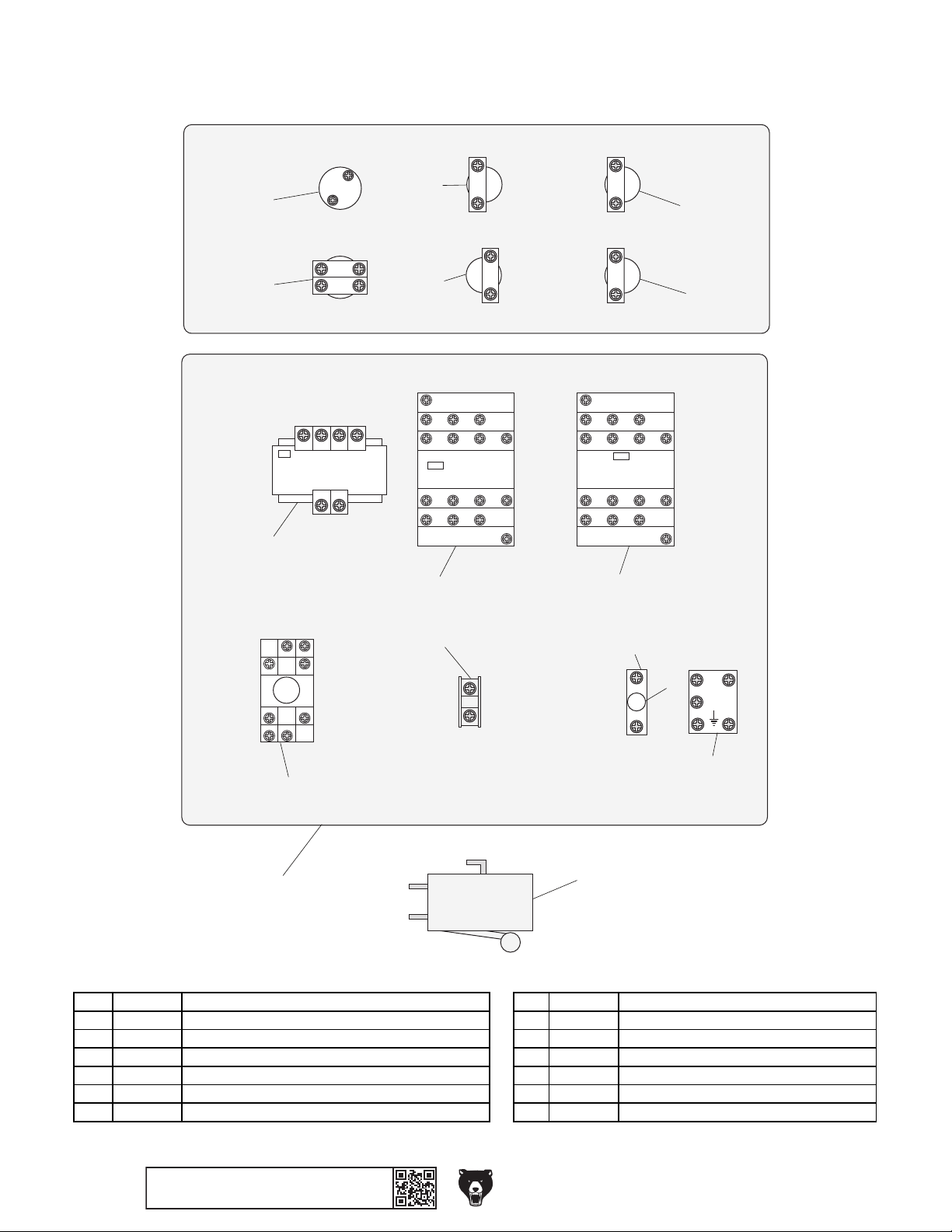

Control Panel

301

304

Electrical Box

Power

Lamp

Drilling/Milling

-Tapping Switch

43 NO

3 4NO

Electrical

Spindle Forward

302

43 NO

Spindle Reverse

Emegency

Stop

302

Spindle

Stop

303

305

306

Timer

Omron H3Y-2

8 5

14 13

308

0 110

Transformer

Mach Tool Elec

JBK5-63VA

0 24

1L1

3L2 5L3

220

13NO 21NC 31NC 43NO

KM1 Contactor

Siemens 3TB41 29V

14NO 22NC 32NC 44NO

2T1 4T2 6T3

1L1

3L2 5L3

13NO 21NC 31NC 43NO

KM2 Contactor

Siemens 3TB41 29V

14NO 22NC 32NC 44NO

2T1 4T2 6T3

307 307

309

310

311

Plate

Ground

312

314

COM

313

REF PART # DESCRIPTION REF PART # DESCRIPTION

301 P0761301 LAMP BUTTON MINGER AD62-22D/S 22MM 308 P0761308 TIMER OMRON H3Y-2 302 P0761302 START BUTTON MINGER LA125H-BE101C 22MM 309 P0761309 TERMINAL BAR 1P 303 P0761303 STOP BUTTON MINGER LA125H-BE102C 22MM 310 P0761310 FUSE HOLDER 304 P0761304 TAP SWITCH MINGER LA125H-BE101C 22MM 311 P0761311 FUSE 2A 250V CERAMIC 305 P0761305 E-STOP MINGER LA125H-BE 102C 22MM 312 P0761312 GROUND PLATE 306 P0761306 TRANSFORMER MTE JBK5-63VA 0-220V 313 P0761313 TAPPING SWITCH JUCHE LXW16-16/51C 307 P0761307 CONTACTOR SIEMENS 3TB41 24V 314 P0761314 ELECTRICAL BOX MOUNTING BOARD

-48-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

Model G0761 (Mfd. Since 06/15)

401

404

Accessories

409

402

403

407

416

406

415

408

410

412

405

413

405-1

REF PART # DESCRIPTION REF PART # DESCRIPTION

401 P0761401 TOOLBOX, PLASTIC 409 P0761409 BOTTLE FOR OIL 402 P0761402 T-BOLT M12-1.75 X 55 410 P0761410 DRIFT KEY 403 P0761403 FLAT WASHER 12MM 412 P0761412 HEX WRENCH 5MM 404 P0761404 HEX NUT M12-1.75 413 P0761413 HEX WRENCH 4MM 405 P0761405 DRILL CHUCK B16 1-13MM W/CHUCK KEY 414 P0761414 HEX WRENCH 3MM 405-1 P0761405-1 DRILL CHUCK KEY 8MM STD 11 SD-16MM 415 P0761415 WRENCH 17 X 19MM OPEN-ENDS 406 P0761406 SPINDLE SLEEVE MT#3-MT#2 416 P0761416 WRENCH 22 X 24MM OPEN-ENDS 407 P0761407 DRILL CHUCK ARBOR R8-B16 417 P0761417 HEX WRENCH 2.5MM 408 P0761408 SPINDLE SLEEVE R8-MT#3

417

414

Model G0761 (Mfd. Since 06/15)

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Par ts Store.

-49-

Labels & Cosmetics

REF PART # DESCRIPTION REF PART # DESCRIPTION

501 P0761501 MACHINE ID LABEL 505 P0761505 HEADSTOCK PANEL LABEL 502 P0761502 FLUID CAPACITIES LABEL 506 P0761506 STOP/OIL WARNING LABEL 503 P0761503 GRIZZLY GREEN TOUCH-UP PAINT 507 P0761507 ELECTRICITY LABEL 504 P0761504 GRIZZLY.COM LABEL 508 P0761508 CONTROL PANEL LABEL

507

501

505

506

508

502

503

504

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

-50-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

Model G0761 (Mfd. Since 06/15)

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. Of course, all information is strictly confidential.

1. How did you learn about us? ____ Advertisement ____ Friend ____ Catalog ____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM ____ Family Handyman ____ Hand Loader ____ Handy ____ Home Shop Machinist ____ Journal of Light Cont. ____ Live Steam ____ Model Airplane News ____ Old House Journal ____ Popular Mechanics

3. What is your annual household income? ____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000 ____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group? ____ 20-29 ____ 30-39 ____ 40-49 ____ 50-59 ____ 60-69 ____ 70+

5. How long have you been a woodworker/metalworker? ____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years

6. How many of your machines or tools are Grizzly? ____ 0-2 ____ 3-5 ____ 6-9 ____10+

____ Popular Science ____ Popular Woodworking ____ Precision Shooter ____ Projects in Metal ____ RC Modeler ____ Rie ____ Shop Notes ____ Shotgun News ____ Today’s Homeowner ____ Wood

____ Wooden Boat ____ Woodshop News ____ Woodsmith ____ Woodwork ____ Woodworker West ____ Woodworker’s Journal ____ Other:

7. Do you think your machine represents a good value? _____Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. _____Yes _____No

10. Comments: _____________________________________________________________________

_________________________________________________________________________________

FOLD ALONG DOTTED LINE

Place

Stamp

Here

GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069

Send a Grizzly Catalog to a friend:

Name_______________________________

Street_______________________________

City______________State______Zip______

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

Grizzly G0761 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

Contact Info

Manual Accuracy

Identification

Basic Controls

Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery

Additional Safety for Mill/Drills

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Unpacking

Needed for Setup

Inventory

Cleanup

Site Considerations

Lifting & Placing

Bench Mounting

Assembly

Lubricating Mill/Drill

Test Run

SECTION 4: OPERATIONS

Operation Overview

Downfeed Controls

Depth Stop

Table Travel

Spindle Speed

Tapping Mode

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule

Lubrication

SECTION 7: SERVICE

Troubleshooting

Adjusting Gibs

SECTION 8: WIRING

Wiring Safety Instructions

Electrical Box & Control Panel Wiring

Motor & Tapping Switches Wiring

SECTION 9: PARTS

Headstock

Table & Column

Electrical

Accessories

Labels & Cosmetics

WARRANTY & RETURNS
