Grizzly G0602Z, G0602, G0752Z User guide

Download

MODEL

G0602/G0602Z/G0752/G0752Z

10" X 22" BENCHTOP LATHE

OWNER'S MANUAL

(For models manufactured since 05/24)

G0602Z Shown

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#BL15556 PRINTED IN CHINA

***Keep for Future Reference***

V4.05.24

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Machine Description Contact Info Manual Accuracy Model G0602/G0602Z Identification Model G0752/G0752Z Identification Controls & Components Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery Additional Safety for Metal Lathes Glossary of Terms

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Unpacking Needed for Setup Inventory Cleanup Site Considerations Lifting & Placing Leveling & Mounting Assembly Lubricating Lathe Power Connection Test Run Spindle Break-In Recommended Adjustments

SECTION 4: OPERATIONS

Operation Overview Chuck & Faceplate Mounting Installation & Removal Devices Chuck Installation Chuck Removal Changing Jaw Set Scroll Chuck Clamping 4-Jaw Chuck Faceplate Tailstock Centers Steady Rest Follow Rest Carriage & Slide Locks Compound Rest Four-Way Tool Post Manual Feed Spindle Speed Power Feed Threading

................................................... 2

.................................................... 16

...................................................... 17

........................................................ 18

..................................................... 22

....................................................... 22

................................................ 30

..................................................... 31

....................................................... 32

........................................................ 36

................................................. 38

.................................................. 39

................................................ 41

................................................. 44

..................................................... 46

...................................... 2

........................................... 2

.............. 3

.............. 4

................................. 5

...................................... 8

..................................... 10

................ 10

............... 12

........................................ 13

...................... 14

....................................... 16

......................................... 16

...................................... 19

........................................... 20

.................................... 21

......................................... 22

....................................... 22

.......................................... 24

........................ 24

............................ 25

..................................... 25

...................... 26

................... 26

........................................ 27

........................................... 28

........................................ 28

................................ 29

................................ 39

........................................... 39

..................................... 40

............................................. 42

SECTION 5: ACCESSORIES ......................... 49

SECTION 6: MAINTENANCE

Schedule Cleaning/Protecting Lubrication Machine Storage

SECTION 7: SERVICE

Troubleshooting Backlash Adjustment Gib Adjustment Half Nut Adjustment Leadscrew Shear Pin Replacement V-Belt Tension & Replacement Timing Belt Tension & Replacement

SECTION 8: WIRING

Wiring Safety Instructions G0602/G0602Z Wiring Diagram G0602/G0602Z Electrical Components G0752/G0752Z Wiring Box Diagram G0752/G0752Z Wiring Box Components G0752/G0752Z Control Panel Wiring Diagram G0752/G0752Z Control Panel Components G0752/G0752Z Motor Wiring Diagram

SECTION 9: PARTS

Spindle & Drive Belt Apron Tool Post & Compound Rest Tailstock Bed & Leadscrew Steady Rest & Follow Rest G0602/G0602Z Motor & Electrical G0752/G0752Z Motor & Electrical Change Gears Gearbox G0602/G0752 Cross Slide & Carriage G0602Z/G0752Z Cross Slide & Carriage

SECTION 10: APPENDIX

G0602/G0602Z Charts G0752/G0752Z Charts

WARRANTY & RETURNS

...................................................... 51

...................................... 51

................................................... 52

.......................................... 56

................................... 57

........................................... 57

................................... 60

............................................ 61

..................................... 62

...................................... 66

....................................................... 71

....................................... 74

..................................... 74

........................................................... 76

....................................................... 78

......................................... 79

............................................. 83

....................................................... 84

......................... 51

............ 62

.................... 63

............ 65

............................ 66

.................. 67

....... 68

........... 69

.... 70

........ 73

....................... 77

.......................... 80

............... 81

............... 82

........ 86

.... 87

............................... 91

................................ 91

................................ 92

.............................. 93

INTRODUCTION

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

serial number

from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Email: manuals@grizzly.com

Machine Description

The metal lathe is used to remove material from a rotating workpiece, which is held in place on the spindle with a chuck or faceplate. The cutting tool is mounted on the carriage or tailstock and moved against the spinning workpiece to perform the cut.

Models G0602/Z and G0752/Z all require setting gearbox dial positions and positioning V-belts to select the spindle speed. However, the Model G0752/Z features an electronic variable-speed control and digital RPM display that make it possible to select speeds within the selected range while the machine is running.

Model G0602Z and G0752Z are both indentical to their non-"Z" counterparts, but the Z models are equipped with an included X/Z-Axis DRO.

Contact Info

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

manufacture date and

Email: techsupport@grizzly.com

Grizzly Documentation Manager

and manufacture date

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

P.O. Box 2069

Bellingham, WA 98227-2069

Manufacture Date

Serial Number

-2-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Model G0602/G0602Z Identification

T S

Figure 1. G0602/G0602Z identification.

A. Emergency Stop Button B. Spindle Direction Switch C. ON Button D. X/Z-Axis Digital Readout (G0602Z Only) E. 3-Jaw Chuck F. Steady Rest G. 4-Way Tool Post H. Follow Rest I. Compound Rest Handwheel J. MT#3 Dead Center K. Tailstock

Serious personal injury could occur if you connect the machine to power before completing the setup process. DO NOT connect power until instructed to do so later in this manual.

L. Back Splash M. Chip Tray N. Thread Dial O. Half Nut Lever

Cross Slide Handwheel

P. Q. Carriage Handwheel R. Leadscrew S. Alpha Gearbox Dial T. Gearbox Oil Level Sight Glass U. Numeric Gearbox Dial V. Change Gear and Belt Safety Cover

Untrained users have an increased risk of seriously injuring themselves with this machine. Do not operate this machine until you have understood this entire manual and received proper training.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-3-

Model G0752/G0752Z Identification

Figure 2. G0752/G0752Z identification.

A. Emergency Stop Button B. ON Button C. OFF Button

Spindle Speed RPM Display

D. E. Spindle Speed Dial F. Spindle Direction Switch G. X/Z-Axis Digital Readout (G0752Z Only) H. 3-Jaw Chuck I. Steady Rest J. 4-Way Tool Post K. Follow Rest L. Compound Rest Handwheel M. MT#3 Dead Center

Serious personal injury could occur if you connect the machine to power before completing the setup process. DO NOT connect power until instructed to do so later in this manual.

N. Tailstock O. Back Splash P. Chip Tray Q. Thread Dial R. Half Nut Lever

Cross Slide Handwheel

S. T. Carriage Handwheel U. Leadscrew V. Alpha Gearbox Dial W. Gearbox Oil Level Sight Glass Y. Numeric Gearbox Dial X. Change Gear and Belt Safety Cover

Untrained users have an increased risk of seriously injuring themselves with this machine. Do not operate this machine until you have understood this entire manual and received proper training.

-4-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Controls &

Components

OFF Button: Stops spindle rotation.

E. Spindle Speed RPM Display: Shows a digi-

tal readout of the spindle speed.

Refer to Figures 3–8 and the following descriptions to become familiar with the basic controls of this lathe.

Model G0602/G0602Z Control Panel

Figure 3. Model G0602 control panel.

Model G0752/G0752Z Control Panel

F. Spindle Speed Dial: Controls the variable

spindle speed.

Quick Change Gearbox

G H

Figure 5. Gearbox dials.

G. Numeric Gearbox Dial: Controls the

leadscrew for threading and feeding operations. To make a selection, rotate the dial to the corresponding number displayed on the threading or feed charts.

H. Alpha Gearbox Dial: Controls the leadscrew

for threading and feeding operations. To make a selection, rotate the dial to the corresponding letter displayed on the threading or feed charts.

Figure 4. Model G0752 control panel.

. Emergency STOP Button: Cuts power to

the motor and control panel when pressed. Remains depressed until reset by twisting clockwise.

Spindle Switch: Starts, stops, and reverses

spindle rotation.

ON Button: Enables spindle rotation.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-5-

Carriage Tailstock

Figure 6. Carriage controls.

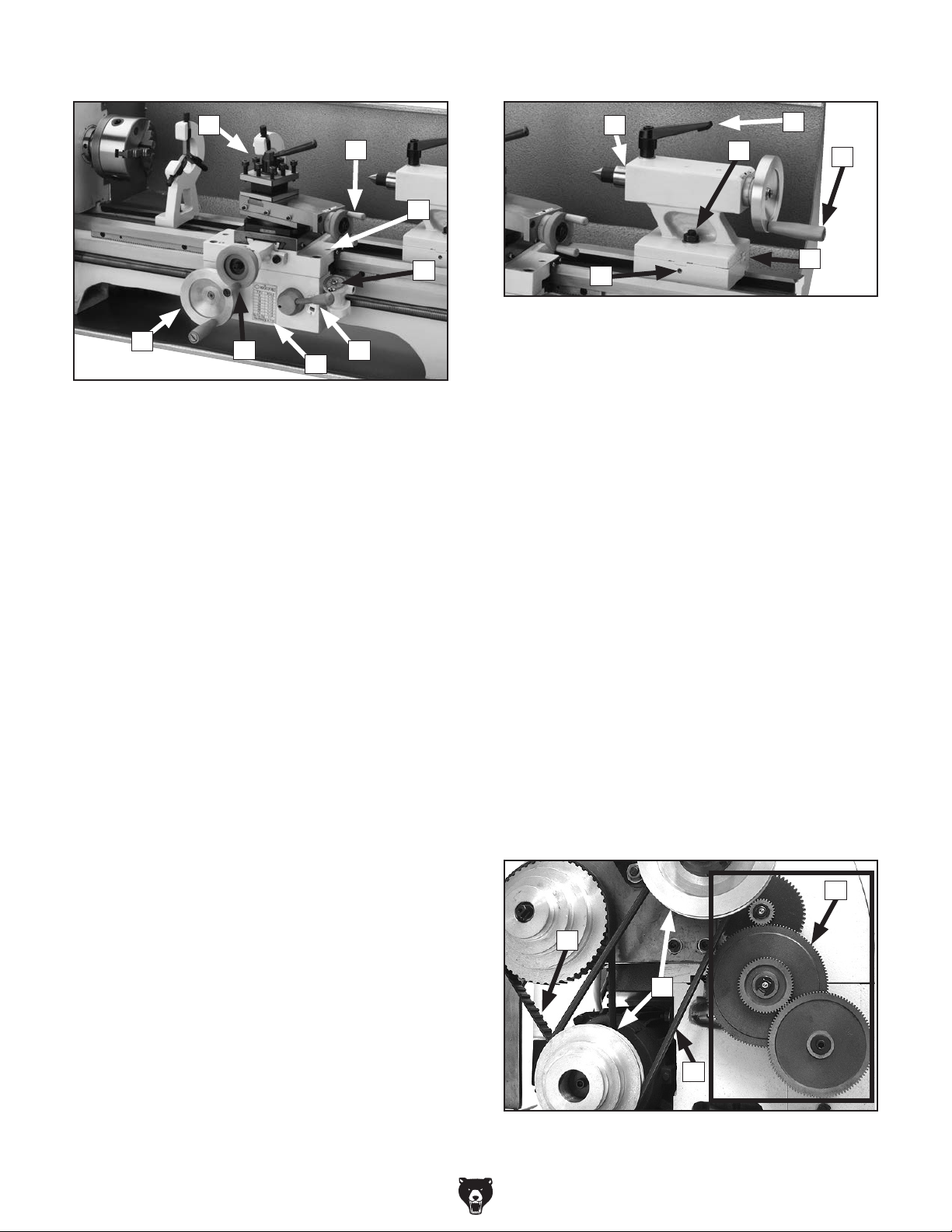

I. 4-Way Tool Post: Holds up to four cutting

tools at once that can be individually indexed to the workpiece.

. Compound Rest Handwheel: Moves the

tool toward and away from the workpiece at the preset angle of the compound rest.

Carriage Lock: Secures the carriage for

greater rigidity when it should not move.

Figure 7. Tailstock controls.

T. Tailstock Quill Handwheel: Controls the

movement of the quill.

. Offset Scale: Indicates the relative distance

of tailstock offset from the spindle centerline.

. Tailstock Offset Set Screw (1 of 2): Adjusts

the tailstock offset left or right from the spindle centerline.

Change Gears, Pulleys, V-Belt

W. Change Gears: The configuration of the

change gears for power feed, inch, and metric threading controls the leadscrew speed.

Thread Dial: Indicates when to engage the

half nut during threading operations.

Half Nut Lever: Engages/disengages half

nut for power feed and threading operations.

Thread Chart: Indicates which thread dial

mark to use when engaging the half nut for specific inch thread pitches.

Cross Slide Handwheel: Moves the cross

slide toward and away from the workpiece.

Carriage Handwheel: Moves the carriage

along the bedway.

. Tailstock Quill: Moves a tool or center

mounted in the tailstock toward or away from the workpiece.

. Tailstock Quill Lock Lever: Secures the

quill position.

X. Pulleys: The position of the V-belt on the pul-

leys controls the spindle speed.

V-Belt: Transfers power from the motor pul-

ley to the spindle pulley. Model G0602 uses two V-belts. Model G0752 uses one V-belt.

Z. Timing-Belt: (G0602) Transfers power from

the motor to the secondary drive pulley.

. Tailstock Lock Nut: Secures the tailstock to

the bedway.

-6-

Figure 8. Change gears and pulleys

(Model G0602 shown).

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Model G0602Z/G0752Z Digital Readout Components

Model G0602Z/G0752Z features a magnetically mounted DRO (see Figure 9) for X-axis (cross slide) and Z-axis (carriage) travel.

AD. In/MM Button: Toggles measurement dis-

play to either inches or millimeters.

AE. ZERO Buttons: Reset values at any point

along the axis to 0.00.

Note: When placing the DRO, locate all cables so they do not interfere with machine operation and cannot be pinched by moving components.

Figure 9. DRO magnetically mounted on lathe

headstock.

AF. Green Light: Indicates inches or millimeters.

AG. Magnetic Mount: Adheres DRO to machine.

The X-axis and Z-axis scales are attached to the cross slide and bed (respectively). Shielded cables run from each sensor to plugs on the back of the DRO (see Figure 11). The DRO connects to a regular 110V power supply with a dedicated power cord using a NEMA 1-15 plug.

(Viewed from behind)

DRO

CXM-3

POWER

X-Axis Port

Power

Cord

Port

Z-Axis Port

Y-Axis Port

(Not Used)

NEUTRAL

HOT

110 VAC

1-15 Plug

Z-Axis Sensor

X-Axis Sensor

Figure 10. DRO controls and display.

AA. Digital Readout: Displays current position

of X-axis and Z-axis in hundredths of a millimeter or thousandths of an inch. (Included Y-axis display line is not used on G0602Z or G0752Z.)

"X" Value: Displays total X-axis travel from

AB.

zero along cross slide.

AC. "Z" Value: Displays total Z-axis travel from

zero along lathe bed.

Figure 11. DRO wiring.

ON/OFF

Z-Axis Port

Switch

Y-Axis Port (Not Used)

X-Axis Port

DRO Power Cord

Figure 12. DRO cable connections (rear).

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-7-

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0602/G0602Z, G0752/G0752Z

10" x 22" Bench Top Metal Lathe

Model Number G0602 G0602Z G0752/G0752Z

Product Dimensions

Weight 330 lbs.

Width/Depth/Height 46" x 22" x 17" 46" x 22" x 21 " 50

Foot Print (Width/Depth) 47

⁄2" x 121⁄2"

Shipping Dimensions

Type Wood Crate

Content Machine

Weight 432 lbs. 453 lbs.

Width /Depth/Height 50" x 23" x 22"

Electrical

Power Requirement 110V, Single-Phase, 60 Hz

Minimum Circuit Size 20A 15A

Switch Forward & Reverse Button Switches

Cord Length 5 ft. 6 ft. 5 ft.

Cord Gauge 16 AWG 14 AWG

Plug Included Yes

Included Plug Type NEMA 5-15

⁄2" x 22" x 20"

Main Motor

Type TEFC Capacitor-Start Induction TEFC Induction

Horsepower 1 HP 1 HP

Phase Single-Phase 3-Phase

Amps 13.6A 12A

Speed 1725 RPM

Power Transfer Cogged Belt Drive

Bearings Shielded & Permanently Sealed

Operation Information

Swing Over Bed 91⁄2 in.

Distance Between Centers 22 in.

Swing Over Cross Slide 6

Swing Over Saddle 6

Maximum Tool Bit Size

Compound Travel 3

Carriage Travel 181⁄2 in.

Cross Slide Travel 6

-8-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

⁄8 in.

⁄2 in.

⁄2

Model Number G0602 G0602Z G0752 G0752Z

Headstock Information

Spindle Bore 25mm

⁄4 in.

⁄4"– 2"

⁄4"

Spindle Size 1

Spindle Taper MT#4

Spindle Threads 8 TPI

Number of Spindle Speeds 6 Variable

Range of Spindle Speeds 150 – 2400 RPM 100 – 800, 160 – 1300, 250 – 2000 RPM

Spindle Type Threaded

Spindle Bearings Tapered Roller

Tailstock Information

Tailstock Quill Travel 21⁄2"

Tailstock Taper MT#3

Tailstock Barrel Diameter 1.25"

Threading Information

Number of Longitudinal Feeds 9

Range of Longitudinal Feeds 0.0025 – 0.0140 in./rev.

Number of Inch Threads 31 31 31 31

Range of Inch Threads 8 – 72 TPI

Number of Metric Threads 26

Range of Metric Threads 0.25 – 3.50 mm

Dimensions

Bed Width 61⁄8 in.

Leadscrew Diameter

Leadscrew TPI 12 TPI

Leadscrew Length 34"

Steady Rest Capacity

Follow Rest Capacity

Faceplate Size 8 in.

Construction

Base Cast Iron

Headstock Cast Iron

Headstock Gears Steel

Bed Hardened and Precision-Ground Cast Iron

Stand Cast Iron

Paint Epoxy

Other

Country of Origin China

Warranty 1 Year

Serial Number Location ID Label

Approximate Assembly & Setup Time

1 Hour

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-9-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.

This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

-10-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

may damage the wires inside. Do not handle

WEARING PROPER APPAREL. Do not wear loose clothing, gloves, neckties, or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult

this owner’s manual or the manufacturer for rec-

ommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord

cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-11-

Additional Safety for Metal Lathes

mize toxicity, change coolant regularly. When

To reduce risk of

Serious injury or death can occur from getting entangled in, crushed between, or struck by rotating parts on a lathe! Unsecured tools or workpieces that fly loose from rotating objects can also strike nearby operators with deadly force. To minimize the risk of getting hurt or killed, anyone operating this machine MUST completely heed the hazards and warnings below.

CLOTHING, JEWELRY & LONG HAIR. Tie back

long hair, remove jewelry, and do not wear loose clothing or gloves. These can easily get caught on rotating parts and pull you into lathe.

ROTATING PARTS. Always keep hands and body at a safe distance from rotating parts—especially those with projecting surfaces. Never hold anything against rotating workpiece, such as emery cloth, that can pull you into lathe.

GUARDING. Guards and covers protect against entanglement or flying objects. Always ensure they are properly installed while machine is running.

ADJUSTMENT TOOLS. Remove all chuck keys, wrenches, and adjustment tools before turning lathe ON. A tool left on the lathe can become a deadly projectile when spindle is started.

SAFE CLEARANCES. Before starting spindle, verify workpiece has adequate clearance by handrotating it through its entire range of motion.

NEW SETUPS. Test each new setup by starting spindle rotation at the lowest speed and standing to the side of the lathe until workpiece reaches full speed and you can verify safe rotation.

SPINDLE SPEEDS. Using spindle speeds that are too fast for the workpiece or clamping equipment can cause rotating parts to come loose and strike nearby people with deadly force. Always use slow spindle speeds with large or non-concentric workpieces. Never exceed rated RPM of the chuck.

LONG STOCK SAFETY. Long stock can whip violently if not properly supported. Always support any stock that extends from the chuck/headstock more than three times its own diameter.

CLEARING CHIPS. Metal chips can be razor sharp. Avoid clearing them by hand or with a rag. Use a brush or vacuum instead.

SECURE WORKPIECE. An improperly secured workpiece can fly off spindle with deadly force. Make sure workpiece is properly secured before starting the lathe.

CHUCKS. Chucks can be heavy and difficult to hold. During installation and removal, protect your hands and precision bed ways by using a chuck cradle or piece of plywood over the bed ways. Use lifting equipment, as necessary, for large chucks.

STOPPING SPINDLE. Always allow spindle to completely stop on its own, or use a brake, if provided. Never put hands or another object on a spinning workpiece to make it stop faster.

CRASHING. A serious explosion of metal parts can occur if cutting tool or other lathe component hits rotating chuck or a projecting part of workpiece. Resulting metal fragments can strike nearby people and lathe will be seriously damaged. To reduce risk of crashing, ALWAYS release automatic feeds after use, NEVER leave lathe unattended, and CHECK all clearances before starting lathe.

COOLANT SAFETY. Coolant can become very toxic through prolonged use and aging. To mini-

using, position nozzle properly to avoid splashing operator or causing a slipping hazard on floor.

TOOL SELECTION. Cutting with incorrect or dull tooling increases risk of injury from broken or dislodged components, or as a result of extra force required for operation. Always use sharp tooling that is right for the job.

SANDING/POLISHING. To reduce risk of entanglement, never wrap emery cloth around rotating workpiece. Instead, use emery cloth with the aid of a tool or backing board.

MEASURING WORKPIECE.

entanglement, never measure rotating workpieces.

-12-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Glossary of Terms

The following is a list of common definitions, terms and phrases used throughout this manual as they relate to this lathe and metalworking in general. Become familiar with these terms for assembling, adjusting or operating this machine. Your safety is VERY important to us at Grizzly!

Arbor: A machine shaft that supports a cutting

tool.

Backlash: Wear in a screw or gear mechanism

that may result in slippage, vibration, and loss of tolerance.

Carriage: A main housing that consists of the

apron and the saddle.

Cross Slide: A fixture attached to the lathe car-

riage that holds the compound rest and can be moved in and out.

Compound Rest: A fixture attached to the cross

slide that holds the tool holder and can be moved in and out.

Cutting Speed: The distance a point on a cutter

moves in one minute, expressed in meters or feet per minute.

Dial Indicator: An instrument used in setup

and inspection work that shows on a dial the amount of error in size or alignment of a part.

Facing: In lathe work, cutting across the end of

a workpiece, usually to machine a flat surface.

Feed: The movement of a cutting tool into a

workpiece.

Lathe Center: A lathe accessory with a 60°

point which is inserted into the headstock or tailstock of the lathe and is used to support the workpiece.

Leadscrew: Lathe—The long screw that is driven

by the change gears and supplies power to the carriage.

Saddle: The upper portion of carriage that rides

on the lathe ways and supports the cross feed and the follow rest.

Spindle: The revolving shaft that holds and

drives the workpiece or cutting tool.

Tailstock: A moveable fixture opposite of the

headstock on a lathe that has a spindle used to support one end of a workpiece and for holding tools.

Tool Post: The part of the compound rest that

holds the tool holder.

Turret: Lathe—A machine fixture that holds mul-

tiple tools and can be revolved and indexed to position.

Ways: The precision machined and flat tracks

on a lathe on which the carriage and tailstock slide.

Fixture: A device that securely holds the

workpiece in place during cutting operation as opposed to a jig which is used to hold and guide a workpiece through an operation.

Gib: A tapered wedge located along a sliding

member to take up wear or to ensure a proper fit.

Headstock: The major lathe component that

houses the spindle and motor drive system to turn the workpiece.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-13-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

or equipment damage may occur if machine is not properly grounded and connected to power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, consult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

Availability

Serious injury could occur if you connect machine to power before completing setup process. DO NOT connect to power until instructed later in this manual.

110V Circuit Requirements

Electrocution, fire, shock,

supply.

Full-Load Current Rating

G0602/G0602Z Full-Load Rating ............13.6A

G0752/G0752Z Full-Load Rating

................ 12A

Nominal Voltage

..........................................................60 Hz

Cycle Phase Minimum Circuit Size (G0602/Z) Minimum Circuit Size (G0752/Z)

........................................... Single-Phase

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

............................... 110V/120V

....... 20 Amps

....... 15 Amps

-14-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with

We do not recommend using an extension cord with this machine. If you must use an extension cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which can damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must be in good condition and contain a ground wire and matching plug/receptacle. Additionally, it must meet the following size requirements:

Grounding & Plug Requirements

Two-prong outlets do not meet the grounding requirements for this machine.

provided—if it will not fit the outlet, have a

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

This machine is equipped with a power cord that has an equipment-grounding wire and a grounding plug. Only insert plug into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances. DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Extension Cords

Neutral Hot

Figure 13. Included 5-15 plug and receptacle.

SHOCK HAZARD!

Do not modify or use an adapter on the plug

qualified electrician install the proper outlet with a verified ground.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

Minimum Gauge Size ........................... 14 AWG

Maximum Length (Shorter is Better)

.......50 ft.

-15-

SECTION 3: SETUP

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

IMPORTANT: Save all packaging materials until you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

Unpacking

If items are damaged

call us immediately at (570) 546-9663.

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

Needed for Setup

The following are needed to complete the setup process, but are not included with your machine.

Description Qty

• Additional People ....................................... 1

• Safety Glasses ............... 1 For Each Person

• Cleaner/Degreaser ..................... As Needed

• Quality Metal Protectant ............. As Needed

• Disposable Shop Rags ............... As Needed

• Precision Level ........................................... 1

• Lifting Straps (rated for at least 500 lbs.) ... 2

• Forklift/Power Lifting Device (rated for at least

500 lbs.) ...................................................... 1

• Bench Mounting Hardware ........ As Needed

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

-16-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

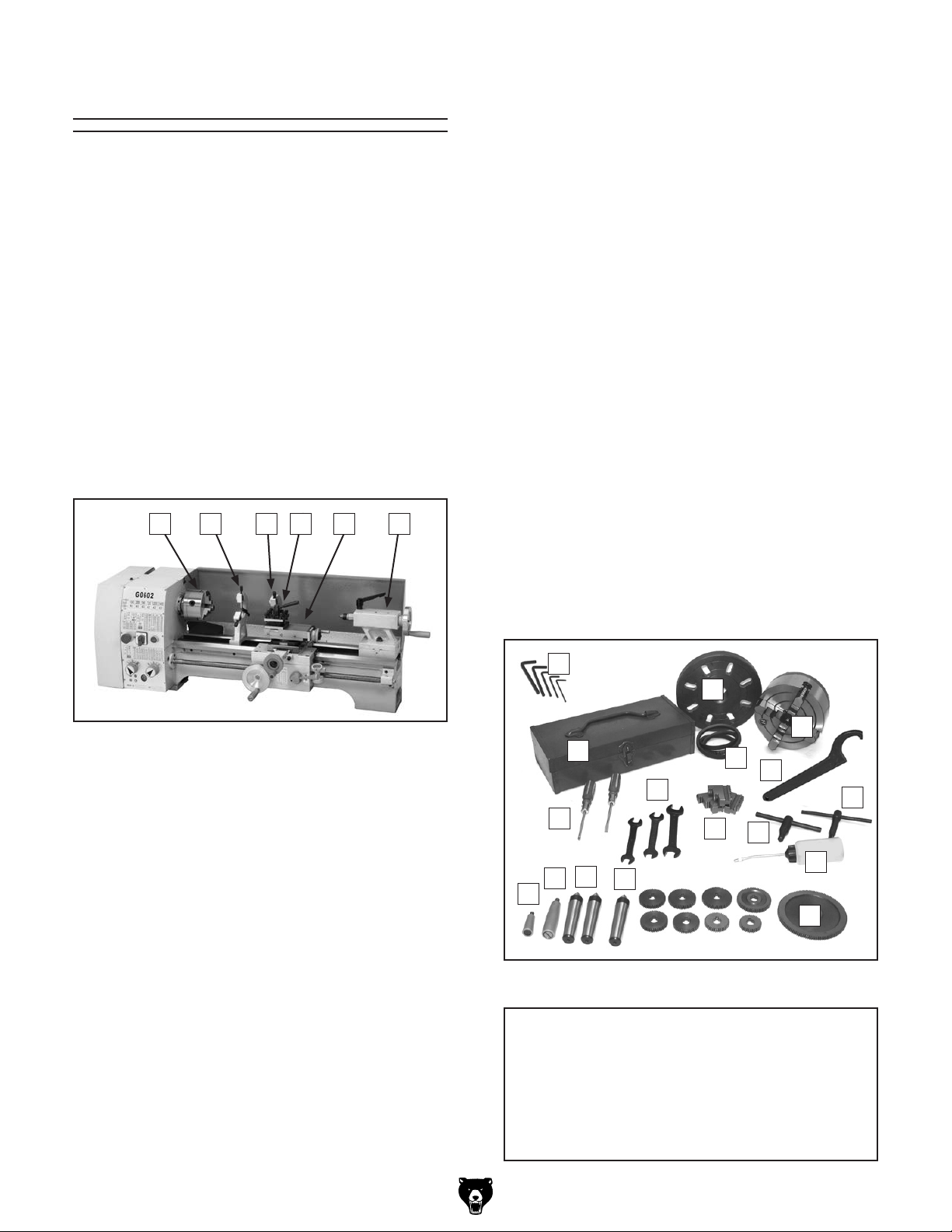

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

Installed Components (Figure 14) Qty.

A. 5" Three-Jaw Chuck ................................... 1

Steady Rest ................................................ 1

Follow Rest ................................................. 1

4-Way Tool Post ......................................... 1

Compound Rest ......................................... 1

Tailstock ...................................................... 1

D EA B C F

W. Dead Center MT#4 ..................................... 1

Change Gear Set ....................................... 1

— Change Gear (27-tooth, Installed) ......... 1

— Change Gear (36-tooth) ......................... 1

— Change Gear (40-tooth) ......................... 1

— Change Gear (44-tooth) ......................... 1

— Change Gear (45-tooth) ......................... 1

— Change Gear (46-tooth) ......................... 1

— Change Gear (48-tooth) ......................... 1

— Change Gear (52-tooth) ......................... 1

— Change Gear (56-tooth, Installed) ......... 1

— Change Gear (60-tooth) ......................... 1

— Plastic Drive Gear (60-tooth, Installed).. 1

— Change Gear (104-tooth, Installed) ....... 1

— Change Gear (120-tooth) ....................... 1

— Change Gear (127-tooth, Installed) ........ 1

Frequency Drive Manual VFD-E

(G0752, Not Shown) ................................... 1

. Optional Stand Hardware (Not Shown) ...... 1

— Flat Washers 10mm ............................... 2

— Hex Bolts M10-1.5 X 30 ......................... 2

— Flat Washers 6mm ................................ 4

— Phillips Head Screws M6-1 X 12 ........... 4

AA. X/Z-Axis DRO (G0602Z/G0752Z,

Not Shown) ................................................. 1

BB. DRO Power Cord (G0602Z/G0752Z,

Not Shown) ................................................. 1

Figure 14. Installed components.

Packaged Components (Figure 15) Qty.

G. Chip Pan (Not Shown) ................................ 1

Hex Wrench Set (2.5, 3, 4, 5, 6 mm) .....1 Ea

Toolb ox ....................................................... 1

8" Faceplate ............................................... 1

61⁄2" 4-Jaw Independent Chuck .................. 1

Low Range Belt 271⁄2 " (G0602) .................. 1

High Range Belt 33" (Installed, G0602) ..... 1

V-Belt 33" (Installed, G0752) ...................... 1

Spanner Wrench ........................................ 1

#2 Phillips and Standard Screwdriver ...1 Ea

Wrench Set (8/10, 12/14, 19/17mm) ....... 1 Ea

3-Jaw Chuck Internal Jaw Set .................... 1

3-Jaw Chuck Key ....................................... 1

4-Jaw Chuck Key ....................................... 1

Oil Bottle for Oil .......................................... 1

T. Cross Slide Handwheel Handle ................. 1

U. Carriage Handwheel Handle ...................... 1

V. Dead Centers MT#3 .................................. 2

Model G0602/Z, G0752Z (Mfd. Since 05/24)

Figure 15. Packaged components.

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

-17-

parts of the

The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean.

Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.

There are many ways to remove this rust preventative, but the following steps work well in a wide variety of situations. Always follow the manufac-

turer’s instructions with any cleaning product you

use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

metal protectant to prevent rust.

Many cleaning solvents

work in a well-ventilated

Cleanup

Gasoline and petroleum products have low flash points and can explode or cause fire if used to clean machinery. Avo id using these products to clean machinery.

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe off easily. If you have a plastic paint scraper, scrape off as much as you can first, then wipe off the rest with the rag.

are toxic if inhaled. Only

area.

NOTICE

Avoid harsh solvents like acetone or brake parts cleaner that may damage painted surfaces. Always test on a small, inconspicuous location first.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from the non-painted machine during clean up.

www.grizzly.com

Call 1-800-523-4777

Order online at

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality

-18-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Site Considerations

Weight Load

Refer to the of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

See below for required space allocation.

Physical Environment

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20%–95% (non-condensing); or the environment is subject to vibration, shocks,

Place this machine near an existing power source. Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave enough space around machine to disconnect power supply or

Lighting around the machine must be adequate enough that operations can be performed safely. Shadows, glare, or strobe effects that may distract or impede the operator must be eliminated.

Machine Data Sheet for the weight

or bumps.

Electrical Installation

for Maintenance

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

Min. 30"

18"

Access Door

Keep Workpiece Loading Area Unobstructed

apply a lockout/tagout device, if required.

Lighting

Wall

110V

Supply

Lathe

65"

12.5"

Footprint

30"

Figure 16. Minimum working clearances.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

47.5"

Footprint

-19-

Lifting & Placing

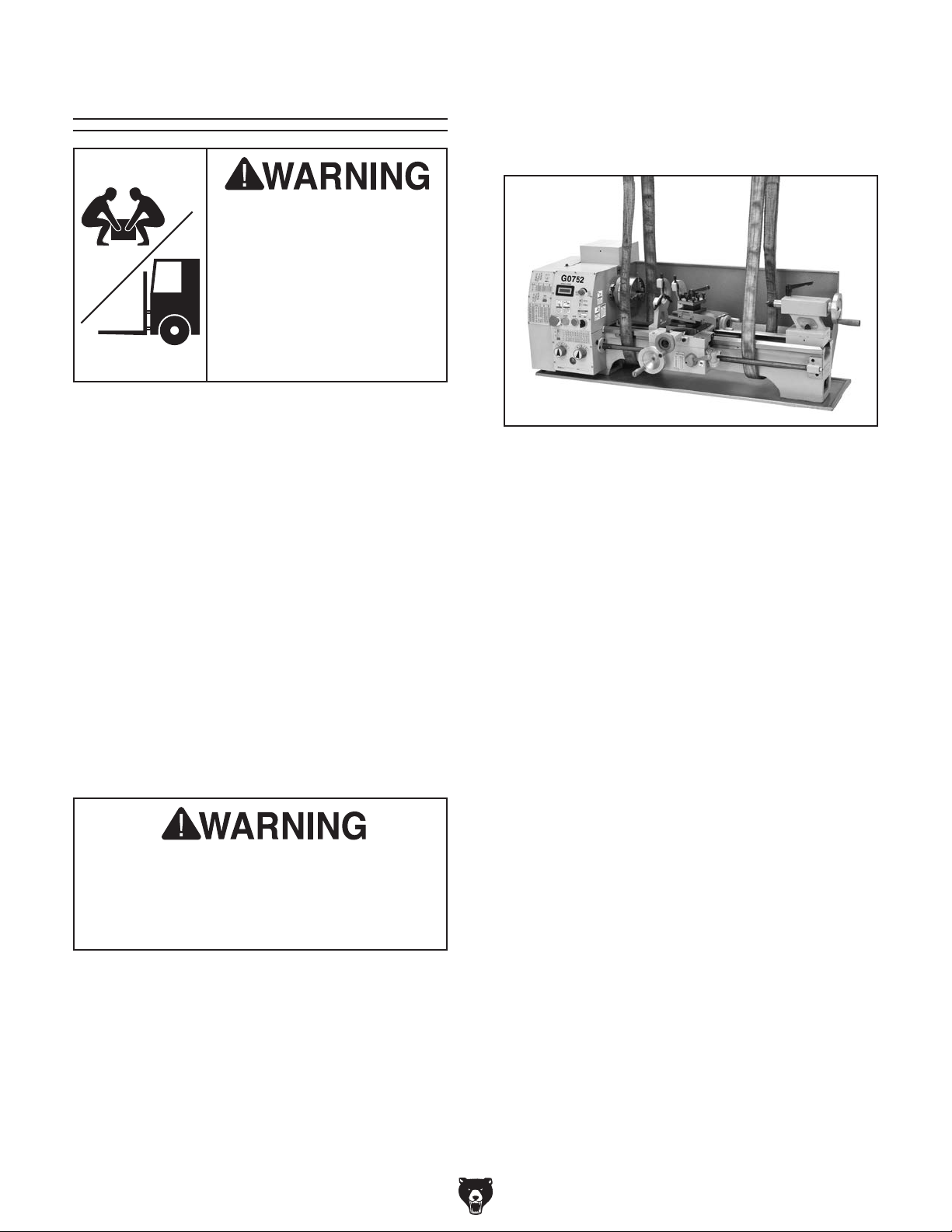

HEAVY LIF T! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk, get help from other people and use a forklift (or other lifting equipment) rated for weight of this machine.

Do not attempt to lift or move this lathe without using the proper lifting equipment (such as forklift or crane) or the necessary assistance from other people. Refer to Needed for Setup on Page 16 for details.

To lift and move the lathe:

1. Remove the shipping crate top and sides,

then remove the chip pan, 4-jaw chuck, faceplate, and toolbox from the shipping pallet.

Wrap the lifting straps around the bed and

between the leadscrew and the bedway, as shown in Figure 17, to help prevent bending the leadscrew during lifting.

Figure 17. Example of lifting strap positions.

Attach the lifting straps to the power lifting

equipment, have an assistant steady the load, then lift it just enough to clear any obstacles and move it to its mounting position.

Properly mount the lathe as instructed in the

7. Mounting subsection on Page 21.

Position the chip pan on the selected mount-

ing surface and use it as a template to mark the hole locations for the mounting hardware (refer to Leveling & Mounting on Page 21).

Unbolt the lathe from the shipping pallet.

Only use lifting straps and power lifting equipment rated for at least 500 lbs. and in good working condition. If the lathe falls or tips over while moving it, serious personal injury and property damage could result.

To balance the load for lifting, move the

tailstock and carriage to the extreme right end of the bedway, then lock them in place.

Note: Before attempting to move the car-

riage, make sure the carriage lock is loose and the half nut is disengaged.

-20-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Leveling & Mounting

For accurate turning results and to prevent warping the cast iron bed and ways, the lathe bedways MUST be leveled from sideto-side and from front-to-back on both ends.

Re-check the bedways 24 hours after installation, two weeks after that, and then annually to make sure they remain level.

Leveling

Leveling machinery helps precision components,

such as bedways, remain straight and at during

the lifespan of the machine. Components on a machine that is not level may slowly twist due to the dynamic loads placed on the machine during operation.

For best results, use a precision level that is at least 12" long and sensitive enough to show a distinct movement when a 0.003" shim (approximately the thickness of one sheet of standard newspaper) is placed under one end of the level.

See the gure below for an example of a high

precision level.

Mounting

The chip pan and the base of the lathe have holes that allow the machine to be mounted to a workbench. You MUST mount your machine to a workbench to prevent it from unexpectedly moving during operation, which could lead to personal injury or property damage.

Follow these guidelines when mounting your lathe to ensure safe and accurate cutting results:

• Make sure that the workbench can adequately support the weight of the machine and materials and that it will not move or vibrate during operation.

• Use a silicon sealant between the lathe and the chip pan to prevent coolant or other fluids from leaking through onto the bench or floor.

To mount the lathe and chip pan to the workbench, drill holes all the way through the workbench, and use hex bolts, washers, and hex nuts to secure the lathe to the workbench, as illustrated in Figure 19.

Hex Nut

Lock Washer

Flat Washer

Lathe

Silicon

Chip Pan

Figure 18. Grizzly Model H2683 12" Master

Machinist's Level.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

Workbench

Flat Washer

Hex Bolt

Figure 19. Example of a through mount setup.

-21-

Assembly

Power Connection

With the exception of the handwheel handles, the lathe is shipped fully assembled.

To install the handwheel handles, thread the large handle into the carriage handwheel and the small handle into the cross slide handwheel, as shown in Figure 20.

Small

Handle

Large

Handle

Figure 20. Handwheel handles installed.

Before the machine can be connected to the power source, an electrical circuit and connection device must be prepared per the POWER SU P PLY section in this manual, and all previous setup instructions in this manual must be completed to ensure that the machine has been assembled and installed properly.

Connecting Power

Always make sure the spindle direction switch on the front of the headstock is turned OFF (middle position) before connecting power.

Insert the power cord plug into a matching power supply receptacle.

Disconnecting Power

If you need to disconnect the machine from power for maintenance, service, or adjustments, turn the machine off and pull the plug completely out of the receptacle.

Lubricating Lathe

GEARBOX MUST

BE FILLED WITH OIL!

LATHE MAY NOT

HAVE OIL INCLUDED!

Refer to the Lubrication

Section in this Manual

for Recommended

Oil Type.

The lathe must be properly lubricated before it can be operated for the first time.

Damage caused to the bearings and gears from running the lathe without oil in the reservoirs will not be covered under warranty. Refer to the Lubrication section, beginning on Page 52, for details on how to lubricate the lathe.

Test Run

Once the assembly is complete, test run your machine to make sure it runs properly and is ready for regular operation.

The test run consist of verifying the following: 1) The motor powers up and runs correctly, 2) the emergency STOP button safety feature works correctly.

If, during the test run, you cannot easily locate the source of an unusual noise or vibration, stop using the machine immediately, then review Troubleshooting on Page 57.

If you still cannot remedy a problem, contact our Tech Support at (570) 546-9663 for assistance.

-22-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

To test run your machine:

Make sure the spindle direction switch (see

1. Figure 21) is turned to STOP, and press the

emergency STOP button.

Half Nut

Lever

Disengaged

Emergency

Stop Button

Spindle Direction Switch

Pointing to STOP

Figure 21. Headstock and gearbox controls.

Read and follow the safety instructions at the

beginning of the manual, take all required safety precautions, and make sure all previous preparation steps discussed in this manual have been followed and completed.

Clear away all tools and objects used during

assembly, lubrication, and preparation.

Make sure chuck and jaws, if installed, are

4. secure (see Chuck Installation on Page 27).

Note: If a chuck is not installed on the lathe,

you do not need to install one for this test.

Button

Halfnut

Lever

Engaged

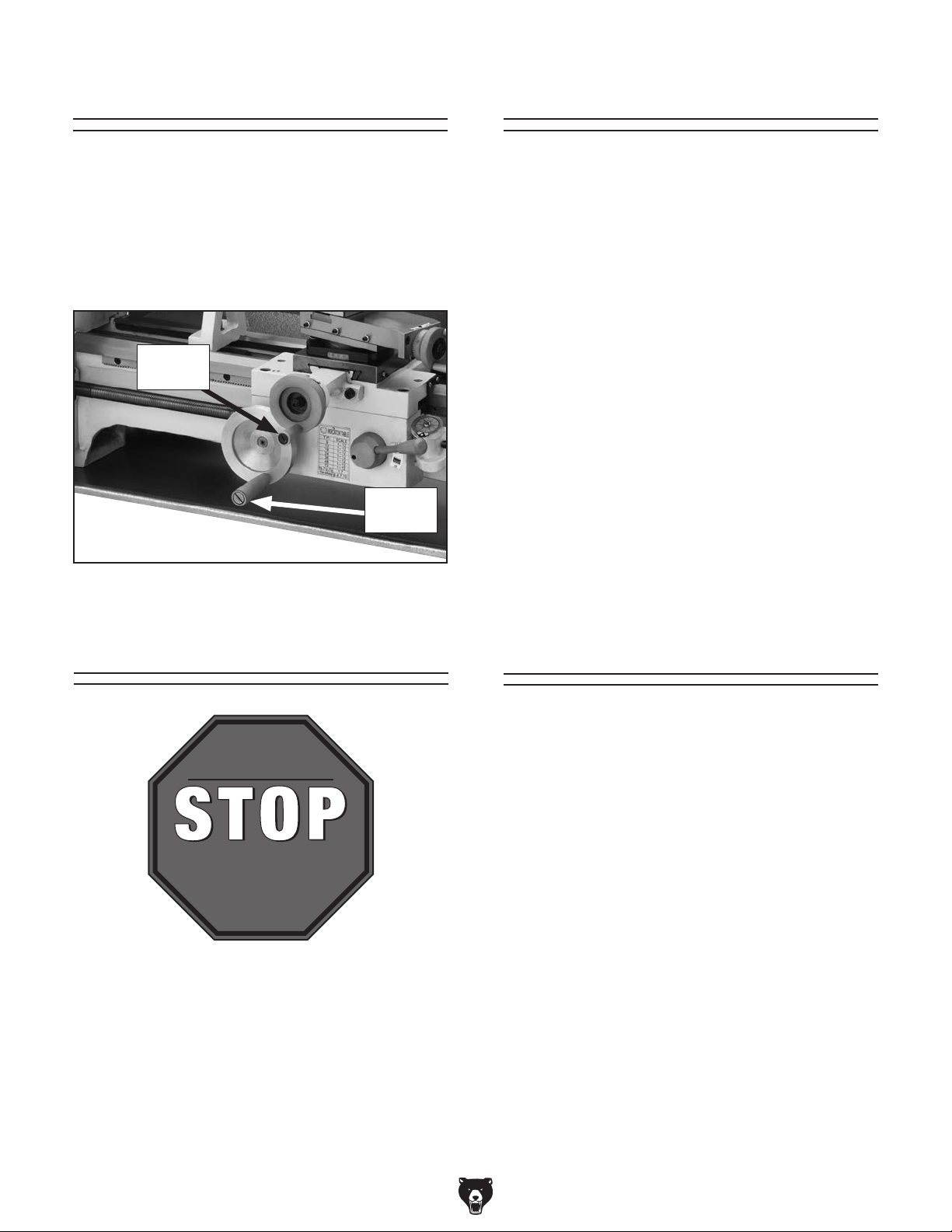

Figure 22. Half nut lever in the disengaged

position.

7. Reset the emergency STOP button by twist-

ing it clockwise until it pops out.

8. G0752 Only: Ensure the spindle speed dial is

turned all the way counterclockwise.

Push the green ON button, then turn the

spindle direction switch to FWD. Turn the spindle speed dial until the spindle speed display shows 150 RPM. The spindle should be rotating counterclockwise—down and toward you as you face the lathe.

G0602: Push the green ON button, then turn

the spindle direction switch to FWD. The spindle should be rotating counterclockwise— down and toward you as you face the lathe.

Set lathe spindle speed for 150 RPM, (refer

to Setting Spindle Speed on Page 42).

Disengage the half nut with the lever shown

6. in Figure 22.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

Push the emergency STOP button to turn the

lathe OFF, then, without resetting the STOP button, try to restart spindle rotation. The spindle should not start.

— If spindle rotation does start with the

emergency STOP button pressed in, the button is not operating correctly. This safety feature must operate properly before continuing operation. Use the spindle direction switch to stop the lathe, disconnect it from power, and call Tech Support for help.

Congratulations! The test run is complete. Turn the lathe OFF and perform the following Spindle Break-In procedure.

-23-

Spindle Break-In

Before subjecting the lathe to full loads, it is essential to complete the spindle break-in process. This will ensure the best results and maximum life of the precision components inside the lathe.

The break-in procedure must be performed in succession with the Test Run procedure because many of the test run steps prepare the lathe controls for the break-in process.

Recommended

Adjustments

For your convenience, the adjustments listed below have been performed at the factory. However, because of the many variables involved with shipping, we recommend that you at least verify the following adjustments to ensure the best possible results from your new machine. Step-bystep instructions for these adjustments can be found on the pages referenced below.

Important: Do not perform the break-in procedure independently from the Test Run section—serious damage could occur to the lathe if the controls are set differently than instructed in that section.

To perform the spindle break-in:

Operate the lathe at 150 RPM for 10 minutes.

2. G0602/G0602Z: Repeat Step 1 at each of

the following speeds 300, 560, 720, 1200, and 2400.

G0752/G0752Z: Repeat Step 1 at each of

the following approximate speeds: 800, 1300, and 2000.

When the spindle has come to a complete

stop, run the spindle in reverse at 2400 RPM (Model G0602/G0602Z) or 2000 RPM (Model G0752/G0752Z) for another 10 minutes, then press the emergency STOP button and DISCONNECT THE LATHE FROM POWER!

Factory adjustments that should be verified:

• Tailstock alignment (Page 33)

• Gib adjustments (Page 61)

• Backlash adjustment (Page 60)

4. Check, and if necessary, re-tension the drive belts (refer to V-Belt Tension & Replacement Page 64 on page for detailed instructions.)

While the oil is still warm and any metal par-

ticles are still suspended in the oil, change the gearbox oil (refer to Lubrication on Page 52 for detailed instructions).

Congratulations! The spindle break-in is complete. Continue with the following Recommended Adjustments subsection.

-24-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed

later in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual,

training from experienced machine operators, and do additional research outside of this manual by reading "how-to" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

Operation Overview

machine controls/components

are easier to understand.

seek additional

using machine.

To complete a typical operation, the operator does the following:

Puts on safety glasses, rolls up sleeves,

removes jewelry, and secures any clothing, jewelry, or hair that could get entangled in moving parts.

Examines the workpiece to make sure it is

suitable for turning, then securely mounts the workpiece in a chuck, between centers, or on the faceplate.

Mounts the tooling, aligns it with the workpiece,

then backs it away to establish a safe startup clearance.

Clears all setup tools from the lathe.

5. Checks for safe clearances by rotating the

workpiece by hand at least one full revolution.

. Sets the correct spindle speed for the opera-

tion.

To reduce risk of eye injury from flying chips always wear safety glasses or face shield when operating.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

Complete the Test Run & Break-In procedure on Pages 22– 24 before using this lathe for any cutting or threading operations; otherwise, gear box damage will occur.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

If using power feed, selects the proper feed

rate for the operation.

Starts spindle rotation, then engages the half

nut.

Uses various carriage controls to move the

tooling into the workpiece for operations.

. When finished cutting, disengages the half

nut (power feed only), moves the spindle direction switch to the OFF position, waits for the spindle to completely stop, then removes the workpiece.

-25-

Chuck & Faceplate

Way Slot

Jaw Slot

Plywood Chuck Cradle (Curved Cuts)

Solid Block Chuck Cradle

MEDIUM-SIZE, HEAVY CHUCKS

SMALL, LIGHTWEIGHT CHUCKS

Installation &

Mounting

This lathe is equipped with a threaded spindle nose. With this type of spindle, a chuck or faceplate is screwed directly onto the spindle nose.

Never use spindle speeds faster than the chuck RPM rating or the safe limits of your workpiece. Excessive spindle speeds greatly increase the risk of the workpiece or chuck being thrown from the machine with deadly force!

Loose hair, clothing, or jewelry could get caught in machinery and cause serious personal injury. Keep these items away from moving parts at all times to reduce this risk.

Removal Devices

Because chucks are heavy and often awkward to hold, some kind of support or protective device should be used during installation or removal. The weight and size of the chuck will determine the appropriate device to use (refer to the following figure for examples).

A dropped chuck can cause amputation, serious crushing injuries, or property damage. Always use a support or protective device to reduce this risk when installing or removing a chuck.

This lathe ships with the 3-jaw chuck installed. This is a scroll-type chuck where all three jaws move in unison when the chuck key is used.

The included 4-jaw chuck features independent jaws, which are used for square or unevenlyshaped stock, and to mount work that needs to be adjusted to near zero total indicated runout.

If neither chuck can hold your workpiece, the cast iron faceplate has slots for T-bolts that hold standard or custom clamping hardware. With the correct clamping hardware, a faceplate offers a wide range of uses, including machining nonconcentric workpieces, straight turning between centers, off-center turning, and boring.

Figure 23. Examples of common devices used

during chuck installation and removal.

-26-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Chuck Installation

To ensure accurate work, it is extremely important to make sure the spindle nose and chuck mating surfaces are clean. Even a small amount of lint or debris can affect accuracy.

The chuck is properly installed when it threads all the way onto the spindle nose (see Figure 24 below) and is seated against the spindle shoulder.

There are two chucks included with the Model G0602/G0602Z/G0752/G0752Z: a 3-jaw and 4-jaw. A chuck key has been included for each.

Spindle

Shoulder

5. Insert spanner wrench and tighten chuck with

chuck key until it is seated snug against the spindle shoulder as shown in Figure 25.

Chuck Key

Spanner Wrench

Threads

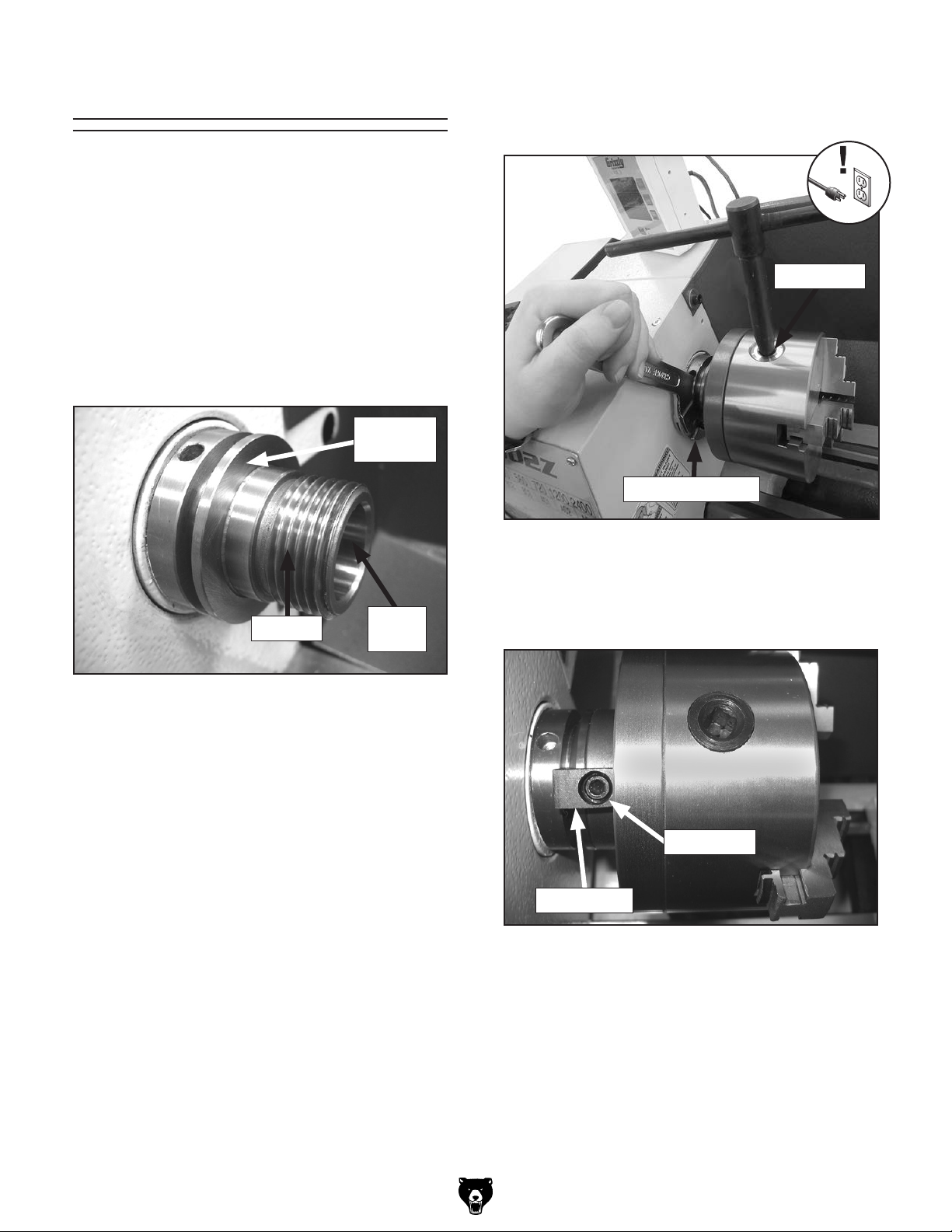

Figure 24. Spindle nose.

Tools Needed: Qty

Spanner Wrench................................................ 1

Chuck Key (3- or 4-Jaw) Hex Wrench 5mm

To install the chuck:

1. DISCONNECT LATHE FROM POWER!

Use an appropriate device to protect the ways

and support the chuck during the installation process (refer to Installation & Removal Devices on Page 26).

.................................... 1

.............................................. 1

Inside

Taper

Figure 25. Location to insert spanner wrench

and chuck key when installing chuck.

. Install the chuck locks with the cap screws

(see Figure 26).

Cap Screw

Chuck Lock

Figure 26. Chuck lock installed on spindle nose

and chuck.

Thoroughly clean, inspect, deburr, and lightly

oil all threads and mating surfaces.

4. Thread the chuck onto the spindle nose and

hand-tighten it.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-27-

Chuck Removal

Changing Jaw Set

Tools Needed: Qty

Spanner Wrench................................................ 1

Chuck Key (3- or 4-Jaw) Hex Wrench 5mm

To remove the chuck:

DISCONNECT LATHE FROM POWER!

2. Use an appropriate device to protect the ways and support the chuck (refer to Installation & Removal Devices on Page 26).

Remove the cap screws and chuck locks

(see Figure 27).

.............................................. 1

.................................... 1

Cap Screw

Tools Needed: Qty

Chuck Wrench ................................................... 1

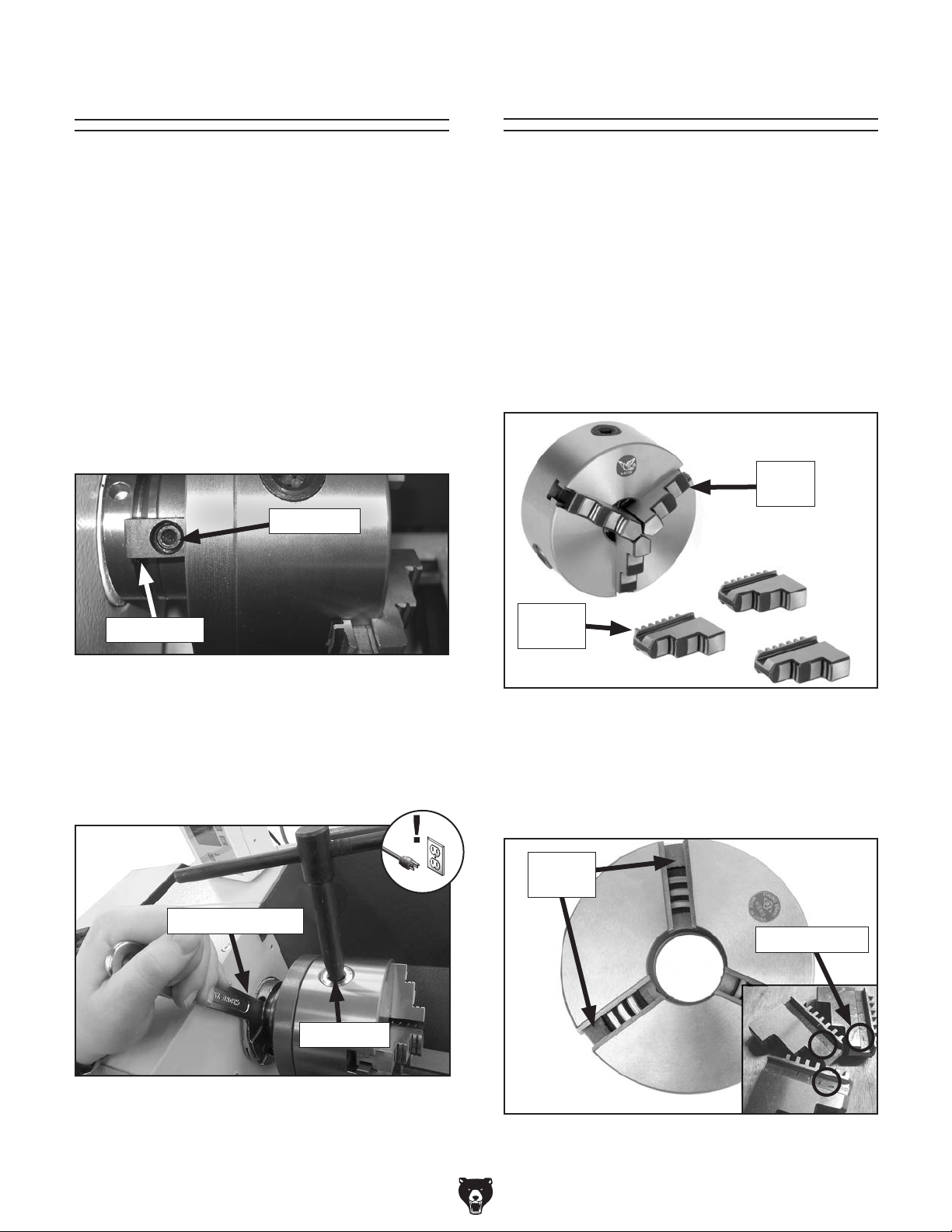

The 3-jaw scroll chuck included with the lathe features inside and outside hardened steel jaw sets (see Figure 29), which move in unison to center a concentric workpiece.

When installing the jaws, it is important to make sure they are installed correctly. Incorrect installation will result in jaws that do not converge evenly and are unable to securely clamp a workpiece.

Inside

Set

Chuck Lock

Figure 27. Location of chuck lock and cap

screws.

4. Insert chuck key and spanner wrench as shown in Figure 28, then while holding the spindle, unthread the chuck in a counterclockwise direction.

Spanner Wrench

Chuck Key

Outside

Set

Figure 29. Chuck and jaw selection.

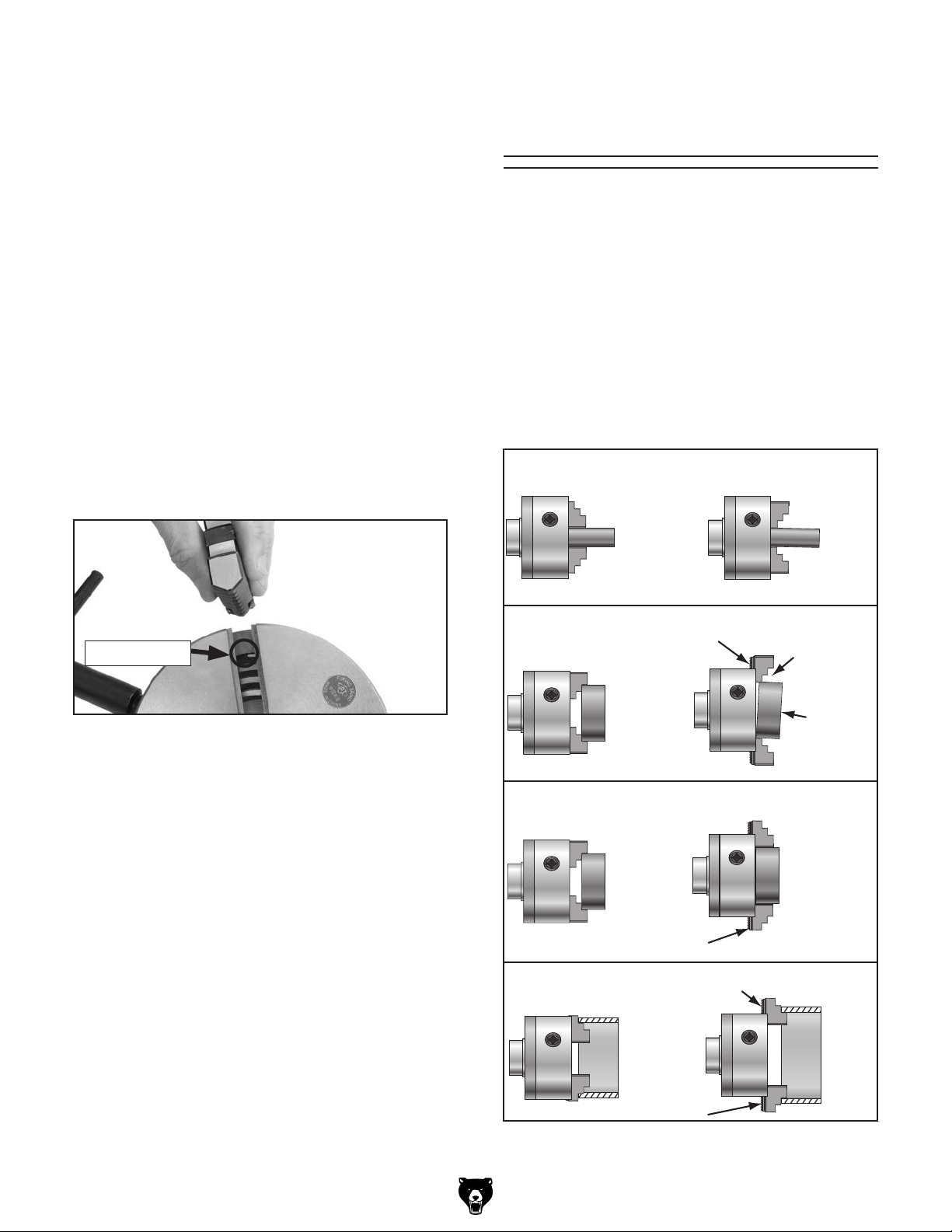

Jaws are numbered from 1–3 (see Figure 30). They are designed to be installed in numerical order in the jaw guides so they will hold a concentric workpiece evenly.

Jaw

Guides

Jaw Numbers

Figure 28. Location to insert spanner wrench

and chuck key when removing chuck.

5. Support the chuck, unscrew it, and remove.

-28-

Figure 30. Jaw guide and jaw numbers.

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

To change the jaw set:

The 3-jaw scroll-type chuck has an internal scroll-gear a cylindrical parts on-center with the axis of spindle rotation and can be workpiece is properly clamped and balanced.

Never mix jaw types or accommodate an odd-shaped workpiece.

chuck will spin out of balance an the workpiece chuck or a faceplate.

Workpiece

Engagement

Unstable

Workpiece

INCORRECT

DISCONNECT LATHE FROM POWER!

2. Place a piece of plywood over the bedways to

protect them from potential damage.

Scroll Chuck

Clamping

Insert the chuck key and turn it counterclock-

wise to back the jaws out and remove them.

4. Use mineral spirits to clean the debris and

grime from the jaws and chuck jaw guides.

Apply a thin coat of white lithium grease to

the surfaces of the removed jaw set. Store in a safe place free from moisture and abrasives.

Rotate the chuck key clockwise until you see

the tip of the scroll-gear lead thread just begin to enter a jaw guide (see Figure 31).

Lead Thread

that moves all jaws in unison when

djusted with the chuck key. The chuck will hold

rotated at high speeds if the

positions to

The

d may throw

! Instead, use an independent jaw

Safer Inside

Jaw Use

CORRECT

Safer Outside

Jaw Use

Bar Stock

Unsafe Jaw Position and Poor Scroll Gear Engagement

Insufficient Jaw Clamping

Unstable

Poor Grip

Figure 31. Lead thread on scroll gear.

7. Insert jaw #1 into the jaw guide and hold the

jaw against the scroll-gear.

Rotate the chuck key clockwise one turn to

engage the tip of the scroll-gear lead thread into the jaw. Pull the jaw; it should be locked into the jaw guide.

Install the remaining jaws in numerical order,

in the same manner.

— If installed correctly, the jaws will converge

evenly at the center of the chuck.

— If the jaws do not converge evenly, remove

them. Re-install the jaws sequentially 1–3, and make sure each one engages with the scroll-gear lead thread during its first rotation.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

Shallow

Bar Stock

CORRECT

Safer Outside

Jaw Use

Shallow

Bar Stock

Unsafe Jaw

CORRECT

Safer Inside

Jaw Use

Figure 32. Jaw selection and workpiece holding.

Position

Unsafe Jaw Position

Cylinder

Poor Scroll

Unsafe Inside

Jaw Use

Poor Scroll Gear

INCORRECT

-29-

4-Jaw Chuck

Refer to the Chuck Installation (see Page 27) and Chuck Removal (see Page 28) instructions to install or remove the 4-jaw chuck.

5. Tighten each jaw in small increments. After

you have adjusted the first jaw, continue tightening the remaining jaws in an opposing sequence, as shown by the sequential order in Figure 33.

The 4-jaw chuck features independently adjustable hardened steel jaws for holding non-concentric or off-center workpieces. Each jaw can be independently removed from the chuck body and reversed for a wide range of work holding versatility.

Because of the dynamic forces involved in machining a non-concentric or offcenter workpiece, always use a low spindle speed to reduce risk of the workpiece coming loose and being thrown from the lathe, which could cause death or serious personal injury.

Tools Needed: Qty

4-Jaw Chuck Key .............................................. 1

Dial Indicator

To mount the workpiece:

..................................................... 1

Workpiece

Center Point

Figure 33. 4-jaw tightening sequence.

After the workpiece is held in place by the

jaws, use a dial indicator to make sure the workpiece is centered in the chuck.

— If the workpiece is not correctly centered,

make fine adjustments by slightly loosening one jaw and tightening the opposing jaw until the workpiece is correctly positioned (see Figure 34 for an example).

DISCONNECT LATHE FROM POWER!

2. Place a chuck cradle or plywood on the

bedway below the chuck to protect the bedway surfaces.

3. Use the chuck key to open each jaw so the

workpiece will lay flat against the chuck face, jaw steps, or into the spindle opening.

With help from another person or a holding

device, position the workpiece so it is centered in the chuck.

Figure 34. Generic picture of non-cylindrical

workpiece correctly mounted on the 4-jaw chuck.

-30-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Faceplate

Refer to the Chuck Installation (see Page 27) and Chuck Removal (see Page 28) instructions to install or remove the faceplate.

The faceplate included with your lathe can be used for a wide range of operations, including machining non-concentric workpieces, straight turning between centers, off-center turning, and boring.

The tools needed for mounting a workpiece will vary depending on the type of setup you have.

Machining non-concentric workpieces at a high speed could cause the workpiece to be thrown from the spindle with deadly force at the operator or bystanders. To reduce this risk, only machine non-concentric workpieces at low speeds and clamp counter-weights to the faceplate to balance it.

To mount a non-concentric workpiece to the faceplate:

DISCONNECT LATHE FROM POWER!

2. Protect the bedway with a piece of plywood.

3. With help from another person or a holding

device to support the workpiece, position it onto the faceplate and clamp it in place with a minimum of three independent clamping devices (see Figure 35 for an example).

Be sure to take into account the rotational

and cutting forces that will be applied to the workpiece when clamping it to the faceplate. If necessary, use counter-weights to balance the assembly and use a dial indicator to make sure that the workpiece is properly positioned for your operation.

Non-Cylindrical

Workpiece

Failure to properly secure a workpiece to the faceplate could cause the workpiece to be thrown from the lathe with deadly force at the operator or bystanders. Use a minimum of THREE independent clamping devices to hold the workpiece onto the faceplate.

Clamp

Faceplate

Figure 35. Generic picture of workpiece clamped

in a faceplate.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-31-

Tailstock

The tailstock (see Figure 36) is typically used to support long workpieces by means of a live or dead center (refer to Centers on Page 36). It can also be used to hold a drill or chuck to bore holes in the center of a part. Custom arbors and tapers can also be cut on your lathe by using the offset tailstock adjustment.

Quill Lock

Lever

Tailstock Lock Nut

Quill Handwheel

Installing Tooling

This tailstock uses a quill with an MT# 3 taper that accepts a variety of tapered arbors and tooling, including tang arbors and drill bits (see Figures 37–38 for examples).

Screw

Solid

Open

Solid

End

Figure 37. Types of tapered arbors and tooling.

End

Tang

End

Tang

Figure 36. Tailstock and quill lock handles in

locked position.

Graduated Dial

Increments One Full Revolution

Increments on Quill

..............................0"-2 1⁄2 " in 1⁄8" Increments

Inch Metric

................................................. 0.001"

................................... 0.060"

..................... 0–65mm in 1mm Increments

Positioning Tailstock

1. Loosen the tailstock lock nut to unlock the

tailstock from the bedway.

Slide the tailstock to the desired position.

3. Tighten the tailstock lock nut to lock the

tailstock against the bedway.

Using Quill

1. Loosen the quill lock lever.

Turn the quill handwheel clockwise to move

the quill toward the spindle or counterclockwise to move it away from it.

Figure 38. Example photos of inserting MT#3

tools with tangs into a typical tailstock.

Note: If the tooling has an open hole in the end, then a screw can be threaded into the end of the tool to provide a solid surface for the quill pin to push against when the quill is retracted for tool removal. Otherwise, removal of such tooling may be difficult.

Tighten the quill lock lever.

-32-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

To install tooling in the tailstock:

To offset the tailstock:

With the tailstock locked in place, unlock the

quill, then use the handwheel to extend it approximately 1".

2. Thoroughly clean and dry the tapered mating

surfaces of the quill and the center, making sure that no lint or oil remains on the tapers.

With a firm and quick motion, insert the tool

into the quill, as shown in Figure 38 on Page

32. Check to see if it is firmly seated by attempting to twist it—a firmly seated tool will not twist.

Unlock the tailstock and move it until the tip

of the tool is close to, but not touching, the workpiece, then re-lock the tailstock.

Start spindle rotation, unlock the quill lock

lever, then turn the quill handwheel clockwise to feed the tool into the workpiece.

Removing Tooling

1. Use a shop rag to hold the tool.

Loosen the tailstock lock nut (see Figure 39).

Tailstock

Adjustment

Set Screw

(1 of 2)

Figure 39. Left offset adjustment.

Rotate the adjustment set screws in opposite

directions for the desired offset (see the illustration in Figure 40).

Lock Nut

Offset

Indicator

2. Rotate the quill handwheel counterclockwise

until the tool is forced out of the quill.

Offsetting Tailstock

The tailstock can be offset from the spindle centerline for turning tapers. Move the tailstock top casting toward the front of the lathe to machine a taper at the tailstock end. Conversely, position the tailstock top casting toward the back of the lathe to machine a taper at the spindle end.

Note: The marks on the offset indicator are arbitrary. For a precise offset, use a dial indicator to check quill movement while adjusting the screws.

Tools Needed Qty

Hex Wrench 4mm .............................................. 1

Open-End Wrench 19mm

.................................. 1

Turn CCW

Figure 40. Set screw adjustment in relation to

Retighten the tailstock lock nut to secure the

offset.

Turn CW

tailstock movement.

Turn CW

Turn CCW

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-33-

Aligning Tailstock to Spindle Centerline

This is an essential adjustment that should be verified or performed each time the tailstock is used to turn concentric workpieces between centers or immediately after offsetting the tailstock when turning a taper. If the tailstock is not aligned with the spindle centerline when it is supposed to be, turning results will be inaccurate along the length of the workpiece.

Note: As long as this dead center remains in

the chuck, the point of the center will remain true to the spindle centerline. The point will have to be refinished whenever the center is removed and then returned to the chuck.

4. Install a center in the tailstock.

Attach a lathe dog to the test stock from Step

5. 2, then mount it between the centers (see Figure 42 for an example).

Items Needed

Hex Wrench 4mm Open-End Wrench 19mm Round Stock 2" x 6" Precision Level Precision Calipers Dial Indicator

To align the tailstock to the spindle centerline:

Use the precision level to make sure the

bedway is level from side-to-side and from front-to-back.

— If the bedway is not level, correct this con-

dition before continuing (refer to Leveling & Mounting on Page 21).

Center drill both ends of one piece of round

stock, then set it aside for use in Step 5.

Use the other piece of round stock to make

a dead center, and turn it to a 60° point, as illustrated in Figure 41.

Qty

.............................................. 1

.................................. 1

.......................................... 2

.................................................. 1

............................................. 1

..................................................... 1

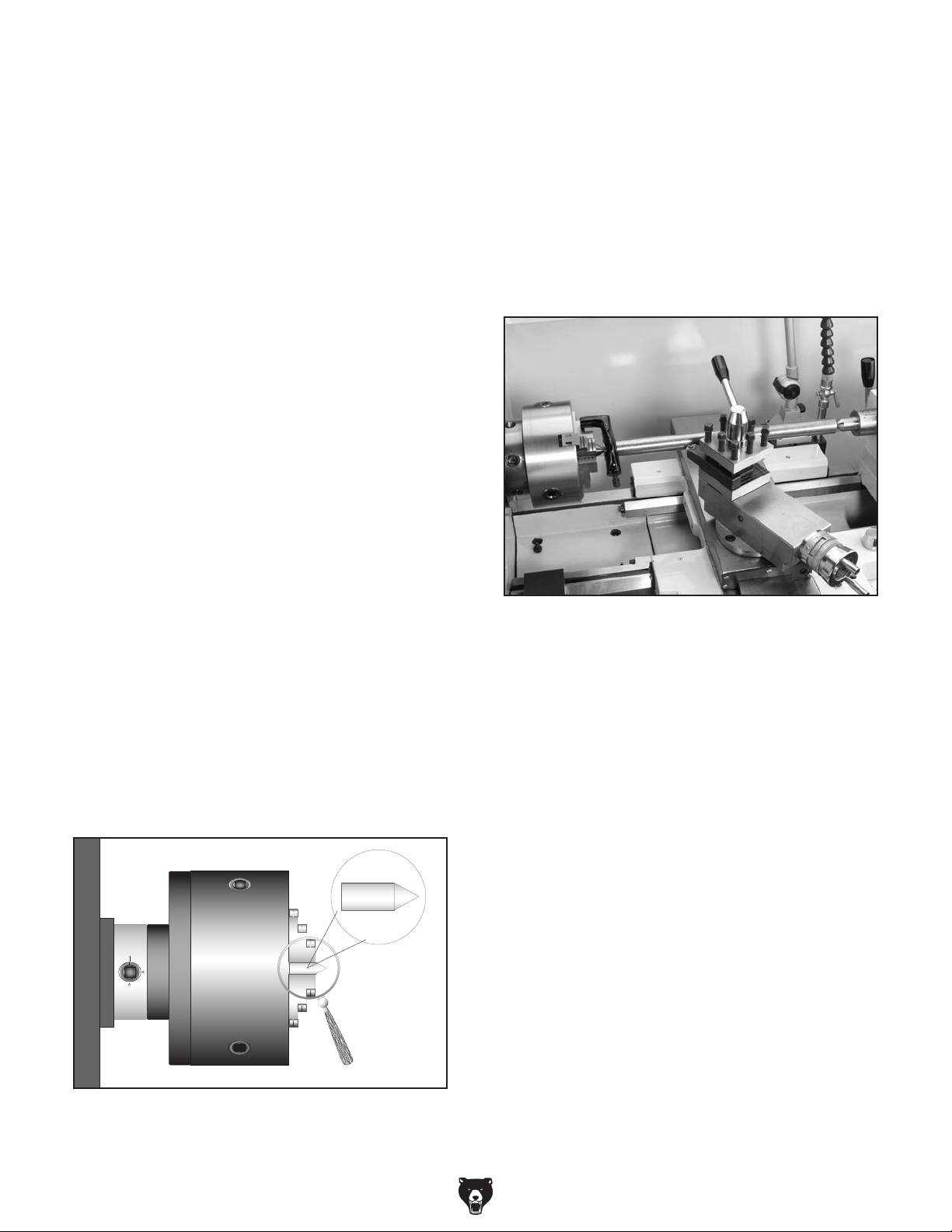

Figure 42. Example photo of stock mounted

between the centers.

Turn 0.010" off the stock diameter.

7. Mount a test or dial indicator so that the plunger is on the tailstock quill.

Note: If necessary in the following step,

refer to Offsetting Tailstock on Page 33 for detailed instructions.

-34-

Figure 41. Turning a dead center.

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

8. Use calipers to measure both ends of the

workpiece.

— If the test stock is thicker at the tailstock

end, move the tailstock toward the front of

the lathe

⁄2 the distance of the amount of

taper (see Figure 43).

Move the tailstock toward

the front of the machine half

the distance of the taper

Looking down from above

Figure 43. Adjust tailstock toward the operator.

— If the test stock is thinner at the tailstock

end, move the tailstock toward the back of

the lathe

⁄2 the distance of the amount of

taper (see Figure 44).

Looking down from above

Move tailstock toward the

back of the machine half

the distance of the taper

Figure 44. Adjust tailstock away from the

operator.

Repeat Steps 6–8 until the desired accuracy

is achieved.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-35-

Centers

Figure 45 shows one of the two included MT#3

dead centers and the MT#4 dead center.

MT#4 Dead

Center

MT#3 Dead

Center

Figure 45. Dead centers.

Live Centers

A live center (not included) has bearings that allow the center tip and the workpiece to rotate together; it can be installed in the tailstock quill for higher speeds.

Mounting Dead Center in Spindle

1. DISCONNECT LATHE FROM POWER!

2. Thoroughly clean and dry all threads and

mating surfaces of the spindle bore and the center, making sure that no lint or oil remains on these surfaces.

Note: This will prevent the tapered surfaces

from seizing due to operational pressures, which could make it very difficult to remove the center.

Mount a chuck or faceplate onto the spindle,

whichever is correct for your operation.

The spindle taper is an MT#4 and will only receive the MT#4 dead center. The tailstock quill taper is an MT#3 and will only receive the MT#3 dead centers.

Dead Centers

A dead center is a one-piece center that does not rotate with the workpiece and is used to support long, slender workpieces in the tailstock.

A carbide-tipped dead center (not included) can better withstand the effects of friction than a typical dead center and is best used in the tailstock where the workpiece will rotate against it. The tip of a dead center must be generously lubricated during the operation to avoid premature wear and maximize smooth operation. Using low spindle speeds will also reduce the heat and wear from friction.

Use the dead center in the spindle for operations where the workpiece rotates with the center and does not generate friction.

Insert the center into the spindle bore through

the chuck or faceplate.

Figure 46 shows an example photo of a dead

center installed in the spindle, using a lathe dog and faceplate for turning between centers.

Dead Center

Lathe

Dog

Figure 46. Example photo of using a dead

center with a faceplate and lathe dog.

-36-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Removing Center from Spindle

To remove the center from the spindle, insert a piece of round bar stock or similar tool through the outboard end (on the left side of the headstock). Have another person hold onto the center with a gloved hand or shop rag, then tap the center loose.

Mounting Center in Tailstock

The included dead center or a live center can be used in the tailstock. Mounting instructions are the same for both. Figure 47 shows an example photo of a dead center mounted in a tailstock.

Dead Center

3. Use the quill handwheel to feed the quill out of the casting approximately 1" (see Figure

1).

Note: The maximum quill travel is 21⁄2", but

we do not recommend extending the quill more than 2" or stability and accuracy will be reduced.

Figure 47. Example photo of using a dead

center installed in the tailstock.

To avoid premature wear of the dead center or damage to the workpiece, use low spindle speeds and keep the tip of the dead center mounted in the tailstock well lubricated.

To mount a center in the tailstock:

DISCONNECT LATHE FROM POWER!

2. Thoroughly clean and dry the tapered mating

surfaces of the tailstock quill bore and the center, making sure that no lint or oil remains on the tapers.

Figure 1. Dead center inserted into tailstock.

Insert the center into the tailstock quill.

5. Seat the center firmly into the quill during workpiece installation by rotating the quill handwheel clockwise to apply pressure, with the center engaged in the center hole in the workpiece.

Note: Only apply enough pressure with the

tailstock quill to securely mount the workpiece between centers. Avoid overtightening the center against the workpiece, or it may become difficult to remove later, and it will result in excessive friction and heat, which may damage the workpiece and center.

Secure the quill lock lever and tailstock lock

nut.

Removing Center from Tailstock

To remove the center from the quill, hold onto it with a gloved hand or shop rag, then rotate the quill handwheel counterclockwise to draw the quill back into the casting until the center releases.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-37-

Mounting Workpiece Between Centers

1. DISCONNECT LATHE FROM POWER!

2. Drill center holes in both ends of the workpiece.

3. Install a dead center in the spindle with a

lathe dog and a chuck or faceplate, then install a live center or carbide-tipped dead center in the tailstock.

Lubricate the workpiece center holes, then

mount the workpiece between the centers and hold it in place with light pressure from the tailstock center.

Seat the center firmly into the quill by rotating

the quill handwheel clockwise to apply pressure against the workpiece (see the example in Figure 48).

Steady Rest

The steady rest supports long shafts and can be mounted anywhere along the length of the bedway.

Familiarize yourself with the steady rest components shown in Figure 49 to better understand its operation.

Finger

Adjustment

Finger

Lock Nut

Knob

Finger

Note: Only apply enough pressure to secure-

ly mount the workpiece between centers. Avoid over-tightening the center against the workpiece, or it may become difficult to remove later. Also, over-tightening will result in excessive friction and heat, which may damage the workpiece or center.

Figure 48. Example photo of a workpiece

mounted between the centers.

Lock

Nut

Figure 49. Steady rest components.

To install and use the steady rest:

DISCONNECT LATHE FROM POWER!

2. Thoroughly clean all mating surfaces, then

place the steady rest base on the bedways so the triangular notch fits over the bedway prism.

Loosen the finger lock nuts shown in

3. Figure 49, turn the finger adjustment knobs,

and adjust the fingers as required for the workpiece.

Loosen the steady rest lock nut, position the

steady rest where required to properly support the workpiece, then secure the lock nut.

Secure the quill lock lever and tailstock lock

nut.

-38-

Turn the finger adjustment knobs so the fin-

gers are barely touching the workpiece, then tighten the finger lock nuts.

Lubricate the finger tips with an anti-seize

lubricant during operation.

Note: Mill or file the tips if they show wear.

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Follow Rest

Compound Rest

The follow rest mounts to the saddle with two cap screws (see Figure 50). It is used on long, slender parts to prevent workpiece deflection from cutting tool pressure during operation. Adjust the follow rest fingers in the same manner as the those on the steady rest.

Note: To reduce the effects of friction, lubricate the finger tips with generous anti-sieze lubricant during operation.

Cap

Screws

Figure 50. Follow rest attachment.

The compound rest handwheel has an indirectread graduated scale. This means the distance shown on the scale represents the actual distance the tool moves. The base of the compound rest has another graduated scale used for setting the cutting tool to a specific angle.

Graduated Dial

Increments One Full Revolution

Tool Needed Qty

Open-End Wrench 14mm .................................. 1

To set the compound rest at a certain angle:

Loosen the two hex nuts at the base of the

compound rest (1 of 2 shown in Figure 52).

Hex Nut

(1 of 2)

............................... 0.001" (0.025mm)

..................... 0.04" (1.02mm)

Compound

Rest

Angle Scale

Carriage & Slide

Locks

The carriage and cross slide have locks that can be tightened to provide additional rigidity during operation, especially during heavy cuts.

See Figure 51 to identify the locations of the locks for each device.

Carriage

Lock

Cross Slide

Lock

Figure 52. Compound rest.

2. Rotate the rest to the desired angle, as

indicated by the scale at the base, then retighten the two hex nuts.

Tip: The first time you set the angle of the

compound rest for cutting threads, mark the location on the cross slide as a quick reference point. This will allow you to quickly return the compound rest to that exact angle the next time you need to cut threads.

Figure 51. Carriage and cross slide locks.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-39-

Four-Way Tool Post

The four-way tool post is mounted on top of the compound rest and allows a maximum of four tools to be loaded simultaneously.

Each tool can be quickly indexed to the workpiece by loosening the top handle, rotating the tool post to the desired position, then re-tightening the handle to lock the tool into position.

Installing Tool

Tool Needed Qty

Hex Wrench 6mm .............................................. 1

To install a tool in the tool post:

Adjust the tool post screws so that the cutting

tool can fit underneath them (see Figure 53).

⁄2"

Aligning Cutting Tool with Spindle Centerline

For most operations, the cutting tool tip should be aligned with the spindle centerline, as illustrated in Figure 54.

Cutting

Tool

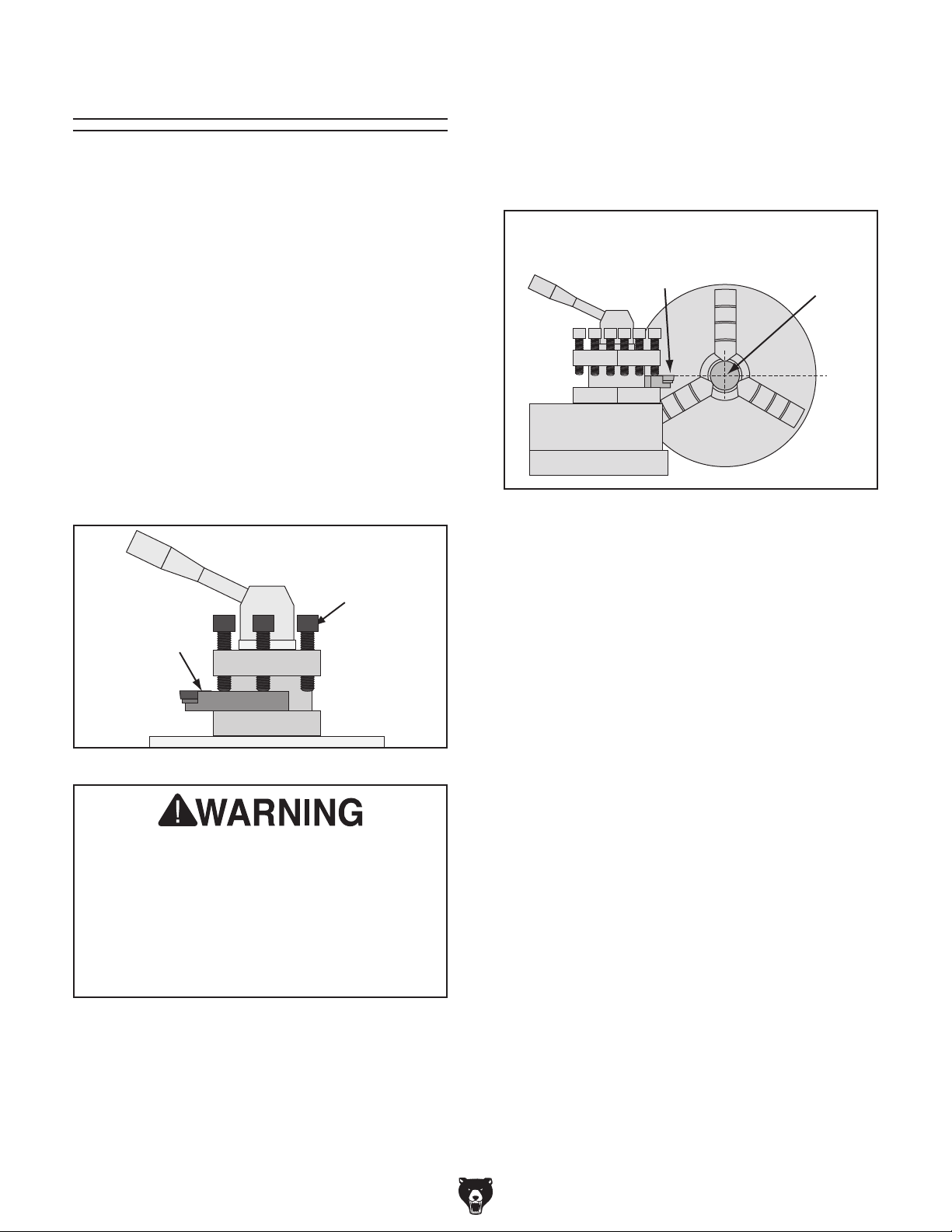

Figure 54. Cutting tool aligned with spindle

centerline (viewed from tailstock).

Spindle

Center

Line

Tool Post

Screw

Cutting

Tool

Figure 53. Example of tool mounted in tool post.

Over-extending a cutting tool from the post will increase the risk of tool chatter, breakage, or tool loosening during operation, which could cause metal pieces to be thrown at the operator or bystanders with great force. DO NOT extend a cutting tool more than 2.5 times the width of its cross-section (e.g., 2.5 x 0.5" = 1.25").

There are a number of ways to check and align the cutting tool to the spindle centerline. If necessary, you can raise the cutting tool by placing steel shims underneath it. The shims should be as long and as wide as the cutting tool to properly support it.

Below are two common methods:

• Move the tailstock center over the cross slide and use a dial indicator to measure the distance from the surface of the cross slide to the tip of the center. Adjust the cutting tool height so it is the same distance above the cross slide as the tailstock center.

Align the tip of the cutting tool with a tailstock

• center, as instructed in the following procedure. For this to work, the tailstock must be aligned to the spindle centerline (refer to Aligning Tailstock To Spindle Centerline on Page 34 for detailed instructions).

2. Firmly secure the cutting tool with at least two

tool post screws.

Check and adjust the cutting tool to the

spindle centerline, as instructed in the next subsection.

-40-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Tools Needed Qty

Hex Wrench 6mm .............................................. 1

Steel Shims Cutting Tool Tailstock Center

To align the cutting tool with the tailstock center:

Mount the cutting tool in the tool post, then

secure the post so the tool faces the tailstock.

Install a center in the tailstock, and position

the center tip near the cutting tool tip.

Lock the tailstock and quill in place.

4. Adjust the height of the cutting tool so that the

tool tip is aligned vertically and horizontally with the center tip, as shown in Figure 55.

....................................... As Needed

....................................................... 1

................................................. 1

(Top View)

Manual Feed

The handwheels shown in Figure 56 allow the operator to manually move the cutting tool.

Compound Rest

Handwheel

Carriage

Handwheel

Cross Slide Handwheel

Figure 56. Manual handwheel controls.

Carriage Handwheel

Use the carriage handwheel to move the carriage left or right along the bed. This control is helpful when setting up the machine for turning or when manual movement is desired during turning operations.

Tailstock

Center

Cutting

Tool

Cutting

Tool

Figure 55. Cutting tool aligned to the tailstock

center.

Tailstock

Center

(Side View)

Cross Slide Handwheel

Graduated Dial

Increments One Full Revolution

Use this handwheel to move the tool toward and away from the work. Adjust the position of the graduated scale by holding the handwheel with one hand and turning the dial with the other. The cross slide handwheel has an indirect-read graduated dial. This means the distance shown on the scale represents the actual distance the tool moves.

............................... 0.001" (0.025mm)

..................... 0.06" (1.52mm)

Compound Rest Handwheel

Graduated Dial

Increments One Full Revolution

Use this handwheel to move the cutting tool linearly along the set angle of the compound rest. Set the compound rest angle by hand-rotating it and securing in place with two hex nuts. The compound rest has an indirect-read graduated dial.

.............................. 0.001" (0.025mm)

..................... 0.04" (1.02mm)

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-41-

Spindle Speed

Using the correct spindle speed is important for safe and satisfactory results, as well as maximizing tool life.

Setting Spindle Speed

Selecting one of the available six spindle speeds (Model G0602/G0602Z) or one of the three spindle speed ranges (Model G0752/G0752Z) is performed by repositioning the V-belt(s) between the pulleys.

To set the spindle speed for your operation, you will need to: 1) Determine the best spindle speed for the cutting task, and 2) configure the lathe controls to produce the required spindle speed.

Determining Spindle Speed

Many variables affect the optimum spindle speed to use for any given operation, but the two most important are the recommended cutting speed for the workpiece material and the diameter of the workpiece, as noted in the formula shown in Figure 57.

*Recommended

Cutting Speed (FPM) x 12

Dia. of Cut (in inches) x 3.14

Spindle

Speed

(RPM)

*Double if using carbide cutting tool

Figure 57. Spindle speed formula for lathes.

Tools Needed Qty

Hex Wrench 5mm .............................................. 1

Hex Wrench 8mm Open-End Wrench 17mm

Use a minimum of three independent clamping devices when turning eccentric workpieces on the faceplate. Failure to provide adequate clamping will cause workpiece to eject.

.............................................. 1

.................................. 1

Use a low RPM when machining heavy eccentric workpieces; securely clamp your workpiece and remove the chuck key! Objects thrown from a lathe can cause serious injury or death to the operator or bystanders.

Cutting speed, typically defined in feet per minute (FPM), is the speed at which the edge of a tool moves across the material surface.

A recommended cutting speed is an ideal speed for cutting a type of material in order to produce the desired finish and optimize tool life.

The books Machinery’s Handbook or Machine Shop Practice, and some internet sites, provide excellent recommendations for which cutting speeds to use when calculating the spindle speed. These sources also provide a wealth of additional information about the variables that affect cutting speed and they are a good educational resource.

Also, there are a large number of easy-to-use spindle speed calculators that can be found on the internet. These sources will help you take into account the applicable variables in order to determine the best spindle speed for the operation.

G0602/G0602Z Configuration Examples

The 271⁄2 " belt is used on pulleys B and C (see Figure 58) with the tensioner for 50, 300, and 560 RPM.

Tensioner

Used

Figure 58. Positioning belt for low speed.

-42-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

The 33" belt is used on pulleys A and C (see Figure 59) without the tensioner for 720, 1200, and 2400 RPM.

Tensioner

Not Used

Figure 59. Positioning belt for high speed.

Follow along with the examples below for setting the Model G0602 spindle speed to gain a better understanding of this task.

To set the spindle speed to 150 RPM:

1. DISCONNECT LATHE FROM POWER!

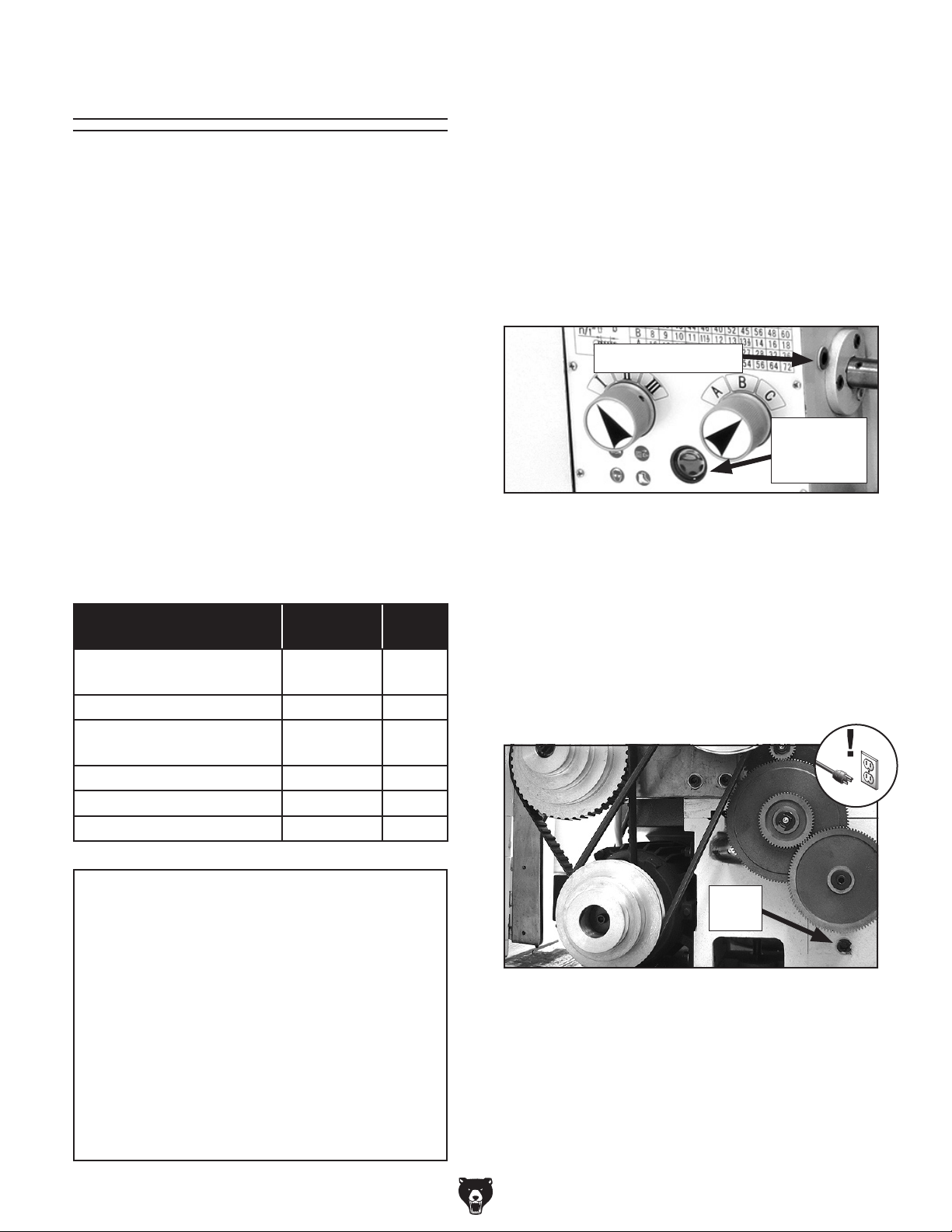

Refer to the RPM chart in Figure 60 to deter-

mine the pulley combination you need to achieve a spindle speed of 150 RPM—it is BC1.

RPM Chart

3. Open the change gear cover, then loosen the tensioner lock nut located on the other side of the gear cover plate and the headstock.

Locking Nut

Figure 61. Location of tensioner lock nut.

Move the tensioner to install the 271⁄2 " belt

between pulleys B and C, and in sheave 1, as shown in Figure 58 on Page 42.

5. Re-tension the belt (refer to "Tensioning V-Belt" on Page 63), then close the change gear cover and secure it. The lathe is now set for a spindle speed of 150 RPM.

G0752/G0752Z Configuration Example

The V-belt is positioned on the spindle and motor pulleys with the tensioner (see Figure 62) to select between low (100-800 RPM), medium (160-1300 RPM), and high (250–2000 RPM) speed ranges.

RPM

Pulley

Combination

Figure 60. G0602 RPM chart.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

Tensioner

Bolt

Figure 62. Positioning belt for low speed.

Motor

Pulley

Spindle

Pulley

L M H

-43-

Follow along with this example for setting the spindle speed for the Model G0752 to gain a better understanding of this task.

Power Feed

To set the spindle speed to 150 RPM:

1. DISCONNECT LATHE FROM POWER!

2. Open the change gear cover, use an 8mm

hex wrench to loosen the tensioner bolt, then move the tensioner out of the way.

3. Move the V-belt to the outer pulley sheaves to

select the low speed range (100-800 RPM), as shown in Figure 62.

Re-tension the belt (refer to "Tensioning

V-Belt" on Page 63) and secure the tensioner.

5. Turn the spindle direction switch to FWD, and

press the ON button.

Adjust the spindle speed dial until the spindle

speed display reads 150 RPM.

The carriage has power feed capability when it is engaged with the lead screw. The rate that the carriage moves (feed rate) is controlled by V-belt, change gear, and gearbox dial configurations.

Feed rate and spindle speed must be considered together when determining the proper cutting speed for a given workpiece. The sources you use to determine the optimum spindle speed for an operation will also provide the optimal feed rate to use with that spindle speed.

Often, the experienced machinist will use the feeds and speeds given in their reference charts or web calculators as a starting point, then make minor adjustments to the feed rate (and sometimes spindle speed) to achieve the best results.

The carriage can alternately be driven by the leadscrew for threading operations. However, this section only covers using the power feed option for the carriage for non-threading operations. To learn how to power the carriage for threading operations, refer to Threading on Page 46.

Tools Needed Qty

Hex Wrench 5mm .............................................. 1

Hex Wrench 6mm

.............................................. 1

-44-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

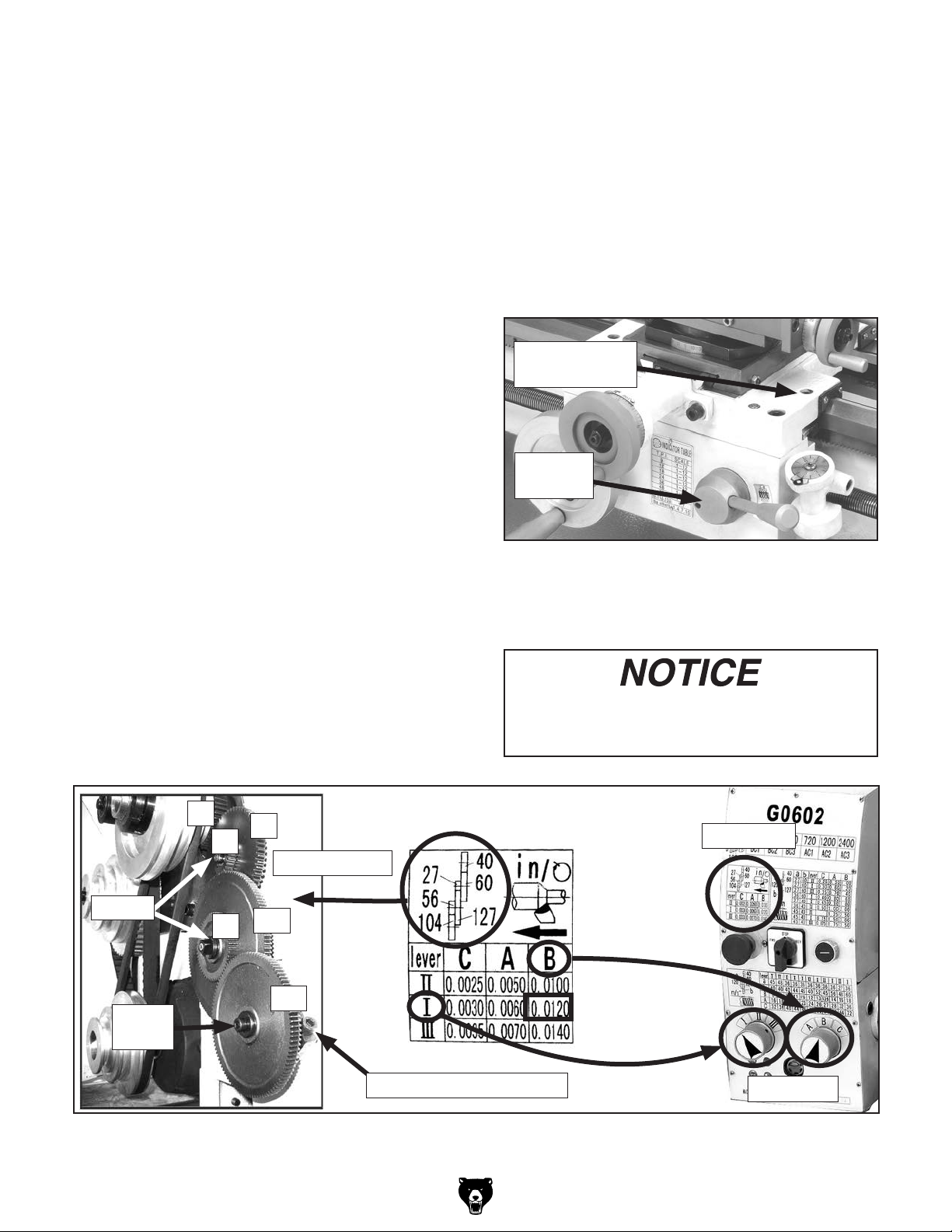

Setting Power Feed Rate

The feed rate chart on the headstock displays the settings for the feed controls for inch feed rates.

Using the controls on the lathe, follow along with the example below to better understand how to set the lathe for the desired power feed rate.

Setting Power Feed Rate of 0.0120 in/rev

DISCONNECT LATHE FROM POWER!

2. Turn the feed dials to the numeral and letter

indicated by the chart in Figure 64.

Note: You may have to rock the chuck by

hand to get the gearbox gears to mesh.

Gather the required change gears, based

upon the chart in Figure 64.

Remove the cap screw that secures the

change gear cover, open the cover, then loosen the lash adjuster cap screw (see Figure 64) and swing the change gear assembly out of the way.

Remove the E-clips and cap screw from the

change gears.

Note: All change gears are stamped with the

number of teeth they have.

7. Move the lash adjuster so the gear backlash is between 0.003" to 0.008", tighten the lash adjuster cap screw, then close and secure the change gear cover.

Loosen the carriage lock (see Figure 63),

and push down on the half nut lever to engage the power feed.

Carriage Lock

Cap Screw

Half Nut

Lever

Figure 63. Carriage lock and feed control.

The lathe is now set up for a power feed rate of

0.0120 in/rev.

Lubricate the change gears (refer to Page 55

for detailed instructions) and swap them out in the order shown on the chart in Figure 64, then re-install the E-clips and cap screw.

E-Clips

Cap

Screw

Change Gears

127

104

Lash Adjuster Cap Screw

Figure 64. Power feed setup.

To avoid potential carriage/chuck crash, disengage the half-nut lever immediately after completing power feeding operations.

Feed Chart

= 0.012" Feed

Feed Dials

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-45-

Threading

4. Open the change gear cover, loosen the lash

adjuster (Figure 64 on Page 45) and swing the change gear assembly out of the way.

The following subsections describe how to use the threading controls and charts to set up the lathe for a threading operation. If you are unfamiliar with the process of cutting threads on a lathe, we strongly recommend that you read books, review industry trade magazines, or get formal training before attempting any threading projects.

Headstock Threading Controls

The threading charts on the headstock face display the settings for metric and inch threading.

Using the controls on the lathe, complete the following examples to better understand how to set up the lathe for the desired threading operation.

To set the lathe to cut 64 TPI threads:

1. DISCONNECT LATHE FROM POWER!

Turn the feed dials to the numeral and letter

indicated by the chart in Figure 65.

Remove the E-clips and cap screw from the

change gears.

Lubricate the change gears (refer to Page 55

for detailed instructions) and swap them out in the order shown on the chart in Figure 65, then secure the change gears with the E-clips and cap screw.

Note: All change gears are stamped with the

number of teeth they have.

Move the lash adjuster so the gear backlash

is between 0.003" to 0.008", tighten the lash adjuster cap screw, and close the cover.

Loosen the carriage lock (see Figure 63 on

Page 45).

The lathe is now set up to cut 64 TPI threads.

Note: You may have to rock the chuck by

hand to mesh the gearbox gears.

Gather the required change gears based

upon the chart.

E-Clips

Cap

Screw

Lash Adjuster

Figure 65. Threading setup for 64 TPI.

When threading keep your hand on the halfnut lever ready to disengage the half nut to avoid potential carriage/chuck crash.

Inch

Thread

Chart

= 64 TPI

-46-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

To set the lathe to cut 0.45 TPmm threads:

The steps for setting up the lathe for threading metric threads are the same as those for inch threads. Follow the instructions on Page 46 for setting the thread pitch to 64 TPI, and refer to the chart below.

Metric Thread Chart

= 0.45 TPmm

Figure 66. Metric threading setup.

Apron Threading Controls

The half nut lever engages the carriage with the leadscrew, which moves the carriage and cutting tool along the length of the workpiece for threading and power feed operations (see Figure 67).

The numbers on the thread dial are used with the thread dial chart to show when to engage the half nut during inch threading. The thread dial numbers are not used when cutting metric threads, since this lathe has an inch leadscrew.

Half Nut

Lever

Figure 67. Half nut lever and thread dial.

Thread Dial

Thread Dial Chart

Find the TPI (threads per inch) that you want to cut in the left column of the thread dial chart (see Figure 68), then reference the dial number to the right of it. The dial numbers indicate when to engage the half nut for a specific thread pitch. The thread dial chart can also be found on the carriage beside the half nut lever.

Indicator Table

TPI SCALE

12 18 24 36

48 72

9½,11½, ,13½

Other TPI

1-12 1-12 1-12 1-12

1-12 1-12 1-12

1.7

1.4.7.10

When threading, we recommend using the slowest speed possible and avoiding deep cuts, so you are able to disengage the half nut when required and prevent an apron crash!

Model G0602/Z, G0752Z (Mfd. Since 05/24)

Figure 68. Thread dial chart.

Note: Since this lathe has an inch leadscrew,

do not use the thread dial when cutting metric threads. Instead you must leave the half nut engaged from the beginning until the threading operation is complete.

-47-

The following examples explain how to use the

ANY

POSITION

9, 12, 18, 24, 36, 48, 72

TPI

91/2 ,111/2 ,131/

POSITION

1,7

TPI

ANY

POSITION

9, 12, 18, 24, 36, 48, 72

TPI

thread dial chart.

9, 12, 18, 24, 36, 48, 72 TPI

For these threading TPI's, use any of the lines on the thread dial (see Figure 69).

All Other TPI

For all other TPI's, use numbered lines 1 or 7 or non-numbered lines 4 or 10 on the thread dial (see Figure 71).

TPI

9, 12, 18, 24, 36, 48, 72

POSITION

ANY

Figure 69. 9, 12, 18, 24, 36, 48, 72 TPIs.

⁄2, 111⁄2 ,131⁄2 Fractional TPI

For threading these TPIs, use the numbered lines 1 or 7 on the thread dial (see Figure 70).

TPI

91/2 ,111/2 ,131/

POSITION

1,7

Figure 70. 91⁄2, 111⁄2 131⁄2 TPIs.

TPI

All Other TPI

Figure 71. All other TPIs.

POSITION

1,4, 7, 10

-48-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

SECTION 5: ACCESSORIES

Installing unapproved accessories may

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

SBCE3450—How to Run a Lathe

First printed in 1907 by South Bend Lathe, this 56th edition is an exact reprint from 1966. Well illustrated with vintage photos and drawings, this 128-page book is written specifically about the care and operation of a metal lathe. “This book is to aid the beginner or apprentice in the machine shop and the student in the school shop to secure a better understanding of the fundamental operations of modern lathe practice in use in modern industries in the United States.”

H6204—High Precision Drill Chuck 5/8" x JT3

Unlike most keyed drill chucks, this one is made to very tight tolerances on CNC equipment and is one of the finest drill chucks on the market today. It has very high gripping strength and is suitable for heavy-duty, high-speed drilling. Each chuck includes a high visibility chuck key. Specifications:

⁄32"- 5⁄8" x JT #3.

Figure 73. H6204 Drill Chuck.

G1677—Drill Chuck Arbor - MT3/JT3

This Drill Chuck Arbor is used to adapt drill chucks to your drill press, milling machine or lathe. Long end: MT #3, Short end: J.T. #3.

Figure 72. SBCE3450 South Bend Lathe~How

to Run a Lathe book.

H2 987—½" Bent Lathe Dog H2988—1" Bent Lathe Dog H2 989 —1½" Bent Lathe Dog H2990—2" Bent Lathe Dog H2991—3" Bent Lathe Dog

Model G0602/Z, G0752Z (Mfd. Since 05/24)

Figure 74. G1677 Drill Chuck Arbor.

G9849—Magnetic Base/Dial Indicator Combo

Precision measurements and set-ups have never been so easy. Magnetic base engages with just the turn of a switch and allows pinpoint adjustment. The dial indicator features 0–1" travel and has a resolution of 0.001". Set includes a molded case for protection and convenience.

Figure 75. G9849 Magnetic Base/Dial Indicator.

-49-

order online at www.grizzly.com or call 1-800-523-4777

G5639—5-Pc.

⁄8" Indexable Carbide Tool Set

G6706—Replacement TiN Carbide Inserts

Five-piece turning tool set features indexable carbide inserts with "spline" type hold-down screw that allow indexing without removing the screw. Each set includes AR, AL, BR, BL, and E style tools with carbide inserts, hex wrench, extra holddown screws and a wooden case.

H7617—Oil Can w/Flexible Plastic Nozzle

This high-pressure oil can is perfect for lubricating the ball oilers found on your machine. Can holds 5 ounces of oil.

Figure 76. G5639 5 Pc. Indexable Tool Set.

T10255—Mini Lathe Tooling Kit

This convenient Mini Lathe Tool Kit includes right,

left and straight turning tool holders with tool bits, boring bar with holder and

bit, cut off tool holder with

⁄8" shank, mini cut off tool holder with 1⁄16 " HSS

blade and

⁄16 " shank, knurling tool holder with

⁄32" HSS blade and

⁄8" HSS

⁄8" HSS tool

pivoting head, single horizontal/vertical knurling tool holder and assorted hex wrenches. Maximum

shank size is

⁄2 ".

Figure 78. High-pressure oil can for ball oilers.

T23962—ISO 68 Moly-D Machine Oil, 5 gal. T23963—ISO 32 Moly-D Machine Oil, 5 gal.

Moly-D oils are some of the best we've found for maintaining the critical components of machinery because they tend to resist run-off and maintain their lubricity under a variety of conditions—as well as reduce chatter or slip. Buy in bulk and save with 5-gallon quantities.

T23962

T23963

Figure 79. ISO 68 and ISO 32 machine oil.

Figure 77. T10255 Mini Lathe Tooling Kit.

H5930—4-Pc Center Drill Set 60° H5931—4-Pc Center Drill Set 82°

Double ended HSS Center Drills are precision ground. Includes sizes 1-4.

-50-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

SECTION 6: MAINTENANCE

Daily, After Operations

• Turn the spindle direction switch to STOP,

Always disconnect power to the machine before performing maintenance. Failure to do this may result in serious personal injury.

and press the Emergency STOP button (to prevent accidental startup).

• Vacuum/clean all chips and swarf from bed and slides.

• Wipe down all unpainted or machined surfaces with an oiled rag.

• Add oil to the ball oilers (Page 53).

Schedule

Ongoing

To help reduce the risk of injury and ensure proper machine operation, if you ever observe any of the items below, shut down the machine immediately and fix the problem before continuing operations:

• Loose mounting bolts or fasteners.

• Worn, frayed, cracked, or damaged wires.

• Guards or covers removed.

• Emergency STOP button not working correctly or not requiring you to reset it before starting the machine again.

• Damaged or malfunctioning components.

Daily, Before Operations

• Check/add gearbox oil (Page 52).

• Add oil to the ball oilers (Page 53).

• Clean/lubricate the leadscrew and carriage rack (Page 54).

• Lubricate the bedways (Page 54).

• Compound slide (Page 54).

• Disengage the half nut on the carriage (to prevent crashes upon startup).

• Ensure carriage lock bolt is loose.

Annually

• Change the gearbox oil (Page 52).

• Lubricate the change gears (Page 55).

• Check/level bedway (Page 21).

Cleaning/Protecting

Because of its importance, we recommend that the cleaning routine be planned into the workflow schedule.

Typically, the easiest way to clean swarf from the machine is to use a wet/dry shop vacuum that is dedicated for this purpose. The small chips left over after vacuuming can be wiped up with a slightly oiled rag. Avoid using compressed air to blow off chips, as this may drive them deeper into the moving surfaces or cause sharp chips to fly into your face or hands.

All unpainted and machined surfaces should be wiped down daily to keep them rust free and in top condition. This includes any surface that is vulnerable to rust if left unprotected (especially parts that are exposed to water soluble cutting fluid). Use a quality rust protectorate such as SLIPIT Boeshield

to prevent corrosion.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-51-

Lubrication

The lathe has numerous metal-to-metal sliding surfaces that require regular lubrication to maintain smooth movement and ensure long-lasting operation.

Other than the lubrication points covered in this section, all other bearings are internally lubricated and sealed at the factory. Simply leave them alone unless they need to be replaced.

Quick-Change Gearbox

Oil Type .... Grizzly T23962 or ISO 68 Equivalent

Reservoir Capacity Check/Add Frequency Change Frequency

Checking Oil Level

The gearbox reservoir has the proper amount of oil when the oil level in the sight glass is approximately the gearbox control dials, as shown in Figure 80.

⁄4 full. The oil sight glass is located below

..................................... 1 Pint

................................. Daily

................................ Annually

Before performing any lubrication task, DISCONNECT LATHE FROM POWER!

Important: Before adding lubricant to ball oilers and grease fittings, clean off entry points to prevent contamination of lubricant.

Use the schedule and information in the chart below as a daily guide for lubrication tasks. We recommend using Grizzly Model T23962 or T23963 lubricants (see Accessories, Page 50) for most of the lubrication tasks.

Lubrication Task Frequency

Quick-Change Gearbox Daily

Ball Oilers Daily 53

Leadscrew & Carriage Rack

Bedways Daily 54 Compound Slide Daily 54 Change Gears Annually 55

Daily 54

Page Ref.

This

page

Gearbox Fill Plug

Gearbox

Oil Level

Sight Glass

Figure 80. Headstock oil level sight glass.

After break-in, change the oil in the gearbox, then again after three months. Afterwards, change the oil on an annual basis or more frequently if extreme machine use requires it.

Adding Oil

Use an 8mm hex wrench to remove the gearbox fill plug (see Figure 80), then add the oil until the level is approximately

⁄4 full in the oil sight glass.

NOTICE

The recommended lubrication is based on light-to-medium usage. Keeping in mind that lubrication helps to protect the value and operation of the lathe, these lubrication tasks may need to be performed more frequently than recommended here, depending on usage.

Failure to follow reasonable lubrication practices as instructed in this manual could lead to premature failure of lathe components and will void the warranty.

-52-

Drain

Plug

Figure 81. Location of the quick-change gearbox

drain plug.

Draining Oil

Remove the fill plug (Figure 80), place a catch pan under the quick-change gearbox drain plug (see Figure 81). Use an 8mm hex wrench to loosen the drain plug, remove it, then allow the reservoir to empty. Re-install the drain plug.

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Ball Oilers

Oil Typ e .... Grizzly T23963 or ISO 32 Equivalent

Oil Amount Lubrication Frequency

................................1 or 2 Squirts/Fill

................................. Daily

This lathe has 10 ball oilers that should be oiled on a daily basis before beginning operation.

Proper lubrication of ball oilers is done with a pump-type oil can that has a plastic or rubberized cone tip. We do not recommend using metal needle or lance tips, as they can push the ball too far into the oiler, break the spring seat, and lodge the ball in the oil galley.

Lubricate the ball oilers before and after machine use, and more frequently under heavy use. When lubricating ball oilers, first clean the outside surface to remove any dust or grime. Push the tip of the oil can nozzle against the ball oiler to create a hydraulic seal, then pump the oil can once or twice. If you see sludge and contaminants coming out of the lubrication area, keep pumping the oil can until the oil runs clear. When finished, wipe away any excess oil.

Refer to Figures 82–86 to identify the location of each ball oiler.

Ball

Oilers

Figure 83. Change gear ball oilers.

Ball

Oilers

Figure 84. Carriage and cross slide ball oilers.

Ball Oiler

Ball Oilers

Figure 82. Spindle bearing ball oilers.

Figure 85. Tailstock ball oiler.

Ball Oiler

Figure 86. Leadscrew end bearing ball oilers.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-53-

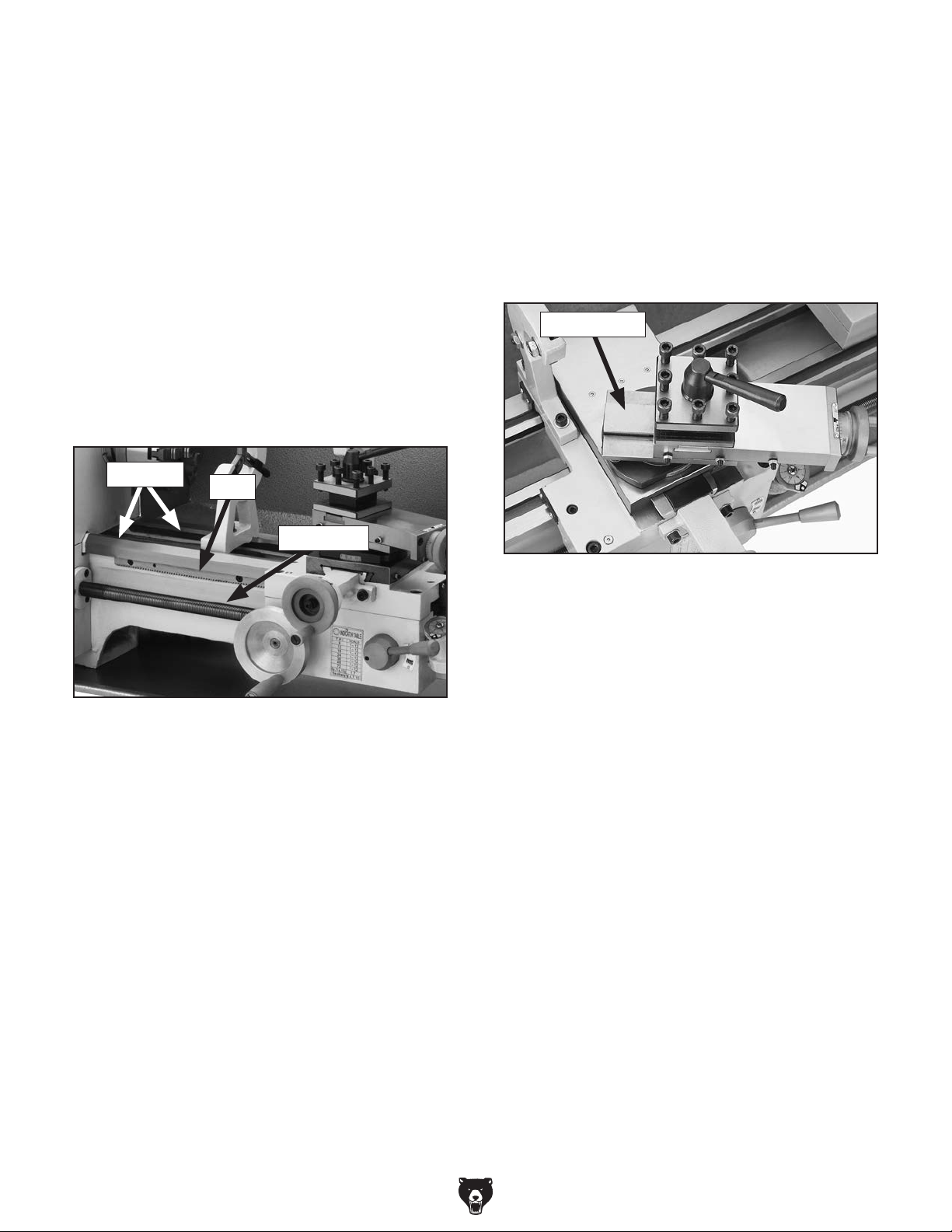

Leadscrew & Carriage Rack

Oil Type .... Grizzly T26685 or ISO 32 Equivalent

Oil Amount Lubrication Frequency

......................................... As Needed

................................. Daily

Compound Slide

Oil Type .... Grizzly T26685 or ISO 32 Equivalent

Oil Amount Lubrication Frequency

............................................Thin Coat

................................. Daily

Before lubricating the leadscrew and carriage rack (see Figure 87), clean them first with mineral spirits. Use a stiff brush to help remove any debris or grime. Apply a thin coat of oil along the length of the carriage rack. Use a stiff brush to make sure oil is applied into the leadscrew threads.

Note: In some environments, abrasive material can become caught in the leadscrew lubricant and drawn into the half nut. In this case, lubricate the leadscrew with a quality dry lubricant.

Bedways

Rack

Leadscrew

Use the handwheel to move the compound slide all the way toward you (see Figure 88), then wipe clean the bottom slide with a rag and mild solvent. Apply the lubricant and move the compound slide back and forth to distribute the oil.

Bottom Slide

Figure 88. Compound bottom slide.

Figure 87. Leadscrew, rack and bedways.

Bedways

Oil Type .... Grizzly T26685 or ISO 32 Equivalent

Oil Amount Lubrication Frequency

Before lubricating the bedways (see Figure 87), clean it with mineral spirits. Apply a thin coat of oil along the length of the bedway. Move the steady rest, carriage, and tailstock to access the entire length of the bedways.

......................................... As Needed

................................. Daily

-54-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Change Gears

Grease Type ............................................ NLGI#2

Oil Amount

Frequency............... Annually or When Changing

The change gears, shown in Figure 89, should always have a thin coat of heavy grease to minimize corrosion, noise, and wear. Wipe away excess grease that could be thrown onto the V-belts and reduce optimal power transmission from the motor.

............................................Thin Coat

Figure 89. Change gears.

To lubricate the change gears:

DISCONNECT LATHE FROM POWER!

Open the change gear cover and remove all

the change gears shown in Figure 89.

Clean the change gears thoroughly with min-

eral spirits to remove the old grease. Use a small brush if necessary to clean between the teeth.

Clean the shafts, and wipe away any grease

splatters in the vicinity and on the inside of the change gear cover.

Using a clean brush, apply a thin layer of

grease on the gears. Make sure to get grease between the gear teeth, but do not fill the teeth valleys.

Install the change gears and mesh them

together with 0.003"–0.008" backlash. Once the gears are meshed together, apply a small dab of grease between them where they mesh together—this grease will be distributed when the gears rotate and re-coat any areas scraped off during installation.

To handle and care for the change gears:

Make sure to clean and lubricate any gears you install or change. Be very careful during handling and storage—the grease coating on the gears will easily pickup dirt or debris, which can then spread to the other gears and increase the rate of wear.

Make sure the change gear cover remains installed whenever possible to keep the gears free of dust or debris from the outside environment.

7. Close the change gear cover before re-con-

necting the lathe to power.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-55-

Machine Storage

To prevent the development of rust and corrosion, the lathe must be properly prepared if it will be stored for a long period of time. Doing this will ensure the lathe remains in good condition for later use.

To prepare the lathe for storage:

Run the lathe and bring the gearbox reservoir

to operating temperature, then drain and refill with clean oil.

DISCONNECT LATHE FROM POWER!

3. Thoroughly clean all unpainted, bare metal

surfaces, then apply a liberal coat of way oil, heavy grease, or rust preventative. Take care to ensure these surfaces are completely covered but that the rust preventative or grease is kept off of painted surfaces.

5. Loosen or remove all belts so they do not

become stretched during the storage period. (Be sure to place a maintenance note near the power button as a reminder that the belts have been loosened or removed.)

Cover the lathe and place it in a dry area that

is out of direct sunlight and away from hazardous fumes, paint, solvents, or gas. Fumes and sunlight can bleach or discolor paint.

Every few months do the following:

Rotate by hand all gear-driven components

• a few times in several gear selections. This will keep the bearings, bushings, gears, and shafts well lubricated and protected from corrosion—especially during the winter months.

• Slide the carriage, tailstock, and steady rest down the lathe bed to make sure that way spotting is not beginning to occur.

Lubricate the machine as outlined in the

4. Lubrication section beginning on Page 52.

Be sure to use an oil can to purge all ball oilers and oil passages with fresh oil.

-56-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need replacement parts or additional help with a procedure, call our Technical Support.

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not start or a circuit breaker trips.

Loud, repetitious noise coming from lathe at or near the motor.

Motor overheats. 1. Motor overloaded. 1. Allow motor to cool; reduce load on motor.

Motor is loud when cutting, or bogs down under load.

1. Emergency stop button engaged or at fault.

2. Spindle direction switch turned OFF or at fault.

3. Start capacitor at fault.

4. Wall fuse/circuit breaker is blown/tripped; short in electrical system; start-up load too high for circuit.

5. Wiring is open/has high resistance.

6. Contactor not getting energized/has poor contacts.

7. Motor connection wired wrong.

8. Motor spindle direction switch at fault.

9. Inverter/control box at fault (G0752 only).

10. Motor at fault.

1. Pulley set screws or keys are missing or loose.

2. Motor fan is hitting the cover.

1. Excessive depth of cut or feed rate.

2. Spindle speed or feed rate wrong for cutting operation.

3. Cutting tool is dull.

1. Rotate button clockwise until it pops out to reset it for operation; replace if not working properly.

2. Turn spindle direciton switch to FWD or REV. Ensure switch has correct voltage. Replace if faulty.

3. Test/replace if faulty.

4. Verify circuit is rated for machine amp load; troubleshoot and repair cause of overload; replace

weak breaker; nd/repair electrical short.

5. Check for broken wires or disconnected/corroded connections, and repair/replace as necessary.

6. Test for power on all legs and contactor operation. Replace unit if faulty.

7. Correct motor wiring connections (Page 67).

8. Replace switch.

9. Inspect inverter/controller box; replace if faulty.

10. Test/repair/replace.

1. Inspect keys and set screws. Replace or tighten if necessary.

2. Tighten fan, shim cover, or replace items.

1. Decrease depth of cut or feed rate.

2. Refer to the feeds and speed charts in Machinery's Handbook or a speeds and feeds calculator on the internet.

3. Sharpen or replace the cutting tool.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-57-

Operation

Symptom Possible Cause Possible Solution

Entire machine vibrates upon startup and while running.

Bad surface nish.

Tapered tool difcult

to remove from tailstock quill.

Cross slide, compound rest, or carriage feed has sloppy operation.

Cross slide, compound, or carriage feed handwheel hard to move.

Cutting tool or machine components vibrate excessively during cutting.

1. Workpiece is unbalanced.

2. Workpiece is hitting stationary object.

3. Loose or damaged V-belt(s).

4. V-belt pulleys are not properly aligned.

5. Chuck or faceplate is unbalanced or not installed properly.

6. Change gears not aligned or no backlash.

7. Worn or broken gear present.

8. Broken gear or bad bearing.

9. Spindle bearings at fault.

1. Wrong spindle speed or feed rate.

2. Dull tooling or poor tool selection.

3. Tool height not at spindle centerline.

4. Too much play in gibs.

1. Quill is not retracted all the way back into the tailstock.

2. Contaminants not removed from taper before inserting into quill.

1. Gibs are out of adjustment.

2. Handwheel is loose or backlash is high.

1. Dovetail ways loaded with shavings, dust, or grime.

2. Gib screws are too tight.

3. Backlash setting too tight.

4. Bedways are dry.

1. Tool holder not tight enough.

2. Cutting tool sticks too far out of tool holder; lack of support.

3. Gibs are out of adjustment.

4. Dull cutting tool.

5. Incorrect spindle speed or feed rate.

1. Re-install workpiece as centered with the spindle bore as possible.

2. Stop lathe immediately and correct interference problem.

3. Re-tension/replace the V-belt(s) as necessary (see Page 64).

4. Align the V-belt pulleys.

5. Check installation; re-balance chuck or faceplate; contact a local machine shop for help.

6. Adjust change gears and establish backlash.

7. Inspect gears, and replace if necessary.

8. Replace broken gear or bearing.

9. Reset spindle bearing preload or replace worn spindle bearings.

1. Adjust for appropriate spindle speed and feed rate.

2. Sharpen tooling or select a better tool for the intended operation.

3. Adjust tool height to spindle centerline (see Page

40).

4. Tighten gibs (see Page 61).

1. Turn the quill handwheel until it forces the tapered tool out of quill.

2. Clean the taper and bore, then re-install tool.

1. Adjust gibs (see Page 61).

2. Tighten handwheel fasteners, adjust handwheel backlash to a minimum (see Page 60).

1. Clean ways and re-lubricate.

2. Loosen gib screw(s) slightly (see Page 61).

3. Slightly loosen backlash setting (see Page 60).

4. Lubricate bedways/ball oilers.

1. Check for debris, clean, and re-tighten.

2. Re-install cutting tool so no more than 1⁄3 of the total length is sticking out of tool holder.

3. Adjust gibs at affected component (see Page 61).

4. Replace or resharpen cutting tool.

5. Use the recommended spindle speed and feed rate.

-58-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Symptom Possible Cause Possible Solution

Workpiece is tapered.

Chuck jaws will not move or do not move easily.

Carriage will not feed or is hard to move.

Quick-change gear change dials will not shift into position.

1. Headstock and tailstock are not properly aligned with each other.

1. Chips lodged in the jaws or scroll plate. 1. Remove jaws, clean and lubricate scroll plate and

1. Quick-change gears are not all engaged.

2. Half nut lever engaged.

3. Carriage lock is tightened down.

4. Chips have loaded up on bedways.

5. Bedways are dry and in need of lubrication.

6. Gibs are too tight.

7. Gears or shear pin broken.

1. Gears not aligned inside headstock/quick change gearbox.

1. Re-align the tailstock to the headstock spindle

centerline (see Page 34).

jaws, then replace jaws.

1. Adjust gear dials.

2. Disengage half nut lever for manual feeding.

3. Check to make sure the carriage lock bolt is fully released.

4. Frequently clean away chips that load up during turning operations and re-lubricate.

5. Lubricate bedways/ball oilers.

6. Loosen gibs screw(s) slightly (see Page 61).

7. Replace gears or shear pin (see Page 62).

1. Rotate spindle by hand with light pressure on the dial until gear falls into place.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-59-

Backlash Adjustment

Backlash is the amount of free play felt while changing rotation directions with the handwheel. This can be adjusted on the compound rest and cross slide leadscrews. Before beginning any adjustment, make sure all associated components are cleaned and lubricated, and the locks are loose.

Reducing backlash to less than 0.002" is impractical and can lead to accelerated wear to the leadscrew and other components. Avoid the temptation to overtighten the backlash nut or screw while adjusting.

Compound Rest

Tools Needed: Qty

Hex Wrench 5mm .............................................. 1

Open-End Wrench 10mm

.................................. 1

Cross Slide

Tools Needed: Qty

Hex Wrench 4mm .............................................. 1

Hex Wrench 5mm Open-End Wrench 14mm

The cross slide backlash is adjusted by loosening the cap screw shown in Figure 91. The screw pushes down on a wedge and forces the leadscrew nut apart, taking up lash between the nut and leadscrew.

............................................. 1

.................................. 1

Cap Screw

The compound rest backlash is adjusted by loosening or tightening the nut and set screw shown in Figure 90 to remove play between the handwheel and the leadscrew collar.

Set Screw

Nut

Figure 90. Compound rest backlash adjustment

set screws.

To adjust the backlash, loosen the compound rest nut and set screw, turn the handwheel counterclockwise until the compound rest moves, then tighten the nut until the backlash is approximately

0.002"–0.003", as indicated on the graduated dial. Tighten the set screw to secure the setting.

Figure 91. Cross slide backlash adjustment cap

screw.

To adjust the backlash, remove the compound rest. Then, rock the cross slide handwheel back and forth, and tighten the cap screw slowly until the backlash is approximately 0.002"–0.003" as indicated on the graduated dial.

If you end up adjusting the nut too tight, loosen the cap screw, turn the handwheel back and forth until it turns freely—then try again.

Re-install the compound rest when you are finished.

-60-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

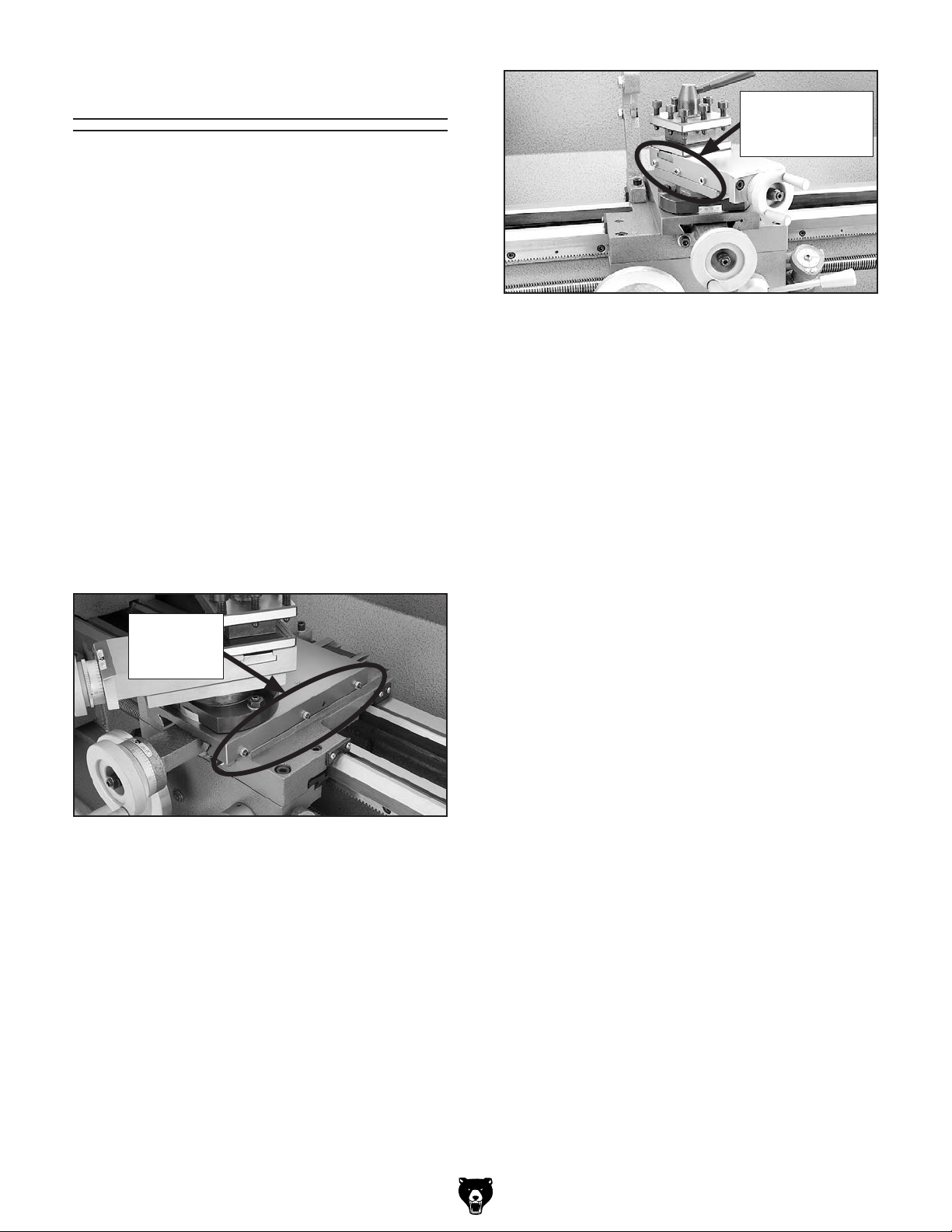

Gib Adjustment

The goal of adjusting the cross slide and compound slide gibs is to remove sloppiness or "play" from the ways without making them overly stiff and difficult to move.

In general, loose gibs cause poor finishes and tool chatter; however, over-tightened gibs cause premature wear and make the handwheels difficult to turn.

Compound Slide

Adjustment

Fasteners

Figure 93. Compound slide gib adjustment hex

nuts and set screws.

Tools Needed Qty

Open-End Wrench 8mm.................................... 1

Hex Wrench 2.5mm

To adjust the cross slide and compound slide gibs:

DISCONNECT LATHE FROM POWER!

2. Loosen the three hex nuts on the side of the

slide (see Figures 92–93).

Cross Slide

Adjustment

Fasteners

........................................... 1

3. Make adjustments in small and equal incre-

ments to the three set screws, then test the movement of the slide by rotating the handwheel.

Note: Turning the set screws clockwise will

tighten the gib, and turning them counterclockwise will loosen the gib.

When you are satisfied with the gib adjust-

ment, keep the set screws from moving and re-tighten the hex nuts to secure the settings.

Re-check the movement of the slide and, if

5. necessary, repeat Steps 2–4.

Figure 92. Cross slide gib adjustment hex nuts

and set screws.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-61-

Half Nut Adjustment

The clamping pressure of the half nut is fully adjustable with a gib that can be loosened or tightened by two set screws. Use this procedure to adjust the half nut if it becomes loose from wear, or it is too tight for your preferences. A half nut that is too loose will make it difficult to produce accurate work; one that is too tight will increase the rate of wear on itself and the leadscrew.

Tools Needed Qty

Open-End Wrench 8mm.................................... 1

Hex Wrench 5mm Hex Wrench 2.5mm

To adjust the half nut:

DISCONNECT LATHE FROM POWER!

2. Disengage the half nut, then remove the

thread dial.

.............................................. 1

........................................... 1

Leadscrew Shear Pin

Replacement

The longitudinal leadscrew is secured to the feed rate gearing in the headstock with the use of a soft-metal shear pin (see Figure 95). The shear pin is designed to break and disengage power to the leadscrew to help protect more expensive lathe components if you crash your carriage or take too large of a cut and overload the lathe.

Contact Grizzly Customer Service at (570) 5469663 to order a replacement shear pin (Part # P0602815).

Shear Pin

Loosen the two adjustment hex nuts shown

in Figure 94, then adjust the set screws in small, even increments so one end of the gib does not become tighter than the other.

Half-Nut

Adjustment

Fasteners

Figure 94. Typical half nut gib adjustment.

4. Engage/disengage the half nut several times

and notice how it feels. The adjustment is correct when the half nut has a slight drag while opening and closing. The movement should not be too stiff or too sloppy.

Repeat Steps 3–4, if necessary, until you are

satisfied with the half nut pressure.

While keeping the set screws from moving,

re-tighten the hex nuts, then re-install the thread dial.

Connecting

Collar

Figure 95. Longitudinal leadscrew shear pin.

Tools Needed Qty

Hammer ............................................................. 1

Punch 2.5mm

To replace the shear pin:

DISCONNECT LATHE FROM POWER!

2. Rotate the leadscrew so the shear pin faces

up and down. If the connecting collar rotates independently from the leadscrew, then rotate the collar so the shear pin holes align with those in the leadscrew.

Use the punch and hammer to drive out the

pieces of the old shear pin.

Make sure the holes in the collar and

leadscrew are aligned, then tap the new shear pin completely through the holes in the collar and leadscrew.

.................................................... 1

-62-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

V-Belt Tension &

Replacement

V-Belts stretch and wear with use, so check the tension on a monthly basis to ensure optimal power transmission. Replace the V-belts if they become cracked, frayed, or glazed.

On the Model G0602/G0602Z, the low range V-belt tension is controlled by a tensioner between the secondary drive pulley (B) and spindle (C) pulley. The high range V-belt between the spindle (C) and motor (A) pulleys is tensioned by the motor.

On the Model G0752/G0752Z, V-belt tension is controlled by a tensioner between the spindle and motor pulleys.

Tools Needed Qty

Open-End Wrench 17mm .................................. 1

Hex Wrench 5mm Hex Wrench 8mm

Tensioning V-Belt

To tension the Model G0602/G0602Z low range V-belt or Model G0752/G0752Z V-belt:

.............................................. 1

Lock Bolt

Tensioner

Figure 97. Model G0752 tensioner and lock bolt.

Push the tensioner against the V-belt to ten-

sion it, then secure the tensioner.

The V-belt is correctly tensioned when there

is approximately 1⁄4" deflection when it is pushed with moderate pressure, as shown in Figure 98.

Pulley

Deflection

⁄4"

DISCONNECT LATHE FROM POWER!

2. Open the change gear cover.

Loosen the tensioner lock nut (Model G0602/

G0602Z) or tensioner lock bolt (Model G0752/ G0752Z) shown in Figures 96–97.

Tensioner

Lock Nut

Figure 96. Model G0602 tensioner and lock nut.

Pulley

Figure 98. Correct V-belt deflection.

—If there is more than 1⁄4" deflection when the

V-belt is pushed with moderate pressure, loosen the tensioner, adjust it so the tension is correct, then secure the tensioner.

5. Secure the change gear cover.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-63-

To tension the Model G0602/G0602Z high range V-belt:

Follow Steps 1–3 in "Tensioning Timing Belt"

on Page 65.

Lower the motor and re-tighten the mounting

hex nuts. The high range V-belt is correctly

tensioned when there is approximately

⁄4"

deflection when it is pushed with moderate pressure, as shown in Figure 98 on Page 63.

—If there is more than

⁄4" deflection when

the V-belt is pushed with moderate pressure, loosen the motor mount nuts, lower the motor as needed, then tighten the nuts.

—If the low range belt between pulleys B and

C (see Figure 100) needs to be replaced, loosen the tensioner lock nut (see Figure 96 on Page 63), move the tensioner down, roll the belt off the pulleys, then re-install the new V-belt. Follow Steps 4-5 on Page 63 to tension the belt.

Check the timing belt tension (refer to Step 5

of "Tensioning Timing Belt" on Page 65).

Secure the change gear cover.

Replacing V-Belt

1. DISCONNECT LATHE FROM POWER!

2. Open the change gear cover.

Model G0602/G0602Z:

—If the high range belt (Figure 99) needs to

be replaced, loosen the motor mount hex nuts, (see Figure 102 on Page 65), raise the motor, and carefully roll the belt off of pulleys A and C. Install a new V-belt, then follow the steps in "To tension the Model G0602/0602Z high range V-belt" above.

Tensioner

Figure 100. Model G0602 low-range belt.

Model G0752/G0752Z:

Loosen the tensioner lock bolt, then pivot the tensioner to the left and secure it temporarily. Remove the V-belt (see Figure 101) and re-install the new one. Follow Steps 4-5 on Page 63 to ten- sion the belt.

Lock Bolt

Tensioner

Range Belt

Figure 99. Model G0602 high-range belt.

-64-

V-Belt

Figure 101. Model G0752 V-Belt.

High

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Timing Belt Tension

& Replacement

On the Model G0602/G0602Z the timing belt transfers power from the motor to the secondary drive pulley (see Figure 102). If the timing belt becomes excessively worn or damaged, you will need to replace it.

Motor

Mount

Hex Nuts

(2 of 4)

Timing

Belt

Figure 102. Timing belt and motor mount hex

nuts.

Tools Needed Qty

Hex Wrench 5mm .............................................. 1

Open-End Wrench 14mm

.................................. 1

Pulley

Deflection

⁄4"

Pulley

Figure 103. Correct timing-belt deflection.

—If there is more than

the belt is pushed with moderate pressure, loosen the motor mount nuts, lower the motor, adjust belt tension as required, then tighten the nuts.

—If the high range V-belt is installed, check

the V-belt tension. Refer to "To tension the Model G0602 high range V-belt" instructions on Page 64.

Secure the change gear cover.

⁄4" deflection when

Replacing Timing Belt

1. DISCONNECT LATHE FROM POWER!

2. Open the change gear cover.

Tensioning Timing Belt

1. DISCONNECT LATHE FROM POWER!

2. Open the change gear cover.

Loosen the motor mount hex nuts (see

3. Figure 102).

Note: It may be more convenient to access

the motor mount hex nuts if you first remove the rear splash guard.

4. Lower the motor and re-tighten the mounting hex nuts.

5. Check the timing belt tension: It is correctly tensioned when there is approximately deflection when it is pushed with moderate pressure, as shown in Figure 103.

⁄4"

Loosen the four motor mount hex nuts (see

3. Figure 102) then remove the low or high range V-belt (refer to Replacing V-Belt on Page 64).

Note: It may be more convenient to access

the motor mount hex nuts if you first remove the rear splash guard.

4. Raise the motor up, roll the old timing belt off the pulleys and replace it with a new one, making sure that the belt teeth are seated in the pulley indents.

. Re-install the high or low range V-Belt—

depending upon your setup (refer to Replacing V-Belt on Page 64).

Tension the timing belt and V-belt. Refer to

6. Tensioning Timing-Belt on this page, and

the instructions for tensioning the applicable V-belt on Pages 63– 64.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-65-

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available.

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

-66-

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

33NO

23NO

13NO

53NO 61NC 71NC

Siemens

62E KM1

3TB82

54NO 62NC 75NC

24NO

34NO14NO

G0602/G0602Z Wiring Diagram

83NO

84NO

44NO

6 102

8 124

7 113

CANSEN LW26-20

5 91

Ground

4 4

MINGER LA125H-BE101C

4 NO

Start

Button

Start Capacitor

150 MFD 250VAC

Run Capacitor

20MFD 450VAC

Switch

Rotary

Switch

Rear View

Gnd

Front

View

MINGER LA125H-BE101C

E-Stop

Button

Switch

1 NC

Hot

Ground

Neutral

110 VAC

5-15 Plug

(As Recommended)

Wiring Box

Ground

(Shown from behind)

Motor 1HP 110V

Control Panel

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

READ ELECTRICAL SAFETY

ON PAGE 66!

-67-

G0602/G0602Z Electrical Components

Figure 104. Spindle direction switch and ON

button.

Figure 106. Spindle direction switch and

emergency stop switch.

Figure 107. Motor connection detail.

-68-

Figure 105. Electrical box.

READ ELECTRICAL SAFETY

ON PAGE 66!

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

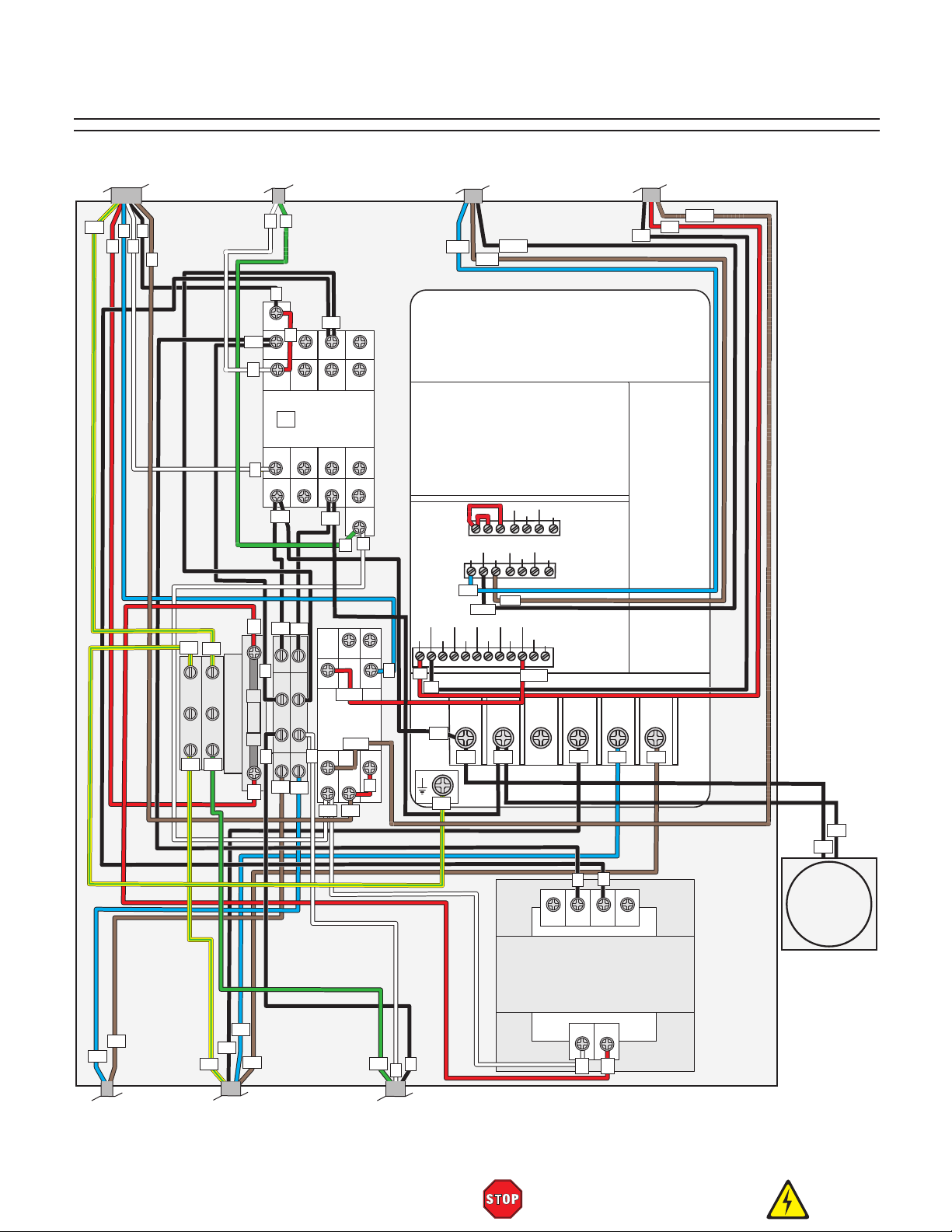

G0752/G0752Z Wiring Box Diagram

To Control Panel

Page 71

243

To Circuit Board

Page 71

13N0

53N0

Contactor

54N0 62NC

L1 N1

L N

L1 N1

Electrical Box

33N0

23N0

61NC 71NC

24N0

Siemens

62E KM1

3TH82

72NC

34N014N0

Relay

OMRON MY2N-J 220V

14 13

43N0

83N0

84N0

44N0

DCM

To Variable-Speed

Switch Page 71

10V

ACM

AVI

To Spindle Direction

Switch Page 71

DCM

VS Drive

Delta MS300

VFD4A8MS11ANSAA

SGNO

SG+

SG-

ACI

AVI

24V

AFM

DCM

M01

DCM

DFM

M02

MCM

W/T3

V1 W1

M12 M14

M11

M13

10V

M15

10V

ACM

M16

M17

AVI

24V

R/L1 S/L2 T/L3 U/T1 V/T2

To Left Motor Junction Box Page 73

To Right Motor Junction Box Page 73

To Power Supply

Page 73

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

PE 0

110

Transformer

220

SNUON

SF8025AT

110/120V

50/60Hz 0.14A

SHENZHEN XINGKETAI

COOLING FAN

Electrical Box

BEIJING AOHENGDA ELECTRICAL

JBK5-63VA

READ ELECTRICAL SAFETY

Door

-69-

ON PAGE 66!

G0752/G0752Z Wiring Box Components

-70 -

Figure 108. G0752 electrical box.

READ ELECTRICAL SAFETY

ON PAGE 66!

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

G0752/G0752Z Control Panel Wiring Diagram

Ground

To Wiring Box

Page 69

Spindle Speed Circuit Board

See Figure 112, Page 72

To Wiring Box

Page 69

VS Dial

(Potentiometer)

See

Figure 111,

Page 72

WXD3-13

ACM

AVI

To Wiring Box

Page 69

Spindle

Speed

Sensor

See Figure 114, on Page 72

10V

AVI

1 NC

LA252HBE102C

Spindle

Direction

Switch

(Bottom)(Top)

3 NO

LA252HBE102C

COM

LA252HBE101C

3 NO

DCM

LA252HBE101C

1 NC

LA252HBE102C

OFF Button

Switch

Control Panel

(Viewed from Behind)

See Figure 109, on Page 72

DCM

3 NO

LA252HBE101C

ON Button

Switch

RPM Display

See Figure 110, Page 72

1 NC

LA252HBE102C

E-Stop

Button Switch

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

READ ELECTRICAL SAFETY

ON PAGE 66!

-71-

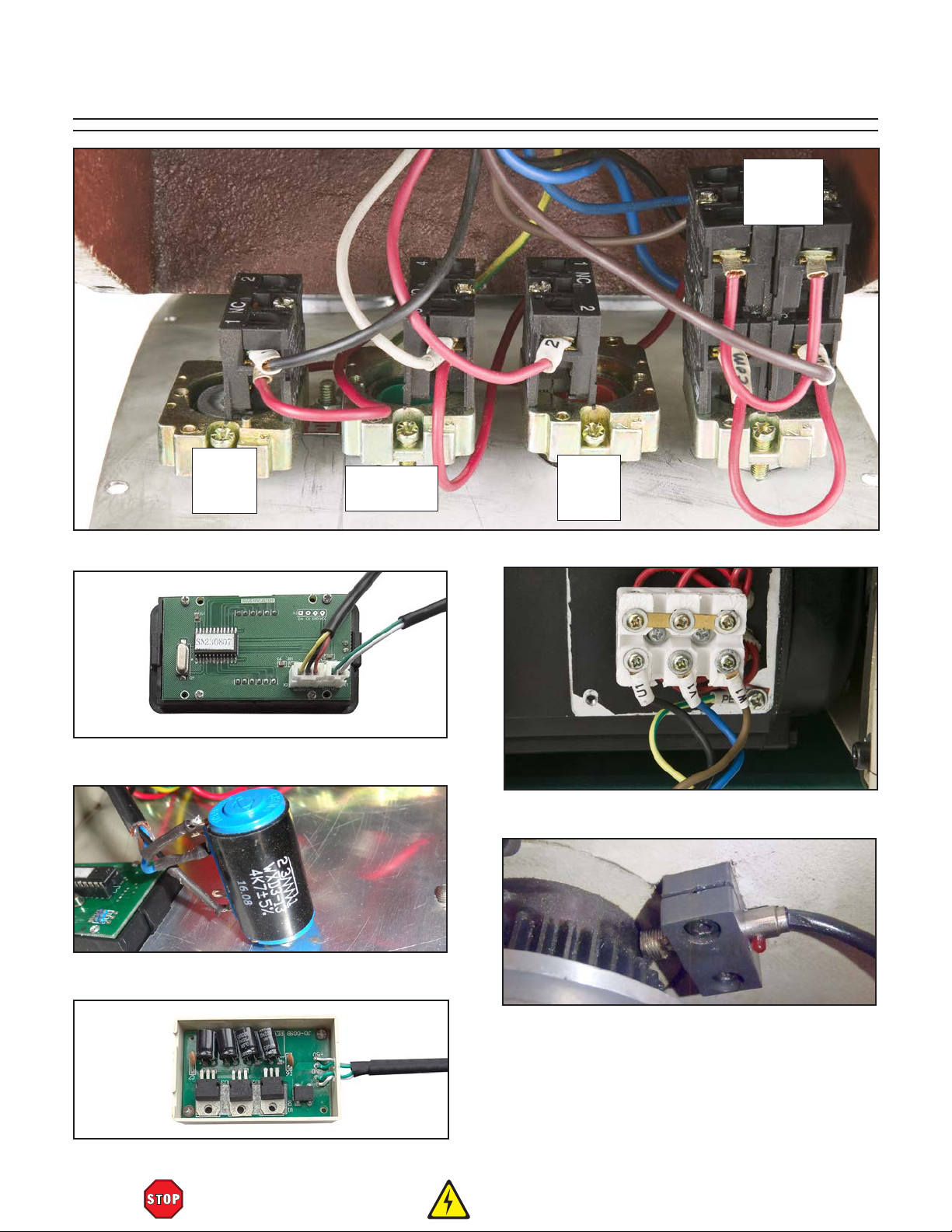

G0752/G0752Z Control Panel Components

Spindle

Direction

Switch

E-Stop

Button Switch

Figure 110. RPM display.

ON Button

Switch

Figure 109. Control panel.

OFF

Button

Switch

Figure 113. Right junction box.

Figure 111. Variable-speed dial.

Figure 112. Spindle speed circuit board.

-72-

READ ELECTRICAL SAFETY

ON PAGE 66!

Figure 114. Spindle speed sensor.

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

G0752/G0752Z Motor Wiring Diagram

Motor 1HP 220V 3PH

Motor Fan

110V 30W 1PH

To Wiring Box

Page 69

Ground

To Wiring Box

Page 69

110 VAC

5-15 Plug

(As Recommended)

Neutral

Hot

Ground

To Wiring Box

Page 69

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Figure 116. Right motor junction box.Figure 115. Left motor junction box.

READ ELECTRICAL SAFETY

ON PAGE 66!

-73 -

SECTION 9: PARTS

Spindle & Drive Belt

19-1

(G0752)

5 6

(G0602)

54-3

54-4

(G0602/G0602Z)

952V2

953V2

(G0752/G0752Z)

54-1

(G0602)

-74 -

(G0602)

BUY PARTS ONLI NE AT GRIZZLY.COM!

(G0752)

Scan QR code to visit our Par ts Store.

(G0602)

(G0752)

LEFT REAR VIEW

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

55-2

54-2

55-1

55-3

Spindle & Drive Belt Parts

37 P0752037 MOTOR PULLEY (G0752)

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 P0602001 HEADSTOCK REAR COVER 38 P0602038 KEY 6 X 6 X 40 2 P0602002 PHLP HD SCR M4-.7 X 6 39 P0602039 SPACER 3 P0602003 DEAD CENTER MT#4 40 P0602040 STANDOFF STUD M10-1.5 X 50, 15, 25 (G0602) 4 P0602004 BALL OILER 7MM PRESS-IN 5 P0602005 CAP SCREW M6-1 X 25 41 P0602041 MOUNTING PLATE 6 P0602006 FLAT WASHER 6MM 42 P0602042 FLAT WASHER 10MM 7 P0602007 COMPRESSION SPRING 43 P0602043 HEX NUT M10-1.5 (G0602) 8 P0602008 CLAMP 44 P0602044 TENSIONER ROLLER SHAFT 10 P0602010 CAP SCREW M6-1 X 25 45 P0602045 BALL BEARING 6001-2RS 11 P0602011 SPINDLE 46 P0602046 TENSIONER ROLLER 12 P0602012 KEY 10 X 10 X 55 48 P0602048 EXT RETAINING RING 12MM 13 P0602013 SPACER 49 P0602049 CHANGE GEAR COVER 14 P0602014 TAPERED ROLLER BEARING 32009 51 P0602051 HEX NUT M5-.8 15 P0602015 HEADSTOCK 52 P0602052 SPINDLE COVER 16 P0602016 CAP SCREW M8-1.25 X 20 53 P0602053 PHLP HD SCR M5-.8 X 12 17 P0602017 TAPERED ROLLER BEARING 32009 54 P0602054 3-JAW CHUCK 5" 18 P0602018 CAP SCREW M6-1 X 20 54-1 P0602054-1 3-JAW CHUCK JAW INT 3-PC SET 19 P0602019 SPACER (G0602) 54-2 P0602054-2 CHUCK BACKPLATE

19 P0752019 SPEED SENSOR RING W/MAGNETS (G0752) 20 P0602020 GEAR 40T PLASTIC 54-4 P0602054-4 3-JAW CHUCK JAW EXT 3-PC SET 21 P0602021 V-BELT M-27.5 3L275 (G0602) 55 P0602055 4-JAW CHUCK 6.5" 22 P0602022 PULLEY C 55-1 P0602055-1 4-JAW CHUCK JAWS 4-PC SET 23 P0602023 V-BELT M-33 3L330 55-2 P0602055-2 4-JAW CHUCK KEY 23 P0752023 V-BELT M32 3L320 (G0752) 55-3 P0602055-3 4-JAW CHUCK BACKPLATE 24 P0602024 SPANNER NUT 37MM 56 P0602056 FACEPLATE 8" 25 P0602025 BRACKET PLATE 57 P0602057 DEAD CENTER MT#3 26 P0602026 LOCK WASHER 10MM 60 P0602060 TOOL BOX, EMPTY 27 P0602027 HEX NUT M10-1.5 62 P0602062 HEX WRENCH SET (2.5,3,4,5,6MM) 28 P0602028 FLAT WASHER 10MM 63 P0602063 WRENCH SET (8-10, 12-14, 17-19MM) 29 P0602029 CAP SCREW M5-.8 X 10 64 P0602064 BOTTLE FOR OIL 30 P0602030 FLAT WASHER 5MM 69 P0602069 STANDARD SCREWDRIVER #1 31 P0602031 GEAR SHAFT 70 P0602070 PHILLIPS SCREWDRIVER #1 32 P0602032 TIMING BELT 263L (G0602) 33 P0602033 BALL BEARING 6001ZZ (G0602) 34 P0602034 TIMING PULLEY (G0602) 35 P0602035 INT RETAINING RING 12MM (G0602) 36 P0602036 SPACER 37 P0602037 PULLEY A (G0602)

40 P0752040 CAP SCREW M10-1.5 X 20 (G0752)

54-3 P0602054-3 3-JAW CHUCK KEY

71 P0602071 SPINDLE CLAMP 72 P0602072 CAP SCREW M6-1 X 20 952V2 P0602952V2 SPANNER WRENCH V2.03.20 (G0602) 952V2 P0602Z952V2 SPANNER WRENCH V2.03.20 (G0602Z) 953V2 P0752953V2 SPANNER WRENCH V2.03.20 (G0752) 953V2 P0752Z953V2 SPANNER WRENCH V2.03.20 (G0752Z)

Model G0602/Z, G0752Z (Mfd. Since 05/24)

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

-75 -

Apron

104

105

102

101

106

103

142

141

108

107

140

139

109

138

110

136V2

145

111

135

144

143

113

112

146

133V2

115

137

132

114

118

131

134V2

130

116

117

119

120

121

122

123

124

126-1

125

126

127

128

129

REF PART # DESCRIPTION REF PART # DESCRIPTION

101 P0602101 ROLL PIN 4 X 14 124 P0602124 KEY 3 X 3 X 10 102 P0602102 HALF-NUT 2-PC 125 P0602125 CAP SCREW M6-1 X 55 103 P0602103 DOWEL PIN 5 X 12 126 P0602126 THREAD DIAL BODY 104 P0602104 GEAR SHAFT 126-1 P0602126-1 THREAD DIAL ASSY 105 P0602105 GEAR 127 P0602127 SIDE GEAR 48T 106 P0602106 ROLL PIN 4 X 30 128 P0602128 FLAT WASHER 8MM 107 P0602107 APRON CASTING 129 P0602129 HEX NUT M8-1.25 108 P0602108 CAP SCREW M4-.7 X 12 130 P0602130 SET SCREW M6-1 X 6 109 P0602109 HALF-NUT GIB 131 P0602131 COMPRESSION SPRING 110 P0602110 DOWEL PIN 4 X 16 132 P0602132 CARRIAGE HANDWHEEL HANDLE 111 P0602111 SET SCREW M5-.8 X 16 133V2 P0602133V2 CARRIAGE HANDWHEEL 112 P0602112 SET SCREW M6-1 X 25 134V2 P0602134V2 SET SCREW M6-1 X 12 113 P0602113 HEX NUT M5-.8 135 P0602135 SET SCREW M6-1 X 12 CONE-PT 114 P0602114 SET SCREW M6-1 X 12 136V2 P0602136V2 GEAR SHAFT V2.03.17 115 P0602115 HALF-NUT LEVER HUB 137 P0602137 FLAT HD SCR M6-1 X 10 116 P0602116 HALF-NUT LEVER STUD 138 P0602138 FLAT WASHER 6MM 117 P0602117 HALF-NUT LEVER HANDLE 139 P0602139 HALF-NUT INDICATOR PLATE 118 P0602118 STEEL BALL 5MM 140 P0602140 LOCK CAM SHAFT 119 P0602119 CAP SCREW M6-1 X 6 141 P0602141 THREADED DIAL PLATE 120 P0602120 THREAD DIAL 142 P0602142 HALF-NUT BRACKET 121 P0602121 RIVET 2 X 5MM STEEL FLUTED 143 P0602143 PLATE SPRING 122 P0602122 POINTER 144 P0602144 GRADUATED DIAL 123 P0602123 SHAFT 145 P0602145 ROLL PIN 5 X 12

146 P0602146 KEY 3 X 3 X 12

-76 -

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

222

207

211

201

210

215

216

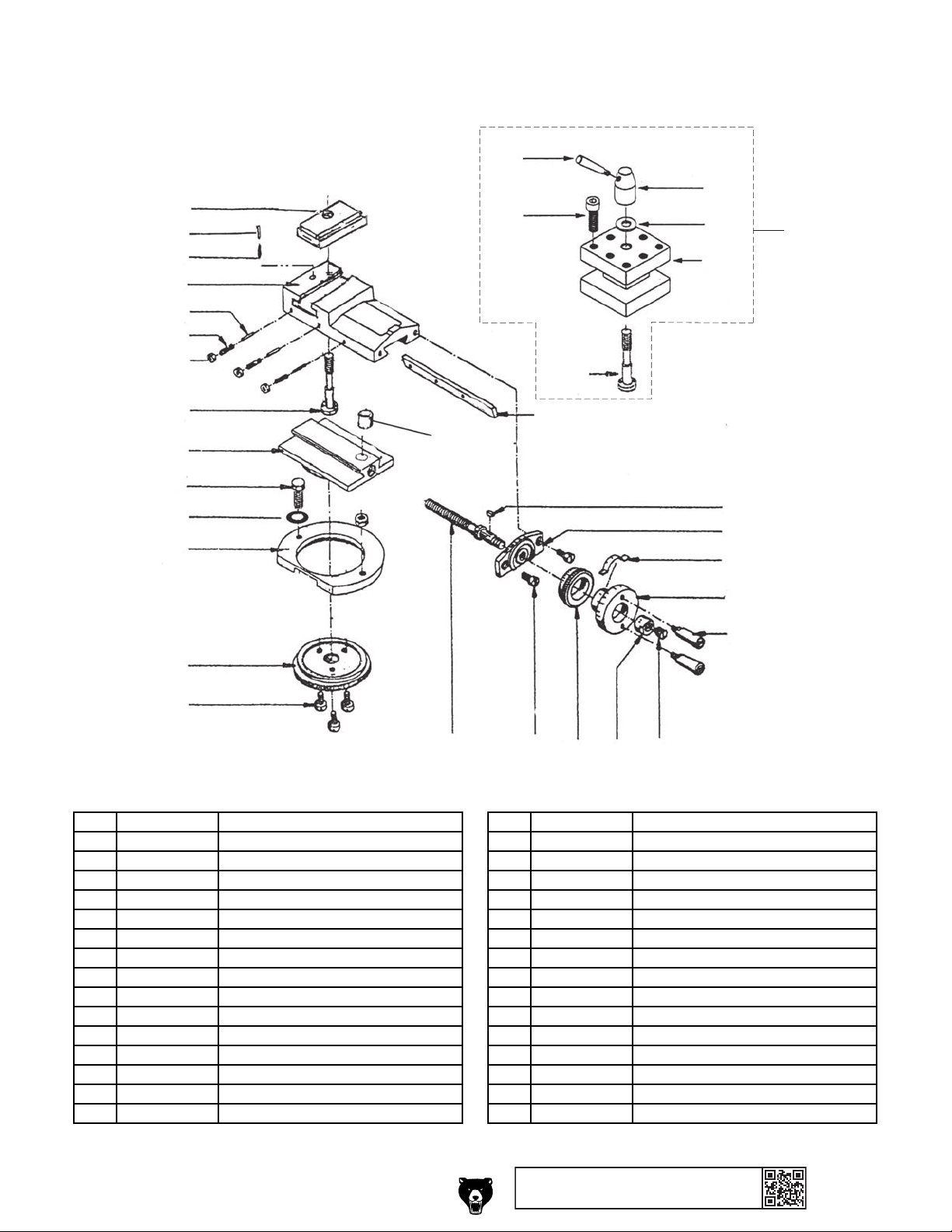

Tool Post & Compound Rest

218

219

212

208

221

220

220A

208

203

206

202

217

209

228

224

204

229

226

227

205

214

223

213

225

230

231

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 P0602201 COMPOUND REST 217 PB26M HEX BOLT M8-1.25 X 30 202 P0602202 SWIVEL BASE 218 P0602218 TOOL POST HANDLE 203 P0602203 COMPOUND REST GIB 219 P0602219 TOOL POST HANDLE HUB 204 P0602204 CLAMPING RING 220A P0602220A 4-WAY TOOL POST ASSEMBLY 205 P0602205 GRADUATED DIAL 220 P0602220 TOOL REST 206 P0602206 BARREL NUT 221 P0602221 HUB SPACER 207 P0602207 DOWEL PIN 222 P0602222 TOOL REST SLIDE PLATE 208 P0602208 TOOL POST BOLT 223 P0602223 COMPOUND REST LEADSCREW 209 PW01M FLAT WASHER 8MM 224 P0602224 LEADSCREW MOUNT 210 P0602210 DOWEL PIN 225 P0602225 GRADUATED DIAL 211 P0602211 COMPRESSION SPRING 226 P0602226 COMPOUND REST HANDWHEEL 212 PCAP13M CAP SCREW M8-1.25 X 30 227 P0602227 COMPOUND HANDWHEEL HANDLE 213 PCAP31M CAP SCREW M8-1.25 X 25 228 PK03M KEY 3 X 3 X 8 214 PCAP26M CAP SCREW M6-1 X 12 229 P0602229 POINTER 215 PSS34M SET SCREW M5-.8 X 16 230 P0602230 THREADED COLLAR 216 PN06M HEX NUT M5-.8 231 PSS17M SET SCREW M8-1.25 X 6

Model G0602/Z, G0752Z (Mfd. Since 05/24)

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

-77-

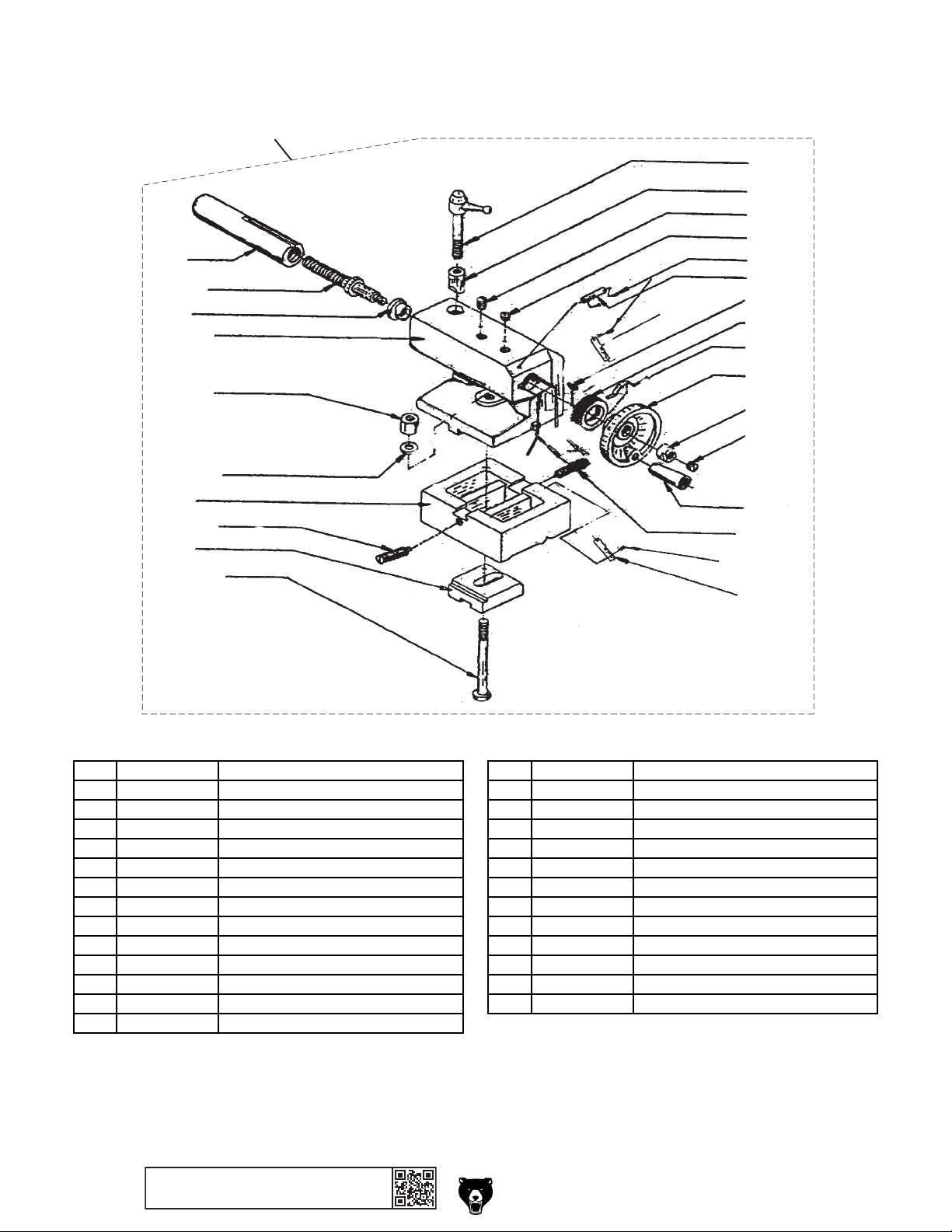

301

303

302

312

322

300

Tailstock

316

306

307 308 320

319

304

317

309

310

305

311

318

324

325

313

314

315

314

321

323

319

326

REF P ART # DE SCRIP TION REF PART # DES CRIPTI ON

300 P0602300 COMPLETE TAILSTOCK ASSY 314 P0602314 SET SCREW M8-1.25 X 25 301 P0602301 TAILSTOCK QUILL 315 P0602315 TAI LSTOCK HA NDWHEEL HANDL E 302 P0602302 TAILSTOCK LEADSCREW 316 P0602316 UPPER OFFSET PLATE 303 P0602303 B USHING 317 P0602317 KEY 3 X 3 X 10 304 P0602304 HANDWHEEL SCALE PLATE 318 P0602318 LOCK NUT M10-1.5 305 P0602305 TA I LSTO CK HANDWHEEL 319 P0602319 RIVET 2 X 5MM STEEL FLUTED 306 P0602306 LEVER BOLT M12-1.75 X 50 320 P0602320 BALL OILER 6MM 307 P0602307 BARREL NUT M12-1.75 321 P0602321 CLAMPING PLATE 308 P0602308 SET SCREW M6-1 X 12 322 P0602322 HEX NUT M12-1.75 309 P0602309 G RADUATED DI AL 323 P0602323 HEX BOLT M12-1.75 X 90 310 P0602310 TAILSTOCK HANDWHEEL POINTER 324 P0602324 FLAT WASHER 12MM 311 P0602311 HA NDWHEEL BUS HI NG 325 P0602325 SET SCREW M5-.8 X 6 312 P0602312 TAILSTOCK BODY 326 P0602326 LOWER OFFSET PLATE 313 P0602313 TAILSTOCK BASE

-78 -

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

411

410

401

402

403

412

Bed & Leadscrew

414

413

409

417

418

416

(G0602Z/G0752Z)

415

405

407

406

408

404

REF PART # DESCRIPTION REF PART # DESCRIPTION

401 P0602401 BED (G0602/G0752) 410 P0602410 STUD-SE M10-1.5 X 45, 35 401 P0602Z401 BED (G0602Z/G0752Z) 411 P0602411 HEX NUT M10-1.5 402 P0602402 RACK 412 P0602412 SET SCREW M8-1.25 X 40 403 P0602403 CAP SCREW M5-.8 X 12 413 P0602413 FLAT WASHER 8MM 404 P0602404 LONGITUDINAL LEADSCREW 414 P0602414 HEX NUT M8-1.25 405 P0602405 LEADSCREW END BRACKET 415 P0602415 CHIP PAN 406 P0602406 BALL OILER 6MM 416 P0602Z416 Z-AXIS SENSOR BRACKET 31 X 31 X 600 407 P0602407 CAP SCREW M6-1 X 20 417 P0602Z417 CAP SCREW M4-.7 X 10 408 P0602408 LOCK NUT M10-1.5 418 P0602Z418 FLAT WASHER 4MM 409 P0602409 BACK SPLASH

Model G0602/Z, G0752Z (Mfd. Since 05/24)

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

-79 -

506

503

501

Steady Rest & Follow Rest

504

505

502

511A

507

508

513

510 509

501A

514

512

516

511

515

517

REF PART # DESCRIPTION REF PART # DESCRIPTION

501A P0602501A STEADY REST ASSEMBLY 510 PN09M HEX NUT M12-1.75 501 P0602501 STEADY REST CASTING 511A P0602511A FOLLOW REST ASSEMBLY 502 P0602502 FINGER 511 P0602511 FOLLOW REST CASTING 503 P0602503 SHOULDER T-BOLT 512 P0602502 FINGER 504 PLW03M LOCK WASHER 6MM 513 P0602503 SHOULDER T-BOLT 505 PN01M HEX NUT M6-1 514 P0602506 ADJUSTING SCREW 506 P0602506 ADJUSTING SCREW 515 PN01M HEX NUT M6-1 507 P0602507 CLAMPING PLATE 516 PLW03M LOCK WASHER 6MM 508 PB125M HEX BOLT M12-1.75 X 65 517 PCAP40M CAP SCREW M8-1.25 X 35 509 PW06M FLAT WASHER 12MM 518 PW01M FLAT WASHER 8MM

-80-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

518

G0602/G0602Z Motor & Electrical

611V2-6

611V2

611V2-3

611V2-4

611V2-1

611V2-2

611V2-7

618

619

617V2

616

615

603

601

607

608

602

604

610

612

620

621

REF PART # DE SCRI PTI ON REF PART # DE SCRI PTION

601 P0602601 ELECTRICAL CABINET 611V2-6 P0602611V2-6 POWER CORD 14G 3W 60" 5-15P 602 P0602602 CAP SCREW M6-1 X 25 611V2-7 P0602611V2-7 MOTOR JUNCTION BOX 603 P0602603 LOCK WASHER 6MM 612 P0602612 FLAT WASHER 4MM 604 P0602604 ELECTRICAL CABINET COVER 615 P0602615 STRAIN RELIEF M20-1.5 607 P0602607 STRAIN RELIEF M18-1.5 ST 616 P0602616 STRAIN RELIEF NUT 608 P0602608 STRAIN RELIEF M24-1.5 ST 617V2 P0602617V2 CONTACTOR SIEMENS 3TH82 62E V2.01.21 610 P0602610 PHLP HD SCR M4-.7 X 6 618 P0602618 E-STOP BUTTON MINGER LA125H-BE102C 611V2 P0602611V2 MOTOR 1HP 110V 1-PH ALUM BDY V2.09.08 619 P0602619 ON PUSH BUTTON MINGER LA125H-BE101C 611V2-1 P0602611V2-1 MOTOR FAN V2.09.08 620 P0602620 ROTARY SWITCH CANSEN LW26-20 M09T/3 611V2-2 P0602611V2-2 MOTOR FAN COVER V2.09.08 621 P0602621 CONTROL PANEL (G0602) 611V2-3 P0602611V2-3 S CAPACITOR 150M 125V 1-5/16 X 2-3/4 621 P0602Z621 CONTROL PANEL (G0602Z) 611V2-4 P0602611V2-4 R CAPACITOR 20M 450V V2.09.08

Model G0602/Z, G0752Z (Mfd. Since 05/24)

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

-81-

G0752/G0752Z Motor & Electrical

619

611

630

611-6

633

KAI DYF08A

632

617V2

618

631

611-3

611-7

603

602

611-4

611-1

611-2

601V2

627

622

604V2

612

610

629

628V2

623

626

624

625

636

637

638

635

620V2

635-1

635-4

635-3

635-2

635-6

635-5

634

621

607

608

REF PART # DE SCRI P TI O N REF PART # DE SCRI P TI O N

601V2 P0752601V2 ELECTRICAL CABINET V2.10.18 624 P0752624 SPINDLE DIRECTION SWITCH LA125H-BE102C

602 P0752602 CAP SCREW M6-1 X 25 625 P0752625 CONTROL PANEL PLATE (G0752)

603 P0752603 LOCK WASHER 6MM 626 P0752626 OFF PUSH BUTTON MINGER LA125H-BE101C

604V2 P0752604V2 ELECTRICAL CABINET COVER V2.10.18 627 P0752627 RPM DISPLAY UNIT

607 P0752607 STRAIN RELIEF M18-1.5 ST 628V2 P0752628V2 POTENTIOMETER WXD3-13 V2.03.17

608 P0752608 STRAIN RELIEF M24-1.5 ST 629 P0752629 SPINDLE SPEED SENSOR

610 P0752610 PHLP HD SCR M4-.7 X 6 630 P0752630 RELAY OMRON MY2N-J 220V

611 P0752611 MOTOR 1HP 220V 3-PH 631 P0752631 FUSE 2A 250V

611-1 P0752611-1 MOTOR FAN 632 P0752632 FUSE HOLDER

611-2 P0752611-2 MOTOR FAN COVER 633 P0752633 TERMINAL POST MOUNTING BRACKET

611-3 P0752611-3 RIGHT MOTOR JUNCTION BOX COVER 634 P0752634 GROUNDING BAR

611-4 P0752611-4 LEFT MOTOR JUNCTION BOX COVER 635 P0752635 COOLING FAN ASSEMBLY

611-6 P0752611-6 POWER CORD 16G 3W 60" 5-15P 635-1 P0752635-1 FAN SHENZEN SF8025AT 110/120V 0.14A

611-7 P0752611-7 FAN MOTOR 635-2 P0752635-2 DUST COVER MOUNTING PLATE

617V2 P0752617V2 CONTACTOR SIEMENS 3TH82 62E V2.12.20 635-3 P0752635-3 DUST COVER MOUNTING PLATE

618 P0752618 TRANSFORMER BAEEC JBK5-63VA 635-4 P0752635-4 FAN HOUSING

619 P0752619 TERMINAL POST 635-5 P0752635-5 FLAT HD SCR M4-.7 X 6

620V2 P0752620V2 VFD DELTA VFD4A8MS11ANSAA V2.05.24 635-6 P0752635-6 PHLP HD SCR M4-.7 X 6

621 P0752621 VFD-E USER MANUAL 636 P0752636 DUST COVER MOUNTING PLATE

622 P0752622 E-STOP BUTTON MINGER LA125H-BE101C-102C 637 P0752637 DUST COVER

623 P0752623 ON PUSH BUTTON MINGER LA125H-BE102C 638 P0752638 FLAT HD SCR M4-.7 X 6

-82-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

708

REF PART # DESCRIPTION REF PART # DESCRIPTION

707

704

Change Gears

703

702

706

701

719

718

714

717

715

712

716

735

713

736

737

739

740

729 730 731

732

741

733 734

725

724

723

722

720

721

726

727

701 PSS01M SET SCREW M6-1 X 10 723 P0602723 GEAR 104T 702 P0602715 KEYED BUSHING 724 PW03M FLAT WASHER 6MM 703 P0602703 GEAR 60T PLASTIC 725 PCAP85M CAP SCREW M6-1 X 6 704 P0602704 GEAR 27T CAST-IRON 726 PLW04M LOCK WASHER 8MM 706 P0602706 GEAR SHAFT 727 PCAP12M CAP SCREW M8-1.25 X 40 707 PEC10M E-CLIP 9MM 729 P0602729 GEAR 36T 708 P0602708 BALL OILER 6MM 730 P0602730 GEAR 40T 711 P0602711 BRACKET 731 P0602731 GEAR 44T 712 P0602712 T-NUT 732 P0602732 GEAR 46T 713 P0602713 SPACER WASHER 733 P0602733 GEAR 48T 714 P0602714 GEAR SHAFT 734 P0602734 GEAR 52T 715 P0602715 KEYED BUSHING 735 P0602735 GEAR 45T 716 P0602716 GEAR 127T 736 P0602736 GEAR 56T 717 P0602717 GEAR 56T 737 P0602737 GEAR 60T 718 P0602718 GEAR SHAFT CLIP 738 P0602703 GEAR 60T PLASTIC 719 P0602708 BALL OILER 6MM 739 P0602739 GEAR 104T 720 P0602720 BUSHING 740 P0602740 GEAR 120T 721 PK97M KEY 4 X 4 X 14 741 P0602741 GEAR 127T 722 P0602722 SPACER RING

711

Model G0602/Z, G0752Z (Mfd. Since 05/24)

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

-83-

801

802

Gearbox

803

804

805

806

814

833

832

820

826

831

813

825

822

823

830

824

823

812

822

821

820

805

811

819

807

818

808

817

802

815

809

810

837

839

836

840

838

841

842

835

843

844

845

822

829

828

827

846

847

816

834

848

849

850

-84-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

Gearbox Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

801 P0602801 PLUG 826 P0602826 COLLAR 802 P0602802 O-RING 827 PK132M KEY 4 X 4 X10 803 P0602803 BUSHING 828 P0602828 GEAR SHAFT 804 P0602804 CLUSTER GEAR 30/36/33T 829 P0602829 GEAR 33T 805 PK133M KEY 4 X 4 X 50 830 P0602830 GEAR 30T 806 P0602806 GEAR SHAFT 831 P0602831 GEAR 35T 807 P0602807 BUSHING 832 P0602832 FLANGE 808 P0602808 CLUSTER GEAR 22/44/33T 833 PCAP01M CAP SCREW M6-1 X 16 809 P0602809 CLUSTER GEAR PLUG 834 P0602834 SHIFT FORK 810 PCAP50M CAP SCREW M5-.8 X 10 835 P0602835 FRONT GEARBOX COVER 811 P0602811 REAR GEARBOX COVER 836 PRP05M ROLL PIN 5 X 30 812 P0602812 FILL PLUG 3/8" NPT 837 P0602837 COMPRESSION SPRING 813 P0602813 GEAR BOX CASE 838 P0602838 SIGHT GLASS A16 814 P0602814 DRAIN PLUG 3/8" NPT 839 P0602839 POINTER DISC 815 P0602815 SHEAR PIN 5 X 20 840 PSS01M SET SCREW M6-1 X 10 816 P0602816 LEADSCREW CONNECTING COLLAR 841 PSTB004M STEEL BALL 5MM 817 P0602817 SHEAR PIN 5 X 20 842 P0602842 SHIFT HUB 818 PCAP26M CAP SCREW M6-1 X 12 843 PSS01M SET SCREW M6-1 X 10 819 P0602819 FLANGE 844 PCAP37M CAP SCREW M6-1 X 50 820 P6202-OPEN BALL BEARING 6202-OPEN 845 PCAP02M CAP SCREW M6-1 X 20 821 P0602821 GEAR 33T 846 P0602846 O-RING 1.8 X 6.7 822 PR05M EXT RETAINING RING 15MM 847 P0602847 SHAFT 823 PK65M KEY 4 X 4 X 8 848 PRP03M ROLL PIN 5 X 20 824 P0602824 GEAR SHAFT 22T 849 P0602849 SHIFT LEVER 825 P0602825 GEAR 44T 850 P0602850 SHIFT FORK

Model G0602/Z, G0752Z (Mfd. Since 05/24)

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

-85-

G0602/G0752 Unique Parts

919

928

936

REF P ART # DE SCRIPTIO N REF PART # DESCRIPTION

915

910

907

908

909

954

906

955

903

920

902A

921

922

923

904

905

918

924

925

926

934

935

912

911

917

938

937

901

929

927

930

939

901 P0602901 SADDLE 922 P0602922 SET SCREW M5-.8 X 16 902A P0602902A CROSS SLIDE W/O T-SLOTS V2.08.07 923 P0602923 HEX NUT M5-.8 903 P0602903 CROSS SLIDE GIB 924 P0602924 SADDLE TENSION BAR 904 P0602904 CROSS SLIDE LEADSCREW NUT 925 P0602925 FLAT WASHER 6MM 905 P0602905 CROSS SLIDE LEADSCREW 926 P0602926 CAP SCREW M6-1 X 16 906 P0602906 LEADSCREW BRACKET 927 P0602927 SADDLE CLAMP PLATE 907 P0602907 CAP SCREW M8-1.25 X 25 928 P0602928 SET SCREW M6-1 X 20 908 P0602908 INDICATOR PLATE 929 P0602929 HEX NUT M6-1 909 P0602909 RIVET 2 X 5MM NAMEPLATE, STEEL 930 P0602930 CAP SCREW M6-1 X 35 910 P0602910 GRADUATED DIAL 931 P0602931 V-WAY WIPER 911 P0602911 KEY 3 X 3 X 6 932 P0602932 V-WAY WIPER COVER 912 P0602912 SPRING PLATE 933 P0602933 PHLP HD SCR M4-.7 X 8 913 P0602913 CROSS SLIDE HANDWHEEL 934 P0602934 STRAIGHT WAY WIPER 914 P0602914 HANDWHEEL HEX NUT 935 P0602935 STRAIGHT WAY WIPER COVER 915 P0602915 SET SCREW M8-1.25 X 6 936 P0602936 BALL OILER 8MM 916 P0602916 CROSS SLIDE HANDWHEEL HANDLE 937 P0602937 CAP SCREW M8-1.25 X 35 917 P0602917 SLIDE BLOCK 938 P0602938 CAP SCREW M6-1 X 35 918 P0602918 CHIP GUARD 939 P0602939 HANDLE SCREW 919 P0602919 CAP SCREW M6-1 X 12 954 P0602954 FLAT WASHER 8MM 920 P0602920 SET SCREW M6-1 X 16 955 P0602955 THRUST BEARING P51100 921 P0602921 DOWEL PIN

916

914

913

933

931

932

-86-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

G0602Z/G0752Z Cross Slide & Carriage

966

959

960

961

919

920

902

921

922

923

915

910

907

908

909

903

906

939

916

914

913

912

911

905

965

904

in mm

934

inch

958

964

918

924

925

926

zero

957

956

967

963

954

962

935

933

958

954

938

917

936

Model G0602/Z, G0752Z (Mfd. Since 05/24)

937

901

929

927

928

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

930

931

932

955

957

953

956

-87-

G0602Z/G0752Z Cross Slide & Carriage

Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

901 P0602Z901 SADDLE 928 P0602Z928 SET SCREW M6-1 X 20 902 P0602Z902 CROSS SLIDE 929 P0602Z929 HEX NUT M6-1 903 P0602Z903 CROSS SLIDE GIB 930 P0602Z930 CAP SCREW M6-1 X 35 904 P0602Z904 CROSS SLIDE LEADSCREW NUT 931 P0602Z931 V-WAY WIPER 905 P0602Z905 CROSS SLIDE LEADSCREW 932 P0602Z932 V-WAY WIPER COVER 906 P0602Z906 LEADSCREW BRACKET 933 P0602Z933 PHLP HD SCR M4-.7 X 8 907 P0602Z907 CAP SCREW M8-1.25 X 25 934 P0602Z934 STRAIGHT WAY WIPER 908 P0602Z908 INDICATOR PLATE 935 P0602Z935 STRAIGHT WAY WIPER COVER 909 P0602Z909 RIVET 2 X 5MM STEEL FLUTED 936 P0602Z936 BALL OILER 8MM 910 P0602Z910 GRADUATED DIAL 937 P0602Z937 CAP SCREW M8-1.25 X 35 911 P0602Z911 KEY 3 X 3 X 6 938 P0602Z938 CAP SCREW M6-1 X 35 912 P0602Z912 SPRING PLATE 939 P0602Z939 HANDLE SCREW 913 P0602Z913 CROSS SLIDE HANDWHEEL 953 P0602Z953 X-AXIS SENSOR 914 P0602Z914 HANDWHEEL HEX NUT 954 P0602Z954 CAP SCREW M3-.5 X 16 915 P0602Z915 SET SCREW M8-1.25 X 6 955 P0602Z955 X-AXIS SENSOR MOUNTING PLATE 916 P0602Z916 CROSS SLIDE HANDWHEEL HANDLE 956 P0602Z956 CAP SCREW M4-.7 X 10 917 P0602Z917 SLIDE BLOCK 957 P0602Z957 FLAT WASHER 4MM 918 P0602Z918 CHIP GUARD 958 P0602Z958 PLASTIC SLEEVE 6 X 7 X 3D 919 P0602Z919 CAP SCREW M6-1 X 12 959 P0602Z959 X-AXIS SENSOR BRACKET 10 X 30 X 215 920 P0602Z920 SET SCREW M6-1 X 16 960 P0602Z960 FLAT WASHER 3MM 921 P0602Z921 DOWEL PIN 961 P0602Z961 CAP SCREW M3-.5 X 6 922 P0602Z922 SET SCREW M5-.8 X 16 962 P0602Z962 WIRE RETAINING RING 4MM 923 P0602Z923 HEX NUT M5-.8 963 P0602Z963 Z-AXIS SENSOR 924 P0602Z924 SADDLE TENSION BAR 964 P0602Z964 Z-AXIS SENSOR MOUNTING PLATE 925 P0602Z925 FLAT WASHER 6MM 965 P0602Z965 DIGITAL READOUT DISPLAY UNIT 926 P0602Z926 CAP SCREW M6-1 X 16 966 P0602Z966 DRO POWER CORD 2W 18G 72" 1-15P 927 P0602Z927 SADDLE CLAMP PLATE 967 P0602Z967 Z-AXIS SENSOR CONNECTING PLATE

-88-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

G0602/G0602Z Labels & Cosmetics

948

MODEL G0602Z

10" X 22" LATHE with DRO

Motor: 1 HP, 110V, 1-Ph, 60 Hz Full-Load Current Draw: 13.6A Swing Over Bed: 9-1/2" Swing Over Cross Slide: 6-1/8" Distance Between Centers: 22" Spindle Taper: MT#4 Spindle Bore: 1" Tailstock Taper: MT#3 Cross Slide Travel: 6-1/2" Compound Travel: 3-1/2" Leadscrew: 3/4" x 12 TPI Maximum Tool Bit Size: 1/2" Weight: 330 lbs.

WARNING!

Specifications

Date

S/N

To reduce risk of serious personal injury while using this machine:

1. Read and understand owner’s manual before starting.

2. Always wear approved safety glasses AND a face shield.

3. Only plug power cord into a grounded outlet.

4. Disconnect power before setting up, adjusting, or servicing.

5. Avoid getting entangled in rotating parts—tie back long hair, roll up sleeves, and DO NOT wear loose clothing, gloves, or jewelry.

6. Rotate workpiece by hand to ensure clearance before starting.

7. Test each new workpiece setup for safe rotation; start with slowest speed and stand to side of lathe until safe rotation verified.

8. Keep all guards and covers in place during operation.

9. Make sure lathe is properly set up before starting.

10. Change coolant regularly and avoid contact with skin.

11. Never leave chuck key in chuck.

12. Never touch rotating chuck or workpiece with hands.

13. Never leave lathe running unattended.

14. DO NOT reverse spindle rotation while spindle is moving.

15. Properly support long workpieces with an appropriate rest.

16. DO NOT operate when tired or under influence of drugs or alcohol.

17. DO NOT expose to rain or use in wet locations.

18. Prevent unauthorized use by children or untrained users; restrict access or disable machine when unattended.

Mfd. for Grizzly in China

REF PART # DESCRIPTION REF PART # DESCRIPTION

1001

(G0602Z)

941

940

947

855

CHECK OIL

LEVELS BEFORE USING!

REFER TO OWNER’S MANUAL FOR OIL TYPE AND

AMOUNT.

949

CHECK OIL

LEVELS BEFORE USING!

REFER TO

OWNER’S MANUAL

FOR OIL TYPE AND

AMOUNT.

951

946

66 P0602066 SAFETY GLASSES LABEL 948 P0602948 CARRIAGE FEED DAMAGE LABEL 855 P0602855 READ MANUAL LABEL 949 P0602949 GRI ZZL Y TOUCH-UP P AINT 940 P0602940 MACHINE ID LABEL (G0602) 950 P0602950 PUTTY TOUCH- UP PAI NT 941 P0602941 ENTANGLEMENT LABEL 951 P0602951 STOP OIL FILL TAG 946 P0602946 SHIFT NOTICE LABEL 1001 P0602Z1001 MACHINE ID LABEL (G0602Z) 947 P0602947 DISCONNECT POWER LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

Model G0602/Z, G0752Z (Mfd. Since 05/24)

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

950

-89-

G0752/G0752Z Labels & Cosmetic

952

MODEL G0752Z

10" x 22" VARIABLE-SPEED LATHE

Req. Power Supply: 110V, 15A, 60 Hz Full-Load Current Rating: 12A Motor: 1 HP, 220V, 3-Ph Distance Between Centers: 22" Swing Over Bed: 9-1/2" Swing Over Cross Slide: 6-1/8" Compound Travel: 3-1/2" Cross Slide Travel: 6-1/2" Spindle Type: Threaded, 1-3/4" x 8 TPI Spindle Bore: 1" Spindle Speed Range: 100–2000 RPM Spindle Taper: MT#4 Tailstock Taper: MT#3 Max. Tool Bit Size: 1/2" Weight: 330 lbs.

Specifications

Date

S/N

Mfd. for Grizzly in China

WARNING!

To reduce the risk of serious injury while using this machine:

1. Read and understand owner’s manual before starting.

2. Always wear approved safety glasses AND a face shield.

3. Only plug power cord into a grounded outlet.

4. Disconnect power before setting up, adjusting, or servicing.

5. Tie back long hair, roll up sleeves, and DO NOT wear loose clothing, gloves, or jewelry.

Rotate workpiece by hand to ensure clearance before starting.

7. Test each new workpiece setup for safe rotation; start with slowest speed and stand aside until safe rotation verified.

8. Keep all guards and covers in place during operation.

9. Make sure lathe is properly set up before starting.

10. Change coolant regularly and avoid contact with skin.

11. Never leave chuck key in chuck.

12. Never touch rotating chuck or workpiece with hands.

13. Never leave lathe running unattended.

14. DO NOT reverse spindle rotation while spindle is moving.

15. Properly support long workpieces with an appropriate rest.

16. DO NOT operate when tired or under influence of drugs or alcohol.

17. DO NOT expose to rain or use in wet locations.

18. Prevent unauthorized use by children or untrained users; restrict access or disable machine when unattended.

RPM L 100 M 160 H 250

RPM L 800 M 1300 H 2000

START

SPINDLE SPEED

STOP FWD REV

MOTOR

SPINDLE

G0752Z

To reduce risk of death or serious injury, read manual BEFORE using machine. To get a new manual, call (800) 523-4777 or go to www.grizzly.com.

WARNING!

Always wear ANSI-approved safety glasses and face shield when using this machine.

EYE/FACE INJURY

HAZARD!

REF PART # DESCRIP TION REF PART # DE SCRIP TION

1001

(G0752Z)

940

(G0752)

950

941

951

949

625

(G0752)

CHECK OIL

LEVELS BEFORE USING!

REFER TO OWNER’S MANUAL FOR OIL TYPE AND

AMOUNT.

946

947

CHECK OIL

LEVELS BEFORE USING!

REFER TO OWNER’S MANUAL FOR OIL TYPE AND

AMOUNT.

625 P0752625 CONTROL PANEL PLATE (G0752) 949 P0752949 SPINDLE SPEED HAZARD LABEL 940 P0752940 MACHI NE ID LABEL (G0752) 950 P0752950 PUTTY TOUCH-UP PA I NT 941 P0752941 ENTANGLEMENT LABEL 951 P0752951 G RI ZZLY G REEN TOUCH-UP PAI NT 946 P0752946 DISCONNECT POWER LABEL 952 P0752952 STOP OIL FILL TAG 947 P0752947 ENTANTANGLEMENT-GEARS LABEL 1001 P0752Z1001 MACHINE ID LABEL (G0752Z) 948 P0752948 I MPACT I NJURY HAZARD LAB EL 1004 P0752Z1004 CONTROL PANEL PLATE (G0752Z)

-90-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

948

Model G0602/Z, G0752/Z (Mfd. Since 05/24)

1004

(G0752Z)

machine

SECTION 10: APPENDIX

G0602/G0602Z Charts

Model G0602/Z, G0752Z (Mfd. Since 05/24)

-91-

G0752/G0752Z Charts

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,

negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty

and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.

In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and

any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will

then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of

the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

For further information about the

scan the QR

code below

to be automatically directed to our warranty page.

warranty, visit https://www.grizzly.com/forms/warranty or

WARRANTY

Grizzly G0602Z, G0602, G0752Z User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

Machine Description

Contact Info

Manual Accuracy

Model G0602/G0602Z Identification

Model G0752/G0752Z Identification

SECTION 1: SAFETY

Safety Instructions for Machinery

Additional Safety for Metal Lathes

Glossary of Terms

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Unpacking

Needed for Setup

Inventory

Cleanup

Site Considerations

Lifting & Placing

Leveling & Mounting

Assembly

Power Connection

Lubricating Lathe

Test Run

Spindle Break-In

SECTION 4: OPERATIONS

Operation Overview

Chuck Installation

Chuck Removal

Changing Jaw Set

4-Jaw Chuck

Faceplate

Tailstock

Centers

Steady Rest

Follow Rest

Compound Rest

Four-Way Tool Post

Manual Feed

Spindle Speed

Power Feed

Threading

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule

Cleaning/Protecting

Lubrication

Machine Storage

SECTION 7: SERVICE

Troubleshooting

Backlash Adjustment

Gib Adjustment

Half Nut Adjustment

SECTION 8: WIRING

Wiring Safety Instructions

G0602/G0602Z Wiring Diagram

G0602/G0602Z Electrical Components

G0752/G0752Z Wiring Box Diagram

G0752/G0752Z Wiring Box Components

G0752/G0752Z Control Panel Wiring Diagram

G0752/G0752Z Control Panel Components

G0752/G0752Z Motor Wiring Diagram

SECTION 9: PARTS

Spindle & Drive Belt

Apron

Tool Post & Compound Rest

Tailstock

Bed & Leadscrew

Steady Rest & Follow Rest

G0602/G0602Z Motor & Electrical

G0752/G0752Z Motor & Electrical

Change Gears

Gearbox

G0602Z/G0752Z Cross Slide & Carriage

SECTION 10: APPENDIX

G0602/G0602Z Charts

G0752/G0752Z Charts
