Step 1 – Vertical Cut

It is recommended that an auxiliary
fence be used to help support the work­piece during the routing process.

Adjust the router bit in the router table
until the center of the lock notch­es are roughly half the height of
your material off the surface of
the router table. Determine
which side of your material you
want on the inside and what you

want on the outside of your 90°
joint and place the inside surface against the fence. Adjust the
fence so the bit’s cutting height matches the thickness of the material
you are cutting. Use a length of scrap lumber to make a test cut.

Step 2 – Horizontal Cut

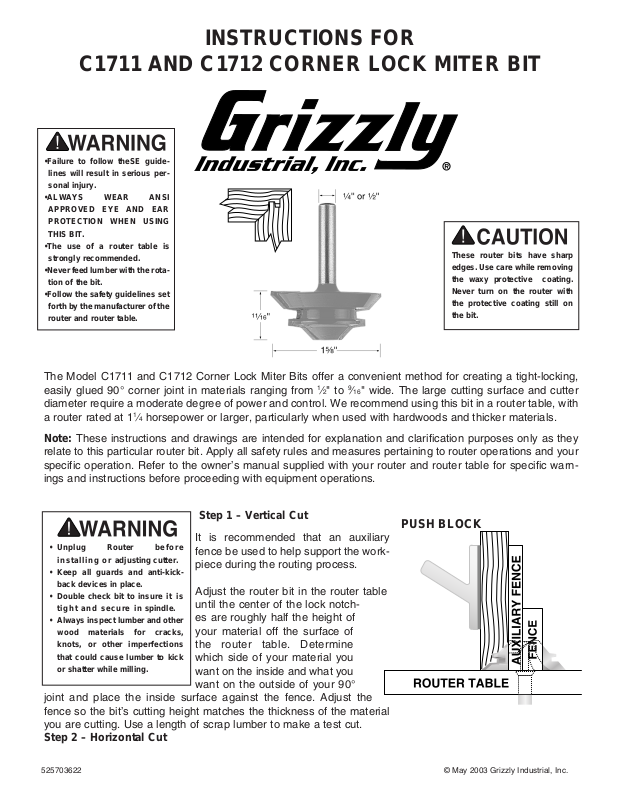

INSTRUCTIONS FOR

C1711 AND C1712 CORNER LOCK MITER BIT

The Model C1711 and C1712 Corner Lock Miter Bits offer a convenient method for creating a tight-locking,
easily glued 90° corner joint in materials ranging from

1

⁄2" to 9⁄16" wide. The large cutting surface and cutter
diameter require a moderate degree of power and control. We recommend using this bit in a router table, with
a router rated at 1

1

⁄4 horsepower or larger, particularly when used with hardwoods and thicker materials.

Note: These instructions and drawings are intended for explanation and clarification purposes only as they
relate to this particular router bit. Apply all safety rules and measures pertaining to router operations and your
specific operation. Refer to the owner’s manual supplied with your router and router table for specific warn­ings and instructions before proceeding with equipment operations.

© May 2003 Grizzly Industrial, Inc.525703622

These router bits have sharp
edges. Use care while removing
the waxy protective coating.
Never turn on the router with
the protective coating still on
the bit.

•Failure to follow theSE guide­lines will result in serious per­sonal injury.

•ALWAYS WEAR ANSI
APPROVED EYE AND EAR
PROTECTION WHEN USING
THIS BIT.

•The use of a router table is
strongly recommended.

•Never feed lumber with the rota­tion of the bit.

•Follow the safety guidelines set
forth by the manufacturer of the
router and router table.

• Unplug Router before
installing or adjusting cutter.

• Keep all guards and anti-kick­back devices in place.

• Double check bit to insure i t is
tight and secure in spindle.

• Always inspect lumber and other
wood materials for cracks,
knots, or other imperfections
that could cause lumber to kick
or shatter while milling.

PUSH BLOCK

Place another test board flat against the router table and make another test cut, as shown in the figure to the
right. Place the two cuts together and adjust bit height and fence location
until your test joints fit smoothly and precisely. Once you are satisfied with
your test results, make your cuts with your actual project materials.
