Designed to provide a convenient method for cutting
both stiles and rails with just one bit, the Model C1689­92 series bits with guide bearings offer an easy and inex­pensive alternative to deluxe two-piece stile and rail sets.
For best results, we recommend using these bit with
router tables and a router rated at 1-horsepower or larg­er. This bit is designed for use with 3⁄4" thick material.

Note: These instructions and drawings are intended for
explanation and clarification purposes only as they relate
to this particular router bit. Apply all safety rules and
measures pertaining to router operations and your spe­cific operation. Refer to the owner’s manual supplied
with your router and router table for specific warnings
and instructions before proceeding with equipment oper­ations.

Step 1: Cutting Stile and Rail Edges

Make sure the router is disconnected from the power source. Attach the
router and router bit to your router table and adjust the height of the bit
until the top of the cutting surface matches the top of your 3⁄4" stile. Adjust
the fence until it is flush with the groove depth. (The guide bearing is not
used when the bit is in a router table.The bearing can be used when you
are cutting non-linear shapes such as a curved arch door rail, however a
template made from at least 3⁄4" thick material must be made and attached
to the workpiece.) The workpiece must always be fed against the cutter
rotation and the full depth of profile should be made in one pass to ensure
a precise cut. Before plugging in the router, set the rail or stile on the table
finished face up. Lay the edge to be cut firmly against the fence. A hold­down device such as a featherboard should be used to keep the work­piece secured against the fence. Using a spare piece of material, make a
test cut to ensure that the complete profile is being cut. Adjust, if neces­sary, and re-test.

Run all of the stiles and rails for the project through the cutter before adjusting it to do the rail ends.

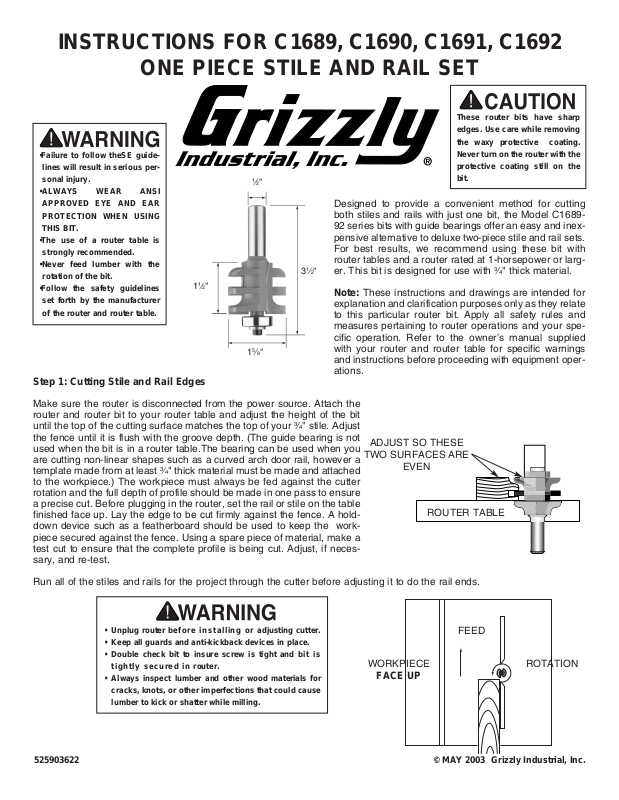

INSTRUCTIONS FOR C1689, C1690, C1691, C1692

ONE PIECE STILE AND RAIL SET

•Failure to follow theSE guide­lines will result in serious per­sonal injury.

•ALWAYS WEAR ANSI
APPROVED EYE AND EAR
PROTECTION WHEN USING
THIS BIT.

•The use of a router table is
strongly recommended.

•Never feed lumber with the
rotation of the bit.

•Follow the safety guidelines
set forth by the manufacturer
of the router and router table.

These router bits have sharp
edges. Use care while removing
the waxy protective coating.
Never turn on the router with the
protective coating still on the
bit.

WORKPIECE

FACE UP

FEED

ROTATION

ROUTER TABLE

ADJUST SO THESE

TWO SURFACES ARE

EVEN

525903622

© MAY 2003 Grizzly Industrial, Inc.

11⁄2"

15⁄8"

31⁄2"

1

⁄2"

• Unplug router before installing or adjusting cutter.

• Keep all guards and anti-kickback devices in place.

• Double check bit to insure screw is tight and bit i s
tightly secured in router.

• Always inspect lumber and other wood materials for
cracks, knots, or other imperfections that could cause
lumber to kick or shatter while milling.

Step 2: Cutting Rail Ends

Raise the router bit in the table until the top of the workpiece material is flush with the lower section of the cutter as shown
in

Figure B. The miter should be “faced” with a piece of stock so that the workpiece will be supported closely to the router

bit. Make sure to secure this stock with screws. Run a test piece which is the exact same thickness as your actual stile and
rail stock. Note: when cutting the rail ends, the workpiece should be face down on the router table. Test fit the rail and the
stile to see how the joint looks. If the pieces do not fit together tightly, or if the front and back surfaces do not fit flush, it may
be necessary to readjust. Make very small movements in the height of the router bit and test cut again.

When the fit is properly adjusted, position the rail against a backup piece with the miter gauge positioned as shown in Figure
A. The workpiece must always be fed against the cutter rotation and the full depth of profile should be made in one pass to
ensure a precise cut. Rotate the board end for end, maintaining the face-down position and cut the other end. A clamping
device may be necessary to keep the workpiece secured against the miter gauge.

The position of the profile on the workpiece and variance in material thickness will also affect alignment. It is therefore very
important that test material is milled to the same thickness as the finished material to ensure an accurate setup.

Figure A.

OTHER CONSIDERATIONS

Figure B

shows the typical style and rail, panel door components. For router bits to make raised panels, please see our lat­est catalog. Doors having more intricate designs such as arched, tombstone or curved panels should only be done when
you are confident of your ability. If your project requires curved pieces then freehand routing using the bearing and a tem­plate will be necessary. Remember that it is important to work with good
quality material and to insure that all pieces are machined the same
and that all ends and edges are cut square. Follow all recom­mended safety procedures and always test the setup using
sample pieces.

FEED

ROTATION

BACK-UP

PIECE

WORKPIECE

FACE DOWN

ROUTER TABLE

FENCE

525903622

© MAY 2003 Grizzly Industrial, Inc.

ADJUST SO THESE

TWO SURFACES ARE

EVEN
