Page 1
1
OPERATOR’S MANUAL
AND PARTS LIST
MODEL GRTPN600 PALM NAILER
Distributed By
www.grip-rite.com
Tough as nails
Page 2
32
TABLE OF CONTENTS
TABLE OF CONTENTS -------------------------------- 2
SPECIFICATIONS --------------------------------------- 3
SAFETY ---------------------------------------------------- 4
TOOL PARTS --------------------------------------------- 6
PARTS DESCRIPTION--------------------------------- 7
LOADING NAILS ----------------------------------------- 8
OPERATION----------------------------------------------- 9
PARTS SCHEMATIC---------------------------------- 10
PARTS LIST ---------------------------------------------- 11
MAINTENANCE ---------------------------------------- 12
TROUBLESHOOTING ------------------------------- 13
WARRANTY --------------------------------------------- 14
SPECIFICATIONS
SPECIFICATIONS
MODEL GRTPN600
FASTENER LENGTH 2’ - 6” (51 MM - 153 MM)
FASTENER HEAD DIA. 7/16” (11 mm)
NAIL TYPE Hand Driven
MAX AIR PRESSURE 120 psi (8 bars)
MIN AIR PRESSURE 60 psi (4 bars)
TOOL WEIGHT 3.3 lbs. (1.5 kg)
TOOL LENGTH 5.3” (134.6 mm)
TOOL HEIGHT 5.25” (133.3 mm)
TOOL WIDTH 3.25” (82.5 mm)
TRIGGER TYPE AUTO
AIR CONNECTION QUICK CONNECT
LUBRICATION 10W Air Tool Oil (Provided)
IMPORTANT SAFETY INFORMATION
You must read this entire manual and familiarize yourself with all
safety, operating, and service instructions before loading, handling,
or using your tool. When used correctly, pneumatic fastening tools
provide a lightweight, powerful, and safe means of fastening. Used
improperly, these tools can cause serious injury to you and those
around you.
Page 3
54
SAFETY
SAFETY
SAFETY INSTRUCTIONS
WEAR SAFETY GLASSES
Always wear safety glasses with side shields that meet ANSI
Z87.1 requirements when operating the tool. Make sure all
others in work area wear safety glasses.
WEAR HEARING PROTECTION
Wear hearing protection to protect your hearing from noise.
Prolonged exposure to loud noise can result in hearing loss.
NEVER OPERATE THE TOOL WITH OXYGEN OR OTHER
BOTTLED GASES
Oxygen and other reactive or high-pressure bottled gases
can cause the tool to explode. Use clean, dry regulated
compressed air from a properly operating air compressor.
DO NOT EXCEED MAXIMUM RECOMMENDED OPERATING AIR
PRESSURE OF 120 PSI /8 Bar.
Exceeding the maximum recommended air pressure can
cause the tool housing to burst, or cause premature failure of
components.
NEVER CONNECT THE TOOL TO AN AIR SUPPLY THAT HAS
THE POTENTIAL TO EXCEED 180 PSI/12.4 Bar.
Using a regulated air supply with a line or tank pressure
greater than 180 psi can cause the tool to burst if the air line
regulator fails suddenly.
USE AN AIR HOSE RATED FOR 180 PSI/12.4 Bar OR
GREATER
Always use air hose rated to handle 180 psi or the maximum
potential pressure of the air supply.
DO NOT ATTEMPT TO OPERATE THE TOOL IF THE TOOL’S
OPERATING CONTROLS HAVE BEEN MODIFIED OR ARE NOT
WORKING PROPERLY.
Attempting to use a tool with modified or malfunctioning
trigger or workpiece contact can result in a fastener being
driven unintentionally.
USE CORRECT FASTENERS
Only use the correct fastener for the tool. Using fasteners
with incorrect specifications can jam the tool or cause
serious injuries.
120 psi
4 bar
60 psi
8 bar
USE THE CORRECT FASTENERS FOR THE APPLICATION.
Using the wrong fasteners can cause the workpiece to split and allow the
fastener to fly free.
DO NOT DEPRESS TOOL NOSE WHEN LOADING FASTENERS
Depressing the tool nose during loading can result in tool actuation and an
unintentional fastener drive
AVOID DRIVING FASTENERS INTO KNOTS, ON TOP OF OTHER FASTENERS, AT
WORKPIECE EDGES, OR INTO BRITTLE MATERIALS.
Driving fasteners into extremely hard materials, or driving into workpiece
edges, can cause fasteners to deflect away from the workpiece. Flying
fasteners can cause serious injuries.
KEEP HANDS AND BODY PARTS AWAY FROM AREA BEING FASTENED.
Fasteners can deflect and turn as they are being driven into the workpiece, and
penetrate fingers, hands, and other body parts that may be in the fastening
area.
DO NOT OVERREACH OR WORK WHILE ON UNSTABLE FOOTING
If you lose your balance while fastening, you could drive a fastener into yourself
or a bystander.
DO NOT USE TOOL IF TOOL MALFUNCTIONS OR BEGINS LEAKING AIR.
Operating a malfunctioning tool can result in an injury to yourself or others.
DISCONNECT THE TOOL FROM THE AIR SUPPLY TO PERFORM MAINTENANCE.
Never attempt to reload a tool, clear a jam, or perform maintenance without
first disconnecting the air supply.
NEVER LEAVE A PRESSURIZED TOOL
UNATTENDED
A pressurized tool could be picked up or handled by someone who is unfamiliar with the tool or that has not read the tool manual.
KEEP TOOLS OUT OF THE REACH OF CHILDREN
Place the tool back in the tool box after use, and store the tool out of reach.
DO NOT MODIFY TOOL
Modifications can cause a tool to be unsafe and can cause the tool to operate
improperly.
SAFETY INSTRUCTIONS
Page 4
76
DESCRIPTION

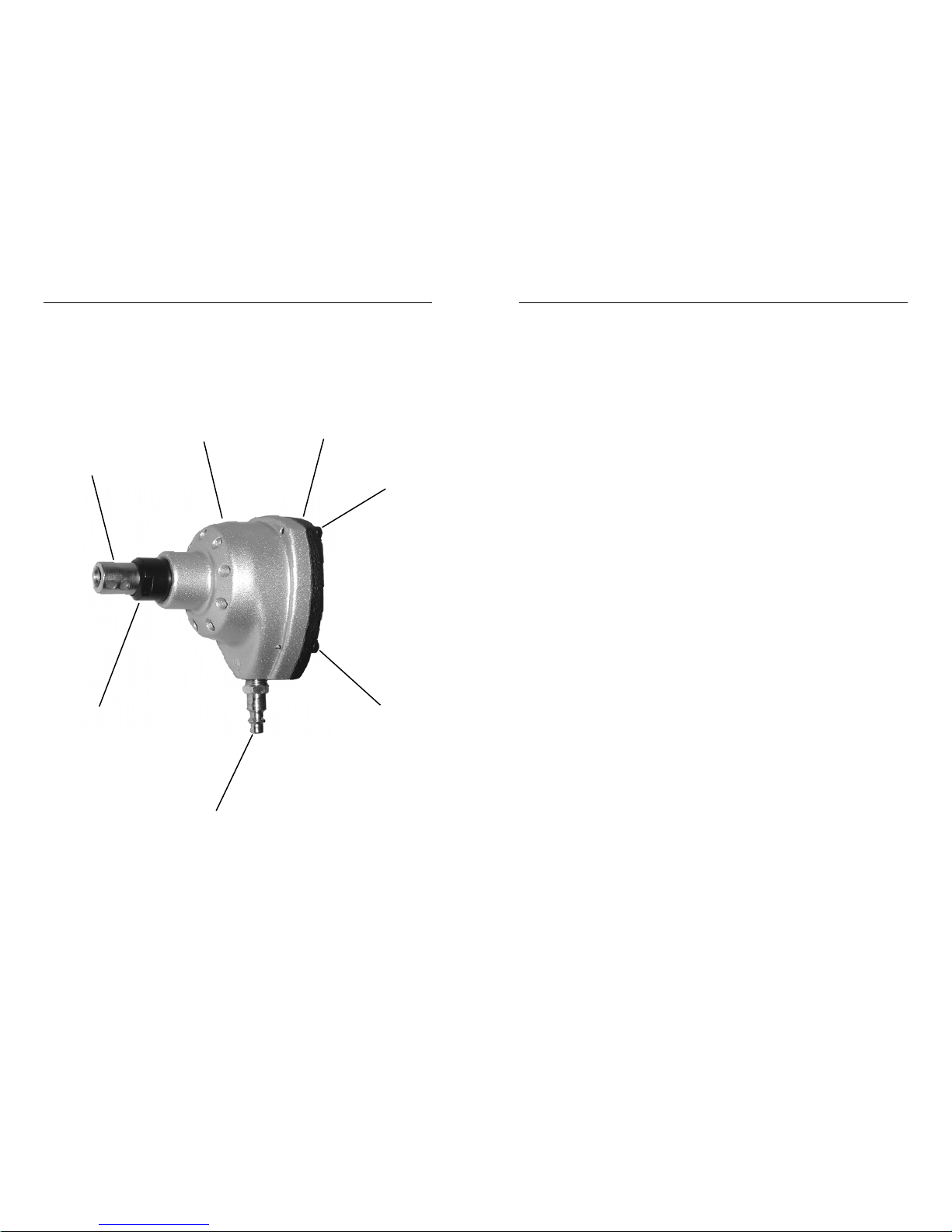

TOOL PARTS
PART DESCRIPTIONS
1. Nail Guide - Narrow profile design permits accurate nail placement.
2. Tool Body - Contains nail driver parts and acts as a handgrip.
3. Tool Cap - Covers nail driver assembly.
4. Cap Screw - Secures cap to tool body
5. Air Coupling - Quick-disconnect male coupling allows quick
connection to air hose.
6. Guide Box - Secures Nail Guide.
Comfort Glove - Provides a comfortable, secure grip for prolonged
use and greater productivity.
Metric Hex Wrench - Included with tool to allow tightening of metric
screws. Keep tools in tool case for periodic tightening of screws.
Air Tool Oil - Lightweight oil formulated for use in air tools provides
proper lubrication to o-rings and internal parts.
DESCRIPTION
1
2
4
3
5
6
4
Page 5
98
OPERATIONOPERATION

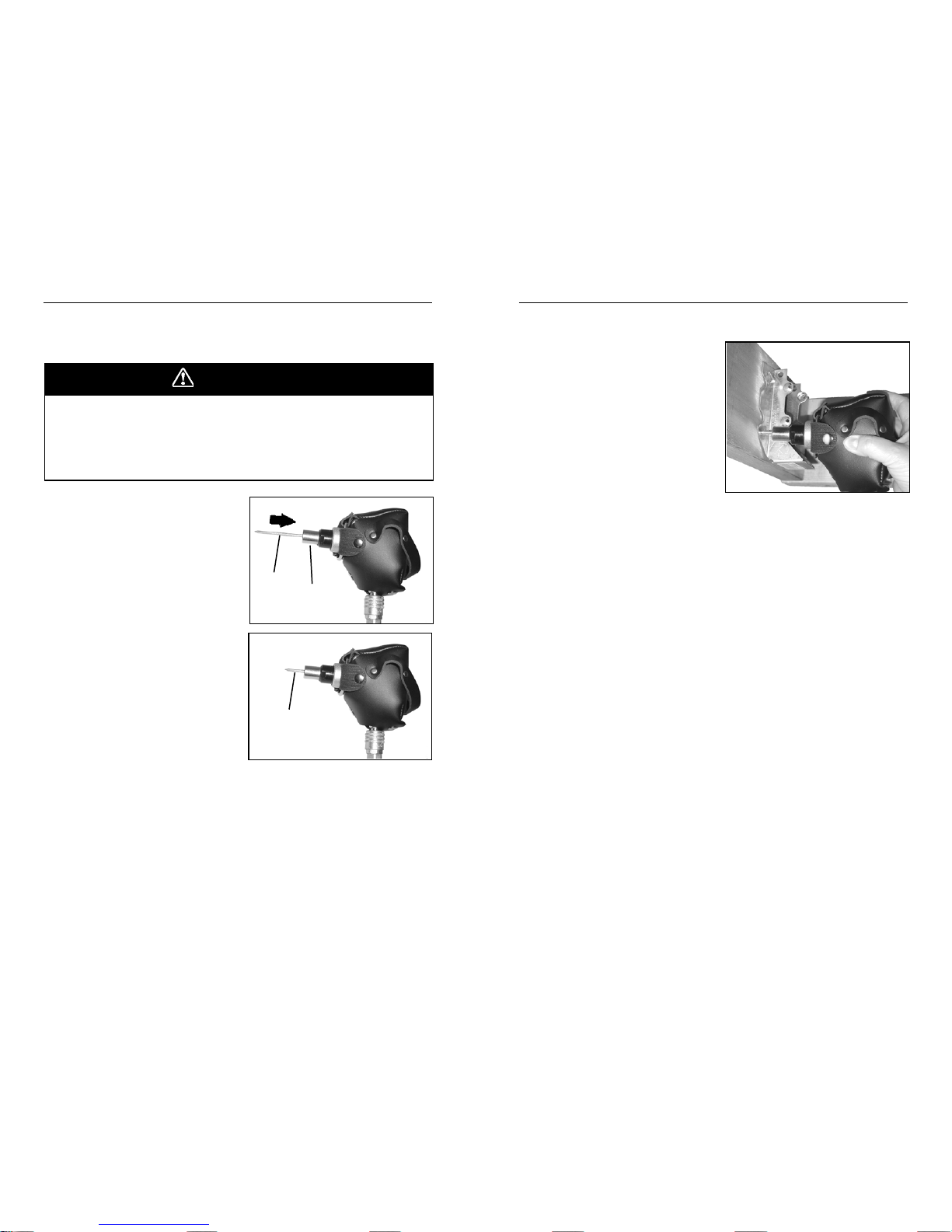

LOADING FASTENERS
LOADING INSTRUCTIONS
The model GRTPN Palm Nailer is automatically actuated when the nail
in the nose is pressed against the work surface. The nailer continues to
deliver multiple hammer blows until the nail is fully driven, or tool is lifted
off work surface. Never press tool nose down unless it has been
properly positioned to drive a nail into a safe work surface.
WARNING
1. Connect tool to air supply
using quick-connect coupling.
2. Insert nail (A) into guide (B),
head first. DO NOT press nail
into guide forcefullly, or nailer
may begin operating. Magnetic holder helps keep nail in
place while positioning nailer
for driving.
3. Tool is now loaded and ready
to drive the nail into the desired
work surface.
A
B
A
1. Hold the tool securely using
the housing as a handgrip. Do
not depress tool nose until tool
is in driving position and you
are ready to drive a nail.
2. Position the nail on the
workpiece, placing the nail
point in driving position at the
desired driving location.
IMPORTANT - If nail is being
driven to secure a joist hanger
or other metal connector, make
sure nail point is centered in
punched hole in connector.
OPERATION
3. Press the tool firmly to begin driving the nail, and continue pushing
until the nail is fully driven. Use firm, steady pressure.
4. After the nail is fully driven, lift the tool off of the work surface.
5. Reload the nailer, and place the tool in position for the next nail to be
driven.
6. Repeat steps 1 through 5 until all desired nails have been driven.
7. Use Grip-Rite™ nails for best results.
8. Increase air pressure to drive into harder materials. Reduce air
pressure to drive into softer materials. For longest tool and part life,
always use the lowest air pressure necessary to drive fasteners.
9. Disconnect tool from air supply when nailing is completed.
Page 6
1110
GRTPN400 PARTS LIST

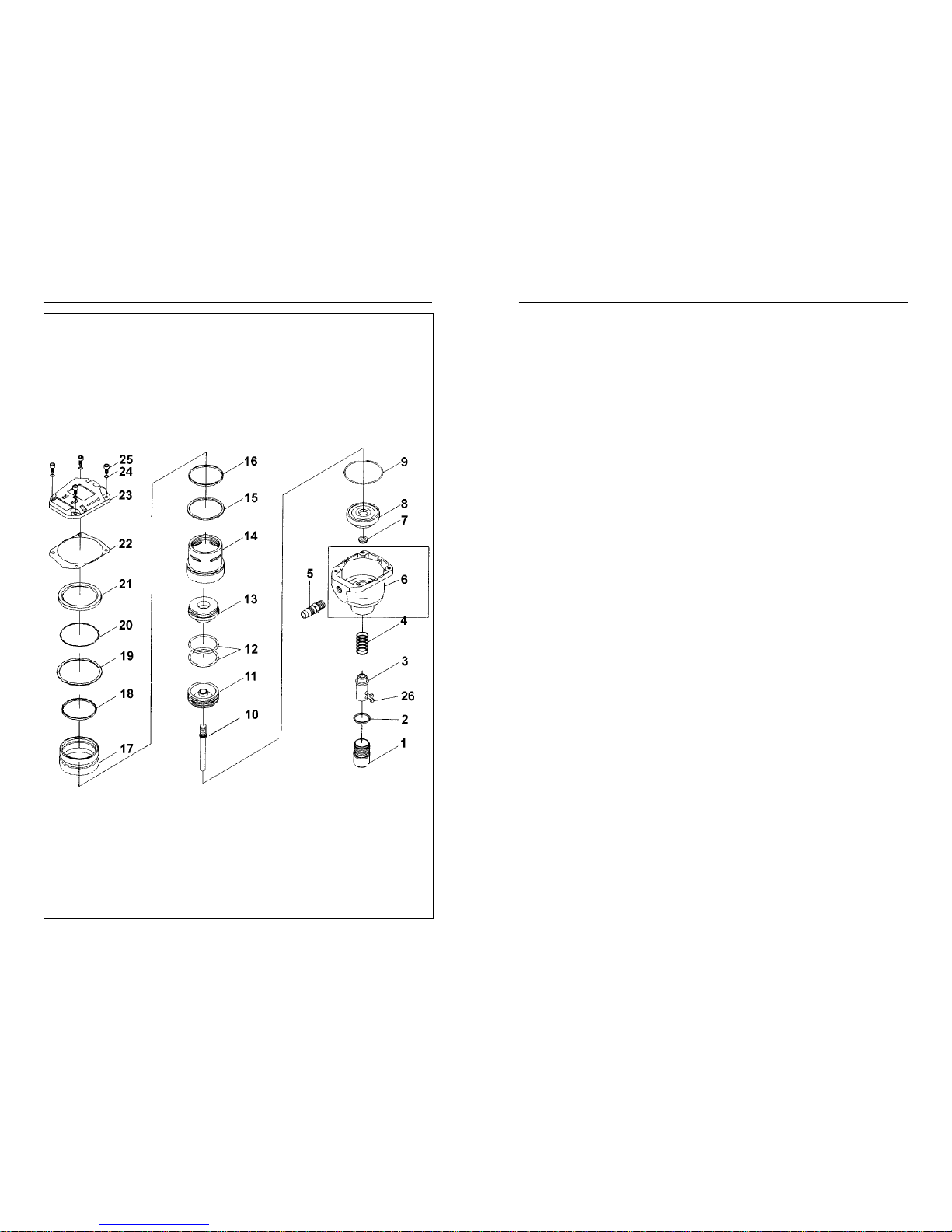

GRTPN400 PARTS SCHEMATIC
Item# Part # Description Q’ty
1 GRTN3470 Guide Box 1
2 GRTN3480 PU Seal 1
3 GRTN3490 Guide Bushing 1
4 GRTN3500 Spring 1
5 GRTN3510 Plug 1
6 GRTN3520 Gun Body 1
7 GRTN3530 Gasket 1
8 GRTN3540 Bumper 1
9 GRTN3550 O-Ring 1
10 GRTN3560 Driver 1
11 GRTN3570 Piston 1
12 GRTN3580 O-Ring 2
13 GRTN3590 Head Valve Piston 1
14 GRTN3600 Cylinder 1
15 GRTN3610 PU Seal 1
16 GRTN3620 O-Ring 1
17 GRTN3630 Valve 1
18 GRTN3640 O-Ring 1
19 GRTN3650 Valve Packing 1
20 GRTN3660 O-Ring 1
21 GRTN3670 PU Seal 1
22 GRTN3680 Gasket 1
23 GRTN3690 Cap 1
24 GRTN3700 Spring Washer 4
25 GRTN3710 Hex.Soc.Hd.Bolt 4
26 GRTN3720 Magnet 2
27 GRTN3730 Comfort Glove 1
Special Kits
A GRDAK1000 Driver Assembly Kit 1set
B GRRBK1000 Rebuild Kit 1set
C GRTPN600MAN Operators Manual 1
Page 7
1312
TROUBLESHOOTINGMAINTENANCE
MAINTENANCE
Your tool will last longer and perform better if periodic maintenance is
performed. Please use the information below to keep your tool operating in
top condition.
Lubrication
Disconnect tool from the air supply. Apply three drops of air tool oil
(provided) in the air inlet before each use, and after every 1000 fasteners
driven. If the tool will be used outside in the winter, use a winter grade air
tool oil to help keep frost from forming inside the tool. Do not use other
types of lubricants on this tool, as other lubricants may contain chemicals
harmful to o-rings and other tool components.
Cleaning
Disconnect tool from the air supply. Brush tool off using a parts cleaning
brush or clean rag.
Daily Inspection
• Check for broken, damaged, or excessively worn parts, and repair
or replace as needed.
• Check for air leaks at cap, and nose. Disconnect tool from air
supply immediately if leaks are present, and see dealer for service.
• Make sure all screws are tightened securely.
Always disconnect tool from air supply before performing any service on
tool. Correcting a problem while the tool is pressurized may result in
injury from nail drive or tool operation.
DANGER
Your pneumatic fastening tool has been designed for long life and troublefree operation. However, if operating problems arise, please use the
troubleshooting information below to determine how to remedy the problem.
FASTENER DRIVING PROBLEMS
Fasteners do not drive
completely.
Increase air pressure. Do not exceed 120
psi. Add 2 - 3 drops of air tool oil to inlet.
PROBLEM CORRECTIVE ACTION
Fasteners do not drive
completely after air
pressure is increased.
Driver blade worn or broken. See dealer for
replacement.
Tool leaks air. Check for source of leak, and tighten fittings
and screws as required. Discontinue using
tool if air leaks after tightening. Contact your
dealer.
TOOL TROUBLESHOOTING
Always disconnect tool from air supply before performing any service on
tool. Correcting a problem while the tool is pressurized may result in
injury from nail drive or tool operation.
DANGER
Page 8
1514
WARRANTYWARRANTY
PNEUMATIC TOOL/COMPRESSOR WARRANTY
Pneumatic nailers, staplers & compressors marketed under the
GRIP RITETM brand are warranted to be free from defects in work-
manship & materials (except rubber o-rings, bumpers, seals, driver
blades, dipsticks, & air filters) for a period of one year from the date
of original purchase.
This warranty will not apply when:
• The original receipt (or copy of the original receipt), showing the
original purchase date, is not provided with tools/compressors sent
in for warranty repair
• The tool/compressor has been misused, abused or improperly
maintained
• Alterations have been made to the original tool/compressor
• Repairs have been attempted/made to the original tool/compressor
by any entity other than a proprietary PRIMESOURCE® service/
warranty center or authorized service/warranty center
• Non- GRIP-RITE TOOLS
TM
/ GRIP-RITE COMPRESSORS
TM /
parts
have been used
• The tool has suffered any physical damage due to the use of nonPRIMESOURCE® approved fasteners*
• Repairs are required due to normal wear & tear
• The tool/compressor has been inadequately packaged leading to
damage in-transit to the service/warranty center.
*Approved fasteners include the following brands GRIP-RITE
FAS’NERSTM, FAS’NERS UNLIMITED
TM
IN NO EVENT SHALL PRIMESOURCE® BE LIABLE FOR ANY INDIRECT,
ACCIDENTAL OR CONSEQUENTIAL DAMAGE FROM THE SALE OR
USE OF THESE PRODUCTS. THIS DISCLAIMER APPLIES BOTH
DURING & AFTER THE TERM OF WARRANTY.
THIS IS OUR WARRANTY & IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(EXCEPT AS MAY BE OTHERWISE PROVIDED BY LAW).
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY, FROM STATE TO
STATE.
PNEUMATIC TOOL/COMPRESSOR SERVICE INFORMATION
Should any mechanical problems develop during the life of your
equipment the following options are available for service and parts:
• Call (800) 676-7777 where you will be routed to the nearest
PRIMESOURCE® distribution center and directed to the nearest
authorized service/warranty center.
• Logging on to our website at www.primesourcebp.com where
you will find a list of our authorized service centers.
• Contact the PRIMESOURCE® Factory Warranty Center directly
at Phone: (800) 207-9259 or Fax: (800) 207-9614
STEPS TO TAKE WHEN SHIPPING TOOLS
• Adequately package the product to avoid damage in-transit (in
the case of pneumatic tools, the original blow mold plastic
carrying case is considered adequate packaging).
• Provide the original/copy of receipt showing the original purchase
date.
• Insure your shipment with the shipping company.
PRIMESOURCE® will not be responsible for any tool/compressor
that is lost or damaged by the shipper on route to the
PRIMESOURCE® service/warranty center.
Page 9
16
USE GENUINE GRIP-RITE®
FASTENERS FOR BEST
PERFORMANCE
www.grip-rite.com
GRTPN6000MAN
Loading...
